M28A
19*4in1 15w zoom beam
User manual
Pleasereadt
he
instructionsca
refully before use
2
TABLE OF CONTENTS
1.Saf
etyInstructions
..................................................................................................... 2
2. Technical Specifications
...........................................................................................4
3. How To Control The Unit
.......................................................................................5
4. shape
........................................................................................................................ 11
5. Trouble shooting
......................................................................................................13
6. Fixture Cleaning
...................................................................................................... 14
statement
The product has well capability and intact packing when leave
factory. All of the user should comply with warning item and manual, any
misuse cause of the damages are not included in our guarantee, and
also can not be responsible for any malfunction & problem owing to
ignore the manual.
1.Saf
etyInstructions
Please keep this User Guide for future consultation. If you sell the unit to another
user, be sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using
the unit.
Before operating, ensure that the voltage and frequency of power
supply match the power requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order
to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at
least 50cm from adjacent surfaces. Be sure that no ventilation slots are
3
blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as
it is fire hazard.
Use safety cable when fixes this unit. DO NOT handle the unit by taking its head
only, but always by taking its base.
Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the
temperature is higher than this Unit surface temperature may reach up to 85℃.
DO NOT touch the housing bare-hand during its operation. Turn off the power
and allow about 15 minutes for the unit to cool down before replacing or serving.
In the event of serious operating problem, stop using the unit
immediately.Never try to repair the unit by yourself. Repairs carried out by
unskilled people can lead to damage or malfunction. Please contact the
nearest authorized technical assistance center. Always use the same type
spare parts.
DO NOT touch any wire during operation as high voltage might be causing
electric shock.
Warning:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to
rain or moisture.
DO NOT open the unit within five minutes after switching off.
The housing, the lenses, or the ultraviolet filter must be replaced
if they are visibly damaged.
Caution:
There are no user serviceable parts inside the unit. DO NOT open the housing
or attempt any repairs yourself. In the unlikely event your unit may require
service, please contact your nearest dealer.
4
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that
the unit is firmly fixed to avoid vibration and slipping while operating.
And make sure that the structure to which you are attaching the unit is secure
and is able to support a weight of 10 times of the unit’s weight. Also always use a
safety cable that can hold 12 times of the weight of the unit when installing the
fixture.
The equipment must be fixed by professionals. And it must be fixed at a place
where is out of the touch of people.
2. Technical Specifications
Light Sources: 19 x 15W 4in1 OSRAM RGBW LED
Beam Angle: 7°~ 60°
Power Consumption: 300W
Power Voltage: AC 100-240V, 50/60Hz
Dimension: 33*23*37 cm
Packing Dimension: 410x330x490mm
Net Weight: 10Kgs
Gross Weight: 12Kgs
Control
DMX Channel: 20/28 Channel
Control Modes: DMX,
Software Upgrade: Firmware update via DMX link
Pan/Tilt
Pan/Tilt: 540°/ 270°
Pan/Tilt Resolution: 16 bit
Construction
Display: LCD Display
Data In/Out socket: 3-pin & 5-pin XLR sockets
Power Socket: Powercon in/out
Protection Rating: IP20
5
Features
Motorized liner zoom system, zoom range: 7°~60°
Outstanding color macro effect
Dimmer: 0~100% smooth dimming
Variable strobe effects
Fast, quiet operation and flicker free
3. How To Control The Unit
TheDMX512 iswid
ely
usedinintellig
ent
lightingcontrol,with a DMX 512
controller.connect several lights together,dmx in and dmx out,
3pin
XLRconn
ectors:Pin1:G
ND,Pin
2:
Nega
tivesignal(-),
Pin3:Pos
itivesi
gna
l
(+)
Display:
MENU To select the programming functions
DOWN To go backward in the selected functions
uP To go forward in the selected functions
ENTER To confirm the selected functions
Set DMX
Address Code
6
1 Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter into
2 Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"
keys to amended
3 Press "ENTER"keys to save and Exit,Press the"MENU"Keys does not save and
Exit
function
Address
CH Valu e
Set to Slave
Auto program
Music control
Address001~XXX
PAN……
Slave
Master-Auto / Alone-Auto
Master-Music / Alone-Music
Change address
Show each channel value
Slave receive position
select
auto run mode
Sound auto run
info
Temp Inf
Head
Temperature
XXX℃/℉
current tempreture
Soft Inf
V2.4.1……
software version
Person
Status
Pan Rev
Tilt Rev
P-Degree
M Speed
Mic Sens
ON/OFF
ON/OFF
540/360
Speed 1~ 2
0~99%
Pan scan opposition
title scan opposition
scan angle select
scan mode select
mic sensitivity
Temp C/F
C/F switch
Temp unit switch
Reset Default
ON/OFF
Re-load all delivery
parameter
Reset
Reset All
Reset the light
Adjust
CaliT CH
Password
PAN
TILT
Password=XXX
PAN=XXX
TILT
channels’ data calibrate
code :050
PAN channel data
calibrate
TILT channel data
calibrate
mode set
Standard
Zone
Standard Channel mode
Zone channel mode
7
DMX channel´s functions and values (20/28 DMX channels):
Mode/Channel
Value
Function
Standard
Zone
1
1
PAN Movement 8bit :
0-255
Pan Movement
2
2
Pan Fine 16bit
0-255
Fine control of Pan movement
3
3
TILT Movement 8bit :
0-255
Tilt Movement
4
4
Tilt Fine 16bit
0-255
Fine control of Tilt movement
5
5
Speed Pan/Tilt movement:
0-225
max to min speed
226-255
no function
6
6
STROBE
0-255
Strobe from slow to fast
7
7
Dimmer intensity:
0-255
Intensity 0 to 100%
8
8
Dimmier mode
0-49
Dimmer mode 1
50-99
Dimmer mode 2
100-149
Dimmer mode 3
150-255
Dimmer mode 4
9
9
Zoom :
0-255
Zoom adjustment
10
Red LED -all arrays :
0-255
Red ( 0-Black , 255-100% Red )
11
Green LED-all arrays :
0-255
Green ( 0-Black , 255-100% Green )
8
12
Blue LED -all arrays :
0-255
Blue ( 0-Black , 255-100% Blue )
13
White LED -all arrays :
0-255
White ( 0-Black , 255-100% White )
10
Red LED -array 1 :
0-255
Red ( 0-Black , 255-100% Red )
11
Green LED-array 1 :
0-255
Green ( 0-Black , 255-100% Green )
12
Blue LED -array 1 :
0-255
Blue ( 0-Black , 255-100% Blue )
13
White LED -array 1 :
0-255
White ( 0-Black , 255-100% White )
14
Red LED -array 2 :
0-255
Red ( 0-Black , 255-100% Red )
15
Green LED-array 2 :
0-255
Green ( 0-Black , 255-100% Green )
16
Blue LED -array 2 :
0-255
Blue ( 0-Black , 255-100% Blue )
17
White LED -array 2 :
0-255
White ( 0-Black , 255-100% White )
18
Red LED -array 3 :
0-255
Red ( 0-Black , 255-100% Red )
19
Green LED-array 3 :
0-255
Green ( 0-Black , 255-100% Green )
20
Blue LED -array 3 :
0-255
Blue ( 0-Black , 255-100% Blue )
21
White LED -array 3:
0-255
White ( 0-Black , 255-100% White )
14
22
Rainbow:
0-4
No function
9
5-29
R
30-54
G
55-79
B
80-104
W
105-129
Rainbow colours 1
130-154
Rainbow colours 2
155-174
Rainbow colours 3
175-179
Rainbow colours 4
180-184
Rainbow colours 5
185-189
Rainbow colours 6
190-210
Rainbow colours 7
211-255
Crossfading colours from slow to fast
15
23
Color Presets:
0-4
No function
5--9
White1
10--14
White2
15-19
White3
20-24
White4
25-29
White5
30-34
White6
35-39
Red
40-44
Green
45-49
Blue
50-54
Natural White
55-59
Full White
60-64
Yellow
65-69
Magenta
70-74
Cyan
75-79
Salmon
80-84
Turquoise
10
85-89
Light Green
90-94
Steel Blue
95-99
Orange
100-104
Straw
105-109
Pale Lavander
110-114
Pink
115-119
RED/WHITE
120-124
GREEN/RED
125-129
BLUE/GREEN
130-134
WHITE/RED
135-139
GREEN/PINK
140-144
RED/TURQUOISE
145-149
RED/WHITE/BLUE
150-255
Reserved
16
24
Color Presets Dimmer:
0-255
Dimmer 100 to 0%
17
25
Chase Patterns:
1--14
Led trun off
15-30
Chase 1
31-46
Chase 2
47-62
Chase 3
63-78
Chase 4
79-94
Chase 5
95-110
Chase 6
111-126
Chase 7
127-142
Chase 8
143-158
Chase 9
159-174
Chase 10
175-190
Chase 11
191-206
Chase 12
11
207-222
Chase 13
223-238
Chase 14
239-255
Chase 15
18
26
Chase Speed:
0-125
Fast to Slow Backward
126-130
Stop(Speed=0)
131-255
Slow to Fast Forward
19
27
Chase Fade:
0-255
Fade Chase
20
28
Lamp on/off, reset, internal programs:
0-79
Normal
80-99
All motor reset
100-255
Normal

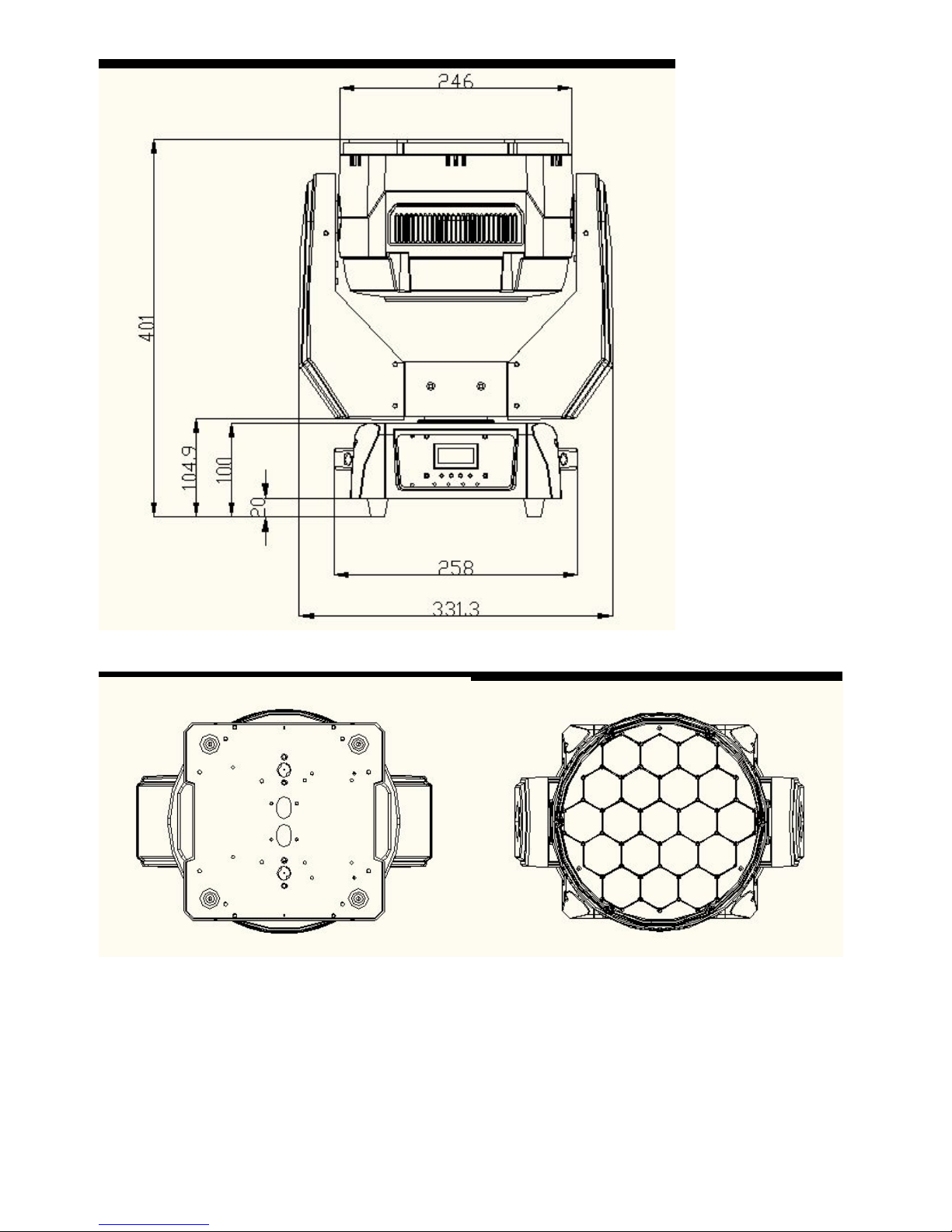

4. shape
12
13
5. Trouble shooting
F
ollowingarea
fewco
mmonproblemsthatmay occurd
uring
opera
tion
. Herear
e
somesuggestionsforeasytroubleshooting
:
A.
The
unitdoes
notwork
, nolightandt
hefandoes
notwor
k
1.
Ch
eckthecon
nect
ion ofpowerandmainfuse.
2.Meas
urethema
ins
voltageonthemainconnector
.
3.
Ch
eckthe
poweron
LED
.
B.NotrespondingtoDMXcontroller
1.DMXLEDshouldbe
on.Ifnot,checkDMXcon
nectors,cablestoseeif
link
properly
.
2.
If theDMXLEDis
onand noresponsetothechannel,
checktheaddr
ess
s
ettings andDMXpolar
ity
.
3.Ifyouhaveintermittent DMXsignalproblems,checkthep
ins
onconn
ectorsoron
PCBoftheu
nitorthepreviouson
e.
4.TrytouseanotherDMXcontroller
.
5.
Ch
eckiftheDMXcablesrunnearor runalongsidetohighvoltagecablestha
t
maycausedamageorin
terfer
ence
to DMX
inter
face
circui
t.
C
. One
of
the
channelsis
notworkingwel
l
1.
Thes
tepper
motormightbedamagedor
thecablecon
nectedto th
e PCB
is
broken.
2.
Them
otor’sdriveIConthe
PCBmightbeoutofco
ndition.
14
6. Fixture Cleaning
Theclean
ingof
internalandexternal
opticallensesa
nd/ormirrorsmustbecarried
outp
eriodica
lly to optimize
lightou
tput.Cleaningfreq
uencydependsonth
e
environm
entinw
hichthef
ixture
opera
tes:damp,sm
oky orpar
tic
ularlydir
ty
s
urr
ound
ingcancausegreat
er accumula
tionofdirtontheunit’
s optics
.
Clean
withsoft
clothusing
normalglass
cleaning
fluid
.
Alwaysdrythe
partscarefully
.
Cleantheexternal
opticsatleastev
ery
20
days. Cleantheinternal
opticsa
t
leastevery
30/60
days.
Loading...
