Light and motion sensor
Fitting instructions

II 2009

LSPD_Multi3_ma0902en_we1.01.indd

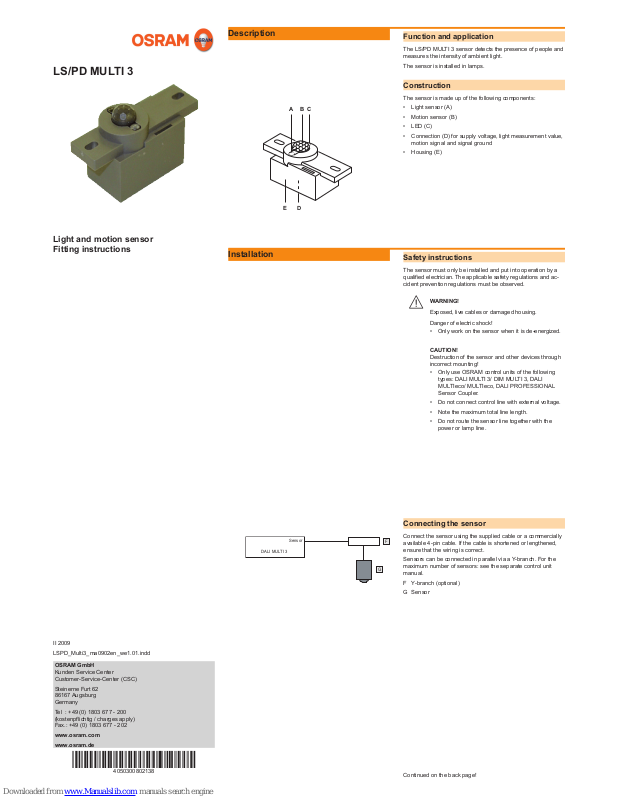

LS/PD MULTI 3

Description

Function and application

The LS/PD MULTI 3 sensor detects the presence of people and
measures the intensity of ambient light.

The sensor is installed in lamps.

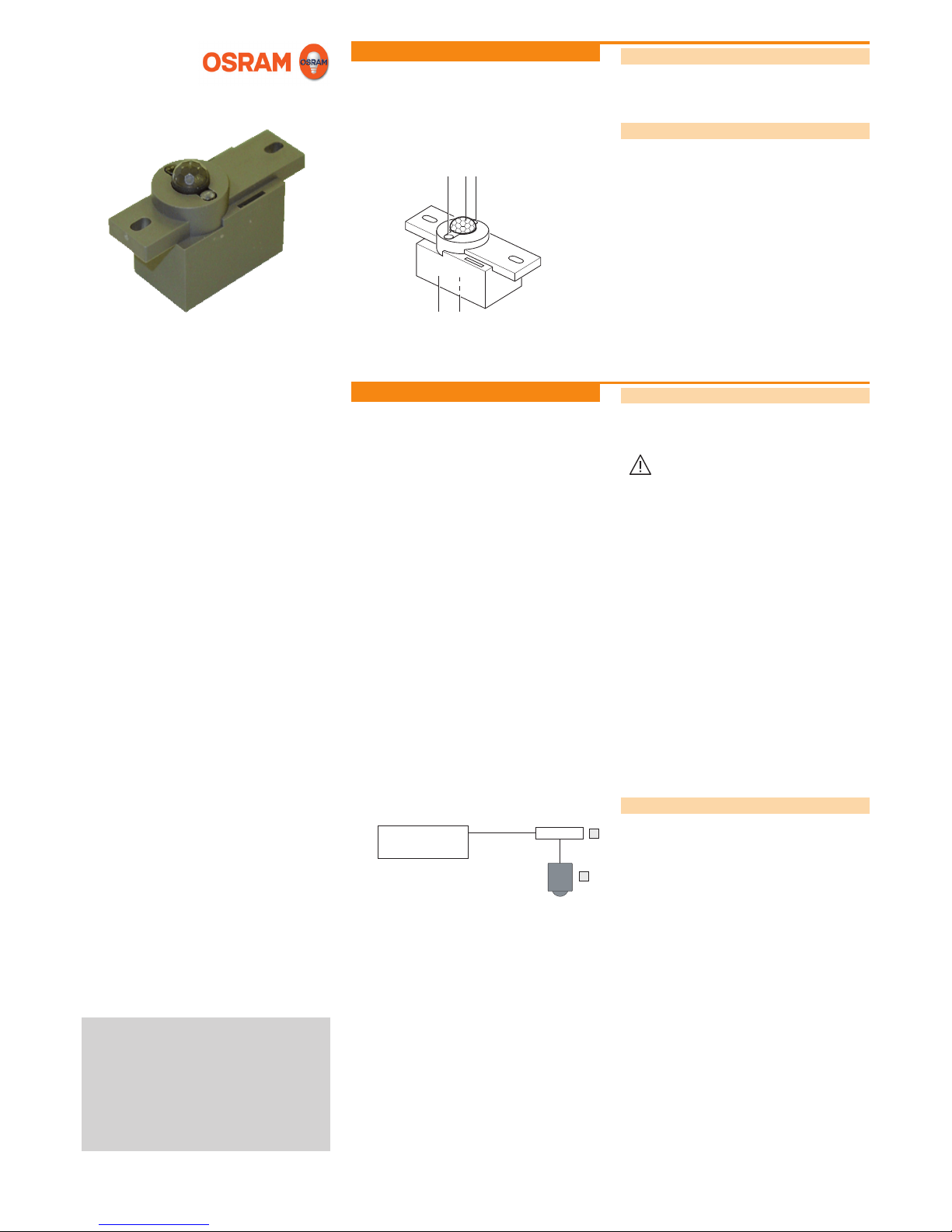

Construction

The sensor is made up of the following components:

• Light sensor (A)

• Motion sensor (B)

• LED (C)

• Connection (D) for supply voltage, light measurement value,

motion signal and signal ground

• Housing (E)

Installation

Safety instructions

The sensor must only be installed and put into operation by a
qualied electrician. The applicable safety regulations and ac-

cident prevention regulations must be observed.

WARNING!

Exposed, live cables or damaged housing.

Danger of electric shock!

• Only work on the sensor when it is de-energized.

CAUTION!

Destruction of the sensor and other devices through
incorrect mounting!

• Only use OSRAM control units of the following
types: DALI MULTI 3/ DIM MULTI 3, DALI
MULTIeco/ MULTIeco, DALI PROFESSIONAL

Sensor Coupler.

• Do not connect control line with external voltage.

• Note the maximum total line length.

• Do not route the sensor line together with the

power or lamp line.

Connecting the sensor

Connect the sensor using the supplied cable or a commercially
available 4-pin cable. If the cable is shortened or lengthened,
ensure that the wiring is correct.

Sensors can be connected in parallel via a Y-branch. For the
maximum number of sensors: see the separate control unit

manual.

F Y-branch (optional)

G Sensor

Continued on the back page!

A B C

D

E

DALI MULTI 3

Sensor

F

G

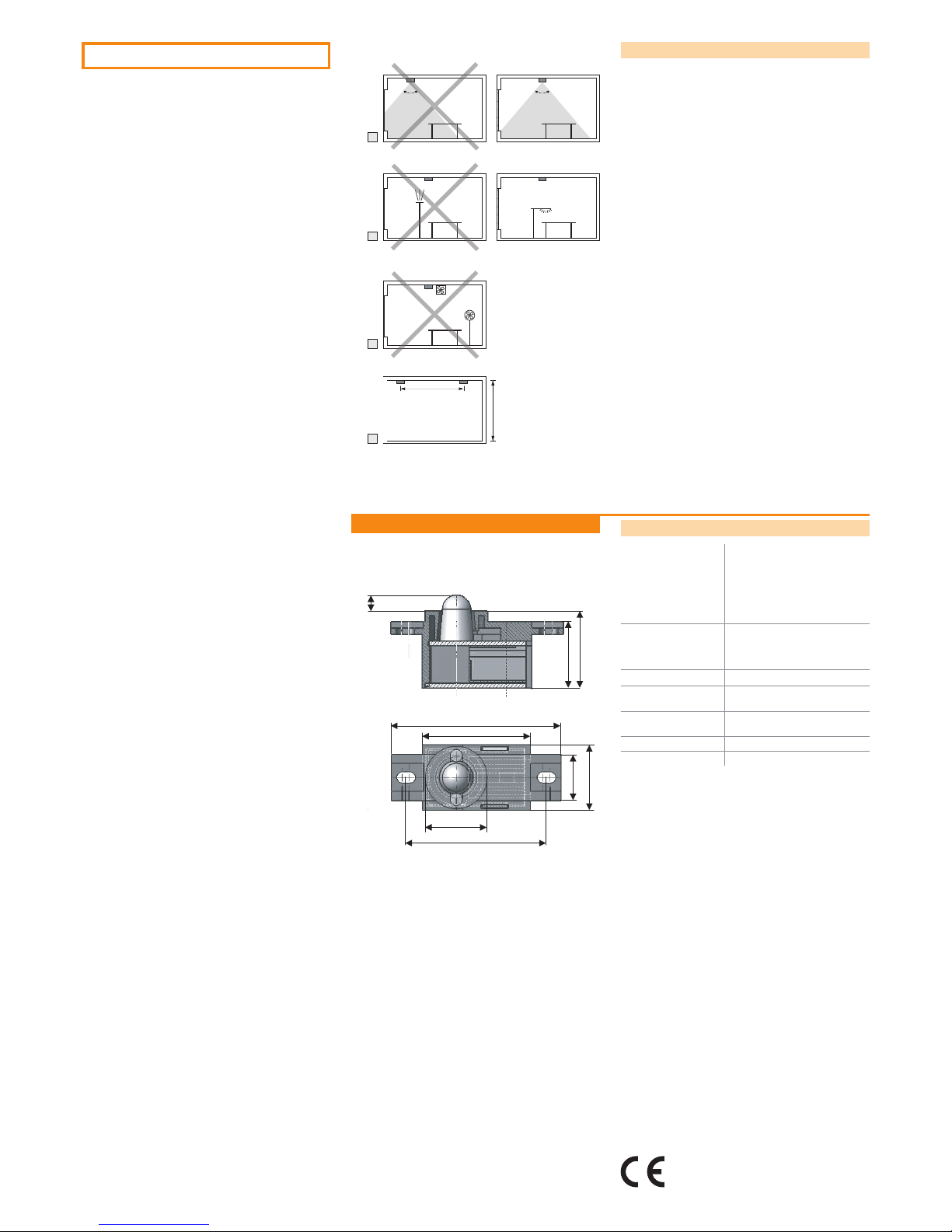

Fitting (cont.)

Selecting the installation location

H Surveillance cone: entire workplace; not on window surfaces

I Avoid exposure to direct light

K Avoid drafts (e.g. from ventilators or fans)

L Installation distance = min. installation height

Appendix

Technical data

Combined control and
supply connection

4-pin modular connection (4p4c)

1: Supply voltage
2: Light measurement value
3: Motion signal
4: Signal ground

Length 2.1 m

Maximum total length
of signal line (incl. all
connections to the

control units)

See control unit

Insulation Basic insulation as per IEC 664

Dimensions
(L x W x H)

55 x 21 x 24.5 mm

Light sensor detection

area

20 - 600 lx (measured at sensor),
opening angle approx. 90°

Motion detection area Conical, opening angle approx. 80°

Installation height 2 - 4 m

80°

80°

H

I

K

L

> h

h

21mm

24,5 mm

5 mm

20 mm

45mm

15 mm

21 mm

35 mm

55 mm

The CE requirements to EN 60928 are fullled.
The EMC requirements to EN 61547 are fullled.

Conformity with the relevant EU directives is
conrmed by the CE symbol.
