Operating instructions:

Radio remote control
Type: DALI RMC ADVANCED

OSRAM GmbH

Hellabrunner Str. 1

D-81536 Munich

Tel.: [phone] – 0

Fax: [phone] – 2020

Customer Service Center (KSC) Germany

Albert-Schweitzer-Str. 64

D-81735 Munich
Tel.: [phone] – 200
Fax: [phone] – 202

www.osram.com

Page 2 Operating instructions: Remote Control DALI RMC ADVANCED

Contents

1. Function overview............................................................ Page 3

2.

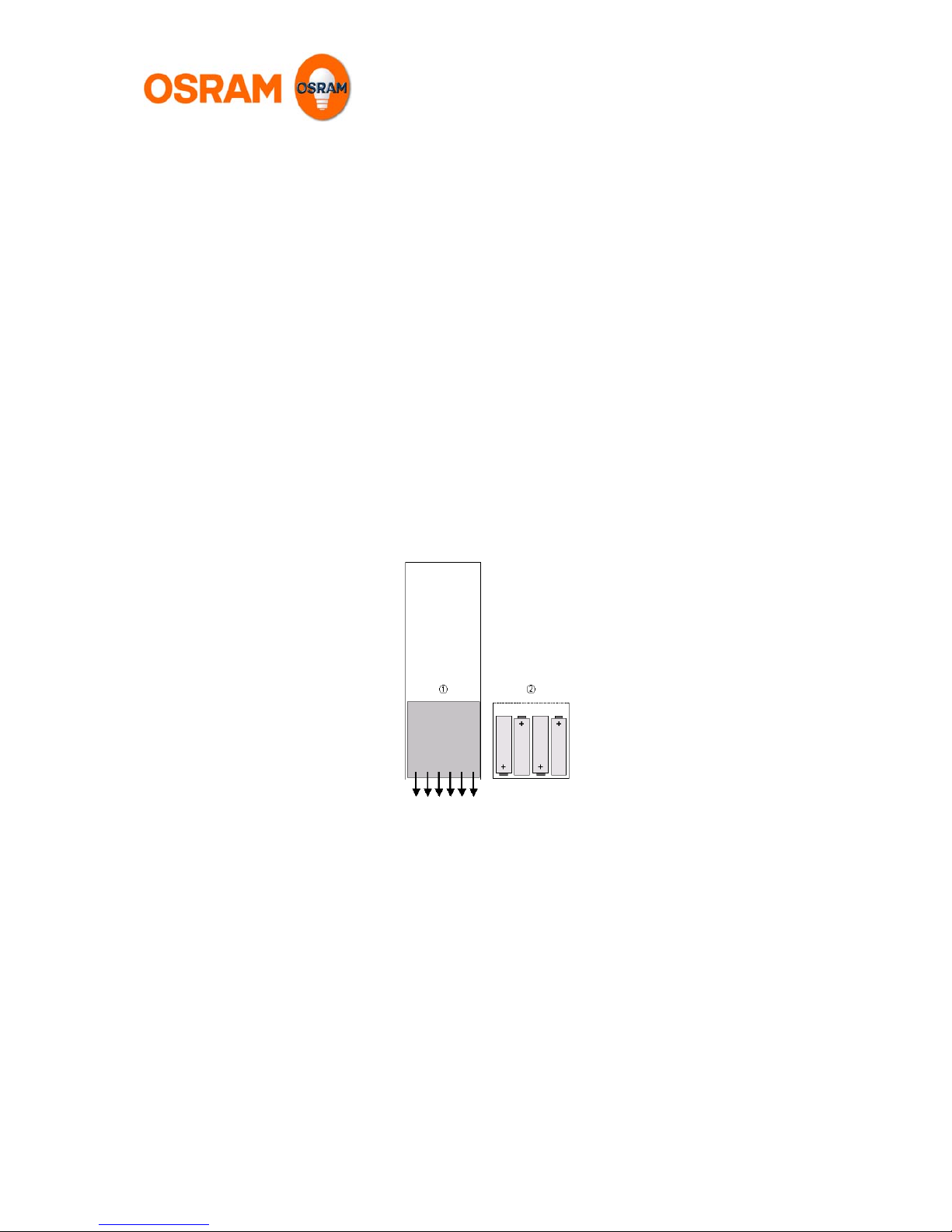

Startup ............................................................................. Page 4

3.

Programming in the DALI ADVANCED central unit......... Page 5

4.

Operation......................................................................... Page 6

5.

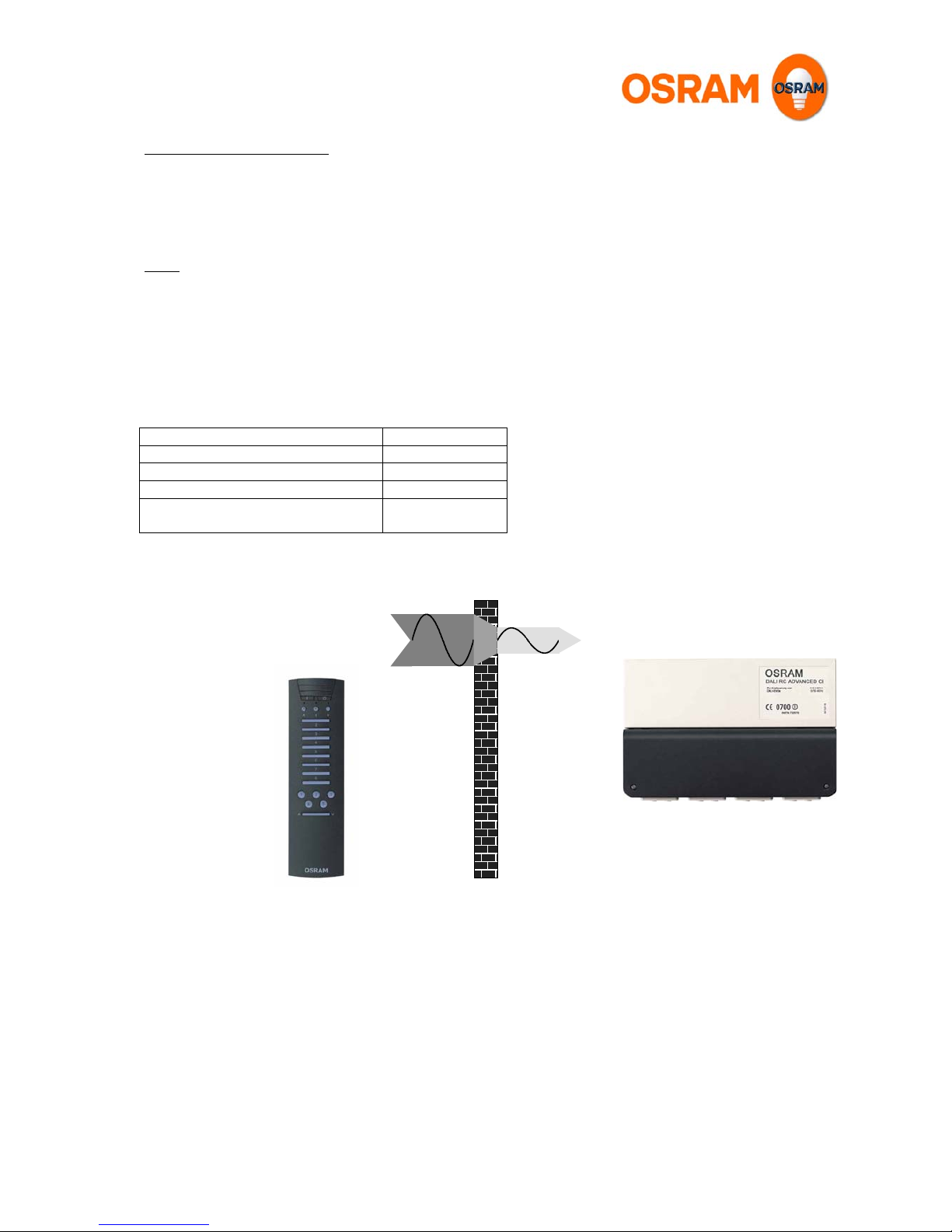

Notes on radio operation ................................................. Page 7

6.

Technical data ................................................................. Page 8

Operating instructions: Remote Control DALI RMC ADVANCED Page 3

1. Function overview

I

o

A B C

12 3

45

1

2

3

4

5

6

7

8

/\

/\

/\

/\

Level buttons (A, B, C)

All on/All off buttons

Channel buttons

(1 to 8)

Scene buttons (1...5)

Master dimmer button

The hand-held radio transmitter enables all the receivers, the universal radio-controlled dimmer and the
radio-controlled louvre blind actuator connected to the ADVANCED central unit to be remotely controlled.

The hand-held transmitter sends a radio telegram whenever one of its buttons is pressed. The central unit
receives this telegram and then sends appropriate control commands via the DALI line to the connected
receivers (such as the control gear). The radio actuators (universal dimmer and louvre blind actuator) also
receive the radio telegrams and react to them depending on the functions that have been programmed for
them.

The hand-held transmitter has the following control elements:

• Level buttons (A, B, C), with the appropriate level LEDs

• Channel buttons (rocker switches, 1 to 8)

• ALL ON button

• ALL OFF button

• Lighting scene buttons (1 to 5)

• Master dimmer button

There are three levels (A, B and C) each with eight channels for switching and dimming; in other words,
24 separate radio channels can be controlled.
The ALL ON and ALL OFF buttons enable all the connected loads to be switched on or off.
