OSPREY ADDONS™
Customize and protect your pack with Osprey’s
full line of AddOns.™ For the full lineup, please visit
your local Osprey retailer or visit our web site
www.ospreypacks.com.
PACK CARE
Osprey recommends Nikwax® products for pack care.
For complete instructions on cleaning your pack, visit:
www.ospreypacks.com/PackTech/PackCare
Your pack is an extremely durable product built for years of
use and abuse. However, some basic procedures will ensure
that your pack holds up optimally.
• After each trip be sure to clean out your pack thoroughly.
• If it’s wet, hang it to dry.
• Loosen all the straps.
• Wash your pack every now and then. (Do not immerse
travel packs with our High Road
™
Wheeled Chassis.)
PACK YOUR PACK
Loading your pack correctly optimizes
comfort while you are carrying it.
For complete information visit:
www.ospreypacks.com/PackTech/
HowToPackYourPack
Heavy Light
GUARANTEE
At Osprey, sustainability is designed into our packs, which are built to last a
lifetime and backed by a superb guarantee, no matter how hard you are on your
gear. Visit www.ospreypacks.com for details.

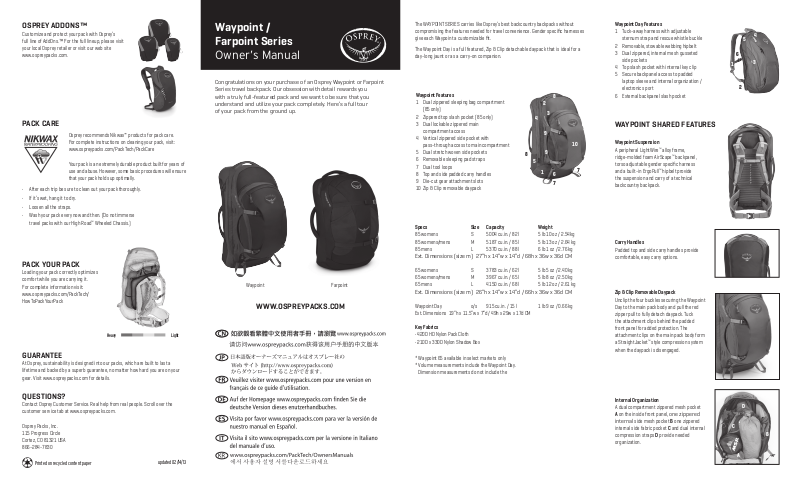

Waypoint /
Farpoint Series
Owner’s Manual
Congratulations on your purchase of an Osprey Waypoint or Farpoint
Series travel backpack. Our obsession with detail rewards you
with a truly full-featured pack and we want to be sure that you
understand and utilize your pack completely. Here’s a full tour
of your pack from the ground up.
Waypoint Farpoint
WWW.OSPREYPACKS.COM
The WAYPOINT SERIES carries like Osprey’s best backcountry backpacks without
compromising the features needed for travel convenience. Gender specific harnesses
give each Waypoint a customizable fit.
The Waypoint Day is a full featured, Zip & Clip detachable daypack that is ideal for a
day-long jaunt or as a carry-on companion.
Waypoint Features
1 Dual zippered sleeping bag compartment
(85 only)
2 Zippered top slash pocket (85 only)
3 Dual lockable zippered main
compartment access
4 Vertical zippered side pocket with
pass-through access to main compartment
5 Dual stretch woven side pockets
6 Removable sleeping pad straps
7 Dual tool loops
8 Top and side padded carry handles
9 Die-cut gear attachment slots
10 Zip & Clip removable daypack
Specs Size Capacity Weight
85 womens S 5004 cu.in. / 82 l 5 lb 10 oz / 2.54kg
85 womens/mens M 5187 cu.in. / 85 l 5 lb 13 oz / 2.64 kg
85 mens L 5370 cu.in. / 88 l 6 lb 1 oz / 2.76 kg
Ext. Dimensions
65 womens S 3783 cu.in. / 62 l 5 lb 5 oz / 2.40 kg
65 womens/mens M 3967 cu.in. / 65 l 5 lb 8 oz / 2.50 kg
65 mens L 4150 cu.in. / 68 l 5 lb 12 oz / 2.61 kg
Ext. Dimensions
Waypoint Day o/s 915 cu.in. / 15 l 1 lb 9 oz / 0.66 kg
Ext. Dimensions 19”h x 11.5”w x 7”d / 49h x 29w x 17d CM
Key Fabrics
• 420D HD Nylon Pack Cloth
• 210D x 330D Nylon Shadow Box
* Waypoint 65 available in select markets only
* Volume measurements include the Waypoint Day.
Dimension measurements do not include the
(size m)
27”h x 14”w x 14”d / 68h x 36w x 36d CM
(size m)
26”h x 14”w x 14”d / 66h x 36w x 36d CM
8
8
2
3
4
9
6
7
10
7
9
5
1
Waypoint Day Features
1 Tuck-away harness with adjustable
sternum strap and rescue whistle buckle
2 Removable, stowable webbing hipbelt
3 Dual zippered, internal mesh gusseted
side pockets
4 Top slash pocket with internal key clip
5 Secure backpanel access to padded
laptop sleeve and internal organization /
electronics port
6 External backpanel slash pocket
WAYPOINT SHARED FEATURES
Waypoint Suspension
A peripheral LightWire
ridge-molded foam AirScape™ backpanel,
torso adjustable gender specific harness
and a built-in ErgoPull™ hipbelt provide
the suspension and carry of a technical
backcountry backpack.
Carry Handles
Padded top and side carry handles provide
comfortable, easy carry options.
Zip & Clip Removable Daypack
Unclip the four buckles securing the Waypoint
Day to the main pack body and pull the red
zipper pull to fully detach daypack. Tuck
the attachment clips behind the padded
front panel for added protection. The
attachment clips on the main pack body form
a StraightJacket™ style compression system
when the daypack is disengaged.
™
alloy frame,
4
5
6
3
1
2
QUESTIONS?
Contact Osprey Customer Service. Real help from real people. Scroll over the
customer service tab at www.ospreypacks.com.
Osprey Packs, Inc.
115 Progress Circle
Cortez, CO 81321 USA
866-284-7830
Printed on recycled content paper
updated 02/14/13
Internal Organization
A dual compartment zippered mesh pocket
A on the inside front panel,
internal
side mesh pocket B one zippered
internal side fabric pocket C and dual internal
compression straps D provide needed
organization.
one zippered
D
C
B
A
WAYPOINT UNIQUE FEATURES
Waypoint 85: Dual Compartments
Dual zippered sleeping bag compartment with
sewn-in divider provides two compartment
accessibility.
Waypoint 85: Top Slash Pocket
Zippered top slash pocket for easy access to
essentials.
ErgoPull™ Hipbelt
All Waypoint and Farpoint pack hipbelts use
our exclusive ErgoPull™ design. To operate the
ErgoPull,™ loosen the webbing enough so you can
connect the center buckle. Then grasp the loose
ends of the webbing on either side, and pull in and
across evenly with both hands at the same time.
FARPOINT SERIES
From two week vacations to year long adventures, the streamlined FARPOINT SERIES
of travel backpacks carry comfortably without compromising the features needed for
travel convenience.
The Farpoint Day comes standard on the 70 and 55 liter models and is a nicely
featured detachable daypack that works just as well attached to the Farpoint as
it does on its own.
Farpoint Features
1 Padded top and side carry
handles
2 Modified StraightJacket™
style compression
3
Panel zip main compartment
with dual lockable pulls
4
Dual side gear attachment
points
5 Removable Sleeping Pad
Straps (70, 55 only)
6 Zip away removable daypack
(70, 55 only)
7 Internal zippered mesh
pocket on inside front panel
8
Dual internal compression
straps
9 Zip-away harness/hipbelt
access with panel stow slot
10 Farpoint harness features
daypack attachment buckles
(70, 55 only) and adjustable
sternum strap with rescue
whistle buckle
11 Padded, ErgoPull™ hipbelt
with side compression
Size Capacity Weight
Farpoint 70 S/M 4089 cu.in. / 67 L 2 lb 14 oz / 1.30 kg
Farpoint 70 M/L 4272 cu.in. / 70 L 2 lb 15 oz / 1.32 kg
*Ext. Dimensions (size M/L) 25”h x 14”w x 9”d 64h x 36w x 23d CM
Farpoint 55 S/M 3173 cu.in. / 52 L 3 lb 12 oz / 1.70 kg
Farpoint 55 M/L 3356 cu.in. / 55 L 3 lb 15 oz / 1.78 kg
*Ext. Dimensions (Size M/L) 25”h x 13”w x 12”d 64h x 34w x 30d CM
Farpoint 40 S/M 2319 cu.in. / 38 L 2 lb 10 oz / 1.19 kg
Farpoint 40 M/L 2441 cu.in. / 40 L 2 lb 12 oz / 1.24 kg
Ext. Dimensions (Size M/L) 20”h x 13”w x 8”d 53h x 33w x 20d CM
Farpoint Day O/S 915 cu.in. / 15 L 1 lb 1 oz / 0.48 kg
Ext. Dimensions 17”h x 11”w x 8”d 43h x 29w x 21d CM
* Volume measurements include the farpoint day.
* Dimension measurements do not include the farpoint day.
1
8
3
2
4
6
7
1
4
2
9
5
11
10
FARPOINT SHARED FEATURES
Farpoint Suspension
A peripheral LightWire™ alloy frame,
a spacer-mesh backpanel, fixed unisex
harness and a built in Farpoint 3/4 length
ErgoPull™ hipbelt provide comfortable carry.
Internal Organization
Internal Farpoint organization consists of
a A zippered front panel mesh pocket,
and B dual compression/retention straps.
Carry Handles
Padded top and side carry handles provide
comfortable, easy carry options.
Zip-Away Removable Daypack
(70, 55 L Only)
Unclip the two, StraightJacket™ style
compression straps securing the Farpoint
Day to the main pack body and pull the red
zipper pull to fully detach daypack. The dual,
main body compression straps form
a StraightJacket™ style compression system
when the daypack is disengaged.
The Farpoint Day conveniently attaches to the
main harness of the Farpoint pack to provide
easy access to photo gear and essentials. To
engage, A remove daypack by undoing the two
StraightJacket™ style compression straps and
unzipping from main Farpoint using red zipper
pull. B Leaving harness tucked in, locate the two
male buckles sewn in to the top backpanel of the
Farpoint Day and remove from slots. C Clip male
buckles on backpanel of Farpoint Day into female
buckles located on the harness of the Farpoint
pack. Reverse the steps to remove/reinstall to
main Farpoint.
Farpoint Day Features
1 Tuck away harness with Farpoint main harness
front attachment system, (70, 55 only) adjustable
sternum strap and rescue whistle buckle
2 Removable, stowable webbing hipbelt
3 Top zippered slash pocket
4 Dual side mesh pockets
5 Full panel, zippered access to laptop/hydration
sleeve with zippered mesh pocket and
electronics port
B
1
3
5
4
2
FARPOINT 40 UNIQUE FEATURES
B
A
A
B
A
C
C
The Farpoint 40 is a full featured, streamlined
adventure travel pack in a compact size that ensures
carry-on compliance on most any flight.
Unique Features
Front Panel Pocket
Each Farpoint 40 features a large, dual lockable
zippered front panel pocket with internal
organization featuring a padded laptop sleeve
accepting laptops to 15.4”/39CM, a padded
eReader/tablet pocket and additional open space for
often accessed, smaller items.
Front Slash Pocket
A zippered front slash pocket with internal
key clip keeps smaller items organized
and handy.
Front Mesh Pockets
Dual front panel mesh pockets are ideal
for water bottles, snacks or other often
accessed items.
Removable Shoulder Strap
Included with each Farpoint 40 is an optional
nylon shoulder strap. Clip this to the attachment
tabs on the pack for additional easy carry options.
Key Fabrics
• 210D double ripstop nylon
• 600d pack cloth
