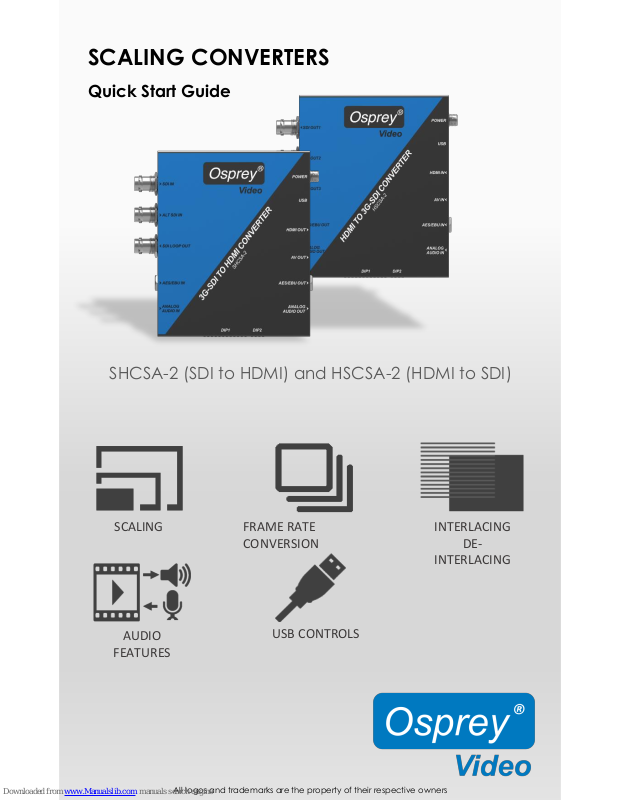

SHCSA-2 (SDI to HDMI) and HSCSA-2 (HDMI to SDI)
SCALING CONVERTERS
All logos and trademarks are the property of their respective owners
Quick Start Guide
SCALING
FRAME RATE
CONVERSION
INTERLACING
DE-
INTERLACING
AUDIO
FEATURES
USB CONTROLS
Page 2
USER INTERFACE
_____________________________________________________

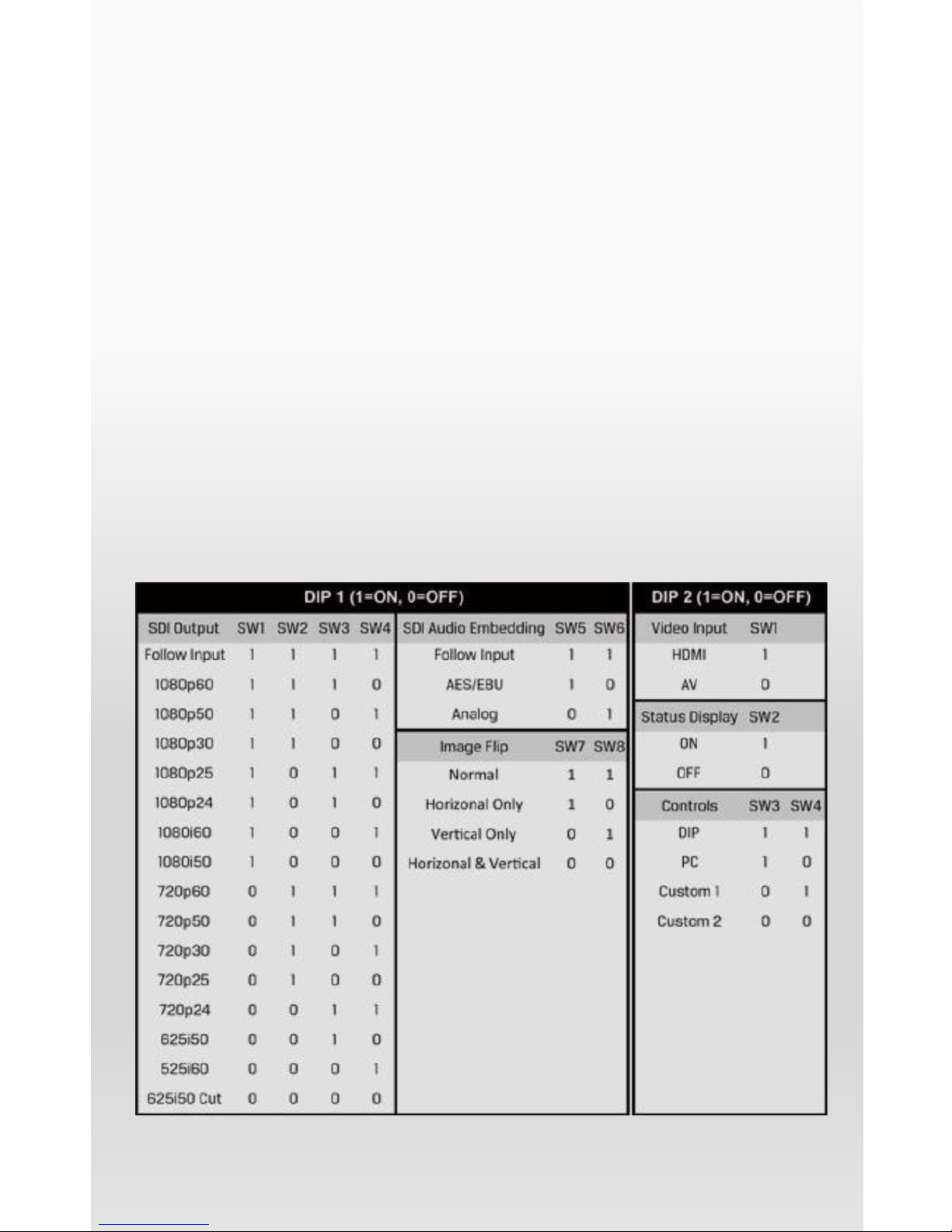

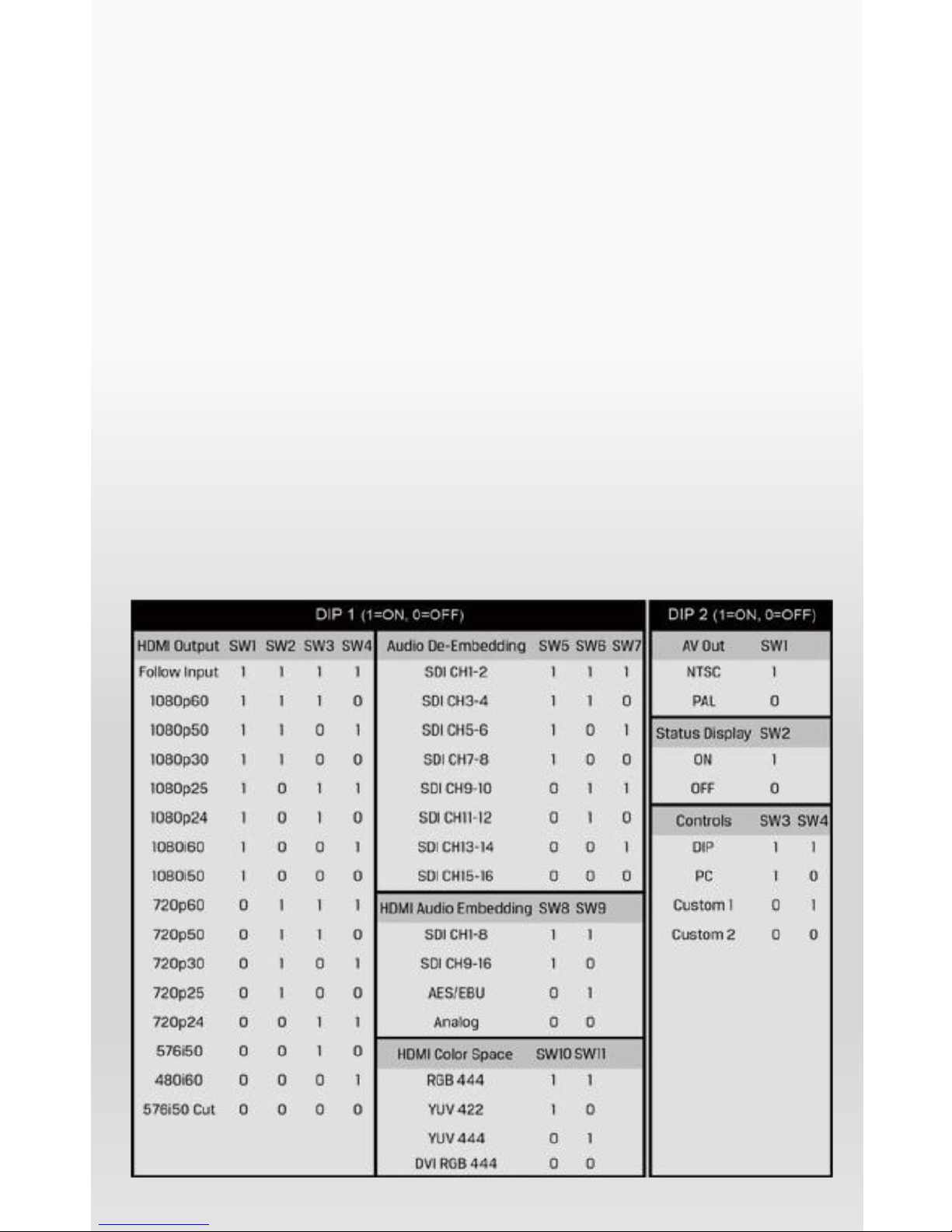

The device settings can be changed by either Dip-Switches
(Settings Table printed on the back of the unit) or with a USB
Control Software that can be downloaded here
The Control Panel Software exposes additional features which are
not accessible by the DIP Switches. It also allows the user to create
custom settings and profiles which can be saved and later
accessed by DIP Switch.
Features only accessible by the Control Panel are:
- Image Flip on SHCSA-2 only. HSCSA-2 has Dip Switches for
Image Flip
- OSD (On Screen Display) location (SHCSA-2 and HSCSA-2). The
software allows you to place the text overlay for Video
Information anywhere within the active screen area. The DIP
Switches only let you turn OSD ON or OFF
Page 3
SDI to HDMI and CVBS Converter (SHCSA-2)
______________________________________________
Video Input Features:
1. The device accepts SDI Video input Signals up to 3G data rate
2. “ALT SDI IN” is a fail over input in case of signal loss at “SDI IN”
3. “SDI LOOPOUT” is for the primary input “SDI IN” only
Audio Input Features:
1. Up to 8 Stereo Pairs of embedded SDI Audio
2. AES/EBU Audio by 6.35mm barrel connector
3. Unbalanced Analog Audio by 3.5mm barrel connector
Video Output Features:
1. HDMI and parallel CVBS Output. HDMI up to 1080P60, CVBS
either 480i NTSC or 576i PAL
2. SDI Loopout of input “SDI IN”
3. HDMI Color Space selection of either RGB444, YUV444, YUV422
or DVI RGB444 (no embedded Audio on DVI setting)
Audio Output Features:
1. Up to 4 Stereo Pairs of embedded HDMI Audio
2. AES/EBU Audio by 6.35mm barrel connector
3. Unbalanced Analog Audio by 3.5mm barrel connector
Page 4
SDI to HDMI and CVBS Converter (SHCSA-2)
______________________________________________
HDMI Audio Embedding:
1. From SDI - Up to 4 Stereo Pairs of embedded HDMI Audio. User
can select between first 4 Stereo Pairs or second 4 pairs of SDI
Audio
2. From AES/EBU – One Stereo Pair of Audio will be embedded
into HDMI
3. From Unbalanced Analog - One Stereo Pair of Audio will be
embedded into HDMI
SDI Audio De-Embedding:
1. Any of the 8 SDI Stereo Pairs can be selected for De-
Embedding.
2. AES/EBU and Analog Audio Out always carry the same stereo
pair.
Page 5

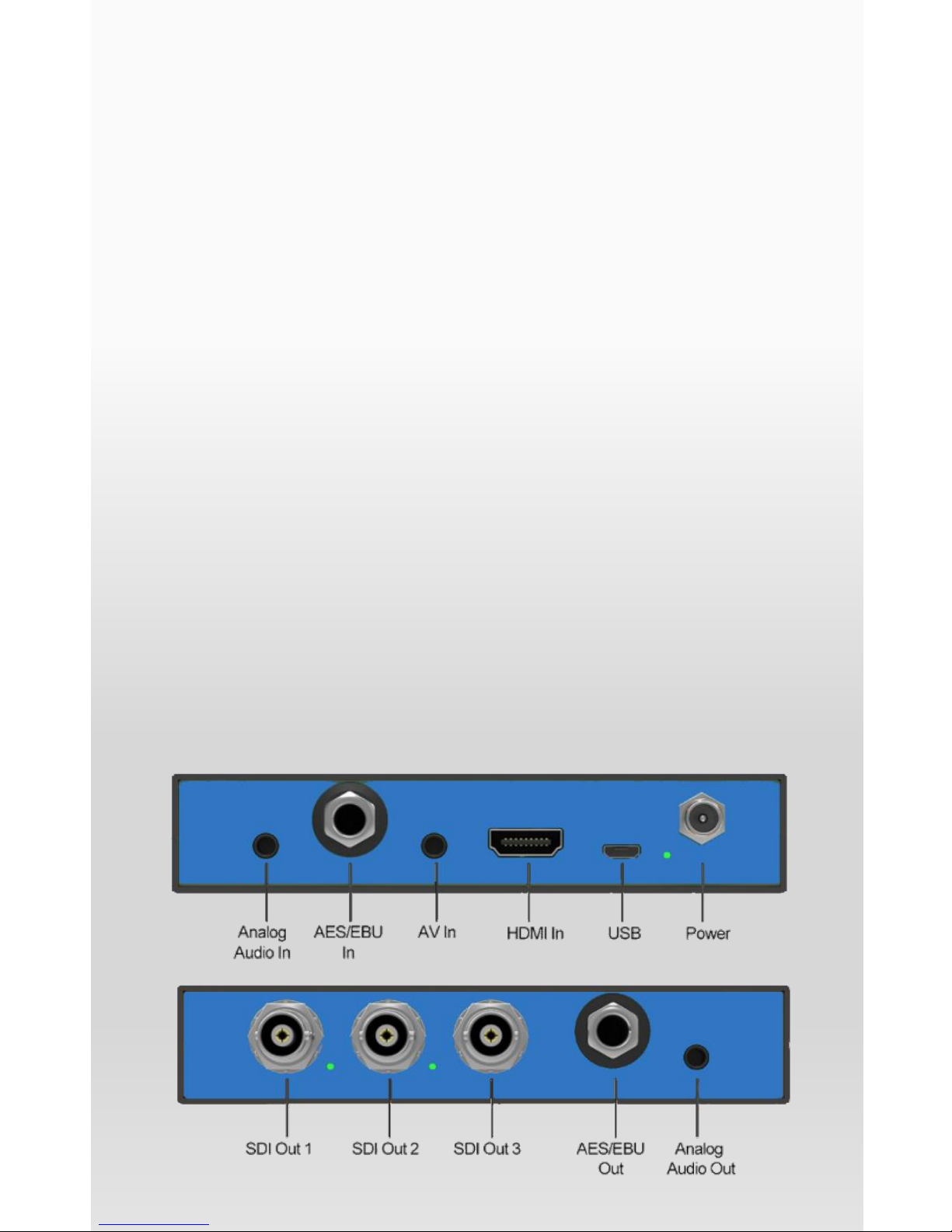

HDMI or CVBS to SDI Converter (HSCSA-2)
______________________________________________
Video Input Features:
1. The device accepts HDMI Video input Signals up to 1080P60
2. CVBS/Composite input either 576i PAL or 480i NTSC
3. Only one input can be routed to the SDI output at a time
Audio Input Features:
1. Up to 4 Stereo Pairs of embedded HDMI Audio
2. AES/EBU Audio by 6.35mm barrel connector
3. Unbalanced Analog Audio by 3.5mm barrel connector
Video Output Features:
1. 3x Parallel SDI Outputs up to 3G
2. Video Output selectable from either HDMI or CVBS Input
Audio Output Features:
1. Up to 4 Stereo Pairs of embedded SDI Audio
2. AES/EBU Audio by 6.35mm barrel connector
3. Unbalanced Analog Audio by 3.5mm barrel connector
Page 6
HDMI or CVBS to SDI Converter (HSCSA-2)
______________________________________________
SDI Audio Embedding:
1. From HDMI – All HDMI Stereo Pairs embedded into SDI Audio
2. From AES/EBU – One Stereo Pair of Audio will be embedded
into SDI
3. From Unbalanced Analog - One Stereo Pair of Audio will be
embedded into SDI
HDMI Audio De-Embedding:
1. The first HDMI Stereo Pair is De-Embedded
2. AES/EBU and Analog Audio Out always carry the same stereo
pair.
Page 7
IN THE BOX
______________________________________________
HSCSA-2
- HDMI to SDI Converter
- Mounting Brackets
- International 12V Power Supply
- Micro USB Cable (for Software Controls)
- AV Breakout Cable
_____________________________________________________
SHCSA-2
- SDI to HDMI Converter
- Mounting Brackets
- International 12V Power Supply
- Micro USB Cable (for Software Controls)
- AV Breakout Cable
