Osprey 460e AV Option Installation Guide
Osprey 460e A/V Option
The Osprey 460e video capture card is a PCI® Express card designed to simultaneously capture four
independent channels of analog video and unbalanced stereo audio signals and process them
independently, minimizing internal PC space requirements. The Osprey® 460e audio/video (A/V)
option includes additional internal video inputs and four additional balanced audio inputs that can
be switched in as alternatives to the rear panel connectors. The internal video inputs include the
selection of component or Y/C (S-Video) for each of the 4 channels or 3 additional composite inputs
for a total of 12 composite inputs per video capture card.
Osprey provides the following cable/panel options for the A/V option:
95-00459 Osprey 460e A/V Option
95-00460 Osprey 460e/440 Breakout Panel
95-00462 Osprey 460e Balanced Audio Panel
95-00463 Osprey 460e Component Video Panel
This guide lists the steps for installing an A/V option board to the Osprey 460e video capture cards.
This installation requires the following actions:

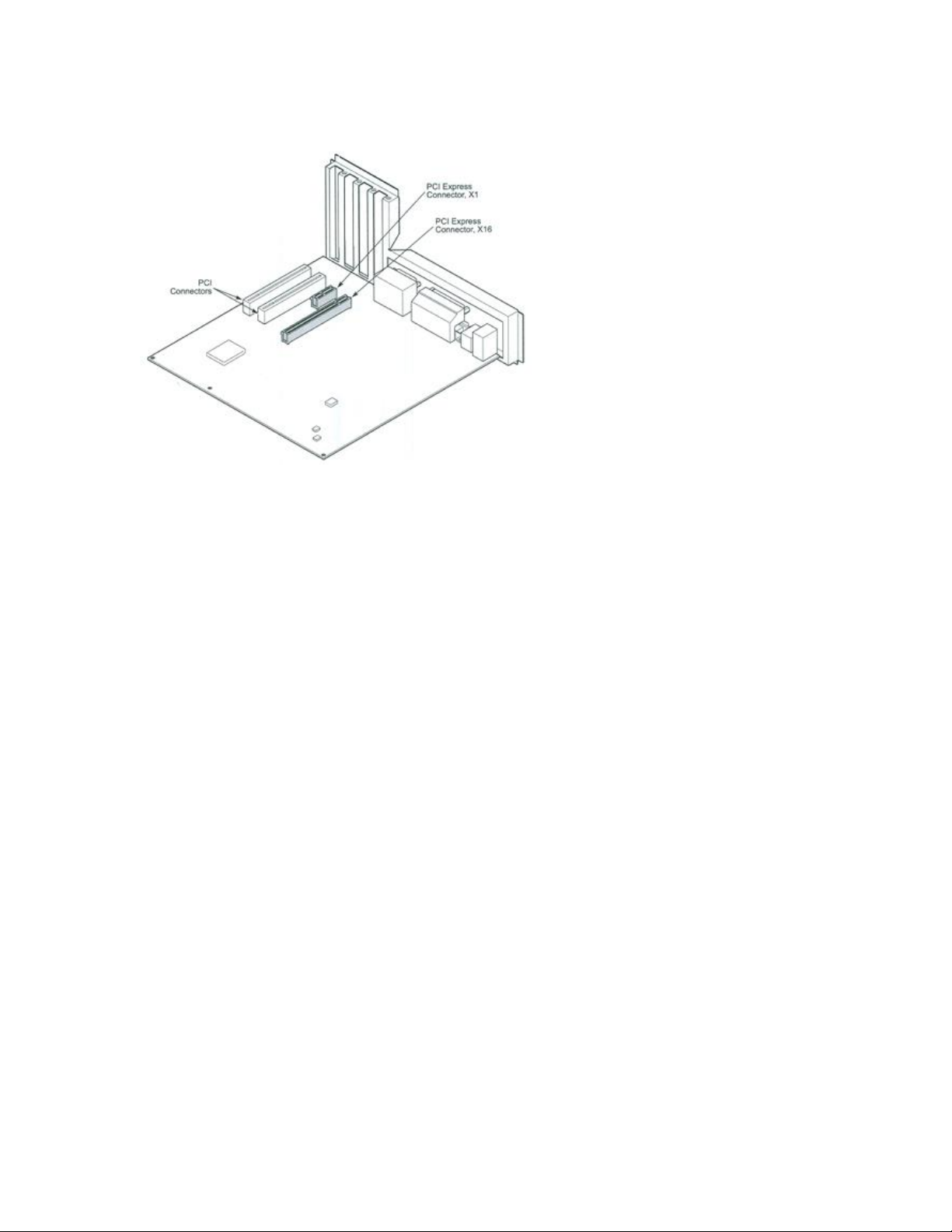

Connect the A/V option board.

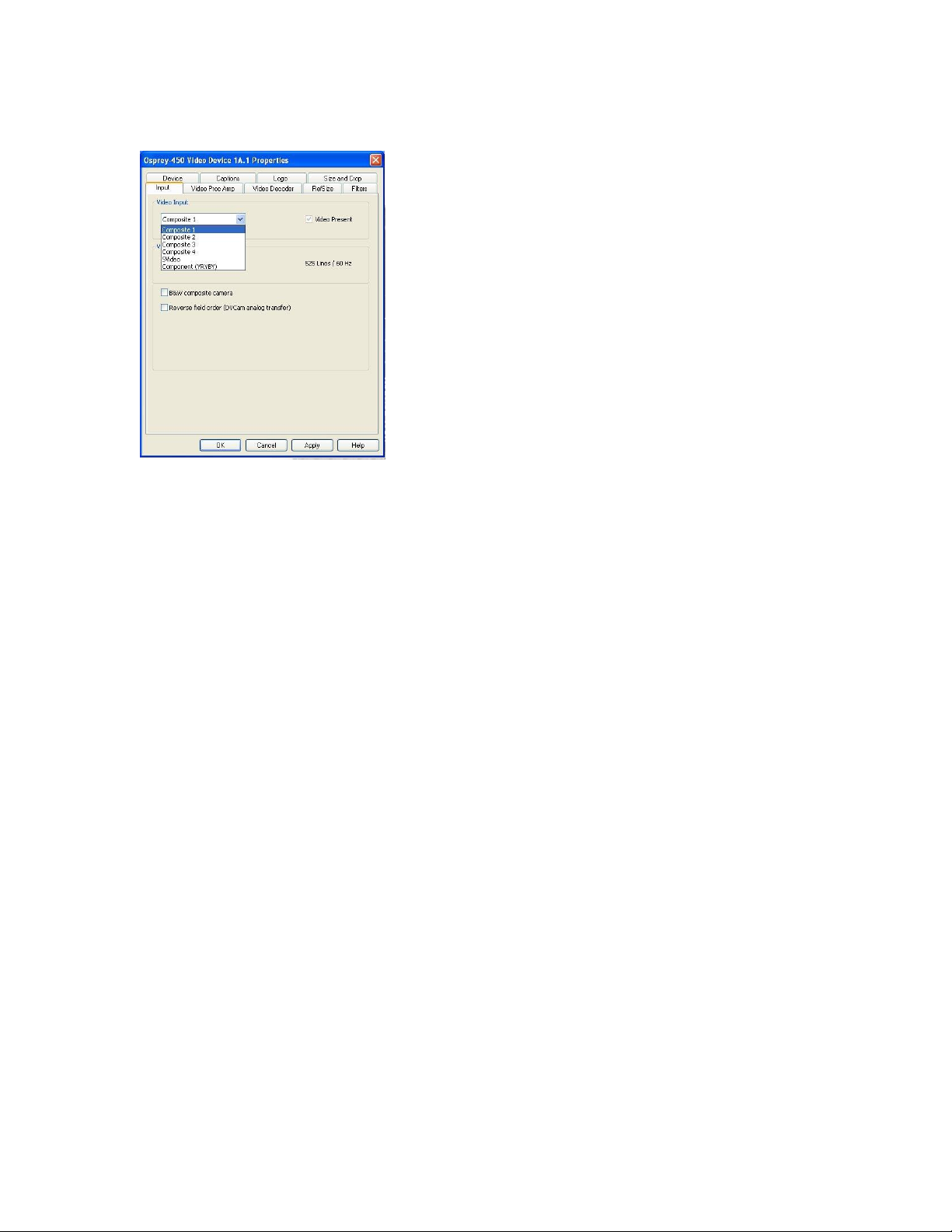

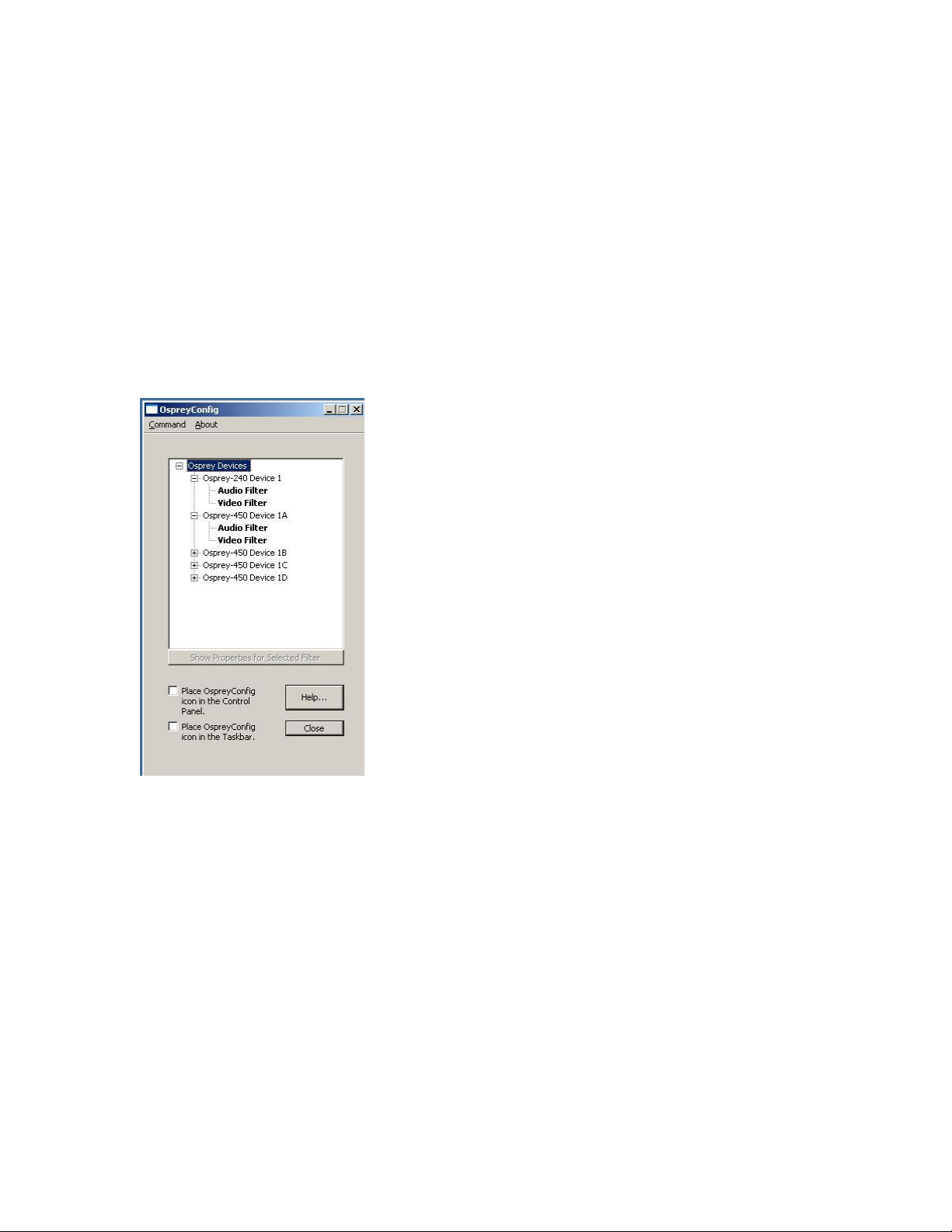

Configure the additional video and balanced audio inputs.
Note: A grounding strap should be used when performing these actions.
A/V Option Kit Contents

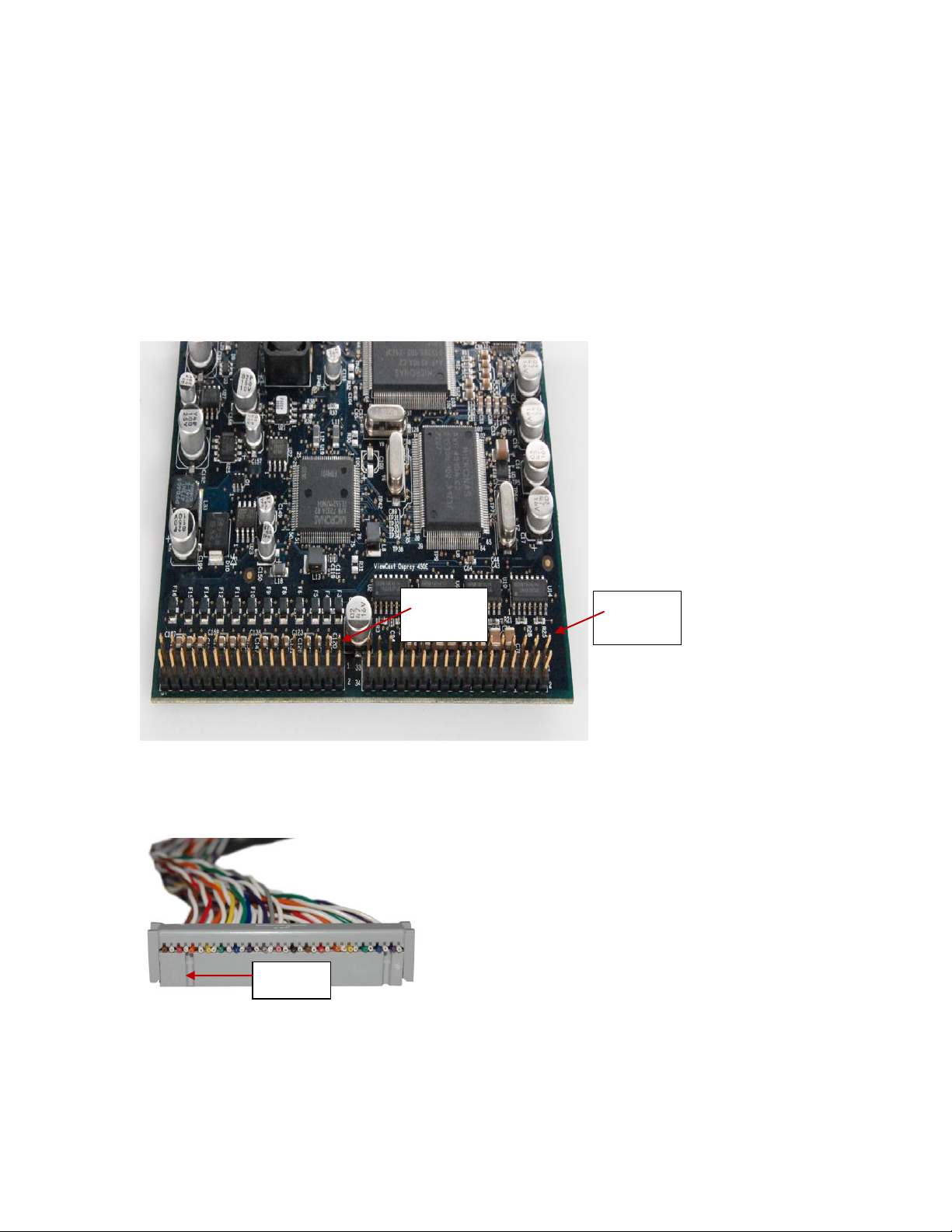

Figure 1. A/V Option Figure 2. Ribbon Cables
The Osprey 460e A/V Option kit contains the following:
A/V Option Board
2 ribbon cables
Osprey 1
Osprey 460e AV Option Installation Guide
Pin
Description
Pin
Description
1
D Right +
14
D Right -
2
D Right Shield
15
D Left +
3
D Left -
16
D Left Shield
4
C Right +
17
C Right -
5
C Right Shield
18
C Left +
6
C Left -
19
C Left Shield
7
B Right +
20
B Right -
8
B Right Shield
21
B Left +
9
B Left -
22
B Left Shield
10
A Right +
23
A Right -
11
A Right Shield
24
A Left +
12
A Left -
25
A Left Shield
13
Empty
DB25

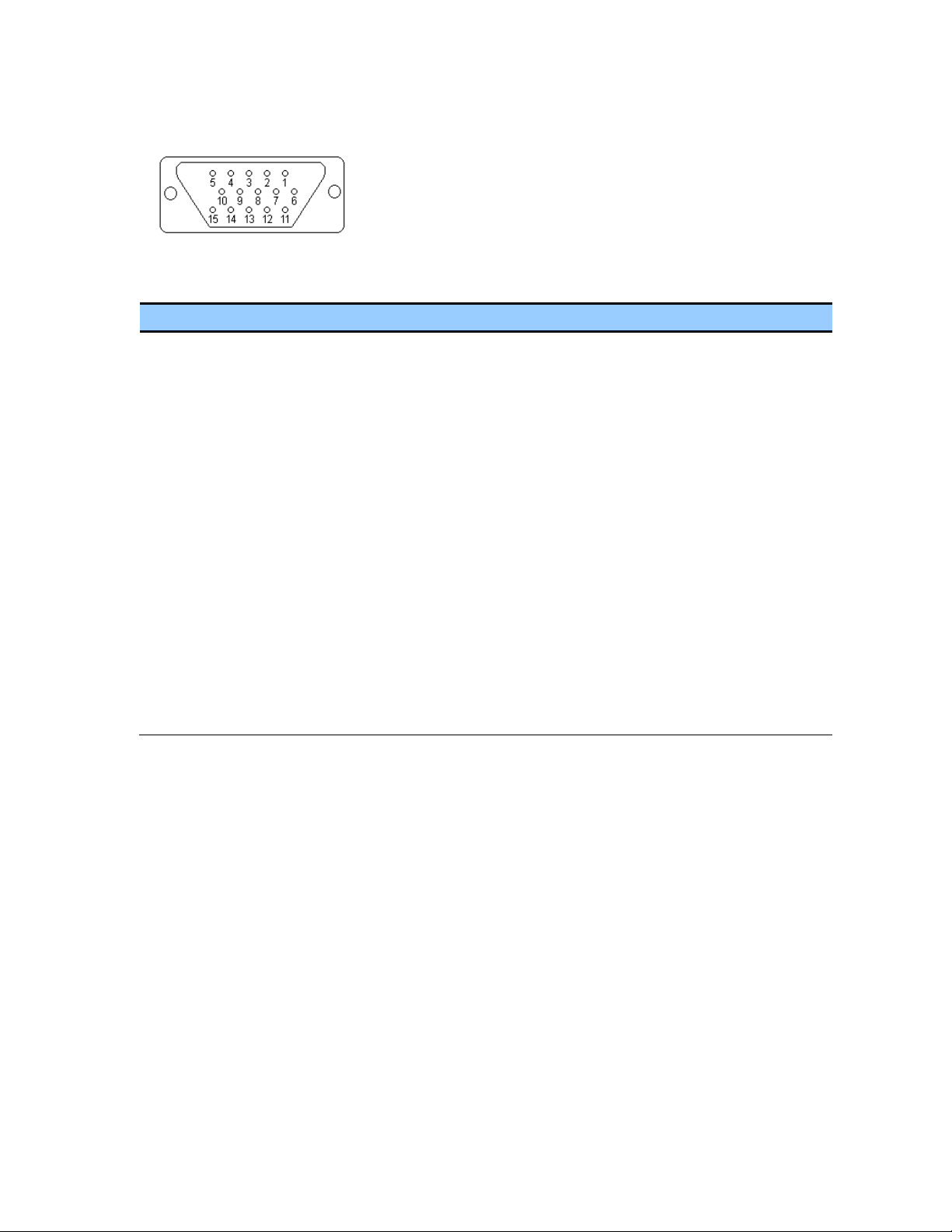

DB15
H = Hot
C = Cold
G = Ground
A/V Option Board
The Osprey 460e A/V Option Board (Figure 3) has two connectors, an industry standard DB25 female
connector and a DB15 male connector (see pinout tables). Balanced audio is provided on the DB25
connector and it is TASCAM DTRS compatible.
Figure 3. A/V Option Board (Front View)
DB25
DB 25 Pinouts
Osprey 2
