TV0860FBK
60” TV STAND w/ SIDE FOLDING CONSTRUC
OPERATING INSTRUCTIONS
SAFETY FIRST!
The following information is to insure that you the user of
this product are given up to date Safety information regarding your purchase. As with all Safety information, these are
recommendations and the final responsibility for your safety
compliance is in your hands.
Furniture more than 30 inches tall is potentially unstable
and must be anchored to a wall or floor with straps or
other restraints.
We have included in your package, suitable wall mounting straps. These straps are tested to hold the product as
delivered. Any electronics or objects of weight you choose to
place on this furniture should be individually anchored according to the manufacturer’s safety instructions.
Avoid Storing Items on higher shelving that will attract a
child’s Attention.
A small child may attempt to climb the furniture causing a tip
over accident.
Do not place objects on the furniture larger than those
recommended.
Overloading can cause the furniture to tip over.
TION
Place Televisions As Far Back As Possible on the TV
STAND.
Tip over is more likely if the TV is placed forwardly on the
stand.
Hide all Cables and Wires behind the TV or Stand.
All wiring should be kept out of traffic areas to avoid accidental tripping that could potentially tip over the furniture.
WARNING
1. Do not use this product unless all screws and bolts are
securely tightened.
2. Check that all screws and bolts are tight every three months or
as needed.
3. Dispose of packing material properly. Do not use plastic cover
as head covering. It may cause suffocation.
4. Do not use this product as a stepladder.
5. Use this product for its intended purpose only.
LIMITED WARRANTy
OSP Designs Warrants, to the original purchaser its products to be free from defects in material and workmanship for a period of 90 days. Defects
and damage from misuse, abuse, negligence, alteration, accident, vandalism, rusting, acts of nature or any other event beyond the control of OSP
Designs is not covered. The warranty does not cover cosmetic damage that may result from normal use. Liability for incidental or consequential
damages is excluded. The user assumes all risk of injury resulting from use of this product. This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.
6. Intended for residential use only.
To make a warranty claim, contact Customer Service, provide model number, sales receipt and description of the problem. It is the customer’s
responsibility to prepay freight on any components returned to the factory. OSP Designs will pay return freight on components covered under
terms of warranty.
Our quality standards are among the highest in the industry. Sometimes, no matter how hard we try, there are times when hardware is missing.
Our Parts Department will do everything possible to promptly remedy the problem. Contact us via email parts@officestar.net, by Fax
1-909-930-5629, or toll free parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time. OSP Designs P.O. Box
3520 Ontario, California 91761 USA
TV0860FBK
TV0860FBK
60” TV STAND w/ SIDE FOLDING CONSTRUC
IMPORTANT NOTE:
1. Use hand tools only for assembly as power tools may
cause damage
2. Carefully remove any staples used for packaging.
STEP 1
2
ASSEMBLY INSTRUCTIONS
PART QTY
1. Top ........................1
2. Folding Frame ................1
3. Divider ......................2
4. Small Adjustable Shelf ..........2
5. Large Adjustable Shelf .........1
6. Bottom Panel .................1
7. Center Leg ...................2
8. Wood Screw ................16
9. Small Screw ..................2
10. Wooden Dowel .............10
11. Metal Knob .................2
12. Shelf Pin ..................12
13. Allen Wrench ................1
Phillips Screwdriver also needed for
assembly (not provided)
TION
STEP 4
1
DETAIL C
8
60” TV STAND w/ SIDE FOLDING CONSTRUC
ASSEMBLY INSTRUCTIONS
STEP 5
13
8
DETAIL D
DETAIL E
7
TION
DETAIL A
STEP 2
6
Remove all parts from carton, separate by part numbers indicated on parts list, and verify part quantities.

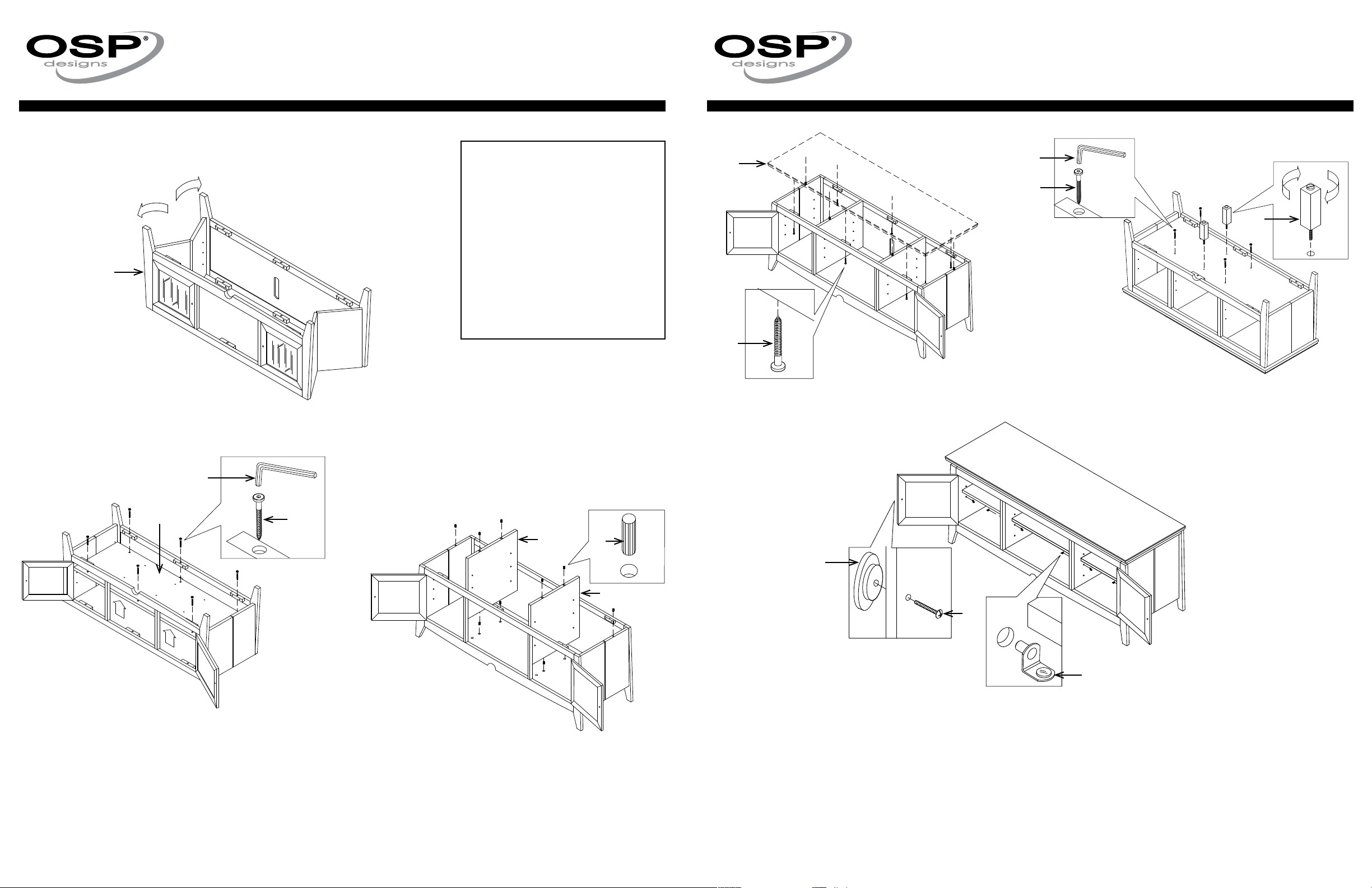

STEP 1 Fully extend the Folding Frame (2), Place Folding Frame (2) top down on a soft surface,
STEP 2 Insert Bottom Panel (6) into Folding Frame (2), hold Bottom Panel (6) up with finished side down, secure using six Wood Screws (8).
SEE DETAIL A, FULLY TIGHTEN SCREWS.
STEP 3 Turn assembly to the upright position, Insert two Wooden Dowels (10) into each end of both Dividers (3), align and slide Dividers (3)
into holes of Folding Frame (2), also insert two Wooden Dowels (10) into Folding Frame (2) SEE DETAIL B.
13
STEP 3
8
3
DETAIL B
10
3
STEP 6
11
9
DETAIL F
12
DETAIL G
STEP 4 Carefully place Top (1) onto assembly, secure using six Wood Screws (8) SEE DETAIL C, FULLY TIGHTEN SCREWS.
STEP 5 Carefully turn assembly top down on a soft surface,
Legs (7) to bottom of assembly, SEE DETAIL E. FULLY TIGHEN SCREWS.
SEE DETAIL G, Screw in both Center Legs (10) to bottom of assembly, SEE DETAIL H. FULLY TIGHEN SCREWS.
STEP 6 Insert Shelf Pins (12) into assembly, place both Small Adjustable Shelves (4) and Large Adjustable Shelf (5) onto Shelf Pins (12).
Secure one Metal Knob (11) to each door front using one Small Screw (9) for each Metal Knob (11), SEE DETAIL F.
ATTENTION: MAKE SURE ALL SCREWS ARE FULLY TIGHTENED BEFORE USING TV STAND.
Secure Dividers (3) using four Wood Screws (8), SEE DETAIL D, screw in both Center
