Osoto PH-130W User Manual

DIGITAL VISUALIZER

User Manual

Pls read carefully before installation and keep reservation.

☆Safety Notice:

Warning: Pls don’t let it in rain or put it into wet
environment in order to prevent it from fire breaking or
leak of electricity. The visual presenter includes high
voltage accessories and is dangerous, so installing will
fully and repairing spareparts is prohibited, just the
experts can do these.

1. Before using, pls see power voltage and frequency are same
or not. To keep safe, users must be conscious that power
socket should be three poles:L-line,N-line,G-line, and
connecting them in the right way.

2. User must get G-line of all equipment’s input and output ports
through before turning power on, in order to avoid the
unexpected damage caused by mute /high-voltage. Don’t
insert or pull out cables with electricity.

3. Pls don’t rebuild visual presenter or use it without outer shell.

4. Pls don’t drop something easy-fire, liquid or metal into it,
otherwise, it will easily break the visual presenter or make
troubles for visual presenter. Pls don’t put something easy-fire
or liquid on the table.

5. Don’t take it in the environment of high tempreture, wetness,
corrodible gas like acid oralkali, more-dust, and shakiness. Put
it on special-steady desk , and don’t put the visual presenter
on unsteady tabletop or don’t put 1KG things on the baselight
table.

6. Pls clean it by dry cloth, and cut down electricity before
cleaning, users also can not use liquid dilution, volatilised
gasoline,insecticide or other chemistry solvent.

7. Pls pull power-plug out if long time no use.

8. Don’t let children play visual presenter to prevent from
electric-shock..

9. Pls turn off power immediately if there are some abnormal
appearance (noise or smoking) and pull power-plug out.

- 1 -

☆Feature Instruction:

Welcome to use visual presenter. Pls read “Manual
Operation Booklet” attentively before usage. We sincerely
hope this booklet will bring convinience and skilled method
to you.

Japan and Korea Fashionable Outer Design with smooth

line,combining fashion and creation;

Special sensitive touch-key design, prevents dust and

water ,may use for long(patent);

Special drawer function, human-being design, may store

remote controller,pick-up pens, pick-up stick and others;

All joints featured with no press damping design,easily

operate;

Intelligent preview/shooting, featured with human controlling:

users can preview and edit before shooting to projector(s);

No need turn visual presenter on to get through: when PC
signal comes to visual presenter, continually connect with monitor.,
and no need to turn visual presenter on;

VGA belt width 440MHz with long cable,image brightness and
comparison can be improved up to 1/3,making image more
beautiful and clear;

Put digital volume adjustment inner,make volume adjustment
more easier(correct),can output original voice;

Specially provide with ESD protection, won’t break inner

spareparts when pulling out/plug into with electricity;

Optical zoom≥12, digital zoom≥8, making the smallest letters
and number biger and more clear to show;

Digital: image proceeds by professional video device,can

output up to 1,300,000 high resolution（1280×1024）’s image
signal with high clarity, shows in digital unit,image is extremely
clear , no shining, no shaking, image steady, color elements
deoxidized well,when capturing small and tiny B/W characters,

- 2 -

there is no white edge,shaking,shinning and other problems,can
connect with projector directly, rear projector TV, or monitor’s RGB
port, specially suitable for school’s demonstration or B/W
characters teaching;

It includes multi-functioned intelligent central controller system,

one button controls on/off, projector can be delayed to turn off,
projetor and screen can be controlled combinatively, infrared
decoding and others（selected）;

Easy to install and maintain: adopt serial port to control
projector, avoiding of hard infrared decoding or easily interfering
and other problems.There are hundreds of projector’s code totally
10 kinds of famous brand, easily to set, and can update for
free .(selected）;

Infrared decode secretly, without any decoding device, simple

in use,store image more reliable;（selected）;

Powerful image proceeded,freeze, color/B/W, positive/negative,
mirror, brightness adjusted, image/text, comparison, image
storage;

Multi-input, multi-output, combine intelligently, switch

multi-media to demonstrate;

CCD camera can turn 350°vertically or horizontally;

methods of control: control panel, remote controller, RS-232,
USB（selected）;

Microphone socket which can adjust volume can connect with
cable or eternal microphone.

- 3 -

☆ Catalogue:

Safety Notice…………………………………………………1

Feature Instruction…….….…………………………………2

Struction & components…….………………………………5

Whole struction…….…………………………………5

Back/side connections.………………………………5

Connection to Central Controller………..…………6

Connection Surrondings…….………………………………7

Whole Connections…….…..…………………………7

Connections to Central Controller…….…....….……7

Basic Operation…………….………………..………………8

Unfold process…….…....….…………………………8

Fold process………………..…………………………8

Methods of Usage……….……..……………………………9

Control Panel………….………………………………9

Remote controller……….…………..………………14

PC RS-232 controlling ……………………………15

Methods of connecting to Central controller….………16

Infrared decoding and usage….….……..………………17

Infrared Decoding……………………………………17

Infrared Decoding Usage….……………………….19

Daily Maintainace and Attention.…….……………………20

Problem and Solution……….………..……………………21

Technique Specification….…………...……………………22

Attached list…………….….……….………………………24

- 4 -

☆ Struction & components:

●whole structure:

5

1

6
7

3

2

8

9

4

3
2

10
11

1.Main pole; 2.Assistant lamp Arms; 3.assistant lamps;

4.drawer(once Push to rebound , twice push to recover.
Attention:don’t pull it out of the position with heavy strength);

5.Infrared Receiver Window; 6.CCD outshell; 7.CCD Cover;

8.Baselight; 9.Back Connections; 10.Side connections; 11.Control
Panel.

●back/side connections:

1 2 3 4 5 6 7 8 9 10 11

13

- 5 -

14 1512

1.DC12V power input; 2.DC12V power output; 3.RS-232

controlling port,RS-232 multi-functioned cable connected to
PC’s COM port (If select central controller’s spareparts, this

port is used for RS-232 F/M cable); 4.S-VIDEO output port
（selected）; 5.Video Output port（selected）; 6.Stereo Output;

7.PC stereo Input Port; 8.PC RGB input port; 9.Output Port to

Monitor; 10.Output port to Projector(or rear projector TV); 11.USB

Port; 12.Microphone Volume Adjustment; 13.Microphone Plug;

14. RGB Input Port; 15. RGB Stereo Input.

●Connected to central controller:(selected)

1 234 5

678

1. Visual presenter’s RS-232 port; 2. RS232 multi-functioned

port to PC’s COM port; 3.DC12V power input,to connect DV 12V

power output; 4.Stereo input,connect to visual presenter’ stereo

audio output; 5.Amplifier output; 6.Screen power to control
up/down; 7.AC 110～220V; 8.projector’s socket.

Note: pls check exact goods for the standard.

- 6 -

☆Connection Surrondings:

●Whole Connections:

Microphone

U 盘

Rear

Amplifier

LCD monitor

Projector

Projector TV

PC

●Connections to Central Controller:(selected spareparts)

Visuliser

PC

Passi. Speaker

Projector

Laptop

Screen

Note: pls cut down Surronding equipment’s power before starting
operation.

- 7 -

☆ Basic Operation:

●Unfold Steps:

5

1

23

6 6

7

1.Lift the pole; 2.Lift assitant lamp to the left; 3.Lift assistant
lamp to the right; 4.adjust CCD’s angle vertically; 5.adjust CCD’s
angle horizonally; 6.adjust assitant lamps’ angle properly; 7.take
CCD’s cover off(Note:Pls rotate it to the right,don’t pull with heavy
s

trength).

●Fold Steps:

3

5

12

6

1.Press left assitant lamp arm down; 2.press the right lamp
arm down; 3.adjust CCD outershell horizonally to parallel with the
pole; 4.adjust CCD outershell vertically to parallel with the pole;

5.put the pole down; 6.put CCD cover on(Note:don’t rotate,cover it
directly).

- 8 -

☆ Methods of usage:

There are three methods of operation: 1. control panel

2.remote controller 3. control it through RS-232 Port supported by

Computer’s Window System. Three methods can be executed

individually, and can be fixed up.

1. Control Panel:（Note:pls check exact goods for the standard.）

●System acquiesces the following:

It is into awaiting state when visualiser’s power on ,and

“ ” light will be on, meanwhile it acquiesces PC output to

monitor and projector, thus PC’s monitor and projector’s light will

be on. Light of “volume+” and “volume-“ will be on, at this time

user can adjust volume. This visualiser adopts sensitive touch key,

just touch it with finger to use, don’t strike with heavy metal or

heavy strengh to prevent from the nick.

●Turn on:

After connections,press , and it turns from red shinning

to red, means the visual presenter’s power is on.When heard of

“Bee”twice,users can start operation. Please try again to open

projector when user found that projector’s power was off.

- 9 -

●Turn off:

When turn off, press 2 seconds,after heard of a voice

of“Bee”, this indicator will become from red shinning to red,

meansing getting into state of waiting, and visual presenter has

been turned off. If visual presenter has central controller function,

when turning visual presenter off, press this button 2

seconds, after a voice of “Bee”, power indicator shines fastly,

meanwhile visual presenter can not be controlled by any button.

When power indicator gets into shining slowly, press again

to turn off projector. After 2 minutes of “Bee”, it is into state of

waiting,at the same time projector’s power has been cut down

(delayed to turn off).

When it is into state of turning off,visual presenter will switch

“PC IN”（PC’s signal）into monitor automatically.（It is get through
without signal of turning on）.

●Lamp Selection:

Press button,users can turn on/off assitant lamps or

baselight.

●Preview/shooting:

Signal output to monitor（preview）:Press this button

repeatedly to select visual presenter’s signal, PC signal, and RGB

signal’s input.When select visual presenter’s signal, the indicator
will become red（other two indicators will be off）,when select PC

- 10 -

signal input, the indicator will be on red(other two indicators will be
off, when select RGB signal input,the indicator will be red（other
two previewing indicators will be off）.

Signal output to projector(shooting): Press this button

repeatedly to select visual presenter’s signal, PC signal, and RGB

signal’s output. When it is into asynchronous state, please select

visual presenter first, when PC and RGB signal output to monitor,

press this button again, image will output to projector, meanwhile

audio will output as followed, the indicator will become from

shinning red to red.

●Focus adjustment:

Adjusting focus button can change the range of CCD camera,

touching or pressing on or button, can magnify image

or deflate image gradually or continually.

●Brightness adjustment:

Adjusting brightness can change the output brightness from

CCD camera, touching or pressing on or button can

change the bightness,leting it go by hand will stop adjusting of

brightness.

- 11 -

●Storage:

Pressing button can store present image.（Note:when it

fulfills with images,indicator will be off, if users want to store more,

please delete previous storage for 1 set and can store 1 set
again）

●Splitted Screen:

Pressing button can show storage of image in full

screen or splited screen.

●Select image:

When it is in the state of splited screen,

pressing button can recycle or delete images. Press

one second for next image

●Recycle:

Pressing button can recycle selected images.

●Delete image:

When it is in the state of splited screen, pressing button

can delete selected images. Press one second for

- 12 -

deleting stored images.

●Division:

Pressing button can display the right part of the

saved image on the splited screen; pressing button can

change to another right part of the saved image.

Auto Focus:

●

Pressing button,the focus will adjusts itself

automatically.

●Lock and unlock:

Pressing button for “1”second, it can unlock.

Visual presenter acquiesces that it will unlock after 20

seconds automatically without any touching, at this time users can

only operate indicated buttons,others should be unlocked before

operation.

Note: visual presenter adopts indicator to guide operation and
this human-nature design makes operation more vividly.

- 13 -

2.Remote Controller:

Image Function Description

POWER Turn on/ Turn off, or decode projector on

On / Off of light and baselight, or

LAMP

decode projector off

MONITOR Output Signal to Monitor

PROJECTOR Output Signal to projector or TV

ZOOM Enlarge image

ZOOM Contract image

VOLUME Increase volume

VOLUME Reduce volume

Freeze the left part of image,move

DIVISION

and compare with right part of image

B.W. W/B & Color of image

ROTATE Rotate image for angle of 90 or 180

NEGATIVE Show image in positive / negetive form

FREEZE Freeze the shooting image

TEXT Display picture in text/image form

CAPTURE Store the current image

PREVIEW Display images in splited form

Choose next picture to recycle or

NEXT

delete

PLAYBACK Display stored image fulfilled screen

DELETE Delete choosed picture in splited state

SIGNAL Choose signal 1 or 2(selected)

- 14 -

DVD and Projector reference (selected)

Symbol Function Description

MENU DVD’s manu

UP DVD’s up

DOWN DVD’s down

LEFT DVD’s left

RIGHT DVD’s right

ENTER DVD’s enter

RETURN DVD’s escape or return

STOP DVD’s stop

play or pause DVD’s play or pause

function 1 Projector’s function 1

function 2 Projector’s function 2

function 3 Projector’s function 3

- 15 -

2. OSD Controller:

OSD menu operation: PICTURE, RGB, RESOLUTION and

SYSTEM. Operation as shown below:

In the normal state, press FOCUS for 3 seconds to enter into

the main menu, and then press WIDW or TELE button to enter

into PICTURE, RGB, RESOLUTION or SYSTEM setup. After

entering into the menu, press WIDW or TELE to select the option
to be set up, and then press Far or Near to set up the detailed

specification under each option.

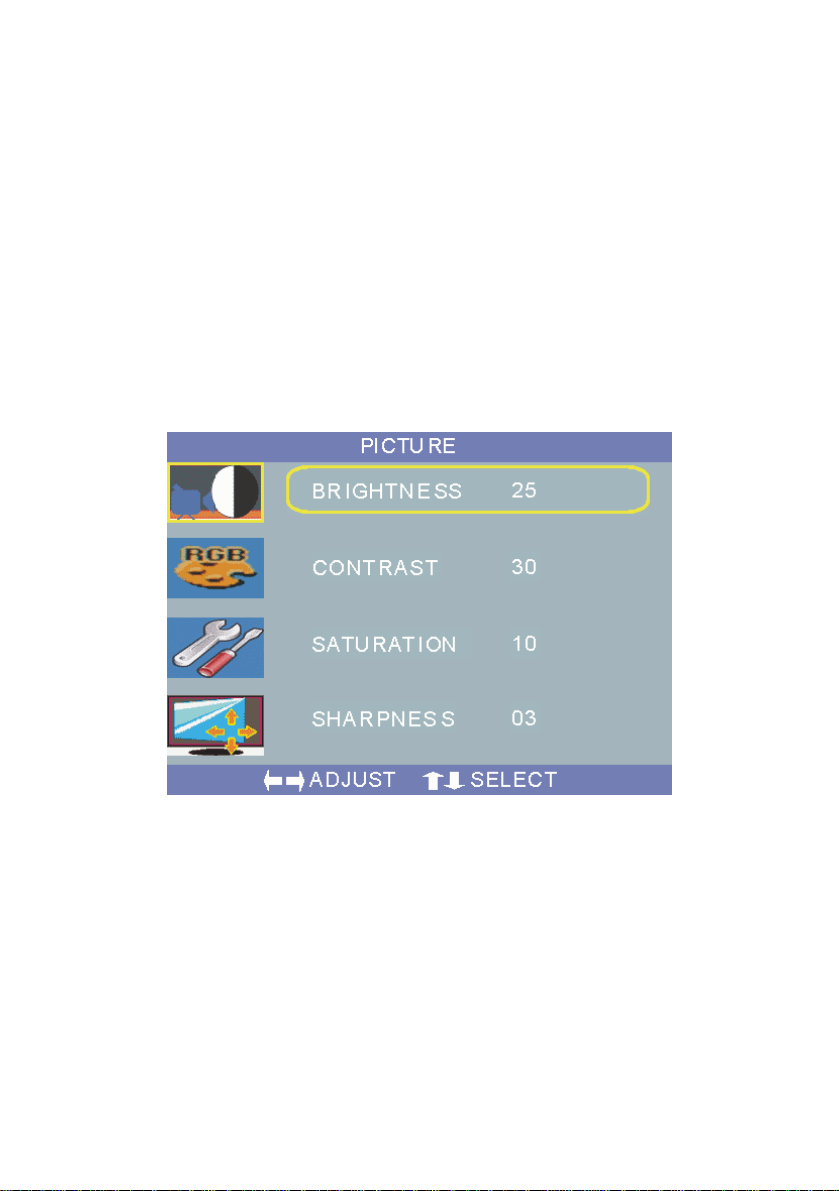

Pressing “Tele” “Wide” to come to the image setting selection,

pressing “Focus” to come to operation, pressing “Tele” “Wide” to

select operation itms needed, pressing “Far” “Near” to setup the

selected items. After entering the image setting, it could setup the

brightness ,contrast ,saturation and acutance .

- 16 -

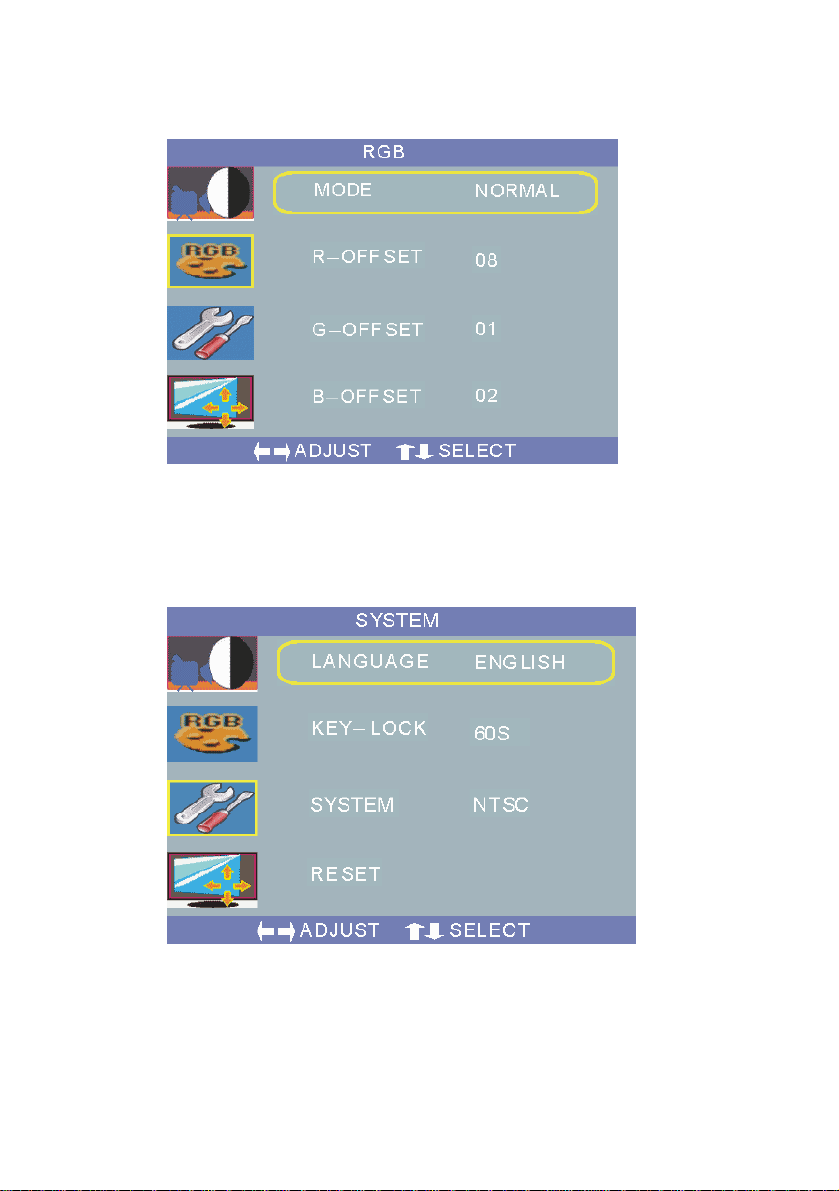

After entering the color selection item, it could select the mode

of beforehand default color, or select the user-defined mode, then

come to the adjustment of R-OFFSET , G-OFFEST and

B-OFFEST

After entering to the system setting item, it could select the

language. Pal, NTSC and default setting could be choosed offered
by TV mode .

- 17 -

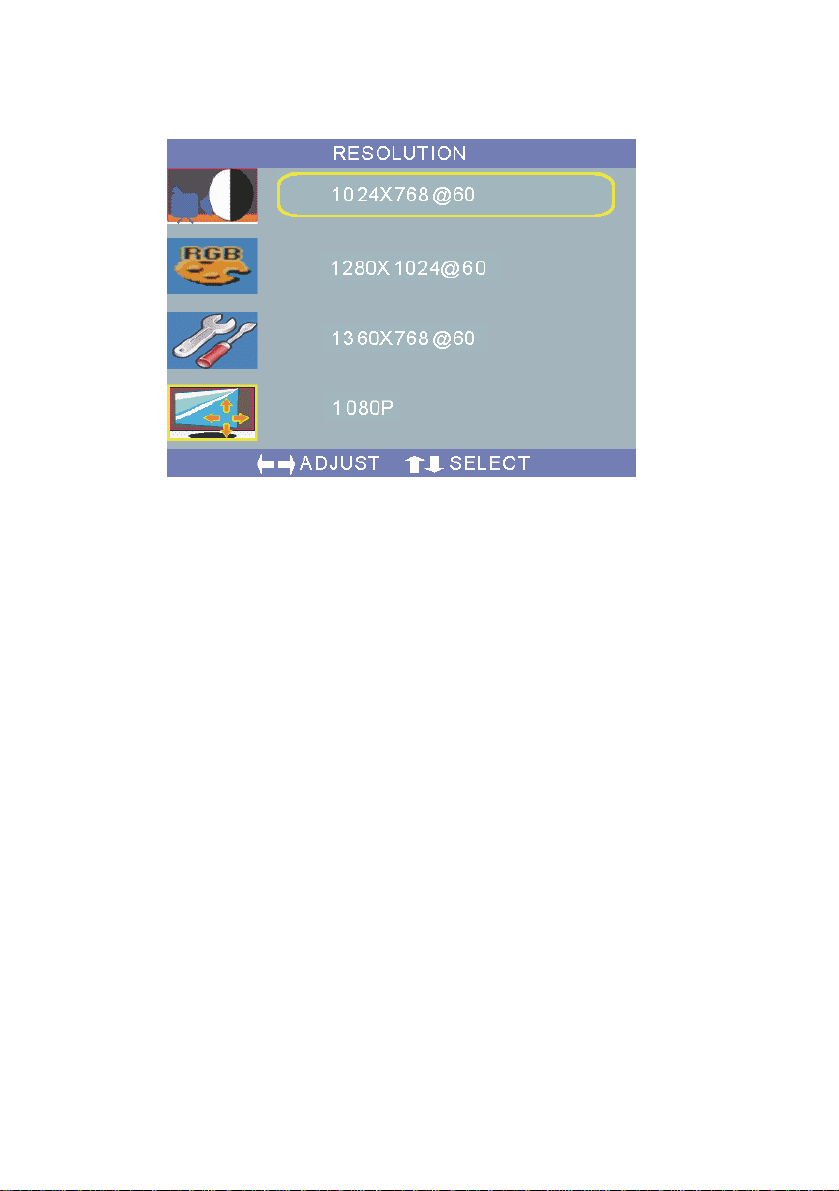

After entering into the RESOLUTION page, you can set up the

resolution.

4.PC RS-232:(it functions the same as remote controller, pls

check attached disc).

- 18 -

☆ Methods of connecting with Central controller:(selected)

p

Users connect visual presenter to central controller through
RS-232 F/M cable to let visual presenter control projector and
screen, also provide with a 16w amplifier to connect passive
speaker.

1. Projector’s power:

G

2.Connection of Screen Power:

3.Multi-functioned Ports:

4.Muilti-connections:

DB-9 OUT
to controller

N

L-u

L-down

Reservation Reservation

Infrared line

LN

Screen Motor

Visuliser’s
Multi-funct

PC COM

Projector’s RS-232

- 19 -

Visualiser’s port
or to controller’s

☆ Infrared decoding and usage:

●Infrared decoding:

1. Press button for five times when visual presenter is

in the state of waiting, then press buttons for four times, and

press button into state of infrared decoding. At this time,

users will hear a voice of “Bee”, all indicators will be on.

2. Put DVD’s remote controller opposite to visual presenter’s

infrared receiver window, press the button, after a voice of “Bee”,

shortly, at the same time indicators will be off, waiting for infrared

code.

3. Put DVD’s remote controller opposite to visual presenter’s

infrared receiver window, press the button, after a short voice of

“Bee”, indicators will be on, meaning this button has been infrared

decoded. If decode other buttons, please repeat step 3, until it is

finished.

4. After decoding, turn off visual presenter, infrared decoding

has been finished sucessfully.

5. Projector’s decode: method is the same as step 3, visual

presenter can provide with 3 buttons to decode projector, which

can decode projector ON, projector OFF, RGB’s switch.

6. If there is a mistake, please repeat step 3 and step 4,

visual presenter will cover previous operation.

For example:
the steps of decoding DVD’s “MENU” are as follows:

- 20 -

1. Press button for five times when visual presenter is

in the state of waiting, continually press buttons fir four

times, and press button into state of infrared decoding. At

this time, users will hear a voice of “Bee”, all indicators will be on

to start operation;

2. Put visual presenter’s remote controller opposite to

receiver window, press button on remote controller, hearing

of a voice of “Bee” shortly, and indicators will be off;

3. Put DVD’s remote controller opposite to visual presenter’s

infrared receiver window, press“MENU”button, will hear of a voice

of “Bee” shortly, indicators will be on

4. After decoding, turn off power, infrared decoding has been

finished sucessfully.

Another example:
the steps of decoding projector’s “Remote Controller” are
as follows:

1.Press button for five times when visual presenter is

in the state of waiting, then press buttons for four times,

and press button into state of infrared decoding. At this

time, users will hear a voice of “Bee”, all indicators will be on to

start operation;

2. Put visual presenter’s remote controller opposite to remote

receiver window, press button on remote controller, will hear

of a voice of “Bee” shortly, and indicators will be off;

3. Put projector’s remote controller oppoiste to visual

- 21 -

presenter’s infrared receiver window, press “Power” button, and

will hear of a short voice “Bee” (if some projectors need 2 seconds

to turn on, users need press remote controller more than 2

seconds to decode.),and indicator will be on;

4. Decode projector’s off: Put projector’s remote controller

oppoiste to visual presenter’s infrared receiver window, press

button, and will hear a short voice “Bee”, indicator will be off. Put

projector’s remote controller opposite to infrared receiver window,

press “Off”, and will hear a short “Bee”, indicator will be on;

5.Decode projector’s other function, visual presenter provides

with 3 functions,namely detailed operations are

the same as step 2, step3;

6. After operation,turn off power, infrared decoding has been

finished sucessfully.

Warmly Suggest: To prevent from interference,please

try the best to use RS-232 controlling projector, don’t use

infrared remote controller, in order to make precedure more

Infrared Decoding Usage:

●

Note:Please put infrared shooting head close to receiver’s

window.

●

Digital DVD and other equipments with RGB output ‘s control:

When DVD’s RGB connects with visual presenter’s

“RGB-IN”, press button repeatedly into state of “ RGB-IN”,

can press the button to control DVD（Detailed operation please

- 22 -

refer to DVD’s manual）.

☆Daily Maintainance and attention:

1．Pls don’t turn on/off power frequently, in order not to shorten

the using time of CCD Camera.

2．Lamps should not get on/off frequently and sunddenly, in

order to lengthen their lifetime.

3．Don’t make CCD opposite to strong light, such as sunlight

or sun.

4．Pls turn off power when users intend to move, and pull plug

out , let the pole down to move, and don’t lift the pole or assistant

lamp arms to move.

5．Pls don’t rotate assistant lamps horizontally.

6．Press left/right lamps down without heavy strength.

7．Attention to get out of wetness when it is in wet condition,if

user has found it can not focus clearly, don’t touch CCD by hand,

use special paper to clean. If necessary, pls turn down CCD ‘s

short-sighted lens to make clearance.

8．Pls pull out power plug when long time unused, and cover

with cloth or plastic things.

9. The valid time is 8 years, if for lasting time, pls send visual

presenter to after-sale service or repaired center for checking.

- 23 -

☆Problems and Solutions:

Problems Analysis and solution

Check power cable,connect again
Press power in to electricity

No image
no sound

Image is
not clear

Noise-wa

ve exist

too dark
Buttons

on panel

are

invalid

Remote

controller

no

response

Micropho Check audio cable is good and correct or not

Audio cable or RGB cable connected in wrong way,
pls connect again.

Check input/output connect correctly or not.

CCD cover has not been taken off

Distance between things and CCD is too close, so

can not focus normally, to adjust and make it more

than 330mm.
Surface of things are too brilliant or reflects, adjust
light darker
CCD is dirty. Pls clean CCD or short-sighted lens

underside
There is noise-wave when enlarging image in

extremely dark environment. Pls turn on assisted

lamps
Pls turn on assisted lamps Image is
Pls adjust brightness, increase brightness
Press two buttons synchronically or press them
slowly, visualiser will be no reply. One time one
button,make interval time longer when pressing two
buttons
Confirm there is no other things between visuliser
and remote controller.
Confirm distance between visual presenter and
remote controller is within 30M
Pls check battery fine and in correct connection or
used out yet.

- 24 -

Check microphone work well or not ne no

sound

Check volume of microphone is in the lowest or not

☆Technique Specification:

CCD F1.6(W)～F3.7(T),f=3.9～85.8mm

Optical

Lightenin

g

Input

selection

Input
ports

Shooting

Area

zoom ≥12 Optical、≥8 Digital

Focus Auto/manual

Aperture Auto

Pick-ups 1/3″130W Pixels Color CCD

TV system PAL/NTSC color system

Horrizontal

clarity

Signal Noise ≥52dB

White

balance

Images

Assitant

lamp

Baselight LED lamp

RGB switch visualiser/PC/RGB

RGB D-SUB15 Pin socket

Audio

（stereo）

Microphone ￠6.35 socket (-60dB 600Ω)

RS-232 D-SUB 9pin socket(multi-functioned）

357×280 mm

≥750TV lines（VGA）

Auto white balance,manual white
balance(red/blue)

C/W/B, negative/positive, Brightness,
mirror image, text, freeze, image stored,
comparison, rotate（*）

LED lamp×2

￠3.5 socket (-10dB 10KΩabove)

- 25 -

RGB D-SUB 15 holes socket

Compound

video

audio

（stereo）

RCA socket (1V±0.2Vp-p 75Ω)（*）

￠3.5 socket (-10dB 10KΩ above)

S-Video Micro DIN 4 socket（*）

Output

ports

USB USB square socket（*）

Projector

232

Infrared

control

D-SUB 9pin socket

D-SUB 9pin socket

PC ON/OFF D-SUB 9pin socket

Power output

Control

modes

Projector power(central control function)(*)

Screen power

(entral control function)(*)

Control panel, remote controller,

RS-232 control software, USB*

Power 12V DC 1.5A

Environm

ent

Consuming ≤15W

Temperature 0℃～40℃

UNFOLD:550×430×550 mm Outer

FOLD:570×430×150 mm

size

W×D×H

○ USB function

For

selection

○ central controlling function
○ U Dish

Note:1.with“

standard,and will not inform users again.

*”symbol for basic,“○”symbol for selection.

2.if specification changed,please check exact product for the

- 26 -

☆ Attached list: B95E

Name Unit Quantity

● Manual booklet pc 1

● Control sofeware（disc） pc 1

● Remote controller pc 1

● Adapter pc 1

● Power cable pc 1

● VGA cable pc 1

● RS-232 multi-functioned cable pc 1

● ￠3.5Audio cable pc 1

● Infrared shooting cable pc 2

● Projector RS-232 cable pc 1

● DB-9（to projector’s RS232 port） set 1

● USB cable pc 1
○ AV cable pc 1
○ S-port cable pc 1
○ ￠3.5-RCA Audio cable pc 1
○ mouse pc 1
○ Central control box pc 1

○

○

￠3.5-￠3.5 Audio cable

(with central control box）

RS-232 F/M cable
（with central control box）

pc 1

pc 1

○ DC cable（with central control box） pc 1
○

Note: “●”for basic spareparts,“○”for selected spareparts.

- 27 -
