DIGITAL VISUALIZER
User Manual
NewVission
NV-1920
Pls read carefully before installation and keep reservation.
Page 2
- 1 -
☆ Catalogue:
Safety Notice…………………………………………………2
Feature Instruction…….….…………………………………3
Instruction & components…….………………………………5
Whole instruction…….…………………………………5
Back/side connections .………………………………5
Connection Surroundings…….………………………………7
Whole Connections…….…..…………………………7
Basic Operation…………….………………..………………8
Unfold process…….…....….…………………………8
Fold process………………..…………………………8
Methods of Usage……….……..……………………………9
Control Panel………….………………………………9
Remote controller……….…………..………………14
OSD Controller .............- ……………………………15
Infrared decoding and usage….….……..………………18
Infrared Decoding……………………………………18
Daily Maintain us and Attention.…….……………………21
Problem and Solution……….………..……………………22
Attached list…………….….……….………………………23
Technique Specification….…………...……………………
24
Page 3
- 2 -
☆Safety Notice:
Warning: Pls don’t let it in rain or put it into wet
environment in order to prevent from fire breaking or leak
of electricity. The visual presenter includes high voltage
accessories and dangerous, so installing will fully and
repairing spareparts are prohibited, just the professional
can do these.
1. Before using, pls see power voltage and frequency same or
not. To keep safe, users must be consciously that power
socket should be three poles:L-line,N-line,G-line, and connect
them in right way.
2. User must get G-line of all equipment‟s input and output ports
through before turning power on, in order to avoid the
unexpected damage caused by mute /high-voltage. Don‟t
insert or pull out cables with electricity.
3. Pls don‟t rebuild visual presenter or use it without outer shell.
4. Pls don‟t drop something easy-fire, liquid or metal into,
otherwise, will easily break the visual presenter or make
troubles for visual presenter. Pls don‟t put something easy-fire
or liquid on the table.
5. Don‟t take it in the environment of high tempreture, wetness,
corrodible gas like acid oralkali, more-dust, and shakiness. Put
it on special-steady desk , and don‟t put the visual presenter
on unsteady tabletop or don‟t put 1KG things on the baselight
table.
6. Pls clean it by dry cloth, and cut down electricity before
cleaning, users also can not use liquid dilution, volatilised
gasoline,insecticide or other chemistry solvent.
7. Pls pull power-plug out if long time no use.
8. Don‟t let children play visual presenter to prevent from
electric-shock..
9. Pls turn off power immediately if there are some abnormal
appearance (noise or smoking) and pull power-plug out.
Page 4
- 3 -
☆Feature Instruction:
Welcome to use visual presenter. Pls read “Manual
Operation Booklet” attentively before usage. We sincerely
hope this booklet will bring convenience and skilled method
to you.
combines fashion and creation;
from, may use for long.
remote controller, pick-up pens, pick-up stick and others into;
operated;
users can preview and edit before shooting to projector(s);
signal comes to visual presenter, continually connect with monitor.
and no need turn visual presenter on;
comparison can be improved up to 1/3,makes image more
beautiful and clear;
more easier (correct), can output original voice;
parts when pull out/plug into with electricity;
and clear to show;
50,000,00 Full HD resolution,CMOS Scaning ,output resolution
1920X1080 high clarity digital signal, make image clear and with
best color deoxidized, when capture smaller characters, there are
no white edge, shaking, shinning and other problems, can connect
Japan and Korea Fashionable Outer Design with smooth line,
Special sensitive touch-key design prevents dust and water
Special drawer function, human-being design, may store
All joints featured with no press damping design, easily
Intelligent preview/shooting, featured with human controlling:
No need turn visual presenter on to get through: when PC
VGA belt width 440MHzwith long cable, image brightness and
Put digital volume adjustment inner, make volume adjustment
Specially provide with ESD protection, won’t break inner spare
Total zoom≥80, make the smallest letters and number bigger
High digital: Adopt high digital technique to manufature,1/3”
Page 5
- 4 -
with projector directly, rear projector TV, or monitor’s RGB port,
specially suitable for school’s demonstration or B/W characters
teaching;
It includes multi-functioned intelligent central controller system,
one button controls on/off, projector can be delayed to turn off,
projector and screen can be controlled combatively, infrared
decoding and others
Easy to install and maintain: adopt serial port to control
projector, avoid of hard infrared decoding or easily interfering and
other problems. There are hundreds of projector’s code totally 10
kinds of famous brand, easily to set, and can update for free.
Infrared decode secretly, without any decoding device, simply
in use, store image more reliable;
Powerful image proceeded, freeze, color/B/W, positive/negative,
mirror, brightness adjusted, rotate,image/text,
comparison, image storage
;
Multi-input, multi-output, combine intelligently, switch
multi-media to demonstrate;
CCD/CMOS camera can turn 350°vertically or horizontally;
Methods of control: control panel, remote controller, RS-232,
USB
Microphone socket which can adjust volume can connect with
cable or eternal microphone.
Page 6
- 5 -
☆ Instruction & components:
1
3 2 4 6
7 8 11
3
10
5 2
9
1 2 3 4 5 6 7 8 9
10
11
13
15
16
14
12
●whole structure:
1. Main pole; 2.Assistant lamp Arms; 3.assistant lamps;
4.drawer (once Push to rebound, twice push to recover. Attention:
don’t pull it out of the position with heavy strength); 5.Infrared
Receiver Window; 6.CCD/CMOS outsell; 7. Camera Cover;
8.Baselight; 9.Back Connections; 10.Side connections; 11.Control
Panel.
●back/side connections:
Page 7
- 6 -
1.DC12V power input; 2.DC12V power output; 3.RS-232
controlling port,RS-232 multi-functioned cable connect to PC’s
COM port (If select central controller’s spare parts, this port is
used for RS-232 F/M cable); 4.S-VIDEO output port（selected）;
5.Video Output port（selected）; 6.Stereo Output; 7.PC stereo Input
Port; 8.PC RGB input port; 9.Output Port to Monitor; 10.Output
port to Projector(or rear projector TV); 11.USB Port;
12. HDMI OutPut Port
14.Microphone Plug; 15. RGB
- - - - - - - - - - - - - - - - - - - - - - - - - -
13.Microphone Volume Adjustment;
Input Port; 16. Audio Stereo Input.
Page 8
- 7 -
Note: pls cut down Surrounding equipment’s power before start
operation.
PC
Rear
Projector /TV
LCD monitor
Projector
Laptop
Amplifier
Projector /TV
☆Connection Surroundings:
● Whole Connections
:
HDMI Out
U 盘
Microphone
Page 9
- 8 -
☆ Basic Operation:
1
2
3
1
2
3
5 6 5
6
6
7
●Unfold Steps:
1.Lift the pole;2.Lift assistant lamp to the left;3.Lift assistant
lamp to the right;4.adjust CCD/CMOS ’s angle vertically;5.adjust
CCD/CMOS ’s angle horizonally;6.adjust assistant lamps’ angle
properly;7.take CCD/CMOS ’s cover off (Note: Pls rotate it to the
right, don’t pull with heavy strength).
●Fold Steps:
1.Press left assistant lamp arm down;2.press the right lamp
arm down;3.adjust CCD/CMOS outer shell horizontally to
parallel with the pole;4.adjust CCD/CMOS outer shell vertically
to parallel with the pole;5.put the pole down;6.put CCD/CMOS
cover on(Note: don’t rotate, cover it directly).
Page 10
- 9 -
☆ Methods of usage:
There are three methods of operation: 1. control panel
2.remote controller 3. Control it through RS-232 Port supported by
Computer’s Window System. Three methods can be executed
individually, and can be fixed up.

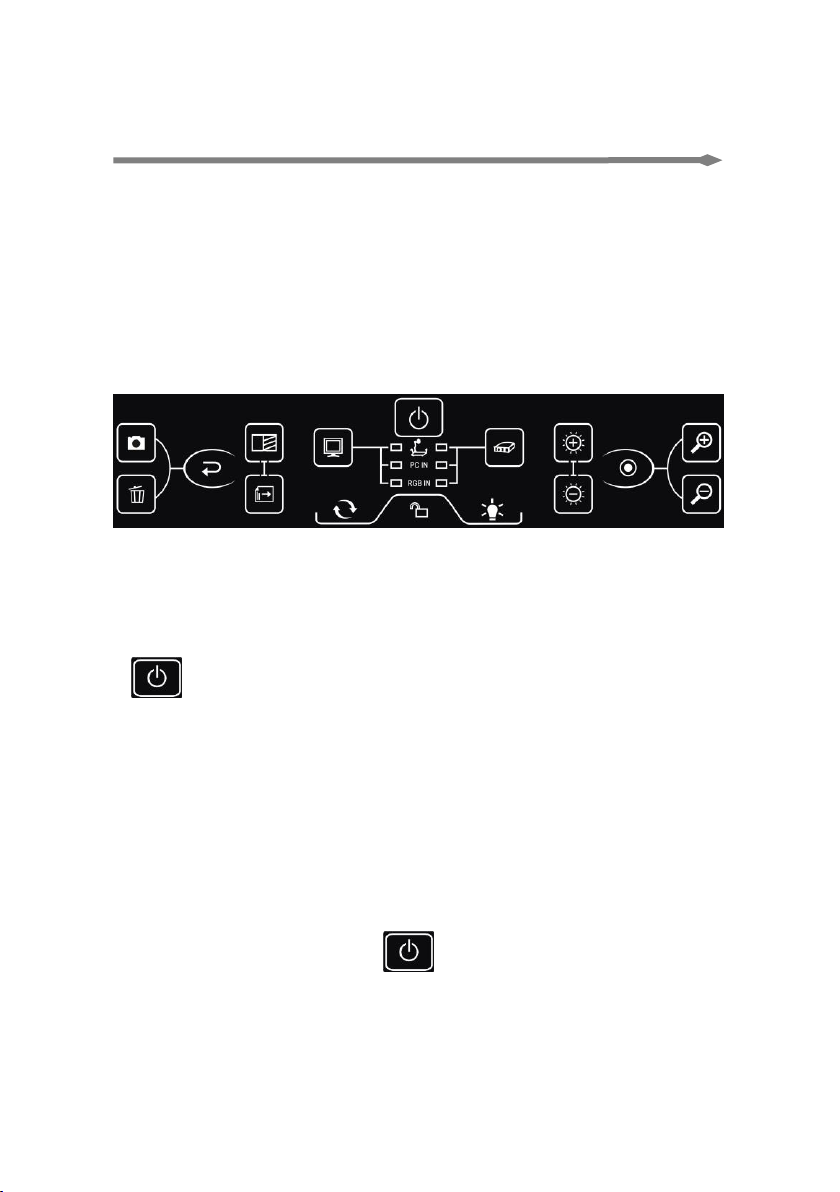

1. Control Panel:（Note: pls check exact goods for the standard.）
●System acquiesces the following:
It is into awaiting state when visualizer’s power on ,and
“ ” light will be on, meanwhile it acquiesces PC output to
monitor and projector, thus PC’s monitor and projector’s light will
be on. Light of “volume+” and “volume-“will be on, at this time user
can adjust volume. This visualizer adopts sensitive touch key, just
touch it with finger to use, and don’t strike with heavy metal or
heavy strength to prevent from the nick.
●Turn on:
After connections, press , and it turns from red shinning
to red, means the visual presenter’s power is on. When heard of
“Bee “twice, users can start operation. Please try again to open
projector when user found that projector’s power was off.
Page 11
- 10 -
●Turn off:
When turn off, press 2 seconds, after heard of a voice
of “Bee”, this indicator will become from red shinning to red,
means get into state of waiting, and visual presenter has been
turned off. If visual presenter has central controller function, when
turn visual presenter off, press this button 2 seconds, after
a voice of “Bee”, power indicator shines firstly, meanwhile visual
presenter cannot be controlled by any button. When power
indicator gets into shining slowly, press again to turn off
projector. After 2 minutes of “Bee”, it is into state of waiting, at
same time projector’s power has been cut down (delayed to turn
off). When it is into state of turning off, visual presenter will switch
“PC IN”（PC’s signal）into monitor automatically.（It is get through
without signal of turning on）.
●Lamp Selection:
Press button, users can turn on/off assistant lamps or
base light.

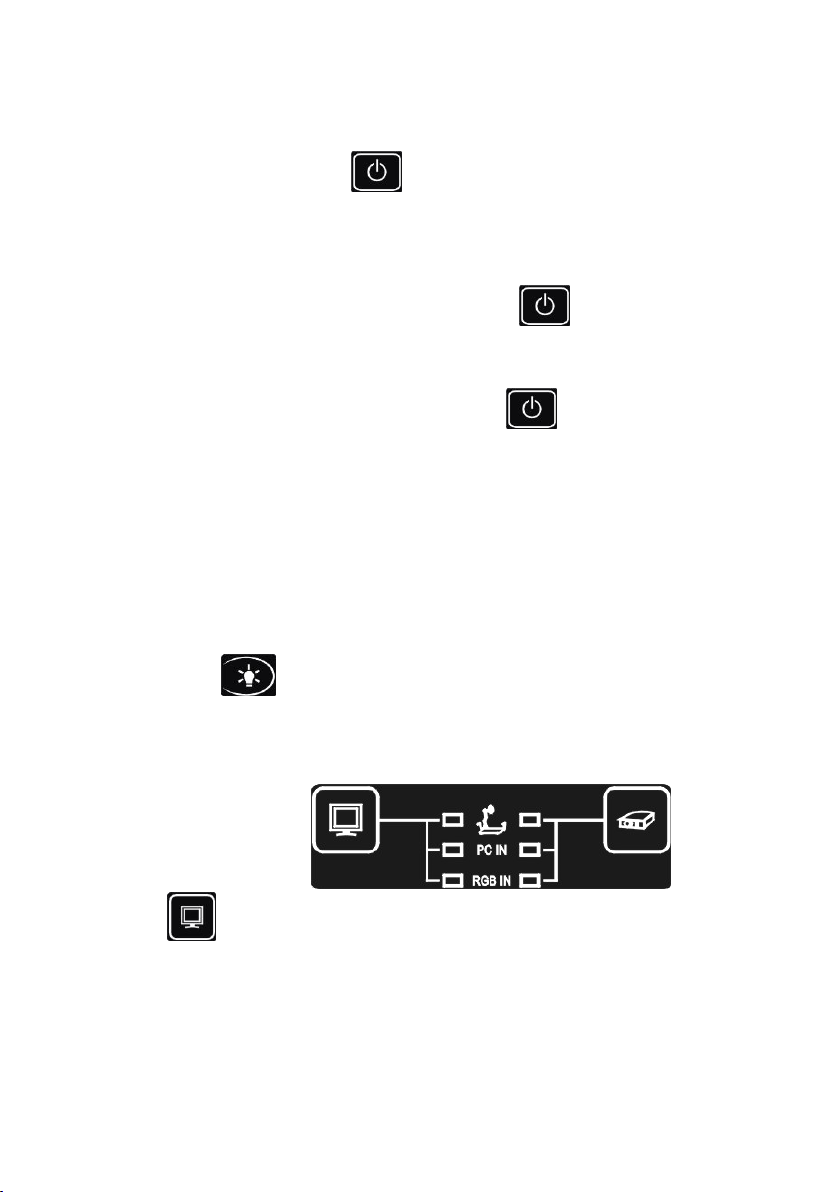

●Preview/shooting:
Signal output to monitor（preview）: Press this button
repeatedly to select visual presenter’s signal, PC signal, and RGB
signal’s input. When select visual presenter’s signal, the indicator
will become red（other two indicators will be off）,when select PC
signal input, the indicator will be on red(other two indicators will be
Page 12
- 11 -
off）,when select RGB signal input, the indicator will be red（other
two previewing indicators will be off）.
Signal output to projector (shooting): Press this button
repeatedly to select visual presenter’s signal, PC signal, and RGB
signal’s output. When it is into asynchronous state, please select
visual presenter firstly, when PC and RGB signal output to monitor,
press this button again, image will output to projector, meanwhile
audio will output as followed, the indicator will become from
shinning red to red.

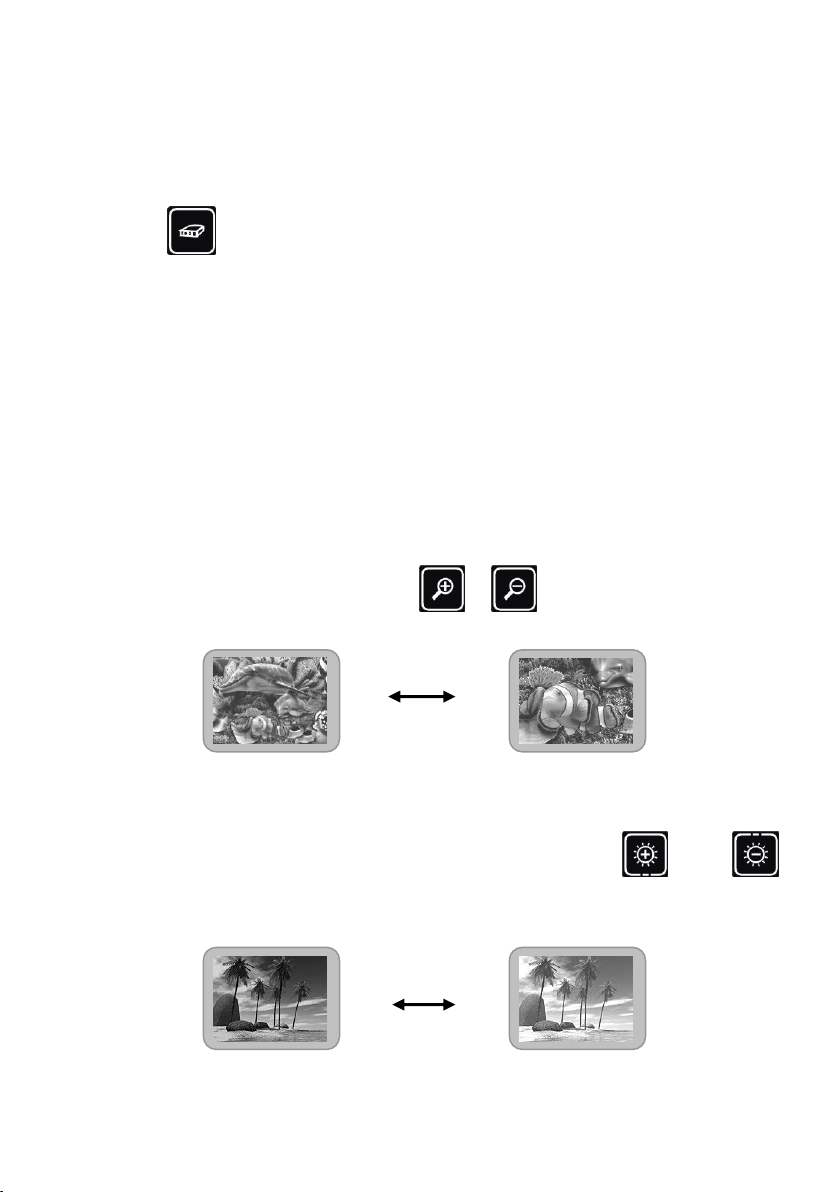

●Focus adjustment:
Adjusting focus button can change the range of CCD/CMOS
camera, touching or pressing on or button, can magnify
image or deflate image gradually or continually.
●Brightness adjustment:
Adjusting brightness can change the output brightness from
CCD/CMOS camera, touching or pressing on or
button can change the brightness, letting it go by hand will stop
adjusting of brightness.
Page 13
- 12 -

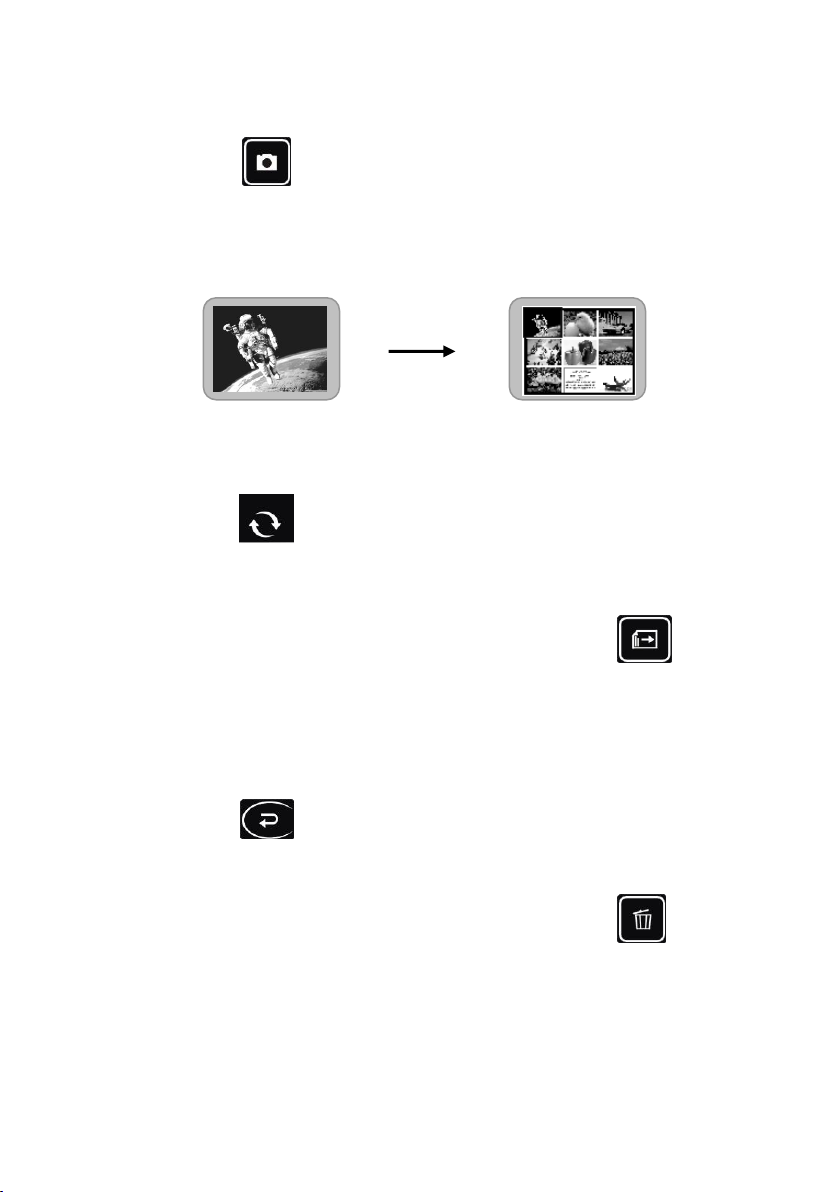

●Storage:
Pressing button can store present image.（Note: when it
fulfills with images, indicator will be off, if users want to store more,
please delete previous storage for 1 set and can store 1 set
again）
●Rotation：
Pressing button can rotate the image 180°.
●Select image:
When it is in the state of split screen, pressing
button can recycle or delete images. Press one second for
next image
●Recycle:
Pressing button can recycle selected images.
●Delete image:
When it is in the state of split screen, pressing button
can delete selected images. Press one second for
deleting stored images.
Page 14
- 13 -
Note: visual presenter adopts indicator to guide operation and
this human-nature design make operation more vividly.
●Division:
Pressing button can display the right part of the
saved image on the split screen; pressing button can
change to another right part of the saved image.
●Auto Focus:
Pressing button, the focus will adjusts itself
Automatically.
●Lock and unlock:
Pressing button“1”second can unlock.
Visual presenter acquiesces that it will unlock after 20
seconds automatically without any touching, at this time users can
only operate indicated buttons, others should be unlocked before
operation.
Page 15
- 14 -

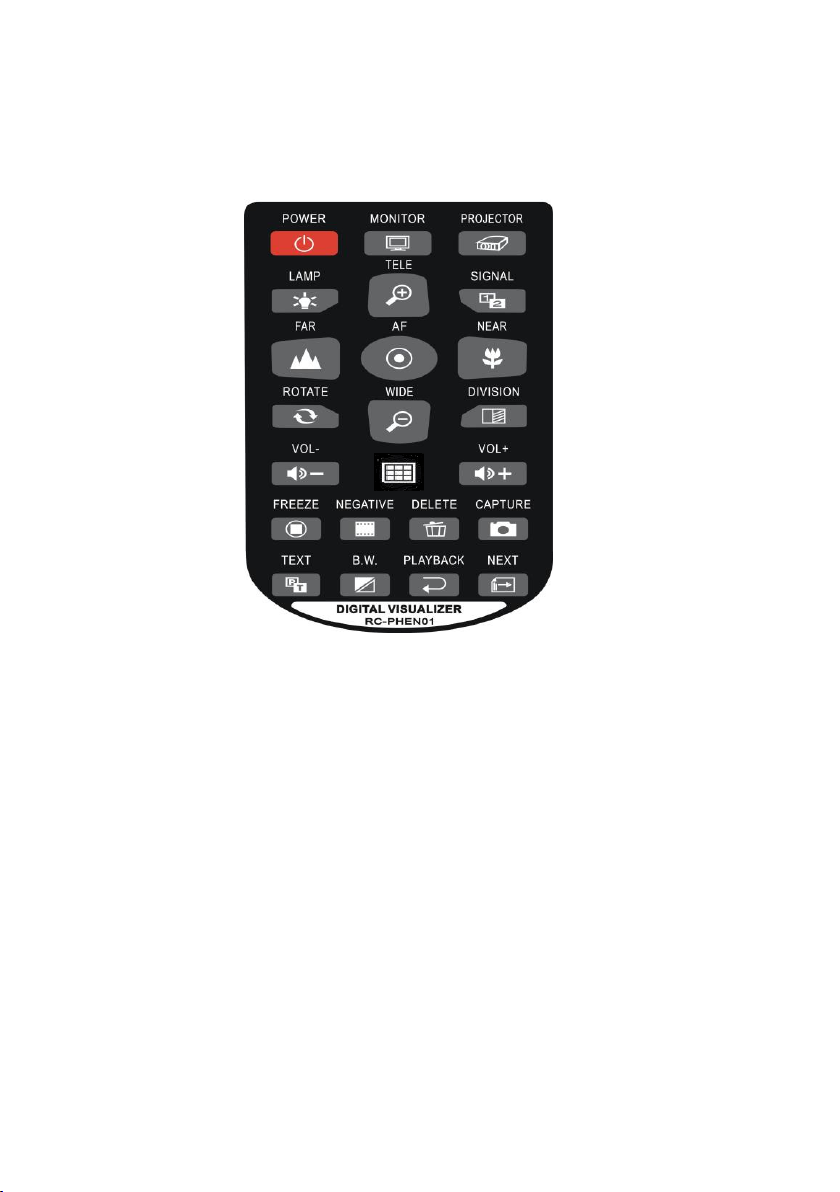

2. Remote Controller:
Function
Description
POWER
Turn on/ Turn off, or decode projector’s on
LAMP
On / Off of light and base light, or
decode projector’s off
MONITOR
Output Signal to Monitor
PROJECTOR
Output Signal to projector or TV
ZOOM
ZOOM
VOLUME
VOLUME
DIVISION
Freeze the left part of image, move
and compare with right part of image
B.W.
W/B & Color of image
ROTATE
Rotate image for angle of 90 or 180
NEGATIVE
Show image in positive / negative form
FREEZE
Freeze the shooting image
TEXT
Display picture in text/image form
CAPTURE
Store the current image
PREVIEW
Display images in split form
NEXT
Choose next picture to recycle or
delete
PLAYBACK
Display stored image fulfilled screen
DELETE
Delete choose picture in spited state
SIGNAL
Choose signal 1 or 2(selected)
Enlarge image
Contract image
Increase volume
Reduce volume
Page 16
- 15 -
Remote Controller:
1. OSD Controller:
OSD menu operation: PICTURE, RGB, RESOLUTION and
SYSTEM. Operate as shown below:
In the normal state, press FOCUS for 3 seconds to enter into
the main menu, and then press WIDE or TELE button to enter into
PICTURE, RGB, RESOLUTION or SYSTEM setup. After entering
into the menu, press WIDE or TELE to select the option to be set
Page 17
- 16 -
up, and then press far or Near to set up the detailed specification
under each option.
Pressing “Tele” “Wide” to come to the image setting
selection ,pressing “Focus” to come to operation ,pressing “Tele”
“Wide” to select operation items
setup the selected items

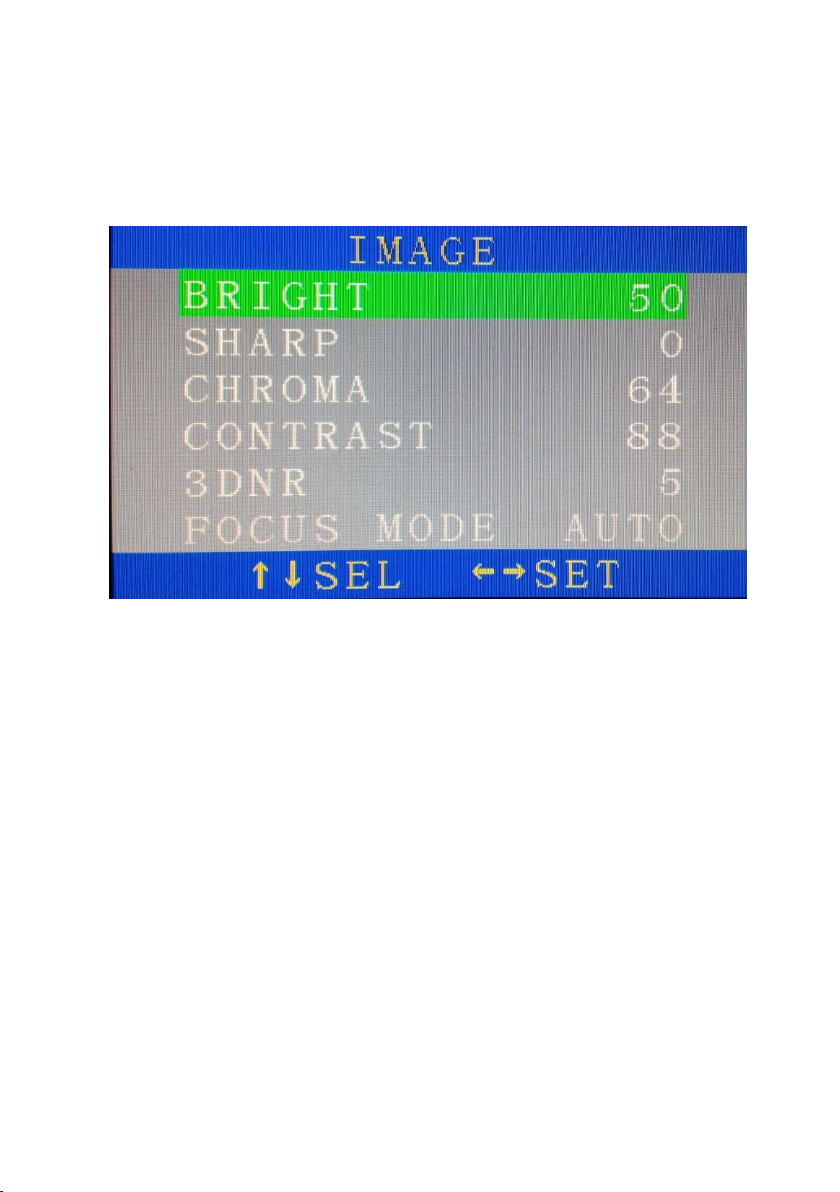

.After entering the image setting, which could setup the
brightness, contrast, sharp and Chroma
needed ,pressing “Far” “Near” to
Page 18
- 17 -

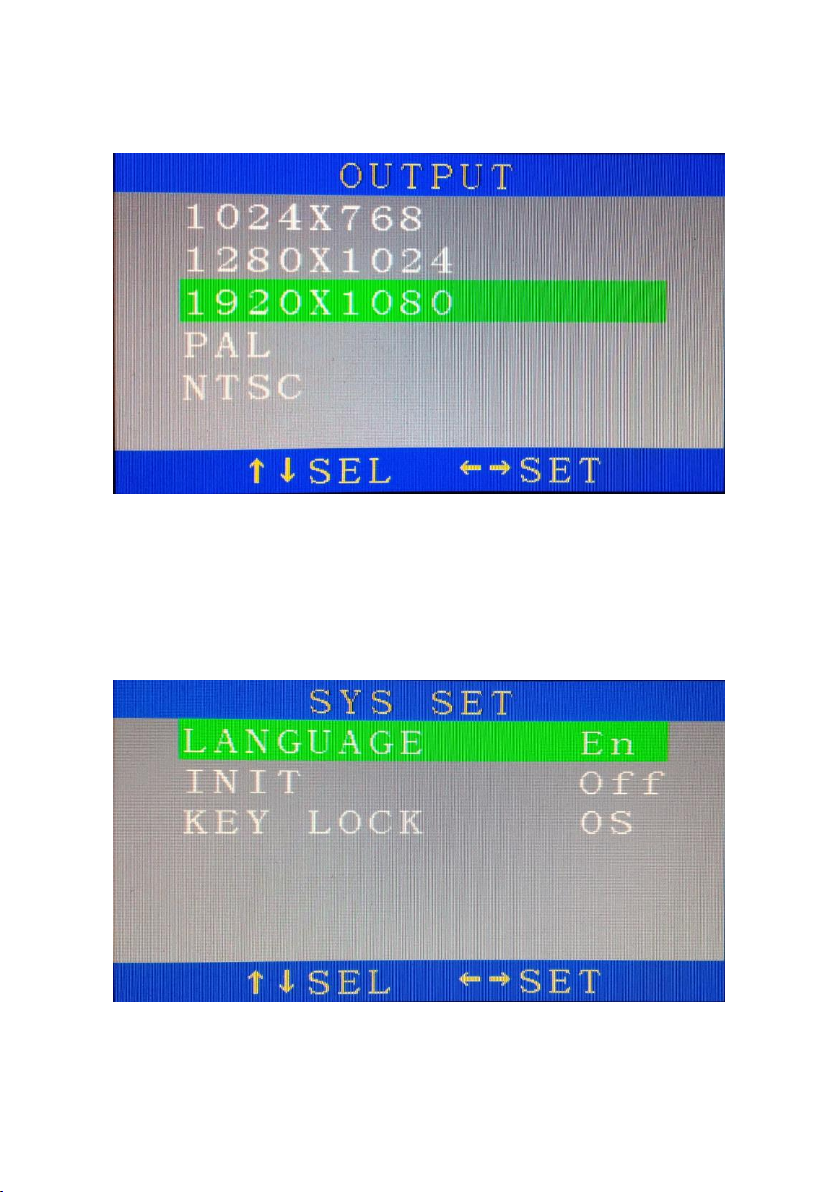

After entering to the Output setting .Pal, NTSC and default setting
could be choose offered by TV mode. And you can set up the
resolution as your supportable device.
After entering to the Sys Set setting which could select the
language & you can set the touch panel locking time
Page 19
- 18 -
☆ infrared decoding and usage:
●Infrared decoding:
1. Press button five times when visual presenter is in
the state of waiting, then press buttons four times, and
press button into state of infrared decoding. At this time,
users will hear a voice of “Bee”, all indicators will be on.
2. Put DVD’s remote controller opposite to visual presenter’s
infrared receiver window, press the button, after a voice of “Bee”,
shortly, at same time indicators will be off, wait for infrared code.
3. Put DVD’s remote controller opposite to visual presenter’s
infrared receiver window, press the button, after a short voice of
“Bee”, indicators will be on, means this button has been infrared
decoded. If decode other buttons, please repeat step 3, until it is
finished.
4. After decoding, turn off visual presenter, infrared decoding
has been finished successfully.
5. Projectors decode: method is same as step 3, visual
presenter can provide with 3 buttons to decode projector, can
decode projector ON, projector OFF, RGB’s switch.
6. If there is mistake, please repeat step 3 and step 4, visual
presenter will cover previous operation.
For example:
The steps of decoding DVD’s “MENU” are as follows:
1. Press button five times when visual presenter is in
Page 20
- 19 -
the state of waiting, continually press buttons four times,
and press button into state of infrared decoding. At this
time, users will hear a voice of “Bee”, all indicators will be on to
start operation;
2. Put visual presenter’s remote controller opposite to
receiver window, press button on remote controller, hears of
a voice of “Bee” shortly, and indicators will be off;
3. Put DVD’s remote controller opposite to visual presenter’s
infrared receiver window, press “MENU” button, will hear of a
voice of “Bee” shortly, indicators will be on
4. After decoding, turn off power, infrared decoding has been
finished successfully.
Another example:
The steps of decoding projector’s “Remote Controller” are as
follows:
1. Press button five times when visual presenter is in
the state of waiting, then press buttons four times, and
press button into state of infrared decoding. At this time,
users will hear a voice of “Bee”, all indicators will be on to start
operation;
2. Put visual presenter’s remote controller opposite to remote
receiver window, press button on remote controller, will hear
of a voice of “Bee” shortly, and indicators will be off;
3. Put projector’s remote controller opposite to visual
presenter’s infrared receiver window, press “Power” button, and
Page 21
- 20 -
will hear of a short voice “Bee” (if some projectors need 2 seconds
to turn on, users need press remote controller more than 2
seconds to decode.),and indicator will be on;
4. Decode projector’s off:
opposite to visual
Button, and will hear of a short voice “Bee”, indicator will be off.
presenter’s infrared receiver window, press
Put projector’s remote controller
Put projector’s remote controller opposite to infrared receiver
window, press “Off”, and will hear of a short “Bee”, indicator will be
on;
Page 22
- 21 -
☆ Daily Maintenance and attention:
1．Pls don’t turn on/off power frequently, in order not to shorten
using time of CCD/CMOS Camera.
2．Lamps should not get on/off frequently and suddenly, in
order to lengthen their lifetime.
3．Don ‘t make CCD/CMOS opposite to strong light, such as
sunlight or sun.
4．Pls turn off power when users intend to move it, and pull
plug out , let the pole down to move, and don’t lift the pole or
assistant lamp arms to move.
5．Pls don’t rotate assistant lamps horizontally.
6．Press left/right lamps down without heavy strength.
7．Attention to get out of wetness when it is in wet condition, if
user has found that cannot focus clearly, don’t touch CCD/CMOS
by hand, use special paper to clean. If necessary, pls turn down
CCD/CMOS short-sighted lens to make clearance.
8．Pls pull out power plug when long time unused, and cover
with cloth or plastic things.
9. The valid time is 8 years, if for lasting time, pls send visual
presenter to after-sale service or repaired center for checking.
Page 23
- 22 -
No image
no sound
Check power cable, connect again
Press power in to electricity
Audio cable or RGB cable connected in wrong way,
pls connect again.
Input/output connect correctly or not?
CCD/CMOS cover has not been taken off
Image is
not clear
Distance between things and CCD/CMOS is too
close, so cannot focus normally, to adjust and
make it more than 330mm.
Surface of things are too brilliance or reflects, adjust
light darker
CCD/CMOS is dirty？Pls clean CCD/CMOS or
short-sighted lens underside
Noise-wa
ve is
exist
There is noise-wave when enlarge image in
extremely dark environment. Pls turn on assisted
lamps
Image is
too dark
Pls turn on assisted lamps
Pls adjust brightness, increase brightness
Buttons
on panel
are
invalid
Press two buttons synchronically or press too
slowly, visualizer will be no reply. One time one
button, make interval time longer when press two
buttons
Remote
controller
no
response
Confirm there is no other things between visualizer
and remote controller to effect
Confirm distance between visual presenter and
remote controller is within 30M
Pls check battery fine and in correct connection or
used out yet?
Micropho
ne no
sound
Check audio cable is good and correct or not
Check microphone work well or not
Check volume of microphone is lowest or not
☆ Problems and Solutions:
Problems
Analysis and solution
Page 24
- 23 -
Name
Unit
Quantity
●
User Manual
pc
1
●
software（disc）
pc
1
●
Remote controller
pc
1
●
Power Adapter
pc
1
●
VGA cable
pc
1
●
RS-232 cable
pc
1
●
USB cable
pc
1
☆ Attached list:
Page 25
Technical Specification:
NV-1920Specification
Technology
Lens
Shooting Area
Zoom(Optical-Digital)
Focus
Image Sensor
Total Effective Pixels
Resolution
Image Rotaion
Frame Rate
Aspect Ratio
Images Memory
Demonstration
Aperture
White Balance
Split Screen
CMOS
F1.6~3.7, f3.9~85.8 mm
210X297 mm (Landscape)
12X Optical + 8X Digital Zoom
Auto and Manual
1/3" Image Sensor
50,00,000
Full HD (1920*1080)
180 Degree
30 fps
16:9
9 Images
Auto
Auto/ Manual
Split Two Half Right/ Left
Image Effect
Remote Effect
Camera Rotation
Lighting System
Top Lamp
Base Lamp
Input/ Output
AV Input
AV Output
Color/BW, negative, mirror, text/ graphic, Brightness
control, Freeze, electric Volume Control
Infrared Remote Control
350 Degree horizontally and Vertically
LED Iamps*2
LED Iamps
Microphone Input*1
Audio frequency (stereo)*2
Video*1 S-Video * 1
Audio frequency (stereo)*1
24
-
-
Page 26
VGA Input
RGB*2 (3 routes matrix switch)
VGA Output
RS-232 Port
USB Port
RGB*2 (Matrix output) HDMI*1
Provided
Provided
Power
Power Supply
Power Source
Energy Consumption
Dimension/Weight
Setup
Fold
* Design and specifications are subject to change without prior notice.
DC 12V 1.5A
100-240Volts 50-60HZ
<= 15W
470*435*520mm
490*493*140mm
5 KGS
25
- -
Page 27
Guangzhou Osoto Electronic Equipment Co., Ltd.
No. 301, Building G, Jingye No. 4 Street, Yushu Industry Park, Science town, Guangzhou, China
Made In China
Loading...
