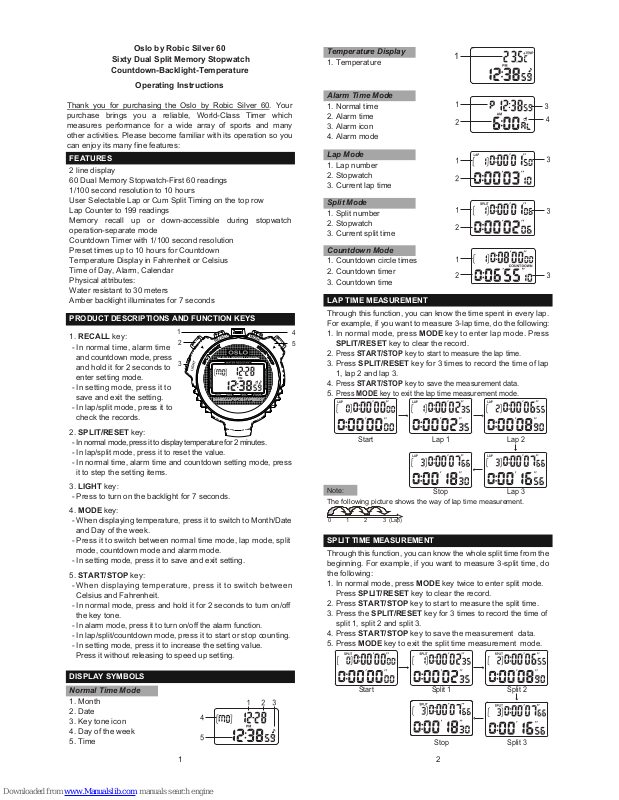

Oslo by Robic Silver 60

Sixty Dual Split Memory Stopwatch

Countdown-Backlight-Temperature

Operating Instructions

Thank you for purchasing the Oslo by Robic Silver 60. Your purchase brings you a reliable, World-Class Timer which measures performance for a wide array of sports and many other activities. Please become familiar with its operation so you can enjoy its many fine features:

FEATURES

2 line display 60 Dual Memory Stopwatch-First 60 readings 1/100 second resolution to 10 hours User Selectable Lap or Cum Split Timing on the top row Lap Counter to 199 readings Memory recall up or down-accessible during stopwatch operation-separate mode Countdown Timer with 1/100 second resolution Preset times up to 10 hours for Countdown Temperature Display in Fahrenheit or Celsius Time of Day, Alarm, Calendar Physical attributes: Water resistant to 30 meters Amber backlight illuminates for 7 seconds

PRODUCT DESCRIPTIONS AND FUNCTION KEYS

1. RECALL key:

- In normal time, alarm time and countdown mode, press and hold it for 2 seconds to enter setting mode.

- In setting mode, press it to save and exit the setting.

- In lap/split mode, press it to check the records.

2. SPLIT/RESET key:

- In normal mode, press it to display temperature for 2 minutes.

In lap/split mode, press it to reset the value.

- In normal time, alarm time and countdown setting mode, press it to step the setting items.

3. LIGHT key:

- Press to turn on the backlight for 7 seconds.

4. MODE key:

- When displaying temperature, press it to switch to Month/Date

and Day of the week.

- Press it to switch between normal time mode, lap mode, split

mode, countdown mode and alarm mode.

- In setting mode, press it to save and exit setting.

5. START/STOP key:

- When di splaying temp er ature, pres s it to switch be tween Celsius and Fahrenheit.

- In normal mode, press and hold it for 2 seconds to turn on/off the key tone.

In alarm mode, press it to turn on/off the alarm function.

- In lap/split/countdown mode, press it to start or stop counting.

- In setting mode, press it to increase the setting value. Press it without releasing to speed up setting.

DISPLAY SYMBOLS

Normal Time Mode

1. Month

2. Date

3. Key tone icon

4. Day of the week

5. Time

Temperature Display

1. Temperature

Alarm Time Mode

1. Normal time

2. Alarm time

3. Alarm icon

4. Alarm mode

Lap Mode

1. Lap number

2. Stopwatch

3. Current lap time

Split Mode

1. Split number

2. Stopwatch

3. Current split time

Countdown Mode

1. Countdown circle times

2. Countdown timer

3. Countdown time

LAP TIME MEASUREMENT

Through this function, you can know the time spent in every lap. For example, if you want to measure 3-lap time, do the following:

1. In normal mode, press MODE key to enter lap mode. Press SPLIT/RESET key to clear the record.

Press START/STOP key to start to measure the lap time.

3. Press SPLIT/RESET key for 3 times to record the time of lap 1, lap 2 and lap 3.

Press START/STOP key to save the measurement data.

Press MODE key to exit the lap time measurement mode.

Note:

The following picture shows the way of lap time measurement.

SPLIT TIME MEASUREMENT

Through this function, you can know the whole split time from the beginning. For example, if you want to measure 3-split time, do the following:

1. In normal mode, press MODE key twice to enter split mode. Press SPLIT/RESET key to clear the record.

2. Press START/STOP key to start to measure the split time.

3. Press the SPLIT/RESET key for 3 times to record the time of split 1, split 2 and split 3.

4. Press START/STOP key to save the measurement data.

5. Press MODE key to exit the split time measurement mode.

3 4

Lap 1 time

Split 1 time

Lap 2 time

Split 2 time

Lap 3 time

Split 3 time

Countdown mode Hour setting Minute setting

Second setting

Normal mode

Minute setting

Hour setting

Normal mode

12/24 Hr

Month settingDate setting

Hour setting

Second setting Minute setting

Year setting

0 1 2 3

(Split)

Note:

The following picture shows the way of split time measurement.

RECALLING THE LAP/SPLIT RECORDS

1. Measure the lap/split time as described in the previous sections.

2. Press

RECALL key to enter recall mode, with the icon “SPLIT

RECALL”

displaying on the LCD.

3. Press SPLIT/RESET or START/STOP key to check the time records upwards or downwards.

Press MODE / RECALL key to return to the lap/split mode.

Note:

1. The sports timer can display up to 199-lap/split time records, but only

memory the first 60 records.

2. The lap and split time records will be displayed together when you

recall the lap or split records.

COUNTDOWN TIME SETTING

1. In normal mode, press MODE key thrice to enter the countdown mode.

2. Press

RECALL key for 2 seconds until the Hour digit flashes.

3. Press START/STOP key to increase the value of the flashing digit.

Press SLPIT/RESET key to proceed to the next setting. Setting sequence will be: Hour>Minute>Second.

Press RECALL or MODE key to save and exit the setting mode, or let it exit automatically 60 seconds later withou t pressing any key.

Note:

1. The maximum time you set can be 9:59’59”00.

2. After the sett in g, p re ss S TA RT /S TO P ke y to start or stop the

countdown. It can be operated for 199 times and the countdown cycle

times will be displayed on the LCD.

3. The default countdown time is 0:00’00”00 (10 hours). Without setting

the countdown time, the countdown timer can also be operated by pressing START/STOP key.

TIME AND CALENDAR SETTING

1. In normal mode, press and hold RECALL key for 2 seconds until the Second digit flashes.

Press START/STOP key to change the value of the flashing digit.

Press SPLIT/RESET key util the Minute digit flashes.Press START/STOP key to set its value.

4. Repeat above 3 in this order: Second>Minute>Hour>Year>Month>Date>12/24Hr.

Press MODE key to save and exit the setting, or let it exit automatically 60 seconds later without pressing any key.

Note:

For second setting, press START/STOP key to change the value to 00; while for the latter setting items, press START/SROP key to increase the values.

ALARM TIME SETTING

1. In normal mode, press MODE key four times to enter the alarm time mode.

Press and hold RECALL key for 2 seconds until the Hour digit flashes.

Press START/STOP key to increase the value of hour.

4. Press SPLIT/RESET key to proceed to Minute setting; press START/STOP key to increase its value.

5. Press MODE key to save and exit setting mode, or let it exit automatically 60 seconds later without pressing any key.

Note:

1. The alarm will be automatically turned on after you set the alarm time.

2. Pres s any k ey to stop the ringing bell. The sound durati on is 6 0 seconds.

KEY TONE SETTING

In normal mode, press and hold START/STOP key for 2

seconds

to turn on the key tone with the icon “ ” displaying

on the LCD.

Press and hold START/STOP key for 2

seconds again to turn off

the key tone. The icon disappears.

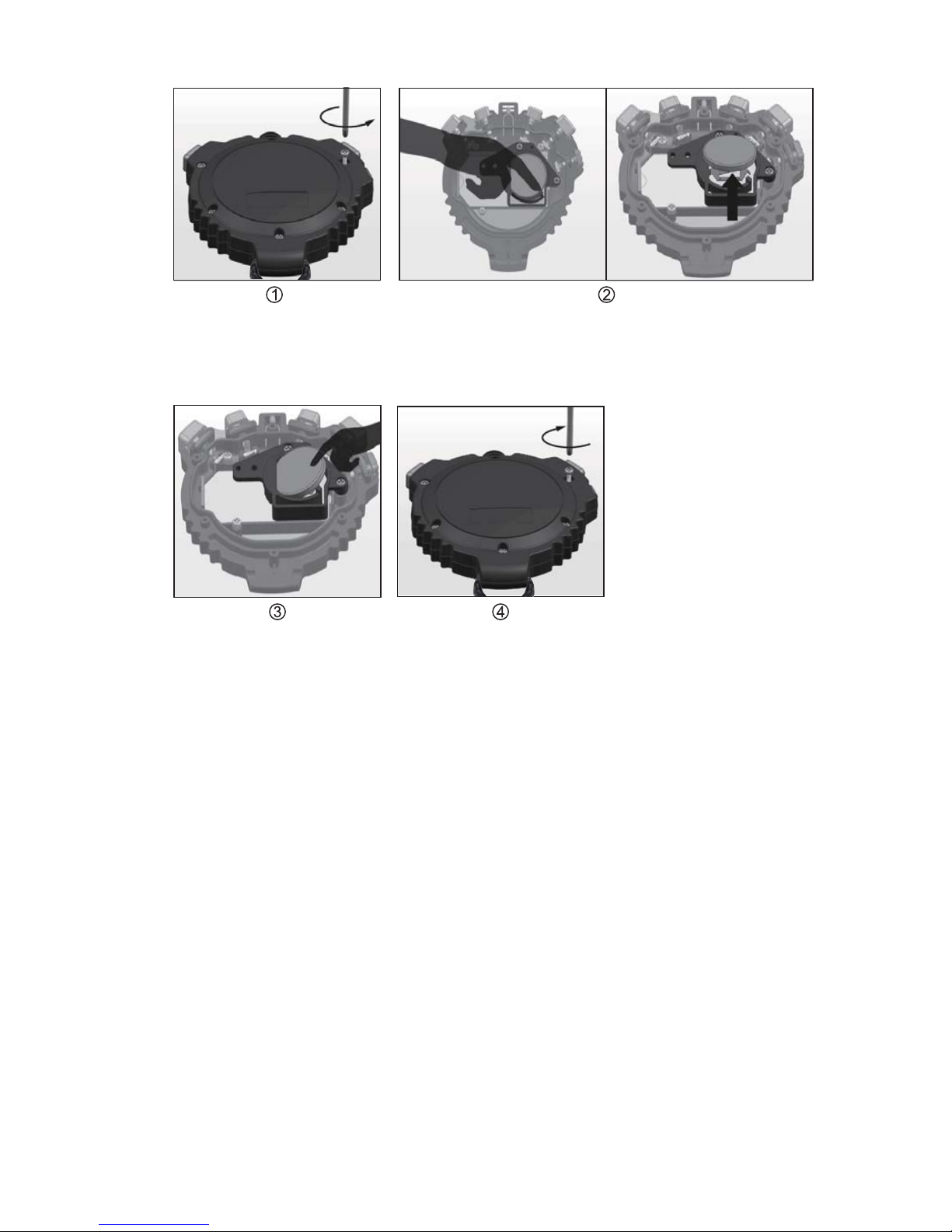

BATTERY REPLACEMENT

If there is no display on the LCD or if the display becomes dim, remove the screws in the back of the unit and replace with one new CR2032 battery according to the polarity mark.

Note:

Attention! Please dispose of the used unit or batteries in an ecologically safe manner.
