THE SYSTEM

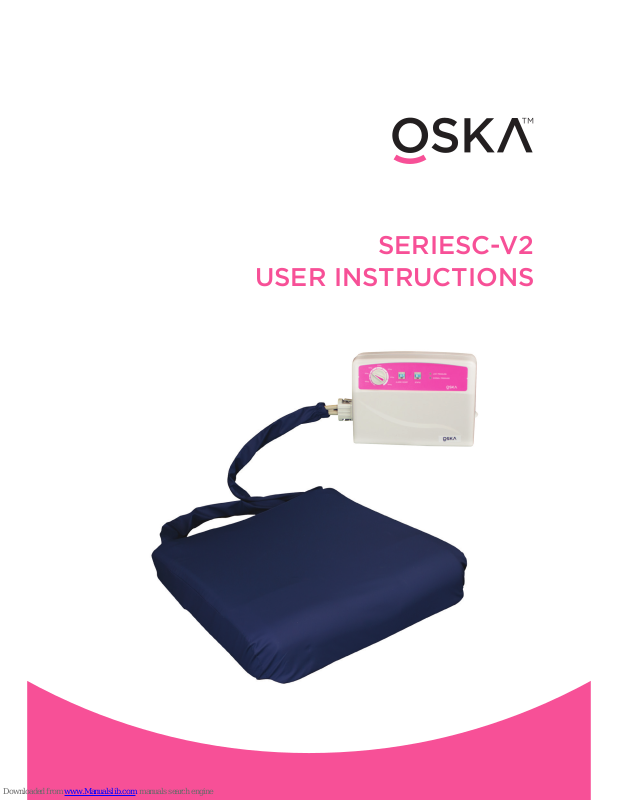

OSKA SeriesC-V2 is a cushion system which is designed to be placed on any chair. It
is designed for use in nursing care at home, or in a nursing facility environment.
Application – for use on a chair within home or care envronment with power source
nearby to ensure that comfort and relief levels are maintained.
The system consists of a control unit featuring a membrane pump and a cushion
with 6 air cells arranged in a transverse manner. The entire cell unit is encased in
a cradle of visco foam. The bielastic top cover and PVC outer base cover, ensure
stability, comfort and infection control.
RECOMMENDATIONS
OSKA SeriesC-V2 alternating cushion system is suitable as an aid in the prevention
and treatment of pressure ulcers up to and including category 2.
CAPACITY
OSKA SeriesC-V2 alternating cushion system is recommended for patient weight up
to 110kg. Heavier patients are better accomodated with a more appropriate OSKA
pressure system.
oska.uk.com | 0845 381 0600 5
SYSTEM SET-UP
Place the pump on horizontal surface or hang by means of the hooks.
Place the seat cushion on the chair Air tubes should be at the rear of the chair
unless there are no openings at the rear of the chair. Please ensure that the
cushion is fully stable on the chair.
Connect air feed tubes to air outlet on the seat cushion (see 3a) and pump (see
3b), ensuring that the tubes are not twisted or “kinked”. Allow space for tubes to
drop freely.
Switch on the pump power (see 4). The power switch indicator should now
illuminate, and the pump will start to inate the cushion.
The low pressure indicator (see 5) will illuminate as ination takes place.
The audible alarm won’t alarm within 60 minutes but will be activated if the
pressure remains low inside the cushion. In the case of low pressure check the
connections and the products. Press the alarm reset button (see 6) to mute the
audible alarm, its indicator will ash.
3B
6 oska.uk.com | 0845 381 0600
OPERATION
When the pressure reaches full ination (within approximately 5 minutes) the
normal pressure indicator will illuminate and the low pressure indicator will turn off.
Turn the pressure dial (see 7) to set a comfortable pressure level from 40-110kg
according to the approximate weight of the patient.
Press the static button to activate static mode. The static indicator will illuminate.
Static mode will commence in approximately 5 minutes. Press the static button
again to switch back to alternating mode.
SYSTEM MAINTENANCE
Maintenance at regular intervals (mandatory every 2 years) is necessary to preserve
the function of the OSKA SeriesC-V2 alternating cushion system.
Used lters must be exchanged within this period.
Maintenance/inspection should include checking whether the following is required:
Replace membrane unit
Replace air lter
Replace synchronous motor
Conduct function test/function check
Sealing of case and attaching an inspector sticker
Protective conductor check in accordance with DIN VDE 0751
3A
4
7
6
5
oska.uk.com | 0845 381 0600 7
CLEANING
Remove dirt or stains with lukewarm water and a cloth. Water may be
treated with a mild cleaning agent. Do not use aggressive cleaning agents or
solvents. You must disinfect surfaces regularly, at least after every clean. Wipe
disinfection is preferred. The cleaning agent you use must comply with the
manufacturers information as stated on the cleaning agent. If in doubt you
must request further information.
TECHNICAL SPECIFICATION
PUMP
OSKA – SeriesC-V2
Power supply: 220~240V/50Hz, 1A
Air output: 8 liter/min.
Pressure range: 30 mmHg – 60 mmHg
Cycle time: 12 min.
Static Mode
Alarm Reset Mode
With normal / low pressure light
Size: 28cm(L) x 20cm(W) x 10cm(H)
Weight: 2.2 kg
CUSHION
Size: 49cm(L) x 46cm(W) x 10cm(H)
Top cover: Dark blue bi-elastic cover with
PU/Polyester coating and zip fastening
Air cells: Nylon/PVC
Base: Nylon/PVC with foam insert 6 Air Cells
8 oska.uk.com | 0845 381 0600
TROUBLESHOOTING
Fault occurring Ensure that Possible Solution If your product is
still not working
The pump appears
not to be on
running.
The mains supply
is plugged in. The
switch is in the on
position. The fuse in
the plug is not blown.
Connect the
appliance to the
nearest mains socket
and ensure that the
power indicator light
is on.
Contact OSKA
Service.
The pump appears
to be on running
but is not reaching
the desired
pressure setting.
The hoses are
connected correctly.
Disconnect the hoses
and re-connect
them in to the outlet
connectors on the
side of the pump.
Contact OSKA
Service.
The pump is
running but is
not inating the
cushion.
The hoses are
connected correctly.
Disconnect the hoses
and re-connect
them in to the outlet
connectors on the
side of the pump.
Contact OSKA
Service.
There are no leaks in
the cushion.
Contact OSKA
Service.
Contact OSKA
Service.
There are no kinks in
the tubing down side
of the cushion.
Carefully untwist any
kinks.
Contact OSKA
Service.
Check that the
pressure has been set
in the correct range
for the patient’s
weight.
Adjust the pressure
setting accordingly.
Contact OSKA
Service.
The system does
not appear to be
alternating.
There are no kinks in
the tubing down side
of the cushion.
Carefully untwist any
kinks.
Contact OSKA
Service.
The operation
pump is noisy.
The pump is not
resting against a solid
surface.
Re-position the pump
to a suitable surface.
Contact OSKA
Service.
oska.uk.com | 0845 381 0600 9
WASTE DISPOSAL
The materials used to manufacture the OSKA SeriesC-V2 cushion do not cause any
danger to the environment. They may be disposed of with the household waste.
The pump control unit is considered as electrical equipment waste. Please contact
the proper waste disposal ofcials.
WARNING NOTICE
For private non-professional operators. In the case of system failure please check:
Is there sufcient power supply?
Is the unit turned on?
Is the power cord connected properly and is the power plug inserted correctly?
Is the cushion connection tube connected properly?
If all these primary checks have been carried out and the system continues
not to function then you must contact the responsible supplier or user who is
authorised to effect the maintenance and/or repair of this equipment.
Never attempt to repair the system yourself. Fuses may only be exchanged by
qualied and authorised personnel.
10 oska.uk.com | 0845 381 0600
WARRANTY
Your OSKA product comes with a 1 year parts and labour warranty.
The warranty is based on statutory regulations. The warranty does not apply if the
goods supplied by OSKA are processed, handled or modied by other parties without
prior consent from OSKA or if these operating instructions are not followed.
For medical devices as understood by the EU - Directive 93/94, whose usage (also
operations) is subject to regular service and maintenance, a warranty can be offered
only if the service intervals prescribed by OSKA are adhered to.
If during inspection it is found that damages are due to wear and tear or are not
subject to warranty, then OSKA are empowered to claim the expenses (inspection,
transport costs etc) from the client.
The use of parts or individual components of other systems or products or
combinations thereof are not permissible.
Warranty claims become invalid should any damage result from this kind of conduct
and therefore remain the responsibility of the user/owner.
SAFETY
In the interest of your safety please be informed that the OSKA SeriesC-V2 is certied
in accordance to the following regulations:
Testing for DIN EN 60601-1
CPR - emergency valve
ISO 13485
FOR YOUR SAFETY AND THE SAFETY OF THOSE AROUND YOU, PLEASE ADHERE
TO ALL SAFETY AND WARNING INSTRUCTIONS AS DETAILED IN THIS MANUAL.
oska.uk.com | 0845 381 0600 11
WARNING
You MUST be aware of the susceptibility of this air cushion to the incidence of re. In
the case of a re the unavoidable release of air acts as a fan effect to assist the ames.
You must avoid smoking at all times in the immediate vicinity of this product. Other
hazards can include: The use of petroleum based creams and gels such as Vaseline etc.
The manufacturer of this product CANNOT take responsibility for actions that are in
breach of this re hazard warning which includes all environments: Hospitals, care
homes and private/domestic users.
