VDA680xN Analog V ideo
Distribution Amplifier
USER MANUAL
Page 2
Product Information
Model:
VDA680xN Analog Video Distribution Amplifier
Version:
V010002
Release Date:
November 9th, 2010
Company
OSEE TECHNOLOGY CO., LTD.
Contact Information
Address:
No.22 Building, No.68 zone, Beiqing Road, Haidian District,
Beijing, China
Post Code:
100094
Tel:
(+86) 010-62434168
Fax:
(+86) 010-62434169
Web:
http://www.osee-dig.com/
E-mail:
Page 3
Contents
Chapter 1 Introduction ............................................................................................ 1
Overview ............................................................................................................................................ 1
Features .............................................................................................................................................. 1
Module Descriptions .......................................................................................................................... 2
The Front Part of Module ........................................................................................................... 2
Back Connector .................................................................................................................................. 2
VDA680xN ................................................................................................................................ 3
Signal Flow ........................................................................................................................................ 4
Chapter 2 Installation .............................................................................................. 4
Overview ............................................................................................................................................ 4
Maximum Power Ratings for Frame .................................................................................................. 5
Unpacking the Module ....................................................................................................................... 5
Preparing the Product for Installation ........................................................................................ 5
Check the Packing List............................................................................................................... 5
Installing the Module ......................................................................................................................... 5
Making the Connections .................................................................................................................... 6
Removing the Module ........................................................................................................................ 6
LED Indicator .................................................................................................................................... 7
Setting Jumper.................................................................................................................................... 7
Chapter 3 Specifications ......................................................................................... 7
Analog Video Input ............................................................................................................................ 7
Analog Video Output ......................................................................................................................... 8
Warranty for osee product ..................................................................................... 9
What the warranty covers: ................................................................................................................. 9
What the warranty does not cover: ..................................................................................................... 9
Page 4
VDA680xN Analog Video Distribution Amplifier - 1 -
VDA680xN Analog Video Distribution
Amplifier
Chapter 1 Introduction
Overview
In this manual, the different types of models for VDA680xN are introduced as follows:
VDA6801N: supports 1 channels of analog video input, and the input corresponds to 8 channels of
analog video outputs
VDA6802N: supports 2 channels of analog video inputs, and each input corresponds to 4 channels of
analog video outputs
All these modules can be installed in 6800 series frame.
Features
The VDA680xN offers the following features:
Unbalanced input
AD/DC coupling
±3dB gain range adjustment
One channel input, eight outputs (VDA6801N)
Dual channel, channel 1 for four outputs and channel 2 for four outputs (VDA6802N)
Hot-swappable modules
525/625 input signal detection
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
Page 5
VDA680xN Analog Video Distribution Amplifier - 2 -
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Module Descriptions
The Front Part of Module

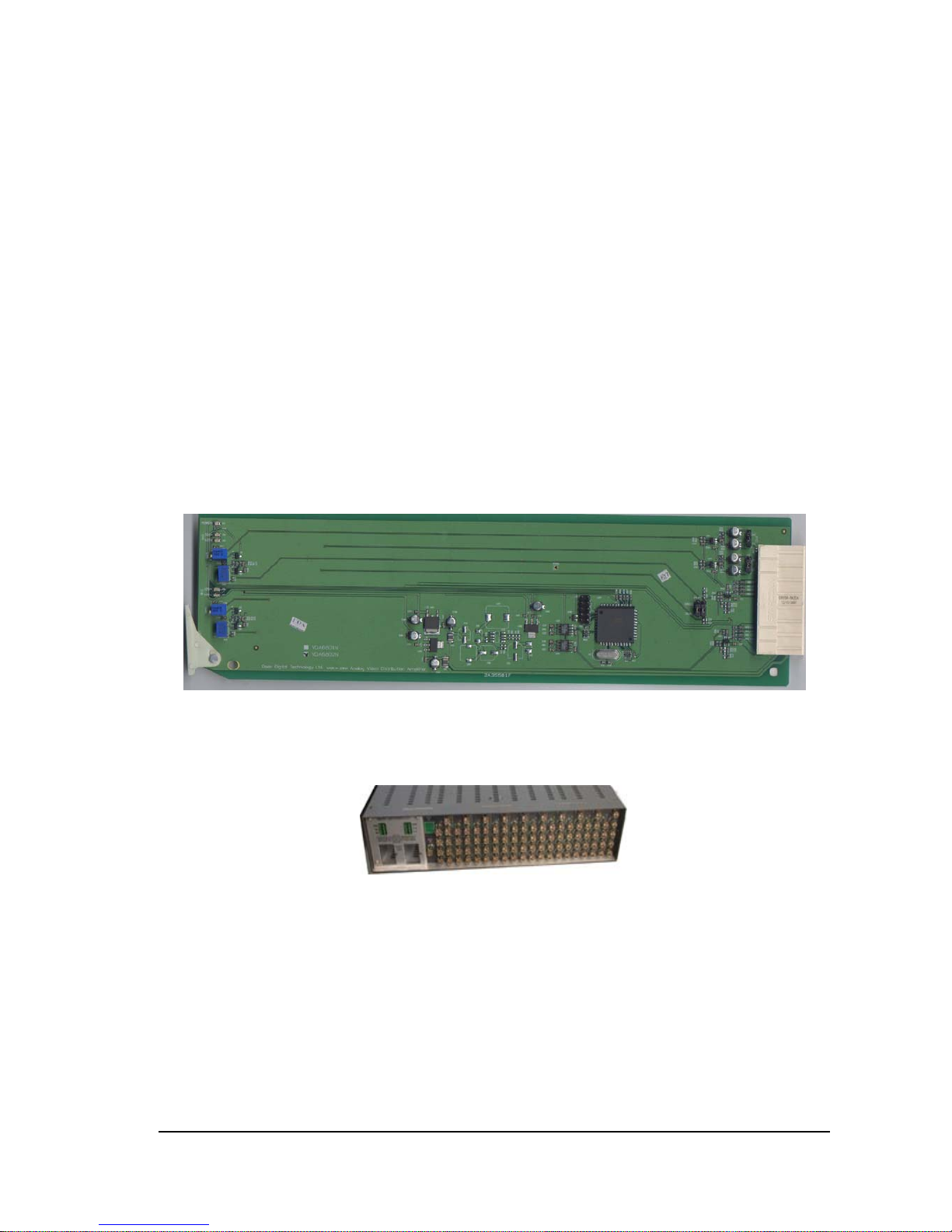

Figure 1-1 shows the boards of VDA6802N
Fig. 1-1 the board of VDA6802N
Back Connector
Page 6
VDA680xN Analog Video Distribution Amplifier - 3 -
VDA680xN

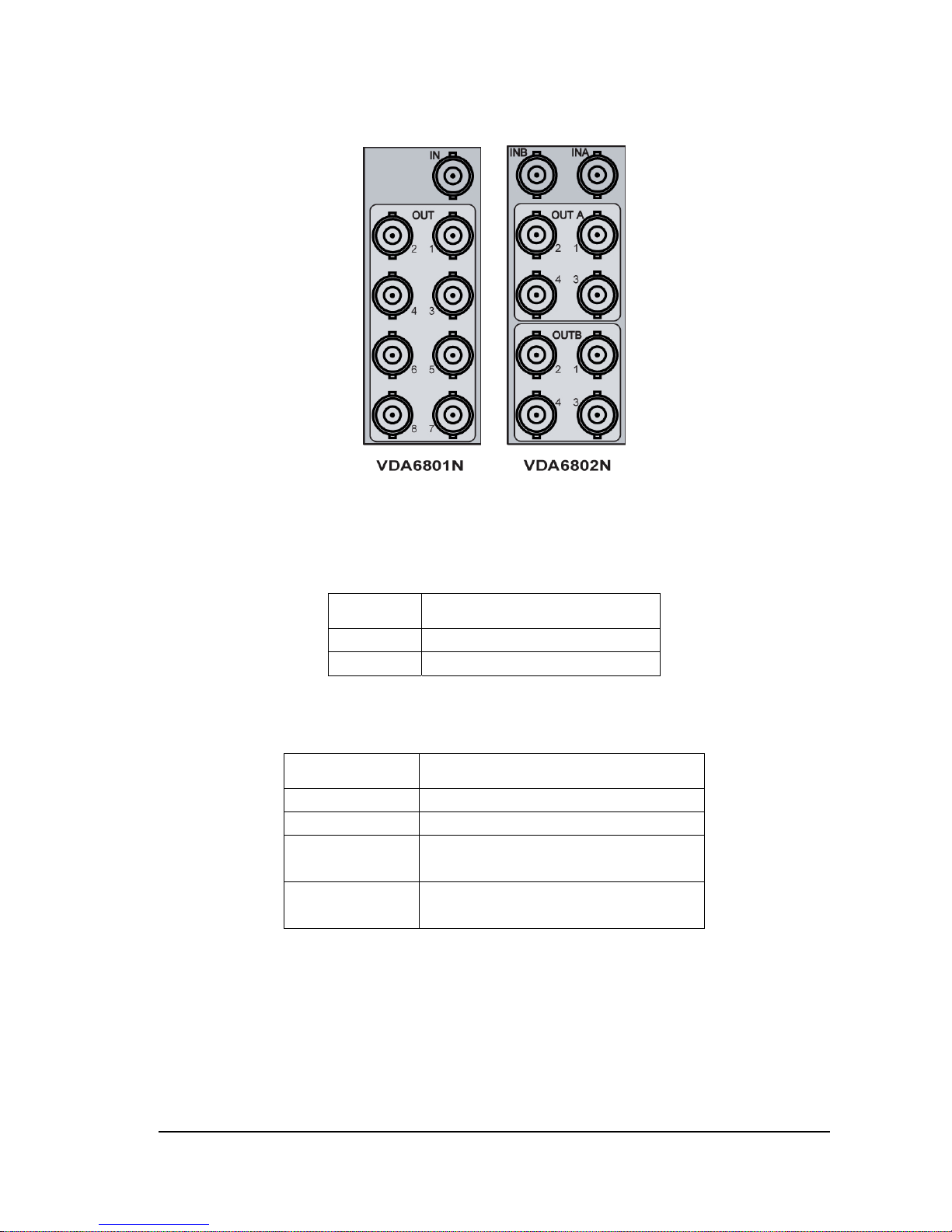

Fig.1-2 Back Connector of VDA6801N (left) / VDA6802N (right)
Tab. 1-1 description of VDA6801N Back Connector
Item Description
IN ANALOG VIDEO input
1~8 ANALOG VIDEO output
Tab. 1-2 description of VDA6802N Back Connector
Item Description
INA ANALOG VIDEO input, channel A
INB ANALOG VIDEO input, channel B
OUTA1, OUTA2
OUTA3, OUTA4
ANALOG VIDEO output, channel A
OUTB1, OUTB2
OUTB3OUTB4
ANALOG VIDEO output, channel B
Page 7
VDA680xN Analog Video Distribution Amplifier - 4 -
Signal Flow

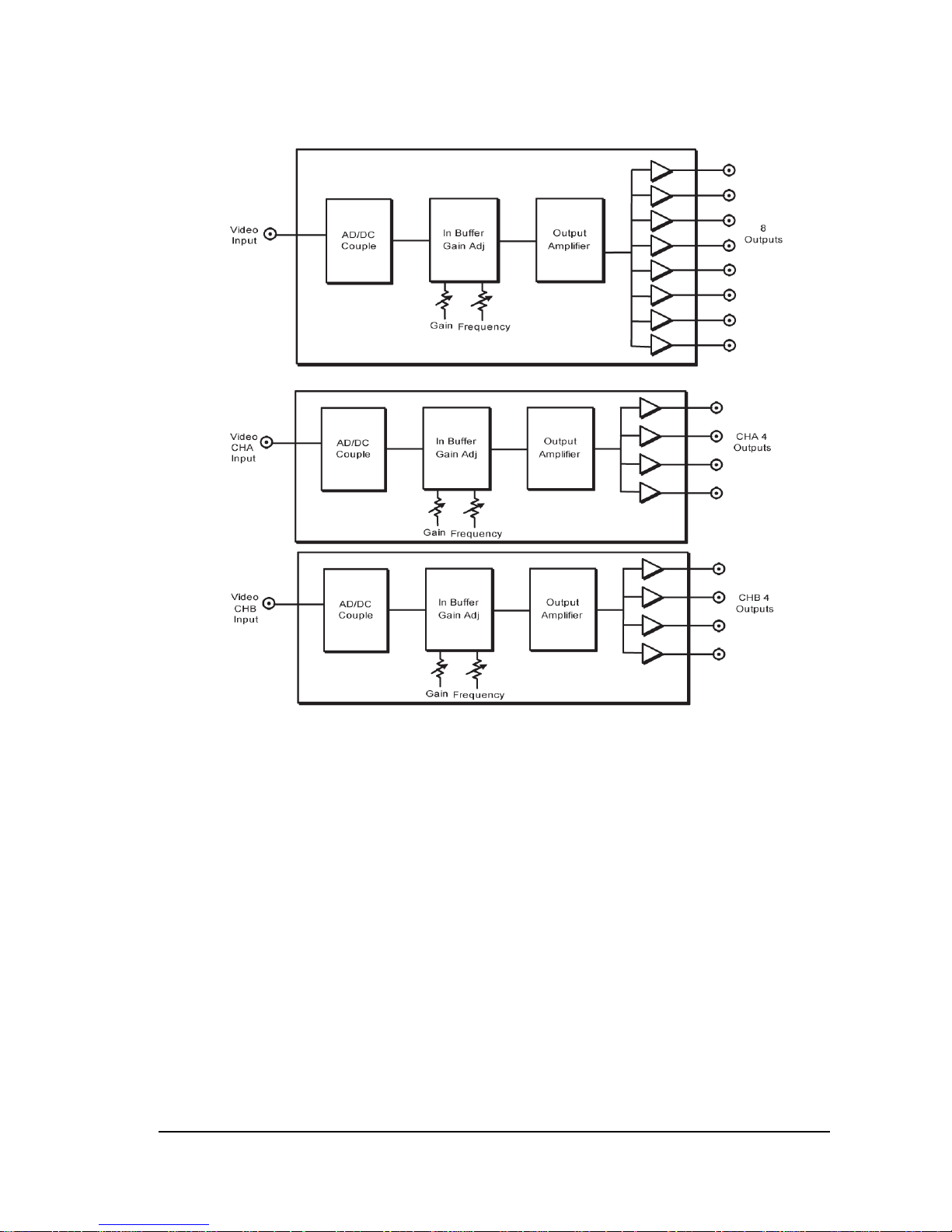

Fig. 1-3 Signal Flow of VDA6801N (up)/ VDA6802N (down)
Chapter 2 Installation
Overview
The power consumption for module and the maximum power ratings that frame can sustain have to be
confirmed before installing the module.
In this chapter, the following topics on installation process for VDA680xN are discussed below:
Unpacking the module
Setting Jumper
Installing the module
Making the connections
Removing the module
Page 8
VDA680xN Analog Video Distribution Amplifier - 5 -
Maximum Power Ratings for Frame
The maximum power ratings that different types of frames can sustain are listed in the Table 2-1
Tab. 2-1 Maximum Power Consumption
Frame Maximum Voltage Redundant Power Supplies Numbers of Slots
6800N-1U 30W No 4
6800N-2U 60W Yes 10
Unpacking the Module
Preparing the Product for Installation
Contact your dealer right now if any items are missing.
Follow the procedures below before installing the module:
Check the equipment for any invisible damage that may have occurred during transit.
Confirm all the items listed on the packing list have been received.
Remove all the packing material including electrostatic-resistant packing.
Retain these packing for future use.
Check the Packing List
Tab. 2-2 Packed Components
Model Name Description
VDA6801N VDA6801N module (1pc); back connector (1pc), and other accessories
VDA6802N VDA6802N module (1pc); back connector (1pc), and other accessories
Installing the Module
Caution：Static electricity may cause sensitive semiconductor out of order. Avoid installing
or removing the module in the electrostatic-induced environment.
Follow the following steps to install the module:
Step 1
Page 9
VDA680xN Analog Video Distribution Amplifier - 6 -
Step2
Step3
Step 4
Step5

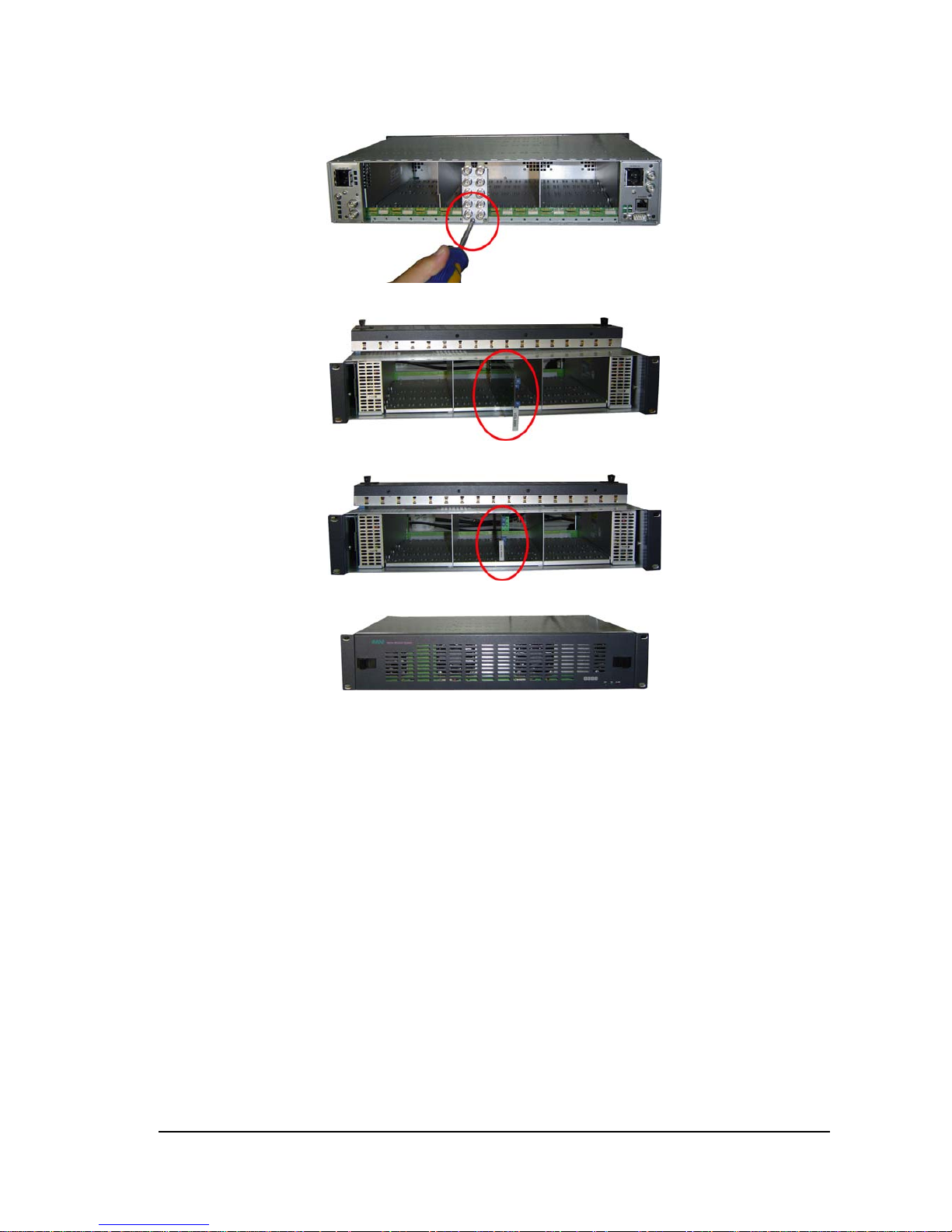

Fig. 2-1 Installation of 2U Frame of 6800N Series
Locate the position for back connector and insert the back connector
Fasten the screw to fix the back connector.
Locate the slot for module.
Get the module installed in the slot, push the module slightly along the slot, press module again to
confirm that the module is installed firmly and then close swivel handle.
Install the front panel.
Making the Connections
Please connect signals based on Fig. 1-2.
Removing the Module
Follow the following steps to remove VDA680xN module:
1. Open the front part of frame.
2. Open the swivel ha ndle to the full.
Page 10
VDA680xN Analog Video Distribution Amplifier - 7 -
3. First make sure the frame stands firmly, and then pull the module gently along the slot till out
of frame.
4. Install the front panel.
LED Indicator

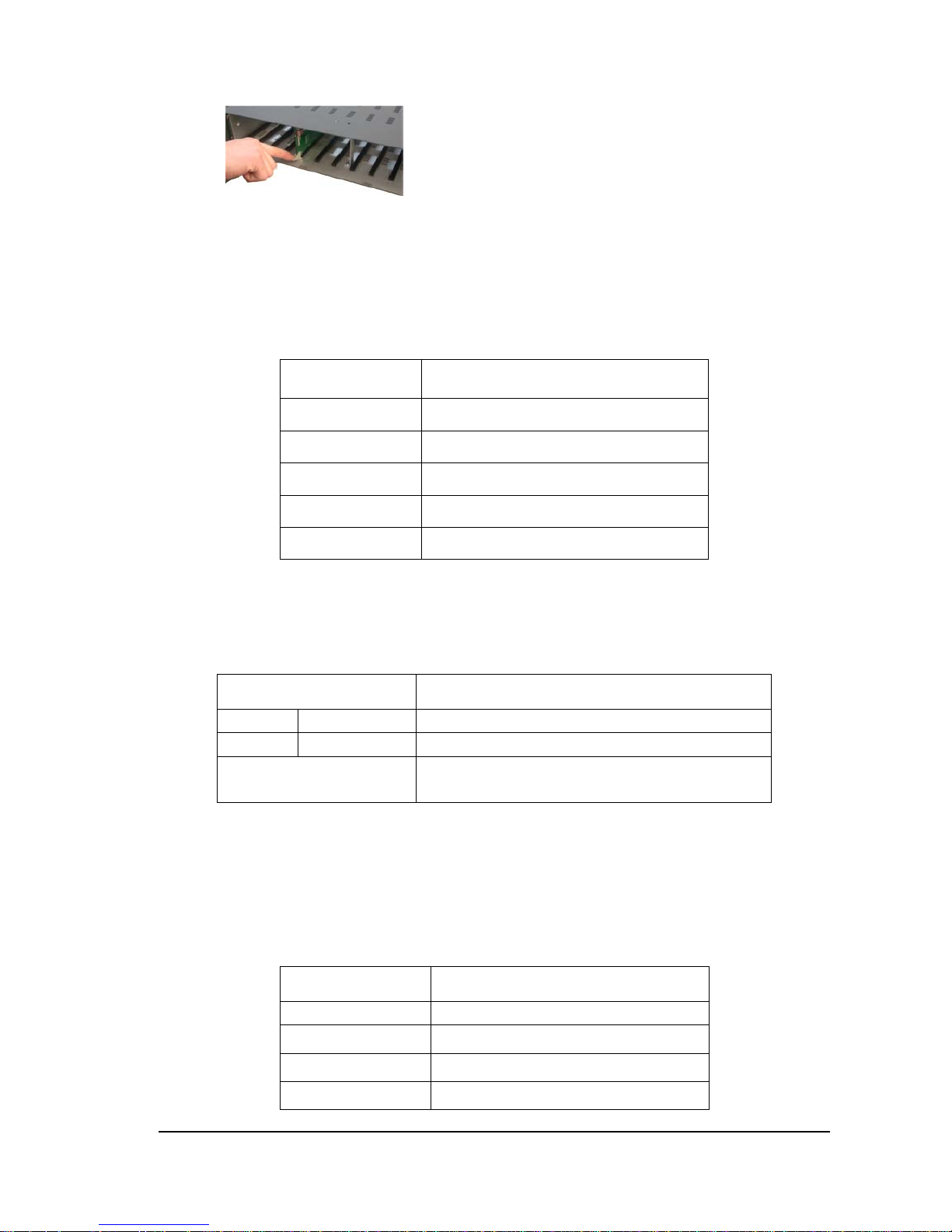

Table 2-3 LED Indicator Function
Item Description
Power On. Indicates power is supplied
CHA 525 On. Working in 525 video format.
CHA 625 On, Working in 625 video format.
CHB 525 On. Working in 525 video format.
CHB 625 On, Working in 625 video format.
Setting Jumper
There exist four 3-pin jumpers, and the following table gives their definition.
Tab. 2-4 Description of VDA680xN Jumpers
Item Description
CHA JP1 (AC/DC) You need to set it at DC
CHB JP2 (AC/DC) You need to set it at DC
JP3, JP4(Single/Dual) You need to set them at Single to ADA6801N, while
you must set them at Dual to ADA6802N.
Chapter 3 Specifications
Analog Video Input
Tab. 3-1 Analog Video Input Specifications
Item Parameter
Numbers of Inputs VDA6801N: 1, VDA6802N: 2
Connector BNC (IEC169-8)
Impedance 75Ohms
Return Loss >45dB to 5MHz, >40dB to 10MHz
Page 11
VDA680xN Analog Video Distribution Amplifier - 8 -
Analog Video Output
Tab. 3-2 Analog Video Output Specifications
Item Parameter
Numbers of Outputs
VDA6801N: 8
VDA6802N: 2 channels, 4 per channel
Connector BNC (IEC169-8)
Impedance 75Ohms
Return Loss >45dB to 5MHz, >40 dB to 10MHz
Gain Range -3 dB to +3 dB
Frequency Response +/-0.05dB to 10MHz
Differential Gain 0.15%
Differential Phase 0.15 degree
S/N Ratio 70dB
Note: Specifications are subject to change without notice
Page 12
VDA680xN Analog Video Distribution Amplifier - 9 -
Warranty for osee product
What the warranty covers:
osee warrants its products to be free from defects in material and workmanship during the warranty
period of two year from purchase date. If a product proves to be defective in material or workmanship
during the warranty period, osee will, at its sole option, repair or replace the product with a similar
product. The replacement unit will be covered by the balance of the time remaining on the customer’s
original limited warranty.
No sales personnel of the seller or any other person is authorized to make any warranties other than
those described above, or to extend the duration of any warranties on behalf of osee, beyond the time
period describe above.
This warranty is extended to the first consu mer only, and proof of purchase is necessary to honor the
warranty. If there is no proof of purchase provided with a warranty claim, osee reserves the right not to
honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer.
What the warranty does not cover:
1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:
Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product
modification, or failure to follow instructions supplied with the product
Repair or attempted repair by anyone not authorized by osee
Any damage of the product due to shipment.
Removal or installation of the product.
Causes external to the product, such as electric power fluctuations or failure.
Use of supplies or parts not meeting osee product’s specifications.
Normal wear and tear.
Any other cause which does not relate to a product defect.
