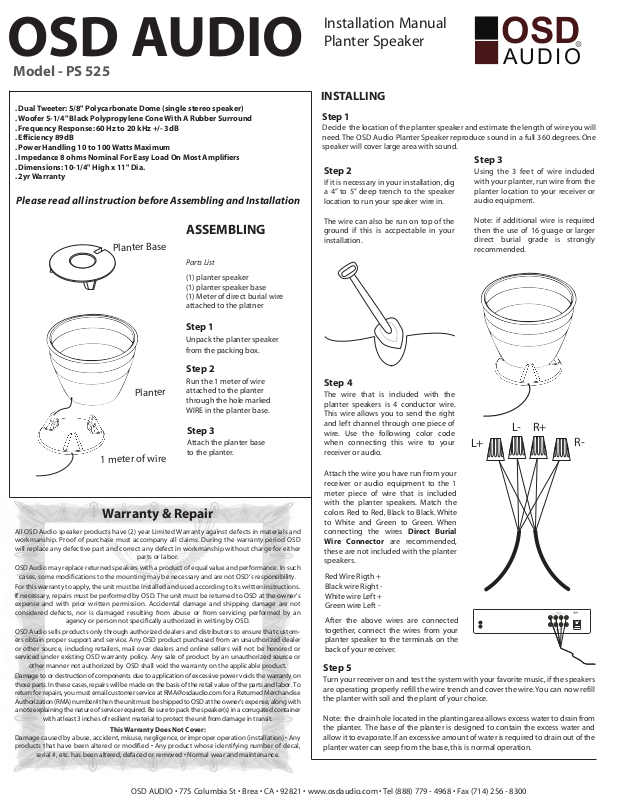

OSD Audio PS525 User Manual

OSD AUDIO

Model - PS 525

. Dual Tweeter: 5/8" Polycarbonate Dome (single stereo speaker)
. Woofer 5-1/4" Black Polypropylene Cone With A Rubber Surround
. Frequency Response: 60 Hz to 20 kHz +/- 3dB
. Efficiency 89dB
. Power Handling 10 to 100 Watts Maximum
. Impedance 8 ohms Nominal For Easy Load On Most Amplifiers
. Dimensions: 10-1/4" High x 11" Dia.
. 2yr Warranty

Please read all instruction before Assembling and Installation

Installation Manual
Planter Speaker

OSD

AUDIO

INSTALLING

Step 1

Decide the location of the planter speaker and estimate the length of wire you will

need. The OSD Audio Planter Speaker reproduce sound in a full 360 degrees. One

speaker will cover large area with sound.

Step 3

Step 2

If it is necessary in your installation, dig
a 4” to 5” deep trench to the speaker
location to run your speaker wire in.

Using the 3 feet of wire included
with your planter, run wire from the
planter location to your receiver or
audio equipment.

ASSEMBLING

Planter Base

Parts List

(1) planter speaker
(1) planter speaker base
(1) Meter of direct burial wire
attached to the platner

Step 1

Unpack the planter speaker
from the packing box.

Step 2

Run the 1 meter of wire

Planter

attached to the planter
through the hole marked
WIRE in the planter base.

Step 3

Attach the planter base

1 meter of wire

to the planter.

Warranty & Repair

All OSD Audio speaker products have (2) year Limited Warranty against defects in materials and
workmanship. Proof of purchase must accompany all claims. During the warranty period OSD
will replace any defective part and correct any defect in workmanship without charge for either

OSD Audio may replace returned speakers with a product of equal value and performance. In such

cases, some modifications to the mounting may be necessary and are not OSD’s responsibility.

For this warranty to apply, the unit must be installed and used according to its written instructions.
If necessary, repairs must be performed by OSD. The unit must be returned to OSD at the owner's
expense and with prior written permission. Accidental damage and shipping damage are not
considered defects, nor is damaged resulting from abuse or from servicing performed by an

agency or person not specifically authorized in writing by OSD.

OSD Audio sells products only through authorized dealers and distributors to ensure that custom­ers obtain proper support and service. Any OSD product purchased from an unauthorized dealer
or other source, including retailers, mail over dealers and online sellers will not be honored or
serviced under existing OSD warranty policy. Any sale of product by an unauthorized source or

other manner not authorized by OSD shall void the warranty on the applicable product.

Damage to or destruction of components due to application of excessive power voids the warranty on
those parts. In these cases, repairs will be made on the basis of the retail value of the parts and labor. To
return for repairs, you must email customer service at [e-mail] for a Returned Merchandise
Authorization (RMA) number# then the unit must be shipped to OSD at the owner's expense, along with
a note explaining the nature of service required. Be sure to pack the speaker(s) in a corrugated container

with at least 3 inches of resilient material to protect the unit from damage in transit.

Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) • Any
products that have been altered or modified • Any product whose identifying number of decal,

serial #, etc. has been altered, defaced or removed • Normal wear and maintenance.

parts or labor.

This Warranty Does Not Cover:

The wire can also be run on top of the
ground if this is accpectable in your
installation.

Note: if additional wire is required
then the use of 16 guage or larger
direct burial grade is strongly
recommended.

Step 4

The wire that is included with the
planter speakers is 4 conductor wire.
This wire allows you to send the right
and left channel through one piece of
wire. Use the following color code
when connecting this wire to your
receiver or audio.

Attach the wire you have run from your
receiver or audio equipment to the 1
meter piece of wire that is included
with the planter speakers. Match the
colors Red to Red, Black to Black. White
to White and Green to Green. When
connecting the wires Direct Burial
Wire Connector are recommended,
these are not included with the planter
speakers.

Red Wire Rigth +
Black wire Right ­White wire Left +
Green wire Left -

After the above wires are connected
together, connect the wires from your
planter speaker to the terminals on the
back of your receiver.

L+

L-

R+

R-

Step 5

Turn your receiver on and test the system with your favorite music, if the speakers
are operating properly refill the wire trench and cover the wire. You can now refill
the planter with soil and the plant of your choice.

Note: the drain hole located in the planting area allows excess water to drain from
the planter. The base of the planter is designed to contain the excess water and
allow it to evaporate. If an excessive amount of water is required to drain out of the
planter water can seep from the base, this is normal operation.
