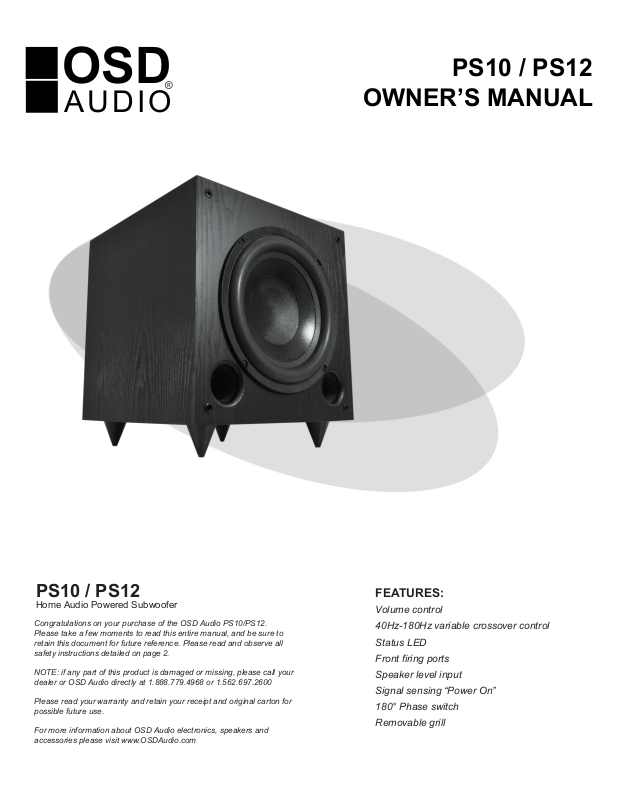

OSD Audio PS-10 User Manual

OSD

PS10 / PS12

AUDIO

OWNER’S MANUAL

PS10 / PS12

Home Audio Powered Subwoofer

Congratulations on your purchase of the OSD Audio PS10/PS12.
Please take a few moments to read this entire manual, and be sure to
retain this document for future reference. Please read and observe all
safety instructions detailed on page 2.

NOTE: if any part of this product is damaged or missing, please call your
dealer or OSD Audio directly at 1.888.779.4968 or 1.562.697.2600

Please read your warranty and retain your receipt and original carton for
possible future use.

For more information about OSD Audio electronics, speakers and
accessories please visit www.OSDAudio.com

FEATURES:

Volume control

40Hz-180Hz variable crossover control

Status LED

Front firing ports

Speaker level input

Signal sensing “Power On”

180° Phase switch

Removable grill

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important

EXPLANATION OF
SAFETY SYMBOLS

operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the products’ enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

IMPORTANT SAFETY INSTRUCTIONS

• WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. THE APPARATUS SHALL NOT

BE EXPOSED TO DRIPPING OR SPLASHING AND THAT OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL NOT BE

PLACED ON APPARATUS.

• WARNING: TO PREVENT FIRE OF SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET

UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

• WARNING: THE MAINS PLUG IS USED AS DISCONNECT DEVICE. THE DISCONNECT DEVICE SHALL REMAIN READILY AVAILABLE.

• WARNING: ONLY USE ATTACHMENTS OR ACCESSORIES SPECIFIED OR PROVIDED BY THE MANUFACTURER.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. The ventilation should not be

impeded by covering the ventilation openings with items such as newspaper,

table-cloths, curtains etc. Install in accordance with the manufacturer’s instructions.

8. Do not install near heat sources such as radiators, heat registers, stoves,

or other apparatus (including amplifiers) that produce heat. No open flame

sources, such as lighted candles, should be placed on the apparatus.

9. Do not defeat the safety purpose of the polarized or grounding type

plug. A polarized plug has two blades with one wider than the other. A

grounding type plug has two blades and a third grounding prong. The

wide blade or third prong is provided for your safety. If the provided plug

does not fit into your outlet, consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly

at the plugs, convenience receptacles, and at the point of exit from the

apparatus.

11. Unplug the apparatus during lightning storms or when unused for long

periods of time.

12. Refer all servicing to qualified personnel. Servicing is required when the

apparatus has been damaged in any way, such as when the power supply

cord or plug is damaged, liquid has been spilled or objects have fallen into

the apparatus, the apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped.

13. The apparatus should be connected to a mains socket outlet with a

protective earthing connection.

14. There are two different types of mains fuse for different input voltage

rating. Please check the marking on the rear enclosure for rating and type

of mains fuse provided with the apparatus. Please ask local service

personnel for help to replace the fuse before connecting the apparatus

to a mains socket outlet with another voltage rating.

2

Gain

PS10 / PS12

PWR/PRT

Freq

PS10

PWR/PRT

Gain

Max

Min

40Hz

PS10 125W 10” Powered Subwoofer

Freq

180Hz

AUTO

4 5

On Off

Speaker Level Input

-

L

+

Phase

Rev Nor

-

Line

Input

R

1

6

R

+

L

7

Min

Max

40Hz

180Hz

9

Power

ON

OFF

115V~ 60Hz 200W

230V~ 50Hz 200W

FUSE:T2.5AL 250V

FUSE:T1.25AL 250V

108

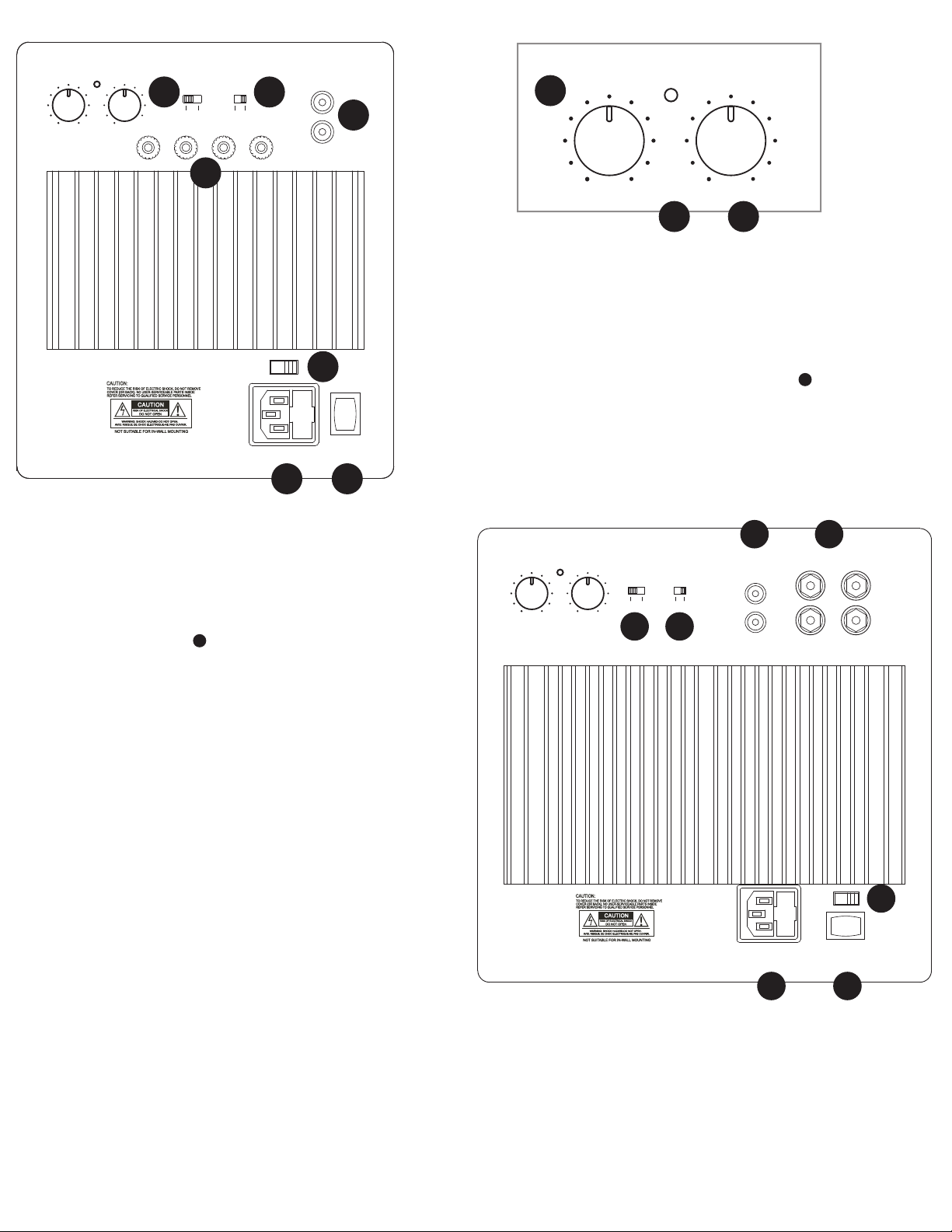

Figure 2. Back Panel PS10

BACK PANEL CONTROLS

4.

Autosensing

Sets the power-on/off option of the PS10/12. Set it to on for

manual control using switch . Set switch to Auto-On for automatic

power-on when signal is present; after 10 minutes with no signal, unit will

enter standby mode. For Auto-On the power switch is left in “ON” position.

5.

Phase Control

Normally set to Nor. In rare instances, due to your unique sound system or the

size of your room, the output may be out of phase. If the sound is hollow

or the volume knob has little effect, set to Rev to compensate for these factors.

6.

Line Level Input

Connect to the line level, subwoofer, or LFE output of your receiver, pre-amp,

or power amp. Do not use if Speaker Level Inputs are connected. For

single mono input: plug into either R or L terminal, or use a y-adaptor.

7.

Speaker Level Input

Use when line level outputs are unavailable from your receiver, pre-amp or

power amp. Your existing stereo speakers can share these terminals, allowing

you to add bass to any stereo or home theater system. Always maintain

speaker polarity by connecting positive (+) and negative (-) terminals on

this unit with corresponding terminals on your existing speakers and source.

Do not use if Line Level Inputs are connected.

8.

Main Power Inlet & Fuse Holder

Accepts IEC type line cord. A fuse located in the integrated holder provides

safety from fault conditions: replace fuse with one of same type and rating only.

9.

Main Voltage Selector

Voltage selection switch is preset to 115V (USA). For use in areas which

require 230V contact your dealer. Fuse must be of type and rating marked

on amplifier for use at local mains voltage.

10.

Power Switch

Turns unit on and off in Normal power mode. Leave set to “ON” when using

Auto-On power mode.

(Figures 2-3)

10

Figure 1. Back Panel

BACK PANEL CONTROLS

2

(Figure 1)

3

1. Volume Control

Adjusts output volume.

2.

Power/Protect LED indicator

Illuminates green indicating the unit is turned on while switch is in “Normal” position,

10

or when receiving signal in “Auto-On” mode. Illuminates red during standby/protect mode.

Variable Crossover

3.

Sets crossover frequency between 40Hz and 180Hz. For stereo music or home

theater, set the frequency to a level that sounds pleasing to your ear and the overall

reproduction of your audio. If using LFE signal, set crossover to 180Hz.

6 7

PS12

PWR/PRT

Gain

Max

Min

PS12 175W 12” Powered Subwoofer

Freq

40Hz

180Hz

Auto

On Off

Phase

Rev Nor

4 5

Line
Input

R

L

Speaker Level Input

+ +

- -

R

L

9

Power

115V~ 60Hz 300W
FUSE:T4AL 250V

230V~ 50Hz 300W
FUSE:T2AL 250V

Figure 3. Back Panel PS12

8 10

PLACEMENT

This unit features removable feet, a front firing woofer and ports. The bass output
of this unit is omnidirectional so this unit may be placed anywhere in the listening
environment. Walls or corners will help reflect the bass for fuller sound. During use,
unit will vibrate: care should be taken not to place any liquids or heavy items such as
drinks or houseplants on top as they may fall and damage your subwoofer.

OFF ON

3

PS10 SPECIFICATIONS

PS12 SPECIFICATIONS

Output:

Frequency Response:

Singal to Noise Ratio:

Sensitivity:

AC Power Consumption:

Net Weight:

Gross Weight:

Warranty:

125W@ <1% THD

(Continuous operation at 1/8 rated power)

25Hz to 180Hz (-3dB ref. 0dB)

100dB A

Variable, 350mV to 2.8V for rated

Power at 8 ohms

200W maximum

29.17lbs / 13.23kgs

36.38lbs / 16.5kgs

2 year

Output:

Frequency Response:

Singal to Noise Ratio:

Sensitivity:

AC Power Consumption:

Net Weight:

Gross Weight:

Warranty:

175W@ <1% THD

(Continuous operation at 1/8 rated power)

25Hz to 180Hz (-3dB ref. 0dB)

100dB A

Variable, 350mV to 2.8V for rated

Power at 8 ohms

300W maximum

36.88lbs / 16.73kgs

44.09lbs / 20kgs

2 year

Warranty & Repair

OSD AUDIO free standing subwoofers have a (2) year Limited Warranty against defects in materials and workmanship. Proof of purchase must

accompany all claims. During the warranty period OSD AUDIO will replace any defective part and correct any defect in workmanship without charge

for either parts or labor.

OSD AUDIO may replace returned speakers with a product of equal value and performance. In such cases, some modications to the mounting may be

necessary and are not OSD AUDIO’s responsibility.

For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be performed by OSD AUDIO.
The unit must be returned to OSD AUDIO at the owner's expense and with prior written permission. Accidental damage and shipping damage are not consid-

ered defects, nor is damage resulting from abuse or from servicing performed by an agency or person not speicically authorized in writing by OSD Audio.

Any sale of product by an unauthorized source or other manner not authorized by OSD AUDIO shall void the warranty on the applicable product.

Damage to or destruction of components due to application of excessive power voids the warranty on those parts. In these cases, repairs will be made on the basis of
the retail value of the parts and labor. To return for repairs, you must email customer service at [e-mail] for a Re

turned Merchandise Authorization (RMA)

number# then the unit must be shipped to OSD AUDIO at the owner's expense, along with a note explaining the nature of service required. Be sure to pack the

speaker(s) in a corrugated container with at least 3 inches of resilient material to protect the unit from damage in transit

This Warranty Does Not Cover: Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) • Any products that have been

altered or modified • Any product whose identifying number of decal, serial #, etc. has been altered, defaced or removed • Normal wear and maintenance.

OSD Audio • 775 Columbia St • Brea • CA • 92821 • www.osdaudio.com • Tel [phone] • Fax [phone]
