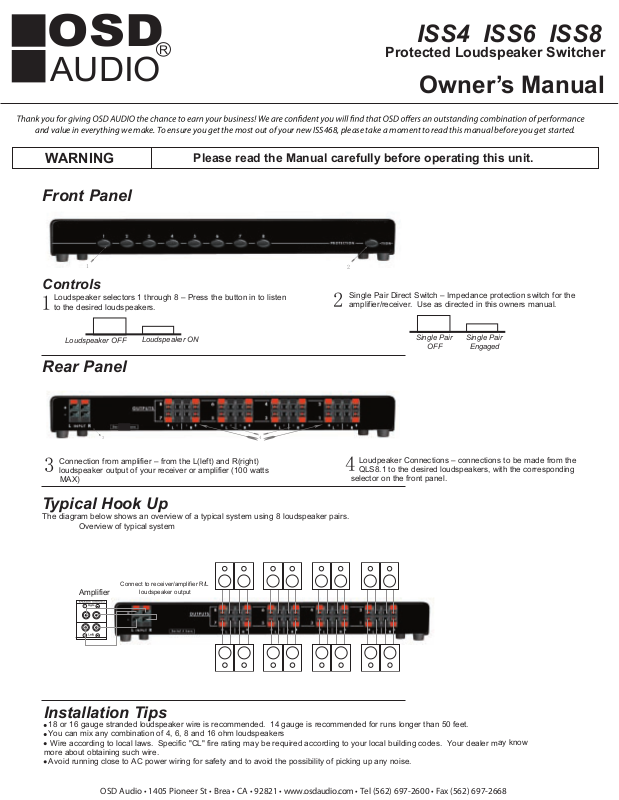

Protected Loudspeaker Switcher

ISS4 ISS6 ISS8

AUDIO

Owner’s Manual

and value in everything we make. To ensure you get the most out of your new ISS468, please take a moment to read this manual before you get started.

WARNING

Please read the Manual carefully before operating this unit.

Front Panel

Controls

Loudspeaker selectors 1 through 8 – Press the button in to listen

1

to the desired loudspeakers.

Loudspeaker OFF

Loudspeaker ON

Rear Panel

Single Pair Direct Switch – Impedance protection switch for the

2

amplifier/receiver. Use as directed in this owners manual.

Single Pair

OFF

Single Pair

Engaged

Connection from amplifier – from the L(left) and R(right)

3

loudspeaker output of your receiver or amplifier (100 watts
MAX)

Loudpeaker Connections – connections to be made from the

4

QLS8.1 to the desired loudspeakers, with the corresponding

selector on the front panel.

Typical Hook Up

The diagram below shows an overview of a typical system using 8 loudspeaker pairs.

Overview of typical system

Connect to receiver/amplifier R/L

Amplifier

loudspeaker output

Installation Tips

18 or 16 gauge stranded loudspeaker wire is recommended. 14 gauge is recommended for runs longer than 50 feet.

ou can mix any combination of 4, 6, 8 and 16 ohm loudspeakers

Y

Wire according to local laws. Specific "CL" fire rating may be required according to your local building codes. Your dealer m

more about obtaining such wire.

Avoid running close to AC power wiring for safety and to avoid the possibility of picking up any noise.

ay know
