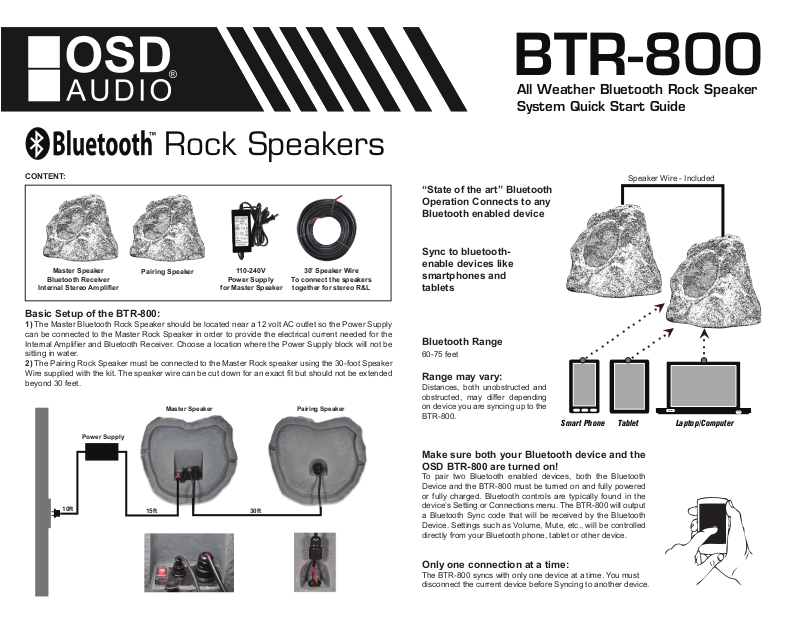

OSD Audio BTR-800 User Manual

®

Rock Speakers

BTR-800

All Weather Bluetooth Rock Speaker
System Quick Start Guide

CONTENT:

Master Speaker

Bluetooth Receiver

Internal Stereo Amplifier

Basic Setup of the BTR-800:

1) The Master Bluetooth Rock Speaker should be located near a 12 volt AC outlet so the Power Supply

can be connected to the Master Rock Speaker in order to provide the electrical current needed for the
Internal Amplifier and Bluetooth Receiver. Choose a location where the Power Supply block will not be
sitting in water.

2) The Pairing Rock Speaker must be connected to the Master Rock speaker using the 30-foot Speaker
Wire supplied with the kit. The speaker wire can be cut down for an exact fit but should not be extended
beyond 30 feet.

Power Supply

10ft

Pairing Speaker

Master Speaker

15ft

110-240V

Power Supply

for Master Speaker

30ft

30’ Speaker Wire

To connect the speakers

together for stereo R&L

Pairing Speaker

Speaker Wire - Included

“State of the art” Bluetooth
Operation Connects to any
Bluetooth enabled device

Sync to bluetooth­enable devices like
smartphones and
tablets

Bluetooth Range

60-75 feet

Range may vary:

Distances, both unobstructed and
obstructed, may differ depending
on device you are syncing up to the
BTR-800.

Make sure both your Bluetooth device and the
OSD BTR-800 are turned on!

To pair two Bluetooth enabled devices, both the Bluetooth
Device and the BTR-800 must be turned on and fully powered
or fully charged. Bluetooth controls are typically found in the
device’s Setting or Connections menu. The BTR-800 will output
a Bluetooth Sync code that will be received by the Bluetooth
Device. Settings such as Volume, Mute, etc., will be controlled
directly from your Bluetooth phone, tablet or other device.

...............

Smart Phone Tablet Laptop/Computer

.........

.....

Only one connection at a time:

The BTR-800 syncs with only one device at a time. You must
disconnect the current device before Syncing to another device.
