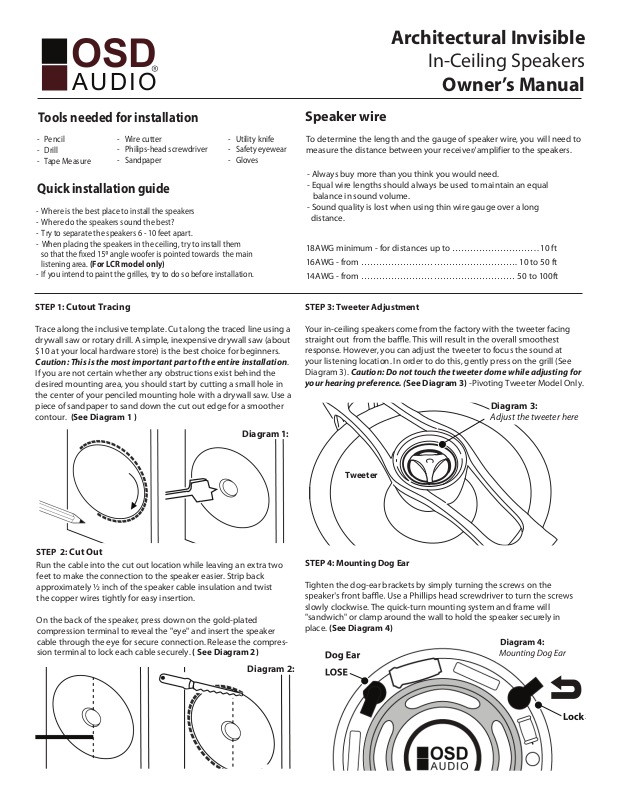

OSD Audio ACE590 User Manual
Architectural Invisible
OSD
A UDI O
Tools needed for installation
- Pencil
- Drill
- Tape Measure
- Wire cutter
- Philips-head screwdriver
- Sandpaper
Quick installation guide
- Where is the best place to install the speakers
- Where do the speakers sound the best?
- Try to separate the speakers 6 - 10 feet apart.
- When placing the speakers in the ceiling, try to install them
listening area. (For LCR model only)
- If you intend to paint the grilles, try to do so before installation.

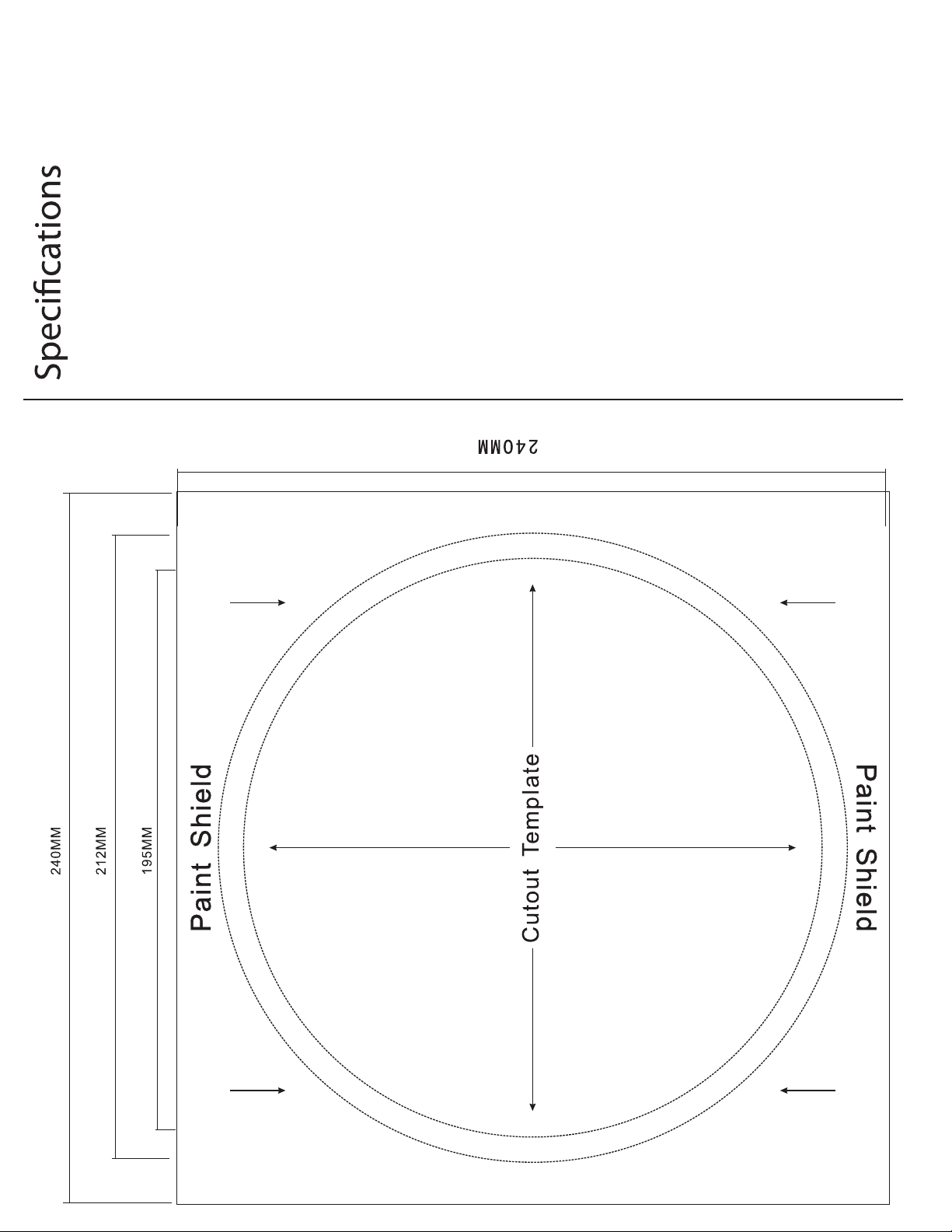

STEP 1: Cutout Tracing
Trace along the inclusive template. Cut along the traced line using a
drywall saw or rotary drill. A simple, inexpensive drywall saw (about
$10 at your local hardware store) is the best choice for beginners.
Caution: This is the most important part of the entire installation.
If you are not certain whether any obstructions exist behind the
desired mounting area, you should start by cutting a small hole in
the center of your penciled mounting hole with a drywall saw. Use a
piece of sandpaper to sand down the cut out edge for a smoother
contour. (See Diagram 1 )
- Utility knife
- Safety eyewear
- Gloves
Diagram 1:
In-Ceiling Speakers
Owner’s Manual
Speaker wire
To determine the length and the gauge of speaker wire, you will need to
measure the distance between your receiver/amplifier to the speakers.
- Always buy more than you think you would need.
- Equal wire lengths should always be used to maintain an equal
balance in sound volume.
- Sound quality is lost when using thin wire gauge over a long
distance.
18AWG minimum - for distances up to ………………………. . 10 ft
16AWG - from ……………………………………………. 10 to 50 ft
14AWG - from …………………………………………… 50 to 100ft
STEP 3: Tweeter Adjustment
Your in-ceiling speakers come from the factory with the tweeter facing
response. However, you can adjust the tweeter to focus the sound at
your listening location. In order to do this, gently press on the grill (See
Diagram 3). Caution: Do not touch the tweeter dome while adjusting for
your hearing preference. (See Diagram 3) -Pivoting Tweeter Model Only.
Diagram 3:
Adjust the tweeter here
STEP 2: Cut Out
Run the cable into the cut out location while leaving an extra two
feet to make the connection to the speaker easier. Strip back
approximately ½ inch of the speaker cable insulation and twist
the copper wires tightly for easy insertion.
On the back of the speaker, press down on the gold-plated
compression terminal to reveal the "eye" and insert the speaker
cable through the eye for secure connection. Release the compression terminal to lock each cable securely. ( See Diagram 2)
Diagram 2:
Tweeter
STEP 4: Mounting Dog Ear
Tighten the dog-ear brackets by simply turning the screws on the
slowly clockwise. The quick-turn mounting system and frame will
"sandwich" or clamp around the wall to hold the speaker securely in
place. (See Diagram 4)
Diagram 4:
Dog Ear
LOSE
Mounting Dog Ear
Lock
STEP 5
TIP: Adjust the bass and the treble setting on your speakers by
shifting the knob either to the left or right. Speakers positioned
closer to a corner often produce more bass and will usually benefit
with the tweeter switch in the +3dB position. Speakers located
within a few feet of a listener's ear will often sound better with the
tweeter switch set to -3dB. Furthermore, rolled in insulation materials, such as a foam bedding would work as a dampening material
(Not applicable to certain models)
Diagram 5
(See Diagram 5)
Adjustment Switches
Amplifier/Receiver Considerations.
wattage is comparable to the speaker’s power handling. Please refer to
your owner’s manual for reference.
When connecting any speakers to the amplier or receiver, always make
sure the power is o. Locate the connection terminals on the back of
your receiver or amplier. Always make sure to connect audio out from
the back of your receiver or amplier to the speakers. (See Diagram 7)
+3 0 -3
+
+
TREBLE
Treble Adjustment Switch
TIP: Blown-in insulation can sometimes work its way into the moving
components of the speaker, negatively impacting performance. It is
best to replace about a one square foot section directly behind the
speaker with rolled-in (bat) insulation. (See Diagram 6)
Note: The wire for both speakers should be about the same length.
the excess wire behind the wall
_
+3 0 -3
+
_
_
BASS
Bass Adjustment Switch
Diagram 7
LEFT OUT
Receiver/Amplifier
+
-
Power handling
(10 watts)
-
+
minimum
LEFT
Note: Speaker terminals have corresponding (+) and (-) terminals. It is
important to connect both speakers in phase. Out of phase will result in
thin sound and weak bass.
RIGHT OUT
+
-
-
+
RIGHT
