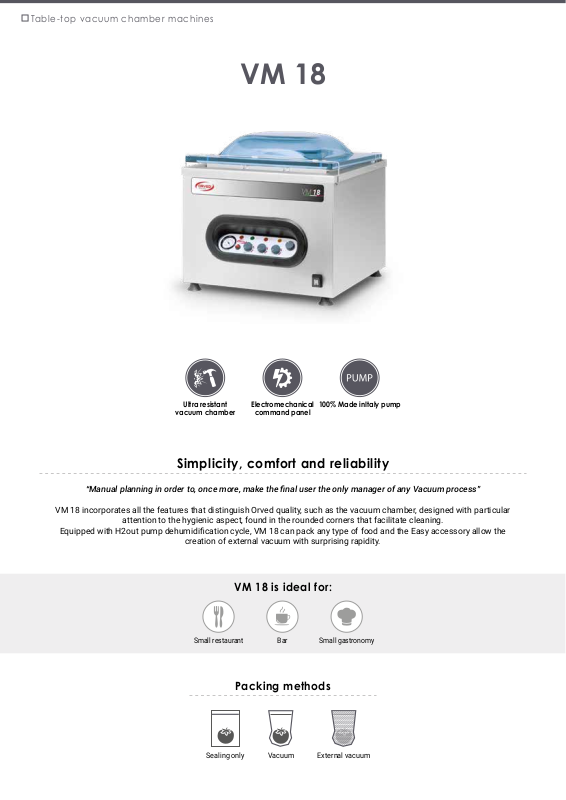

Table-top vacuum chamber machines
VM 18
Ultra resistant
vacuum chamber
Electromechanical
command panel
100% Made inItaly pump
Simplicity, comfort and reliability
“Manual planning in order to, once more, make the nal user the only manager of any Vacuum process”
VM 18 incorporates all the features that distinguish Orved quality, such as the vacuum chamber, designed with particular
attention to the hygienic aspect, found in the rounded corners that facilitate cleaning.
Equipped with H2out pump dehumidication cycle, VM 18 can pack any type of food and the Easy accessory allow the
creation of external vacuum with surprising rapidity.
VM 18 is ideal for:
Small restaurant Bar Small gastronomy
Packing methods
Sealing only Vacuum External vacuum
Page 2
Table-top vacuum chamber machines
Technical data
> Bodywork: stainless steel
> Size: 582x574x496h mm
> Chamber size: 448x440x185h mm
> Weight: 72 kg
> Power grid voltage: 230V 50/60Hz
> Max power absorption: 1200 W
> Sealing bars: 1x 420 mm
2x 240 mm (on request)
2x 345 + 1x 270 + 1x 310 mm (on request)
> Vacuum pump: 25 mc/h
> Max bag size: 400x500 mm
> Wheelbase bars: 329 mm
496 mm
582 mm
Smooth
vacuum
bags
Channelled
vacuum
bags
Standard equipment
Easy accessory included H2out pump dehumidication program
Optional on request
Set of vacuum bags PremiumSoftairNozzle for jars
Matching accessories
Cooking
vacuum
bags
Carriage
Conserbox
containers
Easy for external
vacuum
Inclined shelf for
liquid products
