ORU- IFS Trac Bar Kit
Bill of Materials, P/N 61010
Part# Qty. Description
61010:
61010-1 1 Pass. Lower u-bolt plate
61010-2L 1 LH trac bar end
61010-2R 1 RH trac bar end
61010-3 4 trac bar bushing
61010-4 2 trac bar bushing sleeve
61010-5 1 21" trac bar
61010-6 1 cross member rod end
61010-7 1 22-1/2" cross member bar
90005 1 bushing lube packet
61010-HP 1 hardware package
Contents:
(4) 9/16" x 3" bolt
(8) 9/16" flat washer
(4) 9/16" lock nut
(1) ¾" RH jam nut
(1) 7/8" RH jam nut
(1) 7/8" LH jam nut
ORU- IFS Trac Bar Kit
Grade 8 nut torque specifications
5/16" nuts 20 ft. lbs. M6 nuts 9 ft. lbs.
3/8" nuts 35 ft. lbs. M8 nuts 23 ft. lbs.
7/16" nuts 60 ft. lbs. M10 nuts 45 ft. lbs.
1/2" nuts 75 ft. lbs. M12 nuts 75 ft. lbs.
9/16" nuts 160 ft. lbs. M14 nuts 120 ft. lbs.
5/8" nuts 175 ft. lbs. M16 nuts 165 ft. lbs.
offroadunlimited.com
page 2
Page 3
INSTALLATION NOTES:
• Inspect the contents of the kit and read the entire instructions before proceeding.
• We recommend this installation be performed by a qualified technician.
• Torque all hardware to factory specifications.
• We recommend using red Loctite on all bolts.
• When removing wheels, support vehicle with jack stands.
NOTE:
with pre-welded trac bar mounting tabs. If you do not have the newer kit, please contact us @ 818563-1208 to obtain the proper brackets to use with this kit.
This kit is designed to work with newer style ORU IFS Conversion Kits that are equipped

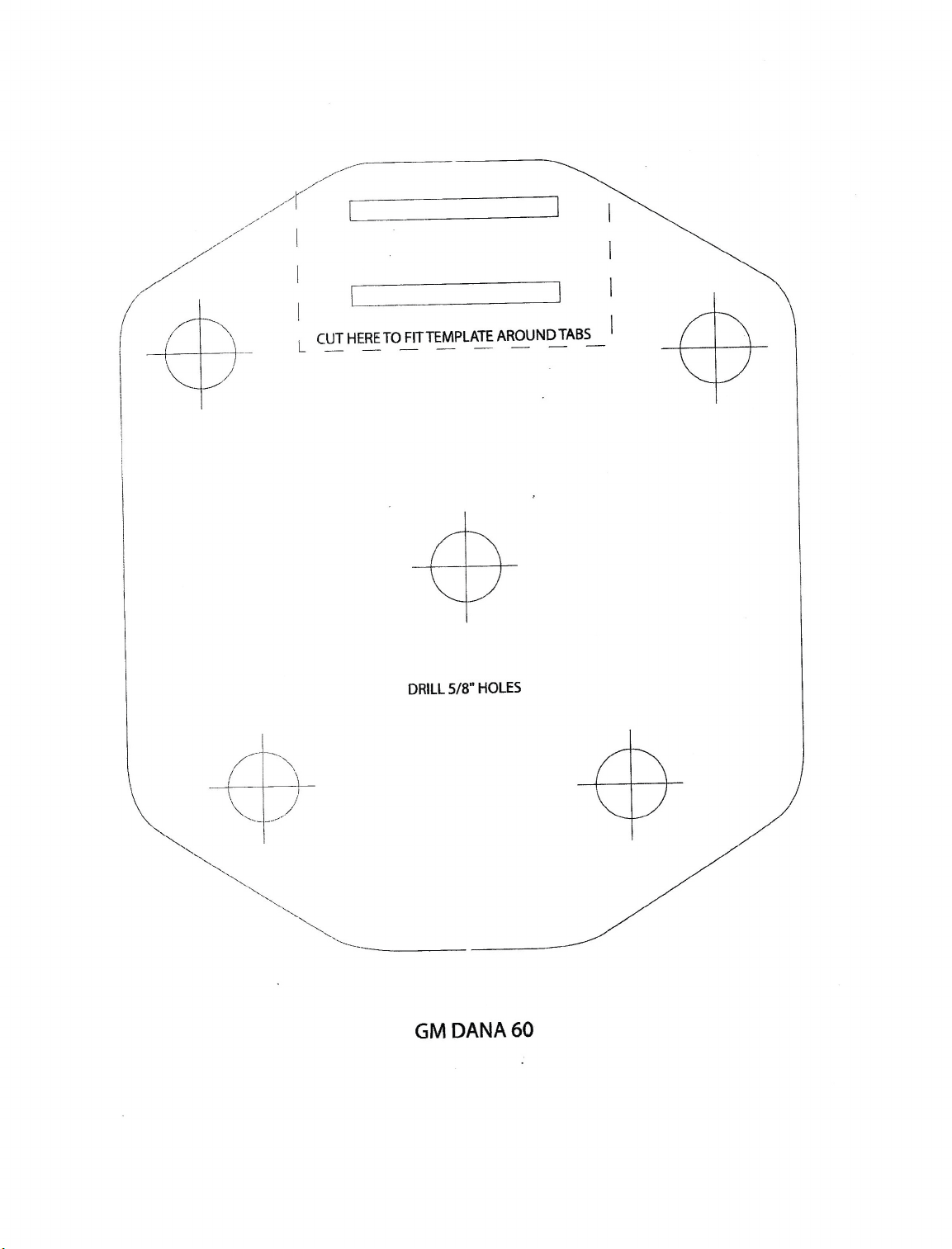

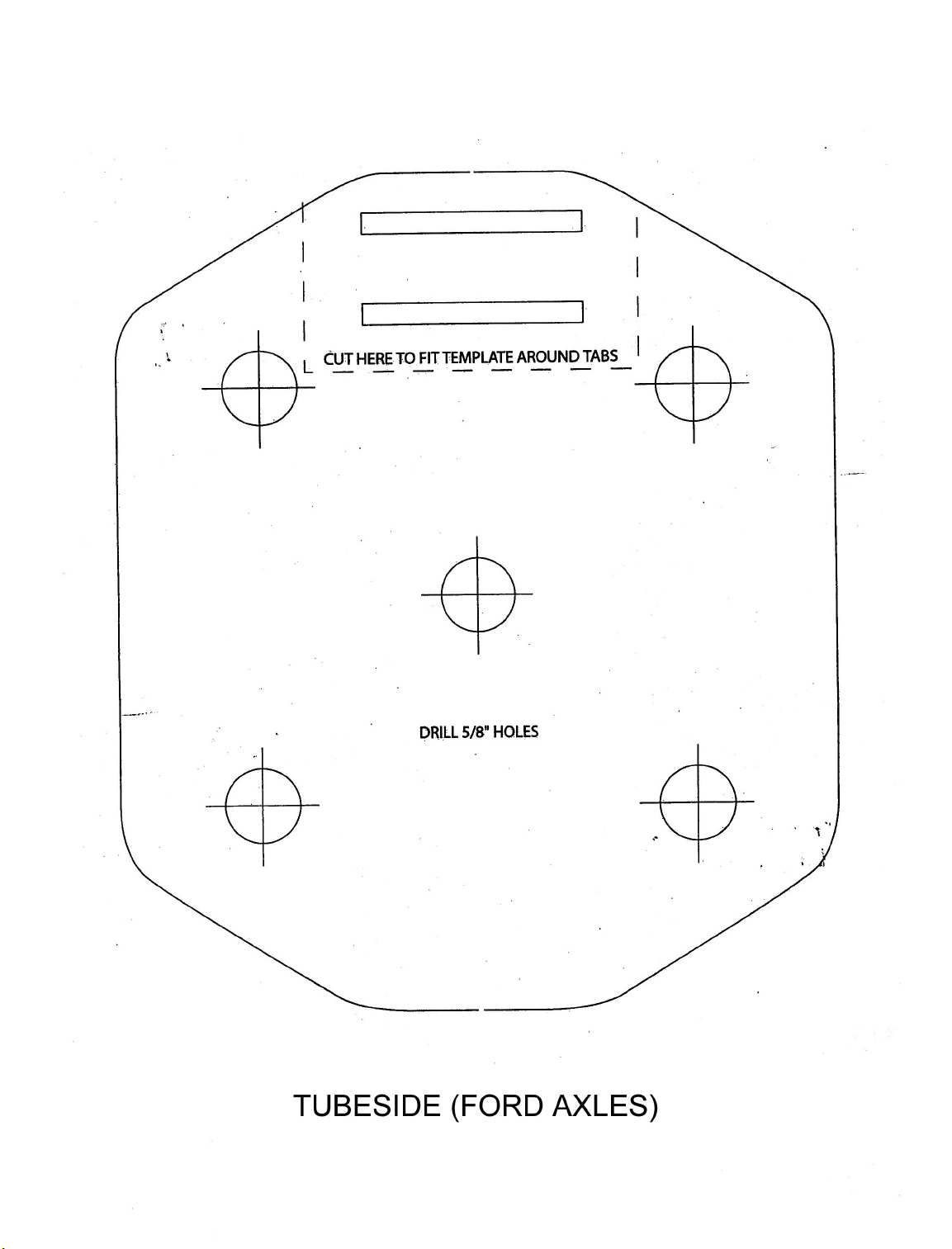

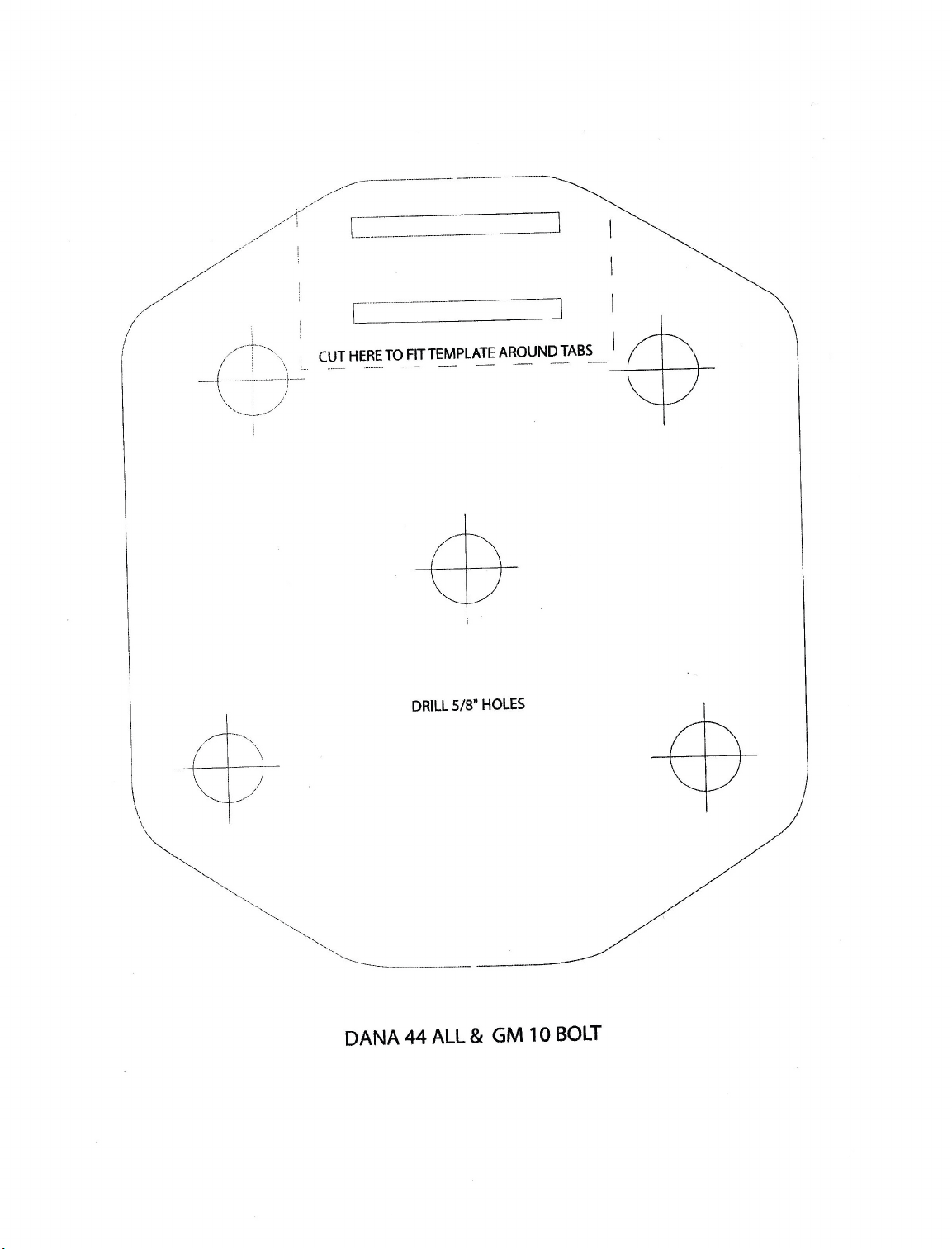

1) Determine your front axle type and drill the u-bolt holes in the new u-bolt plate using the appropriate
template.
2) Assemble cross member bar end w/jam nut. Adjust bar to fit in existing holes in bump stop brackets
and bolt in place.
3) Assemble the trac bar with adjustable ends and jam nuts. With the vehicle at ride height, adjust trac
bar to fit between passenger u-bolt plate and drivers bump stop bracket and bolt in place.
4) Be sure the trac bar and drag link are at the same angles. If the angles do not match, you may
experience "bump-steer". If you need to raise the trac bar at the axle mount to improve the angle,
purchase ORU extension bracket #61010-A.
5) RE-check your installation and tighten all hardware to specifications.
