Technical specifications
2MR

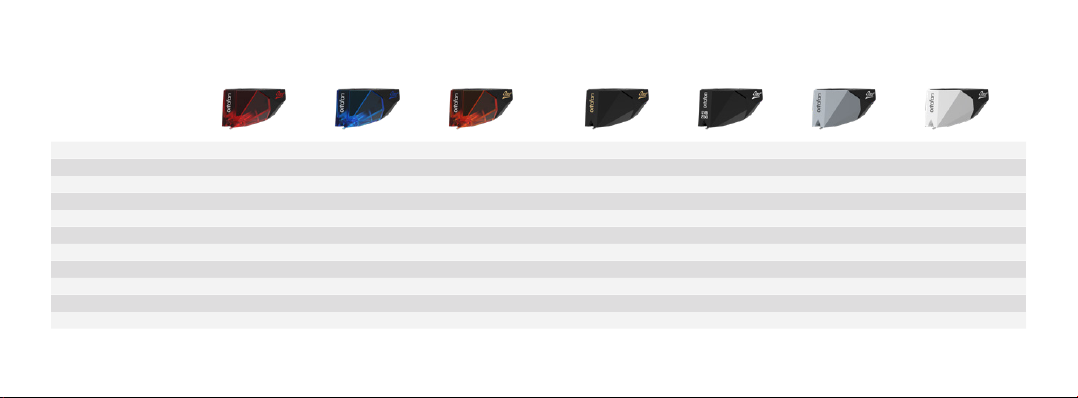

Model Red Blue Bronze Black Black LVB 250 78 Mono
Output vo ltage at 1 kHz, 5 cm/sec. 5.5 mV 5.5 mV 5 mV 5 mV 5 mV 4 mV 4 mV
Tracking abi lity at 315 Hz 70 µm 80 µm 80 µm 80 µm 80 µm 70 µm 70 µm
Compliance, dynamic, lateral 18 µm/mN 18 µm/mN 20 µm/mN 20 µ m/mN 22 µm/mN 22 µm/mN 22 µm/mN
Cantilever material Aluminium Aluminium Aluminium Aluminium Boron Aluminium Aluminium
Stylus t ype E lliptical Nude Ellip tical N ude Fine Line Nude Shib ata Nude Shib ata Spheri cal Nude Spheric al
Recommended tracking force 1.8 g 1.8 g 1.5 g 1.5 g 1.6 g 1.8 g 1.8 g
Load resistance 47 kOhm 47 kOhm 47 kO hm 47 kOhm 47 kOhm 47 kOh m 47 kOhm
Load capacitance 150 – 30 0 pF 150 – 300 pF 150 – 300 pF 150 – 300 pF 150 – 300 pF 150 – 300 pF 150 – 300 pF
Cartri dge weight 6 g 6 g 6 g 6 g 6 g 6 g 6 g
Cartridge height 14 mm 14 mm 14 mm 14 mm 14 mm 14 mm 14 mm
All specs at recommended tracking force
2 3
Page 3
2MR
Thank you for choosing an Ortofon 2MR cartridge. The 2MR cartridges are highperformance moving magnet phono cartridges with premium sound reproduction.
At Ortofon, we have been working with sound reproduction since 1918. We developed
the first phono cartridge in 1948, and since then, more than 300 different phono
cartridges have been developed and manufactured.
The 2MR has been engineered in accordance with the highest industrial standards,
matching Ortofon’s unrelenting commitment to providing the most precise and accurate
sound reproduction possible.
2MR cartridges are engineered for an optimal match with tonearms and turntables in
need of low form factor cartridges. All 2M styli fit on all 2MR cartridges.
We hope you will enjoy a premium listening experience with your new 2MR cartridge.
4 5
Page 4
Mounting the 2MR cartridge
1. It is recommended to keep the stylus guard on the stylus when mounting or
dismounting the unit.
2. Connect the tonearm lead wires to the cartridge, following the color coding of the
terminal pins for correct connection (Fig. 1).
3. Secure the cartridge to the tonearm using a pair of screws enclosed in the packaging.
Avoid overtightening the screws, as they may become stuck in the threaded holes of
the mounting plate.
4. Adjust the tracking force to the recommended value stated in the technical
specifications.
5. Adjust the anti-skating according to the record player’s manual.

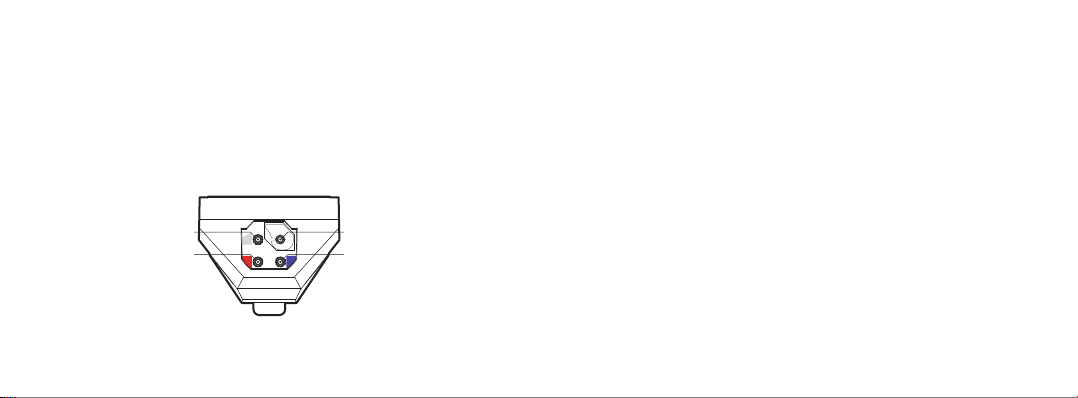

White L+
Red R+
6 7
Green RG
Blue LG
Fig. 1
Page 5
M2.5 mm
14.0 mm
24.0 mm
18.5 mm
Stylus guard

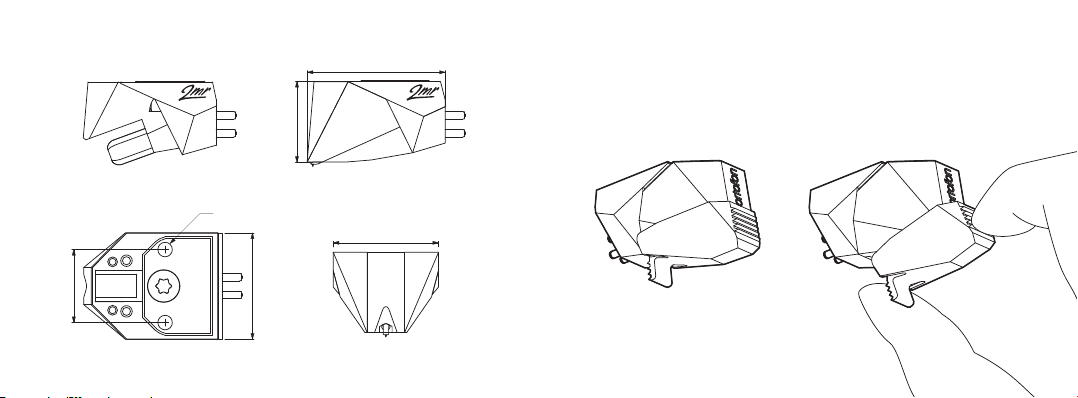

Remove the stylus guard before use by holding at the front and rear of the guard and
gently pressing the rear while tilting it downwards (Fig. 2-3).
12.7 mm
18.5 mm
Fig. 2 Fig. 3
8 9
Page 6

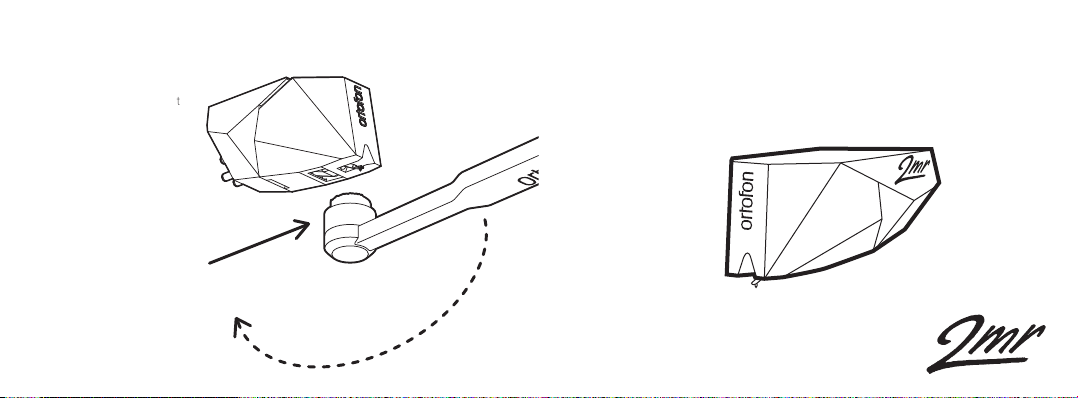

Stylus care and maintenance
To obtain optimal sound
reproduction, remove dust
from the stylus regularly
by using a stylus brush
(Fig. 4).
Please do not use propyl
alcohol (or any other
cleaning fluids) to clean the
product as this may cause
damage to the product.
Fig. 4
10 11
Warning
The product is a phono cartridge only intended for mounting on tonearms, it must not be
used for any other purposes.
Page 7
Scan and follow the QR code for setup
information (www.ortofon.com/support).
Ortofon A /S | Stavangervej 9 | DK-4900 Nakskov
[email protected] | www.ortofon.com
09-2023/5-800162-12
