accuracy in sound
|
2M |
78 |
2M Mono |
2M Red |
2M Blue |
2M Bronze |
2M Black |
|
|
2M |
78 Verso |
2M Mono Verso |
2M Red Verso |
2M Blue Verso |
2M Bronze Verso |
2M Black Verso |
|
|
2M |

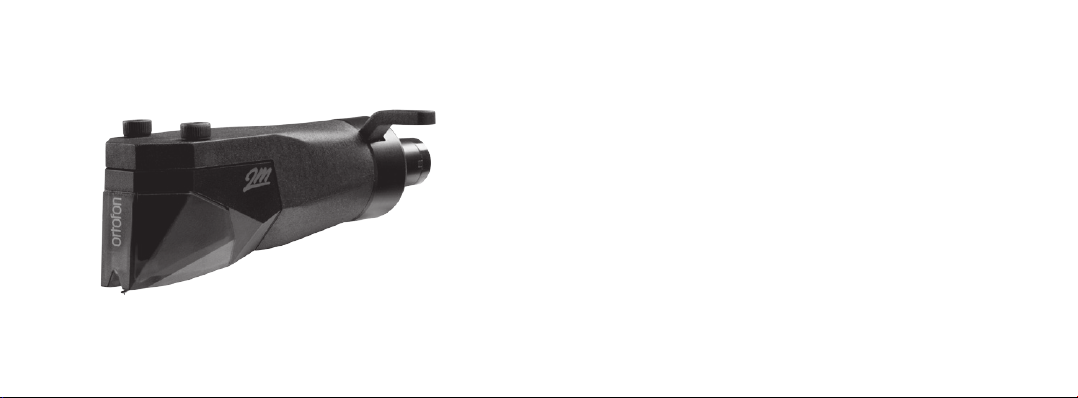

78 PnP |
2M Mono PnP |
2M Red PnP |
2M Blue PnP |
2M Bronze PnP |
2M Black PnP |
|
|
|
|
|
|
|
|
||
Output voltage at 1 kHz, 5cm/sec. |
4 mV |
4 mV |
5,5 mV |
5,5 mV |
5 mV |
5 mV |
|
|
Frequency range at -3 dB |
20-20.000 Hz |
20-22.000 Hz |
20-22.000 Hz |
20-25.000 Hz |
20-29.000 Hz |
20-31.000 Hz |
|
|
Tracking ability at 315 Hz |
70 µm |
70 µm |
70 µm |
80 µm |
80 µm |
80 µm |
|
|
at recommended tracking force |
|
|||||||
|
|
|
|
|
|
|
|
|
Compliance, dynamic, lateral |
18 µm/mN |
18 µm/mN |
20 µm/mN |
20 µm/mN |
22 µm/mN |
22 µm/mN |
|
|
Stylus type |
Spherical |
Nude Spherical |
Elliptical |
Nude Elliptical |
Nude Fine Line |
Nude Shibata |
|
|
Tracking force recommended* |
1,8 g (18 mN) |
1,8 g (18 mN) |
1,8 g(18 mN) |
1,8 g(18 mN) |
1,5 g (15 mN) |
1,5 g (15 mN) |
|
|
Load resistance* |
47 kOhm |
47 kOhm |
47 kOhm |
47 kOhm |
47 kOhm |
47 kOhm |
|
|
Load capacitance* |
150-300 pF |
150-300 pF |
150-300 pF |
150-300 pF |
150-300 pF |
150-300 pF |
|
|
|
|
|
|
|
|
|
|
|
|
*Recommended |
2 |
3 |
About the Ortofon 2M Series cartridges
Thank you for choosing the Ortofon 2M magnetic cartridge system for high performance sound reproduction of your favourite analogue records.
Our company has been working with sound reproduction since 1918. Ortofon developed its first phono cartridge in 1948, since then more than 300 different phono cartridges have been developed and manufactured. Reflecting our extensive experience in industrial design and technological know-how we have become the global leader in the manufacture and supply of phono cartridges.
The 2M Series has been engineered in accordance with the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

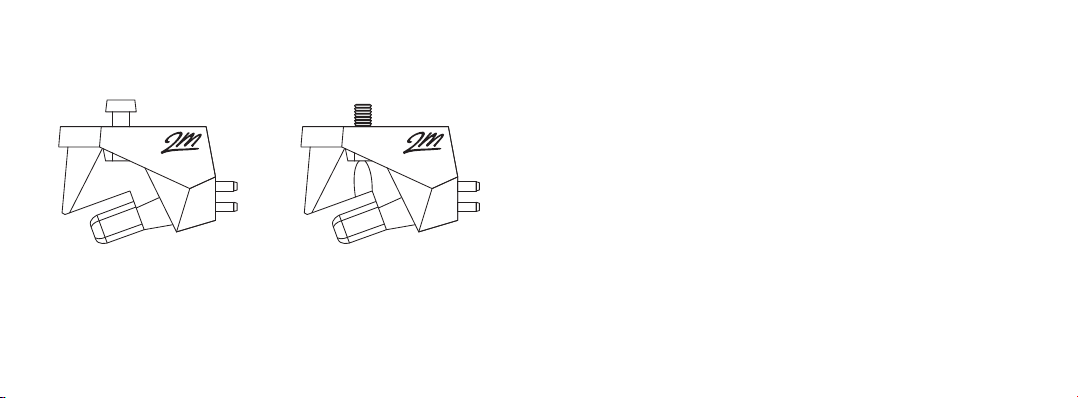

The 2M Series comprises of two configurations: 2M for top mounting and 2M Verso for bottom mounting. Each configuration consists of 2M 78, Mono, Red, Blue, Bronze and Black models, which weight and size have been optimized to fit the most common turntables on the market to-day.
As a result of reviewer listening tests we feel confident that you will appreciate and enjoy the unique qualities of these cartridges.
4
Warning
This phono cartridge is only for mounting on tonearms and must not be used for other purposes.
