Ortlieb F5504 User Manual

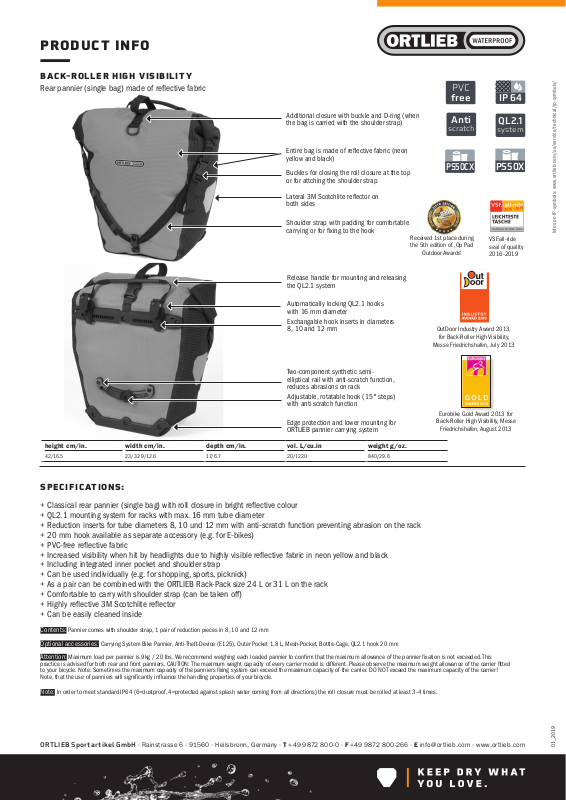

PRODUCT INFO

IP 64

PS50X

BACK-ROLLER HIGH VISIBILITY

Rear pannier (single bag) made of reective fabric

PVC

free

Additional closure with buckle and D-ring (when
the bag is carried with the shoulder strap)

Entire bag is made of reective fabric (neon
yellow and black)

Buckles for closing the roll closure at the top
or for attching the shoulder strap

Lateral 3M Scotchlite reector on
both sides

Shoulder strap with padding for comfortable
carrying or for xing to the hook

Release handle for mounting and releasing
the QL2.1 system

Automatically locking QL2.1 hooks
with 16 mm diameter

Exchangable hook inserts in diameters
8, 10 and 12 mm

Two-component synthetic semi­elliptical rail with anti-scratch function,
reduces abrasions on rack

Adjustable, rotatable hook (15° steps)
with anti scratch function

Edge protection and lower mounting for
ORTLIEB pannier carrying system

height cm/in. width cm/in. depth cm/in. vol. L/cu.in weight g/oz.

42/16 .5 23/32 9/12.6 17/6 .7 20/1220 840/29.6

Anti

scratch

PS50CX

Received 1st place during
the 5th edition of ‚Op Pad

Outdoor Awards‘

OutDoor Industry Award 2013,

for Back-Roller High Visibility,

Messe Friedrichshafen, July 2013

Eurobike Gold Award 2013 for

Back-Roller High Visibility, Messe

Friedrichshafen, August 2013

QL2.1

system

VSF.all-ride
seal of quality
2016-2019

Infos on IP-symbols: www.ortlieb.com/us/service/technical/ip-symbols/

SPECIFICATIONS:

+ Classical rear pannier (single bag) with roll closure in bright reective colour
+ QL2.1 mounting system for racks with max. 16 mm tube diameter
+ Reduction inserts for tube diameters 8, 10 und 12 mm with anti-scratch function preventing abrasion on the rack
+ 20 mm hook available as separate accessory (e.g. for E-bikes)
+ PVC-free reective fabric
+ Increased visibility when hit by headlights due to highly visible reective fabric in neon yellow and black
+ Including integrated inner pocket and shoulder strap
+ Can be used individually (e.g. for shopping, sports, picknick)
+ As a pair can be combined with the ORTLIEB Rack-Pack size 24 L or 31 L on the rack
+ Comfortable to carry with shoulder strap (can be taken off)
+ Highly reective 3M Scotchlite reector
+ Can be easily cleaned inside

Contents: Pannier comes with shoulder strap, 1 pair of reduction pieces in 8, 10 and 12 mm

Optional accessories: Carrying System Bike Pannier, Anti-Theft-Device (E125), Outer Pocket 1,8 L, Mesh-Pocket, Bottle-Cage, QL2.1 hook 20 mm

Attention: Maximum load per pannier is 9kg / 20 lbs. We recommend weighing each loaded pannier to conrm that the maximum allowance of the pannier xation is not exceeded. This

practice is advised for both rear and front panniers. CAUTION: The maximum weight capacity of every carrier model is different. Please observe the maximum weight allowance of the carrier tted
to your bicycle. Note: Sometimes the maximum capacity of the panniers xing system can exceed the maximum capacity of the carrier. DO NOT exceed the maximum capacity of the carrier!
Note, that the use of panniers will signicantly inuence the handling properties of your bicycle.

Note: In order to meet standard IP64 (6=dustproof, 4=protected against splash water coming from all directions) the roll closure must be rolled at least 3-4 times.

ORTLIEB Sportartikel GmbH · Rainstrasse 6 · 915 60 · Heilsbronn, Germany · T [phone] · F [phone] · E info@or tlieb.com · www.ortlieb.com

01_2019
