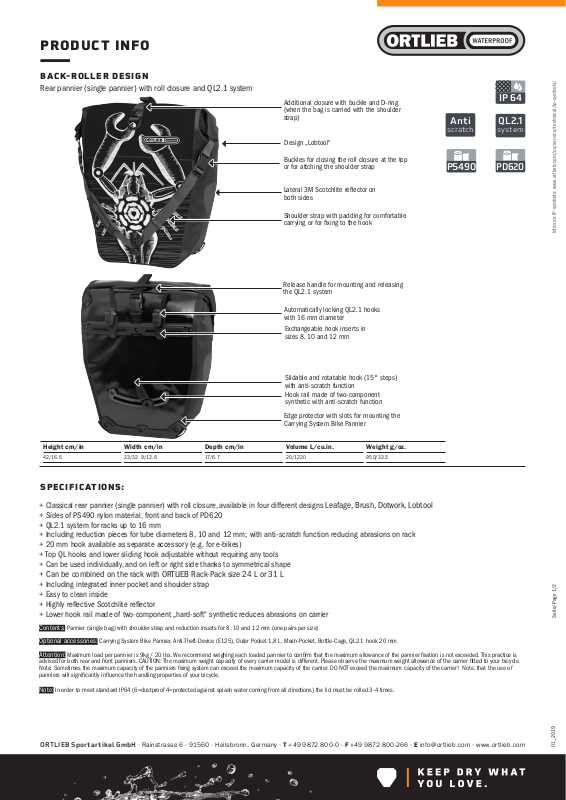

Ortlieb F5482 Technical data

PRODUCT INFO

PD620

PS490

IP 64

BACK-ROLLER DESIGN

Rear pannier (single pannier) with roll closure and QL2.1 system

Additional closure with buckle and D-ring
(when the bag is carried with the shoulder
strap)

Design „Lobtool“

Buckles for closing the roll closure at the top
or for attching the shoulder strap

Lateral 3M Scotchlite reector on
both sides

Shoulder strap with padding for comfortable
carrying or for xing to the hook

Release handle for mounting and releasing
the QL2.1 system

Automatically locking QL2.1 hooks
with 16 mm diameter

Exchangeable hook inserts in
sizes 8, 10 and 12 mm

Anti

scratch

QL2.1

system

Infos on IP-symbols: www.ortlieb.com/us/service/technical/ip-symbols/

Slidable and rotatable hook (15° steps)
with anti-scratch function

Hook rail made of two-component
synthetic with anti-scratch function

Edge protector with slots for mounting the
Carrying System Bike Pannier

Height cm/in Width cm/in Depth cm/in Volume L/cu.in. Weight g/oz.

42/16 .5 23/32 9/12.6 17/6 .7 20/1220 950/33. 5

SPECIFICATIONS:

+ Classical rear pannier (single pannier) with roll closure, available in four different designs Leafage, Brush, Dotwork, Lobtool
+ Sides of PS490 nylon material, front and back of PD620
+ QL2.1 system for racks up to 16 mm
+ Including reduction pieces for tube diameters 8, 10 and 12 mm; with anti-scratch function reducing abrasions on rack
+ 20 mm hook available as separate accessory (e.g. for e-bikes)
+ Top QL hooks and lower sliding hook adjustable without requiring any tools
+ Can be used individually, and on left or right side thanks to symmetrical shape

+ Can be combined on the rack with ORTLIEB Rack-Pack size 24 L or 31 L

+ Including integrated inner pocket and shoulder strap
+ Easy to clean inside
+ Highly reective Scotchlite reector
+ Lower hook rail made of two-component „hard-soft“ synthetic reduces abrasions on carrier

Contents: Pannier (single bag) with shoulder strap and reduction inserts for 8, 10 and 12 mm (one pairs per size)

Optional accessories: Carrying System Bike Pannier, Anti-Theft-Device (E125), Outer Pocket 1,8 L, Mesh-Pocket, Bottle-Cage, QL2.1 hook 20 mm

Attention: Maximum load per pannier is 9kg / 20 lbs. We recommend weighing each loaded pannier to conrm that the maximum allowance of the pannier xation is not exceeded. This practice is

advised for both rear and front panniers. CAUTION: The maximum weight capacity of every carrier model is different. Please observe the maximum weight allowance of the carrier tted to your bicycle.
Note: Sometimes the maximum capacity of the panniers xing system can exceed the maximum capacity of the carrier. DO NOT exceed the maximum capacity of the carrier! Note, that the use of
panniers will signicantly inuence the handling properties of your bicycle.

Note: In order to meet standard IP64 (6=dustproof 4=protected against splash water coming from all directions) the lid must be rolled 3-4 times.

Seite/Page 1/2

ORTLIEB Sportartikel GmbH · Rainstrasse 6 · 915 60 · Heilsbronn, Germany · T [phone] · F [phone] · E info@or tlieb.com · www.ortlieb.com

01_2019

PRODUCT INFO

BACK-ROLLER DESIGN

Rear pannier (single pannier) with roll closure and QL2.1 system

Design „Leafage“ Design „Brush“

Design „Dotwork“

Design „Lobtool“

Seite/Page 2/2
