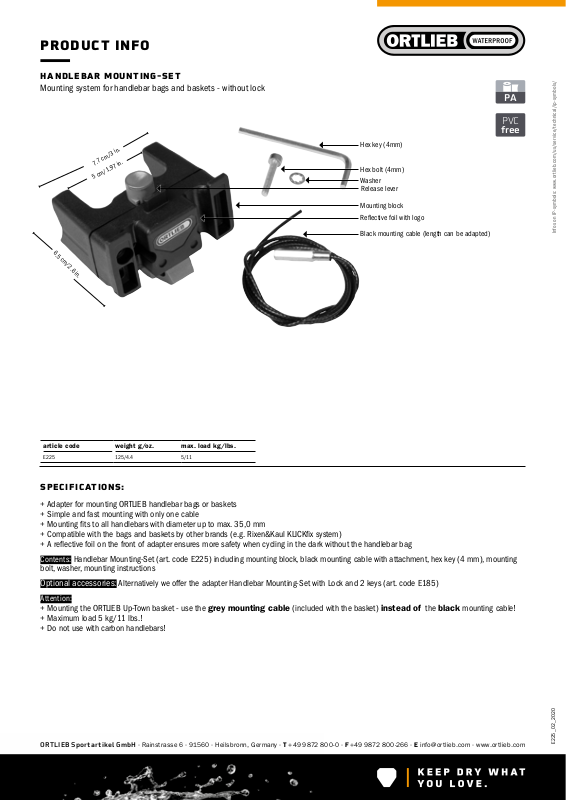

PRODUCT INFO

PA

HANDLEBAR MOUNTING-SET

Mounting system for handlebar bags and baskets - without lock

PVC

free

Hex key (4mm)

6.5 cm/2.6 in.

7.7 cm/3 in.

5 cm/1.97 in.

Hex bolt (4mm)

Washer

Release lever

Mounting block

Reective foil with logo

Black mounting cable (length can be adapted)

Infos on IP-symbols: www.ortlieb.com/us/service/technical/ip-symbols/

article code weight g/oz. max. load kg/lbs.

E225 125/4.4 5/11

SPECIFICATIONS:

+ Adapter for mounting ORTLIEB handlebar bags or baskets
+ Simple and fast mounting with only one cable
+ Mounting ts to all handlebars with diameter up to max. 35,0 mm
+ Compatible with the bags and baskets by other brands (e.g. Rixen&Kaul KLICKx system)
+ A reective foil on the front of adapter ensures more safety when cycling in the dark without the handlebar bag

Contents: Handlebar Mounting-Set (art. code E225) including mounting block, black mounting cable with attachment, hex key (4 mm), mounting

bolt, washer, mounting instructions

Optional accessories: Alternatively we offer the adapter Handlebar Mounting-Set with Lock and 2 keys (art. code E185)

Attention:

+ Mounting the ORTLIEB Up-Town basket - use the grey mounting cable (included with the basket) instead of the black mounting cable!
+ Maximum load 5 kg/11 lbs.!
+ Do not use with carbon handlebars!

ORTLIEB Sportartikel GmbH · Rainstrasse 6 · 915 60 · Heilsbronn, Germany · T + 49 9872 800 -0 · F [phone] · E info@or tlieb.com · www.ortlieb.com

E225_02_ 2020
