Orthofab Oasis User Manual

USER MANUAL

July 2008

Please give this manual to the owner of the motorized wheelchair.

Please read this manual in it entirety before using your

motorized wheelchair for the first time. Read this manual until it becomes familiar and pay close attention to the warnings.

If you have any questions about non-covered subjects in this manual, please consult a technician in an authorized service center or contact our customer service at: 1-(418)-847-5225

Center:

Address:

Phone:

The adjustments of your wheelchair must be made by a health care professional. Inadequate adjustments can cause wounds and/or damage to the user, the caregiver, the wheelchair or the environment.

Do not install unauthorized accessories. Always consult a health care professional for any modifications to your

motorized wheelchair.

Please also read in it entirety the command system manual of your

motorized wheelchair and also the one on

batteries charger before to use your wheelchair for the first time. Do it for your safety.

is proud to count you among its customers and thanks you for having chosen one

of its products. All the products manufactured by

respect or exceed the highest standards of quality

and safety currently in force in the industry.

employees are guided by the desire to

satisfy customers expectations. This is why

does not hesitate to offer a most complete warranty, applying to the whole wheelchair elements and components. However, the warranty does not apply to parts and components damaged by abuse, carelessness, accident and normal use or installed and modified by an unauthorized person.

This operating instructions manual has been written to enable you to use your

motorized wheelchair safely. You will find in this document, information relating to

safety, operating instructions and adjustments.

In order to optimize the performance of your

and to extend its lifespan, it

is essential to have it check regularly by a technician from an authorized service center.

refuse any responsibility for physical injuries or damages resulting from an improper use of its products, from a lack of precaution in their use or from a modification made without it written assent.

TABLE OF CONTENTS

1 SAFETY REQUIREMENTS ..................................................................................................6

1.1

SAFETY REQUIREMENTS........................................................................................................................6

1.1.1

BEFORE TAKING THE ROAD..................................................................................................................................................6

1.1.2

MOVING WITH THE WHEELCHAIR.........................................................................................................................................7

1.1.3

TO CARRY OUT TRANSFERT.................................................................................................................................................7

1.1.4

VARIOUS HANDLING OPERATIONS......................................................................................................................................8

1.1.5

CLEANING AND MAINTENANCE OF COMPONENTS ...........................................................................................................9

1.2

WHAT ABOUT THE ELECTROMAGNETIC ENERGY...............................................................................9

1.2.1

CAUTION.................................................................................................................................................................................10

1.2.2

USING TRANSMITTERS AND RECEIVERS..........................................................................................................................10

2 RECOMMENDED USE.......................................................................................................11

2.1

OPERATING ENVIRONMENT .................................................................................................................11

2.2

USER........................................................................................................................................................ 11

2.3

WHEELCHAIR HANDLING....................................................................................................................... 11

2.3.1

STABILITY AND BALANCE...................................................................................................................................................11

2.3.2

NEGOTIATION OF DAILY OBSTACLES ...............................................................................................................................12

2.3.3

NOTE TO THE CAREGIVER...................................................................................................................................................12

2.3.4

TILT..........................................................................................................................................................................................12

2.3.5

ROADSIDE CURB (SIDEWALK)............................................................................................................................................12

2.3.6

STAIRCASES..........................................................................................................................................................................13

2.3.7

TRANSFERS TO OR FROM AN OTHER SEAT.....................................................................................................................14

2.3.8

EXTENSIONS FROM THE WHEELCHAIR.............................................................................................................................14

3 SPECIFICATIONS ..............................................................................................................16

3.1

OASIS MOTORIZED WHEELCHAIR........................................................................................................16

3.2

TECHNICAL SPECIFICATIONS............................................................................................................... 17

3.3

PERFORMANCES.................................................................................................................................... 17

3.4

STANDARD CHARACTERISTICS ...........................................................................................................18

3.4.1

MOTORIZED BASE.................................................................................................................................................................18

3.4.1

SEAT ELEMENTS...................................................................................................................................................................18

4 SETUP INSTRUCTIONS AND ADJUSTMENTS..... .. .. .. ... .. .. .. .. .. ... .. .. .. .. .. ... .. .. .. .. ... .. .. .. .. .. ...19

4.1

REAR SHROUD........................................................................................................................................ 19

4.1.1

TO REMOVE REAR SHROUD................................................................................................................................................19

4.1.2

REPLACE THE REAR SHROUD............................................................................................................................................20

4.2

SEATING POSITIONS.............................................................................................................................. 20

4.2.1

CHANGING THE ANGLE AND HEIGHT OF THE SEAT .......................................................................................................20

4.2.2

CHANGING HEIGHT OF THE SEAT (ADDITIONAL +1" OR +2") ........................................................................................21

4.3

WHEELS......................................................................................................................................... .......... 23

4.3.1

CHANGE FRONT WHEEL TYPE............................................................................................................................................23

4.3.2

CHANGING SWING-ARM HEIGHT ........................................................................................................................................24

4.3.3

REAR WHEELS INSTALLATION...........................................................................................................................................25

4.4

BATTERIES.............................................................................................................................................. 26

4.4.1

BATTERY SELECTION...........................................................................................................................................................26

4.4.2

BATTERIES INSTALLATION .................................................................................................................................................26

4.5

FOOTRESTS............................................................................................................................................ 34

4.5.1

LEGREST LENGTH ADJUSTMENT.......................................................................................................................................34

4.5.2

CHANGING FOOTPLATE ANGLE .........................................................................................................................................34

4.5.3

CHANGING CALF PAD HEIGHT............................................................................................................................................35

4.5.4

CHANGING CALF PAD DEPTH.............................................................................................................................................36

4.6

ADJUSTABLE BACKREST....................................................................................................................... 37

4.6.1

CHANGING THE BACKREST ANGLE...................................................................................................................................37

4.6.2

CHANGING BACKREST HEIGHT..........................................................................................................................................38

4.7

JOYSTICK BOX ATTACHMENTS............................................................................................................ 39

4.7.1

DEPTH ADJUSTMENT ...........................................................................................................................................................39

4.7.2

HEIGHT ADJUSTEMENT........................................................................................................................................................40

TABLE OF CONTENTS

4.7.3

SIDE POSITION ADJUSTMENT.............................................................................................................................................41

4.8

REAR SUSPENSION ADJUSTMENT .................... ..................................................................................42

4.9

COMMAND SYSTEM FOR 4 MOTORIZED ACCESSORIES................................................................... 43

4.10 UNIVERSAL CABLE................................................................................................................................. 43

4.11 GUIDE FOR BRAKES DISENGAGEMENT MECHANISM....................................................................... 46

5 OPERATING INSTRUCTIONS...........................................................................................47

5.1

FOOTREST / LEGREST........................................................................................................................... 47

5.1.1

SWINGAWAY..........................................................................................................................................................................47

5.1.2

TO REMOVE AND/OR INSTALL............................................................................................................................................47

5.1.3

TO RAISE OR LOWER THE LEGRESTS...............................................................................................................................48

5.2

ADJUSTABLE « T » SHAPE ARMREST HEIGHT....................................................................................49

5.2.1

TO REMOVE AND/OR INSTALL............................................................................................................................................49

5.2.2

ADJUSTING THE ARMREST HEIGHT...................................................................................................................................50

5.3

ADJUSTABLE « U » SHAPE ARMREST HEIGHT ................................................................................... 50

5.3.1

SWINGAWAY..........................................................................................................................................................................50

5.3.2

TO REMOVE............................................................................................................................................................................51

5.3.3

HEIGHT ADJUSTMENT..........................................................................................................................................................51

5.4

RECLINING BACKREST..........................................................................................................................52

5.4.1

WITH PNEUMATIC GAS ACTUATOR....................................................................................................................................52

5.4.2

WITH ELECTRICAL ACTUATOR...........................................................................................................................................53

5.5

SEAT BELT............................................................................................................................................... 54

5.6

DISENGAGING PARKING BRAKES........................................................................................................ 55

5.6.1

PERMANENT MODE...............................................................................................................................................................55

5.6.2

TEMPORARILY MODE...........................................................................................................................................................56

5.7

THERMAL CIRCUIT BREAKER ...............................................................................................................58

5.7.1

IN THE EVENT OF THE THERMAL CIRCUIT BREAKER RELEASE ...................................................................................58

5.8

LIGHTS..................................................................................................................................................... 59

5.9

45° TILT MECHANISM (OPTIONNAL) .....................................................................................................60

5.9.1

TO TILT THE SEAT.................................................................................................................................................................60

5.10 PARATRANSIT ANCHOR POINTS.......................................................................................................... 61

5.10.1

ADVISE FOR TRANSPORTATION.........................................................................................................................................61

5.11 RECHARGING BATTERIES.................................................................................... ................................. 62

5.12 STORAGE................................................................................................................................................. 63

5.13 MOTORIZED WHEELCHAIR TRANSPORTATION ................................................................................. 63

6 MAINTENANCE..................................................................................................................64

6.1

MAINTENANCE PROCEDURES.............................................................................................................. 64

6.2

CHECK LIST............................................................................................................................................. 64

6.3

CLEANING................................................................................................................................................ 65

6.4

BATTERY................................................................................................... .............................. ................. 65

6.4.1

RECHARGE FREQUENCY.....................................................................................................................................................65

6.4.2

BATTERY REFILL...................................................................................................................................................................65

6.4.3

BATTERY CLEANING ............................................................................................................................................................65

6.5

STRAIGHT TRAJECTORY....................................................................................................................... 66

6.6

WHEELS......................................................................................................................................... .......... 66

6.6.1

PNEUMATIC WHEELS ...........................................................................................................................................................66

6.6.2

FRONT WHEELS ....................................................................................................................................................................66

6.6.3

REAR WHEELS.......................................................................................................................................................................66

6.7

BRAKES DISENGAGEMENT......................................................................................................... ..........66

6.8

ONBOARD BATTERY CHARGER.............................................................................................. .............. 66

7 BREAKDOWN SERVICE GUIDE .......................................................................................67

8 WARRANTY .......................................................................................................................69

9 AUTHORIZED SERVICE CENTRES..................................................................................71

1 SAFETY REQUIREMENTS

1.1 SAFETY REQUIREMENTS

(Applies to all

wheelchairs)

The control parameters can be adjusted and/or modified only by a health care professionals or an authorized technician.

1.1.1 BEFORE TAKING THE ROAD

• Always put the key switch OFF before getting on or off your vehicle.

• Make sure that the batteries are sufficiently charged (see battery status indicator).

• Make sure that the anti-tippers are installed.

• Make sure that brakes immobilize your wheelchair completely.

• Make sure that the tire pressure is appropriate.

• Make sure that nothing interferes with wheels (scarf, umbrella, etc…).

• Make sure that your seating position is stable.

• Position the backrest in the raised position.

• Make sure the 45° tilt mechanism is in driving position (seat horizontal with the ground).

• Fasten your seat belt correctly and without too much slack.

• Make sure that swing away legrests are locked in position and that your feet are stable

on them.

• Push down the elevator legrests.

• Make sure that the swing away or removable armrests are locked in their positions.

• Make sure that the position of the joystick box enable you to carry out all your

movements comfortably and easily.

• Make sure that the joystick rubber cover is in good condition, if not, try to have it fixed as soon as possible.

• Make sure that your personal effects do not block in anyway the wheelchair functions.

• Do not install or transport heavy objects on the backrest of your wheelchair (backpack,

bags, grocery, etc).

1 SAFETY REQUIREMENTS

1.1.2 MOVING WITH THE WHEELCHAIR

• Avoid any shock to the joystick box or the joystick itself.

• Avoid slippery surfaces (snow, ice, etc).

• Do not change direction abruptly at high speed.

• Do not use your wheelchair on expressways or streets with intense car circulation.

• Do not transport passengers.

• Do not use your wheelchair under extreme climatic conditions (storm, rain, etc).

• If you drive outside at night, ensure that you will be seen by others.

• Do not approach a slope in a diagonal trajectory, always approach the slope in a straight

line, perpendicularly to the slope.

• Do not go down in a slope in reverse.

• Always actuate the lever gently when you start moving in a slope in order to avoid tipping the

wheelchair.

• Do not make a half-turn in a slope.

• Reduce your speed in restricted or encumbered areas.

• Reduce your speed in a crowd and use your horn to announce your presence.

• In front of an obstacle you must stop and cross it perpendicularly and gradually.

• Avoid thresholds of more than 1 ½ in (38 mm), they can endanger your stability.

• Use the elevators to move you from one level to another.

• Do not approach a slope surface exceeding 10° (17% slope).

• Always fasten your seat belt.

• Keep legs on the legrest while driving.

1.1.3 TO CARRY OUT TRANSFERT

• Always put the on/off switch of the joystick box on the OFF position before carrying out a transfer.

• Never lean forward or backward to reach an object.

• Always place yourself sideway and the nearest you can to the object to reach.

• Use the transfer supports on the armrests to raise yourself, after you made sure that they

are correctly in position.

• If your backrest is inclined, do not sit down on the backrest, you could damage the backrest and tip the wheelchair.

• Do not raise yourself upright on the footplates, you could damage and/or tip the wheelchair.

• Do not sit on the armrests. The wheelchair could tip over.

1 SAFETY REQUIREMENTS

1.1.4 VARIOUS HANDLING OPERATIONS

Never try to recharge the batteries in your bedroom while you sleep. During recharge, batteries can produce a harmful gas who can cause you health problem.

• Do not immerse your wheelchair, it could cause a dangerous electrical problem.

• Do not store or leave your wheelchair without someone taking care of it.

• Do not leave your wheelchair under the rain.

• Do not store your wheelchair in a wet or very cold place, this could cause a dangerous

problem on your motorized wheelchair.

• does not limit nor exclude that the user remains seated in his wheelchair

when using a road vehicle adapted for transportation (paratransit), provided the driver and the owner of the aforesaid road vehicle respects, on this subject, all legislative requirements, rules, laws, protocols, directives, norms, standards, instructions and recommendations pertaining to such use by competent authorities.

• Do not travel on tilted surfaces when the wheelchair is in free wheel. If you have to do it,

the caregiver must always be oriented in the direction of the bottom of the slope.

• Do not raise the wheelchair by its detachable components (armrest, seat, etc).

• Do not use your battery charger in a hermetic place (backpack, drawer, etc.).

• Always put the on/off switch of the charger on the OFF position before disconnecting the

charging connector on the wheelchair.

• Never try to modify the connector (110 V AC) of the battery charger.

• Never try to modify the battery charger connector (24 V DC) which connect to the

wheelchair.

• Never try to recharge the batteries in your bedroom while you sleep.

• Never connect an electric component other than those manufactured by .

• Never modify the electric circuit of the wheelchair.

• Always protect the joystick box when you have to carry the wheelchair.

• Always immediately replace any damaged electric wires.

• Always carry out regularly maintenance of your motorized wheelchair as recommended

1 SAFETY REQUIREMENTS

1.1.5 CLEANING AND MAINTENANCE OF COMPONENTS

• Clean as soon as possible your joystick box once it been soiled.

• Use a soft rag and a diluted soft soap.

• Do not use detergent based on alcohol or thinner.

• Regularly carry out maintenance of your wheelchair as recommended by .

1.2 WHAT ABOUT THE ELECTROMAGNETIC ENERGY

All electronic instruments which transmit remote informations are generally apparatus which emit in the environment some radio waves. These radio waves are called " electromagnetic energy ".

The functionality of an electronic instrument can be deteriorated by this electromagnetic energy field. It is what we call "an electromagnetic interference". Stronger the intensity of energy is, greater the risk of bad functional problem of the apparatus increase. This energy is measured in volt per meter (V/m).

All motorized wheelchair are suitable to be affected by these interferences. However, current technology makes it possible to immunize them against these risks. It is what is called their electromagnetic level of immunity to the interference, measured also in volt per meter (V/m).

20 V/m is a level of immunity which offer a good protection against the electr omagnetic interferences. The electronic parts of the R-NET electronic from

do meet

standard directive IEC 1000-4-3.

To avoid electromagnetic interferences, it is important to read and respect the following warning section, before to use your

wheelchair for the first time.

1 SAFETY REQUIREMENTS

1.2.1 CAUTION

Waves emitted by :

• Radio and television stations;

• Amateur radio;

• Radio transmitters and receivers;

• Cellular phones;

• Computers laptop.

CAN AFFECT THE CORRECT FUNCTIONALITY OF MOTORIZED WHEELCHAIR.

1.2.2 USING TRANSMITTERS AND RECEIVERS

• Avoid proximity of these sources of electromagnetic emissions.

• Always put the joystick box in the OFF POSITION before using a cellular phone or a CB

apparatus.

• The addition of electric accessories and/or electric modifications made to the wheelchair

will modify its level of immunity to the electromagnetic emissions.

• Always put the key in the OFF POSITION as soon as it safe to do it and that appears an

erratic operation with the wheelchair.

• Please forward any incident of this kind to

2 RECOMMENDED USE

2.1 OPERATING ENVIRONMENT

Thanks to its small overall dimensions, your

wheelchair is perfectly adapted to your

inside displacement. Its short turning radius allows easier movement.

With its motorization making it possible to reach a speed of 12 km/h, the

wheelchair is

the ideal choice to move outside, on a paved or uneven surfaces.

The

offer an adjustable seat to floor height and the possibility of adjus ting t he angle of the seat. These adjustable structures allow us to adapt the wheelchair to the needs of each customer. Its armrests and legrests are also adjustable to provide you a better comfort.

2.2 USER

The control of the wheelchair requires training. The operation of the wheelchair should only be permitted to the person for whom it was prescribed. It can be particularly dangerous to let children play with the wheelchair.

2.3 WHEELCHAIR HANDLING

This section shows the procedures and standard techniques for a safe operation of the wheelchair. It is important to practice and control these techniques until you feel at ease around the architectural barriers you frequently encounter.

Use this document as a basic guide. Techniques described in the next pages have been t ested by several users.

Wheelchair users have different capacities and limits; and must often develop skills in order to compose within these in their daily activities.

recognize these differences and encourage each individual to test what works best for him or her in their environment. Techniques described in this document are only a starting point for the new user and his or her companion. Always remember that your first priority must be "safety".

2.3.1 STABILITY

AND BALANCE

To ensure the stability and a good operation condition for your wheelchair, you must maintain a good balance at any time. Your wheelchair has been conceived to remain stable and upright while doing your normal daily activities unless you move beyond your center of gravity.

Practically all the activities which require movements when you are seated in the wheelchair will have an effect on the center of gravity.

recommends you to always fasten your seat

belt when doing such activities.

2 RECOMMENDED USE

2.3.2 NEGOTIATION OF DAILY OBSTACLES

While learning to drive your wheelchair, you will have to negotiate daily obstacles, such as c urb, staircase etc. Keep in mind where your "center of gravity" is in order to always maintain stability and balance.

2.3.3 NOTE TO THE CAREGIVER

When the user needs assistance, it is necessary to use adequate body mechanics. Keep your back straight and bend the knees when you must tip the wheelchair to overcome a curb or any other obstacles.

Moreover, it is necessary to keep in mind the detachable components such as armrests and footrests. You should never rely on these components to raise or to hold the wheelchair because they can be inadvertently released and causes wounds to the user or the caregiver.

When training for a new technique, always practice it in the presence of an experienced caregiver before trying it.

2.3.4 TILT

Never try to tip over the wheelchair without assistance. A caregiver must always be present.

To tip over the wheelchair, the caregiver must firmly hold the backrest handles and make sure that they are secured. He must inform the user before tipping over the wheelchair and remind him to incline he or she backwards. Also make sure that the feet and hands of the user are not to close to the wheels. The caregiver must apply a continuous motion until the point of balance is reached. At this point, the caregiver will feel a difference in the distribution of the weight. Turn the wheelchair in the desired direction if necessary. LOWER the front part of the wheelchair in a continuous motion. Do not drop the wheelchair because it could cause wounds to the occupant of the wheelchair.

2.3.5 ROADSIDE CURB (SIDEWALK)

After having mastered the tilt techniques, use this method to face curbs and other obstacles. Caregiver must tip over the wheelchair until the front wheels exceed the curb. Disengaged the

brakes (see; section 5.6 and figure 1 next page) with the handle located on the backrest handles of the seat, then push the wheelchair forwards until the front wheels cross the curb, lower the wheels to the pavement (sidewalk). Push the wheelchair forward until rear wheels pass also the curb and apply brakes. It is now possible to the user to drive the wheelchair again.

2 RECOMMENDED USE

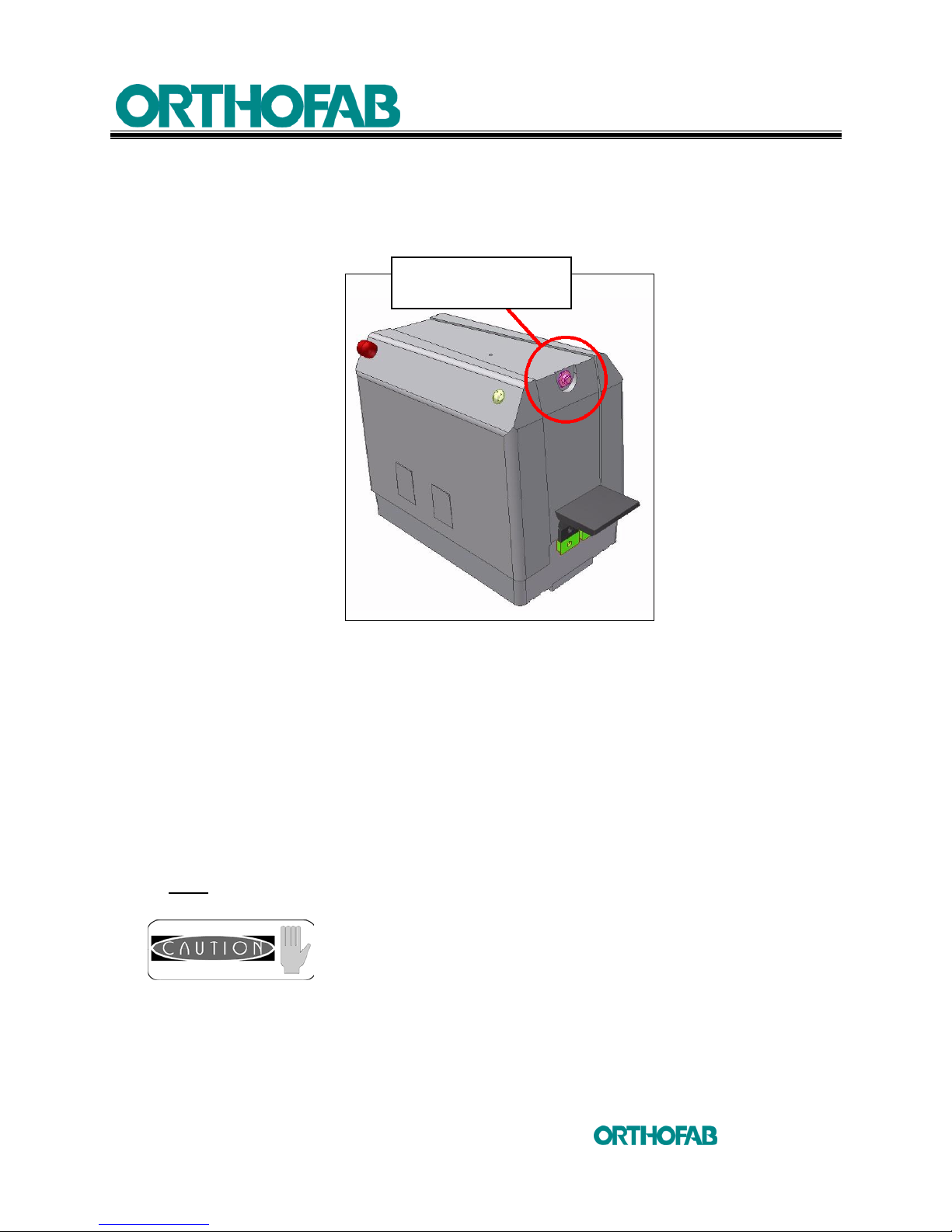

Figure 1: Brakes disengagement handle.

2.3.6 STAIRCASES

Do not try to move a motorized wheelchair using a staircase. Use an elevator. If you must move a motorized wheelchair in a staircase, the user should not remain in his wheelchair. He must be transported independently of the wheelchair. Take off the batteries before beginning these operations.

Extreme caution is necessary when you move an unoccupied motorized wheelchair in a staircase.

recommends that two (2) caregivers must be present to carry out this operation after required preparations. Grab the wheelchair by it’s non-detachable components. Do not try to raise the wheelchair while grabbing the detachable armrests or legrests. This operation could cause body wounds to yourself and/or damage the wheelchair.

Follow this procedure to move a wheelchair in a staircase, if and only if there is no elevator.

The weight of a wheelchair without the user and the batteries is more than 120 pounds. Use an adequate technique while raising the wheelchair. Use your legs instead of your back in order to prevent wounds.

1. Move the user on another seat.

2. Take off the battery compartments of the wheelchair (see; section 4.4.2).

3. Firmly grab a non-detachable part of the frame, to raise the wheelchair

4. Climb or descend the staircases with precaution.

Do not under any pretext use escalators. Wounds could result from such a maneuver.

2 RECOMMENDED USE

2.3.7 TRANSFERS TO OR FROM AN OTHER SEAT

Always put the on/off switch of the joystick box on the OFF position before beginning a transfer.

Before carrying out a transfer, it is essential to reduce space between the two (2) points of transfer. The front wheels must be turned in the direction of the point of transfer. Apply the parking brakes in order to prevent a movement of the wheels.

During transfers, place all of your weight on the rear part of the seat. This will prevent forward tipping of the wheelchair.

NOTE

: You can undertake alone this maneuver if you have sufficient mobility and force in the

arms. Position the wheelchair as close as possible to the seat you wish to transfer to, with the front

wheels directed towards the point of transfer. Apply the parking brakes. Move the weight of the body towards the point of transfer. During a transfer, there will be only little or no seat surface under you. Use a transfer board

when possible.

2.3.8 EXTENSIONS FROM THE WHEELCHAIR

Do not try to reach objects if you must move forwards from your seat or if you must collect them on the ground by leaning forward.

Several activities require that the user incline himself, make extensions and/or transfer in or out of the wheelchair. These movements will change the point of balance, the center of gravity and the distribution of weight of the wheelchair. In order to determine your specific limits, please practice these extension movements and transfers in the presence of a HEALTH CARE PROFESSIONNALS.

A good position of the front wheels is essential for safety. When doing extension movement or movement who demand flexibility, it is important to use the front wheels like a tool in order to maintain stability and balance.

2 RECOMMENDED USE

DO NOT lean yourself forwards further that the length of your arms. Make sure that front wheels are turned in the forward direction when you must incline yourself in this direction. To do so, move your wheelchair forward and then backward in a straight line.

2.3.8.1 E

XTENSIONS AND FLEXIBILITY TOWARD FRONT

Position the wheels in the forward direction and engage the parking brakes. DO NOT REST ON THE FRONT PART OF THE ARMRESTS.

2.3.8.2 E

XTENSIONS AND FLEXIBILITY TOWARD BACK

Do not rest on the top part of the backrest. This could change the center of gravity and make the wheelchair tip over.

Position the wheelchair as close as possible to the object to be reached. Position the front wheels in the forward direction in order to create the longest wheelbase. Extend your arm backward as far as possible without having to change your position on the seat.

3 SPECIFICATIONS

3.1 OASIS MOTORIZED WHEELCHAIR

Figure 2: Oasis motorized wheelchair (Back view).

Figure 3: Oasis motorized wheelchair (Side view).

3 SPECIFICATIONS

3.2 TECHNICAL SPECIFICATIONS

• Length 84 cm 33 inches

• Width 64 cm 25 inches

• Height (power base) 35.8 cm 14 1/8 inches

• Seat to floor height 40 to 48 cm 15 1/2 to 18 1/2 inches

• Seat angle -5º to +11º

• Turning radius 53 cm 21 inches

• Ground clearance 9 cm 3 1/2 inches

• Front wheels dimensions 20 X 5 cm 8 X 2 inches

23 X 7 cm 9 X 2 3/4 inches

• Rear wheels dimensions 35 X 8 cm 14 X 3 inches

• Tire pressure 0,25 MPa 35 psi

• Standard batteries group 24 (85 Amps/hour)

Maximum battery dimensions

10 ¼ (length) x 6 ¾ (width) x 9 (height)

• Weight without batteries 59 kg 130 pounds

3.3 PERFORMANCES

• Speed 10 km/h 6,2 mi/h

• Capacity

(Maximum weight of the user) 159 kg (350 pounds)

• Range (according to batteries size and surface conditions)

Up to 70 km 42 miles

3 SPECIFICATIONS

3.4 STANDARD CHARACTERISTICS

3.4.1 MOTORIZED BASE

• Pneumatic wheels.

• Front suspension.

• Removable battery compartments.

• Double mode battery charger (Gel / Acid).

• Battery charge status indicator.

• Automatic electromechanical disc brakes.

• Regeneration (battery recharge when braking or during descent).

• Manual brakes disengagement.

• Seat angular adjustment mechanism.

• Motorized tilt mechanism.

• Seat suspension.

• Rear shroud with lights.

• Paratransit anchor points.

• Rear bumper.

• Mudguard on front and rear wheels.

3.4.1 SEAT ELEMENTS

• Modular frame out of extruded aluminum.

• Adjustable backrest angle (from 90° to 120°)

• Adjustable seat width.

• Adjustable armrests height.

• Adjustable footrest length.

• Folding footplates.

4 SETUP INSTRUCTIONS

4 SETUP INSTRUCTIONS AND ADJUSTMENTS

The adjustments of your wheelchair must be made by a health care professional. Inadequate adjustments can cause wounds and/or damage to the user, the caregiver, the wheelchair or the environment.

After having carried out an adjustment and before using the wheelchair, make sure that all hardware is tight. Make sure that all functions are secure before using the wheelchair.

4.1 REAR SHROUD

4.1.1 TO REMOVE REAR SHROUD

The rear shroud must be removed to reach the various mechanical and electrical components of your wheelchair. It must also be removed to carry out the setup, the replacement or the maintenance of the batteries. It is not recommended to use your wheelchair without the shroud being installed.

4.1.1.1 REMOVE REAR SHROUD

1- Put the on/off switch of the joystick box on the OFF position. 2- Open the two latches on each side of the rear shroud, near the position lights.

Figure 4-A: Remove rear shroud. Figure 4-B: Rear shroud insertion points.

3- Gently pull the shroud towards you and lay it down on the ground. 4- Put the rear shroud in a secure place in order not to damage it.

Anchor point

slotted holes.

4 SETUP INSTRUCTIONS

4.1.2 REPLACE THE REAR SHROUD

1- Bring the rear shroud behind the wheelchair. 2- Insert the rear shroud insertion point (see; figure 4-B) between the power module and

the metal frame.

3- Make sure not to pinch any electric wires, the wires should pass on each side of the

seat and should not be hanging apart from the rear shroud. 4- Make the two anchors points pass through the two slotted holes. 5- Close the two latches on both side of t he rear shroud (make sure to align both parts,

the catch and the latch). 6- Switch ON power to the wheelchair with the ON/OFF switch.

4.2 SEATING POSITIONS

4.2.1 CHANGING THE ANGLE AND HEIGHT OF THE SEAT

The seat angle (also called; "tilt angle") can be adjusted in order to allow the best possible comfort. This adjustment is permanent. By modifying the front seat to floor height it will increase or decrease the tilt angle. The front and rear range of adjustment is 3 inches on a wheelchair with fixed seat. On a wheelchair equipped with a 45° tilt seat, the front and rear height are 15½" and to increase it to (16½" or 17½") you must add (4) seat to floor height modification interfaces (see; section 4.2.2).

FIXED SEAT :

1- Put the on/off switch of the joystick box on the OFF position. 2- Remove right side and left side battery compartments (see; section 4.4.2.1). 3- Using a ½" wrench, unscrew nuts and bolts (as shown on figure 5; below). 4- Adjust the mobile part to the needed height (see; figure 5). 5- Put back the two bolts in place and tighten firmly with the nuts. 6- Install battery compartments (see; section 4.4.2.3).

Figure 5-A: Front height and tilt angle.

NOTE : The user will have a more stable posture if the tilt angle is set approximately to 5°.

4 SETUP INSTRUCTIONS

The more you increase the tilt angle, the more the wheelchair will tend to tip over towards the back when negotiating slopes or in the cases of strong accelerations. Please make some stability tests before giving back the wheelchair to the user.

The rear seat to floor height can also be adjusted. The adjustment is made behind the wheelchair, under the rear shroud. Using a ½" wrench, unscrew bolts and nuts and adjust to the needed height. (see; figure 5-B).

Figure 5-B: Rear seat to floor height.

4.2.2 CHANGING HEIGHT OF THE SEAT (ADDITIONAL +1" OR +2")

The seat to floor height can be adjusted according to the customer environment and the seat cushions used.

It is possible to modify (increase +1", +2") the seat to floor height. To do so, you will need to get parts necessary for this modification. These parts must be installed front (2) and rear (2) on the seat interface.

FIXED SEAT:

Figure 5-C: Interface de modification +1" & +2" sur assise fixe.

+ 2"

+ 1"

4 SETUP INSTRUCTIONS

45° TILT MOTORIZED MECHANISM SEAT:

FOR FRONT AND REAR:

1- Put the on/off switch of the joystick box on the OFF position and take off the seat

plate and cushion. 2- Using a ½" or 13 mm wrench, dismantle the stirrups from the seat interface. 3- Install the (4) seat to floor height m odification interfaces at the needed height and at the

good position with the screws provided in the assembly (see; figures 5-C; 5-D and 5C/D). 4- Put back the stirrups at the same distance on the interfaces that you have just

installed. 5- Replace the seat plate and cushion and switch ON the joystick box.

NOTE : The installation of seat to floor height modification interfaces, should be don e b y two persons in order to facilitate the job. During manipulations, take care not to damage electric cables.

The more you will increase the seat to floor height, the more the wheelchair will tend to tip over towards the back when negotiating slopes or in the cases of strong accelerations. Please make some stability tests before giving back the wheelchair to the user.

Figure 5-D: 45° tilt seat 16½" & 17½" modification interface.

Figure 5-C/D: Seat to floor height modification interfaces front and rear positions (2 on each side).

17½"

16½"

4 SETUP INSTRUCTIONS

4.3 WHEELS

4.3.1 CHANGE FRONT WHEEL TYPE

The "Oasis" wheelchair can be assembled with two different models of front wheels. The choice of wheels will depend upon the environment you expect to encounter. These wheels are assembled with a simple or unilateral fork (see; figure 6-B) or with a double "U" shape fork (see; figure 6-A).

1- Put the on/off switch of the joystick box on the OFF position. 2- Using two ½" wrench, unscrew the assembly, bolt (1), nut (1), spacers (2) and

internal bushings (2). 3- Place the first internal bushing inside the fork aligned with the hole. 4- Insert the bolt through the wheel and place the second internal bushing. 5- Place spacer, nut and screw the assembly while keeping the wheel free to turn (Not

too tight).

Follow the assembly (as shown):

• 8 inches wheel diameter:

bottom holes;

• 9 inches wheel diameter:

top holes.

8 inches wheel exploded view

8 inches wheel assembly

Figure 6-A: Change the front wheel type.

Figure 6-B: Simple (unilateral) fork, always with 8" front wheel.

NOTE: You will never have to change the wheel on this fork type, because it only comes with an 8 inches wheel diameter.

9 in wheel

8 in wheel

4 SETUP INSTRUCTIONS

4.3.2 CHANGING SWING-ARM HEIGHT

The type of forks used (double or unilateral), determines the swing-arm height positions (see; figures below).

HIGHER

POSITION

Unilateral fork

LOWER

POSITION

Double fork

HIGHER

POSITION

To adjust the swing-arm height follows these steps:

1- Put the on/off switch of the

joystick box on the OFF position;

2- Using a ½" or 13 mm

wrench, unscrew the 4 screws, 2 screws on each sides;

3- Adjust the height

(2 positions);

4- Put back in place the 4

screws and tighten firmly.

4 SETUP INSTRUCTIONS

4.3.3 REAR WHEELS INSTALLATION

• Install the wheel rim on the wheel hub and align holes (4) of the wheel rim with the

holes (4) on the wheel hub (see; figures 8-A and 8-B).

• Install the (4) screws (A) with their lock washers (B), use a ½" or 13mm wrench (see;

figures 8-B and 8-C).

• Slowly insert the black plastic cap with a plastic hammer. Make sure not to scratch

the paint (see; figures 8-B and 8-D).

Figure 8-A Figure 8-B

Do not remove the rear wheel by unscrewing the central nut. Use instead the 4 fixation screws on the rim.

Figure 8-C Figure 8-D Figures 8: Install the rear wheel on the motor.

The wheel hub should always remain in place while carrying out installation or removal of a rear wheel.

After having carried out an adjustment and before using the wheelchair, make sure that all hardware is tight.

4 SETUP INSTRUCTIONS

4.4 BATTERIES

4.4.1 BATTERY SELECTION

recommends that the installation and the maintenance of the batteries should be executed by specialized personnel. A bad battery setup can cause significant damage to the wheelchair.

For an adequate performance,

recommends the following type of battery:

• Deep cycle

• Group 24 (85 amps/hour),

• Gel / Acid,

OTE: ONLY DEEP CYCLE BATTERIES ARE DESIGNED AND RECOMMENDED FOR MOTORIZED

WHEELCHAIRS

NOTE

: Do not use batteries designed for motor vehicles. They are not deep cycle batteries.

4.4.2 BATTERIES INSTALLATION

While handling, maintain batteries in the horizontal position. The acid contained in the batteries can cause serious burns and material damages. In the event of contact with the skin, rinse immediately with water. In the event of burns or contact with the eyes, rinse abundantly and consult a doctor immediately.

Never put the two battery terminals in contact, this will cause a short-circuit and serious wounds could occur. The hexagonal 10 mm key use for tightening the connectors should have a maximum length of 3 inches or be covered with an insulator. The battery terminals height should not exceed 1-1/4 inches above the battery top.

4 SETUP INSTRUCTIONS

4.4.2.1 T

AKE OFF BATTERIES COMPARTMENTS

1- Unplug batteries power cables by pulling the red nylon straps (see; figure 9).

Figure 9: Unplug batteries power cable.

2- Place yourself in front of the wheelchair. 3- In between both batteries, unscrew the handle that maintains both battery

compartments (see; figure 10).

Figure 10: Unlock battery compartments.

4 SETUP INSTRUCTIONS

4- Using the handle placed under the battery compartment, pull slowly on the battery

compartment toward you (see; figure 11).

Figure 11: Slide battery compartments.

5- Place yourself on the side of the wheelchair and pull the compartment outside at an

angle of 45° relatively to the front of the wheelchair.

Figure 12: Remove completely the batteries compartments.

6- Make the compartment slide toward you until you will be able t o catch the back edge

and lower the compartment on the floor.

4 SETUP INSTRUCTIONS

4.4.2.2 I

NSTALLATION OU REMPLACEMENT DE LA BATTERIE

1- Take off the compartment lid by opening the lat ches in front and behind the lid. The

latches open in opposite ways in order to replace the lid in the same position.

2- Take off the compartment lid.

Figure 13: The inside of the battery compartment.

3- Read carefully the installation instructions include in the battery compartment. 4- Insert the battery in the bottom part of the compartment as shown in the installation

instructions found in the compartment.

LATCH

COMPARTMENT

LID

4 SETUP INSTRUCTIONS

5- Make sure that connectors included, are tight around the battery

terminals.

Figure 14: Battery cables.

Cover battery connectors with the plastic caps (Red and Black) shown on the figure 14.

Figure 15: How to plug batteries.

BLACK

Negative connector

RED

Positive connector

4 SETUP INSTRUCTIONS

The connection diagram inside the battery compartments must be respected.

6- Identify the negative terminal of the battery (-) (NEG) and then install the black

connector on this terminal.

7- Position the connector as showed on the diagram and firmly tighten the clamp, using

a 10 mm wrench. 8- Cover this terminal with the black plastic cap. 9- Proceed in the same way for the front positive terminal (+) (POS) (red plastic cap) 10- Inspect your work before closing the battery compartment (Don't forget to put back

the installation instructions inside). 11- Close the compartment and lock the latches on the front and the back.

Never force the closing of the battery compartment. If you feel any resistance, then probably the electrical cables are not well positioned or the battery terminals are too high (maximum 1 1/4 inches).

Figure 16: Maximum height of the battery terminals.

Only deep cycle batteries are designed and recommended for motorized wheelchairs. Do not use other kind of batteries only those recommended by

Maximum height

of 1 ¼"

4 SETUP INSTRUCTIONS

4.4.2.3 R

EPLACE BATTERY COMPARTMENTS

OTE: BEWARE, THERE IS A RIGHT AND A LEFT BATTERY COMPARTMENTS.

To know which compartment is the right or the left, you just have to look at the power cable (the one that you disconnected with the red nylon strap Æ See; figure 9 before in this document). The power cable will always be toward the outside of the wheelchair.

1- Position the back part of the battery compartment on the front part of the frame at a

45° angle.

Figure 17: Battery compartment installation.

2- Push and align the compartments with the frame.

Figure 18: Lock the compartment in place.

3- Tighten the handle in between both batteries to lock the compartments in position.

4 SETUP INSTRUCTIONS

4- Plug back the battery power cables on both sides.

Figure 19: Plug back batteries.

5- Replace the rear shroud in position (see; section 4.1.2).

4 SETUP INSTRUCTIONS

4.5 FOOTRESTS

4.5.1 LEGREST LENGTH ADJUSTMENT

1- Unscrew completely the screw shown on figure 20, using a 7/16" wrench. This

screw is the same for all legrest models. 2- Adjust the legrest to the needed length. 3- Tighten the screw firmly and don't forget the lock washer.

Figure 20: Legrest length adjustment.

NOTE

: recommends to leave a gap of 3 inches between the floor and the footplates.

Always make sure that the telescopic tube is inserted at least 2 inches in the footrest support tube.

4.5.2 CHANGING FOOTPLATE ANGLE

Some footplates allow an angle adjustment. To do this (see; figure 21) :

1- Using a 10 mm Allen key, unscrew 1/8" the (A) screw. 2- Adjust the footplate angle as needed. 3- Tighten the (A) screw.

7/16" wrench

4 SETUP INSTRUCTIONS

Figure 21: Footrest angle adjustment.

4.5.3 CHANGING CALF PAD HEIGHT

1- Unscrew completely the (B) screw, using a 7/16" wrench, as shown on figure 22. 2- Adjust the (A) calf pad height as needed by sliding the calf pad support on the

footrest tube.

3- Tighten the screw firmly and don't forget the lock washer.

Figure 22: Calf pad height adjustment.

SUPPORT

FOOTREST

TUBING

4 SETUP INSTRUCTIONS

4.5.4 CHANGING CALF PAD DEPTH

The calf pad depth can be adjusted to change position and distance from the leg. The possible range of adjustment is 1 inch by ½" step (see; figure 23).

Take off the (B) screw and (C) nut, using a 4mm Allen key and a 8mm wrench. 1- Make your choice between the (3) possible positions (A). 2- Replace (B) bolt and (C) nut.

Figure 23: Calf pad depth adjustment.

4 SETUP INSTRUCTIONS

4.6 ADJUSTABLE BACKREST

4.6.1 CHANGING THE BACKREST ANGLE

It is possible to adjust the backrest angle on the

motorized wheelchair. As shown on figure 24 below, you can see all the 7 angles possible positions. The backrest angle is the angle measured between the seat position and the backrest.

NOTE

: Both side must be adjusted at the same time.

1. Unscrew and remove the adjustment screw (see: figure 24).

2. Recline the backrest until you reach the needed angle, align the hole on the backrest structure tubing.

3. Tighten the two screws and nuts (both side) firmly.

Figure 24: Changing backrest angle.

ADJUSTMENT

SCREW

4 SETUP INSTRUCTIONS

4.6.2 CHANGING BACKREST HEIGHT

It is possible to adjust the backrest telescopic tubing height. The possible range of adjustment is 3 inches by 1 inch step (see; figure 25).

1- Take off the screw and the lock washer, using a 7/16" wrench. 2- Place the backrest telescopic tubing at the needed height. 3- Replace the screw and the lock washer and tighten firmly the assembly.

Figure 25: Backrest height adjustment.

NOTE : If an headrest support cross bar is fixed on both side, change backrest height on both side at the same time.

4 SETUP INSTRUCTIONS

4.7 JOYSTICK BOX ATTACHMENTS

To carry out all the adjustments below, it is necessary to turn off the ON/OFF contact of the wheelchair and to disconnect the joystick power cable.

4.7.1 DEPTH ADJUSTMENT

It is possible to adjust the depth position of the joystick control box. The support slides under the armrest (left or right side of the wheelchair).

1- Loosen the two (2) plastic buttons (A) located under the armrest. 2- Slide the support tubing in the armrest until the proper adjustment is reached. 3- Tighten the (A) plastic buttons.

Figure 26: Depth adjustment of the joystick control box support.

DISCONNECT

THE POWER CABLE

4 SETUP INSTRUCTIONS

4.7.2 HEIGHT ADJUSTEMENT

The support allows you to adjust the height of the joystick control box on a range of two (2) inches by ½ inch step (see; figure 27).

1- Remove the adjustment screw (A) of the joystick support, using a 10 mm wrench. 2- Adjust the joystick control box to the needed height. 3- Replace the vertical adjustment screw (A) of the joystick control box support, don’t

forget the lock washer.

Figure 27: Height adjustment of the joystick control box support.

4 SETUP INSTRUCTIONS

4.7.3 SIDE POSITION ADJUSTMENT

The side position of the joystick can be adjusted by the addition of a support flat bar (D) delivered when you purchase the wheelchair (see; figure 28).

1- Disconnect the joystick power cable (F) and remove the two (2) screws (A) which

maintains the joystick control box on the swingaway support (E), using a 3 mm Allen key.

2- Install the support flat bar (D) on the joystick control box support (C) with the two (2)

provided screws.

3- Position the support flat bar (D) on the swingaway support (E) in line with the fixation

holes.

4- Make your choice of position and replace the two (B) screws. 5- Plug the joystick control box power cable.

Figure 28: Lateral adjustment of the joystick control box support.

4 SETUP INSTRUCTIONS

4.8 REAR SUSPENSION ADJUSTMENT

Adjustment principle : Each coil is made of a helical spring and a pneumatic actuator. A ring allows you to adjust

the spring tension as shown on the chart below. This adjustment is made fr om the weight of the user. The adjustment of the spring tension, will not change the ¾" ext ension length of the pneumatic actuator.

The chart below shows the adjustment length of the spring as per the user weight.

User weight

(pounds)

100 150 200 250 300 350

Spring length

after adjustment

(inches)

3 2

11/16

9/16

7/16

3/8

1/4

NOTE: You just have to adjust the LA dimension according to the user weight, following the above table information.

This adjustment can easily be made directly on the rear suspension fixed on the wheelchair. You just have to grab the spring and the pre-charge adjustment ring together in the same time and turn clockwise or counterclockwise according to the L

dimension to reach.

Pre-charge L

Spring tension

150 pounds/inch.

Pre-charge adjustment ring

Spring length after adjustment L

4 SETUP INSTRUCTIONS

4.9 COMMAND SYSTEM FOR 4 MOTORIZED ACCESSORIES

If your wheelchair is equipped with more than one electrical actuator, you can control all of those accessories directly from your joystick control box. Please consult the R-NET control system user manual to know how to use this feature.

The connection for the command module for 4 motorized accessories is made directly in the

R-NET power module.

NOTE: To control more than one accessory you will need to use the joystick control box. If

your wheelchair has the control box for 1 accessory (as shown; on the right side figure above) it is from this control box that you will be able to activate your accessory.

4.10 UNIVERSAL CABLE

The universal cable is the main cable where you will find all the possible electrical connections for all the wheelchair accessories. It is possible at any time to add accessories on the wheelchair in relation to the user’s needs. To ident ify the connections for the needed accessories, see image next page.

To carry out all the adjustments below, it is necessary to turn off the ON/OFF contact of the wheelchair and to disconnect the joystick power cable.

The adjustments of your wheelchair must be made by a health care professional. Inadequate adjustments can cause wounds and/or damage to the user, the caregiver, the wheelchair or the environment.

Command module for 4 motorized

accessories.

Command module for 4 motorized accessories. Control box for 1 motorized accessory.

See; section 4.10 to plug

the control box for 1

accessor

4 SETUP INSTRUCTIONS

Do not install any unauthorized accessories. Always consult a health care professional for any modifications to your motorized wheelchair.

Figure 4.10-A : Universal cable connections under the rear shroud.

Figure 4.10-B : Actuator connectors.

Connections are identified

on the wires:

legrests (left, right), tilt and

backrest electric actuator.

Control box for 1

motorized accessory

connector.

Fuse holder, lights

¼ ampere.

NOTE: Never replace the

fuse by an other type of

fuse with a different

amperage.

45° tilt mechanism

security connectors.

Battery charger

Battery

charger

connector.

4 SETUP INSTRUCTIONS

Figure 4.10-C : Universal cable connections, security and charger fuse.

Figure 4.10-D : Universal cable connections, motorized legrests (View; from under the seat).

Fuse holder, onboard

battery charger 10

amperes.

NOTE: Never replace

the fuse by an other

type of fuse with a

different amperage.

Brakes

security cables.

Reclining backrest

security cable.

Motorized legrests

connections under the seat

(

RIGHT and LEFT).

4 SETUP INSTRUCTIONS

4.11 GUIDE FOR BRAKES DISENGAGEMENT MECHANISM

Figure 4.11-A : Brakes disengagement mechanism alignment rod installation.

Do not forget to install the alignment rod on the brakes disengagement mechanism. This rod is fixed to ensure the good working order of the brakes system security switch.

Figure 4.11-B : Brakes disengagement mechanism installation on the wheelchair.

ALIGNMENT

ROD

Insert the rod in the holes shown at figure 4.11-A.

ALIGNMENT

ROD

5 OPERATING INSTRUCTIONS

The wheelchair is designed in order to answer high criteria of safety, reliability and performance. Its adjustable center of gravity and its front articulated swing arm maximize stability and control in slopes and unequal surfaces. However, for your safety, invites you to always respect the safety requirements stated on page 7 to 10.

NOTE: If your wheelchair has motorized legrests (see; section 5.4.2.1_figure 34-B). If your wheelchair is equipped with only the control box for 1 accessory (left or right side) both legrests will move at the same time. If you want your legrests to move independently, you will need to use your joystick control box with the (4) actuators control.

5.1 FOOTREST / LEGREST

5.1.1 SWINGAWAY

It is possible to swingaway the footrests or legrests, this will allow you to carry out transfers.

1- Press the chrome release lever (figure 29-A). 2- Swingaway the footrest or the legrest towards the outside of the wheelchair

(figure 29-B).

Figure 29-A: Swingaway legrests. Figure 29-B

5.1.2 TO REMOVE AND/OR INSTALL

5.1.2.1 T

O REMOVE THE FOOTREST OR THE LEGREST FROM THE WHEELCHAIR

1- Swingaway the footrest (see; section 5.1.1). 2- If the wheelchair is equipped with articulated motorized legrests, you must first

disconnect the legrest motor power supply. The connector is located close to the motor.

3- Raise the footrest or legrest towards you and store in a secure place.

5 OPERATING INSTRUCTIONS

5.1.2.2 T

O REPLACE THE FOOTREST OR LEGREST

1- Install the legrest on the footrest anchor, make sure to align correctly the lugs in the

legrest holes (see; figure 30).

2- Swingaway the legrest into position. 3- Make sure that the footrest or legrest is locked and secured into position. 4- If the wheelchair is equipped with articulated motorized legrest, you must reconnect the

legrest motor power supply. The connector is located close to the motor.

Figure 30: Removable legrests.

5.1.3 TO RAISE OR LOWER THE LEGRESTS

5.1.3.1 T

O RAISE THE LEGREST

1- Pull upwards the legrest, using the footrest support tubing (see; figure 31). 2- Pull it up until you reach the needed position.

Figure 31: Manual elevation legrest.

5.1.3.2 M

OVE DOWN THE LEGREST

1- Grab the legrest by the footrest support tubing (see; figure 31). 2- Push the legrest mechanism (as shown on figure 31) and move down the legrest to the

needed position.

FOOTREST

SUPPORT

TUBING.

5 OPERATING INSTRUCTIONS

5.2 ADJUSTABLE « T » SHAPE ARMREST HEIGHT

5.2.1 TO REMOVE AND/OR INSTALL

5.2.1.1 R

EMOVE THE ARMREST

1- Unscrew the black plastic button (A) (locking screw) located at the base of the armrest,

near the seat structure. Two (2) or three (3) turns should be enough (see; figure 32).

2- Press downwards the chrome release button (B) at the base of the armrest. 3- Remove the armrest by pulling upwards.

Figure 32 : Removable and adjustable in height armrest.

5.2.1.2 R

EPLACE THE ARMREST

1- Insert the armrest base in its socket (see; figure 32). 2- Push back the chrome release button (B). 3- Tighten the black plastic button (A) (locking screw).

NOTE : Tightening of the black plastic button (locking screw), eliminates the play between the armrest and the socket.

5 OPERATING INSTRUCTIONS

5.2.2 ADJUSTING THE ARMREST HEIGHT

1- Unscrew the black plastic button (C) (locking screw) located on the high part of the

clothes guard. Two (2) or three (3) turns should be enough (see; figure 32).

2- Press downwards on the (D) button to release the telescopic tubing. 3- Adjust the armrest to the needed height. 4- Replace the (D) button in its original position by pushing it towards rear of the

wheelchair.

5- Tighten the black plastic button (C) (locking screw).

5.3 ADJUSTABLE « U » SHAPE ARMREST HEIGHT

5.3.1 SWINGAWAY

1- To swingaway the armrest, push on the (A) release button in the same direction

than the arrow and pull upwards and towards rear of the wheelchair (see; figure

33).

2- To position the armrest in driving mode, insert the transfer handle (G) in the (B)

front socket armrest support and push down the armrest.

3- When the armrest is back into position, make sure that it is locked correctly in

the (B) front socket. Try to lift the armrest by the transfer handle (G), it should not move.

Figure 33 : Adjustable "U" shape armrest height.

5 OPERATING INSTRUCTIONS

5.3.2 TO REMOVE

1- Follow the 5.3.1 section to swingaway the armrest from the (B) front socket

armrest support (see; figure 33).

2- Unscrew slightly the locking nut and the screw (E) from the (C) rear armrest

socket, using a 8 mm wrench and a 4 mm Allen key. Pull upwards the armrest, grabbing it by the armrest upholstery (J) to remove it completely from the (C) rear armrest socket.

3- To replace the armrest, first insert the r ear part of the armrest in the (C) armrest

socket.

4- Tighten the locking screw and nut (E) and position the armrest as describe in the

5.3.1 section above.

5- After you replace the armrest, make sure that it is locked correctly and secure in

the (B) front socket armrest support by trying to swingaway the armrest using the transfer handle (G), it should be locked in position.

5.3.3 HEIGHT ADJUSTMENT

1- Unscrew slightly the lock nut and screw (F) on the armrest lateral panel, using 8 mm

wrench and a 4 mm Allen key.

2- Push on the (D) release button (see; figure 33) and pull upwards the armrest by

grabbing the (J) upholstery. Adjust the armrest height as needed. At every step of adjustment you should feel the (D) release button locking the armrest height in position. This will happen each time you will reach a new increment.

3- Tighten the locking screw and nut (F) to fix permanently the armrest position.

5 OPERATING INSTRUCTIONS

5.4 RECLINING BACKREST

If you have a reclining backrest, it will either be actuated with an electric actuator or a pneumatic gas cylinder.

5.4.1 WITH PNEUMATIC GAS ACTUATOR

5.4.1.1 T

O RECLINE THE BACKREST

1- Push on the reclining backrest handle positioned on the side (right or left) of the

wheelchair (see; figure 34-A).

2- Adjust the backrest angle as needed.

For your safety, a switch prevents driving the wheelchair when the backrest is tilted with more than 25 degrees.

5.4.1.2 T

O CHANGE THE BACKREST POSITION

1- Push again the reclining backrest handle placed on the side (right or left) of the

wheelchair (see; figure 34-A).

2- The bac krest will go up by itself. The presence of a backpack or other objects installed

on the backrest can affect the correct operation of the reclining backrest.

Figure 34-A : Reclining backrest with gas actuator.

5 OPERATING INSTRUCTIONS

5.4.2 WITH ELECTRICAL ACTUATOR

5.4.2.1 T

O RECLINE THE BACKREST

1- Use control box placed on the side (right or left) of the wheelchair if you have the 1

motorized accessory control box on your wheelchair and pull the switch towards rear (see; figure 34-B). If you have more than 1 motorized accessory, you should use the joystick control box (see; R-NET user manual).

2- Adjust the backrest angle as needed.

For your safety, a switch prevents driving the wheelchair when the backrest is tilted with more than 25 degrees.

5.4.2.2 T

O CHANGE THE BACKREST POSITION

1- Use the control box on your wheelchair and push the switch towards front (figure 34-B). 2- Stop the mechanism at the needed angle. The presence of a backpack or other

objects installed on the backrest can affect the correct operation of the reclining backrest.

Figure 34-B : Reclining backrest with electric actuator.

Joystick control box

5 OPERATING INSTRUCTIONS

5.5 SEAT BELT

Your wheelchair is equipped with a seat belt. It SHOULD NOT be used as a seat belt on a motorized vehicle.

The seat belt must be adjusted around your hips, this way it will prevent you from sliding fr om the seat.

NOTE: It is important for your comfort and safety that the belt provided with the wheelchair be adjusted to your size.

Never modify the assembly or anchor point of your belt.

In a paratransit transportation, the belt provided with your wheelchair, cannot be used as a vehicle seat belt.

To adjust the belt length, slide the strap in the plastic loop as represented at figure 35.

Figure 35: Seat belt length adjustment.

NOTE: The free part must always exceed at least three (3) inches from the plastic loop. If you want to prevent the strap to slip from the plastic loop, pass the belt again in the plast ic

loop as shown at figure 36.

Figure 36: To prevent seat belt strap to slip from the plastic loop.

5 OPERATING INSTRUCTIONS

5.6 DISENGAGING PARKING BRAKES

Always put the ON/OFF switch of the joystick box at the OFF position before to push the wheelchair in freewheel.

The wheelchair is equipped with a mechanism that allows you to push the wheelchair when the wheelchair is out of battery power or for maintenance purpose. Always put the ON/OFF switch at the OFF position before doing so.

Figure 37: Disengaging brakes handle.

The lever located on the push handle allows you to disengage the brakes manually. This gives the possibility to a caregiver to push the wheelchair (see; figure 37).

NOTE:

Do not install anything behind the backrest. This could cause problems with the brake release

lever. Do not engage the brake release lever when driving the wheelchair.

For security reasons, you will not be able to drive the wheelchair when the brake release lever is activated.

5.6.1 PERMANENT MODE

5.6.1.1 T

O DISENGAGE BRAKES (FREEWHEELS) PERMANENTLY

Figure 38: Permanent brakes disengagement.

1- Grab the disengaging brakes handle (see; figure 37) and pull it upwards. 2- Lock in place the handle by pushing the latch with your thumb. 3- Release the handle; the wheelchair is in freewheel mode, a safety switch prevents

driving the wheelchair.

DISENGAGING

BRAKES HANDLE

5 OPERATING INSTRUCTIONS

Before engaging this mechanism, make sure that the wheelchair is on a plane surface. In a slope, the weight of the wheelchair might tip you over or cause you serious injuries.

5.6.1.2 T

O APPLY BRAKES

1- Grab the handle and pull upwards (see; figure 39). 2- The latch will release automatically. 3- Release the handle; the handle should take back its place completely at the bottom of

the handle support.

4- The wheelchair is in operating mode and can be driven using the joystick.

Figure 39: Applying brakes.

5.6.2 TEMPORARILY MODE

5.6.2.1 T

O DISENGAGE BRAKES TEMPORARILY

: 1- Grab the handle and pull upwards. 2- The wheelchair is in freewheel mode, a safety switch prevents driving the wheelchair.

Figure 40-A: Disengaging brakes temporarily.

5 OPERATING INSTRUCTIONS

5.6.2.2 T

O APPLY BRAKES

: 1- Release the handle. 2- The wheelchair is in operating mode and can be driven using the joystick.

Figure 40-B: Disengaging brakes temporarily.

If the joystick control box stays on the "ON" position, you will feel a resistance from both motors. This will make it harder to push the wheelchair in freewheels. TURN OFF the joystick control box to avoid this situation.

5 OPERATING INSTRUCTIONS

5.7 THERMAL CIRCUIT BREAKER

The wheelchair is equipped with 2 thermal circuit breakers located on each battery compartment. Their function is to protect the electronic components against short-circuits.

Figure 41: Thermal circuit breaker.

5.7.1 IN THE EVENT OF THE THERMAL CIRCUIT BREAKER RELEASE

1- Press the ON/OFF switch of the joystick box in order to shut down the control. 2- Press the front button of the circuit breakers located on each battery compartment

(see; figure 41). 3- Wait approximately 10 seconds and press again on the ON/OFF switch of the joystick

box.

4- Wheelchair should function again.

NOTE :

IT IS POSSIBLE THAT THE RELEASE OF THE CIRCUIT BREAKERS IS CAUSED BY A SIMPLE MOTORS OVERLOAD

If the problem persists, consult a technician in an authorized service center.

THERMAL CIRCUIT

BREAKER

5 OPERATING INSTRUCTIONS

5.8 LIGHTS

Your

wheelchair is equipped with 4 position lights. (2) are placed on the rear shroud and the (2) others are on each side of the wheelchair. The switch placed on the side of the wheelchair allows to turn ON/OFF the position lights (see; figure 42).

Figure 42: Position lights ON/OFF switch.

POSITION LIGHTS

SWITCH

POSITION LIGHTS

5 OPERATING INSTRUCTIONS

5.9 45° TILT MECHANISM (OPTIONNAL)

The 45° motorized tilt mechanism should be use only when the wheelchair is on a plane (horizontal) surface.

Before using the 45° motorized tilt mechanism, make sure that there is enough space above the users knees, behind the backrest and over the footrests.

When using the 45° motorized tilt mechanism, do not leave hands under the seat or let children play near by.

For the user security, you cannot drive the wheelchair if the tilt mechanism is at an angle bigger than 10°.

CANNOT BE RESPONSIBLE OF ANY ACCIDENTS RESULTING OF AN ADJUSTMENT WHO WILL PERMIT TO

DRIVE THE WHEELCHAIR WITH THE

45°

MOTORIZED TILT MECHANISM AT AN ANGLE OF MORE THAN

10°.

NOTE: The 45° motorized tilt mechanism security cable is under the rear shroud (see; image

4.10-A, section 4.10). Using a 7/16" wrench, unscrew the locking nut and screw the bolt to decrease the angle or unscrew it to increase the angle (not more than 10°).

5.9.1 TO TILT THE SEAT

• Use control box placed on the side (right or left) of the wheelchair if you have 1 the motorized accessory control box on your wheelchair and pull the switch upwards. If you have more than 1 motorized accessory, you should use the joystick control box (see; R-NET user manual) (see; figure 43).

• Tilt at the needed angle.

Figure 43 : Activated 45° motorized tilt mechanism.

1 MOTORIZED ACCESSORY

CONTROL BOX

JOYSTICK CONTROL BOX

5 OPERATING INSTRUCTIONS

5.10 PARATRANSIT ANCHOR POINTS

The

wheelchair is equipped with 4 anchor points (see; figure 44).

Figure 44 : Anchor points for paratransit.

There are (2) anchor points behind the wheelchair and (2) on the legrest anchor (see; figure 44).

5.10.1 ADVISE FOR TRANSPORTATION

• Parking brakes must be applied. Never leave your wheelchair in freewheel mode during transportation.

• The electronics of your wheelchair must be on the OFF mode in a paratransit transport.

• If your wheelchair is equipped with a 45° motorized tilt mechanism, you should bring

back your seat to a horizontal position.

• If your seat is equipped with a reclining backrest, raise it to the vertical position.

• The seat belt on the wheelchair cannot be used as a vehicle seat belt. In a paratransit

transportation you should always use the seat belt found on the vehicle.

5 OPERATING INSTRUCTIONS

5.11 RECHARGING BATTERIES

Read the general requirements on page 8 (section 1.1.4 Various handling operations).

• Always recharge the batteries in a ventilated area.

• Do not smoke near the charger during the battery charge.

• Do not remain in the wheelchair during charging.

Consult the battery charger manual before proceeding to the battery charge.

Do not charge batteries in your bedroom. Charging, the batteries can release harmful gases for your health.

NOTE: It will be possible for the user to check visually if the charger is in charge mode. As soon as the charger is plugged a red LED will light and it is possible to see it through the rear grid, right side (see; figure 45).

Figure 45 : LEDs for the onboard battery charger.

NOTE

: If the green LED flashes just after you plugged the charger, it means that there is a

battery connection problem or others (see; Onboard battery charger user manual).

ONBOARD BATTERY CHARGER

ELECTRIC CABLE STORAGE

(see; figure 46, next page).

Red LED Green LED

or Yellow

LED (yellow or green) Yellow = under recharge process Green = charge done

Red LED showing that the charger is ON.

Onboard battery charger

5 OPERATING INSTRUCTIONS

Figure 46 : Receptacle for storage of the onboard battery charger electric cable.

It is important to take time to store correctly the onboard battery charger electric cable, to prevent any risk of wounds during the normal use of the wheelchair.

5.12 STORAGE

• Do not leave your wheelchair under the rain, do not immerse it or store it in a wet or very cold place, this could cause a dangerous electronic or electrical problem.

• Do not store your wheelchair without supervision.

5.13 MOTORIZED WHEELCHAIR TRANSPORTATION

• Protect the joystick box when the wheelchair is transported.

• Do not raise the wheelchair by its detachable components (armrest, footrest, etc).

• Always secure the wheelchair during its transport to prevent any movement.

• Make sure that batteries remain in horizontal position to avoid battery acid spill.

BACKREST SEAT

STRUCTURE

NOTE:

The battery charger

electric cable is wind up

inside the receptacle.

RECEPTACLE FOR STORAGE

OF THE ONBOARD BATTERY

CHARGER ELECRIC CABLE

BATTERY CHARGER

ELECTRIC CABLE

6 MAINTENANCE

6.1 MAINTENANCE PROCEDURES

To function adequately and securely, your wheelchair, like any other vehicle, needs care. A routine maintenance will increase the lifespan and the effectiveness of your wheelchair.

Once a year, bring your wheelchair at a qualified retailer or an authorized service center for a complete inspection and maintenance. A regular cleaning will reveal the loose or worn parts.

6.2 CHECK LIST

Initial adjustments must be made according to your personal needs. For any subsequent maintenance, follow these procedures :

at delivery

Monthly

Each 3 months

1. General: The wheelchair drives in a straight line, it does not draw on one side.

X X

2. Clothes guard: Check for deformed or protuberant metal, make sure that all the fasteners are quite solid.

X X

3. Armrest: Solid, but easy to remove. X X

4. Arm pad: Check for tear – make sure that the base of the arm pad is correctly installed on the armrest.

X X

5. Seat fabrics & backrest: Check for tear or depression. X

6. Brake release & cables: The cables do release completely & the handle returns to its original position after release.

X X

7. Gas cylinders: Check for oil leakage. X X

8. Front wheels: Make sure that the tension is adequate while swiveling the wheel, it should stop gradually. Adjust the bearing of the wheel if it stops abruptly.

X X

9. Tires: Check for wear. If pneumatic, check the air pressure X X

10. Cleaning: Clean all parts - clean the upholstery. X

11. Check the batteries water level X

12. Clean the batteries terminals X

13. Check that the fan on the internal battery charger is functioning properly.

6 MAINTENANCE

6.3 CLEANING

• Clean the joystick box and the joystick as soon as possible after having soiled them.

• Do not use abrasives or solvents that can damage the surface finish of metal parts.

Use a soft soap with a little water and soft linen.

• Do not use a detergent based on alcohol or thinner.

• Do not sprinkle the wheelchair with water, this could seriously damage many

components of the wheelchair.

6.4 BATTERY

6.4.1 RECHARGE FREQUENCY

• For a better autonomy and t o extend lifespan of your batteries. You should r echarge them each time that charging level get around 50%.

• Do not recharge batteries more than once a day.

6.4.2 BATTERY REFILL

The adjustments of your wheelchair must be made by a health care professional. Inadequate adjustments can cause wounds and/or damage to the user, the caregiver, the wheelchair or the environment.

• If your wheelchair use lead/acid batteries, the water level should always be at maximum level indicated on the battery.

• To fill up batteries cells, use only distilled water.

• Do not over fill up batteries cells, it can result by overflowing during recharge process.

• Fill up each batteries cells always at same level.

6.4.3 BATTERY CLEANING

• To prevent contact between two battery terminals, caused by an accumulation of dust or grime. You should clean the outside of the batteries with a little water and bicarbonate of soda. It will extend the lifespan of the batteries.

• Take off oxidation on batteries terminals will help a lot.

• Check if batteries connectors are well fixed on batteries terminals and strongly

enough.

• Put a little dielectric grease on batteries terminals it will help prevent oxidation.

6 MAINTENANCE

6.5 STRAIGHT TRAJECTORY

• On a plane and smooth surface, check if the wheelchair keeps a straight trajectory when the handle is pushed completely in the forward direction. If the wheelchair tends to draw on the left or on the right, check tires pressure.

• If the problem persists, consult a technician in an authorized service center.

6.6 WHEELS

6.6.1 PNEUMATIC WHEELS

• Front and rear pneumatic wheels must be inflated at a pressure of 35 psi.

• A lost of pressure will decrease the wheelchair performances, making control more

difficult and reducing the range (autonomy) by consuming more energy.

• Replace the tires as soon as wear appears.

6.6.2 FRONT WHEELS

• Make sure that the front wheels swivel easily on their axis.

• Consult a technician in an authorized service center if a resistance, an axial loose or

if any buckling is detected.

6.6.3 REAR WHEELS

• Make sure that the fixation screws on the rim are tight enough.

• Consult a technician in an authorized service center if a resistance, an axial loose or

if any buckling is detected.

6.7 BRAKES DISENGAGEMENT

• Put the ON/OFF switch of the joystick box on the OFF position.

• Disengage the brakes (see section 5.6).

• Push the wheelchair: the wheelchair must be easy to push.

• If not, consult a technician in an authorized service center.

• Re-engage the brakes.

6.8 ONBOARD BATTERY CHARGER

• Always check the fan status on the onboard battery charger when you do wheelchair maintenance. The fan must be activated as soon as the battery charger is plugged in the 120 Volts wall outlet.

• When recharging batteries, make sure that nothing block the air flow near the rear shroud. This will also make it easier to evacuate excess heat coming from the battery charger.

• Consult a technician in an authorized service center if one of the previous problems is diagnosed.

7 BREAKDOWN SERVICE GUIDE

If one of the following problems is diagnosed, check the possible causes mentioned. If the solutions suggested do not eliminate the problem, consult a technician in an authorized service center.

The electronics or battery charger user manual can also provide you some solutions.

The lights of the joystick box do not lit; the wheelchair does not answer to the controls of the joystick box.

Possible causes Solutions

The charger is connected to the wheelchair. Put the charger in the OFF state;

Disconnect the charger from the wheelchair.

The wheelchair is equipped with a motorized tilt mechanism and the angle of tilt does not allow control.

Put back the seating in the horizontal position.

The cumulated batteries voltage exceeds 28 volts or is lower than 16 volts.

Have the batteries and the charger checked by a technician in an authorized service center

The disengagement lever for the parking brakes is locked.

Unlock the mechanism (see; section 5.6)

The lights of the joystick box do not lit; nothing is functioning

Possible causes Solutions

The circuit breakers on the batteries compartments are not pushed completely.

Reactivate the circuit breaker on the battery compartment. (See; section 5.7)

The batteries compartments are not connected correctly.

Check the connection of the batteries. (See; section 4.4.2).

The power supply connector of the electronic controller is disconnected.

Consult a technician in an authorized service center.

The joystick box is disconnected. Consult a technician in an authorized service

center.

7 BREAKDOWN SERVICE GUIDE

The wheelchair does not keep a straight trajectory at maximum speed.

Possible causes

Solutions

The tire pressure is low. Inflate at 35 psi. The ball bearings are damaged. Consult a technician in an authorized service

center.

One of the motors is defective. Consult a technician in an authorized service

center.

The joystick is badly calibrated. Consult a technician in an authorized service

center.

The wheelchair do not have enough power.

Possible causes

Solutions

The tire pressure is low. Inflate at 35 psi. The controller temperature is too high and

the thermal protection system engaged.

Let the controller cool down for approximately 5 minutes and try to start again.

Batteries charge level status is too low. Charge the batteries as indicated in the

battery charger user manual.

The programming of the speed level is too low.

Consult a technician in an authorized service center.

Motorized accessories do not respond

Possible causes

Solutions

The electric accessory cable is not well connected or cut.

Consult a technician in an authorized service center.

The protection fuse is defective. Replace with a (12A AGC) fuse.

8 WARRANTY

will warranty the wheelchair against any manufacturing defect for a period of one (1) year from the delivery date. This warranty covers all components and complementary, except the tires, tires tube and seat, backrest and armrests upholstery. A (2) years warranty is provided for the motors.

will repair or replace any defective parts that will be returned carefully packed to

prevent any further damage and send (paid port) to an authorized

service center

and this, during the warranty validity period. However, this warranty does not apply to parts and components damaged by abuse,

carelessness, accident and normal use or installed and modified by an unauthorized person.

guarantees the availability of components and parts necessary to the operation

of the wheelchairs for a five (5) year period from the delivery date. The present warranty is given in place of any other written, tacit or statutory warranty. The

responsibility of

is limited to repair or the replacement of any parts or

components, according to the above-mentioned terms.

Exclusions and limitations

This warranty does not apply to products which have been the subject of carelessness, accidental, normal use or abnormal use, maintenance or defective storage. Moreover, this warranty does not apply to products damaged in consequences of a repair, a component modification without the express assent of

neither with repairs and/or

modifications not carried out by an

authorized distributor and nor with the

products damaged because of circumstances independent of the will of This warranty is limited to repairs and, with absolute discretion of

to the replacement of defective parts as expressed with the present warranty. Except for the warranty expressed in this document,

does not grant, relative with its products, any warranty express or implicit, legal or conventional, including for hidden vice, nor no implicit warranty of marketable quality or suitability aiming at a particular use, except contrary stipulation with the present warranty.

The warranty stipulated above replaces any responsibility or obligation of concerning the damage coming from or referring to the

products.

8 WARRANTY

cannot, in any case, be held responsible for the particular, indirect or

consecutive damage, even if

were informed of the possibility of such damage. The warranty of the distributor is expressly limited to the repair and the replacement of nonconformity of products as envisaged in this warranty or to the refunding of a sum not exceeding the purchase price of the material in question.

The stipulations above constitute the complete and exclusive warranty declaration which applies to the

products and overrides any proposal or former agreement, orally

or written, and on any other communication in between

and a particular

distributor relative to the

warranty.

does not assume any risk related to damages who could happen during

shipment.

do not grant any other warranty but that which is envisaged above. All the warranties, including the implicit warranty of marketable quality and suitability aiming at a particular use are limited to the period indicated above starting from the date of purchase.

cannot be held responsible for the particular, indirect or consecutive damage, from contractual nature, that result from an offence or another cause.

NOTES

• Components exchanged under this warranty will be covered by the original warranty.

• If a component is returned to get its warranty enforced, but is considered by

as functional. The component will be returned to the customer.

9 AUTHORIZED SERVICE CENTRES

Institut de réadaptation en déficience physique de Québec (Centre Cardinal-Villeneuve)

2975, chemin Saint-Louis Sainte Foy (Québec) G1W 1P9 Tél.: 418-529-9141

Institut de réadaptation en déficience physique de Québec (Centre François-Charron)

525, boulevard Hamel Québec (Québec) G1M 2S8 Tél.: 418-529-9141

Centre de réadaptation en déficience physique Carrefour de santé de Jonquière

2230, rue de l’Hopital CP 1200 Jonquière, QC, G7X 7X2 (418) 695-7787
