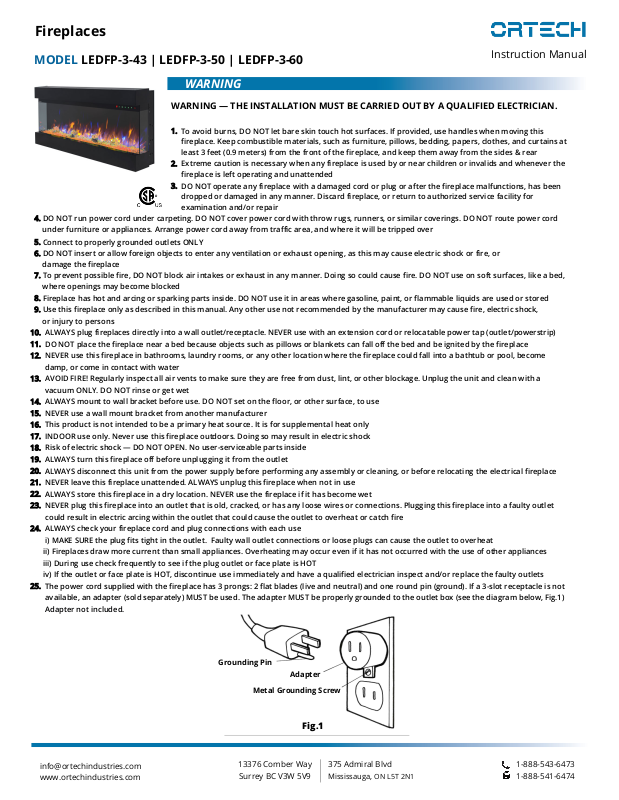

Ortech LEDFP-3-43, LEDFP-3-50, LEDFP-3-60 User Manual

Fireplaces

MODEL LEDFP-3-43 | LEDFP-3-50 | LEDFP-3-60

Instruction Manual

WARNING

WARNING — THE INSTALLATION MUST BE CARRIED OUT BY A QUALIFIED ELECTRICIAN.

1. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this
fireplace. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at
least 3 feet (0.9 meters) from the front of the fireplace, and keep them away from the sides & rear

2. Extreme caution is necessary when any fireplace is used by or near children or invalids and whenever the
fireplace is left operating and unattended

3. DO NOT operate any fireplace with a damaged cord or plug or after the fireplace malfunctions, has been
dropped or damaged in any manner. Discard fireplace, or return to authorized service facility for
examination and/or repair

4. DO NOT run power cord under carpeting. DO NOT cover power cord with throw rugs, runners, or similar coverings. DO NOT route power cord
under furniture or appliances. Arrange power cord away from traffic area, and where it will be tripped over

5. Connect to properly grounded outlets ONLY

6. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause electric shock or fire, or
damage the fireplace

7. To prevent possible fire, DO NOT block air intakes or exhaust in any manner. Doing so could cause fire. DO NOT use on soft surfaces, like a bed,
where openings may become blocked

8. Fireplace has hot and arcing or sparking parts inside. DO NOT use it in areas where gasoline, paint, or flammable liquids are used or stored

9. Use this fireplace only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock,
or injury to persons

10.,,ALWAYS plug fireplaces directly into a wall outlet/receptacle. NEVER use with an extension cord or relocatable power tap (outlet/powerstrip)

11.,,DO NOT place the fireplace near a bed because objects such as pillows or blankets can fall off the bed and be ignited by the fireplace

12.,,NEVER use this fireplace in bathrooms, laundry rooms, or any other location where the fireplace could fall into a bathtub or pool, become

12.,,damp, or come in contact with water

13.,,AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other blockage. Unplug the unit and clean with a

13.,,vacuum ONLY. DO NOT rinse or get wet

14.,,ALWAYS mount to wall bracket before use. DO NOT set on the floor, or other surface, to use

15.,,NEVER use a wall mount bracket from another manufacturer

16.,,This product is not intended to be a primary heat source. It is for supplemental heat only

17.,,INDOOR use only. Never use this fireplace outdoors. Doing so may result in electric shock

18.,,Risk of electric shock — DO NOT OPEN. No user-serviceable parts inside

19.,,ALWAYS turn this fireplace off before unplugging it from the outlet

20.,,ALWAYS disconnect this unit from the power supply before performing any assembly or cleaning, or before relocating the electrical fireplace

21.,,NEVER leave this fireplace unattended. ALWAYS unplug this fireplace when not in use

22.,,ALWAYS store this fireplace in a dry location. NEVER use the fireplace if it has become wet

23.,,NEVER plug this fireplace into an outlet that is old, cracked, or has any loose wires or connections. Plugging this fireplace into a faulty outlet

23.,,could result in electric arcing within the outlet that could cause the outlet to overheat or catch fire

24.,,ALWAYS check your fireplace cord and plug connections with each use

23.,,i) MAKE SURE the plug fits tight in the outlet. Faulty wall outlet connections or loose plugs can cause the outlet to overheat

23.,ii) Fireplaces draw more current than small appliances. Overheating may occur even if it has not occurred with the use of other appliances

23.iii) During use check frequently to see if the plug outlet or face plate is HOT

23.iv) If the outlet or face plate is HOT, discontinue use immediately and have a qualified electrician inspect and/or replace the faulty outlets

25.,,The power cord supplied with the fireplace has 3 prongs: 2 flat blades (live and neutral) and one round pin (ground). If a 3-slot receptacle is not

25.,,available, an adapter (sold separately) MUST be used. The adapter MUST be properly grounded to the outlet box (see the diagram below, Fig.1)

25.,,Adapter not included.

[e-mail]
www.ortechindustries.com

Grounding Pin

Metal Grounding Screw

13376 Comber Way

Surrey BC V3W 5V9

Adapter

Fig.1

375 Admiral Blvd

Mississauga, ON L5T 2N1

1-888-543-6473
1-888-541-6474

Fireplaces

MODEL LEDFP-3-43 | LEDFP-3-50 | LEDFP-3-60

Instruction Manual

CAUTION

PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
Failure to do so can cause fire, electric shock, or serious personal injury.
If in any doubt about the installation or use of this product, consult a competent electrician.

PREPARATION

This product includes a GLASS PANEL. Always use extreme caution when handling GLASS. Failure to do so could
result in PERSONAL INJURY or PROPERTY DAMAGE

Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts and assembly steps are grouped
for wall-hanging or recessing use. Check the parts list below to make sure nothing is missing. Dispose of packaging materials properly.
Please recycle whenever possible.

Y

OU WILL NEED THE FOLLOWING TOOLS (not included):

1/4" wood drill bit, and hammer.

Phillips screwdriver, stud finder, level, tape measure, electric drill,

PARTS AND HARDWARE

Fireplace Wood

Screws

Remote Control Metal Bracket

Decorative Crystals

(Big & Small, Clear)

Log set

Drywall anchors

Wall Bracket

(Fixed on back of firebox)

Plastic Tray

[e-mail]
www.ortechindustries.com

13376 Comber Way

Surrey BC V3W 5V9

375 Admiral Blvd

Mississauga, ON L5T 2N1

1-888-543-6473
1-888-541-6474

Fireplaces

MODEL LEDFP-3-43 | LEDFP-3-50 | LEDFP-3-60

Instruction Manual

INSTALLATION AND ASSEMBLY

Your appliance is a wall-mounted, recessed and/or mantel installed appliance. Select a suitable location that is
not susceptible to moisture and is away from drapes, furniture and high traffic areas.

IMPORTANT REMINDER: Follow all National and local electrical codes

Minimum Clearance to Combustibles

Minimum Mantel Clearances

WARNING:

When using paint or Lacquer to finish the
mantel, the paint or lacquer must be heat
resistant to prevent discolouration.

RECESSED TO WALL INSTALLATION

Step 1 Step 2

Step 3

Step 1 Selection a dry wall to open a hole for fireplace box. Size of

hole listed in the Framing Hole Size table chart on the left

Step 2 Using the screw driver to take off the screws from the front

Step 3 Have two adult people to pull of the glass panel and take it out
