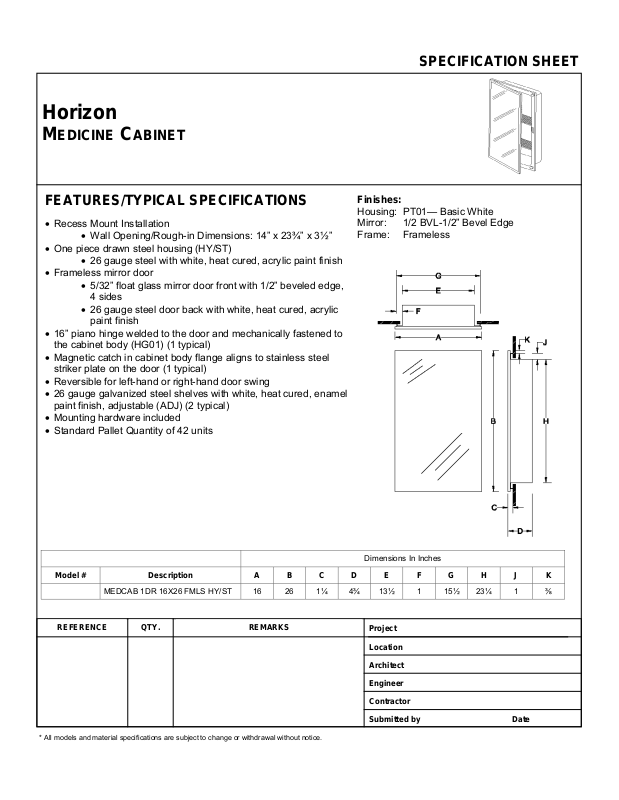

Horizon
MEDICINE CABINET
SPECIFICATION SHEET
FEATURES/TYPICAL SPECIFICATIONS
• Recess Mount Installation
• Wall Opening/Rough-in Dimensions: 14” x 23¾” x 3½”
• One piece drawn steel housing (HY/ST)
• 26 gauge steel with white, heat cured, acrylic paint finish
• Frameless mirror door
• 5/32” float glass mirror door front with 1/2” beveled edge,
4 sides
• 26 gauge steel door back with white, heat cured, acrylic
paint finish
• 16” piano hinge welded to the door and mechanically fastened to
the cabinet body (HG01) (1 typical)
• Magnetic catch in cabinet body flange aligns to stainless steel
striker plate on the door (1 typical)
• Reversible for left-hand or right-hand door swing
• 26 gauge galvanized steel shelves with white, heat cured, enamel
paint finish, adjustable (ADJ) (2 typical)
• Mounting hardware included
• Standard Pallet Quantity of 42 units
Finishes:
Housing: PT01— Basic White
Mirror: 1/2 BVL-1/2” Bevel Edge
Frame: Frameless
Dimensions In Inches
Description A B C D E F G H J K
Model #
MEDCAB 1DR 16X26 FMLS HY/ST 16 26 1¼ 4¾ 13½ 1 15½ 23¼ 1 ⅜
REMARKS QTY. REFERENCE
* All models and material specifications are subject to change or withdrawal without notice.
