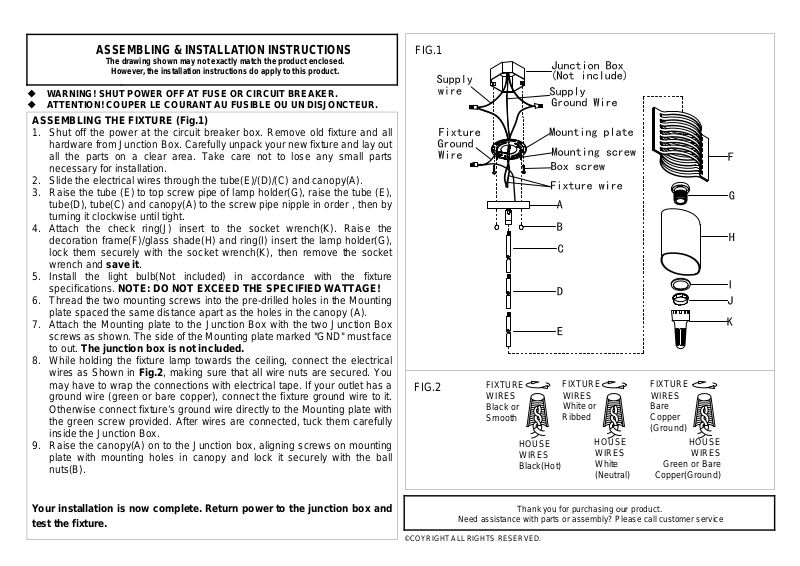

Page 1
ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.
ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old fixture and all
hardware from Junction Box. Carefully unpack your new fixture and lay out
all the parts on a clear area. Take care not to lose any small parts
necessary for installation.
2. Slide the electrical wires through the tube(E)/(D)/(C) and canopy(A).
3. Raise the tube (E) to top screw pipe of lamp holder(G), raise the tube (E),
tube(D), tube(C) and canopy(A) to the screw pipe nipple in order , then by
turning it clockwise until tight.
4. Attach the check ring(J) insert to the socket wrench(K). Raise the
decoration frame(F)/glass shade(H) and ring(I) insert the lamp holder(G),
lock them securely with the socket wrench(K), then remove the socket
wrench and save it.
5. Install the light bulb(Not included) in accordance with the fixture
specifications. NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE!
6. Thread the two mounting screws into the pre-drilled holes in the Mounting
plate spaced the same distance apart as the holes in the canopy (A).
7. Attach the Mounting plate to the Junction Box with the two Junction Box
screws as shown. The side of the Mounting plate marked "GND" must face
to out. The junction box is not included.
8. While holding the fixture lamp towards the ceiling, connect the electrical
wires as Shown in Fig.2, making sure that all wire nuts are secured. You
may have to wrap the connections with electrical tape. If your outlet has a
ground wire (green or bare copper), connect the fixture ground wire to it.
Otherwise connect fixture’s ground wire directly to the Mounting plate with
the green screw provided. After wires are connected, tuck them carefully
inside the Junction Box.
9. Raise the canopy(A) on to the Junction box, aligning screws on mounting
plate with mounting holes in canopy and lock it securely with the ball
nuts(B).
Your installation is now complete. Return power to the junction box and
test the fixture.
FIG.1
FIG.2
©COYRIGHT ALL RIGHTS RESERVED.
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black(Hot)
Thank you for purchasing our product.
Need assistance with parts or assembly? Please call customer service
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or Bare
Copper(Ground)
