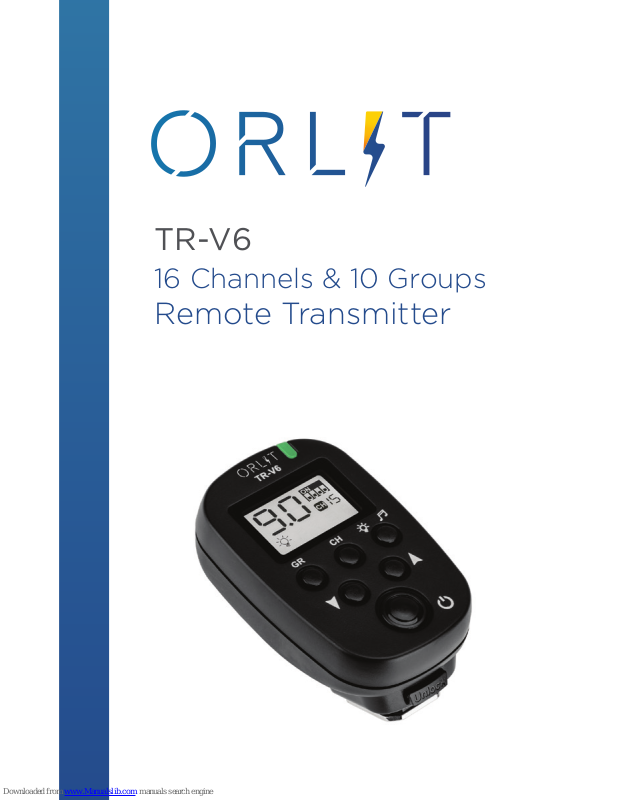

TR-V6
16 Channels & 10 Groups
Remote Transmitter
2
Thank you for purchasing the ORLIT TR-V6
Wireless Radio Transmitter and Receiver Set.
The ORLIT TR-V6 Transmitter adds Manual wireless
remote function to the Orlit Kwik and RT monolights.
When used on the camera’s hot shoe, a photographer can
easily adjust the exposure for Orlit Rovelight RT610 TTL,
Orlit Kwik Monolights and Orlit Rovelight RT600/800 AC
Monolights.
Featuring 16-channel triggering, 10 Groups of stable
signal transmission, and sensitive reaction, it gives
photographers wide flexibility and control over their
strobist setups.
Thank You for Choosing ORLIT! Flash Extraordinaire.
Features
• Adds Manual wireless remote function to an Orlit studio
environment
• Easily adjust the exposure for 10 Groups of flashes in
16 Channels
• Controls RT-610, RT-601, RT400, RT600AC and
RT800AC, Kwik Series Studio Monolights
• Transmitter locks directly on camera’s hot shoe
• Ergonomic shaped for handheld use
• Clear high definition LCD display
• Direct button access to many functions, from Channel
and Group to Test
• Receiver adds remote functions to KWIK Series
Monolights
• Uses standard AAA 1.5v batteries
3
Safety Notes
Dear customer,
Thank you for purchasing the ORLIT TR-V6 Remote
Transmitter, Please read all the information contained in
this user’s guide carefully, keep it in a safe place and pass
it to other users if necessary.
Please do not put TR-V6 in an enviroment where flammable liquid is likely to come into contact with this product.
Please do not put TR-V6 in an enviroment where strong
electromagnetic field or dust is likely to come into contact with this product.
Please do not put TR-V6 in a damp place where
temperature will change rapidly to avoid formation of
condensation.
Please do not insert metal parts into any lighting
equipment.
Please dry your hands before handling the equipment,
Please do not attempt repairs to your lighting equipment
personally. If a problem arises, contact the store from
which you purchased the light.
Please do not fire the strobe at very close distance to
subjects or people / pets as the strobe releases intense
heat and can cause damage and serious injury.
4
Wierless signal indicator
High
definition
wide-angle
LCD screen
Channel
Group
“-”
Test / Power
Modeling lamp
/ Beep
Hot shoe
unlock button
“+”
5
1. Power value:
Adjustment range - 1.0 ~ 9.0
(minimum power output 1.0, maximum power output 9.0)
Small adjustment - short press to decrease or increase
the value at 0.1 f stop.
Big adjustment - long press to decrease or increase the
value at 1 f stop.
2. Modeling lamp : Short press to turn on or off
modeling lamp.
3. Beep : long press to turn on or off the beep.
1 5
6
7
2
3
4
6
4. Group data automatic transmission Long press
CH button, the icon will blink on the screen.
Press to switch the value between or
- When the CH channel is changed, the stored data is
transmitted to all lights under the same channel as the
trigger. “Group data automatic transmission”
Icon will show
- Turn off this function
5. Channel : corresponds to the CH value. When light
is using a TR-V6 receiver, the CH value should be the
same on both transmitter and receiver so that the light
can be triggered by the transmitter.
6. Channel icon : short press , the icon will blink,
Press to increase or decrease the
channel value, CH00 ~ CH15, a total of 16 channels.
7. Group icon : short press , the icon will blink
Press to increase or decrease the group
value, 0/A ~ I, can set 10 GR groups.
Lights under each group can be adjusted independently.
The number of lights in each group is unlimited.
7
SPECIFICATIONS
Model OrIitTR-V6
Wireless
frequency
2.4GHz 984ft / 300m
(min 328ft/100m)
CH channel CH00 — CH15 (In the effective
working range, up to 16 shooting
area can be set at the same time,
without interference with each
other)
GR Group 0/A/B/C/D/E/F/G/H/1
(In the same CH channel, 10 GR
groups can be independently
controlled, the number of flash
lights in each group is not limited)
Modeling lamp On / Off
Beep On / Off
Standard flash
sync speed
Canon 1/250s or less, Nikon 1/320s
or less, Sony 1/250s or less
Power supply 2 x 1.5V AAA alkaline battery
Continuous
working time
>110 hours
Size 3.0x1.9x1.5 in / 78x49x38 mm
Weight .3 oz / 8 g
8
For assistance, you can always
email Brands@Adorama.com
