Orion Technology H.264 Mega-Pixel, Network camera User Manual
H.264 Mega-Pixel
NETWORK CAMERA
USER MANUAL
2
3
INDEX
Introduc tion ........................................................................................................................................... 6
Safety Cautions ..................................................................................................................................... 6
Chapter 1. Package .............................................................................................................................. 7
1.1 Came ra Features ...................................................................................................................... 7
1.2 Package .................................................................................................................................... 7
1.3 HOW TO INSTALL ................................................................................................................... 8
1.3.1 Accessories for installation ............................................................................................ 8
1.3.2 Configuration .................................................................................................................. 9
1.3.3 WAL L MOUNT ............................................................................................................. 10
1.3.4 CEILING MOUNT ......................................................................................................... 13
1.3.5 Foc us adjustment ......................................................................................................... 16
1.3.6 Control board ............................................................................................................... 17
1.4 Specification ........................................................................................................................... 18
1.4.1 Came ra Spec ification .................................................................................................... 18
1.4.2 Came ra Function .......................................................................................................... 18
1.4.3 Network Specification .................................................................................................. 19
1.4.4 Electric Spec ification ................................................................................................... 19
1.4.5 Alarm Input/Output ....................................................................................................... 20
1.4.6 Audio Input/Output ....................................................................................................... 20
Chapter 2. Installation and Video check ............................................................................................. 21
2.1 Ins tallatio n.............................................................................................................................. 21
2.2 Video check............................................................................................................................ 22
2.2.1 Change the s etting value of PC network environme nt ................................................. 22
2.2.2 Connec t the came ra with web brows er........................................................................ 23
2.2.3 See the video................................................................................................................ 24
2.2.4 Active-X auto installation ............................................................................................ 24
2.2.5 Installation complete .................................................................................................... 26
2.2.6 Net Viewer description ................................................................................................ 27
Chapter 3. Network Setting ................................................................................................................ 28
3.1 Check Network and Installation Type .................................................................................... 28
3.2 Installatio n without IP sharing device(router)......................................................................... 28
3.2.1 Static IP Setup .............................................................................................................. 28
3.2.2 Dynamic IP Se tup ......................................................................................................... 32
3.3 Installatio n with IP sharing device(router).............................................................................. 34
3.3.1 Gene ral Installation ...................................................................................................... 34
Chapter 4. Gene ral Information .......................................................................................................... 36
Chapter 5.System Information ............................................................................................................ 37
5.1 Came ra Name ......................................................................................................................... 37
4
5.2 Language ................................................................................................................................ 37
5.3 Administrator's ID and Password Change............................................................................... 38
5.4 Network Setting ..................................................................................................................... 38
5.5 Web port................................................................................................................................. 38
5.6 DDNS...................................................................................................................................... 39
5.7 Date & Time........................................................................................................................... 39
5.8 User Registration ................................................................................................................... 40
5.9 Firmware Upgrade.................................................................................................................. 41
5.10 System Reset/Restart ........................................................................................................... 41
Chapter 6. Stream Information ........................................................................................................... 42
6.1 Video ...................................................................................................................................... 42
6.2 Audio ...................................................................................................................................... 43
6.3 RTSP Setting .......................................................................................................................... 43
6.4 OSD ........................................................................................................................................ 44
6.5 Privacy Zone .......................................................................................................................... 45
6.6 External Video ....................................................................................................................... 45
6.7 HTTP/CGI .............................................................................................................................. 46
Chapter 7. Event Information ............................................................................................................. 47
7.1 Motion .................................................................................................................................... 47
7.2 Alarm Input............................................................................................................................. 47
7.3 Alarm Output .......................................................................................................................... 48
7.4 E-Mail .................................................................................................................................... 48
7.5 FTP ........................................................................................................................................ 49
Chapter 8. Came ra Information .......................................................................................................... 50
8.1 Day & Night ........................................................................................................................... 50
8.2 Color ...................................................................................................................................... 50
8.3 White Balance ........................................................................................................................ 51
8.4 WDR ....................................................................................................................................... 51
8.5 Digital Noise Reduction(DNR)................................................................................................. 52
8.6 Effect ..................................................................................................................................... 52
8.7 Sense Up ................................................................................................................................ 52
8.8 Shutter Speed ......................................................................................................................... 53
Chapter 9. IP Manager........................................................................................................................ 54
9.1 Use of IP Manager.................................................................................................................. 54
9.1.1 Run IP Manager program.............................................................................................. 54
9.1.2 Find IP address ............................................................................................................ 55
9.1.3 Change IP address........................................................................................................ 55
Chapter 10. Bas ic Ne twork ................................................................................................................ 59
10.1 Public IP ............................................................................................................................... 59
10.2 Private IP ............................................................................................................................. 60
5
10.3 Ping tes t ............................................................................................................................... 61
Chapter 11. Appendix ......................................................................................................................... 63
11.1 Bas ic setting table ................................................................................................................ 63
11.2. Troubleshooting of cable connection................................................................................... 64
11.3 Troub leshooting of network connection ............................................................................... 65
Chapter 12. Troubleshooting.............................................................................................................. 66
Chapter 13. Warranty Card ................................................................................................................ 67
6
Introduction
This is a megapixel network camera which uses a 1/3-inch megapixel progressive scan SONY CMOS
sensor.
Built-in H.264, MPEG 4, MPEG CODEC and streaming s erver, the advantage of this camera allow you
to monitor real time image from a remote location via internet. This camera s upports both static IP and
dynamic IP, and can change communication port, resulting in one IP address supporting mul tiple
servers. It also supports CMS(Central Monitoring Sys tem), various services and fea tures waterproof
for outdoor use without extra device.
<Cau tion>
So ftware, s erver and service may be charged according to change of policy or may be
stopped without prior notification. Appearance, function and specification may be changed
without prior notification. Our company assumes no responsibility for visible or invisible loss
resulted from changes in policy or products .
Safety Cautions
*This camera may be damaged by electrical and physical shock.
Use regulated 12V DC, 1A power supply. Do not throw or drop it on to floor.
*In case the unit fails, DO NOT try to disassemble the product.
Contact or consult the distribu tor or an authorized technician for a fter -sales service.
Warranty void for the product dis ass embled without an authorization from the distribu tor or
an authorized technician.
* All res ponsibility by us ing this unit is on the us er.
*In case it is ins talled at high loca tion, be sure to mount securely to prevent the unit from
falling below.
7
Chapter 1. Package
1.1 Camera Features
1) Firmware upgrading and function con trolling are available by network.
2) Built-in 1.3 Mega pixel 1/ 3" progress ive scan SONY CMOS s ens or.
3) Triple codec(H.264, Mpeg4, MJPEG )
4) This camera has a mechanical exchange of two filters with Sens e up function to
receive the maximum available ligh t a t nigh t.
5) Equipped wi th a number of con venient new functions such as OSD, Mo tion de tection , Privacy
ZONE and E-zoom.
6) Two-way audio support
7) This camera adopted PoE that supplies power in addition to data sending and receiving us ing
LAN cable withou t separate power connection and it provides convenience for users at
installation. When you connect the camer a with PoE and DC adap tor, Only PoE is used.
1.2 Package
Package of products is compos ed of camera , screw, user manual, software CD(see below).
Please check before starting installation. If there are any missing, please contact the shop where you
purchased.
[Caution] Please see the package as follows . This manual is based on Microsoft Windows XP. So, there
would be the difference according to operating system
8
1.3 HOW TO INSTALL
1.3.1 Accessories for installation
9
1.3.2 Con figuration
[Reference] Please refer to 1.4.5. regarding 'Alarm In/Out'
10
1.3.3 WALL MOUNT
1. Make a hole of 30mm in diameter for pass ing cable.
2. Using the mount hole pla te, drill four holes on the wall.
3. Insert the anchors.
4. Fix the screws.
11
<Adjust horizontal angle>
1) Loos en a bolt to adjust horizontal angle of the camera.
2) Use the WRENCH to tigh ten a bolt a fter adjusting the camera.
12
<Adjust vertical angle>
1) Loos en a bolt to adjust ver tical angle of the ca mera.
2) Use the WRENCH to tigh ten a bol t after adjus ting the camera.
13
1.3.4 CEILING MOUNT
1. Make a hole of 30mm in diameter for pass ing cable.
2. Using the mount hole pla te, drill four holes on the ceiling.
3. Insert the anchors.
4. Fix the screws.
14
<Adjust horizontal angle>
15
<Adjust vertical angle>
1) Loos en a bolt to adjust ver tical angle of the ca mera.
2) Use the WRENCH to tigh ten a bolt a fter adjusting the camera.
16
1.3.5 Focus adjustment
(1) Turn the fixing screw in a counterclockwise to loosen the screw.
(2) Adjus t the lever when you get the image s you want.
(3) Turn the fixing screw in a clockwise tigh tly to fix the screw.
17
1.3.6 Control board
① SYSTEM RESET: Press the button to reset when the unit is not working normally.
② FACTORY RESET: Turn on the power and wait 2 minu tes. Press the button for 3
seconds to set the ID and Passwords for adm inistration and IP setting values to
the Factory default.
[Reference] Please refer to 2.2 Video Check in Chapter 2 and Chapter 5. System
Setting regarding default value .
③ Link: Ligh t would turn on when the LAN cable is connected to the unit.
④ Rx/Tx Light would turn on when the us er connect by the ne twork.
⑤ LED: Increase or decrease the volume of light from LEDs. Adjus t the volume o f
light according to the distance between the camera and the object.
⑥ EXT. VIDEO : Extra video ou tput terminal for ins tallation.
Plug your tes t monitor in hea r. The cable is option
18
1.4 Specification
1.4.1 Camera Specification
Item
Specification
Type
Megapixel network camera
Image Sensor
1.3 Mega Pixel SONY CMOS Image Sensor
Total pixel
1384 (H) × 1076 (V) approx. 1.48M pixels
Effec tive pixel
1329 (H) × 1049 (V) approx. 1.39M pixels
Scanning System
Progressive Scan
S/N ratio
50dB
Video output
CVBS : 1.0Vp_p / 75 Ω compos ite for installation
Resolution
1280 x 1024 / 1280 x 960 / 1280 x 720 / 640 x 480 / 320 x 240
Min. illumina tion
0.01 Lux (Sense up Auto x 4):LED OFF
0 Lux(25 Range):LED ON
Alarm input/ou tput
Input:1,ou tput:1
IR LED
24PCS
Lens
Vari-focal auto iris megapixel lens
1.4.2 Camera Function
Item
Configuration
DAY&NIGHT
Auto, Color, B/W
WDR
Step 1~ S tep 5, Back light, Front light
Sense up
X1 ~ X6
Brightness
Adjustable
Contras t
Adjustable
Sharpness
Adjustable
White Balance(AWB)
Auto, Indoor, Outdoor, Fluorescent, Manual
Saturation
Adjustable
Edge Enhancement
Adjustable
Negative
Off, On
Pattern Generator
Off, On
Slow shutter
Level 1 ~6
EZOOM
X1 ~ X12 Selectable(Available with CMS only)
19
1.4.3 Network Specification
Class ification
Item
Specification
Summary
OS
Embedded Linux
Network Inter face
RJ45 10/100Bas eT, Ethernet
Setting
By web browser
Network support
Leased Line, Cable Modem, Support Dynamic IP
and Static IP. ADSL usable under Router
Supported Protocol
TCP/IP, U DP/IP, RTP, RTS P, RTCP, NTP, HTTP, DHCP,
FTP, SMTP, DNS, DDNS
Security
USER AUTHENTICATION
PC OS(Viewer)
WINDOWS XP, VISTA, WINDOWS 7
Web browser
IE 7.0 or higher
Audio
Audio Input / Ou tput
Mic In, Line out
Audio compression
G.711 μ-law
Audio communication
One-way
Compression
H.264, MPEG-4, MJPEG
Resolution
1280 x 1024 / 1280 x 960 / 1280 x 720 / 640 x 480 /
320 x 240
Compression Rate
200:1(Typical)
Frame Rate
MAX. 30fps (@1280X1024)
Bit Rate
64 ~ 6000Kbps
Function
Simultaneous Access
Max. 10 users
Video Recording
Recording in client PC with CMS or
FTP Server upon Alarm Event
Motion De tection
Support
Privacy Zone
Support
OSD
Support
Alarm Inpu t / Output
Input 1, Ou tput 1 – Digital output, Open collector
Dynamic IP
Support
IP Router
Support
DDNS
Support
1.4.4 Electric Specification
Class ification
Specification
Power Supply
Regulated 12V DC, PoE(Power over Ethernet)-IEEE802.3af Class 0
Curr ent Cons umption
MAX. 1A( 12V DC)IR LED ON
20
Operation Temp.
-10℃ ~ 50℃
Preservation Temp.
-20℃ ~ 60℃
Dimension
79(W) X 76.5(H) X 172.3(D)mm
Weight
1.22Kg
※The specification is subject to change without any prior notice to improve the quali ty.
1.4.5 Alarm Input/Output
1.4.6 Audio Input/Output
21
Chapter 2. Installation and Video check
2.1 Installation

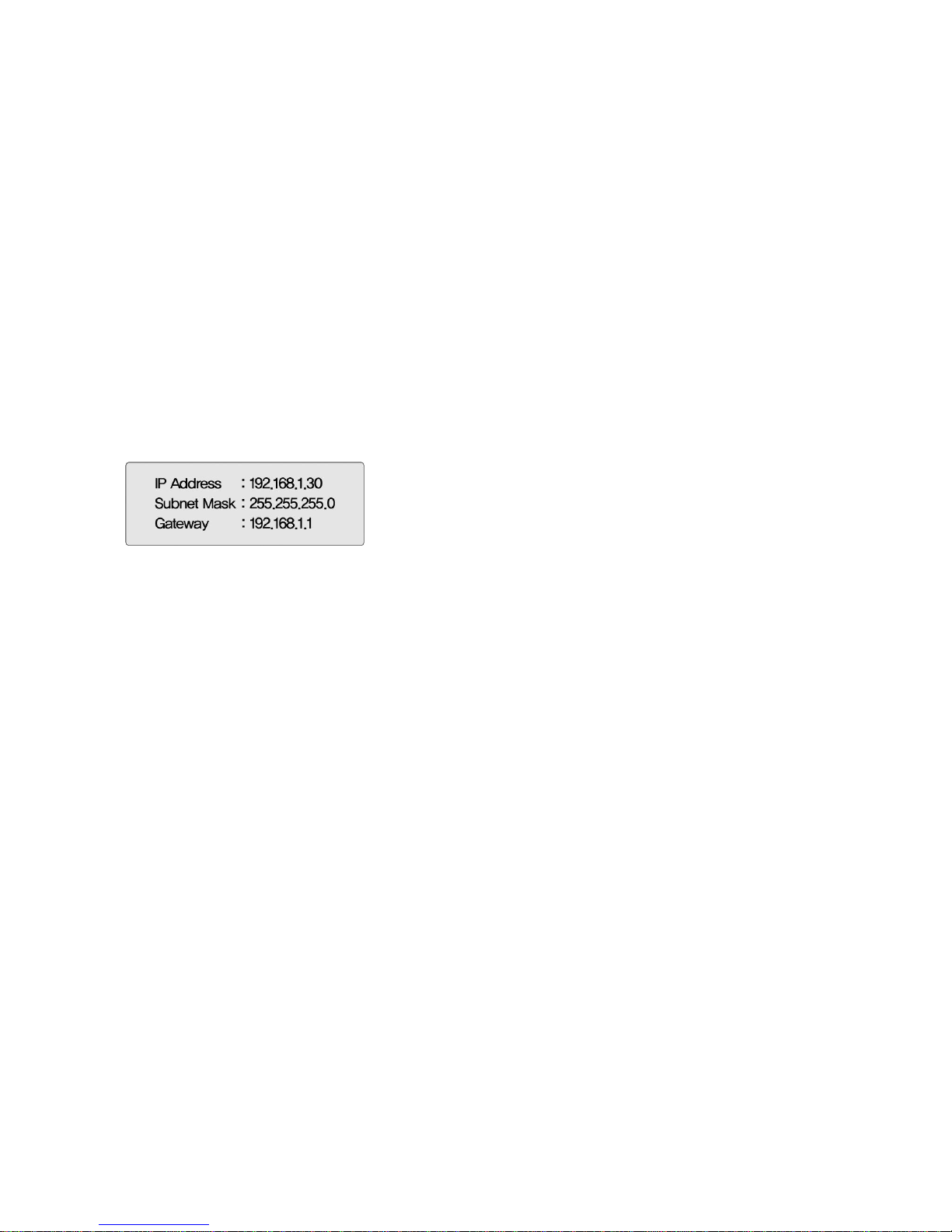

On the assumption that User PC and the camera are used under static IP,
and the ca mera is to be directly connected with Us er PC or Local Network,
The installation procedure is to be;
(1) Connect the camera and PC with LAN cable(Direct cable or cross cable).
(Please use the direct cable if you connect to local network)
(2) Power on camera.
* Using regulated 12V DC 500㎃( No IR LED model) or 1A (Built-in IR LED model)
* Using PoE(Power Over Ethernet) : This camera adopted PoE that s upplies power in addition
to data sending and receiving us ing LAN cable without separate power connecti on and it
provides convenience for us ers at installation. When you connect the camera with PoE and DC
adaptor, only PoE is used.
(3) Wait abou t 2 minu te after on ca mera, the system will be booted.
Loading...
