Orion Car Audio HCCA 150R User Manual
Specifications and Main Features
- Model: ORION HCCA 150R
- Type: 4-channel stacked power competition amplifier
- Power Output:
1. Channels 1 & 2:
- 25 watts for 4 ohm load
- 50 watts for 2 ohm load
- 100 watts for 1 ohm load
- 200 watts for 0.5 ohm load
- Bridged-mono 400 watts for 1 ohm load
2. Channels 3 & 4:
- 50 watts for 4 ohm load
- 100 watts for 2 ohm load
- 200 watts for 1 ohm load
- Bridged-mono 400 watts for 0.5 ohm load
- Total Power Capability: 800 watts
- Distortion: All channels driven (from 20Hz to 20kHz) less than 0.1% THD
- Frequency Response: 20 Hz to 20 kHz added 0.25 dB
- Linear Bandwidth: 6 Hz to 50 kHz added 3 dB
- Signal-to-noise Ratio: Greater than 100 dB
- Damping Factor: Greater than 500 impedance at output connectors
- Slew Rate: Greater than 30 volts per ml
- Input Sensitivity: 200 mV to 5 Vrms
- Input Impedance: 20 kΩ
- Fuse Type: (4) 20 Amp ATC
- Crossover Section:
- Low Pass Crossover: variable and adjustable from 45Hz upto 5 kilo Hertz.
- High Pass Crossover: variable and adjustable from 10Hz upto 1kHz, 100Hz upto 10kHz.
- Q Range: 0.707 to 3.5 for high range amplification.
- Size: 22" x 10.25" x 2.25” (559mm x 260mm x 57mm)
- Additional features:
- Ability to dual remote gain
- Auxiliary output display in three configurations
Frequently Asked Questions
Q1: What is the power output at 4Ω for channels 1 and 2?
A1: Channels 1 and 2 can output 25 watts at 4Ω each.

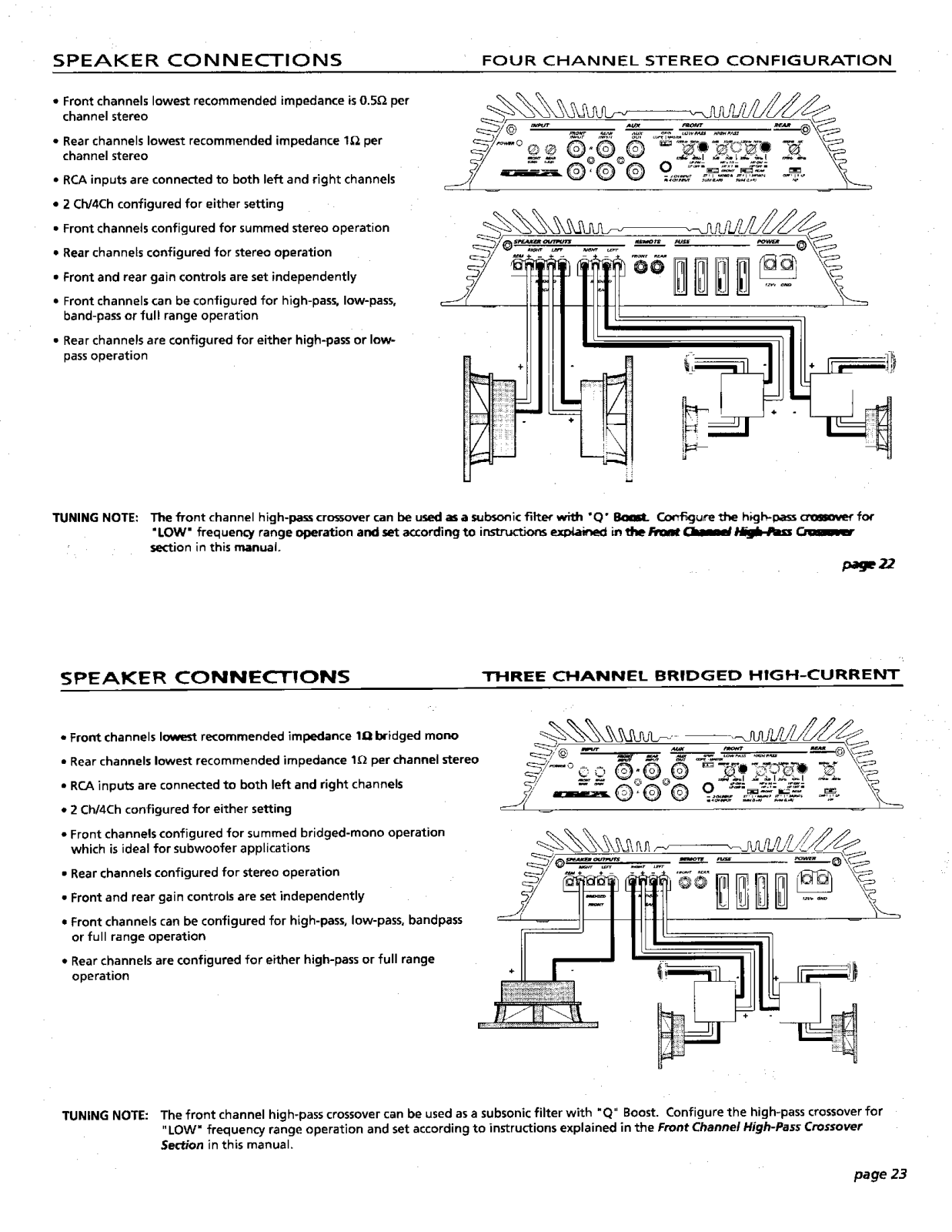

Q2: Can the HCCA 150R operate at low impedances?
A2: Yes. Channels 1 and 2 can be used at 0.5Ω stereo configurations while 3 and 4 can be used in 2Ω bridged-mono configurations.
Q3: What is the total maximum power capability of the amplifier?
A3: A total of 800 watts is a guarantee for the maximum power supply for the HCCA 150R.
Q4: What is the function of the crossover section of the amplifier?
A4: The function of the crossover section is to allow for somewhat dynamic and continuous variable adjustments on the lows and punches and hi-passes of sound under certain set ranges.
Q5: There are certain safety features within the amplifier. What are they?
A5: These safety features allow for fuses to protect against over current conditions, as well as guidelines on how to install the amplifier system correctly in order to prevent damage.
Q6: HCCA 150R: The device comes equipped with a particular remote control. Kindly specify it?
A6: The device permits the use of two seperate remotes, one for the front and one for the rear, to control the sound volume level.
Q7: HCCA 150R: The device functions normally but there seems to be no output from the am. Recommend a procedure to rectify this issue.
A7: Consult the remote input power and power wire configuration along with ensuring proper connection of all audio inputs and speaker wires.
