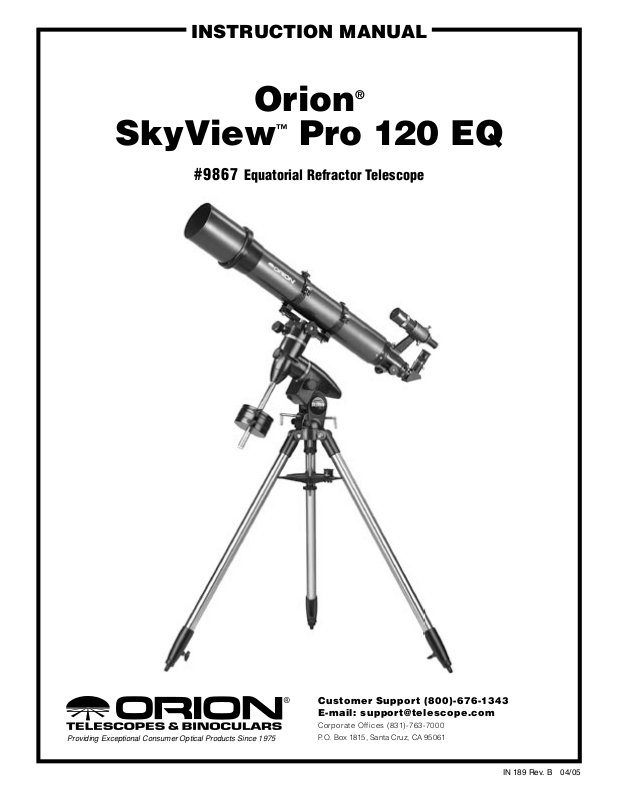

INSTRUCTION MANUAL

Orion®

SkyView™ Pro 120 EQ

#9867 Equatorial Refractor Telescope

Providing Exceptional Consumer Optical Products Since 1975

Customer Support (800)-676-1343 E-mail: support@telescope.com

Corporate Offices (831 )-7 63- 7000

P.O. Box 1815, Santa Cruz, CA 95061

IN 189 Rev. B 04/05

Objective lens

Declination lock lever (opposite side)

Right Ascension lock lever (opposite side)

Optical tube

Tube rings

Finder scope

Declination slow-motion control knob

Safety thumbscrew

Mounting plate securing knob

Counterweight shaft

Counterweights

Counterweight lock knobs

Tripod leg

Finder scope bracket

Eyepiece

Star diagonal

Focus wheel

Right Ascension slow-motion control knob

Latitude scale

Latitude adjustment L-bolts

Center support shaft

Tripod support tray

Leg lock knobs

Figure 1. The SkyView Pro 120 EQ.

Congratulations on your purchase of an Orion telescope. Your new SkyView Pro 120 EQ is designed

for high-resolution viewing and astrophotography of astronomical objects. With its precision optics and sturdy equatorial mount, you’ll be able to enjoy hundreds of fascinating celestial denizens.

These instructions will help you set up, properly use, and care for your telescope. Please read them over thoroughly before getting started.

Table of Contents

1. Unpacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3. Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4. Balancing the Telescope

5. Using Your Telescope

. . . . . . . . . . . . . . . . . 5

. . . . . . . . . . . . . . . . . . . 6

6. Setting Up and Using the Equatorial Mount . . 7

7. Astronomical Observing . . . . . . . . . . . . . . . .

8. Astrophotography

. . . . . . . . . . . . . . . . . . . . . 15

9. Collimating (Aligning the Optics) . . . . . . . . . 16

10. Care and Maintenance . . . . . . . . . . . . . . . . 16

11. Specifications . . . . . . . . . . . . . . . . . . . . . . .

1. Unpacking

The SkyView Pro 120 EQ will arrive in one box. Be careful unpacking the box. We recommend keeping the box and all original packaging. In the event that the telescope needs to be shipped to another location, or returned to Orion for warranty repair, having the proper box and packaging will help ensure that your telescope will survive the journey intact.

Make sure all the parts in the Parts List are present. Be sure to check each box carefully, as some parts are small. If anything appears to be missing or broken, immediate ly call Orion Customer Support (800-676-1343) or email support@telescope.com for assistance.

Warning: Never look directly at the Sun through your telescope or its finder scope—even for an instant—without a professionally made solar filter that completely covers the front of the instrument, or permanent eye damage could result. Young children should use this telescope only with adult supervision.

2. Parts List

1 Optical tube assembly

1 Tripod

1 Equatorial mount

1 Tripod support tray

1 Counterweight shaft

1 Large counterweight

1 Small counterweight

2 Slow-motion control knobs

1 R.A. axis rear cover

1 Latitude adjustment L-bolt

2 Tube rings with mounting screws

1 Tube ring mounting plate

1 25mm Sirius Plössl eyepiece

1 10mm Sirius Plössl eyepiece

1 Star diagonal

1 Finder scope

1 Finder scope bracket with O-ring

1 Dust cover

1 Collimation tool

3. Assembly

Assembling the telescope for the first time should take about

30 minutes. No tools are needed other than the ones provided. All screws should be tightened securely, but be careful not to over-tighten or the threads may strip. Refer to Figure 1 during the assembly process.

During assembly (and anytime, for that matter), do not touch the surfaces of the lenses of the telescope, finder scope or eyepieces with your fingers. The optical surfaces have delicate coatings on them that can easily be damaged if touched inap propriately. Never remove any lens assembly from its housing for any reason, or the product warranty and return policy will be voided.

Finder scope bracket

Finder scope

Nylon alignment thumbscrews

Azimuth adjustment knobs

Figure 2. Orient the equatorial mount so that the post on the

tripod head lines up between the azimuth adjustment knobs on the equatorial mount.

1. Stand the tripod legs upright and spread the legs out as far as they will go. Keep the tripod legs at their shortest (fully retracted) length, for now; you can extend them to a more desirable length later, after the scope is fully assembled.

2. Place the base of the equatorial mount onto the tripod head. Orient the equatorial mount so that the post on the tripod head lines up between the azimuth adjustment knobs on the equatorial mount (Figure 2). You may need to loosen the azimuth adjustment knobs on the equatorial mount in order to fit the mount into the tripod head.

3. Thread the central support shaft into the equatorial mount until tight. This will secure the equatorial mount to the tri pod head.

4. Remove the knob and washer from the bottom of the center support shaft. Slide the tripod support tray up the bottom of the central support shaft until the three tray arms are touching the legs of the tripod. The flat side of the acces sory tray should be facing up. Make sure the “V” of each tray arm is against a tripod leg. Place the washer back on the center support shaft against the tray, and thread the securing knob all the way up the center support shaft until it is tight against the tray. The tripod support tray provides additional stability for the tripod, and holds five 1.25" eye pieces and two 2" eyepieces.

5. Thread the latitude adjustment L-bolt into the rear of the equatorial mount casing as shown in Figure 1.

6. Thread the counterweight shaft into the equatorial mount at the base of the declination axis until tight. Make sure the casting at the top of the shaft is threaded clockwise as far as it will go before attaching the shaft. Once the shaft is installed, turn the casting counter-clockwise until the top of the casting is flush with the mount.

7. Remove the knurled “toe saver” retaining screw on the bottom of the counterweight shaft and slide both counter weights onto the shaft. Make sure the counterweight lock knobs are adequately loosened to allow the counterweight shaft to pass through the hole. Position the counterweights

Post

Tensioner

Focus lock ring

Figure 3a. The 8x40 finder scope.

Figure 3b. Pull-back on the tensioner and slide the finder scope

into its bracket until the O-ring is seated in the bracket ring.

about halfway up the shaft and tighten the lock knobs. Replace the toe saver at the end of the bar. The toe saver prevents the counterweights from falling on your foot if the lock knobs happen to come loose.

8. Attach the slow-motion control knobs to the right ascen sion and declination worm gear shafts of the equatorial mount by sliding them onto the shafts. Line up the flat on the end of the shaft with the corresponding feature on the interior of the knob to attach them properly. The knobs can be attached to either end of the shafts; use whichever end

is most convenient.

9. Attach the tube rings to the tube ring mounting plate using the attachment screws that are on the tube rings. The screws should go through the holes on the outer ends of

a b c d

Figure 4a - 4d. Proper operation of the equatorial mount requires that the telescope tube be balanced on both the R.A. and Dec. axes.

(a) With the R.A. lock lever released, slide the counterweight along the counterweight shaft until it just counterbalances the tube. (b) When you let go with both hands, the tube should not drift up or down. (c) With the Dec. lock lever released, loosen the tube ring lock clamps a few turns and slide the telescope forward or back in the tube rings. (d) When the tube is balanced about the Dec. axis, it will not move when you let go.

the mounting plate and rethread into the tube rings. Note that the side of the mounting plate with the central “groove” will be facing up. Use the small wrench to secure the tube rings to the mounting plate.

10. Loosen the black mounting plate securing knob as well as the metal safety thumbscrew on the top of the equatorial mount. Place the mounting plate, with tube rings attached, in the dovetail slot on top of the equatorial mount. Position the mounting plate so that it is centered on the dovetail slot. Re-tighten the mounting plate securing knob until the mounting plate is secure. Then, tighten the safety thumb screw. The safety thumbscrew will ensure that the mount ing plate (and telescope tube) will not fall off the EQ mount if the mounting plate securing knob should come loose.

11. Open the tube rings and lay the telescope optical tube in the rings at about the midpoint of the tube’s length. Rotate the tube so that the focuser is at a convenient position for viewing. Close the tube rings and tighten them.

Installing the Finder Scope

To place the finder scope (Figure 3a) in the finder scope brack et, unthread the two black nylon screws until the screw ends are flush with the inside diameter of the bracket. Place the O-ring that comes on the base of the bracket over the body of the finder scope until it seats into the slot on the middle of the finder scope. Slide the eyepiece end (narrow end) of the finder scope into the end of the bracket’s cylinder opposite the adjustment screws while pulling the chrome, spring-loaded tensioner on the bracket with your fingers (Figure 3b). Push the finder scope through the bracket until the O-ring seats just inside the front opening of the bracket cylinder. Release the tensioner and tighten the two black nylon screws a couple of turns each to secure the finder scope in place. Insert the base of the finder scope bracket into the dovetail holder on the top of the focuser. Lock the bracket into position by tightening the knurled thumbscrew on the dovetail holder.

Inserting the Diagonal and Eyepiece

Loosen the thumbscrew on the 1.25" adapter on the focuser and remove the small dust cap. Insert the chrome barrel of the star diagonal into the focuser and secure with the thumb screw. Loosen the thumbscrews on the diagonal and insert

the 25mm eyepiece into the focuser and secure it with the thumbscrews.

Your telescope is now completely assembled and should appear as shown in Figure 1.

4. Balancing the Telescope

To ensure smooth movement of the telescope on both axes of the equatorial mount, it is imperative that the optical tube is properly balanced. We will first balance the telescope with

respect to the right ascension (R.A.) axis, then the declination

(Dec.) axis.

1. Keeping one hand on the telescope optical tube, loosen

the R.A. lock lever. Make sure the Dec. lock lever is locked, for now. The telescope should now be able to rotate freely about the right ascension axis. Rotate it until the counter weight shaft is parallel to the ground (i.e., horizontal).

2. Now loosen both counterweight lock knobs and slide the

weights along the shaft until they exactly counterbalance

the telescope (Figure 4a). That’s the point at which the shaft remains horizontal even when you let go with both hands (Figure 4b).

3. Retighten the counterweight lock knobs. The telescope is

now balanced on the right ascension axis.

4. To balance the telescope on the declination axis, first tight

en the R.A. lock lever, with the counterweight shaft still in the horizontal position.

5. With one hand on the telescope optical tube, loosen the

Dec. lock lever. The telescope should now be able to rotate freely about the Dec. axis. Loosen the tube ring clamps a few turns, until you can slide the telescope tube forward and back inside the rings. (this can be aided by using a slight twisting motion on the optical tube while you push or pull on it) (Figure 4c).

6. Position the telescope in the mounting rings so it remains

horizontal when you carefully let go with both hands. This is the balance point for the optical tube with respect to the Dec. axis (Figure 4d). If the optical tube does move, then you must adjust the position of the optical tube in the tube rings until it does balance in the declination axis.

7. Retighten the tube ring clamps.

View through finder scope

View through the SkyView Pro 120 EQ

Figure 5. Images through the finder scope will appear upside-

down and backwards (rotated 180°). Images through the SkyView Pro 120 EQ with its diagonal in place will be reversed from left-to right.

The telescope is now balanced on both axes. When you loosen the lock lever on one or both axes and manually point the telescope, it should move without resistance and should not drift from where you point it.

5. Using Your Telescope

Focusing the Telescope

With the 25mm eyepiece inserted in the diagonal, move the telescope so the front (open) end is pointing in the general direction of an object at least 1/4-mile away. Now, with your fingers, slowly rotate one of the focusing knobs until the object comes into sharp focus. Go a little bit beyond sharp focus until the image just starts to blur again, then reverse the rotation of the knob, just to make sure you’ve hit the exact focus point.

NOTE: The image in the telescope will appear reversed left-to-right. This is normal for astronomical telescopes that utilize a star diagonal. The finder scope view will be rotated 180° (see Figure 5).

If you have trouble focusing, rotate the focusing knob so the drawtube is in as far as it will go. Now look through the eye piece while slowly rotating the focusing knob in the opposite direction. You should soon see the point at which focus is reached.

The metal thumbscrew on the top of the body of the focuser will lock the focuser drawtube in place once the telescope is properly focused. Before focusing, remember to first loosen this thumbscrew.

Viewing with Eyeglasses

If you wear eyeglasses, you may able to keep them on while you observe, if the eyepiece has enough “eye relief” to allow you to see the whole field of view. You can try this by look ing through the eyepiece first with your glasses on, and then

with them off, and see if the glasses restrict the view to only a portion of the full field. If they do, you can easily observe with your glasses off by just re-focusing the telescope the needed amount. If you suffer from severe astigmatism, however, you may find images noticeably sharper with your glasses on.

Aligning the Finder Scope

The SkyView Pro 120 EQ comes with a 8x40 achromatic find er scope (Figure 3a). The number 8 means eight-times magni fication and the 40 indicates a 40mm diameter front lens. The finder scope makes it easier to locate the subject you want to observe in the telescope, because the finder scope has a much wider field-of-view.

The finder scope uses a spring-loaded bracket that makes alignment of the finderscope very easy. As you turn either of the thumbscrews, the spring in the bracket’s tensioner moves in and out to keep the finder scope secure in the bracket.

The finder scope must be aligned accurately with the tele scope for proper use. To align it, first aim the main telescope at an object at least a 1/4 mile away—the top of a telephone pole, a chimney, etc. First, loosen the R.A. and Dec. lock levers and move the telescope until it is pointing towards the desired object; sight along the tube to aim the telescope. Turn the focus knob until the object is properly focused. Make sure to position the object in the center of the telescope’s eyepiece by turning the R.A. and Dec. slow-motion control knobs. (The R.A. and Dec. lock levers must be tightened to use the slowmotion control knobs).

Now look in the finder scope. Is the object visible? Ideally it will be somewhere in the field of view. If not, some coarse adjust ment to the finder scope bracket’s alignment thumbscrews will be needed until the object comes into the finder scope’s field of view.

With the image in the finder scope’s field of view, you now need to fine-adjust the alignment thumbscrews to center the object on the intersection of the crosshairs. Adjust the aim of the finder scope by turning the thumbscrews, one at a time, until the object is centered. Make sure the object is still cen tered in the telescope’s eyepiece. If it not still centered in the eyepiece you must recenter it and repeat the alignment pro cess.

The finder scope alignment needs to be checked before every observing session. This can easily be done at night, before

viewing through the telescope. Choose any bright star or plan

et, center the object in telescope eyepiece, and then adjust the finder scope bracket’s alignment thumbscrews until the star or planet is centered on the finder’s crosshairs.

Focusing the finder scope

If, when you look through the finder scope, the images appear somewhat out of focus, you will need to refocus the finder scope for your eyes. Loosen the lock ring located behind the objective lens cell on the body of the finder scope (see Figure 3a). Back the lock ring off by a few turns, for now. Refocus the finder scope on a distant object by threading the objective lens

cell in or out of the finderscope body. Precise focusing will be

achieved by focusing the finder scope on a bright star. Once

the image appears sharp, retighten the locking ring behind the objective lens cell. The finder scope’s focus should not need to be adjusted again.

Magnification & Eyepieces

Magnification, or power, is determined by the focal length of the telescope and the focal length of the eyepiece. Therefore, by using eyepieces of different focal lengths, the resultant magnification can be varied.

Magnification is calculated as follows:

Magnification =

The SkyView Pro 120 EQ has a focal length of 1000mm, which when used with the supplied 25mm eyepiece yields:

The magnification provided by the 10mm eyepiece is:

The maximum attainable magnification for a telescope is directly related to how much light it can gather. The larger the aperture, the more magnification is possible. In general a fig ure of 2x per millimeter of aperture is the maximum attainable for most telescopes. Your SkyView Pro 120 EQ has an aper ture of 120 millimeters, so the maximum magnification would be about 240x. This level of magnification assumes you have ideal conditions for viewing.

Keep in mind that as you increase magnification, the bright ness of the object viewed will decrease; this is an inherent principle of the laws of physics and cannot be avoided. If mag nification is doubled, an image appears four times dimmer. If magnification is tripled, image brightness is reduced by a fac tor of nine!

Always start with your lowest power eyepiece and work your way up. Start by centering the object being viewed in the 25mm eyepiece. Then you may want to increase the magnification to get a closer view, if you wish. If the object is off-center (i.e., it is near the edge of the field of view) you will lose it when you increase magnification, since the field of view will be narrower with the higher-powered eyepiece. To change eyepieces, first loosen the securing thumbscrews on the diagonal. Then care fully lift the eyepiece out of the diagonal. Do not tug or pull the eyepiece to the sides, as this will knock the telescope off its target. Replace the eyepiece with the new one by sliding it gently into the diagonal. Re-tighten the thumbscrew, and refo cus for your new magnification.

Use of 2" Eyepieces

A feature of the SkyView Pro 120 EQ is its ability to use either

1.25" or 2" barrel-diameter eyepieces. At low magnifications, 2" eyepieces can give a wider field of view than standard 1.25" eyepieces. This is especially desirable for observing deep-sky objects, as many of them appear quite large, but faint. If you want to use 2" eyepieces, you will also need to use a 2" star diagonal for refractors, or a 2" extension tube, so that the tele scope will properly come to focus.

Telescope Focal Length (mm)

Eyepiece Focal Length (mm)

1000mm÷25mm= 40x

1000mm÷10mm=100x

To use 2" eyepieces, simply loosen the two large thumbscrews on the 2" adapter that are just in front of the thumbscrew that holds the provided 1.25" star diagonal in place. Once these thumbscrews are loosened, the entire back end of the focus er, including any 1.25" diagonal and eyepiece that may be attached, comes off, exposing the 2" diameter focuser draw tube Now, insert your 2" star diagonal into the drawtube and secure with the two thumbscrews loosened previously. Insert a 2" eyepiece into the diagonal, secure it in place with the thumbscrew on the diagonal, and you’re ready to observe.

Note About Chromatic Aberration

Chromatic aberration literally means color distortion. Whenever light passes through one material to another, light of dif ferent wavelengths (color) is bent by different amounts. This is a problem that plagues refractor-type telescopes, since light passes through both air and glass to form an image. Most astronomical objects emit a spectrum comprised of many dif ferent wavelengths of light, so each wavelength will be bent by a slightly different amount when passing through a lens. This results in each color of light reaching precise focus at a slightly different point, which will provide unacceptable images.

Achromatic refractors, like the SkyView Pro 120 EQ, are

designed to minimize chromatic aberration to acceptable lev

els. The objective lens is actually comprised of two individual

lenses, called elements, made of different materials, which

bend light in slightly different ways. By precisely spacing and shaping the elements, the chromatic aberration incurred when light passes through air and the first glass element is reduced

by the way the second element bends the light. The result is

an image that is much better color corrected than a non-ach

romatic (one element) objective lens.

Even with the achromatic lens design, however, the SkyView

Pro 120 EQ will suffer a bit from chromatic aberration due to

its large aperture and short focal length. This will be notice able, to some degree, on extremely bright objects, such as the Moon and bright planets. What you will notice is that the object, when focused, has a slight “purple-halo” around it. This will not present a problem for most observers, as the eye read ily adapts to the view and is still able to distinguish fine details. Chromatic aberration will never inhibit deep sky observing, as deep sky objects are too faint to cause any noticeable color

distortion.

6. Setting Up and Using the

Equatorial Mount

When you look at the night sky, you no doubt have noticed that the stars appear to move slowly from east to west over time. That apparent motion is caused by the Earth’s rotation (from west to east). An equatorial mount (Figure 6) is designed to compensate for that motion, allowing you to easily “track” the movement of astronomical objects, thereby keeping them from drifting out of your telescope’s field of view while you’re observing.

This is accomplished by slowly rotating the telescope on its

right ascension (R.A.) axis, using only the R.A. slow-motion

R.A. setting circle

Polar axis finder scope (optional)

Latitude scale (opposite side)

Latitude adjustment L-bolts

Little Dipper (in Ursa Minor)

Right

Ascension

Axis

Declination

Axis

Figure 6. The SkyView Pro 120 equatorial mount.

Azimuth adjustment knobs

Dec. slow-motion control knob

Dec. setting circle

Dec. lock lever

Front opening

R.A. lock lever

R.A. slow-motion control knob

Big Dipper (in Ursa Major)

Pointer

Stars

N.C.P.

Polaris

Cassiopeia

Figure 7. To find Polaris in the night sky, look north and find the

Big Dipper. Extend an imaginary line from the two “Pointer Stars” in the bowl of the Big Dipper. Go about five times the distance between those stars and you'll reach Polaris, which lies within 1° of the north celestial pole (NCP).

knob. But first the R.A. axis of the mount must be aligned with the Earth’s rotational (polar) axis—a process called polar alignment.

Polar Alignment

For Northern Hemisphere observers, approximate polar align ment is achieved by pointing the mount’s right ascension axis at the North Star, or Polaris. It lies within 1° of the north celes tial pole (NCP), which is an extension of the Earth’s rotational axis out into space. Stars in the Northern Hemisphere appear to revolve around the NCP.

To find Polaris in the sky, look north and locate the pattern of the Big Dipper (Figure 7). The two stars at the end of the “bowl” of the Big Dipper point right to Polaris.

Observers in the Southern Hemisphere aren’t so fortunate to have a bright star so near the south celestial pole (SCP). The star Sigma Octantis lies about 1° from the SCP, but it is barely visible with the naked eye (magnitude 5.5).

Figure 8. For polar alignment, position the tripod so that the

"N" label at the base of the mount faces north. The azimuth fine adjustment knobs above it are used to make small adjustments to the mount’s azimuth position. Be certain to loosen the tripod attachment knob on the central support shaft before adjusting these knobs.

For general visual observation, an approximate polar align ment is sufficient.

1. Level the equatorial mount by adjusting the length of the

three tripod legs.

2. There are two latitude adjustment L-bolts (see Figure 6);

loosen one while tightening the other. By doing this you will adjust the latitude of the mount. Continue adjusting the

mount until the pointer on the latitude scale is set at the latitude of your observing site. If you don’t know your lati tude, consult a geographical atlas to find it. For example, if your latitude is 35° North, set the pointer to 35. The latitude setting should not have to be adjusted again unless you move to a different viewing location some distance away.

3. Loosen the Dec. lock lever and rotate the telescope’s opti

cal tube until it is parallel with the right ascension axis, as it is in Figure 6.

4. Move the tripod so the telescope tube and right ascen

sion axis point roughly at Polaris. If you cannot see Polaris

Eyepiece focus ring

Alignment set-screws (3)

Objective lens

Focus lock ring

Figure 9a. The optional polar axis finder scope.

directly from your observing site, consult a compass and rotate the tripod so the telescope points north. There is a label bearing a large “N” at the base of the equatorial mount (Figure 8). It should be facing north.

The equatorial mount is now polar aligned for casual observ ing. More precise polar alignment is recommended for astro photography. For this we suggest using the optional polar axis finder scope

From this point on in your observing session, you should not make any further adjustments to the latitude of the mount, nor should you move the tripod. Doing so will undo the polar align ment. The telescope should be moved only about its R.A. and Dec. axes.

Polar Alignment Using an Optional Polar Axis Finder Scope

The SkyView Pro 120 EQ mount can be equipped with an optional polar axis finder scope (Figure 9a) which goes inside the right ascension axis of the mount. When properly aligned and used, it makes accurate polar alignment quick and easy to do.

To install the polar axis finder scope, remove the cover at the rear of the mount’s right ascension axis (Figure 9b) and thread the polar axis finder scope into the equatorial mount until tight.

Alignment of the Polar Axis Finder Scope

1. Look through the polar finder at a distant object (during the day) and center it in the crosshairs. You may need to adjust the latitude adjustment L-bolts and the tripod position to do this.

2. Rotate the mount 180º about the R.A. axis. Again, it may be convenient to remove the counterweights and optical tube first.

3. Look through the polar finder again. Is the object being viewed still centered on the crosshairs? If it is, then no fur ther adjustment is necessary. If not, then look through the polar finder while rotating the mount about the R.A. axis. You will notice that the object you have previously centered moves in a circular path. Use the three alignment set screws on the polar axis finder to redirect the crosshairs of the polar finder to the apparent center of this circular path.

Figure 9b. Installing the optional polar axis finder scope.

Figure 10. The optical tube must be at a 90° angle to the right

ascension axis in order to view through the polar axis finder.

Repeat this procedure until the position that the crosshairs point to does not rotate off-center when the mount is rotat ed in R.A. Once this is accomplished, retighten the thumb screws.

The polar axis finder scope is now ready to be used. When not in use, replace the plastic protective cover to prevent the polar finder from getting bumped, which could knock it out of alignment.

Using the Polar Axis Finder Scope

The reticle of the polar axis finder scope for the SkyView Pro has a tiny star map printed on it that makes precise polar alignment quick and easy. If you do not have a clear view of Polaris from your observing site, you will not be able to use

the polar axis finder to precisely polar align the telescope. To align the mount using the polar axis finder scope, follow these instructions:

1. Approximately polar align the mount as outlined in the pro

cedure above.

2. Loosen the Dec. lock lever and rotate the optical tube on the declination axis so that the tube is at a 90° to the right ascension axis (Figure 10). This is so you can view through the mount with the polar axis finder. Tighten the Dec. lock lever.

3. Remove the cap on the front of the equatorial mount (Figure 6). Focus the polar finder by rotating the eyepiece. Now, sight Polaris in the polar axis finder scope. If you have followed the approximate polar alignment procedure accurately, Polaris will probably be within the field of view. If not, move the tripod left-to-right, and adjust the latitude up-and down until Polaris is somewhere within the field of view of the polar axis finder scope.

4. Shine a red flashlight down the front end of the polar finder to illuminate the reticle within the field of view. Make sure the flashlight shines in at an angle, so as not to block the polar finder’s field of view. It may be helpful to have a friend hold the flashlight while you look through the polar finder. Note the constellation Cassiopeia and the Big Dipper in the reticle. They do not appear in scale, but they indicate the general positions of Cassiopeia and the Big Dipper relative to the north celestial pole (which is indicated by the cross at the center of the reticle). Rotate the reticle so the constellations depicted match their current orientation in they sky when viewed with the naked eye. To do this, release the R.A. lock lever and rotate the main telescope around the R.A. axis until the reticle is oriented with sky. For larger optical tubes, you may need to remove the tube from the mount to prevent it from bumping into the mount. Once the reticle is correctly oriented, use the right ascen sion lock lever to secure the mount’s position.

Now use the azimuth adjustment knobs (Figure 8) and the latitude adjustment L-bolts (Figure 6) on the mount to position the star Polaris inside the tiny circle marked “Polaris” on the finder’s reticle. You must first loosen the knob underneath the equatorial mount on the center support shaft to use the azi muth adjustment knobs. Once Polaris is properly positioned within the reticle, you are precisely polar aligned. Retighten the knob underneath the equatorial mount

Note: From this point on in your observing session, you should not make any further adjustments in the azimuth or the latitude of the mount, nor should you move the tripod. Doing so will undo the polar alignment. The tele scope should be moved only about its right ascension and declination axes.

Additional Note Regarding Focusing the Polar Axis Finder Scope

The polar axis finder scope is normally focused by simply rotating the eyepiece focus ring. However, if after adjusting the focus ring you find that the image of the reticle is sharp, but the stars are out of focus, then you must adjust the focus of the polar axis finder’s objective lens. To do this, first remove the polar axis finder from the mount. Look through the polar axis finder at a star (at night) or distant object at least 1/4 mile away (during daylight). Use the eyepiece focus ring to bring the reticle into sharp focus. Now, loosen the focus lock ring

(Figure 9a) and thread the entire objective end of the finder inwards or outwards until images appear sharp. Re-tighten the focus lock ring. Once the polar axis finder’s objective lens is focused, it should not need to be adjusted again.

Use of the Right Ascension and Declination SlowMotion Control Knobs

The right ascension (R.A.) and declination (Dec.) slow-motion control knobs allow fine adjustment of the telescope’s position to center objects within the field of view. Before you can use the knobs, you must manually “slew” the mount to point the telescope in the vicinity of the desired target. Do this by loos ening the R.A. and Dec. lock levers and moving the telescope about the mount’s right ascension and declination axes. Once the telescope is pointed close to the object to be viewed, retighten both lock levers.

Note: If you have an optional motor drive attached, you will need to loosen the manual clutch on the R.A. (and Dec. for dual-axis drives) worm gear shaft before using the slow-motion control knob.

The object should now be visible somewhere in the telescope’s finder scope. If it isn’t, use the slow-motion knobs to scan the surrounding area of sky. When the object is visible in the finder scope, use the slow-motion knobs to center it. Now, look in the telescope’s eyepiece. If the finder scope is properly aligned, the object should be visible somewhere in the field of view. Once the object is visible in the eyepiece, use the slow-motion knobs to center it in the field of view.

Tracking Celestial Objects

When you observe a celestial object through the telescope, you’ll see it drift slowly across the field of view. To keep it in the field, if your equatorial mount is polar aligned, just turn the R.A. slow-motion control knob clockwise. The Dec. slowmotion control knob is not needed for tracking. Objects will

appear to move faster at higher magnifications, because the field of view is narrower.

Optional Motor Drives for Automatic Tracking

An optional DC motor drive can be mounted on the R.A. axis of the equatorial mount to provide hands-free tracking. Objects will then remain stationary in the field of view with out any manual adjustment of the right ascension slow-motion

control knob.

Understanding the Setting Circles

The setting circles on an equatorial mount enable you to locate celestial objects by their “celestial coordinates”. Every object resides in a specific location on the “celestial sphere”. That location is denoted by two numbers: its right ascension (R.A.) and declination (Dec.). In the same way, every loca tion on Earth can be described by its longitude and latitude. Right ascension is similar to longitude on Earth, and declina tion is similar to latitude. The R.A. and Dec. values for celestial objects can be found in any star atlas or star catalog.

The R.A. setting circle is scaled in hours, from 1 through 24, with small marks in between representing 10-minute incre

Dec. setting circle

Dec. setting circle thumbscrew

R.A. setting circle

(2)

Dec. indicator arrow

R.A. indicator arrow

R.A. setting circle

thumbscrew (2)

Figure 11. The R.A. and Dec. setting circles.

ments (there are 60 minutes in 1 hour of right ascension). The lower set of numbers apply to viewing in the Northern Hemisphere, while the numbers above them apply to viewing in the Southern Hemisphere.

The Dec. setting circle is scaled in degrees, with each mark representing 2° increments. Values of declination coordinates range from +90° to -90°. The 0° mark indicates the celestial equator. When the telescope is pointed north of the celestial equator, values of the declination setting circle are positive; when the telescope is pointed south of the celestial equator, values of the declination setting circle are negative.

So, the coordinates for the Orion Nebula listed in a star atlas will look like this:

R.A. 5h 35.4m Dec. –5° 27'

That’s 5 hours and 35.4 minutes in right ascension, and -5 degrees and 27 arc-minutes in declination (there are 60 arcminutes in 1 degree of declination).

Before you can use the setting circles to locate objects, the mount must be accurately polar aligned, and the setting cir cles must be calibrated.

Calibrating the Declination Setting Circle

1. Loosen the Dec. lock lever and position the telescope as accurately as possible in declination so it is parallel to the R.A. axis as shown in Figure 1. Re-tighten the lock lever.

2. Loosen one of the thumbscrews on the Dec. setting circle (see Figure 11), this will allow the setting circle to rotate freely. Rotate the Dec. setting circle until the pointer reads exactly 90°. Re-tighten the setting circle thumbscrew.

Calibrating the Right Ascension Setting Circle

1. Identify a bright star in the sky near the celestial equa tor (declination = 0°) and look up its coordinates in a star atlas.

2. Loosen the R.A. and Dec. lock levers on the equatorial mount, so the telescope optical tube can move freely.

3. Point the telescope at the bright star whose coordinates you know. Lock the R.A. and Dec. lock levers. Center the

star in the telescope’s field of view with the slow-motion control knobs.

4. Loosen one of the R.A. setting circle thumbscrews (see Figure 11); this will allow the setting circle to rotate freely. Rotate the setting circle until the R.A. pointer arrow indi cates the R.A. coordinate listed in the star atlas for the object. Re-tighten the setting circle thumbscrew.

Finding Objects With the Setting Circles

Now that both setting circles are calibrated, look up in a star atlas the coordinates of an object you wish to view.

Loosen the Dec. lock lever and rotate the telescope until the declination value from the star atlas matches the reading on the Dec. setting circle. Remember that values of the Dec. set ting circle are positive when the telescope is pointing north of the celestial equator (Dec. = 0°), and negative when the telescope is pointing south of the celestial equator. Retighten the lock lever.

Loosen the R.A. lock lever and rotate the telescope until the right ascension value from the star atlas matches the reading on the R.A. setting circle. Remember to use the lower set of numbers on the R.A. setting circle. Retighten the lock lever.

Most setting circles are not accurate enough to put an object dead-center in the telescope’s eyepiece, but they should place the object somewhere within the field of view of the find er scope, assuming the equatorial mount is accurately polar aligned. Use the slow-motion controls to center the object in the finder scope, and it should appear in the telescope’s field of view.

The setting circles must be re-calibrated every time you wish to locate a new object. Do so by calibrating the setting circles for the centered object before moving on to the next one.

Confused About Pointing the Telescope?

Beginners occasionally experience some confusion about

how to point the telescope overhead or in other directions. In

Figure 1 the telescope is pointed north as it would be during polar alignment. The counterweight shaft is oriented down ward. But it will not look like that when the telescope is pointed in other directions. Let’s say you want to view an object that is directly overhead, at the zenith. How do you do it?

DO NOT make any adjustment to the latitude adjustment Lbolts. That will spoil the mount’s polar alignment. Remember, once the mount is polar aligned, the telescope should be moved only on the R.A. and Dec. axes. To point the scope overhead, first loosen the R.A. lock lever and rotate the tele scope on the right ascension axis until the counterweight shaft is horizontal (parallel to the ground). Then loosen the

Dec. lock lever and rotate the telescope until it is pointing straight overhead. The counterweight shaft is still horizontal. Then retighten both lock levers.

What if you need to aim the telescope directly north, but at an object that is nearer to the horizon than Polaris? You can’t do it with the counterweights down as pictured in Figure 1. Again, you have to rotate the scope in right ascension so that the counterweight shaft is positioned horizontally. Then rotate

a b

2.4

1.7

3.4

2.4

4.9

1.9

2.5

c d

Figure 12a-d. This illustration shows the telescope pointed in

the four cardinal directions (a) north, (b) south, (c) east, (d) west. Note that the tripod and mount have been moved; only the telescope tube has been moved on the R.A. and Dec. axes.

the scope in declination so it points to where you want it near the horizon.

To point the telescope directly south, the counterweight shaft should again be horizontal. Then you simply rotate the scope on the declination axis until it points in the south direction.

To point the telescope to the east or west, or in other direc tions, you rotate the telescope on its right ascension and dec lination axes. Depending on the altitude of the object you want to observe, the counterweight shaft will be oriented some where between vertical and horizontal.

Figure 12 illustrates how the telescope will look when pointed at the four cardinal directions: north, south, east and west.

7. Astronomical Observing

For many users, the SkyView Pro 120 EQ telescope will be a major leap into the world of amateur astronomy. This section is intended to get you ready for your voyages through the night sky.

Observing Tips

A. Site Selection

Pick a location away from street lights and bright yard lighting. Avoid viewing over rooftops and chimneys, as they often have warm air currents rising from them, which distort the image seen in the eyepiece. Similarly, you should not observe through an open or closed window from indoors. Better yet, choose a site out-of-town, away from any “light pollution”. You’ll be stunned at how many more stars you’ll see! Most

Figure 13. Megrez connects the Big Dipper’s handle to it's “pan”.

It is a good guide to how conditions are. If you can not see Megrez (a 3.4 mag star) then conditions are poor.

importantly, make sure that any chosen site has a clear view of a large portion of the sky.

B. Seeing and Transparency

Atmospheric conditions play a huge part in quality of viewing. In conditions of good “seeing”, star twinkling is minimal and objects appear steady in the eyepiece. Seeing is best over head, worst at the horizon. Also, seeing generally gets bet ter after midnight, when much of the heat absorbed by the Earth during the day has radiated off into space. Typically, seeing conditions will be better at sites that have an altitude over about 3000 feet. Altitude helps because it decreases the amount of distortion causing atmosphere you are looking through.

A good way to judge if the seeing is good or not is to look at bright stars about 40° above the horizon. If the stars appear to “twinkle”, the atmosphere is significantly distorting the incom

ing light, and views at high magnifications will not appear

sharp. If the stars appear steady and do not twinkle, seeing

conditions are probably good and higher magnifications will

be possible. Also, seeing conditions are typically poor during

the day. This is because the heat from the Sun warms the air and causes turbulence.

Good “transparency” is especially important for observing faint objects. It simply means the air is free of moisture, smoke, and dust. All tend to scatter light, which reduces an object’s bright ness.

One good way to tell if conditions are good is by how many stars you can see with your naked eye. If you cannot see stars of magnitude 3.5 or dimmer then conditions are poor. Magnitude is a measure of how bright a star is, the brighter a star is, the lower its magnitude will be. A good star to remem ber for this is Megrez (mag. 3.4), which is the star in the “Big Dipper” connecting the handle to the “dipper”. If you cannot see Megrez, then you have fog, haze, clouds, smog, light pol lution or other conditions that are hindering your viewing (See Figure 13).

C. Cooling the Telescope

All optical instruments need time to reach “thermal equilibrium” to achieve maximum stability of the lenses, which is essential for peak performance. When moved from a warm indoor loca

tion outside to cooler air (or vice-versa), a telescope needs time to cool to the outdoor temperature. The bigger the instru ment and the larger the temperature change, the more time will be needed.

Allow at least 30 minutes for your SkyView Pro 120 EQ to equilibrate. If the scope has more than a 40° temperature adjustment, allow an hour or more. In the winter, storing the telescope outdoors in a shed or garage greatly reduces the amount of time needed for the optics to stabilize. It also is a good idea to keep the scope covered until the Sun sets so the tube does not heat greatly above the temperature of the outside air.

D. Let Your Eyes Dark-Adapt

Do not expect to go from a lighted house into the darkness of the outdoors at night and immediately see faint nebulas, gal axies, and star clusters- or even very many stars, for that mat ter. Your eyes take about 30 minutes to reach perhaps 80% of their full dark-adapted sensitivity. Many observers notice improvements after several hours of total darkness. As your eyes become dark-adapted, more stars will glimmer into view and you will be able to see fainter details in objects you view in your telescope. So give yourself at least a little while to get used to the dark before you begin observing. Also, exposing your eyes to very bright daylight for extended periods of time can adversely affect your night vision for days.

To see what you are doing in the darkness, use a red-filtered flashlight rather than a white light. Red light does not spoil your eyes’ dark adaptation like white light does. A flashlight with a red LED light is ideal, or you can cover the front of a regular incandescent flashlight with red cellophane or paper. Beware, too, that nearby porch and streetlights and automo bile headlights will spoil your night vision.

Eyepiece Selection

By using eyepieces of varying focal lengths, it is possible to attain many magnifications with the SkyView Pro 120 EQ. The telescope comes with two high-quality Sirius Plössl eyepiec es: a 25mm, which gives a magnification of 40x, and a 10mm, which gives a magnification of 100x. Other eyepieces can be used to achieve higher or lower powers. It is quite common for an observer to own five or more eyepieces to access a wide range of magnifications. This allows the observer to choose the best eyepiece to use depending on the object being viewed. At least to begin with, the two supplied eyepieces will suffice nicely.

Whatever you choose to view, always start by inserting your lowest power (longest focal length) eyepiece to locate and center the object. Low magnification yields a wide field of view, which shows a larger area of sky in the eyepiece. This makes acquiring and centering an object much easier. If you try to find and center objects with high power (narrow field of view), it’s like trying to find a needle in a haystack!

Once you’ve centered the object in the eyepiece, you can switch to higher magnification (shorter focal length eyepiece), if you wish. This is especially recommended for small and bright objects, like planets and double stars. The Moon also takes higher magnifications well.

Deep-sky objects, however, typically look better at medium or low magnifications. This is because many of them are

quite faint, yet have some extent (apparent width). Deep-sky objects will often disappear at higher magnifications, since greater magnification inherently yields dimmer images. This is not the case for all deep-sky objects, however. Many galaxies are quite small, yet are somewhat bright, so higher power may show more detail.

The best rule of thumb with eyepiece selection is to start with a low power, wide field, and then work your way up in magnifi cation. If the object looks better, try an even higher magnifica tion. If the object looks worse, then back off the magnification a little by using a lower power eyepiece.

What to Expect

So what will you see with your telescope? You should be able

to see bands on Jupiter, the rings of Saturn, craters on the

moon, the waxing and waning of Venus, and possibly hun dreds of deep sky objects. Do not expect to see as much color as you in NASA photos, since those are taken with long-expo sure cameras and have “false color” added. Our eyes are not sensitive enough to see color in deep-sky objects except in a few of the brightest ones.

Remember that you are seeing these objects using your own telescope with your own eyes! The object you see in your eyepiece is in real-time, and not some conveniently provided image from an expensive space probe. Each session with your telescope will be a learning experience. Each time you work with your telescope it will get easier to use, and stellar objects will become easier to find. Take it from us, there is big difference between looking at a well-made full-color NASA

image of a deep-sky object in a lit room during the daytime,

and seeing that same object in your telescope at night. One can merely be a pretty image someone gave to you. The other is an experience you will never forget!

A. The Moon

With is rocky and cratered surface, the moon is one of the most interesting and easy subjects for your scope. The best time to view it is during its partial phases when shadows fall on the craters and canyon walls to give its features definition. While the full moon may look like a tempting target, it is actu ally the worst time for viewing! The light of a full moon is too bright and lacks any decent surface definition.

Use an optional Moon filter to dim the Moon when it is very bright. It simply threads onto the bottom of the eyepiece from the focuser (you must first remove the eyepiece from the diag onal to attach the filter). You’ll find the Moon filter improves viewing comfort, and helps bring out the subtle features if the lunar surface.

B. The Sun

You can change your nighttime telescope into a daytime Sun viewer by installing an optional full-aperture solar filter over the front opening of a SkyView Pro 120 EQ. The primary attrac tion is sunspots, which change shape, appearance, and loca tion daily. Sunspots are directly related to magnetic activity in the Sun. Many observers like to make drawings of sunspots to monitor how the Sun is changing from day to day.

Important Note: Do not look at the Sun with any optical instrument without a professionally made solar filter, or permanent eye damage could result. Also, be sure to cover the finder scope, or better yet, remove it altogeth er.

C. The Planets

The planets don’t stay put like the stars, so to find them you should refer to Sky Calendar at our website telescope.com, or to charts published monthly in Astronomy, Sky & Telescope, or other astronomy magazines. Venus, Mars, Jupiter, and Saturn are the brightest objects in the sky after the Sun and the Moon. Your SkyView Pro 120 EQ is capable of showing you these planets in some detail. Other planets may be visible but will likely appear starlike. Because planets are quite small in apparent size, optional higher power eyepieces are recom mended and often needed for detailed observations. Not all the planets are generally visible at any one time.

JUPITER The largest planet, Jupiter, is a great subject for observation. You can see the disk of the giant planet and watch the ever-changing positions of its four largest moons— Io, Callisto, Europa, and Ganymede. Higher power eyepieces should bring out the cloud bands on the planet’s disk.

SATURN The ringed planet is a breathtaking sight when it is well positioned. The tilt angle of the rings varies over a period of many years; sometimes they are seen edge-on, while at other times they are broadside and look like giant “ears” on each side of Saturn’s disk. A steady atmosphere (good see ing) is necessary for a good view. You will probably see a bright “star” close by, which is Saturn’s brightest moon, Titan.

VENUS At its brightest, Venus is the most luminous object in the sky, excluding the Sun and the Moon. It is so bright that sometimes it is visible to the naked eye during full daylight! Ironically, Venus appears as a thin crescent, not a full disk, when at its peak brightness. Because it is so close to the Sun, it never wanders too far from the morning or evening horizon. No surface markings can be seen on Venus, which is always shrouded in dense clouds.

MARS The Red Planet makes its closest approach to Earth every two years. During close approaches you’ll see a red disk, and may be able to see the polar ice cap. To see surface detail on Mars, you will need a high power eyepiece and very steady air!

D. The Stars

Stars will appear like twinkling points of light. Even powerful telescopes cannot magnify stars to appear as more than a point of light! You can, however, enjoy the different colors of the stars and locate many pretty double and multiple stars. The famous “Double-Double” in the constellation Lyra and the gorgeous two-color double star Albireo in Cygnus are favor ites. Defocusing a star slightly can help bring out its color.

Deep-Sky Objects

Under dark skies, you can observe a wealth of fascinating deep-sky objects, including gaseous nebulas, open and glob ular star clusters, and a variety of different types of galaxies. Most deep-sky objects are very faint, so it is important that

you find an observing site well away from light pollution. Take plenty of time to let your eyes adjust to the darkness. Do not expect these subjects to appear like the photographs you see in books and magazines; most will look like dim gray smudg

es. But as you become more experienced and your observing skills get sharper, you will be able to ferret out more and more subtle details and structure.

How to Find Deep-sky Objects: Starhopping

Starhopping, as it is called by astronomers, is perhaps the simplest way to hunt down objects to view in the night sky. It entails first pointing the telescope at a star close to the object you wish to observe, and then progressing to other stars closer and closer to the object until it is in the field of view of the eyepiece. It is a very intuitive technique that has been

employed for hundreds of years by professional and amateur

astronomers alike. Keep in mind, as with any new task, that starhopping may seem challenging at first, but will become easier over time and with practice.

To starhop, only a minimal amount of additional equipment is necessary. A star chart or atlas that shows stars to at least magnitude 5 is required. Select one that shows the positions of many deep-sky objects, so you will have a lot of options to choose from. If you do not know the positions of the constel lations in the night sky, you will need to get a planisphere to identify them.

Start by choosing bright objects to view. The brightness of

an object is measured by its visual magnitude; the brighter

an object, the lower its magnitude. Choose an object with a visual magnitude of 9 or lower. Many beginners start with the Messier objects, which represent some of the best and bright est deep-sky objects, first catalogued about 200 years ago by the French astronomer Charles Messier.

Determine in which constellation the object lies. Now, find the constellation in the sky. If you do not recognize the constella tions on sight, consult a planisphere. The planisphere gives an all-sky view and shows which constellations are visible on a given night at a given time.

Now, look at your star chart and find the brightest star in the constellation that is near the object you are trying to find. Using the finder scope, point the telescope at this star and center it on the crosshairs. Next, look again at the star chart and find another suitably bright star near the bright star cur rently centered in the finder. Keep in mind that the field of view of the finder scope is approximately 5°, so you should choose another star that is no more that 5° from the first star, if pos sible. Move the telescope slightly, until the telescope is cen tered on the new star.

Continue using stars as guideposts in this way until you are

at the approximate position of the object you are trying to find (Figure 14). Look in the telescope’s eyepiece, and the object should be somewhere within the field of view. If it’s not, sweep the telescope carefully around the immediate vicinity until the object is found.

If you have trouble finding the object, start the starhop again

from the brightest star near the object you wish to view. This time, be sure the stars indicated on the star chart are in fact

Figure 14. Starhopping is a good way to locate hard-to-find

objects. Refer to a star chart to map a route to the object that uses bright stars as guideposts. Center the first star you’ve chosen in the finder scope and telescope eyepiece (1). Now move the scope carefully in the direction of the next bright star (2), until it is centered. Repeat (3 and 4). The last hop (5) should place the desired object in the eyepiece.

the stars you are centering in the eyepiece. Remember, the finder scope (and main telescope eyepiece, for that matter) gives an inverted image, so you must keep this in mind when starhopping from star to star.

8. Astrophotography

Several different types of astrophotography can be successfully attempted with the SkyView Pro 120 EQ.

Moon Photography

This is perhaps the simplest form of astrophotography, as no motor drive is required. All that is needed is a T-ring for your specific camera model. Attach the T-ring to your camera body and thread the T-ring directly onto the focuser drawtube. Point the telescope toward the Moon, and center it within the cam era’s viewfinder. Focus the image with the telescope’s focuser. Try several exposure times, all less than 1 second, depending on the phase of the moon and the ISO (film speed) of the film being used. A remote shutter release is recommended, as touching the camera’s shutter release can vibrate the camera enough to ruin the exposure.

Planetary Photography

Once basic Moon photography has been mastered, it’s time to get images of the planets. This type of astrophotography also works to get highly magnified shots of the Moon. In addition to the T-ring, you will need a Universal 1.25" Camera Adapter.

The TrueTrack Motor Drive System (single or dual axis) is also required. This is because a longer exposure is necessary, which would cause the image to blur if no motor drive was used for tracking. The equatorial mount must be accurately polar aligned, too.

As before, connect the T-ring to your camera. Before connect ing the universal camera adapter to the T-ring, an eyepiece must be inserted and locked into the body of the universal camera adapter. Start by using a medium-low power eyepiece (about 25mm); you can increase the magnification later with a high-power eyepiece. Then connect the entire camera adapt er, with eyepiece inside, to the T-ring. Insert the whole system into the focuser (without diagonal) and secure firmly with the thumbscrew.

Aim the telescope at the planet (or Moon) you wish to shoot. The image will be highly magnified, so you may need to use the finder scope to center it within the camera’s viewfinder. Turn the motor drive on. Adjust the telescope’s focuser so that the image appears sharp in the camera’s viewfinder. The camera’s shutter is now ready to be opened. A remote shut ter release must be used or the image will be blurred beyond recognition. Try exposure times between 1 and 10 seconds, depending upon the brightness of the planet to be photo graphed and the ISO of the film being used.

“Piggyback Photography”

The Moon and planets are interesting targets for the bud ding astrophotographer, but what next? Literally thousands of deep-sky objects can be captured on film with a type of astrophotography called “piggybacking”. The basic idea is that the camera with its own camera lens attached rides on top of the main telescope. The telescope and camera both move with the rotation of the Earth when the mount is polar aligned and the motor drive is engaged. This allows for a long expo sure through the camera without having the object or back ground stars blurred. In addition to the motor drive (dual-axis), an illuminated reticle eyepiece is also needed. The T-ring and camera adapter are not needed, since the camera is expos ing through its own lens. Any camera lens with a focal length between 35mm and 400mm is appropriate.

On the top of one of the tube rings is a piggyback camera adapter. This is the black knob with the threaded shaft protrud ing through it. The tube ring with the piggyback adapter should be closest to the open end of the telescope tube. Remove the tube rings from the equatorial mount and swap their position if

necessary. Now, connect the camera to the piggyback adapter.

There should be a 1/4"-20 mounting hole in the bottom of the camera’s body. Thread the protruding shaft of the piggyback adapter into the 1/4"-20 mounting hole in the camera a few turns. Position the camera so it is parallel with the telescope tube and turn the knurled black knob of the piggyback adapter counter-clockwise until the camera is locked into position.

Aim the telescope at a deep-sky object. It should be a fairly large deep-sky object, as the camera lens will likely have a wide field of view. Check to make sure that the object is also centered in the camera’s viewfinder. Turn the motor drive on. Now, look into the telescope’s eyepiece and center the bright

est star within the field of view. Remove the eyepiece and insert the illuminated reticle eyepiece into the diagonal. Turn the eyepiece’s illuminator on (dimly!). Recenter the bright star (guide star) on the crosshairs of the reticle eyepiece. Check again to make sure that the object to be photographed is still centered within the camera’s field of view. If it is not, recenter it by repositioning the camera on the piggyback adapter, or by moving the main telescope. If you move the main telescope, then you will need to recenter another guide star on the illu minated eyepiece’s crosshairs. Once the object is centered in the camera and a guide star is centered in the reticle eye piece, you’re ready to shoot.

Deep-sky objects are quite faint, and typically require expo sures on the order of 10 minutes. To hold the camera’s shut ter open this long, you will need a lock shutter release cable. Set the camera’s shutter to the “B” (bulb) setting. Depress the locking shutter release cable and lock it. You are now exposing your first deep-sky object.

While exposing through the camera lens, you will need to mon itor the accuracy of the mount’s tracking by looking through the illuminated reticle eyepiece in the main telescope. If the guide star drifts from its initial position, then use the hand con troller of the motor drive to “move” the guide star back to the center of the crosshairs. Any drifting along the Dec. axis is a result of improper polar alignment, so if the guide star drifts greatly in Dec., the mount may need to be polar aligned more accurately.

When the exposure is complete, unlock the shutter release cable and close the camera’s shutter.

Astrophotography can be enjoyable and rewarding, as well as frustrating and time-consuming. Start slowly and consult outside resources, such as books and magazines, for more details about astrophotography. Remember … have fun!

9. Collimating (Aligning the Optics)

The SkyView Pro 120 EQ telescope has objective lens cell which incorporates an optical alignment adjustment; this helps to ensure peak optical performance. Collimating is the process of aligning the telescope’s optics. In the case of the SkyView Pro 120 EQ, collimating entails tilting the objective lens assembly so that the optical axis is precisely parallel to the telescope’s focuser. The telescope has been collimated at the factory, so no adjustments to the lens cell are likely to be necessary. If you are unsure or uncomfortable about making optical alignment adjustments, we strongly recommend that you just leave it alone.

Your SkyView Pro 120 EQ comes with a collimating tool. Figure 15 shows the collimating tool in place.

Use of the collimating tool is best done during the day, either outdoors or in a well-lit room. Point the telescope at a dark tar get of uniform brightness, like a painted wall or a black piece of construction paper. The distance of the target is unimport ant. You will also need a 2.5mm hex key and a Phillips-head screwdriver.

Reflective ring

1.25" adapter

Viewing hole

Figure 15. The collimating tool in the SkyView Pro 120 focuser.

Insert the collimating tool into the telescope’s focuser. You

will need to use the telescope’s 1.25" adapter in the focuser.

Secure the collimating tool in the focuser with the thumbscrew on the 1.25" adapter.

Look into the viewing hole of the collimating tool. You are now looking straight down the interior of the telescope tube at the objective lens.

Loosen the securing thumbscrew, and rotate the collimating tool until you can see the reflection of the of the tool’s reflec tive ring in the objective lens. To do this, you will need to point the wide hole in the collimating tool’s body toward a source of light. Ignoring the tiny central reflection, you should see two separate reflections of the ring in the objective lens. If you see only one reflection, then your telescope is already collimated.

Use the collimating screws in the lens cell to center the reflec tions on top of one another (Figure 16). There are three pairs of screws; each pair works together to tilt the lens. Using your

2.5mm hex key and Phillips-head screwdriver, loosen one of the screws and then tighten the other in the pair. Look into the viewing hole of the collimating tool to see if the reflections have moved closer together or further apart. Once you get the reflections as close together as you can get with one pair of screws, move on to another pair.

Continue making adjustments to each pair of screws until the reflections are precisely centered on each other, which will give the appearance of one ring. Once only one circular ring is visible, no further collimation adjustments are needed.

Your SkyView Pro 120 EQ is now collimated. You should not need to align the optics again unless the telescope is roughly handled.

10. Care and Maintenance

If you give your telescope reasonable care, it will last a lifetime.

Store it in a clean, dry, dust-free place, safe from rapid chang

Pair of

collimating

screws (3)

Figure 16. The lens cell of the SkyView Pro 120. There are three

pairs of collimating screws; each pair of screws work together to adjust the tilt of the lens.

es in temperature and humidity. Do not store the telescope outdoors, although storage in a garage or shed is OK. Small components like eyepieces and other accessories should be kept in a protective box or storage case. Keep the dust cover on the front of the telescope when not in use.

Your SkyView Pro 120 EQ requires very little mechanical maintenance. The optical tube is aluminum and has a smooth painted finish that is fairly scratch-resistant. If a scratch does appear on the tube, it will not harm the telescope. Smudges on the tube can be wiped off with a soft cloth and a household cleaner such as Windex or Formula 409.

11. Specifications

Objective lens: Achromatic doublet, air-spaced

Objective lens coating: Multi-coated

Objective lens diameter: 120mm (4.7")

Focal length: 1000mm

Focal ratio: f/8.3

Eyepieces: 25mm and 10mm Sirius Plössls, fully coated,

1.25"

Magnification: 40x (with 25mm) and 100x (with 10mm)

Finder Scope: 8x40 Achromatic, 5.33° field of view

Focuser: Rack and4pinion, accepts 1.25" or 2" accessories and camera T-Ring

Diagonal: 90° Star diagonal, mirror type, 1.25"

Mount: SkyView Pro, German equatorial

Tripod: Steel

Tripod support tray: Aluminum, provides additional stability, holds five 1.25" eyepiece and two 2" eyepieces

Weight: 41 lbs. (Mount 30 lbs., optical tube 11 lbs.)

Polar axis latitude adjustment: 8° to 70°

Polar axis finder: Optional

Motor Drives: Optional

Cleaning Lenses

Any quality optical lens cleaning tissue and optical lens clean ing fluid specifically designed for multi-coated optics can be used to clean the exposed lenses of your telescope’s objec tive lens, eyepieces or finder scope. Never use regular glass cleaner or cleaning fluid designed for eyeglasses. Before cleaning with fluid and tissue, however, blow any loose par ticles off the lens with a blower bulb or compressed air. Then apply some cleaning fluid to a tissue, never directly on the optics. Wipe the lens gently in a circular motion, then remove any excess fluid with a fresh lens tissue. Oily fingerprints and smudges may be removed using this method. Use caution; rubbing too hard may scratch the lens. For the objective lens, clean only a small area at a time, using a fresh lens tissue on each area. Never reuse tissues.

181920

One-Year Limited Warranty

This Orion SkyView Pro 120 EQ is warranted against defects in materials or workmanship for a period of one year from the date of purchase. This warranty is for the benefit of the original retail purchaser only. During this warranty period Orion Telescopes & Binoculars will repair or replace, at Orion’s option, any warranted instrument that proves to be defective, provided it is returned postage paid to: Orion Warranty Repair, 89 Hangar Way, Watsonville, CA 95076. If the product is not registered, proof of purchase (such as a copy of the original invoice) is required.

This warranty does not apply if, in Orion’s judgment, the instrument has been abused, mishandled, or modified, nor does it apply to normal wear and tear. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. For further warranty service information, contact: Customer Service Department, Orion Telescopes & Binoculars, P. O. Box 1815, Santa Cruz, CA 95061; (800)-676-1343.

Orion Telescopes & Binoculars

Post Office Box 1815, Santa Cruz, CA 95061

Customer Support Help Line (800)-676-1343 • Day or Evening

Orion SKYVIEW PRO 120 EQ User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
