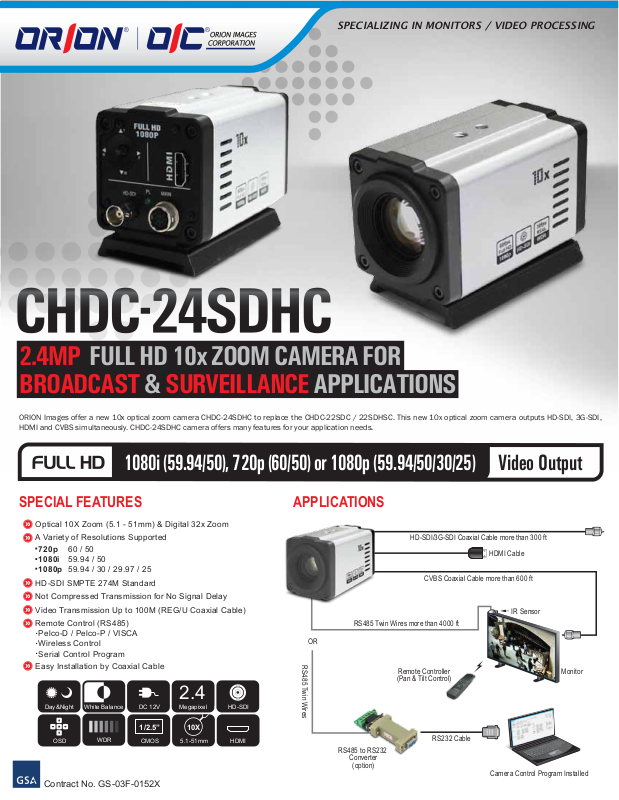

Orion CHDC-24SDHC Specsheet

SPECIALIZING IN MONITORS / VIDEO PROCESSING

2.4MP FULL HD 10x ZOOM CAMERA FOR
BROADCAST & SURVEILLANCE APPLICATIONS

ORION Images offer a new 10x optical zoom camera CHDC-24SDHC to replace the CHDC-22SDC / 22SDHSC. This new 10x optical zoom camera outputs HD-SDI, 3G-SDI,
HDMI and CVBS simultaneously. CHDC-24SDHC camera offers many features for your application needs.

1080i (59.94/50), 720p (60/50) or 1080p (59.94/50/30/25)

SPECIAL FEATURES APPLICATIONS

Optical 10X Zoom (5.1 - 51mm) & Digital 32x Zoom

A Variety of Resolutions Supported

60 / 50

720p
1080i 59.94 / 50
1080p 59.94 / 30 / 29.97 / 25

HD-SDI SMPTE 274M Standard

Not Compressed Transmission for No Signal Delay

Video Transmission Up to 100M (REG/U Coaxial Cable)

Remote Control (RS485)

.

Pelco-D / Pelco-P / VISCA

.

Wireless Control

.

Serial Control Program

Easy Installation by Coaxial Cable

OR

RS485 Twin Wires

RS485 Twin Wires more than 4000 ft

HD-SDI/3G-SDI Coaxial Cable more than 300 ft

CVBS Coaxial Cable more than 600 ft

Remote Controller

(Pan & Tilt Control)

Video Output

HDMI Cable

IR Sensor

Monitor

Day&Night White Balance DC 12V

1/2.5”

WDR

Contract No. GS-03F-0152X

CMOS

2.4

Megapixel

10X

5.1-51mmOSD

HD-SDI

HDMI

RS485 to RS232

Converter

(option)

RS232 Cable

Camera Control Program Installed

2.4MP FULL HD 10x ZOOM CAMERA FOR BROADCAST &
SURVEILLANCE APPLICATION

SPECIFICATIONS

CHDC-24SDHC

Image Sensor

Active Pixels

Scanning System

Sync. System

Resolution

Min. Illumination

Video Output

S/N Ratio

Lens Type

Zoom Ratio

Focal Length

Aperature Ratio

Angle of View (D, H, V)

Focus

Mode

Distance

Zoom Speed

Lens Refresh

E.Zoom

Zoom Preset

Exposure

Mode

Gain Control (AGC)

Shutter Speed

Iris

Digital Slow Shutter (DSS)

Flickerless

Brightness

WDR / BLC

Day & Night

White Balance


HLC

DNR

Mirror

Sharpness

ACE

Defog

Freeze

Gamma

Intelligence

Privacy Mask

Motion Detection

Digital Image Stabilizer

Special Func

Defect DET

Image Range

HD Format

Display

Disp Sel / Set Title

Init Sel / Set Init Msg

Language

Power Source

Power Consumption

Storage Temperature

Operation Temperature

Weight

*Design and specifications are subject to change without notice

1/3” Panasonic CMOS Sensor

1,944(H) x 1,092(V), 2.12M Pixels

Progressive Scan

Internal

Digital: 1080i/59.94, 1080p/29.97, 1080i/50, 1080p/30(25)

1080p/59.94(50), 720p/60(50)

Analog: 700TVL

Color: 0.5 lux, BW: 0.1 lux

Color DSS: 0.002 lux, BW DSS: 0.001 lux

HD: HD-SDI, HDMI, Analog SD: VBS (without WDR)

More than 50dB (AGC off)

10x Day & Night Zoom Lens

Optical x10, Digital x32 Zoom

f = 5.1mm ~ 51mm

F1.6 (Wide) ~ F1.8 (Tele)

Wide

Tele

Mode / Distance / Zoom Speed / Lens Refresh / E.Zoom

Auto / One Push / Manual

0.1 / 1.0 / 3.0 / 5.0 / 10.0m

0(Slow) ~ 7(Fast)

One Push / 1 ~ 10 Day

Off / Max x2 ~ x32

5 Preset

Mode/ AGC/ Shut Speed/ Iris/ DSS/ Flickerless/ Brightness/ WDR/ BLC/ D&N

Auto / Iris. Priority / Shut. Priority / Manual

Off / On

1/30(25) ~ 1/30,000 sec

0 ~ 20 steps

Off / x2 / x4 (x8: 60 or 50 fps mode only)

Off / On

0 ~ 20 steps

Off / WDR / BLC

Auto / Day / Night / Ext-in

Auto / One Push / Manual / Inddor / Outdoor

HLC / DNR / Mirror / Sharpness / ACE / Defog / Freeze / Gamma

Off / On / Night Only

Auto / Off / Low / Middle / High

Off / H / V / H&V

0 ~ 10 steps

Off / Low / Middle / High

Off / On (Auto / Manual)

Off / On

0.45 / 0.55 / 0.65 / 0.75

Privacy / Motion / DIS

Off / On (24 points)

Off / On (3 points)

Off / On

Defect / Image Range / System / HD Format / COMM

Off / On

Full / Comp. / User

1080i/59.94, 1080p/29.97, 1080i/60(50), 1080p/30(25), 1080p/59.94(50), 720p/60(50)

Disp Sel / Set Title / Init Sel / Set Init Msg / Language

ID / Title / Zoom Ratio / System Message, Text Edit

ID / Braud Rate / Protocol / Version / Init. Message, Text Edit

English / Chinese / Japanese

DC12V +/- 10%

MAX 700mA

o

C ~ +60oC

-20

o

C ~ +50oC

-10

570g

WHERE TO USE

ORION Images 10x Zoom CHDC-24SDH C HD Camera can be us ed in Produ ction Studio,
Churc h, Wed ding Hall, TV Sta tion and etc...

Wedding HallChurch

o

68

o

6.7

o

54

o

4.9

o

31

o

4.0

TV StationProduction Studio

INPUTS

1

1

2

4

3

5

OSD / ZOOM / FOCUS control

2

HDMI output

3

HD-SDI / 3G-SDI output

4

POWER LED

5

Power & communication terminal

DIMENSION

58.2

62.2

59.2

MULTI PORT

12

80

110.6

BNC(YELLOW)

RS485+ WHITE
RS485- YELLOW
MD-OUT GREEN
D/N-IN RED
GND BLACK

POWER(RED)

ORION IMAGES INCORPORATION
7300 Bolsa Avenue, Westminster, CA 92683
Tel. [phone] / Fax. [phone] / www.orio nimages.com

ORI ON Ima ges I nco rpo rat ion . Al l r igh ts re ser ved .

ver. 11120 8-1 .2

Contract No. GS-03F-0152X
