Orion CHDC-22SDHSC, CHDC-22SDC User Manual

Installation and User’s Guide

1/2.5” PRIMARY COLOR CMOS HIGH SENSITIVE DAY/NIGHT HD CCTV

CHDC-22SDC / CHDC-22SDHSC

HD CCTV CAMERA

Installation and User’s Guide

http://www.orionimages.com

All contents of this document may change without prior notice, and actual product appearance may differ
from that depicted herein

http://www.orionimages.com

Installation and User’s Guide

THANK YOU FOR CHOOSING ORION

Thank you for choosing ORION Images high quality HD CCTV Camera.
Please read this instruction manual carefully to keep yo ur ORION Images product at peak performance
for longer service duration. All ORION Images products are designed and manufactured with utmost
care and craftsmanship to provide long life and high quality performance, if it is properly used and
maintained as outlined in this manual. This high performance HD CCTV camera is equipped with a
1/2.5” 2.2M CMOS sensor, which has an extremely wide range of uses in many different applications
and conditions.

CONTENTS OF CHDC-22SDC MANUAL

1. Handling precautions………………………………………………………………......

Pg4

2. General…………………………………………………………………………………..

3. Package of Content…………………………………………………………………….

4. Features………………………………………………………………………………….

5. Name of parts and functions…………………………………………………………...

6. Operation…………………………………………………………………………………

Pg4
Pg4
Pg5
Pg6-7
Pg8

6.1. User setup…………………………………………………………………………..

6.2. SETUP switches and function…………………………………………………….

6.3. Entering the setup mode and its basics………………………………………….

7. Application of Output…………………………………………………………………….

8. Specifications…………………………………………………………………………….

Pg8
Pg8
Pg9-13
Pg14
Pg15

9. Outline Dimension……………………………………………………………………….

10. Warranty and after-sale service………………………………………………………..

Pg16
Pg17

2

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg2

quip

http://www.orionimages.com

Installation and User’s Guide

The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (serv icing) instructio ns in the
literature accompanying the appliance.

CAUTION

NOTE:

This equipment has been tested and found to comply with the limits for a Class A digital device.
Pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and ca n
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communication. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to correct the interference by one or more of the following measures.

CAUTION:

ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PART
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USERS AUTHORITY TO OPERATE THE
EQUIPMENT.

Instructions for Disposal of Electrical and Electronic Equipment in Private Households

By ensuring this product is disposed of correctly, you will help prevent possible negative consequences
for the environment and human health which could other wise caused by inappropriate handling of this
product. The correct recycling of materials will help to conserve natural resources.

For more detailed information about recycling of this product, please contact your local c it y authorit y, your
household waste disposal service or the place wher e you purchased the product.

Disposal of used Electric and Electronic Equipment (Applicable in the European
Union and other European countries with waste recycling, disposal and
collection regulations)

This symbol on the product, or in the related documents in the package, indicates that
this product shall not be treated as normal household waste. Instead, it should be
taken to a proper applicable collection point or depot for the recycling of electrical and
electronic e

ment.

3

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg3

http://www.orionimages.com

1. HANDLING PRECAUTIONS

Installation and User’s Guide

z Do not install the camera in a water-splashed or highly humid environment.
z Do not use the camera where the ambient temperature drops below 0° C or rises above +50° C. The

images and component parts may be adversely affected or the camera may not function correctly.

z Never open the camera case because there are precision electrical and electronic comp onents inside

and an accident may results.

z Do not put anything metallic or any other foreign substances through the vent, as a fire or electric

shock may result.

z Be sure to turn off the power before installing or making connections.
z Do not install the camera in places exposed to heat, vibrations and shock.
z Be careful not to drop or give a strong shock to the camera while transporting it.
z Do not touch the image sensor.
z Do not orientate the camera directly towards the sun.
z Some types of lenses may hunt in adverse light conditions. In such cases please re-adjust the lens in

line with the instructions in the manual.

z Because of the characteristics of the digital image device, images may look unnatural at high

temperatures, this does not mean the camera is faulty.

2. GENERAL

This HD CCTV Camera is provided with a High performance 1/2.5 inch 2.2M CMOS sensor. The
camera features a built-in optical 10x zoom lens (1/3.6” f=4.5~45.0mm, f1.8~2.2) high resolution, and
is equipped with digital DAY/NIGHT function, intelligent back-light compensation by which you can
achieve proper Back Light Compensation, Crystal controlled internal sync lock system, Various
modes of convenient Automatic while balancing, mirror image, camera setup and control is also
possible locally using a remote controller, or remote via RS-232C and this setup data is stored in the
built-in non-volatile memory. The camera is best suited for HD CCTV surveillance purposes, from
single camera operation to large scale integrated systems for visual information manage ment.

3. PACKAGE OF CONTENT

Camera Mount

M2.5 Screw

2.2M Camera
Manual

Remote Control

Multi Port

Cable

4

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg4

http://www.orionimages.com

4. FEATURES

1 HD-SDI OUTPUT

This camera outputs and HD-SDI signal featuring resolutions of 1080/25p, 30p, 5 0i, 60i or
720/30p, 50p, 60p SMPTE 292M standard.

2 MULTI OUTPUT MODEL (CHDC-22SDHSC)

It has outputs of HD-SDI, Composite, S-Video, HDMI, and YPbPr Component.

3 NTSC / PAL OUTPUT

This output can be used for a test or an adjustment.

4 DAY / NIGHT FUNCTION

This camera delivers high quality color images during the day. As light diminishes below a
certain level, the camera can automatically switch to night mode to make use of near-infrared
(IR) light to deliver high-quality, black and white images.

5 BACK LIGHT COMPENSATION

Well-designed BLC, back light compensation, facility is provided which can assign a
compensation area for back light compensation to have an optimum b alanced clear picture
reproduction.

6 DIGITAL EFFECT FUNCTION

This output video can be selected in either normal, negative, solarization, pasteurization, or
sephia, monochrome.

7 AUTOMATIC OR MANUAL WHITE BALANCE

In addition to the Auto white balance, this camera provide manually adjustment of x-value / y­value.

8 AUTO SLOW SHUTTER

ON / OFF is provided

9 MIRROR IMAGE

This flips the image horizontally or vertically.

Installation and User’s Guide

5

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg5

①

V

)

http://www.orionimages.com

5. NAMES OF PARTS AND FUNCTIONS

Top View

BUILT-IN ZOOM LENS

This is optical 10X zoom lens built in. 1/3.6” F=4.5~45mm, F1.8 ~ 2.2

② CAMERA MOUNT

These holes are for camera mount plate enclose d and provided in both top and bottom of
the camera body.

③ COMPONENT VIDEO (CHDC-22SDHSC ONLY)

These three RCA connectors are for analog Y, Pb, Pr component.

④ NO CONNECTION

⑤ S-

IDEO OUT (CHDC-22SDHSC ONLY

This is S-Video output.

⑥ HDMI OUT (CHDC-22SDHSC ONLY)

This is HDMI output.

Installation and User’s Guide

Rear View

6

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg6

http://www.orionimages.com

Installation and User’s Guide

⑦

MULTI IN / OUT

This is 9-pin multi-connect to use with a multi-port cable used for DC12V power and a serial control

⑧ CVBS OUT (CHDC-22SDHSC ONLY)

This is NTSC / PAL output (BNC)

⑨ VIDEO OUTPUT CONNECTOR (VIDEO OUT)

For HD-SDI output from camera. Connect this output to HDTV monitor or HDTV switcher, etc. This
to be terminated with 75 ohms impedance at the last equipment in a loop when cascade / bridge
loop connection is made.

7

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg7

6

-

r

y

http://www.orionimages.com

Installation and User’s Guide

6. OPERATION

1. USER SETUP

The camera has a remote controller as standard to set up and various picture quality setups, back light
compensation, Day/Night for optimum reproduction.
The SETUP can be easily executed using the On-Screen-Menu system. Alteration of these function ma y
be needed for some installations and we recommend that you should spend some time to become
acquainted with these functions so that the best results can be obtained from this high performance HD
CCTV camera.

6-2. SETUP SWITCHES AND FUNCTIONS

Operation distance: 10M
When RC is on: Flickering on LED

Cancel setup value and
Exit setup mode

Enter & function
ke

Move to Up, Down, Left, Right

Brightness Zoom In/Out



Remote Controlle

















8

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg8

p

(

)

y

http://www.orionimages.com

Installation and User’s Guide





6-3. ENTERING THE SETUP MODE AND ITS BASICS



Press ENT button on a remote controller to display the following OSD menu on the screen.









































6-3-1. VIDEO FORMAT



Press ENT button one time t o move a cursor to TV type. Press ENT button one more time to move a



cursor to NTSC. Press button or button to select the format.







TV-Type :

This NTSC (default) or PAL to select





Composite :

SQUEEZE (16:9) default or cro

4:3





SYNC TRIG :

This is for sync trigger. This model does not support a trigger. Please

at “OFF”

sta

First Field :

Lower (default) or Upper

9

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg9

http://www.orionimages.com

Resolution :

6-3-2. PICTURE CONTROL



Select HD Output format
(In 1920 x 1080 / 30p) out 1920 x 1080 / 30p

(In 1920 x 1080 / 30p) out 1920 x 1080 / 30p
(In 1280 x 720 / 60p) out 1280 x 720 / 60p
(In 1280 x 720 / 30p) out 1280 x 720 / 30p
(In 1920 x 1080 / 25p) out 1920 x 1080 / 25p
(In 1920 x 1080 / 25p) out 1920 x 1080 / 50i
(In 1280 x 720 / 50p) out 1280 x 720 / 50p

Installation and User’s Guide





Brightness :

Sharpness :

0 ~ 100 (default is 66) higher number increase brightness.

Low , Middle (default) or High.





Hue :

Chroma :

Cr -> -2 ~ +2 (default is +1)
Cb -> -2 ~ +2 (default is +1)

Low, Middle or High (default is Low)
Cb -> Low, Middle or High (default is Low)

6-3-3. BACK LIGHT

This ON / OFF of Back Light Compensation. This should be ON when the object becomes dark due to
highlight background.

6-3-4. DIGITAL EFFECT

You can select the image at Normal, Negative, Solarization, Pasteurization, Monochrome, or sepia color.

6-3-5. SCENE

Due to your environmental scene, you may need to set up this function like MODE ODD, High color
Temperature, WDR (Wide Dynamic Range), AUTO, Night (without Auto change) or Night (with Auto
change – Day / Night)

10

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg10

A

http://www.orionimages.com

Installation and User’s Guide

6-3-6. FLICKERNESS

If you see a flicker on the screen, please use this function and select ON, ON (50Hz fixed) or ON (60Hz
fixed).

6-3-7. WHITE BALANCE

You may select Manual, Auto, (Tungsten, Fluorescent D, Fluorescent N, Fluorescent W, Shade or Cloudy)
When selected “MANUAL”, you may need to select X/Y values.

6-3-8. NOISE REDUCTION

You may se lect Low, Middle (default) or High.

6-3-9. AUTO SLOW SHUTTER

It can be selected ON or OFF (default).

6-3-10. IMAGE STABILIZER

It can be selected ON (default) or OFF.

6-3-11. MIRROR

This function is to reverse top and bottom or left and right.

6-3-12. FOCUS MODE

uto or Manual can be selected.

11

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg11

g

)

http://www.orionimages.com

Installation and User’s Guide

6-3-13. OSD COLOR

Color of OSD menu (Title, Menu, Sub menu or select) can be changed to WHITE, CYAN, MAZEN
(Magenta), BLUE, YELLOW, GREEN RED, DGRAY (Dark Gray), GRAY, DCYAN, (Dark Cyan), DMAZE
(Dark Magenta), DBLUE (Dark Blue), DYELL (Dark Yellow), DGREEN (Dark Green), BLACK, TRANS
(Transparency).

6-3-14. OSD AUTO DISAPPEAR

You can select Disable or Enable for OSD auto disappear function

6-3-15. SERIAL ID

You can set your ID (number 1 ~ 7) and Baud rate (default is 19200). Please visit

http://www.orionimages.com/product/CHDC-22SDC.asp

(see figure 1.1 for application menu)

to download a remote application software.

Fi

ure 1.1 (Application Menu

12

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg12

http://www.orionimages.com

6-3-16. RESET

Select “YES” to go back all settings to factory default.

6-3-17. EXIT

Select either “SAVE & EXIT” or “EXIT WITHOUT SAVING” your camera set up.

Installation and User’s Guide

13

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg13

http://www.orionimages.com

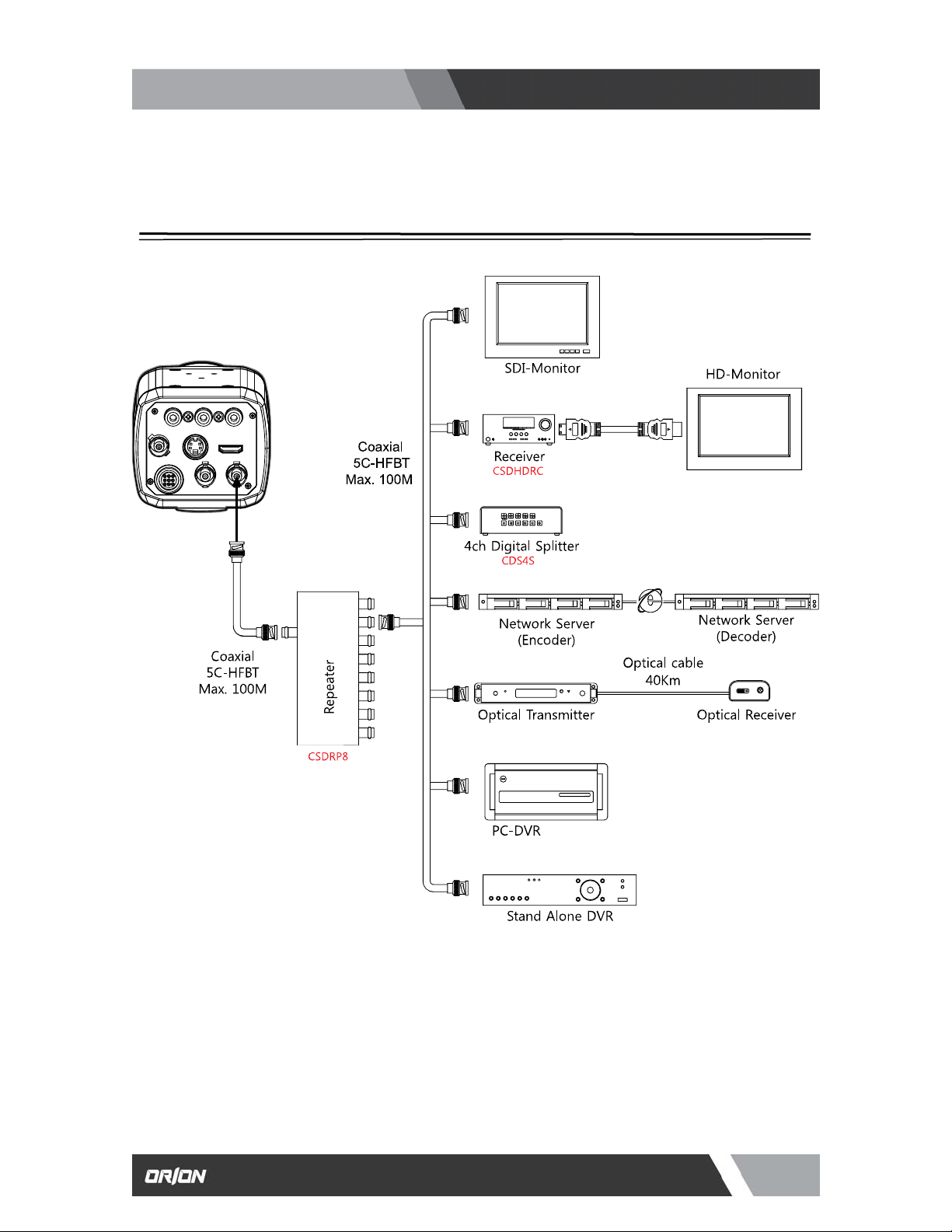

7. APPLICATION OF OUTPUT

Installation and User’s Guide

14

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg14

http://www.orionimages.com

8. SPECIFICATIONS

CHDC-22SDC & CHDC-22SDHSC

Image Sensor 1/2.5” CMOS
Effective Pixel 2.2 M Pixel
Sync System Internal

HD-SDI (SMPTE 294M) / 75 ohm BNC x 1
1920 x 1080 30p / 25p / 60i, 1280 x 720 60p / 50p

Video Output

Lens 1/3.6”, F=4.5 ~ 45mm, F1.8 ~ 2.2
Minimum Illumination 6 Lux (50 IRE)
Auto White Balance Auto / Manual
Backlight Compensation Built-In
Noise Reduction Built-In
Auto Slow Shutter Built-in / ON: 0.35 Lux
Image Stabilization Built-In
Day & Night Built-In
Mirror Image Horizontal and Vertical
Power Requirement DC 12V (Voltage Tolerance: 8V ~ 15V)
Power Consumption Max 720mA
Operating Temperature
Operating Humidity 20 ~ 80%
Camera Mount 1/4” ~ 20UNC x 1 (Top or Bottom)
Dimensions (W x H x D) 2.65” x 2.36” x 6.57”
Weight 1.06 lbs

NTSC / PAL 1Vp-p / 75 ohm (CHDC-22SDHSC ONLY)
S-Video (CHDC-22SDHSC ONLY)
Y, Pb, Pr Component (CHDC-22SDHSC ONLY)
HDMI 1.3 (CHDC-22SDHSC ONLY)

32° ~ 113° F (0° ~ 45° C)

* Design and specifications are subject to change without notice

Installation and User’s Guide

15

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg15

http://www.orionimages.com

9. OUTLINE DIMENSION

Side View

Installation and User’s Guide

Unit: mm

Front View

16

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg16

http://www.orionimages.com

Installation and User’s Guide

10. WARRANTY & AFTER-SALE SERVICE

Warranty accompanies this product. Read and fill out the warranty card that you have
received at your dealer. Keep this card in a safe place.

z Please consult ORION Images Corporation or your dealer for full warranty information. Your dealer

will repair or replace free of charge within the warranty period according to the warranty coverage.

z For repairs after the expiration of the warranty period, consult your dealer or sales representative. It

will first be judged whether the fault is repairable or not. Charged servicing will then be made upo n
request of the user.

z Before you ask for servicing, please ensure you read the instruction Manua l. If the unit still fails,

take note of the model number, date of purchase, problem, etc. In detail, and inform your dealer or
sales representative.

z If you have questions about the after-sale service, contact your dealer or sales representative.

* We suggest you ask for preventive inspection as soon as possible.

Contact ORION Images :

In the event of missing and/or damage equipment, or technical questions, the following
information can help in the completion of the installation.

Address: 7300 Bolsa Avenue, Westminster, CA 92683
Tel: [phone] / Fax: [phone]
Email: [e-mail]
Website: http://www.orionimages.com

17

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg17

http://www.orionimages.com

Installation and User’s Guide

18

7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone]

pg18
