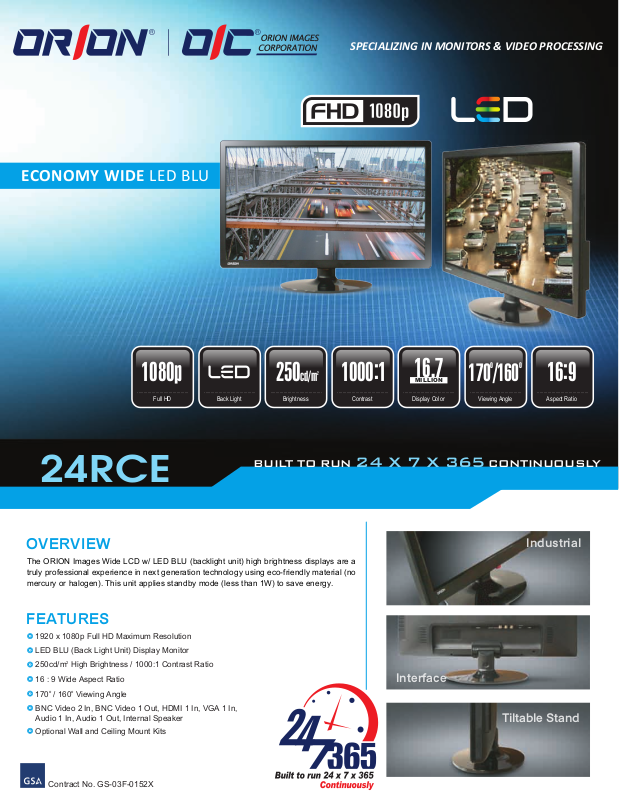

Orion 24RCE Specsheet
ECONOMY WIDE LED BLU
Industrial
Interface
Tiltable Stand
SPECIALIZING IN MONITORS & VIDEO PROCESSING
2
1000:11080p
.......................................
Full HD
.......................................
Back Light Brightness
....................................... ....................................... .......................................
250cd/m
BUILT TO RUN 24 X 7 X 365 CONTINUOUSLY
24RCE
OVERVIEW
The ORION Images Wide LCD w/ LED BLU (backlight unit) high brightness displays are a
truly professional experience in next generation technology using eco-friendly material (no
mercury or halogen). This unit applies standby mode (less than 1W) to save energy.
FEATURES
1920 x 1080p Full HD Maximum Resolution
LED BLU (Back Light Unit) Display Monitor
250cd/m2 High Brightness / 1000:1 Contrast Ratio
16 : 9 Wide Aspect Ratio
170o / 160o Viewing Angle
BNC Video 2 In, BNC Video 1 Out, HDMI 1 In, VGA 1 In,
Audio 1 In, Audio 1 Out, Internal Speaker
Optional Wall and Ceiling Mount Kits
16.7
MIL LIO N
Display ColorContrast
o
170o/160
....................................... .......................................
Viewing Angle
16:9
Aspect Ratio
Contract No. GS-03F-0152X
24RCE
ECONOMY WIDE LED MONITOR
SPECIFICATIONS
Display
Screen Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Aspect Ratio
Viewing Angle (H/V)
Display Color
Response Time
Video System
Interface
Video In (BNC Type)
Video Out (BNC Type)
HDMI In
VGA In (15Pin D-Sub)
Audio In (RCA Type)
Audio Out (RCA Type)
Transmitter
Remote Control
Audio
Built-in Speakers
Features
Multi Language
General
Outline Dimension (W x H x D)
Net Weight
Material / Color
Desk Top Stand
Part / Labor
Power
Operating Temperature
Storage Temperature
Mounts
TM
VESA
Mount Size
Wall
Ceiling
*Design and specifications are subject to change without notice
24RCE
23.6 Inch
1920 x 1080 @ 60Hz
0.2715 x 0.2715mm
2
250cd/m
1000 : 1
16 : 9
170o / 160
16.7 Million
< 5ms
NTSC / PAL
NTSC / PAL
2 In
1 Out
1 In
1 In
1 In
1 Out
Yes
Yes (2W x 2)
English, Chinese
21.16" x 13.46" x 2.03" (w/o stand)
7.7 lbs (w/ stand)
Plastic / Black
Yes
3year / 3year
DC 12V / 3A, Less then 30W
0o ~ 40o C / 32o ~ 104o F
o
~ 60o C / -4o ~ 140o F
-20
75 x 75mm
WB-5, WB-10, WB-30, WB-31
CMK-01
FRONT VIEW
INPUT INTERFACE
D E
C
C
D
B
Audio In
Video Out
Video 1 & 2 In
E
VGA In
F
A
DC12V
o
A
Audio Out
B
F
G
G
HDMI In
DIMENSIONS
22.16”
13.46”
2.36”
2.03”
FEATURE
Scan Size can be selected as AUTO / 16 : 9 / 4 : 3 / Panorama / Zoom
IR Sensor
REAR VIEW
AUTO
MENU
UP
DOWN
POWER
16 : 9 4 : 3 Zoom
OPTIONAL MOUNTS
Power LED
WALL
WB-5
CEILING
7300 Bolsa Avenue, Westminster, CA 92683
Tel. 714.766.6300 / Fax. 714.766.6310 / sales@orionimages.com / www.orionimages.com
WB-10 WB-30 WB-31
CMK-01
Contract No. GS-03F-0152X
