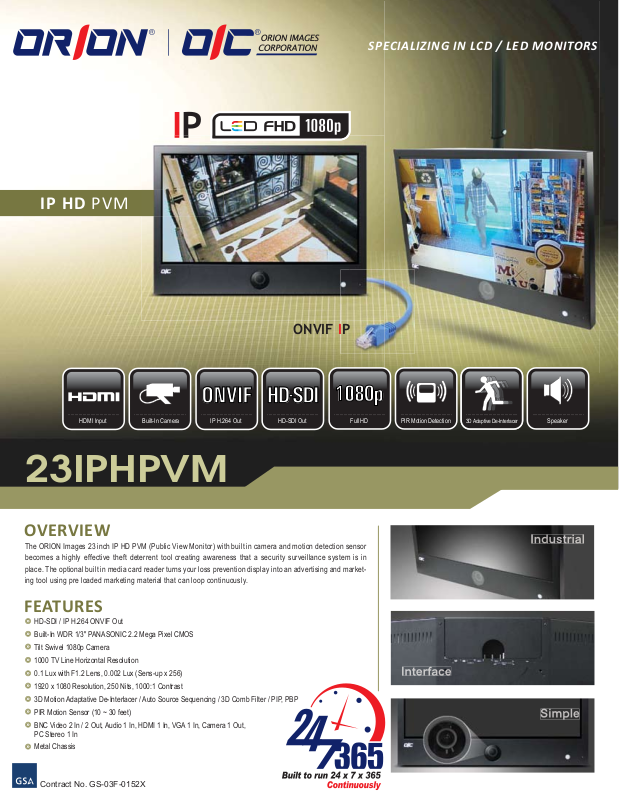

Orion 23IPHPVM Specsheet
IP HD PVM
SPECIALIZING IN LCD / LED MONITORS
IP
ONVIF IP
1080p
....................................... ....................................... .......................................
Full HD
.......................................
HDMI Input
ONVIF
....................................... ....................................... .......................................
Built-In Camera
IP H.264 Out
HD-SDI
HD-SDI Out
23IPHPVM
OVERVIEW
The ORION Images 23 inch IP HD PVM (Public View Monitor) with built in camera and motion detection sensor
becomes a highly effective theft deterrent tool creating awareness that a security surveillance system is in
place. The optional built in media card reader turns your loss prevention display into an advertising and marketing tool using pre loaded marketing material that can loop continuously.
FEATURES
HD-SDI / IP H.264 ONVIF Out
Built-In WDR 1/3" PANASONIC 2.2 Mega Pixel CMOS
Tilt Swivel 1080p Camera
1000 TV Line Horizontal Resolution
0.1 Lux with F1.2 Lens, 0.002 Lux (Sens-up x 256)
1920 x 1080 Resolution, 250 Nits, 1000:1 Contrast
3D Motion Adaptative De-Interlacer / Auto Source Sequencing / 3D Comb Filter / PIP, PBP
PIR Motion Sensor (10 ~ 30 feet)
BNC Video 2 In / 2 Out, Audio 1 In, HDMI 1 In, VGA 1 In, Camera 1 Out,
PC Stereo 1 In
Metal Chassis
PIR Motion Detection
3D Adaptive De-Interlacer
.......................................
Speaker
Contract No. GS-03F-0152X
23IPHP VM
IP HD PUBLIC VIEW MONITOR
SPECIFICATIONS
Display
Screen Size
Backlight Unit
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Aspect Ratio
Viewing Angle (H/V)
Display Color
Response Time
Video System
Interface
Video In / Out (BNC Type)
HD-SDI
IP H.264 ONVIF
HDMI In
VGA In (15Pin D-Sub)
Audio In (RCA Type)
PC Stereo In
Transmitter
Remote Control
Audio
Built-in Speakers
Features
Filter Type
Multi Display Function
Auto Source Sequencing
Motion Detection
3D Motion Adaptive De-interlacing
Multi Language
Camera
Camera Type
Image Sensor
Mechanical Design
S/N Ratio
Resolution
Lens Mount
Sensitivity
Electronoc Shutter
General
Outline Dimension (W x H x D)
Net Weight
Material / Color
Part / Labor
Consumption: < On
Electrical Ratings
Operating Temperature
Storage Temperature
Mounts
VESATM Mount Size
Wall
Ceiling
*Design and specifications are subject to change without notice
23IPHPVM
23 Inch
LED BLU
1920 x 1080 @ 60Hz
0.265 x 0.265mm
250cd/m
1000 : 1
16 : 9
178o / 168
16.7 Million
< 5ms
NTSC / PAL
NTSC / PAL
2 In / 3 Out (Include Camera Out)
1 Out
1 Out (RJ45)
1 In
1 In
1 Left & Right
1 In
Yes
Yes (1W x 2)
3D Comb Filter / Noise Reduction
PIP / PBP
Yes
PIR Motion Sensor (10~30 feet)
Yes
English, Spanish, French, German, Italian
WDR
1/3" PANASONIC 2.2 Mega Pixel CMOS
Tilt Swivel 1080p Camera
>50 dB
Horizontal : 1000 TV Lines
2.8~12mm Vari-focal 3MP Lens (F=1.4)
0.1 Lux with F1.2 Lens / 0.002 Lux Sens-up x 256
1/60 ~ 1/60,000 Sec
21.97” x 15.61” x 3.15”
7.6Kg (16.8 lbs)
Electronic galvanized Iron / Black (Optional White)
3year / 3year
< 40W
AC100 ~ 240V(50/60Hz)
DC12V
0o ~ 40o C / 32o ~ 104o F
-20o ~ 60o C / -4o ~ 140o F
200 x 200mm
WB-2642
CMK-01 with FMA-01
INPUT INTERFACE
A
B C D E F
2
PC Stereo In
o
A
Audio In (RCA)
B
Video2 In / Out
C
Video1 In / Out
D
E
F
VGA In
HDMI In
G
HIJ
CVBS Camera Out
G
HD-SDI Camera Out
H
ONVIF Camera Out
I
AC Power In
J
DIMENSIONS
21.97”
23”
15.61”
3.15”
OPTIONAL MOUNTS
WALL
CEILING
WB-2642
CMK-01
ADVANTAGES
Motion Detection
A motion detector is a device that detects moving objects, particularly people. A motion
detector is often integrated as a component of a system that automatically performs a task or
alerts a user of motion in an area.
2.8~12mm
VariFocal 3MP
Lens
Before detect any motion
IP H.264 ONVIF
Motion Sensor
7300 Bolsa Avenue, Westminster, CA 92683
Tel. 714.766.6300 / Fax. 714.766.6310 / sales@orionimages.com / www.orionimages.com
After detect any motion
Contract No. GS-03F-0152X
