TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 1
Getting to Know your Wireless AP
Router
1.1 Overview
The ORing TAR-120-M12 / TAR-3120-M12
Wireless AP router is designed to operate in
industrial environments. The AP router provides
fast and effective ways of communicating to the
internet over wired or wireless LAN. In addition,
multiple kinds of WAN connections are provided
for easily access to the internet.
The ORing TAR-120-M12 / TAR-3120-M12 wireless AP router comes with IEEE
802.11a/b/g or IEEE 802.11b/g high-performance wireless technologies. It is capable of
data transfer rates up to 54Mbps. It is easy for you to extend the network reach and
increase the number of computers connected to your wireless network.
With built-in HSUPA WAN connection, the ORing TAR-120-M12 / TAR-3120-M12
wireless AP router can be mounted in harsh environment easily to provide internet access
anytime and anywhere.
The ORing TAR-120-M12 / TAR-3120-M12 wireless AP router's VPN capability creates
encrypted "Virtual Tunnels" through the internet, allowing remote or traveling users for
secured connection with the network in your office.
1.2 Software Features
High Speed Air Connectivity: WLAN interface supports up to 54Mbps link speed
connection
Highly Security Capability: WEP/WPA/WPA2/Radius/TKIP supported
Secured Management by HTTPS
Intuitive Web-based management user interface for simply and easily operation
Functions of firewall provides many security features such as blocking attacks from
hacker, especially IP Spoofing, Ping flood, Ping of Death, DOS, DRDOS, Stealth Scan,
ICMP flooding etc.
Advanced firewall configuration to extend the capability and security, such as Virtual
Server, Port Trigger, DMZ host, UPnP auto Forwarding, IP Filter and MAC filter
Page 7
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 2
Switch Mode Supported: Daisy Chain support to reduce usage of switch ports
Event Warning by Syslog, Email, SNMP Trap, Relay and Beeper
1.3 Hardware Features
Built-in HSUPA Cellular Modem with SIM card slot included for WAN connection
Two 10/100Base-T(X) Ethernet ports for WAN / LAN connection individually
Redundant Power Inputs: Dual 12~48 VDC on M23 connector
Casing: IP-40
Dimensions (W x D x H) :
125(W) x 65(D) x 196(H) mm
Operating Temperature: -20 to 70
o
C
Storage Temperature: -40 to 85
o
C
Operating Humidity: 5% to 95%, non-condensing
Page 8
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 3
Hardware Installation
2.1 Wall Mounting Installation
Each AP router can be fixed on the wall. Use screws to mount the AP router on the
wall:
Page 9
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 4
2.2 SIM Card Installation
Important Notice: POWER DOWN THE TAR-120-M12 / TAR-3120-M12 BEFORE
INSTALLING THE SIM CARD.
.
Page 10
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 5
Hardware Overview
3.1 Front Panel
The following table describes the labels that stick on the TAR-120-M12 / TAR-3120-M12.
Port Description
10/100 Base-T(X) fast
Ethernet ports on
M12 connector
(D-coding)
2 10/100Base-T(X) fast Ethernet ports support auto-negotiation.
Default Setting :
Speed: auto
Relay Output on M12
(A-coding) connector
Relay output to carry capacity of 3A at 24VDC
Redundant power
inputs on M23
connector
Dual Power Inputs. 12~48 VDC on M23 connector (24 VDC Typ)
Page 11
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 6
TAR-120-M12 / TAR-3120-M12
Page 12
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 7
1. 2.4/5.8GHz antenna with typical 3.0 dBi antenna for IEEE 802.11a mode and 2 dBi for
IEEE 802.11b/g mode
2. LED for PWR1 and system status. When PWR1 links, the green LED will light On.
3. LED for PWR2 and system status. When PWR2 links, the green LED will light On.
4. LED for Ethernet port1 status.
5. LED for Ethernet port2 status.
6. LED for WLAN link status.
7. LED for internal HSUPA modem connection
8. LED for Fault Relay. When the fault occurs, the red LED will light On.
9. Power Input port on M23 connector
10. 2.4/5.8GHz antenna for WLAN2 of TAR-3120-M12 (TAR-3120-M12 only)
11. Ethernet port1 on M12(D-coding) connector
12. Ethernet port2 on M12(D-coding) connector
13. Relay output on M12(A-coding) connector
14. 850/900/1800/2100MHz antenna for internal HSUPA modem
15. HSUPA Cellular Modem with SIM card slot
3.2 Front Panel LEDs
LED Color Status Description
PWR1
Green/Red
Green On DC power 1 activated.
Green blinking Device been located
Red blinking
Indicates an IP conflict, or
DHCP or BOOTP server did
not respond properly
PWR2
Green/Red
Green On
DC power 2 activated.
Green blinking Device been located
Red blinking
Indicates an IP conflict, or
DHCP or BOOTP server did
not respond properly
ETH1
Amber
On Port link up at 10Mbps.
Blinking Data transmitted.
Green
On Port link up at 100Mbps.
Blinking Data transmitted.
ETH2
Amber
On Port link up at 10Mbps.
Blinking Data transmitted.
Green On Port link up at 100Mbps.
Page 13
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 8
Blinking Data transmitted.
WLAN
Green
On WLAN1 activated.
Blinking WLAN1 Data transmitted.
Red(TAR-3120-M12
only)
On WLAN2 activated.
Blinking WLAN2 Data transmitted.
WAN
Green
On Modem Ready
Blinking Checking Modem status
Fault
Red On
Fault relay. Power failure or
Port down/fail.
Page 14
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 9
Cables and Antenna
4.1 Ethernet Cables
The TAR-120-M12 / TAR-3120-M12 WLAN AP router has two 10/100Base-T(X)
Ethernet ports. According to the link type, the AP use CAT 3, 4, 5,5e UTP cables to
connect to any other network device (PCs, servers, switches, routers, or hubs). Please
refer to the following table for cable specifications.
Cable Types and Specifications
Cable Type Max. Length Connector
10Base-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft) M12(D-coding)
100Base-T(X) Cat. 5 100-ohm UTP UTP 100 m (328 ft) M12(D-coding)
4.2 100BASE-TX/10BASE-T Pin Assignments
With 100Base-T(X)/10Base-T cable, pins 1 and 2 are used for transmitting data, and
pins 3 and 6 are used for receiving data.
M12(4-pin, D-coding) Pin Assignments
Pin Number Assignment
1 RD+
2 TD+
3 RD-
4 TD-
The TAR-120-M12 / TAR-3120-M12 supports auto MDI/MDI-X operation. You can use a
straight-through cable to connect PC and AP. The following table below shows the
10Base-T/ 100Base-T(X) MDI and MDI-X port pin outs.
Page 15
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 10
MDI/MDI-X pins assignment
Pin Number MDI port MDI-X port
1 RD+(receive) TD+(transmit)
2 TD+(transmit) RD+(receive)
3 RD-(receive) TD-(transmit)
4 TD-(transmit) RD-(receive)
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.
4.3 Wireless Antenna
2.4GHz/5.8GHz antenna is used for the WLAN interface of TAR120-M12 / TAR-3120-M12
and connected with a reversed SMA connector. 850/900/1800/2100MHz antenna is used
for built-in HSUPA modem. External RF cable and antenna also can be applied with this
connector.
Cellular Antenna
WLAN Antenna
WLAN Antenna
Page 16
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 11
Management Interface
5.1 First-time Installation
Before installing the TAR-120-M12 / TAR-3120-M12 WLAN AP router, you need to
access WLAN AP router with a computer via wired LAN connection or wireless LAN
interface. Using wired LAN connection is much easier and is highly recommended.
Basic connection for TAR-120-M12 / TAR-3120-M12
Step 1: Select the Power Source
TAR-120-M12 / TAR-3120-M12 AP router can be powered by +12~48V DC power input.
Step 2: Connect a computer to TAR-120-M12 / TAR-3120-M12
Use an appropriate Ethernet cable (e.g. RJ-45 to M12) to connect the ETH2 port of
TAR-120-M12 / TAR-3120-M12 AP router to the LAN port of a computer. If the LED of
the LAN port lights up, it indicates that the connection is established. After that, the
computer will initiate a DHCP request to get an IP address from the AP router.
Page 17
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 12
Step 3: Use the web-based manager to configure TAR-120-M12 / TAR-3120-M12
The default gateway IP of TAR-120-M12 / TAR-3120-M12 AP router is 192.168.10.1.
Start the web browser of your computer and type http://192.168.10.1
in the address box to
access the webpage. A login window will popup, and then enter the default login name
admin and password admin.
Login screen
Step 4: Select WAN connection type
Click the Basic Setting in the top menu to enter the WAN configuration page. Select
the proper connection type according to the information of your ISP.
WAN connection type
Step 5: Protect the wireless access in encryption mode
Click Wireless in Basic Setting menu. The default encryption mode is None. Choose
WEP/WPA to enhance the security of wireless connection.
Page 18
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 13

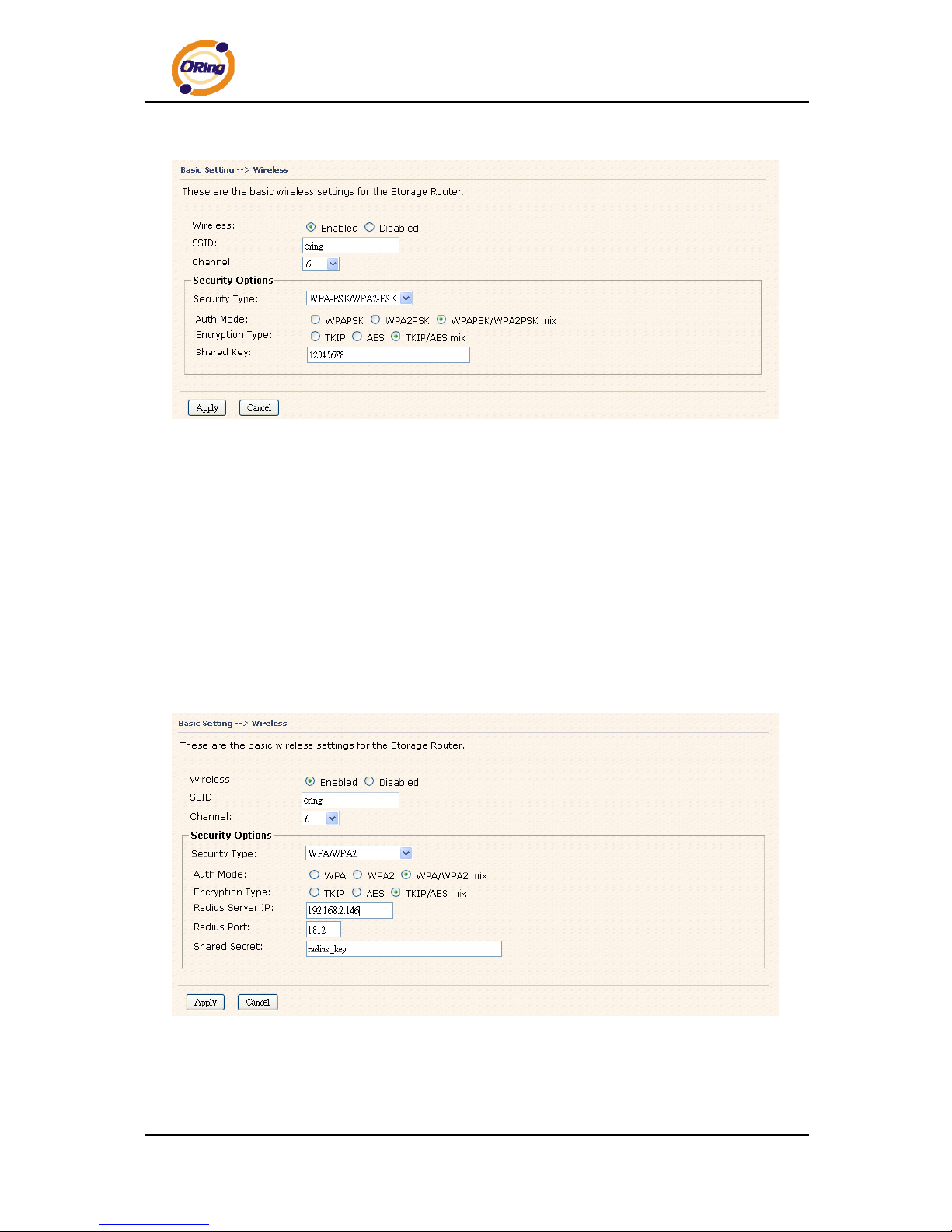

Wireless security option
Step 6: Review the router settings and check router status

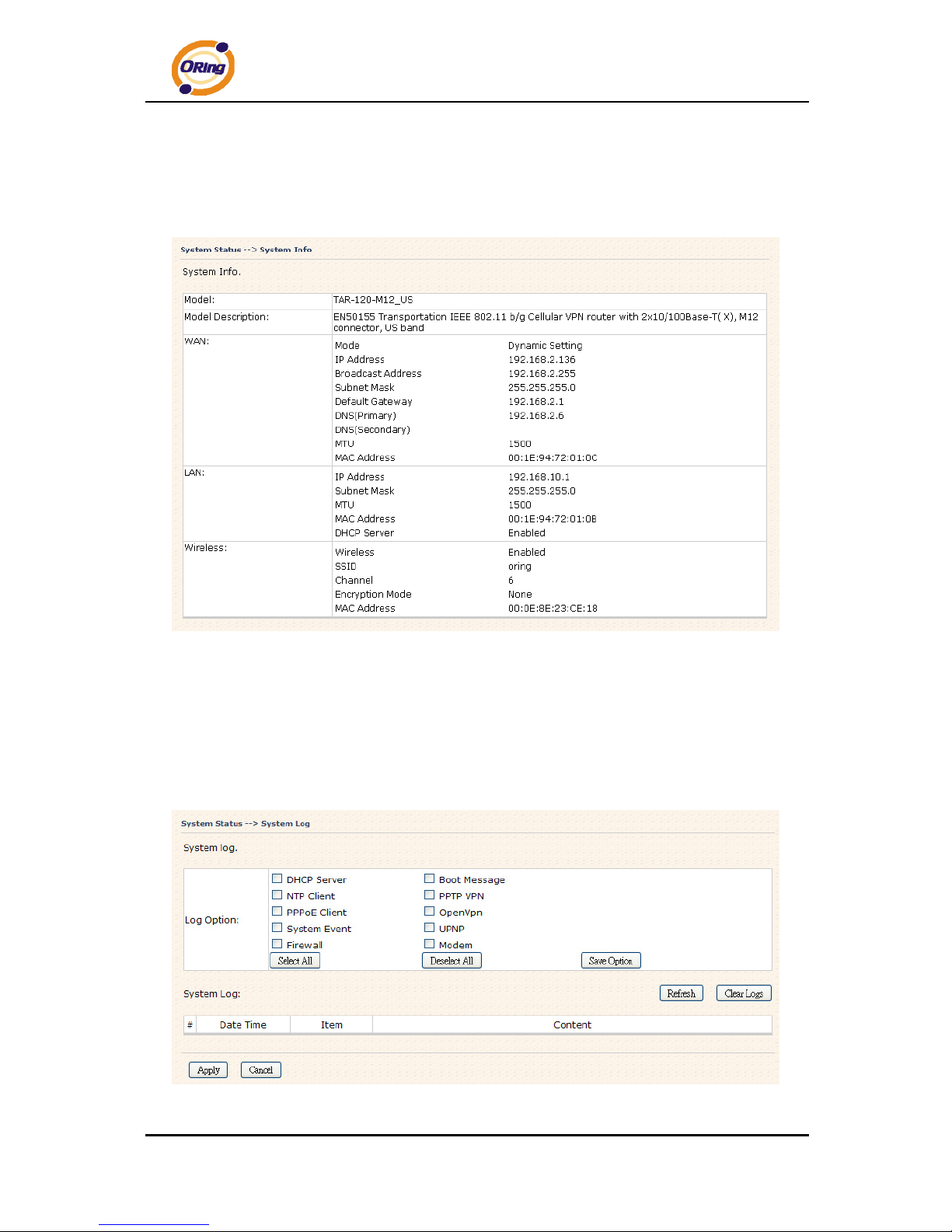

Click the System Status in the top of the menu, the system info page will be shown.
You can check all the configuration and status of the router.
System status Screen
Page 19
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 14
5.2 Configure the Wireless Router
In this section, the web management page will be explained in detail.
With default setting, you can type http://192.168.10.1
in the address box of web browser
to login the web management interface. A login window will be prompted, enter username
admin & password admin to login.
Login screen
For security reasons, we strongly recommend you to change the password. Click on
System Tools > Login Setting and change the password.
5.3 Main Interface
The Home screen will be shown when login successfully.
Main Interface
In the page, you can check the Firmware version, the router running time and the WAN
IP setting.
The following table describes the labels in this screen.
Label Description
Firmware
Show the current firmware version.
Uptime
Show the elapsed time since the AP router is started.
Wan IP
Show the WAN IP address.
Page 20
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 15
5.3.1 Basic Setting
WAN
The TAR-120-M12 / TAR-3120-M12 AP router provides three types of WAN connection.
1. WAN Connection Type: Dynamic/Static IP

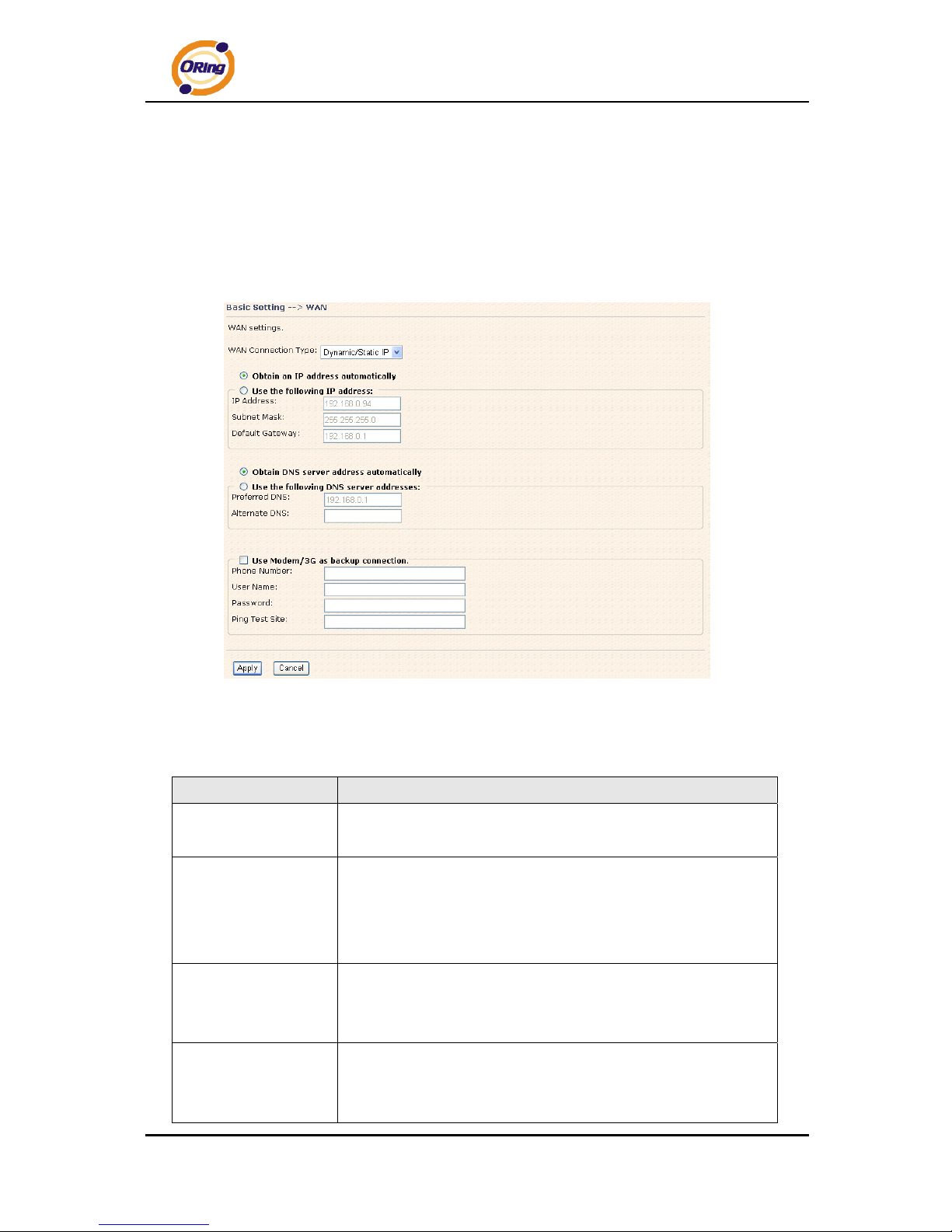

Dynamic/Static IP
The following table describes the labels in this screen.
Label Description
Obtain an IP address
automatically
Select this option if you would like to have an IP address assigned
automatically from the WAN port by DHCP server in your network.
Use the following IP
address
Select this option if you would like to assign an IP address to the
WAN port manually. You should set the IP Address, Subnet Mask
and Default gateway appropriately so that they comply with IP
rules.
Obtain DNS server
address
automatically
Obtain DNS server from DHCP server. If the above Obtain an
IP address automatically is selected, this option will be chosen
accordingly.
Use the following
DNS server
addresses
Specify DNS server address manually.
Page 21
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 16
Use Modem/3G as
backup connection
Enable this option if you want to use built-in HSUPA modem as
backup connection when normal connection is lost.
Phone Number, User Name and Password: Use these settings
to dial up the built-in HSUPA modem connection.
Ping Test Site: Use this site address to check if the connection is
alive or lost. Take www.google.com as an example.
2. WAN Connection Type: PPPoE

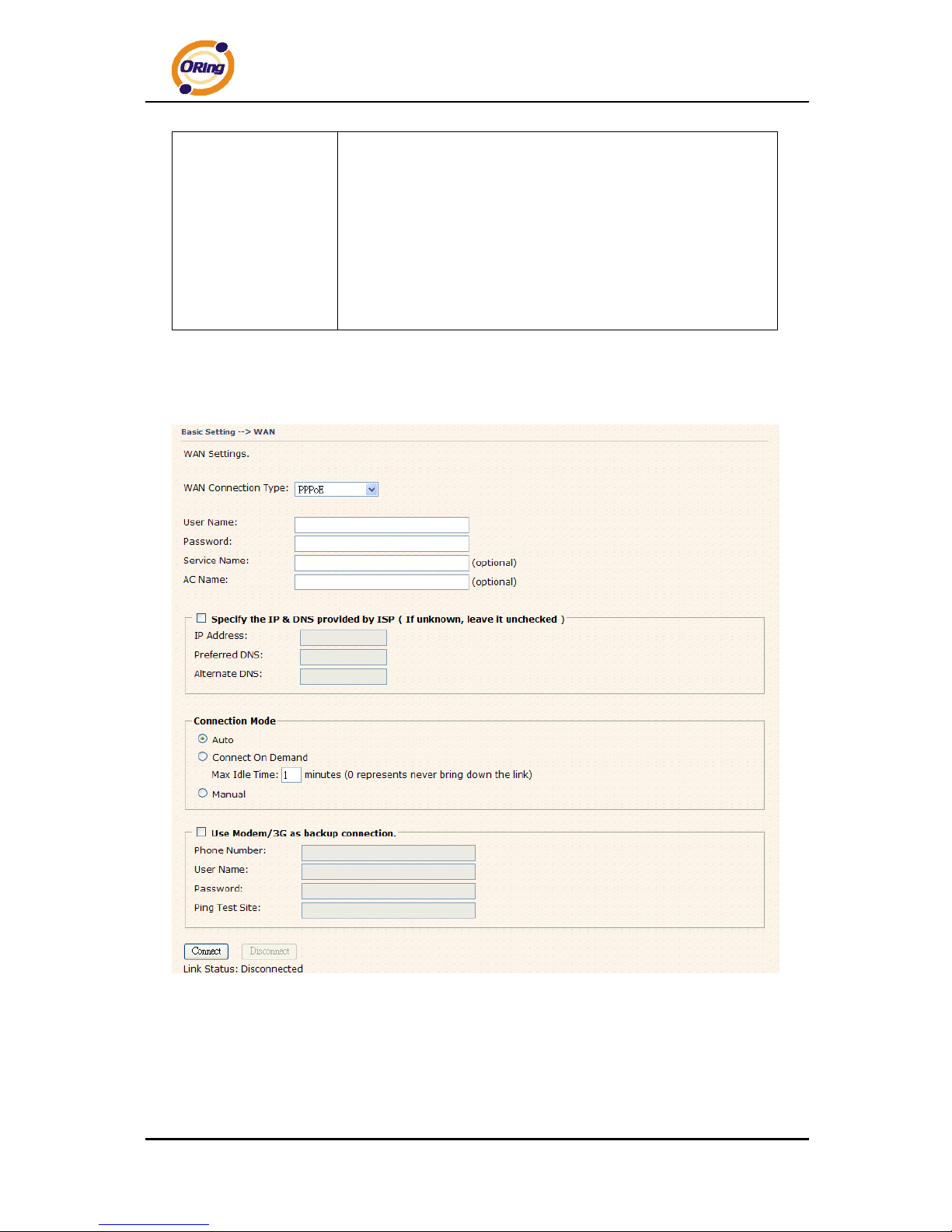

PPPoE Screen
Page 22
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 17
The following table describes the labels in this screen.
Label Description
User Name /
Password
Enter the username & password provided by your Internet
Service Provider (ISP).
Service Name
Enter the service name provided by your ISP.
AC Name
Enter the name of the access concentrator as provided by your
ISP.
Specify the IP & DNS
provided by ISP
Enter static IP and DNS address which may required by some ISP
Connection Mode
Auto: Connect automatically when the router boots up.
Connect on Demand: Select to disconnect the PPP session if
the router has had no traffic for the specified amount of time.
Enter the Max Idle Time in minutes.
Manual: Select this option to use only the Connect/Disconnect
buttons to call up or close the connection.
Use Modem/3G as
backup connection
Enable this option if you want to use built-in HSUPA modem as a
backup connection when PPPoE connection is lost.
Phone Number, User Name and Password: Use these settings
to dial up the built-in HSUPA modem connection.
Ping Test Site: Use this site address to check if the connection is
alive or lost. Example is as www.google.com
3. WAN Connection Type: Modem / 3G
For using this type of connection, use the built-in HSUPA modem.
Page 23
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 18

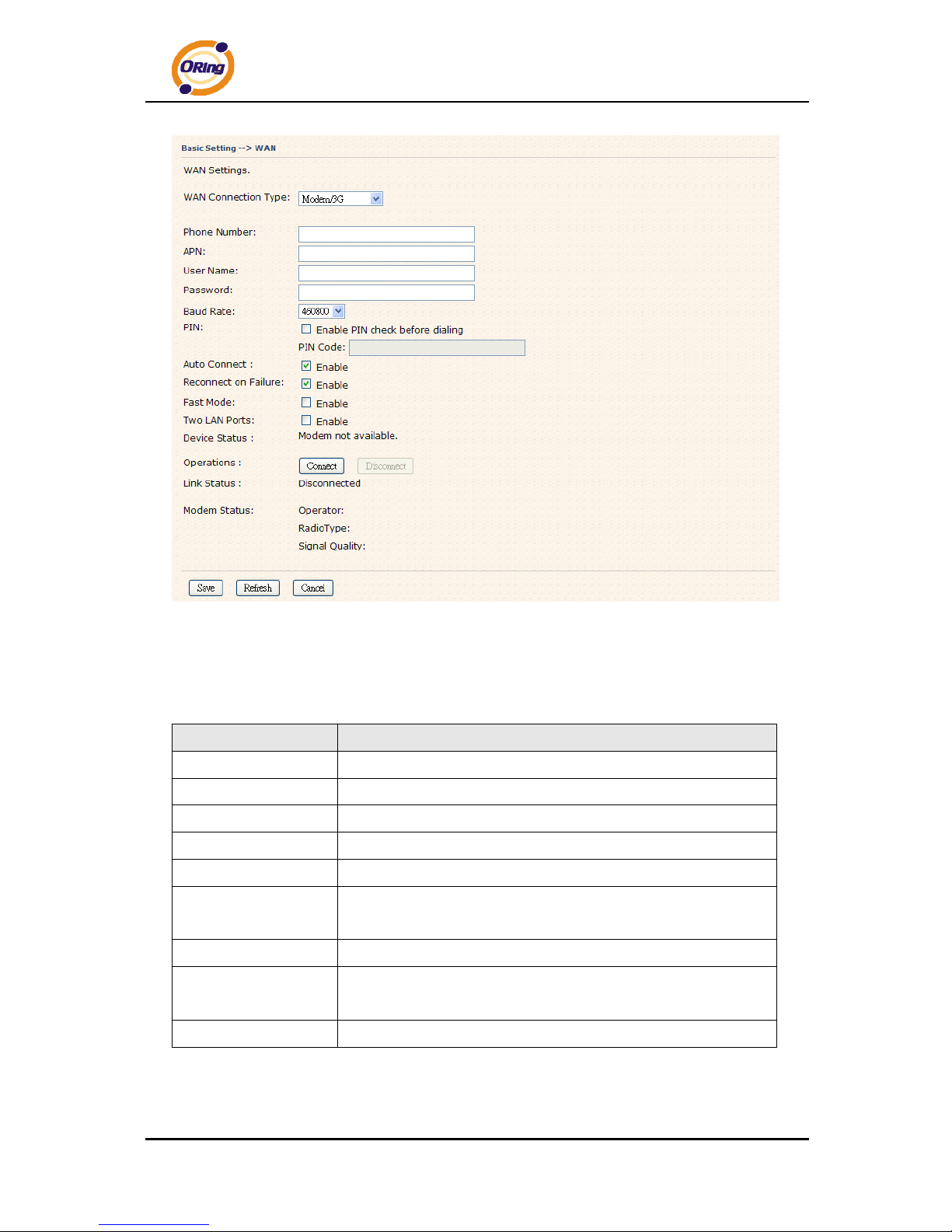

Modem/3G Screen
The following table describes the labels in this screen.
Label Description
Phone Number
Telephone number provided by your ISP.
APN
Enter the APN value it is optional
User Name
User name provided by your ISP.
Password
Password provided by your ISP.
PIN
Enter the PIN code if PIN check is required.
Auto Connect
If this option is enabled, the connection will be called up when
router boots up.
Device Status
Show the status of built-in HSUPA modem device.
Operations
Click “Connect” to call up the built-in HSUPA modem. Click
"Disconnect" to shut down the connection.
Link Status
Show the status of connection, up, down or connecting.
Page 24
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 19

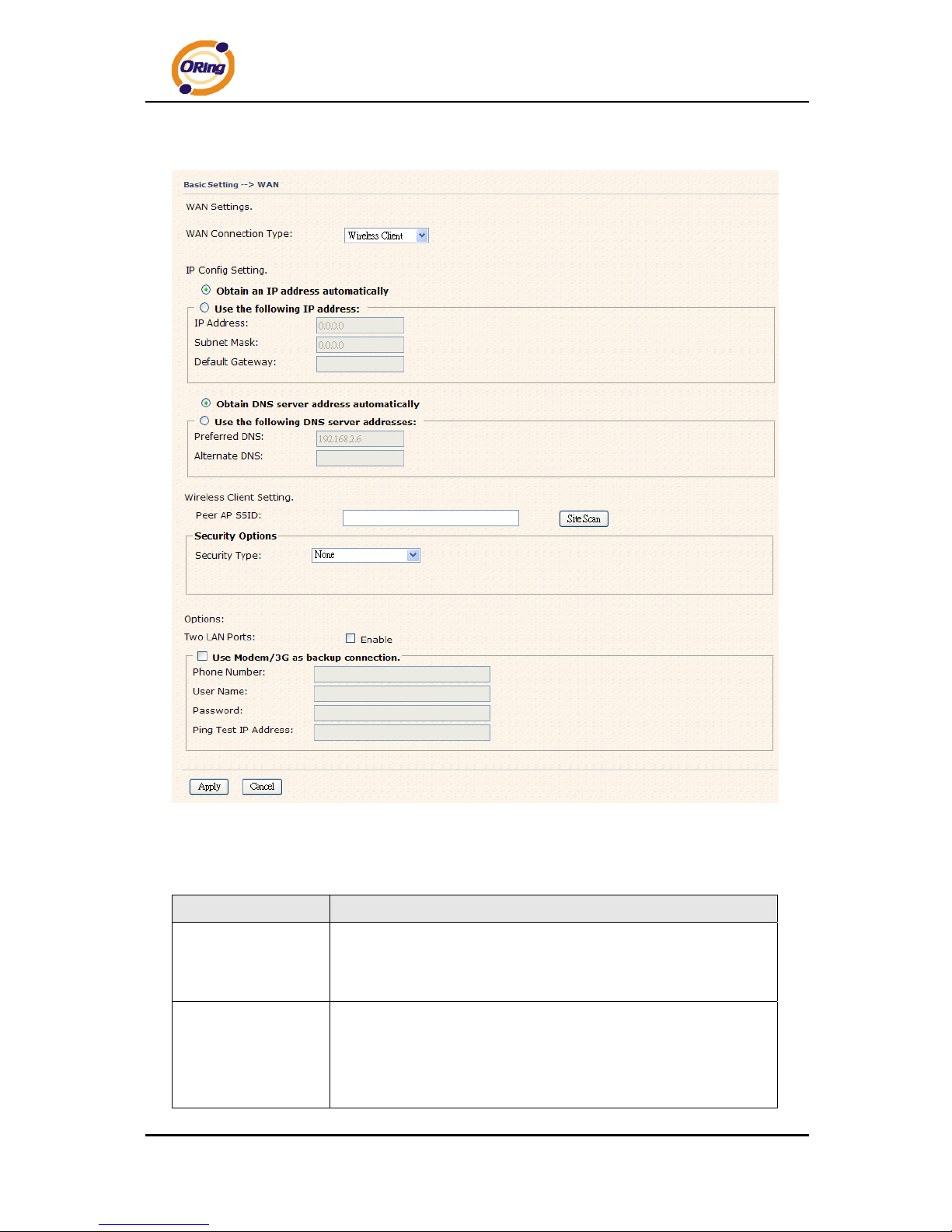

4. WAN Connection Type: Wireless client
Wireless Client on WAN
The following table describes the labels in this screen.
Label Description
Obtain an IP
address
automatically
Select this option if you would like to have an IP address assigned
automatically from the WAN port by DHCP server in your network.
Use the following IP
address
Select this option if you would like to assign an IP address to the
WAN port manually. You should set the IP Address, Subnet Mask
and Default gateway appropriately so that they comply with IP
rules.
Page 25
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 20
Obtain DNS server
address
automatically
Obtain DNS server from DHCP server. If the above Obtain an IP
address automatically is selected, this option will be chosen
accordingly.
Use the following
DNS server
addresses
Specify DNS server address manually.
Peer AP SSID
Enter the other AP or AR SSID which you want to client.
Site Scan
You can scan the SSIDs which used for AP mode in the certainty
area.
Security Type
Set the same security with the Client unit which you want to
connect.
Use Modem/3G as
backup connection
Enable this option if you want to use built-in HSUPA modem as a
backup connection when normal connection is lost.
Phone Number, User Name and Password: Use these settings
to dial up the built-in HSUPA modem connection.
Ping Test Site: Use this site address to check if the connection is
alive or lost. Take www.google.com as an example.
LAN
These are the IP settings of the LAN interface for the TAR-120-M12 /
TAR-3120-M12 WLAN AP router. The LAN IP address is privately for your
internal network and can not be exposed on the Internet.

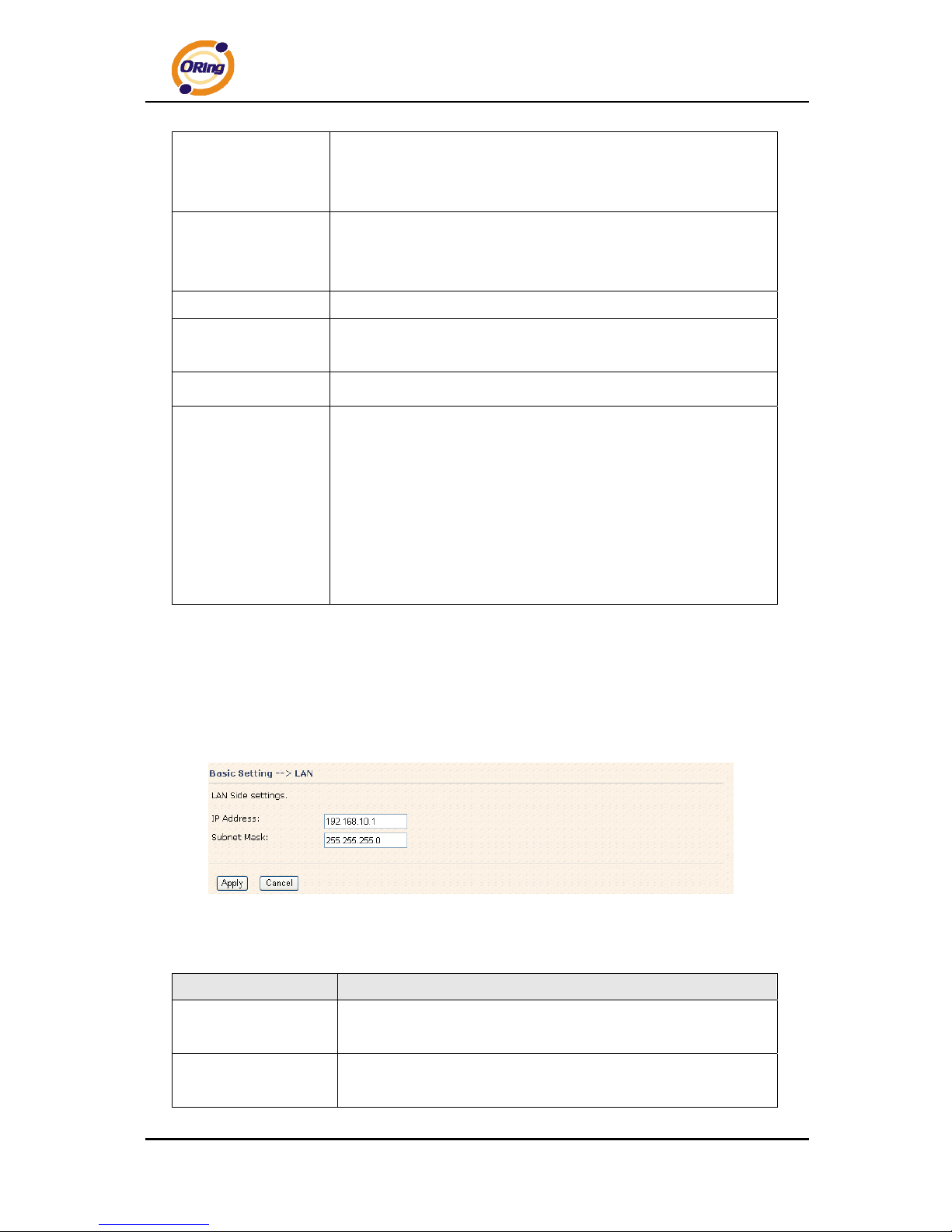

LAN Screen
The following table describes the labels in this screen.
Label Description
IP Address
The IP address of the LAN interface, the default IP address is
192.168.10.1
Subnet Mask
The Subnet Mask of the LAN interface, the default Subnet mask
is 255.255.255.0
Page 26
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 21
DHCP
DHCP stands for Dynamic Host Control Protocol. The TAR-120-M12 /
TAR-3120-M12 AP router was built-in DHCP server. The internal DHCP server will
assign an IP address to the computers (DHCP client) on the LAN automatically.
Set your computers to be DHCP clients by setting their TCP/IP settings to obtain
an IP address automatically. The DHCP server will allocate an unused IP address
from the IP address pool to the requesting computer automatically.
1. DHCP Sever

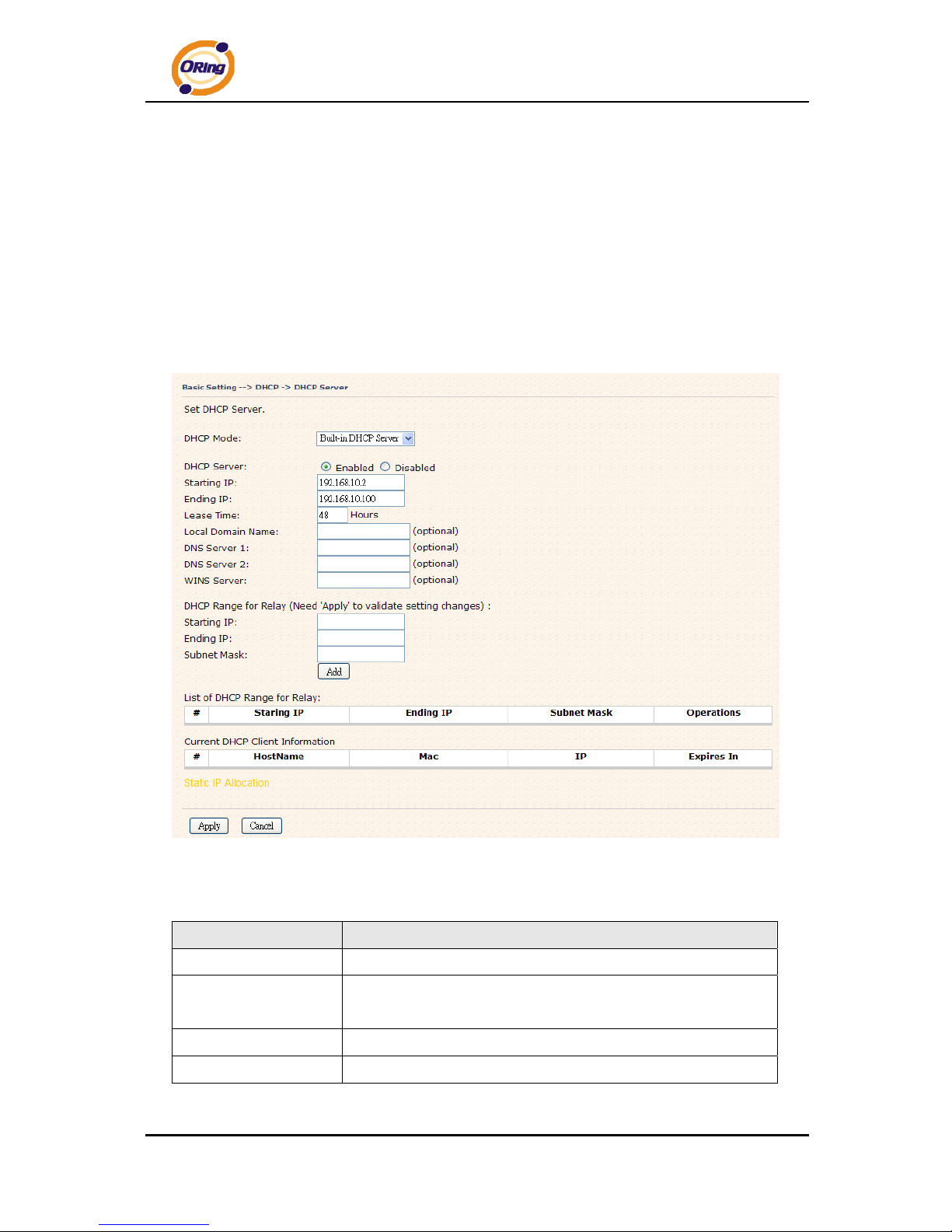

DHCP Server Screen
The following table describes the labels in this screen.
Label Description
DHCP Mode
Select built-in DHCP server or DHCP Forwarder
DHCP Server
Enable or Disable the DHCP Server. The default setting is
Enabled.
Starting IP
The starting IP address of the IP range for the DHCP server
Ending IP
The ending IP address of the IP range for the DHCP server
Page 27
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 22
Lease Time
The period of time for the IP to be leased. Enter the Lease time.
The default setting is 48 hours.
Local Domain Name
Enter the local domain name of private network. It is optional.
DNS Server 1&2
Enter the DNS Server. It is optional.
WINS Server
Enter the WINS Server. It is optional.
DHCP Relay start IP
Enter DHCP Relay starting IP
DHCP Relay end IP
Enter DHCP Relay Ending IP
Subnet Mask
Enter DHCP Relay IP Subnet mask
List of DHCP Range
for relay
List DHCP Relay IP range
Current DHCP Client
Information
List of the computers on your network that are assigned an IP
address by internal DHCP server.
2. IP Allocation
The IP Allocation provides one-to-one mapping of MAC address to IP address.
When a computer with the MAC address requests an IP address from the
TAR-120-M12 / TAR-3120-M12 AP router, it will be assigned with the IP address
according to the mapping. You can choose one from the client lists and add it to the
mapping relationship.

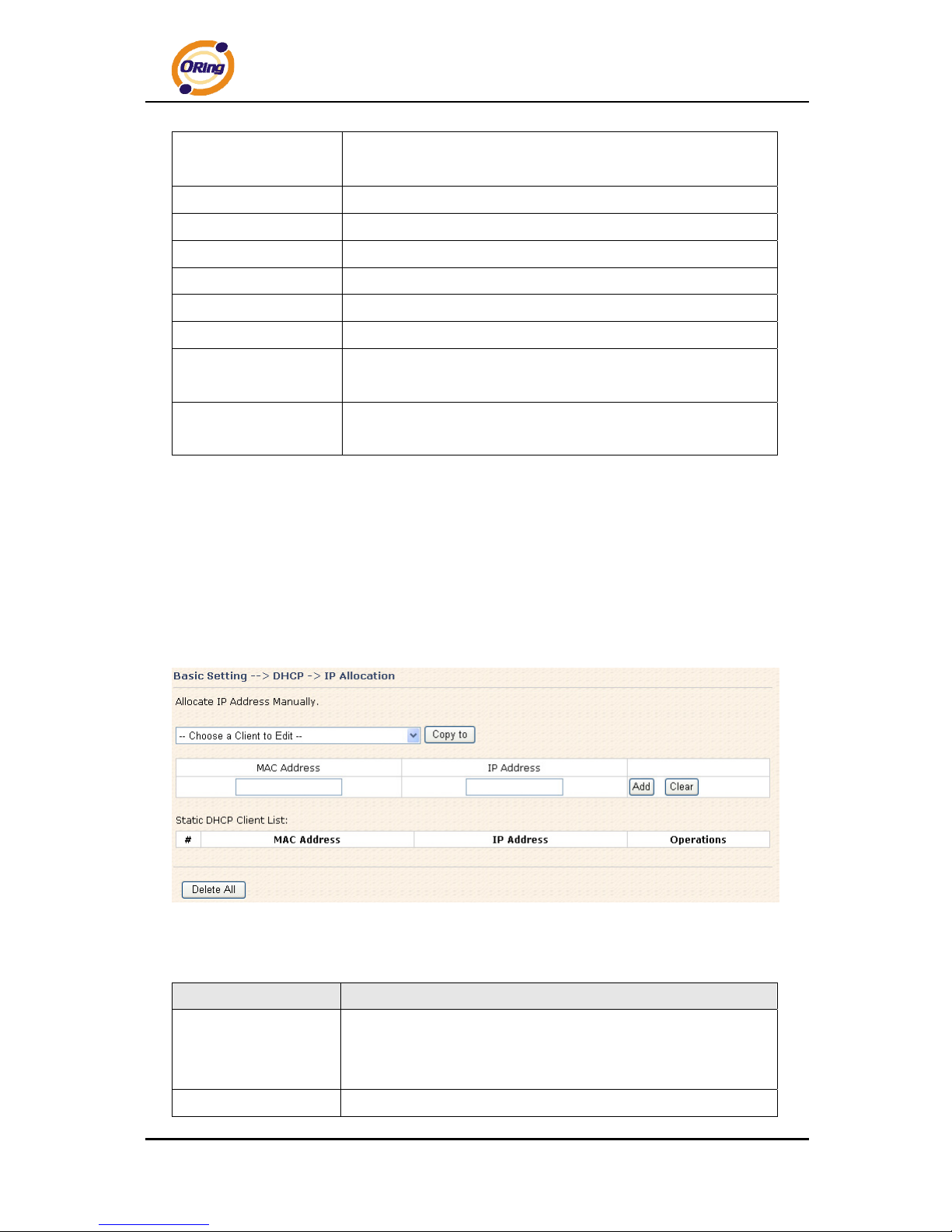

IP Allocation Screen
The following table describes the labels in this screen.
Label Description
Choose a Client to
Edit
The list shows the MAC addresses and IP addresses that are
already assigned by TAR-120-M12 / TAR-3120-M12. Choose one
from the list and click Copy to button for editing.
MAC Address
The MAC addresses of the computer.
Page 28
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 23
IP Address
The IP address to be related to the MAC address.
Static DHCP Client
List
The list shows the MAC address and IP address one-to-one
relationship.
Wireless (WLAN 1 and WLAN 2)
There are two wireless interfaces for TAR-3120-M12: WLAN 1 (5 GHz band) and
WLAN 2 (2.4 GHz band). Settings for both interfaces are the same and can be set separately.

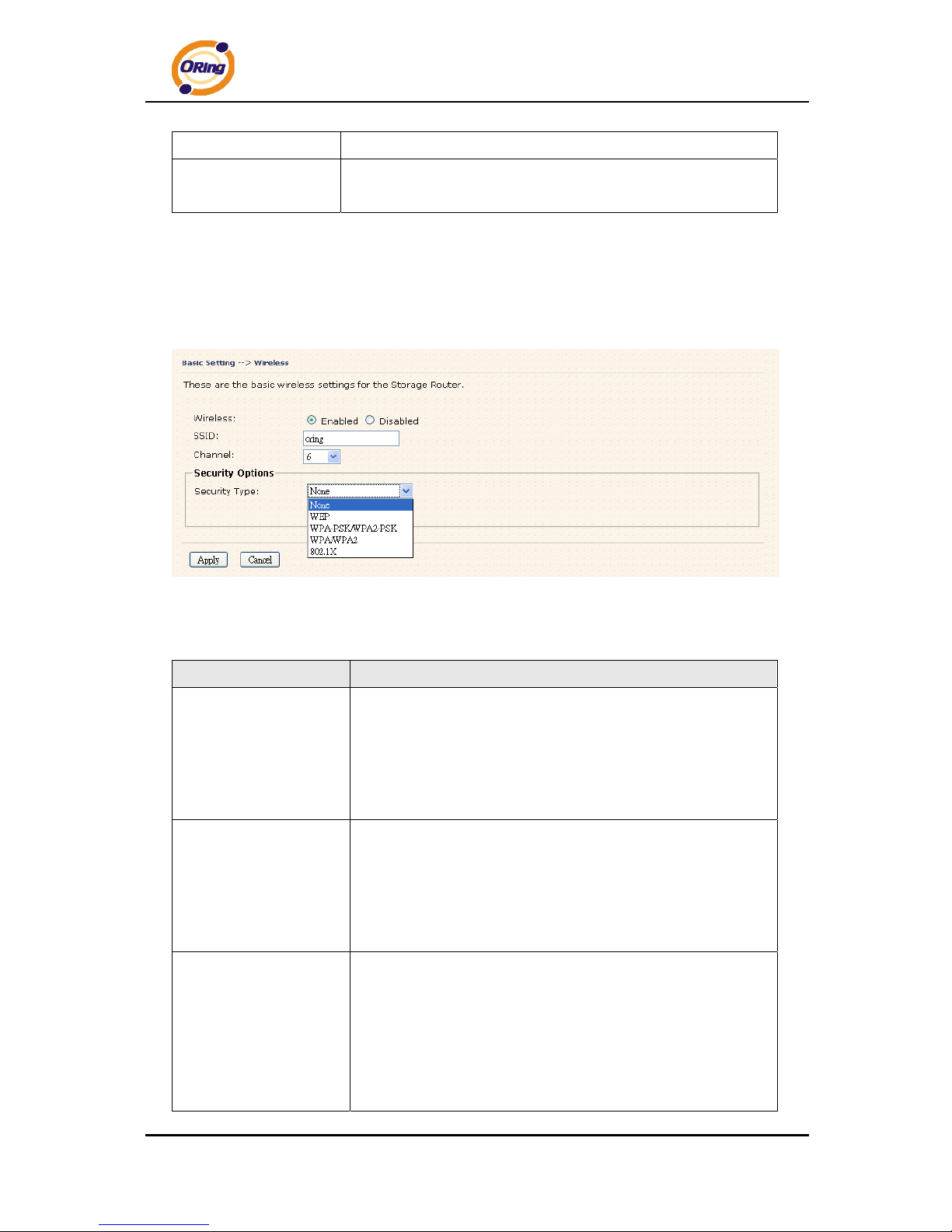

Wireless Screen
The following table describes the labels in this screen.
Label Description
SSID
Service Set Identifier (SSID) is a unique name that identifies a
network. All devices on the network must set the same SSID
name in order to communicate on the network. If you change
the SSID from the default setting, input your new SSID name in
this field.
Channel
Channel 36 is the default channel for WLAN 1 and Channel 6
for WLAN 2. All devices on the network must share the same
channel.*
*Note: The wireless devices will automatically scan and match the
wireless setting of the AP router with the same SSID.
Security options
Select the type of security for WLAN connection:
None: disable encryption.
WEP: Wired Equivalent Privacy (WEP) is a wireless security
protocol for WLAN. WEP provides data encryption for
communicating over the WLAN.
WPA-PSK/WPA2-PSK: WPA
-PSK or WPA2-PSK with a
Page 29
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 24
pre-shared key, each authorized computer is given the same
pass phrase.
WPA/WPA2: Wi-Fi Protected Access (WPA) authentication in
conjunction with a RADIUS server.
802.1x: Authentication through RADIUS server
Security Type – None
No security protection for WLAN.
Security Type – WEP

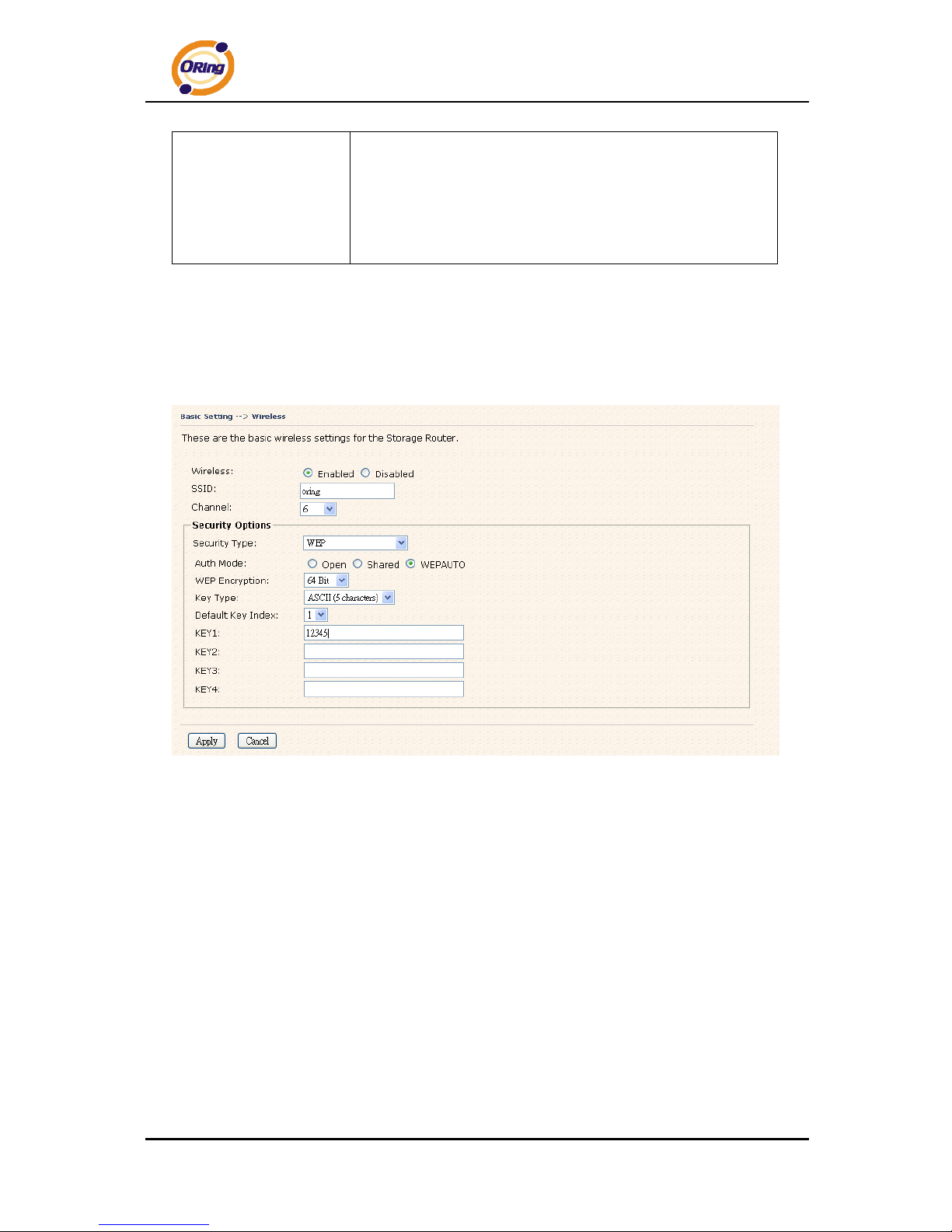

Wireless Security Type-WEP Screen
1. Choose one of three Auth Modes: Open, Share and WEPAUTO
2. WEP Encryption: Select 64 Bit or 128 Bit WEP encryption.
3. Key Type: Select ASCII or Hex key type.
4. Default Key Index: Select one of the keys to be the active key.
5. Key 1-4: Input up to four encryption keys.
ASCII (American Standard Code for Information Interchange) is a code for
representing English letters as numbers from 0-127. Hex digits consist of the numbers
0-9 and the letters A-F.
Page 30
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 25
Security Type – WPA-PSK/WPA2-PSK
Wireless Security Type-WPA-PSK/WPA2-PSK Screen
1. Security Type: Select WPA-PSK/WPA2-PSK.
2. Choose one of three Auth Modes: WPAPSK, WPA2PSK, WPAPSK/WPA2PSK
mix
3. Encryption Type: Select TKIP or AES or TKIP/AES mix.
4. Share Key: Enter your pass phase. The pass phase should be between 8 and 64
characters.
Security Type – WPA /WPA2
Wireless Security Type-WPA/WPA2 Screen
1. Security Type: Select WPA/WPA2
Page 31
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 26
2. Auth Mode: Choose one of three Auth Modes: WPA, WPA2, WPA/WPA2 mix.
3. Encryption Type: Choose one of three Encryption Types: TKIP, AES, TKIP/AES
mix.
4. Radius Server IP: Enter the IP address of the RADIUS Server.
5. Port: Enter the RADIUS port (1812 is default).
6. Shared Secret: Enter the RADIUS password or key.
Security Type – 802.1X

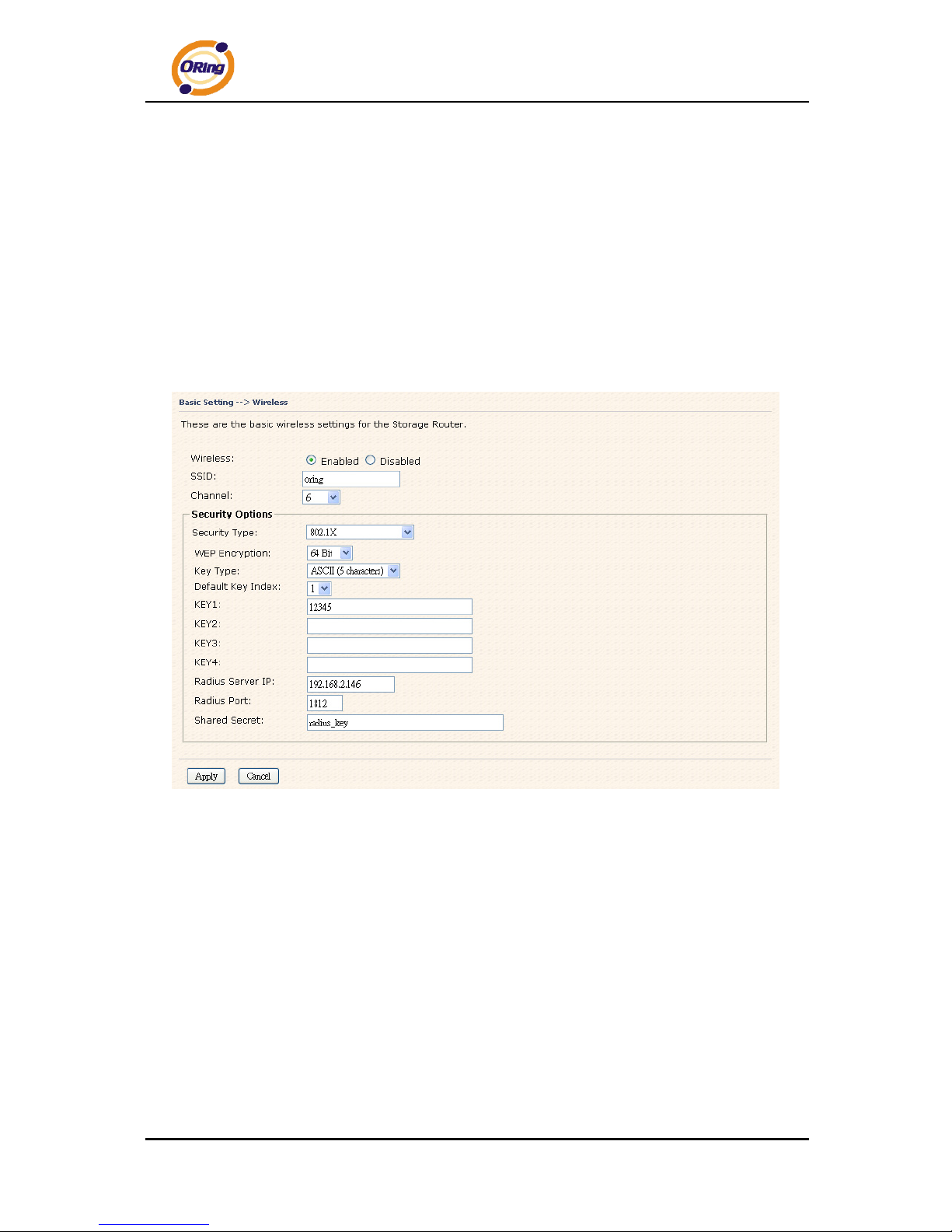

Wireless Security Type-802.1X Screen
1. Security Type: Select 802.1X
2. WEP Encryption: Select 64 Bit or 128 Bit WEP encryption.
3. Key Type: Select ASCII or Hex key type.
4. Default Key Index: Select one of the keys to be the active key.
5. Key 1-4: Input up to four encryption keys.
6. Radius Server IP: Enter the IP address of the RADIUS Server.
7. Port: Enter the RADIUS port (1812 is default).
8. Shared Secret: Enter the RADIUS password or key.
Page 32
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 27
RADIUS, or Remote Authentication Dial-In User Service, is a widely-deployed
protocol that enables companies to authenticate, authorize and account for remote
users who want access to a system or service from a central network server.
RADIUS server validates your proof and also carries on the authorization. So the
RADIUS server received by ISA server responded (point out the customer carries proof
to be not granted) and it means that the RADIUS server did not authorize you to carry.
Even if the proof has already passed an identify verification, the ISA server may also
refuse you to carry a claim according to the authorization strategy of the RADIUS
server.

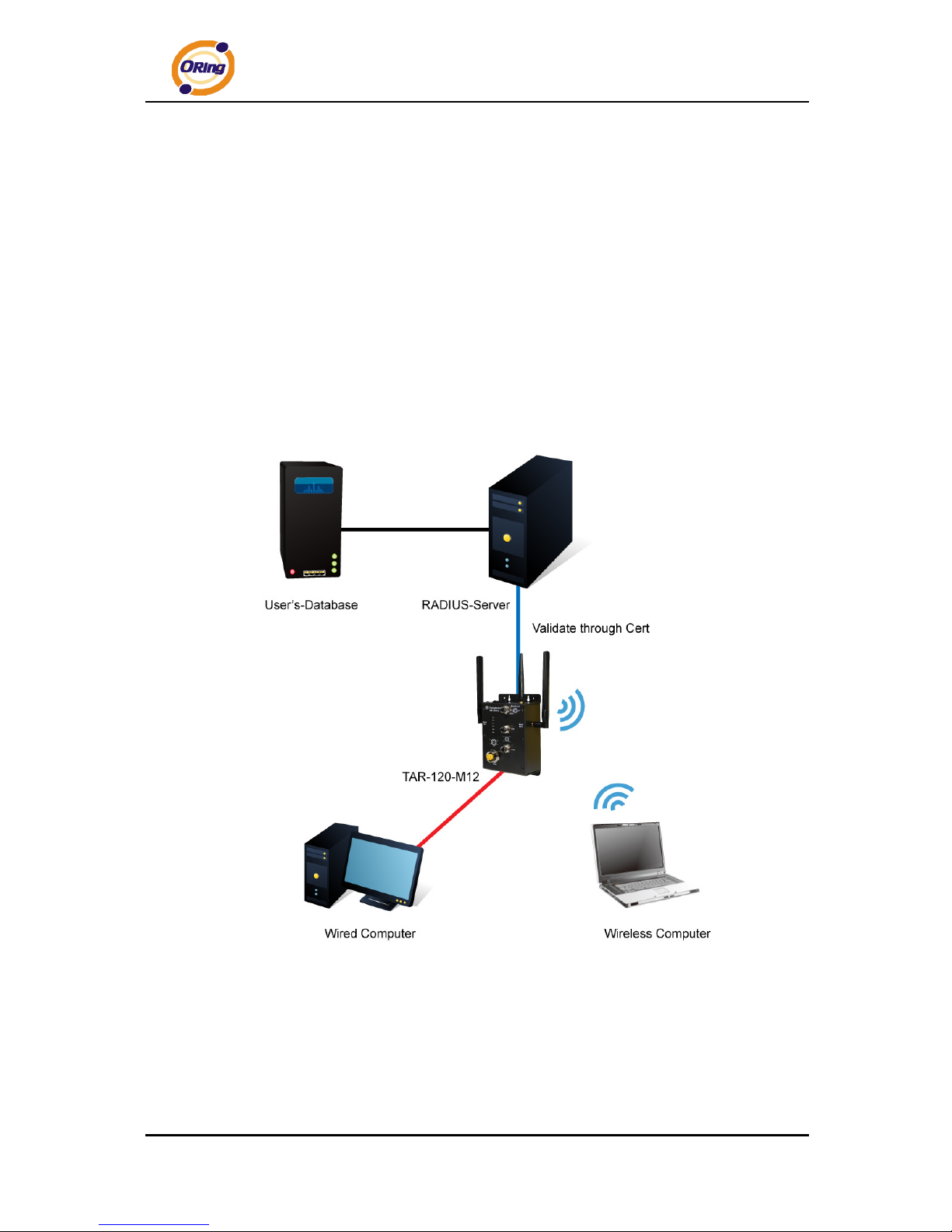

The principle of the RADIUS server is shown in the following pictures:
Connection to RADIUS server
Page 33
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 28
5.3.2 Advanced Setting
Wireless (WLAN 1 and WLAN 2)
1. Parameters

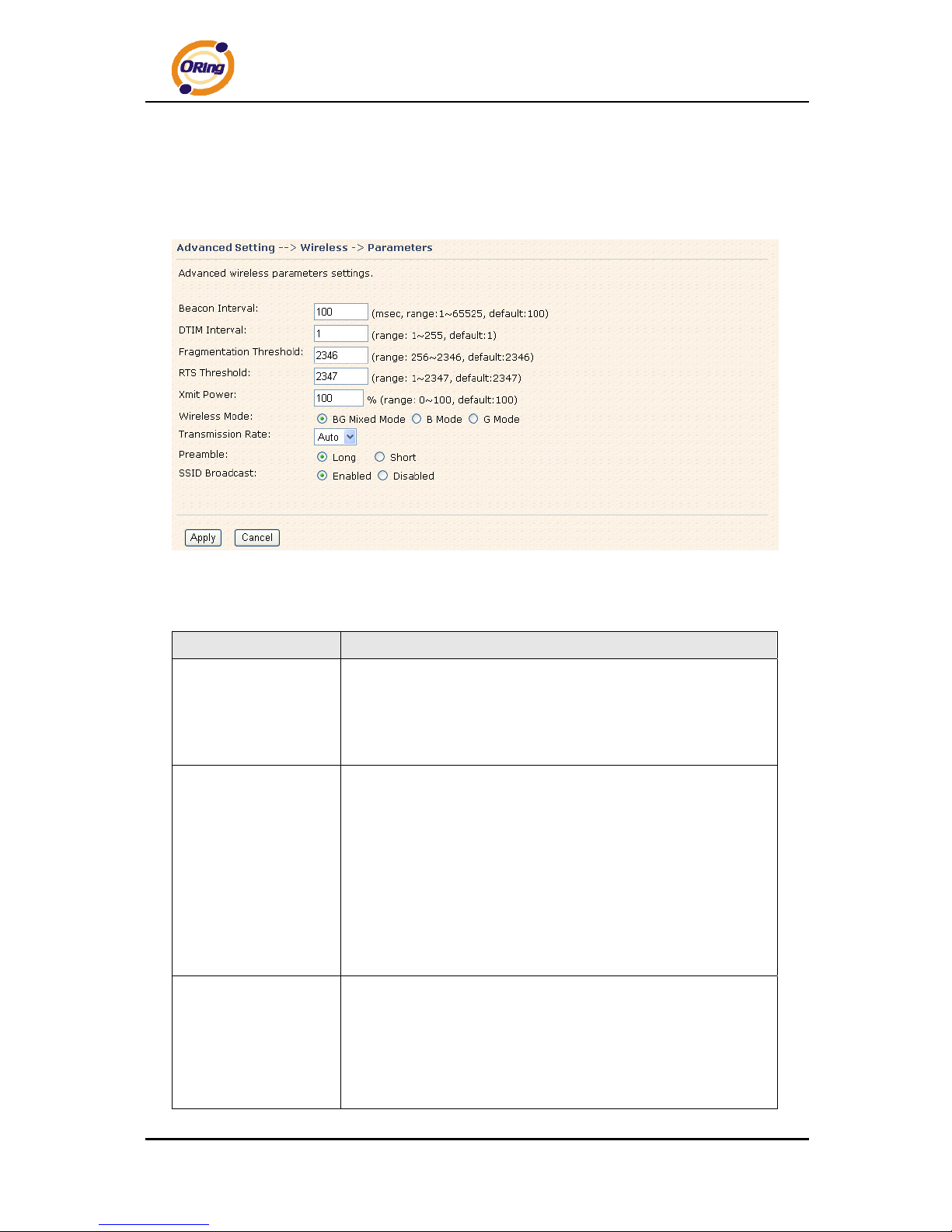

Parameters Screen
The following table describes the labels in this screen.
Label Description
Beacon Interval
The default value is 100. The Beacon Interval value indicates
the frequency interval of the beacon. A beacon is a packet
broadcast by the AP to synchronize the wireless network. 50 is
recommended in poor connection.
DTIM Interval
The default value is 1. This value, between 1 and 255
milliseconds, indicates the interval of the Delivery Traffic
Indication Message (DTIM). A DTIM field is a countdown field
informing clients of the next window for listening to broadcast and
multicast messages. When the AP has buffered broadcast or
multicast messages for associated clients, it sends the next DTIM
with a DTIM Interval value. Its clients hear the beacons and
awaken to receive the broadcast and multicast messages.
Fragmentation
Threshold
This value should remain at its default setting of 2346. The
range is 256-2346 bytes. It specifies the maximum size for a
packet before data is fragmented into multiple packets. If you
experience a high packet error rate, you may slightly increase the
Fragmentation Threshold. Setting the Fragmentation Threshold
Page 34
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 29
too low may result in poor network performance. Only minor
modifications of this value are recommended.
RTS Threshold
This value should remain at its default setting of 2347. The
range is 0-2347 bytes. Should you encounter inconsistent data
flow, only minor modifications are recommended. If a network
packet is smaller than the preset RTS threshold size, the
RTS/CTS mechanism will not be enabled. The AP sends
Request to Send (RTS) frames to a particular receiving station
and negotiates the sending of a data frame. After receiving an
RTS, the wireless station responds with a Clear to Send (CTS)
frame to acknowledge the right to begin transmission.
Xmit Power
This value ranges from 1 - 100 percent, default value is 100
percent.
Wireless Network
Mode
If you have IEEE802.11g and IEEE802.11b devices in your
network, then keep the default setting, BG Mixed mode. If you
have only IEEE802.11g devices, select G Mode. If you would
like to limit your network to only IEEE802.11b devices, then
select B Mode.
Transmission Rate
The default setting is Auto. The range is from 1 to 54Mbps.
The rate of data transmission should be set depending on the
speed of your wireless network. You can select from a range of
transmission speeds, or keep the default setting, Auto, to have
the AP automatically use the fastest possible data rate and
enable the Auto-Fallback feature. Auto-Fallback will negotiate
the best and possible connection speed between the AP and a
wireless client.
Preamble
Values are Long and Short, default value is Long. If your
wireless device supports the short preamble and you are having
trouble getting it to communicate with other IEEE802.11b
devices, make sure that it is set to use the long preamble
SSID Broadcast
When wireless clients survey the local area for wireless networks
to associate with, they will detect the SSID broadcast by the AP.
To broadcast the AP SSID, keep the default setting, Enable. If
you do not want to broadcast the AP SSID, then select Disable.
Page 35
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 30

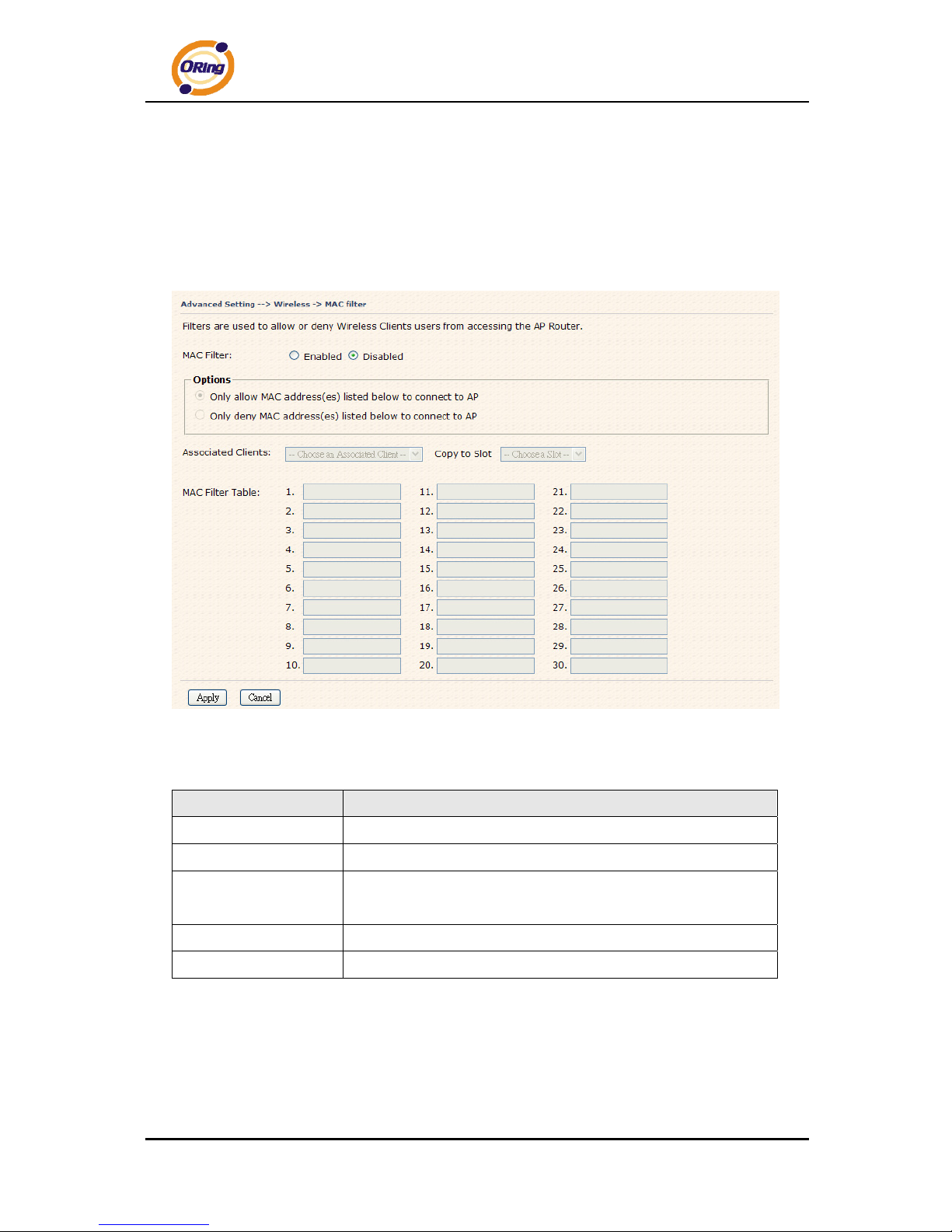

2. MAC Filter
Use MAC Filter to allow or deny wireless clients to associate with TAR-120-M12 /
TAR-3120-M12 AP router. You can manually add a MAC address or select the MAC
address from Associated Clients that are currently associated with TAR-120-M12 /
TAR-3120-M12.

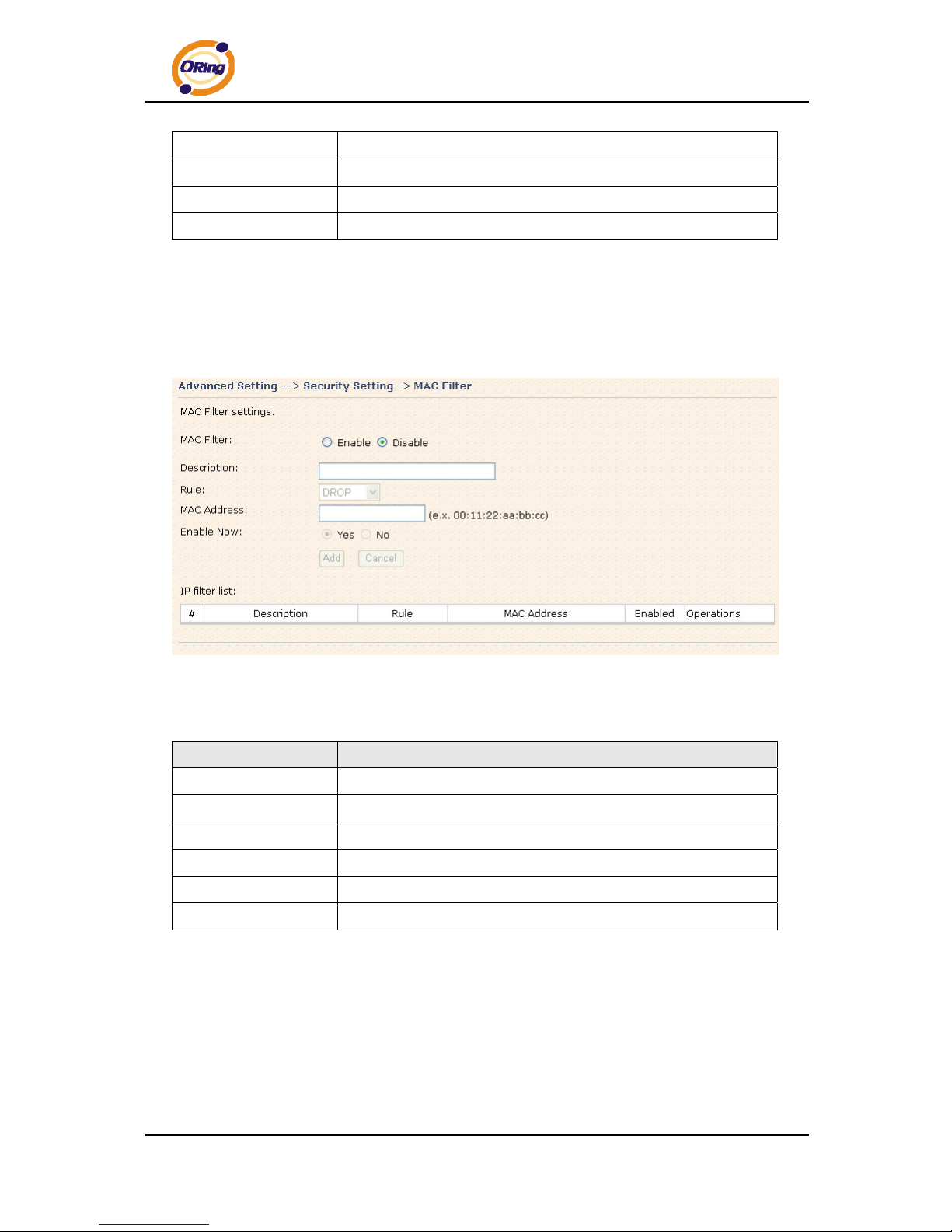

MAC Filter Screen
The following table describes the labels in this screen.
Label Description
MAC Filter
Enable or disable the function of MAC filter.
MAC Filter List
This list shows the MAC addresses that are in the selected filter.
Connected Clients
This list shows the wireless MAC addresses that associated with
AP.
MAC Address
MAC addresses for editing.
Apply
Click Apply to activate the configurations.
NAT Setting
1. Virtual Server
Virtual Server is used for setting up public services on the LAN, such as DNS, FTP and
Page 36
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 31
Email. Virtual Server is defined as a Local Port to the LAN servers, and all requests
from Internet to this Local port will be redirected to the computer specified by the Local IP.
Any PC that was used for a virtual server must have static or reserved IP Address
because its IP address may change when requesting IP by DHCP.

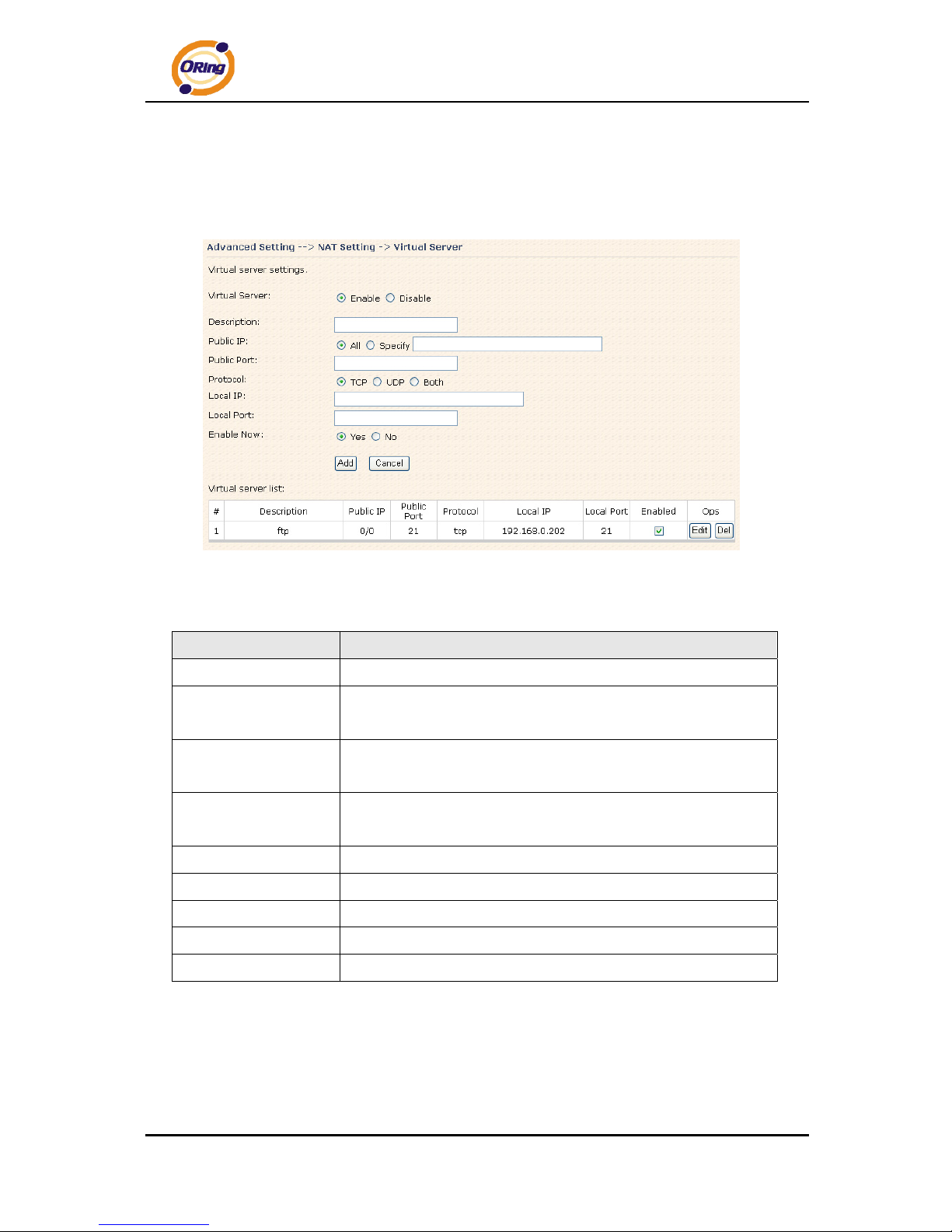

Virtual Server
The following table describes the labels in this screen.
Label Description
Virtual Server
Enable or disable Virtual Server.
Description
Enter the description of the entry. Acceptable characters consist
of '0-9', 'a-z', 'A-Z'. This field accepts null value.
Public IP
Enter the public IP that is allowed to access the virtual service, if
not specified, choose All.
Public Port
The port number on the WAN (Wide Area Network) side that will
be used to access the virtual service.
Protocol
The protocol used for the virtual service.
Local IP
The IP of the computer that will be providing the virtual service.
Local Port
The port number of the service used by the Private IP computer.
Enable Now
Enable the virtual server entry after adding it.
Virtual server list
Click Edit to edit the virtual service entry, Del to delete the entry.
2 Port Trigger
Some applications require multiple connections, like Internet games, video conferencing,
Internet calling and so on. These applications cannot work with a pure NAT router. Port
Page 37
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 32
Trigger is used for some of the applications that can work with an NAT router.

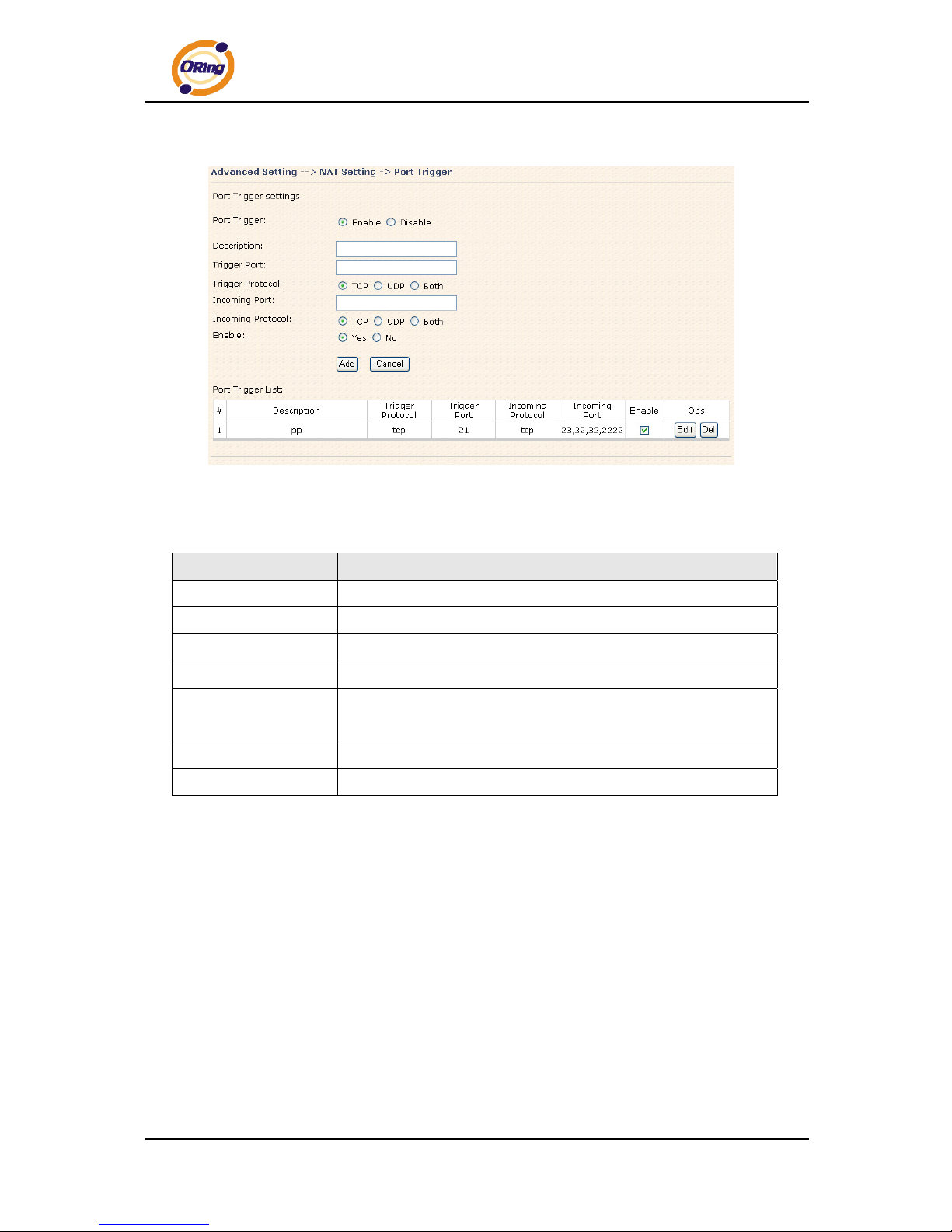

Port Trigger Screen
The following table describes the labels in this screen.
Label Description
Port Trigger
Enable or disable Port Trigger.
Description
This is the description for the entry.
Trigger Port
This is the port used to trigger the application.
Trigger Protocol
This is the protocol used to trigger the application.
Incoming Port
This is the port number on the WAN side that will be used to
access the application.
Enable
Enable the rule after adding the entry.
Port Trigger List
Click Edit to edit the entry, click Del to delete the entry.
3. DMZ
It allows a computer to be exposed to the Internet. This feature is useful for gaming
purposes.
Enter the IP address of the internal computer that will be the DMZ host. Adding a
client to the DMZ may expose your local network with variety of security risks, so only
use this option carefully.
Page 38
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 33

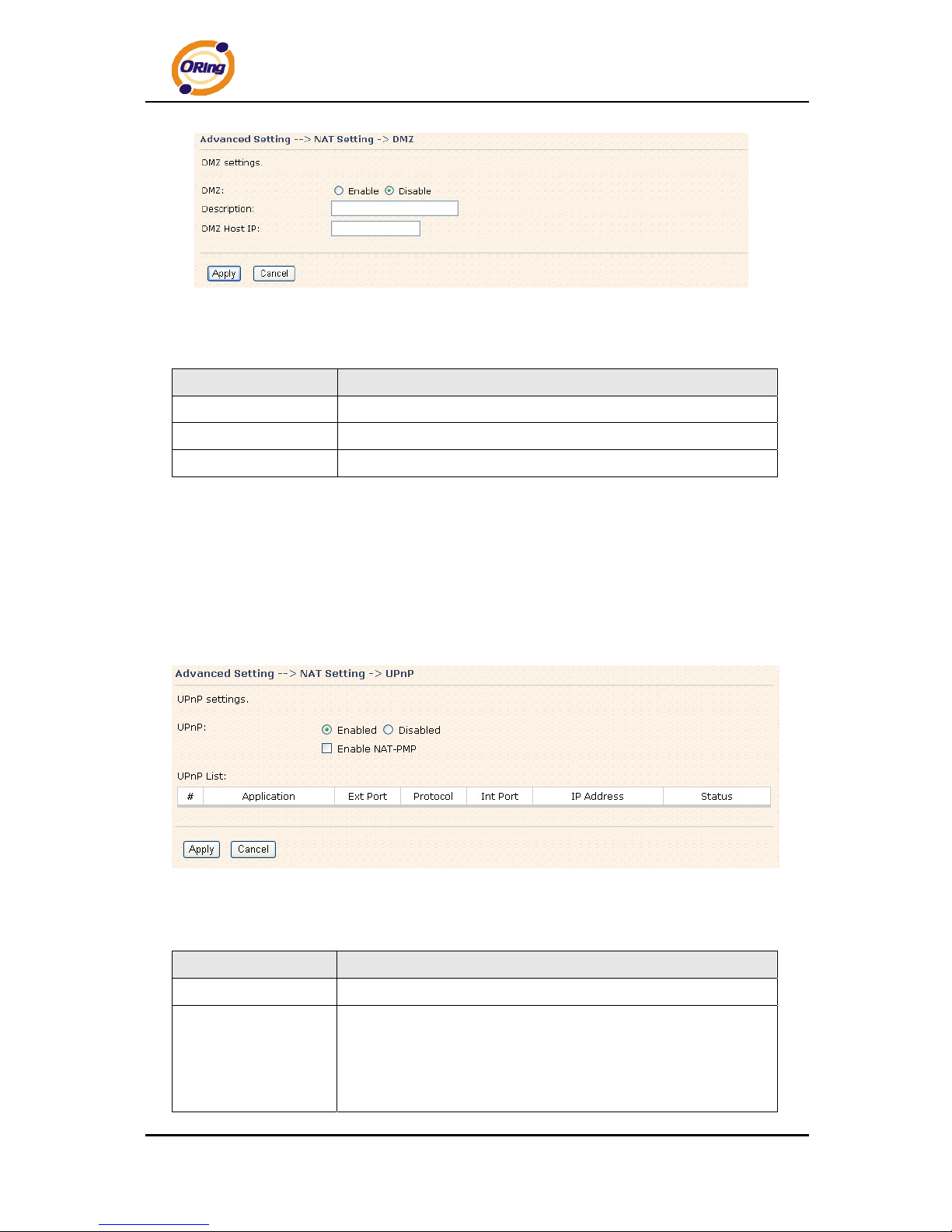

DMZ Screen
The following table describes the labels in this screen.
Label Description
DMZ
Enable or disable the DMZ.
Description
Description for the DMZ host entry.
DMZ Host IP
Enter the IP address of the computer to be in the DMZ.
4. UPnP
The UPnP (Universal Plug and Play) feature allows the devices, such as Internet
computers, to access the local host resources or devices as needed. UPnP devices can
be automatically discovered by the UPnP service application on the LAN.
UPnP Screen
The following table describes the labels in this screen.
Label Description
UPnP
Enable or disable UPnP.
Enable NAT-PMP
NAT-PMP allows a computer in a private network (behind a NAT
router) to automatically configure the router to allow parties
outside the private network to contact with each other. NAT-PMP
operates with UDP. It essentially automates the process of port
Page 39
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 34
forwarding. Check the box to enable NAT-PMP.
UPnP List
This table lists the current auto port forwarding information.
Application: The application that generates this port forwarding.
Ext Port: The port opened on WAN side.
Protocol: The protocol type.
Int Port: The port redirected to the local computer.
IP Address: The IP address of local computer to be redirected to.
Status: This status shows if the entry is valid or not.
Security Setting
1. IP Filter
Filters are used to deny or allow LAN computers from accessing the internet. It also
allows or denies WAN hosts to access LAN computers.

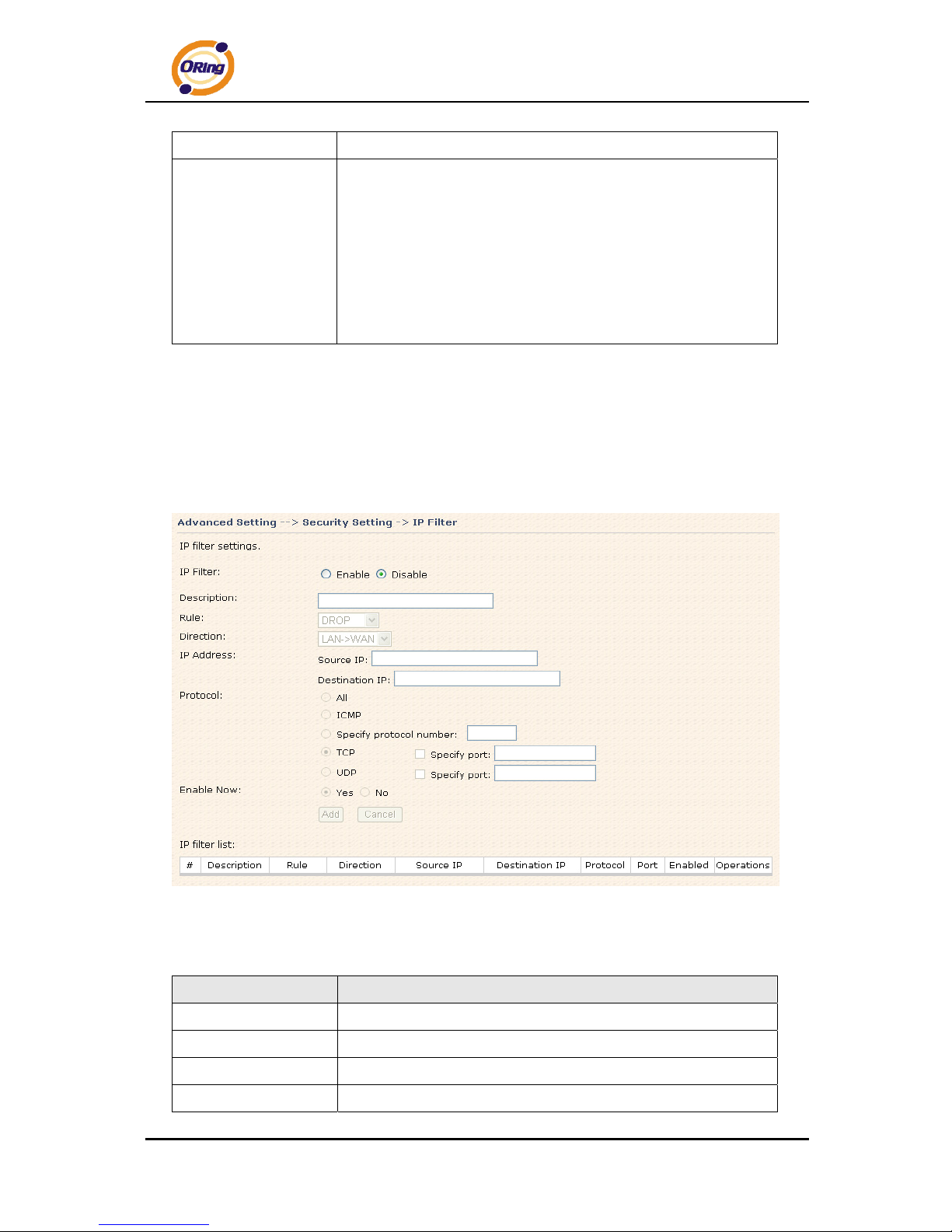

IP Filter Screen
The following table describes the labels in this screen.
Label Description
IP Filter
Enable or disable the IP Filter.
Description
Enter description for the entry.
Rule
Select DROP, ACCEPT and REJECT rule for the entry.
Direction
Specify the direction of the data flow that is to be filtered.
Page 40
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 35
IP Address
Enter the IP address of the source and destination computer.
Protocol
Choose which protocol to be filtered.
Enable Now
Enable the entry after adding it.
IP filter list
Click edit for editing the entry, click Del to delete the entry.
2. MAC Filter
Filters are used to deny or allow LAN computers from accessing the internet, according to
their MAC address.
MAC Filter Screen
The following table describes the labels in this screen.
Label Description
MAC Filter
Enable or disable the MAC Filter.
Description
Enter the description for the entry.
Rule
Select DROP, ACCEPT and REJECT rule for the entry.
MAC Address
Enter the MAC address to be filtered.
Enable Now
Enable the entry after adding it.
IP filter list
Click Edit for editing the entry, click Del to delete the entry.
VPN Setting
VPN Setting is settings that are used to create virtual private tunnels to remote VPN
gateways. The tunnel technology supports data confidentiality, data origin,
authentication and data integrity of network information by utilizing encapsulation
protocols, encryption algorithms, and hashing algorithms.
Page 41
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 36
1. Open VPN
Open VPN is a full-functioned SSL VPN solution which can accommodates a wide
range of configurations including remote access, site-to-site VPNs, WiFi security, and
enterprise-scale remote access solutions with load balancing, failover, and fine-grained
access-controls.

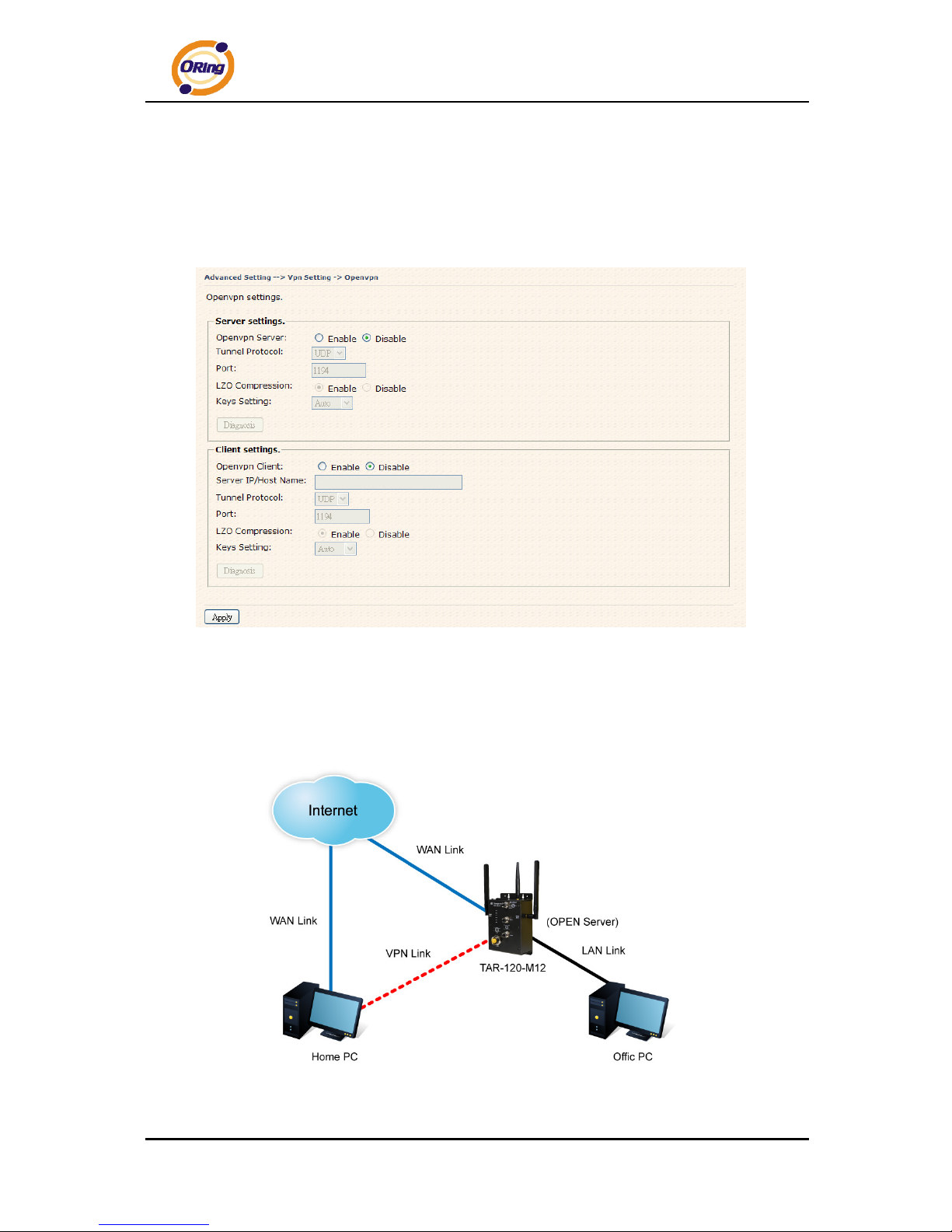

Open VPN Screen

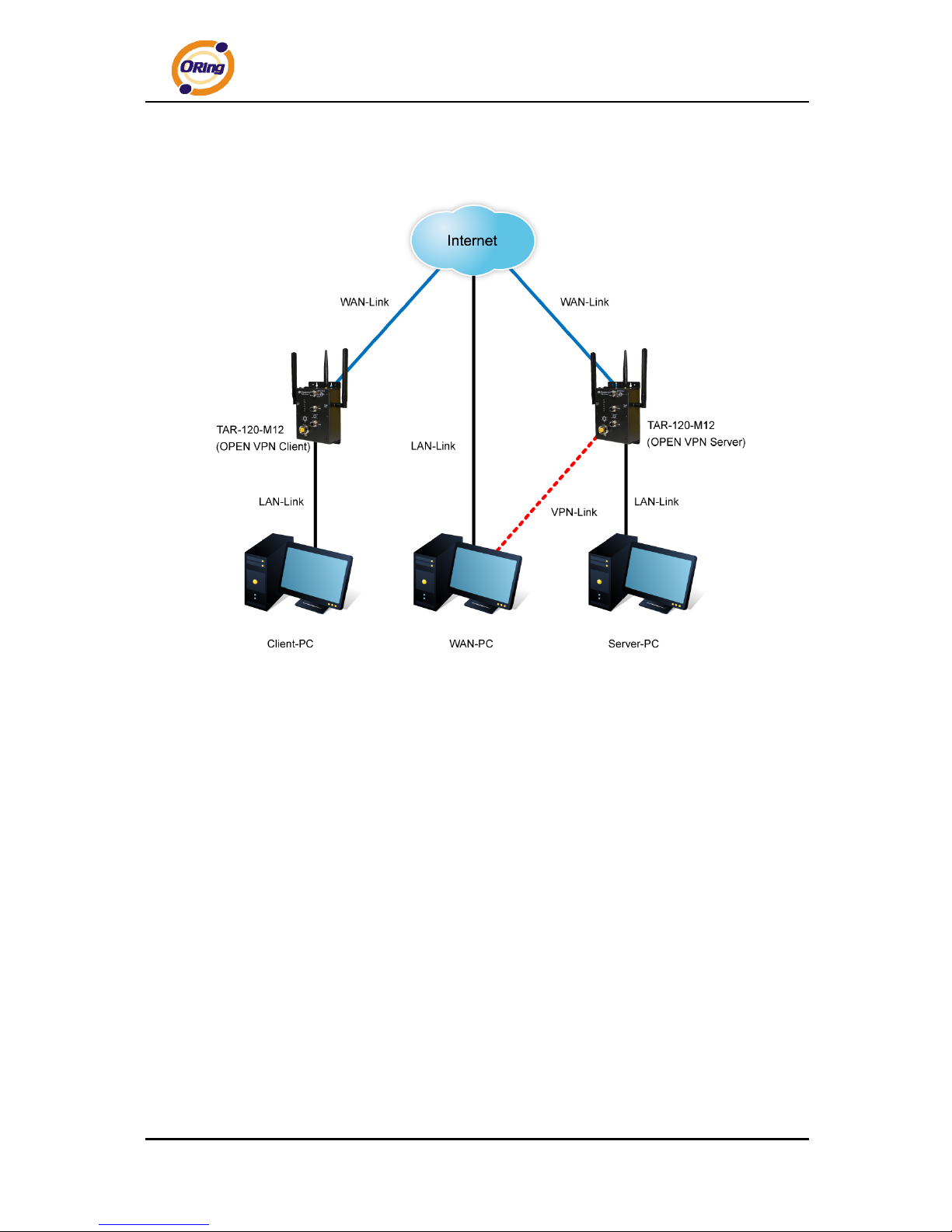

The following topology shows the common use of VPN connection from WAN side.
1: Open VPN Server
Connection to Open VPN Server
Page 42
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 37
Before connecting to the Openvpn server of TAR-120-M12 / TAR-3120-M12 AP router,
please install Openvpn client software for your windows PC. It can be downloading from
http://Openvpn.net/download.html#stablel
. The current version of Openvpn used in
TAR-120-M12 / TAR-3120-M12 is version 2.0.9. The corresponding software for client
should be installed.
The following table describes the labels in this screen.
Label
Description
Open VPN Server
Enable or disable the function of Open VPN Server.
Tunnel Protocol
Select UDP or TCP protocol.
Port
Input the number about the port, and the default is 1194.
LZO Compression
Enable or disable the function of LZO Compression.
Keys Setting
Select Auto to use the preset certificates, select Manual to paste
your certificates. Please install Openvpn client software to
generate your certificates and paste them here. For more
information, please visit Openvpn website.
2: Open VPN Client
Two routers are needed for creating site-to-site VPN connection using this mode.
The following table describes the labels in this screen.
Label
Description
Open VPN Client
Enable or disable the function of Open VPN Client. You can
allow or deny the Open VPN Client with this option.
Server IP
Enter the Open VPN Server IP address.
Tunnel Protocol
Select UDP or TCP protocol.
Port
Enter the port number, default is 1194.
LZO Compression
Enable or disable the LZO Compression.
Keys Setting
Select Auto to use the preset certificates, select Manual to paste
your certificates. Please install software for Openvpn client to
generate your certificates and paste them here. For more
information, please visit Openvpn website.
Page 43
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 38

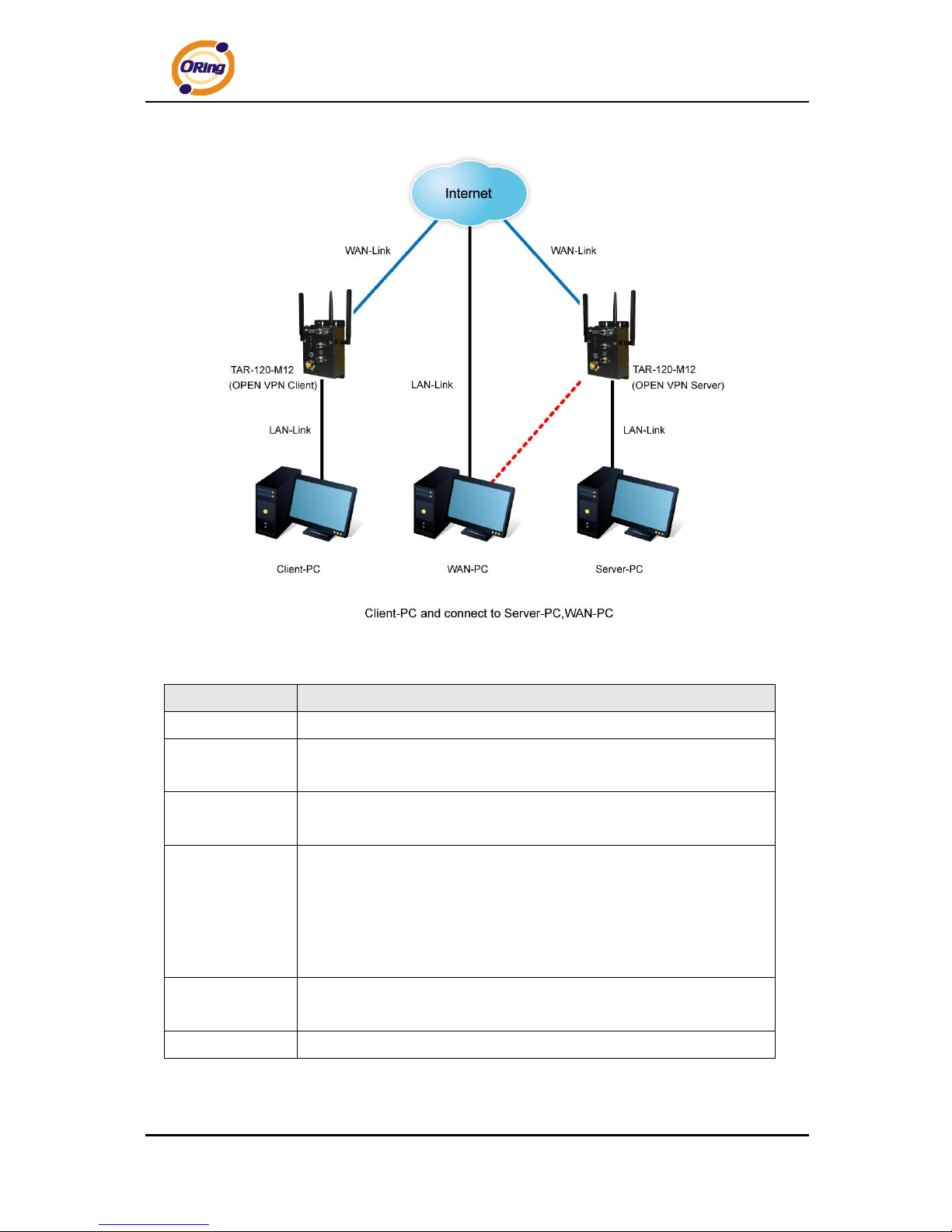

3: Open VPN Server VS Client
The chart above displays the connection of Open VPN Server and Client. The Server
IP and Client IP address should configure with the same network domain.
2. PPTP VPN
The PPTP (Point to Point Tunneling Protocol) VPN feature allows PC connected to the
router from WAN port, just like connecting in the LAN. To create a PPTP connection to
the router, you should create a PPTP network connection if you are using a window PC.
The steps are: Right click Network > property > create a new connection > connect
to my work space (VPN) > use VPN to internet > enter the user name and password
which are set in the page.
Page 44
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 39

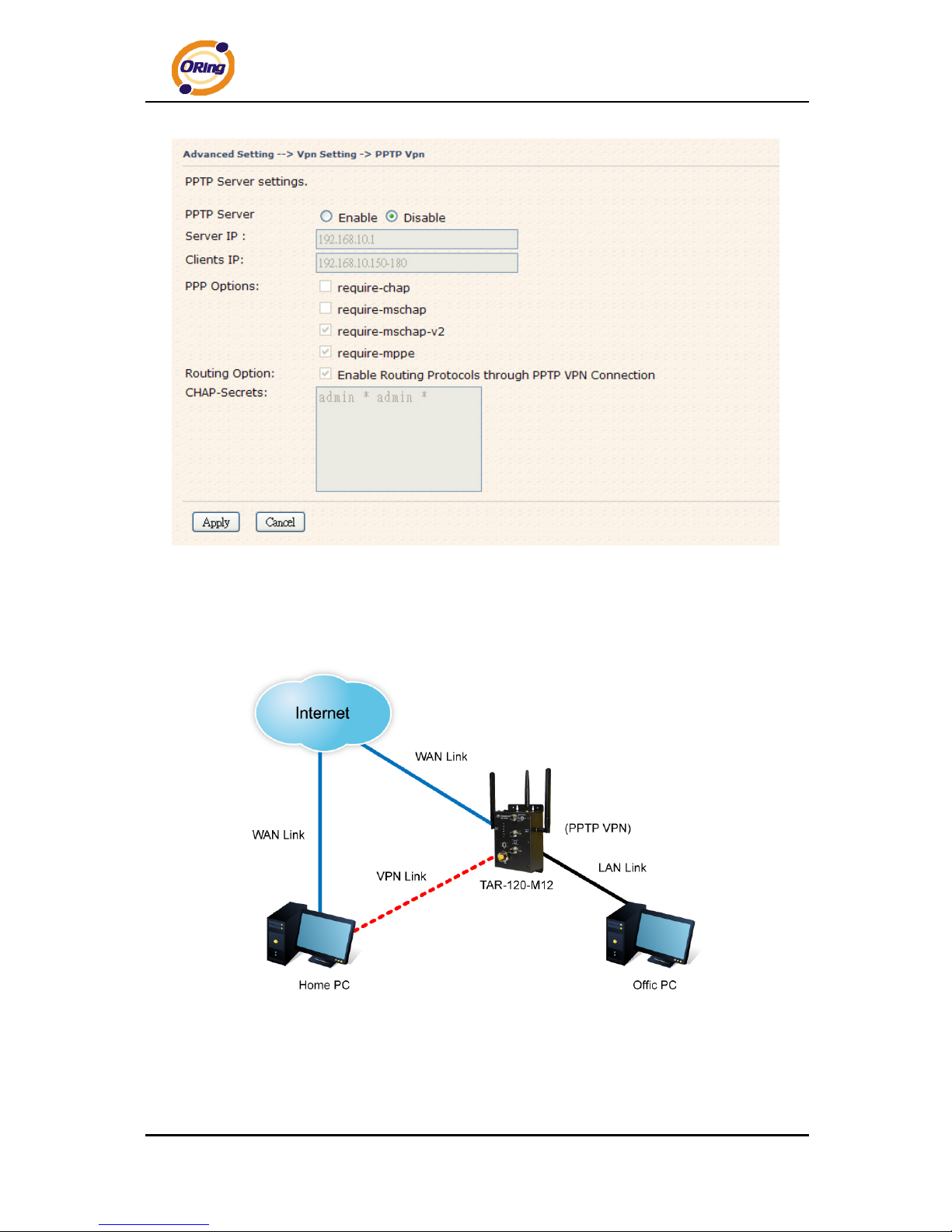

PPTP VPN Screen
The following topology shows the common use of PPTP connection from the internet.
Connection to PPTP VPN Server
Page 45
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 40
The following table describes the labels in this screen.
Label
Description
PPTP Server
Enable or disable PPTP VPN Server.
Server IP
Enter the server side IP address, default is the LAN port IP.
Client IP
Enter the IP address range, format is as 192.168.10.xx-xx,
connected client will be assigned the IP address.
CHAP-Secrets
Enter the username and password pairs, format is as user * pass
*, multiple username password pairs are allowed.
3. PPTP Client
If the router A want to link with the others which is not in the same network with the router
A, the function of PPTP client should support in the router page.

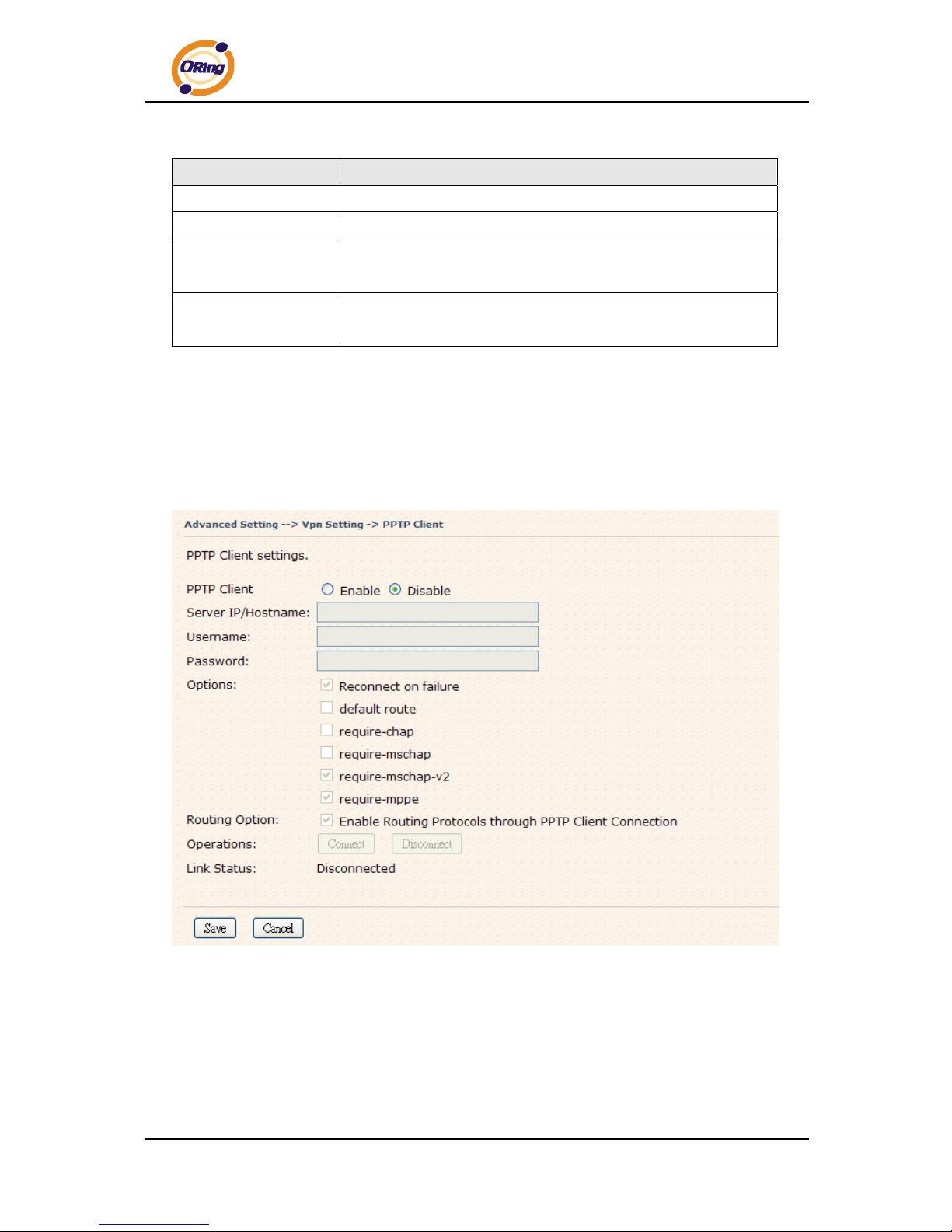

PPTP client settings screen
Page 46
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 41
The following table describes the labels in this screen.
Label
Description
PPTP Client
Enable or disable PPTP Client.
Server
IP/Hostname
Enter the server IP address or hostname.
Username/Pass
word
Enter the username and password which is signed by PPTP server.
Option
Reconnect on failure: Pitch on this option, it will be reconnect when
the link is on failure.
Require MPPE: Choose Enable Require MPPE (Microsoft
Point-to-Point Encryption) to encrypt data across Point-to-Point Protocol
(PPP) and Virtual Private Network links.
Operations
Click “Connect” to link the server, if or not, you can click “”Disconnect” to
break off from the server.
Link Status
Show the status about the link.
Page 47
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 42
Routing Protocol (Routing Setting)
This page shows the information of routing table. The initial state of the router connect to the
WAN, it will be based on the outside networks to access the routing table automatically. You
can refer the shows about the bellow page.

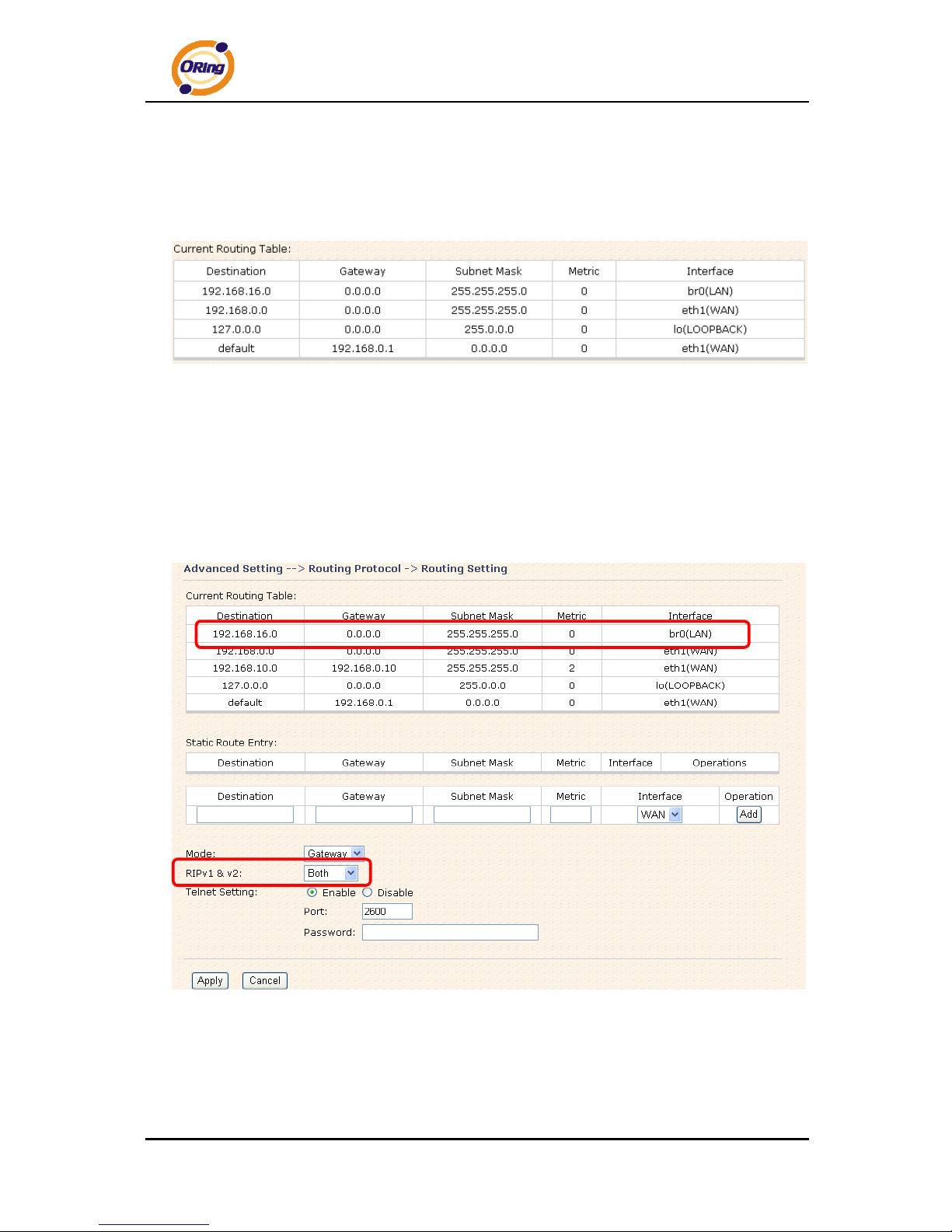

The table shows the normal routing table
1. Use Dynamic Routing
Use the dynamic routing, you should not choose “Disable” about the RIPv1 & v2 in the
routers.
Click “Apply”, and you can see the more information in the Current Routing Table, which
shows the network segment of the other router.
Routing setting screen
Page 48
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 43
The following table describes the labels in this screen.
Label
Description
Current Routing
Tabl e
Show the current the routing information.
Static Router
Entry
Not RIP and enter the right value in the textbox will be showing.
Mode
If you want to the PC in the router can visit the outside network, only
choose the Gateway Mode; if or not, you choose the Router Mode.
RIPv1 &v2
Choose “Disable” in the Static routing.
Telnet Setting
Only use in the Dynamic routing.
2. Use Static Routing
Use the Static routing, you should choose “Disable” about the RIPv1 & v2 in the routers.
Click “Apply”, and you can see the more information in the Current Routing Table and Static
Route Entry, which shows the network segment of the other router.

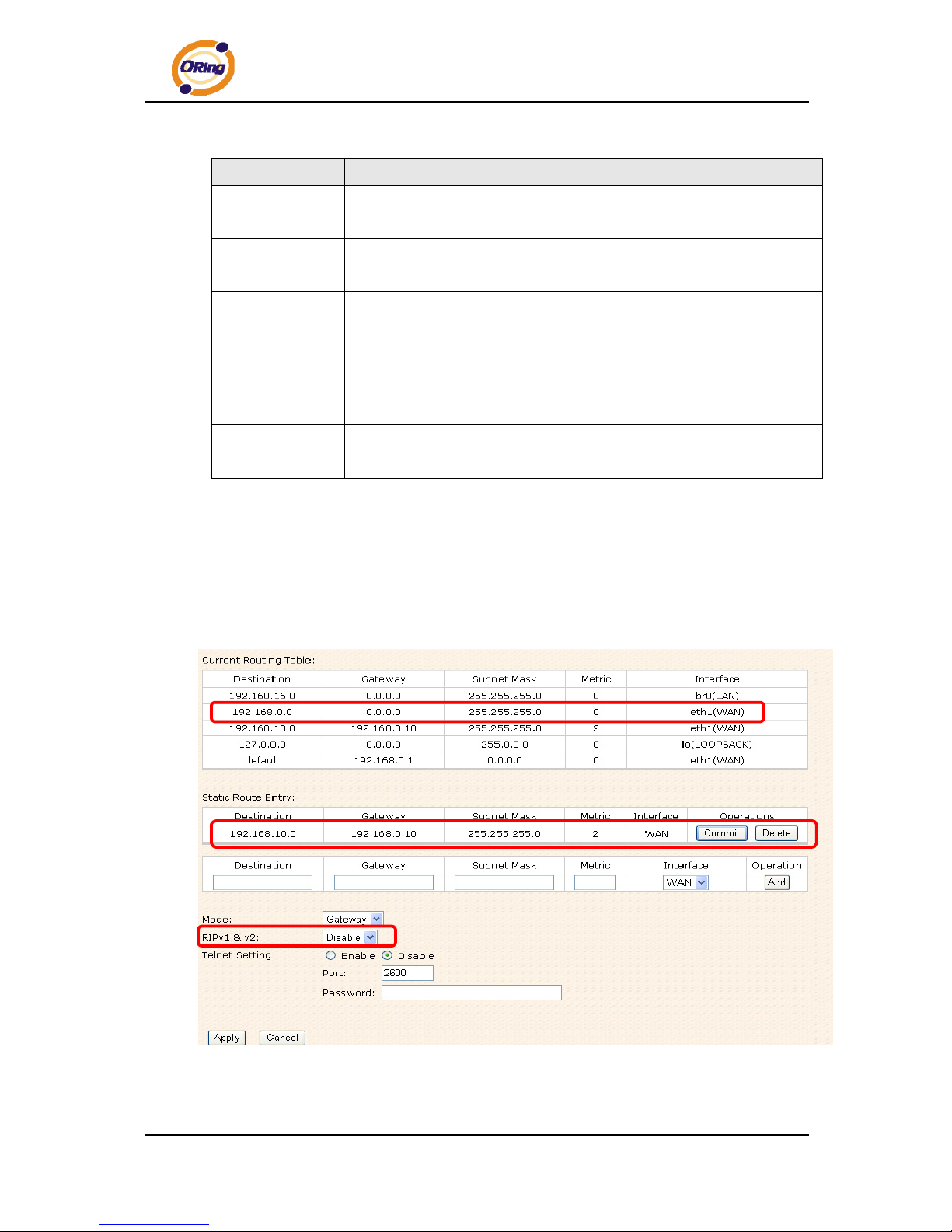

Static route setting screen
Page 49
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 44
Use the dynamic routing; it will have many ways such as RIP, OSPF.BGP. In this router,
we use the RIP Protocol to finish the dynamic routing table.

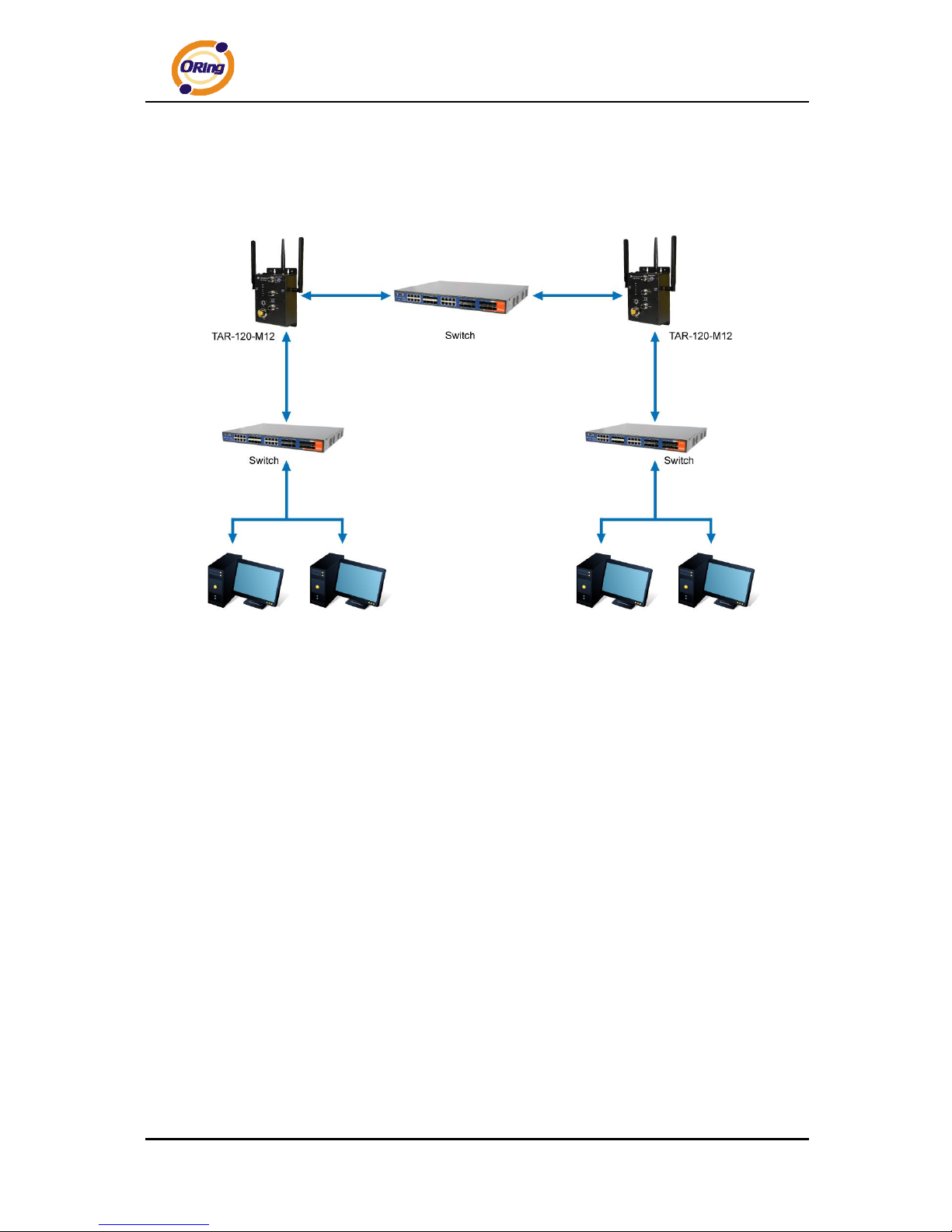

The Routing Topography
RIP, Routing Information Protocol, is a dynamic routing protocol used in local and wide
area networks. As such it is classified as an interior gateway protocol (IGP) using the
distance-vector routing algorithm.
After all settings, PC1 can visit PC2 which is different network segment of the PC1.
Notification
1. Email/SNMP/Syslog
Email Settings
PC1 PC2
Page 50
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 45

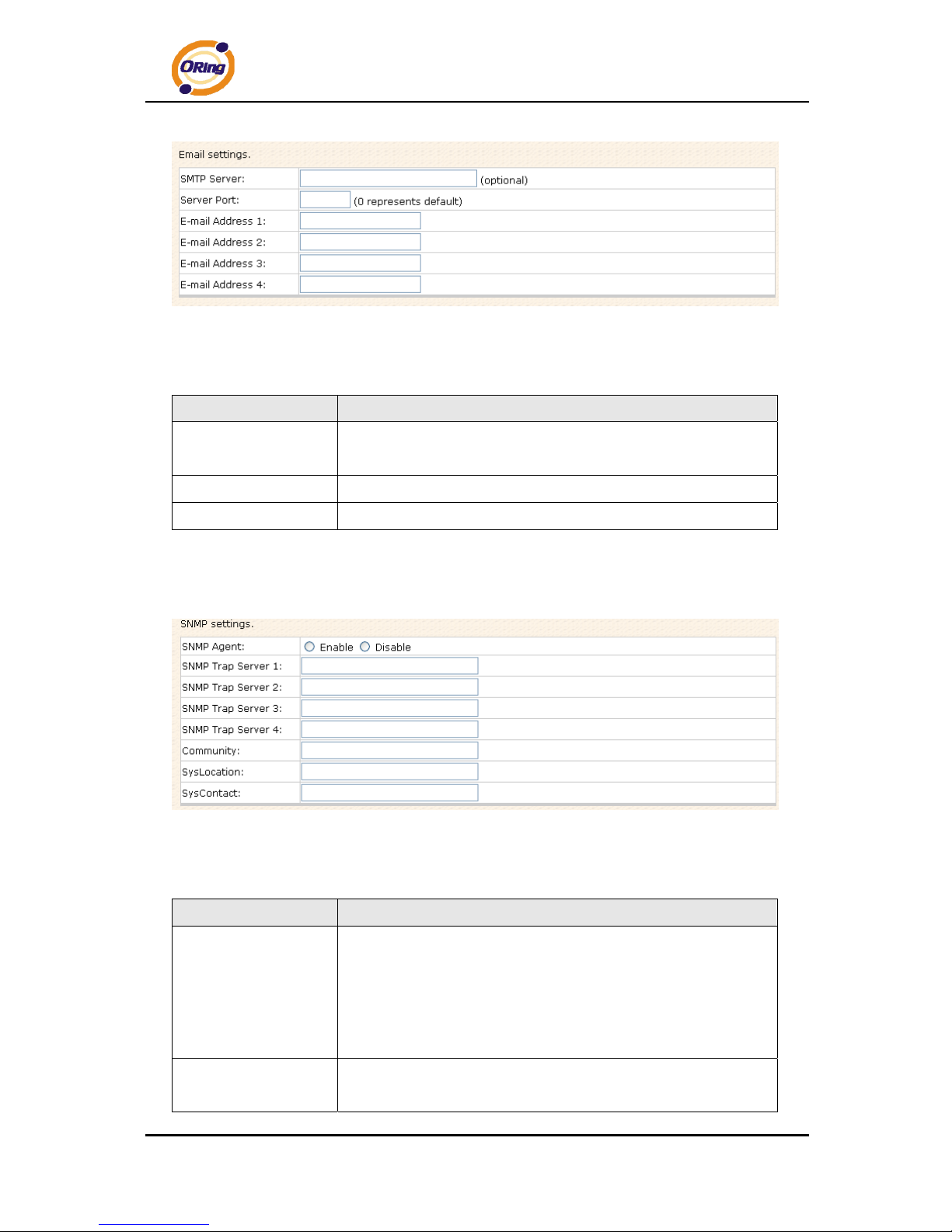

Email Settings Screen
The following table describes the labels in this screen.
Label Description
SMTP Server
Simple Message Transfer Protocol, enter the backup host to use if
primary host is not available while sending mail by SMTP server.
Server Port
Specify the port where MTA can be contacted via SMTP server.
E-mail Address 1-4
Enter the mail addresses.
SNMP Settings
SNMP Settings
The following table describes the labels in this screen.
Label Description
SNMP Agent
SNMP (Simple Network Management Protocol) agent
communicates with the SNMP manager. The agent provides
management information to the NMS by keeping track of various
operational aspects of the system. Turn on to open this service
and off to disable it.
SNMP Trap Server
1-4
Specify the IP address of trap server, which is the address to
which SNMP trap messages are sent.
Page 51
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 46
Community
Community is essentially password to establish trust between
managers and agents. Normally "public" is used for read-write
community.
SysLocation
Specify sysLocation string.
SysContact
Specify sysContact string.

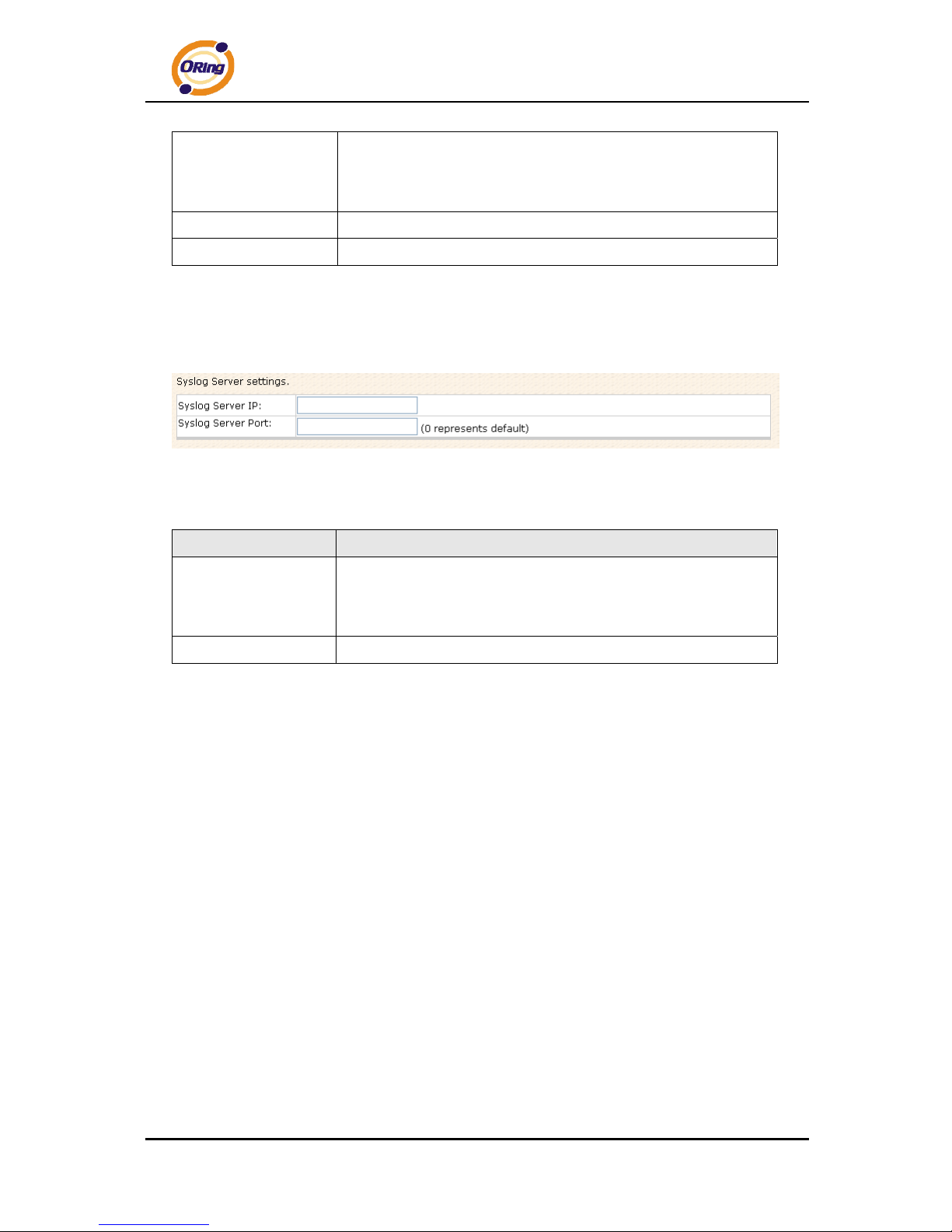

Syslog Server Settings
Syslog Server Screen
The following table describes the labels in this screen.
Label Description
Syslog Server IP
Not only the Syslog keeps the logs locally, it can also log to
remote server. Specify the IP of remote server. Leave it blank
to disable logging remotely.
Syslog Server Port
Specify the port of remote logging. Default port is 514.
2. System Event
When specified event is triggered, the notification procedure will be performed
according to the type of the event. Which notification would be performed depends on
the selection of corresponding option in the Advanced Setting > Notification >
System Event page.
Page 52
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 47

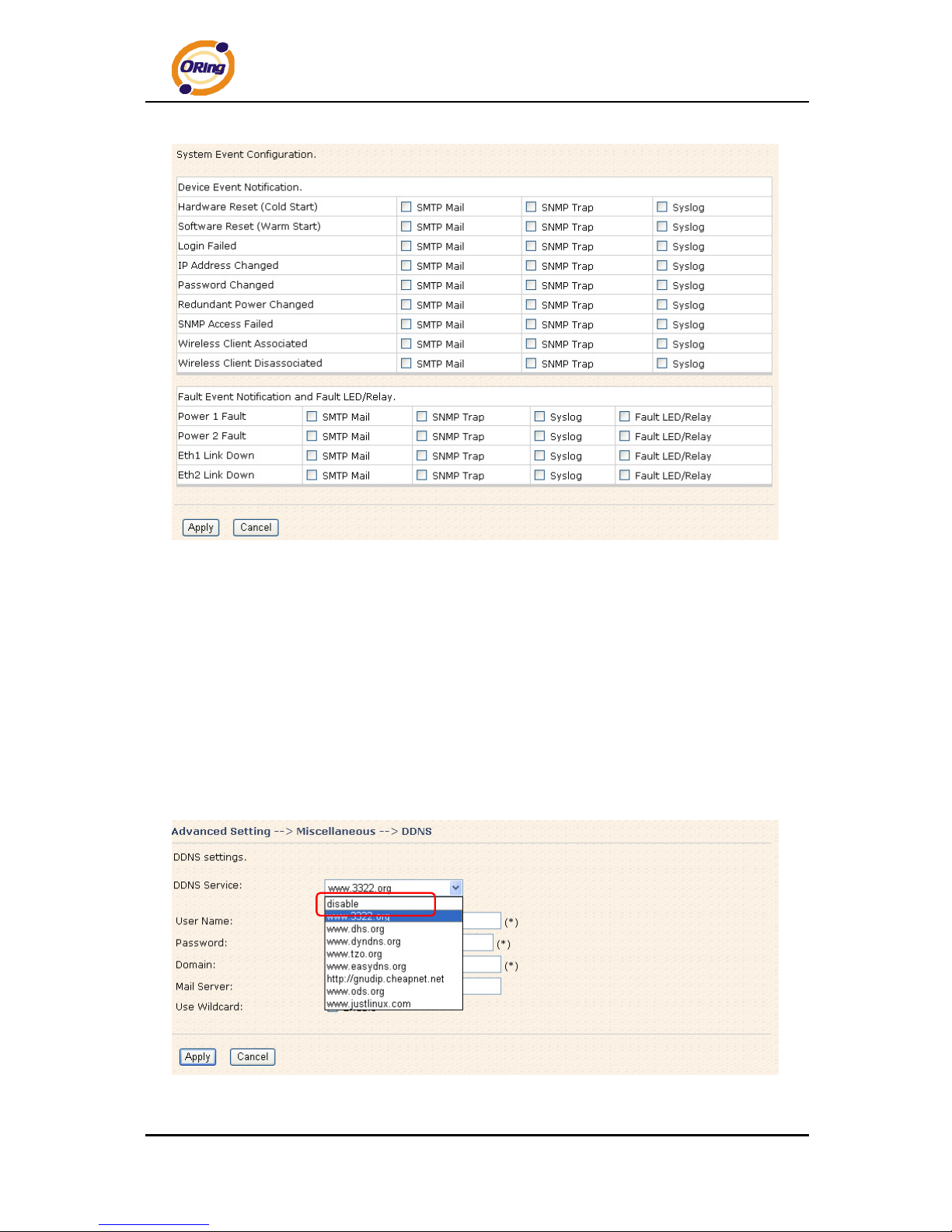

System Event Screen
System events record the activities of the Wireless Router system. When the setting
changes or action performs, the event will be sent to administrator by email. A trap will
also be sent to SNMP trap server. The Syslog will record the event locally and may
send the Syslog remotely to a Syslog server. If serious event occurred, such as the
power failure or link down, the fault led will be switched on as warning indication.
Miscellaneous (DDNS)
Dynamic Domain Name Server is to keep a domain name linked to a dynamic IP address.
DDNS Screen
Page 53
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 48
For example, Choose DDNS Service: www.3322.org and configure the following
instructions:
The following table describes the labels in this screen.
Label Description
User Name
Enter the user name for your DDNS account.
Password
Enter the password for your DDNS account.
Domain
Enter the domain names provided by your dynamic DNS service
provider.
Mail Server
Enter the mail server if provided.
Use Wildcard
Check the box the enable wildcard option.
5.3.3 System Tools

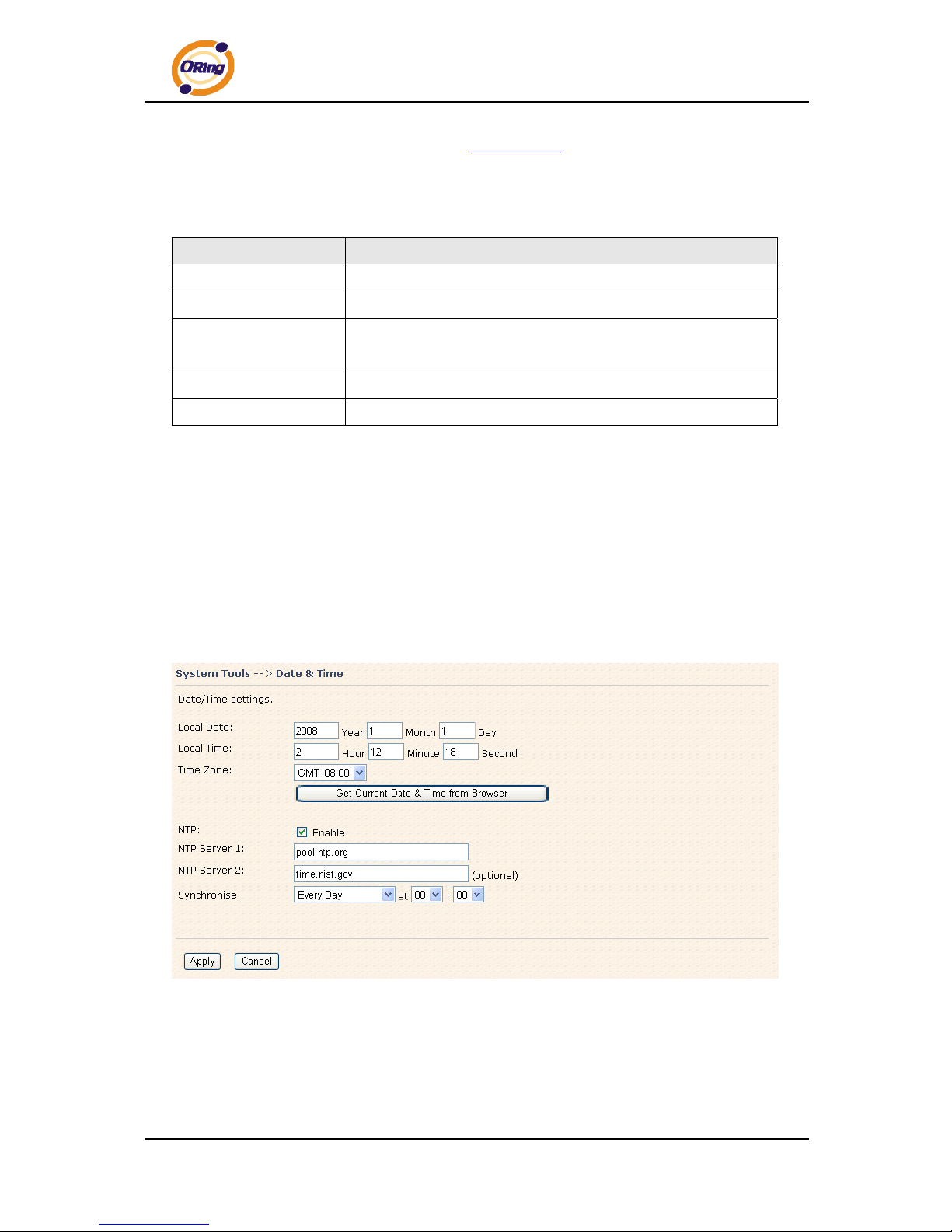

Date & Time
In this page, you can set the date & time of the device. The correct date & time will
be helpful for logging of system events. A NTP (Network Time Protocol) client can be
used to synchronize date & time with NTP server through internet.
Date & Time Screen
Page 54
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 49
The following table describes the labels in this screen.
Label Description
Local Date
Set local date manually.
Local Time
Set local time manually.
Time Zone
Select the time zone manually
Get Current Date &
Time from Browser
Click this button; you can set the time from your browser.
NTP
Enable or disable NTP function to synchronize time from the NTP
server.
NTP Server 1
The primary NTP Server.
NTP Server 2
The secondary NTP Server.
Synchronize
This is the scheduled time when the NTP synchronization
performed.

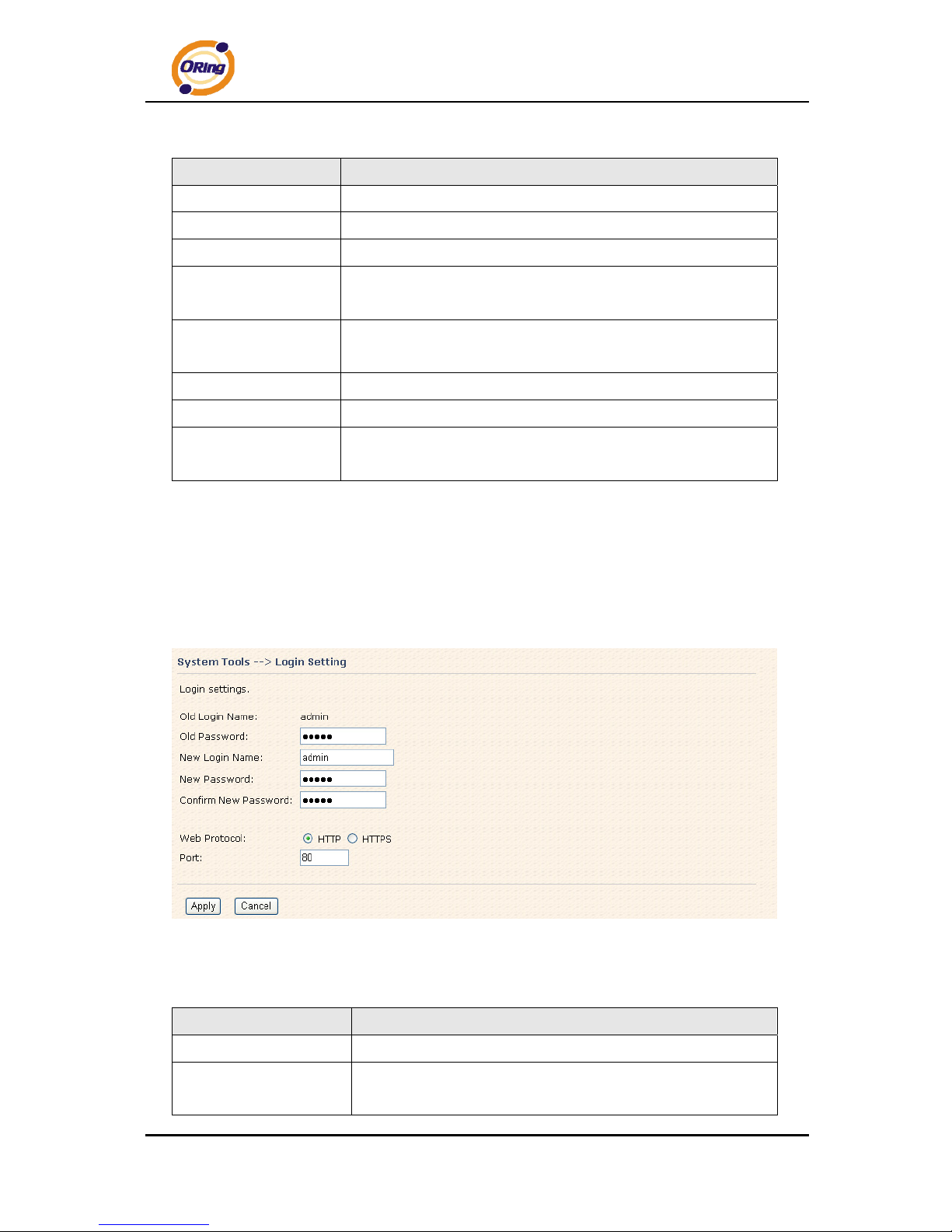

Login Setting
At this page, the administrator can change the login name and password. The
default name and password is admin and admin.
Login Setting Screen
The following table describes the labels in this screen.
Label Description
Old Name
This field shows the old login name.
Old Password
Before making a new setting, you should provide the old
password for verification. Acceptable characters of this field
Page 55
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 50
contains '0-9', 'a-z', 'A-Z' and must be between 0 to 15
characters in length. An empty password is also acceptable.
New Name
Enter a new login name. Acceptable characters of this field
contains '0-9', 'a-z', 'A-Z' and must be between 1 to 15
characters in length. An empty name is not acceptable.
New Password
Enter a new login password. Acceptable characters of this
field contains '0-9', 'a-z', 'A-Z' and must be between 0 to 15
characters in length.
Confirm New Password
Retype the password to confirm it. Acceptable inputs of this
field contains '0-9', 'a-z', 'A-Z' and must be between 0 to 15
characters in length.
Web Protocol
Choose the web management page protocol. HTTP and
HTTPS are both supported.
Port
Choose the web management page port number. For HTTP,
default port is 80; For HTTPS, default port is 443.
HTTPS (HTTP over SSL) is a Web protocol which encrypts and decrypts user page
requests as well as the pages that are returned by the Web server.

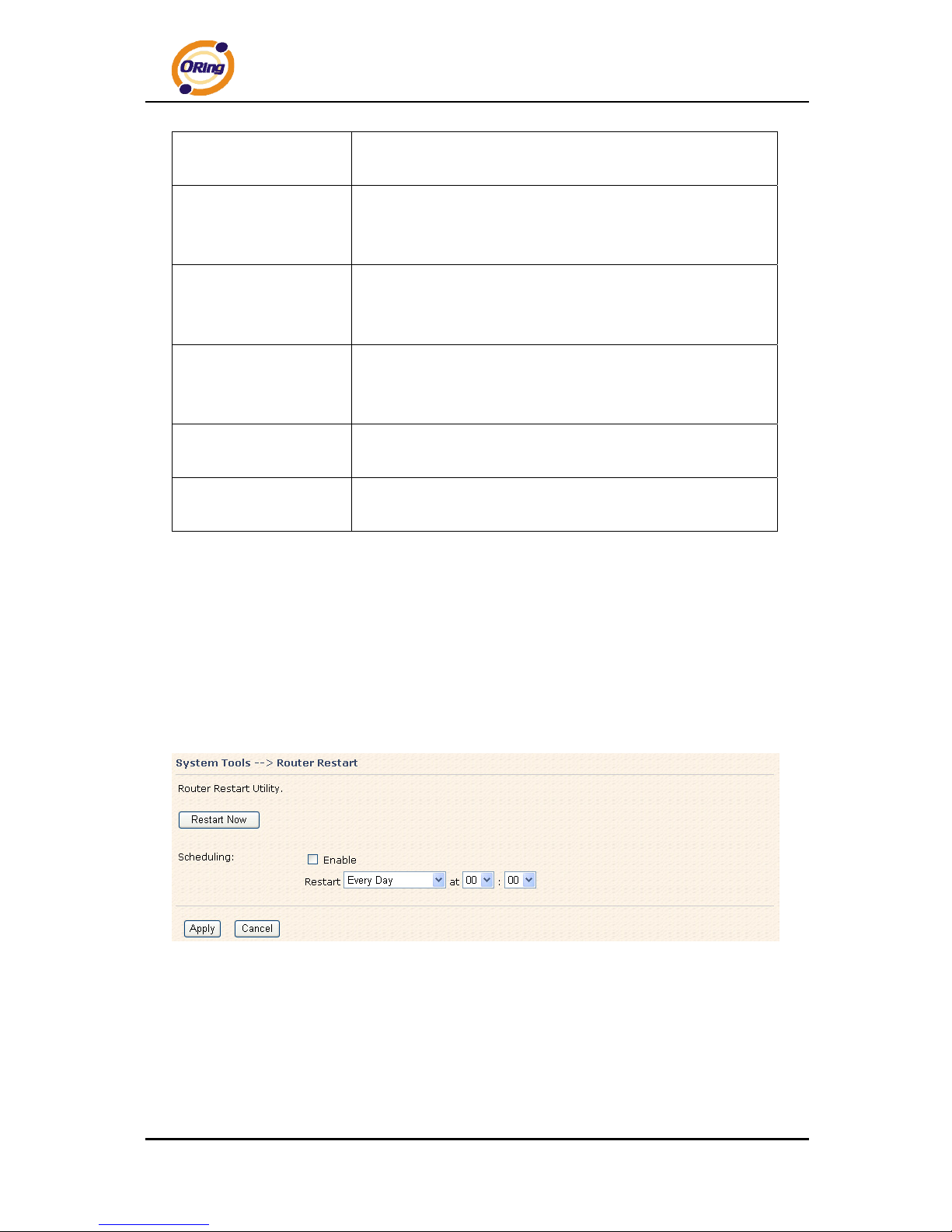

Router Restart
If you want restart the router through the Warm Reset, click Restart Now to restart
the Wireless Router. Also, you can set a Scheduling time to make the router restart.
Router Restart Screen
Page 56
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 51

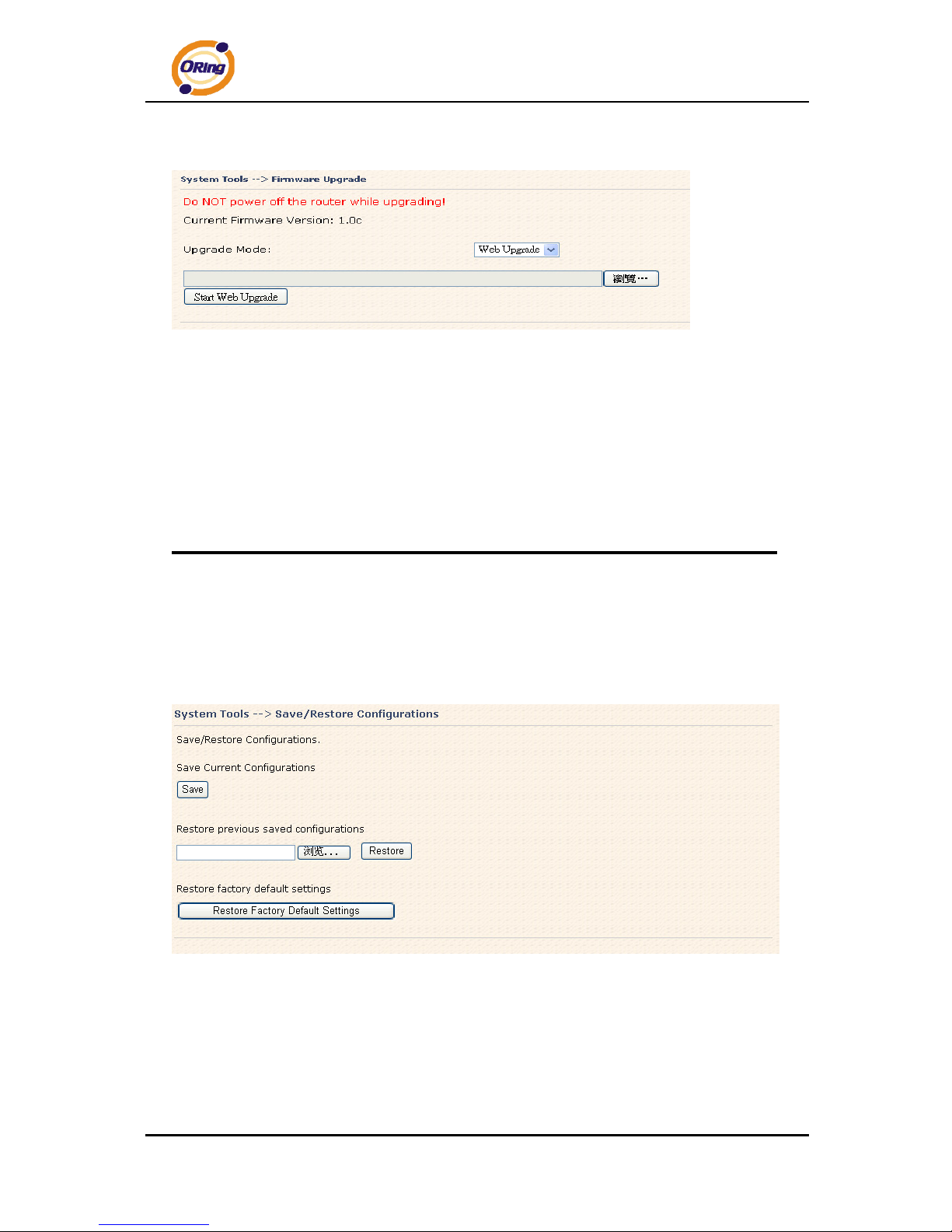

Firmware Upgrade
Firmware Upgrade Screen
Newer firmware may provide better performance or function extensions. To
upgrade the new firmware, you need a firmware file which matches the model of this
AP router. It will take several minutes to upload and update the firmware. After the
upgrade is done successfully, reboot the router to utilized new firmware.
Important Notice: DO NOT POWER OFF THE ROUTER OR PRESS THE RESET
BUTTON WHILE THE FIRMWARE IS BEING UPGRADED.
Save/Restore Configurations
Save/Restore Configurations Screen

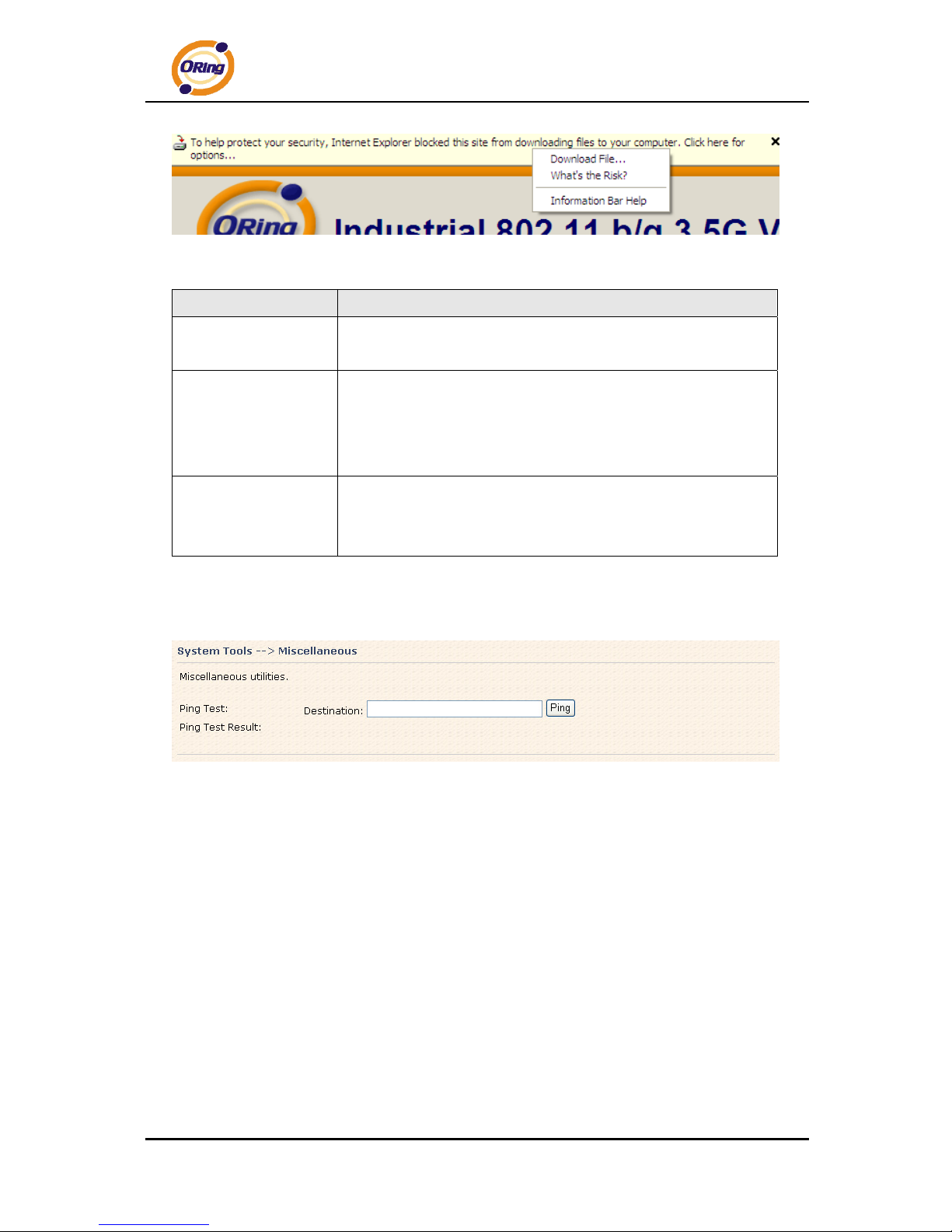

Save: The configuration file can be downloaded. (Internet Explorer user will need to
click on the protection bar on top and click choose “download files”)
Page 57
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 52
The following table describes the labels in this screen.
Label Description
Download
configuration
The current system settings can be saved as a file into your PC.
Upload configuration
The configuration can be restored to the router. To reload a
system settings file, click on Browse to browse your local hard
drive and locate the system settings file previously saved. Click
Upload when you have selected the file.
Restore Default
Settings
You may also reset the router to the factory settings by clicking on
Restore Default Settings. The router will reboot to validate the
default settings.
Miscellaneous (Ping)
Miscellaneous Screen
The Ping Test is used to send Ping packets to test if a computer whether it is on the
Internet or test if the WAN connection is OK. Enter a domain or IP in the destination
box and click Ping to test.
Page 58
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 53
5.3.4 System Status
System Info
System Info Screen
This page displays the details information for the AP router including model name,
model description, firmware version, WAN, LAN and wireless settings.
System Log
System Log Screen
Page 59
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 54
The router keeps a running log of events and activities occurring on the router, several
filters are provided for displaying related log entries.
Click the button 'Refresh' to refresh the page.
Click the button 'Clear Logs' to clear the log entries.

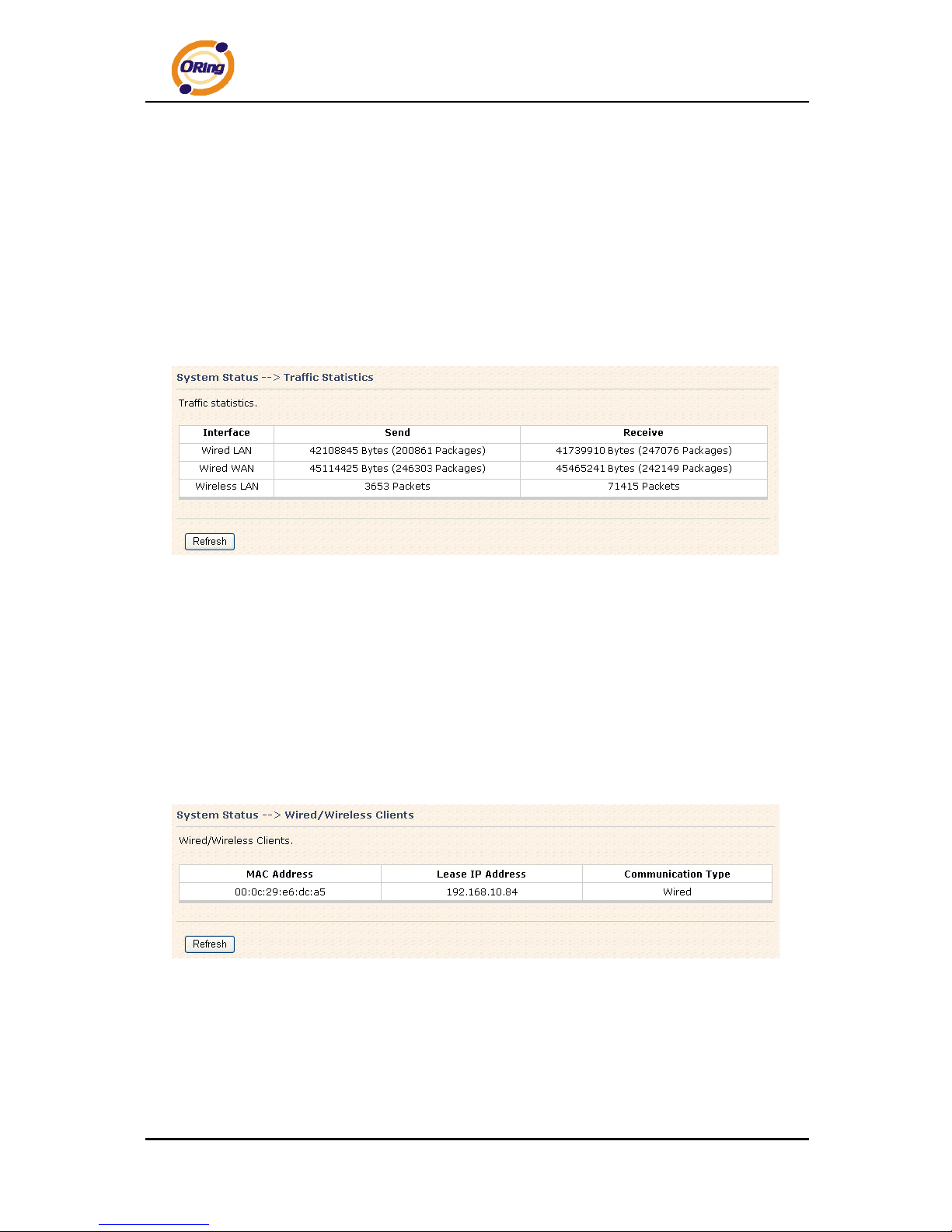

Traffic Statistics
Traffic Statistics Screen
This page displays the network traffic statistics for both received and transmitted
packets through the Ethernet port and wireless connections.
Wired/Wireless Clients
Wired/Wireless Clients Screen
This page of the list displays the Mac Address and Lease IP Address of the
wired/wireless clients connected. Communication Type shows the physical
connection type of the client.
Page 60
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 55
Technical Specifications
ORing EN50155
WLAN Access
Point Router Model
TAR-120-M12 TAR-3120-M12
LAN Interface
Ethernet Ports in
M12 connector
(4-pin, D-coding)
2 x 10/100Base-T(X), Auto MDI/MDI-X
Protocols ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II,
HTTPS, SSH, SNMPV1/V2, Trap, Private MIB
WLAN Interface
Operating Mode AP mode/ AP client / Client mode / Bridge mode
Antenna and
Connector
2 antennas with 2dBi for
IEEE802.1 a/b/g mode in reverse
SMA connector
4 antennas with 2dBi for
IEEE802.1 a/b/g mode in reverse
SMA connector
Radio Frequency
Type
DSSS, OFDM
Modulation IEEE802.11b: CCK, DQPSK, DBPSK
IEEE802.11g: OFDM with BPSK, QPSK, 16QAM, 64QAM
Frequency Band America/FCC: 2.412~2.462 GHz
(11channels)
Europe CE/ETSI: 2.412~2.472
GHz (13channels)
America/FCC: 2.412~2.462 GHz
(11channels)
5.15~5.825 GH (13 channel)
Europe CE/ETSI: 2.412~2.472
GHz (13channels)
5.15~5.724 GH (19 channel)
Transmission Rate IEEE802.11b: 1/2/5.5/11 Mbps
IEEE802.11g:
6/9/12/18/24/36/48/54 Mbps
IEEE802.11b: 1/2/5.5/11 Mbps
IEEE802.11 a/g:
6/9/12/18/24/36/48/54 Mbps
Transmit Power IEEE802.11b/g: 20dBm max
IEEE802.11 a/b/g: 20dBm max
Receiver Sensitivity -81dBm@11Mbps, PER< 8%;
-64dBm@54Mbps, PER< 10%
-86dBm@11Mbps, PER< 8%;
-77dBm@54Mbps, PER< 10%
Encryption Security WEP: (64-bit, 128-bit key supported)
WPA/WPA2:802.11i (WEP and AES encryption)
WPA-PSK (256-bit key pre-shared key supported)
802.1X and Radius supported
TKIP encryption
Page 61
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 56
Wireless Security SSID broadcast disable
LED Indicators PWR 1(2) / Ready:
1) Red On: Power is on and
booting up.
2) Green On: Power is on and
functioning normally.
ETH1(2) Link / ACT:
Orange ON/Blinking: 10 Mbps
Ethernet
Green ON/Blinking: 100 Mbps
Ethernet
WLAN Link/ACT: Green
ON/Blinking for WLAN
interface
WAN Link: Green for HSUPA
modem connected
Fault indicator:
Red On: Ethernet link down or
power down
PWR 1(2) / Ready:
1) Red On: Power is on and
booting up.
2) Green On: Power is on and
functioning normally.
ETH1(2) Link / ACT:
Orange ON/Blinking: 10 Mbps
Ethernet
Green ON/Blinking: 100 Mbps
Ethernet
WLAN Link/ACT: Green
ON/Blinking for WLAN 1
interface / Red ON/Blinking for
WLAN 2 interface
WAN Link: Green for HSUPA
modem connected
Fault indicator:
Red On: Ethernet link down or
power down
HSUPA Cellular Interface
Cellular Standard GSM/GPRS/EGPRS/EDGE/WCDMA/HSDPA/HSUPA
Band Option Dual-band : HSUPA 1900 / 2100 MHZ
Quad-band : GSM / GPRS / EDGE 850 / 900 / 1800 / 1900MHz
WCDMA / HSDPA 850/900/1900/2100 MHZ
Antenna and
Connector
1 antenna with 2dBi for 850/900/1900/2100 MHZ in reverse SMA
connector
Power Requirements
Power Input Voltage Dual power inputs PWR1/2: 12 ~ 48VDC in M23 connector
Reverse Polarity
Protection
Present
Power Consumption 5.8 Watts 9.6 Watts
Environmental
Operating
Temperature
-20 to 70oC
Storage Temperature -40 to 85oC
Operating Humidity 5% to 95%, non-condensing
Page 62
TAR-120-M12 / TAR-3120-M12 User’s Manual
ORing Industrial Networking Corp. 57
Mechanical
Dimensions
(W x D x H)
125(W)mm x 65(D)mm x 196(H)mm
Casing IP-40 protection
Regulatory Approvals
EMI FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2)
EMS
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT),
EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27, EN61373
Free Fall IEC60068-2-32
Vibration IEC60068-2-6, EN61373
Rail Traffic EN50155
Cooling EN60068-2-1
Dry Heat EN60068-2-2
Safety EN60950-1
Warranty
3 years
