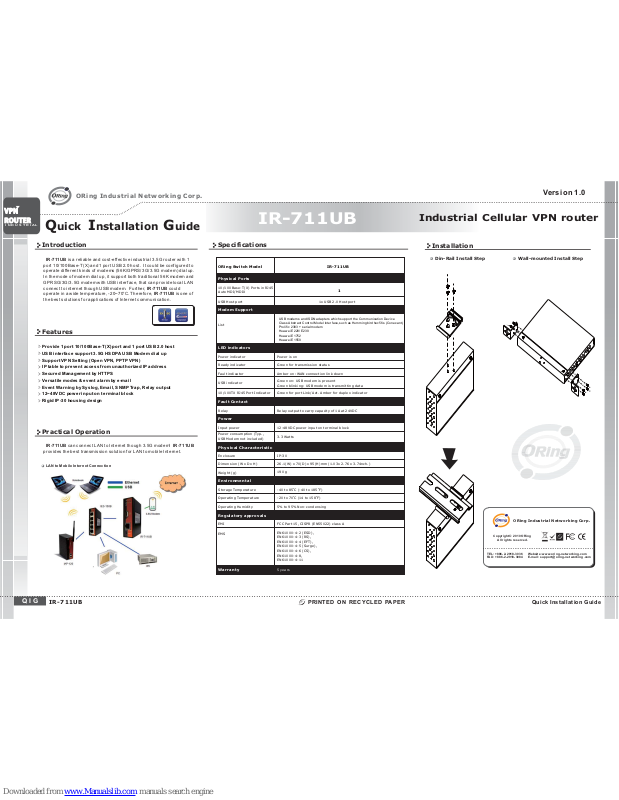

Page 1
ORing Switch Model
IR-711UB
10/100 Base-T(X) Ports in RJ45
Auto MDI/MDIX
1
Physical Ports
Modem Support
List
USB modems and ISDN adapters which support the Communication Device
ClassAbstract Control Model interface,such as Hummingbird huc56s (Conexant)
Prolific 2303 + serial modem
Huawei E220/E230
Huawei E1752
Huawei E1550
LED indicators
Powe r is onPower indicator
10/100TX RJ45 PortIndicator
Power
Input power
Power consumption (Typ.,
USB Modem not included)
12-48VDC power input on terminal block
3.3 Watts
Physical Characteristic
Enclosure
IP-30
Dime nsion ( W x D x H)
26.1(W) x 70(D) x 95(H)mm (1.03x 2.76 x 3.74nch.)
Weight ( g)
Environmental
-40 to 85C (-40 to 185 F)
oo
Storage Temperature
Operating Temperature
5% to 95% Non-condensingOperating Humidity
Regulatory approvals
FCC Part 15, CISPR (EN55022) class AEMI
EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
EMS
Warranty
5 year s
Green for port Link/Act. for duplex indicatorAmber
190 g
Installation
Q I G
Quick Installation Guide
IR-711UB
IR-711UB
Version 1.0
Quick Installation Guide
ORing Industrial Networking Corp.
Features
Provide 1 port 10/100Base-T(X) port and 1 port USB 2.0 host
USB interface support 3.5G HSDPA USB Modem dial up
Support VPN Setting (Open VPN, PPTPVPN)
IP table to prevent access from unauthorized IPaddress
Secured Management by HTTPS
Versatile modes & event alarm by e-mail
Event Warning by Syslog, Email, SNMP Trap, Relay output
12~48VDC power input on terminal block
Rigid IP-30 housing design
is a reliable and cost-effective industrial 3.5G router with 1
port 10/100Base-T(X) and 1 port USB 2.0 host It could be configured to
operate different kinds of modems K GPRS 3G 3 G modem) dial up
In the mode of modem dial up it support both traditional 56K modem and
GPRSG/3G 3.5G modem with USB interface that can provide local LAN
connect to internet though USB modem Further, could
operate in a wide temperature, -20~70 C.Therefore, is one of
the best solutions for applications of Internet communication
IR-711UB
IR-711UB
IR-711UB
.
(56 / / / .5 .
,
/,
.
.
o
Introduction
Din-Rail Install Step
PRI NTED ON R ECYCL ED PAPER
Specifications
Practical Operation
Wall-mounted Install Step
ORing Industrial Networking Corp.
Copyright© 2010 ORing
All rights reserved.
TEL: +886-2-2918-3036
FAX: +886-2-2918-3084
Website: www.oring-networking.com
E-mail: [email protected]
Industrial Cellular VPN router
VPN
ROUTER
VPN
ROUTER
I N D U S T R IA L
LAN to Mobile Internet Connection
-20 to 7 0 C (14 to 1 58 F)
oo
IR-711UB IR-711UBcan connect LAN to Internet though 3.5G modem
provides the best transmission solution for LAN to mobile Internet!.
USB Host port
1x USB 2 .0 Host p ort
Green for transmission statusReady indicator
Amber on :WAN connection link downFault indicator
Gree n on: USB m odem is p resen t
Green blinking: USB modem is transmitting data
USB indicator
Fault Contact
Relay
Rela y outpu t to carr y capac ity of 1A a t 24VDC
Page 2
Q I G
Quick Installation Guide
PRI NTED ON R ECYCL ED PAPER
LNK/ACT LED
(Green)
10/100 LAN Port
Full Duplex Indicator
(Amber)
Accessory
Dust Cover (RJ-45)
2
QIG
7
Screw (M3 X3)
3
Wall-mounted kit
4
25mm DIN-Rail kit
5
4-Pin Terminal block
1
Front Panel
1
X 1,2X 1,3X 8,
X 1,
X 2,
IR-711UB
Model name Model Description Accessory
Industrial Cellular VPN router with 1x10/100Base-T(X)
6
4
5
X 1,
Packing list
Communication Connections
RJ45 (8-pin) to RJ45 (8-Pin) Straight-Through Cable Wiring
RJ45 Plug Pin1
Straight-Through Cable
Switch Port
RJ-45
Connector
Tx+
TxRx+
Rx-
3
6
1
2
NIC Port
RJ-45
Connector
Rx+
RxTx+
Tx-
3
6
1
2
RJ45 (8-pin) to RJ45 (8-Pin) Cross-Over Cable Wiring
RJ45 Plug Pin1
Cross-Over Cable
Switch Port
(NIC Port)
RJ-45
Connector
Tx+
TxRx+
Rx-
3
6
1
2
RJ-45
Connector
Rx+
RxTx+
Tx-
1
2
3
6
Switch Port
(NIC Port)
(Rx+)
(Rx-)
(Tx+)
(Tx-)
(Tx+)
(Tx-)
(Rx+)
(Rx-)
10/100Base-T(X) Ethernet Port Connection
RJ45 (8-pin, MDI) Port Pinouts
18
Pin Single
1
2
3
6
Tx+
TxRx+
Rx-
RJ45 (8-pin, MDI-X) Port Pinouts
18
Pin Single
1
2
3
6
Rx+
RxTx+
Tx-
Pin
ETH 10/100M
PWR Status
Power LED
Power Connection Guide
Frame Ground
V-
V+
Power
Supply
12-48 VDC
PWR2
V2+ V2 -
G
PWR1
Power Cable with power jack
6
7
X 1
V1+ V1 -
Power
Supply
12-48 VDC
V-
V+
DC12-48V
IR-711UB
Version 1.0
Quick Installation Guide
ORing Industrial Networking Corp.
Industrial Cellular VPN router
VPN
ROUTER
VPN
ROUTER
I N D U S T R IA L
IR -711UB
Fault
USB
Reset
USB
Modem
USB
Modem
Switch Status LED
USB LE D
Fault LED
Reset Button
USB Port
IR-711UB
