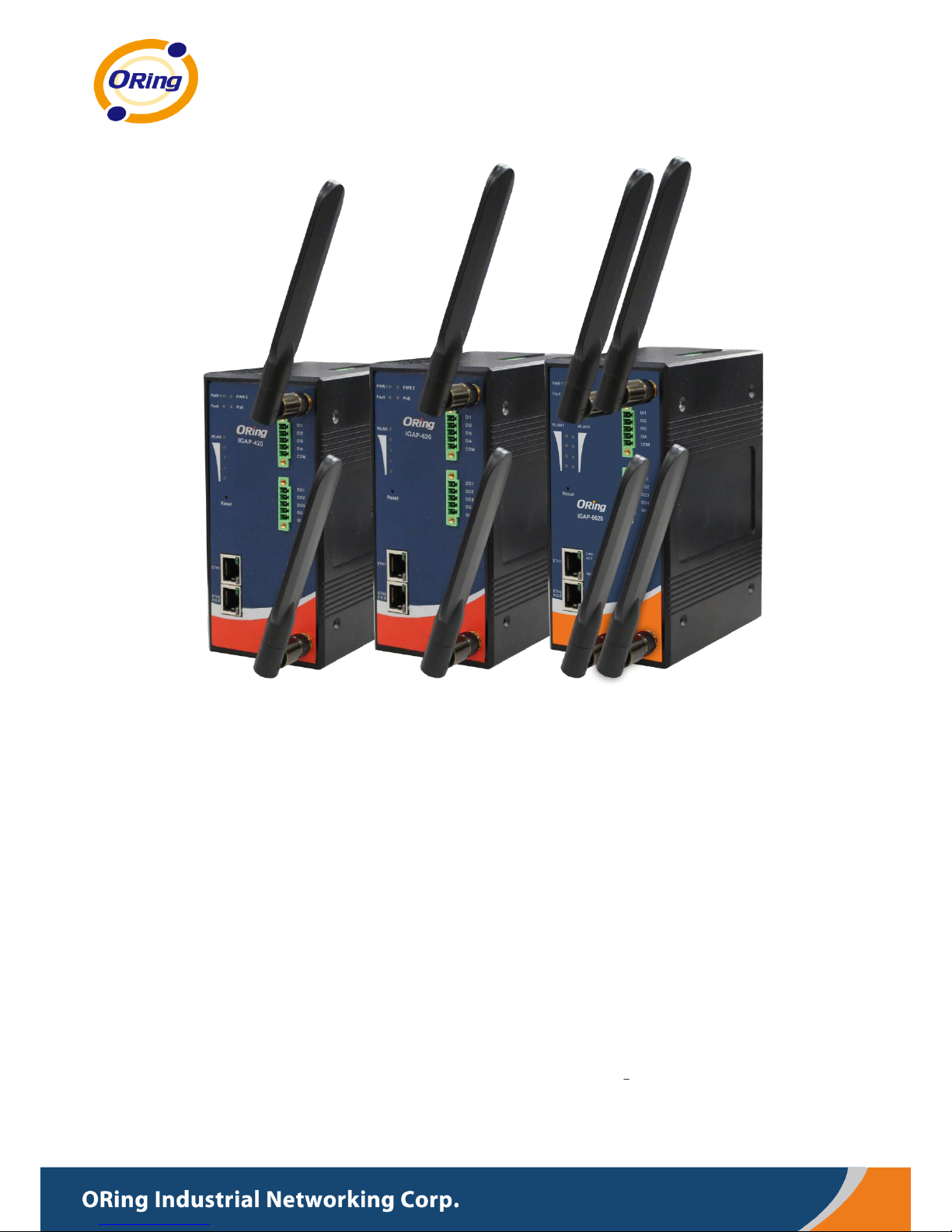

ORiNG IGAP-420, IGAP-6620, IGAP-620 User Manual

IIGGAAPP--442200//662200 SSeerriieess

IIGGAAPP--66662200 SSeerriieess

IIEEEEEE 880022..1111 bb//gg//nn AAcccceessss PPooiinntt

IIEEEEEE 880022..1111 aa//bb//gg//nn AAcccceessss PPooiinntt

IIEEEEEE880022..1111 aa//bb//gg//nn DDuuaall RRFF AAcccceessss PPooiinntt

wwwwww..oorriinngg--nneettwwoorrkkiinngg..ccoomm

COPYRIGHT NOTICE

Copyright © 2011 ORing Industrial Networking Corp.
All rights reserved.
No part of this publication may be reproduced in any form without the prior written consent of
ORing Industrial Networking Corp.

TRADEMARKS

is a registered trademark of ORing Industrial Networking Corp.

All other trademarks belong to their respective owners.

REGULATORY COMPLIANCE STATEMENT

Product(s) associated with this publication complies/comply with all applicable regulations.
Please refer to the Technical Specifications section for more details.

WARRANTY

ORing warrants that all ORing products are free from defects in material and workmanship
for a specified warranty period from the invoice date (5 years for most products). ORing will
repair or replace products found by ORing to be defective within this warranty period, with
shipment expenses apportioned by ORing and the distributor. This warranty does not cover
product modifications or repairs done by persons other than ORing-approved personnel, and
this warranty does not apply to ORing products that are misused, abused, improperly
installed, or damaged by accidents.
Please refer to the Technical Specifications section for the actual warranty period(s) of the
product(s) associated with this publication.

DISCLAIMER

Information in this publication is intended to be accurate. ORing shall not be responsible for
its use or infringements on third-parties as a result of its use. There may occasionally be
unintentional errors on this publication. ORing reserves the right to revise the contents of this
publication without notice.

CONTACT INFORMATION

ORing Industrial Networking Corp.

3F., No.542-2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan (R.O.C.)
Tel: [phone] // Fax: [phone]
Website: www.oring-networking.com

Technical Support

E-mail: [email protected]

Sales Contact

E-mail: [email protected] (Headquarters)

[email protected] (China)

Table of Content

Getting to Know Your Access Point ............................................................ 1

1.1 About the ORing Access Point ...................................................................................... 1

1.2 Software Features ......................................................................................................... 1

1.3 Hardware Features ........................................................................................................ 1

Hardware Installation .................................................................................... 2

2.1 Installation device on Din-Rail....................................................................................... 2

2.2 Wall Mounting Installation ............................................................................................. 3

Hardware Overview ....................................................................................... 5

3.1 Front Panel ..................................................................................................................... 5

3.2 Front Panel LEDs .......................................................................................................... 9

4.1 Ethernet Cables ........................................................................................................... 10

4.2 Wireless Antenna ......................................................................................................... 10

Management Interface ................................................................................. 11

5.1 Explore IGAP-420/620 ................................................................................................ 11

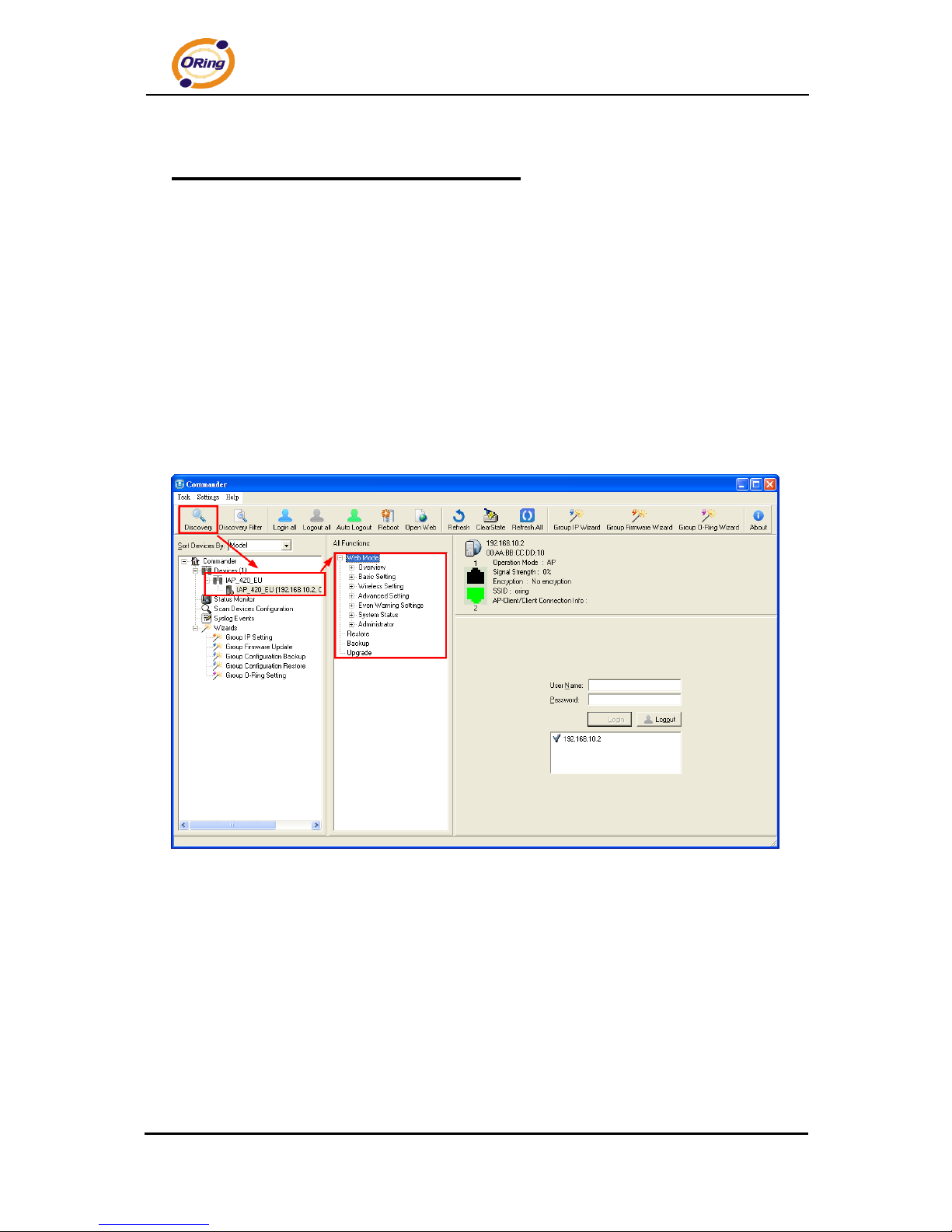

5.1.1 Open-Vision_Commander .......................................................................................... 11

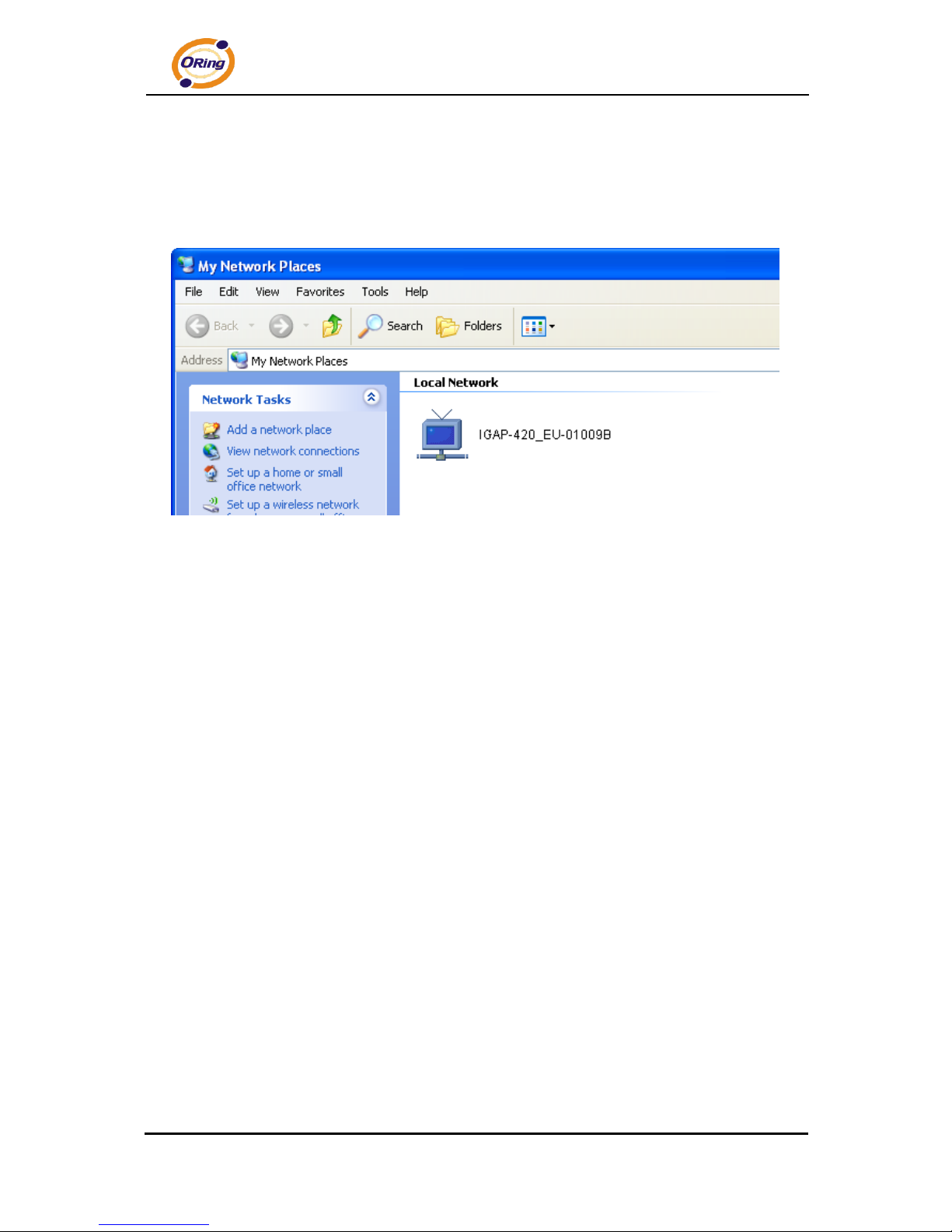

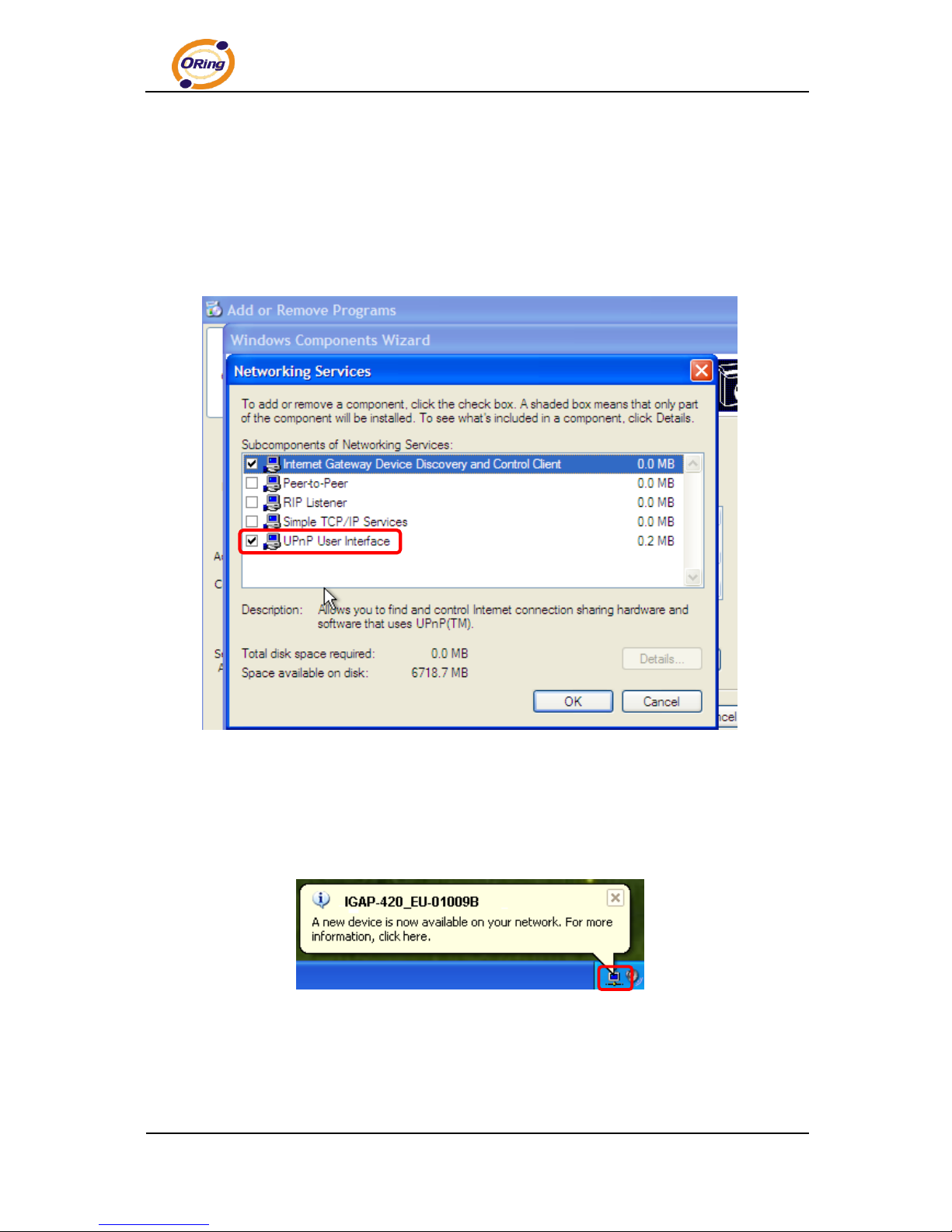

5.2 UPnP Equipment ................................ ......................................................................... 12

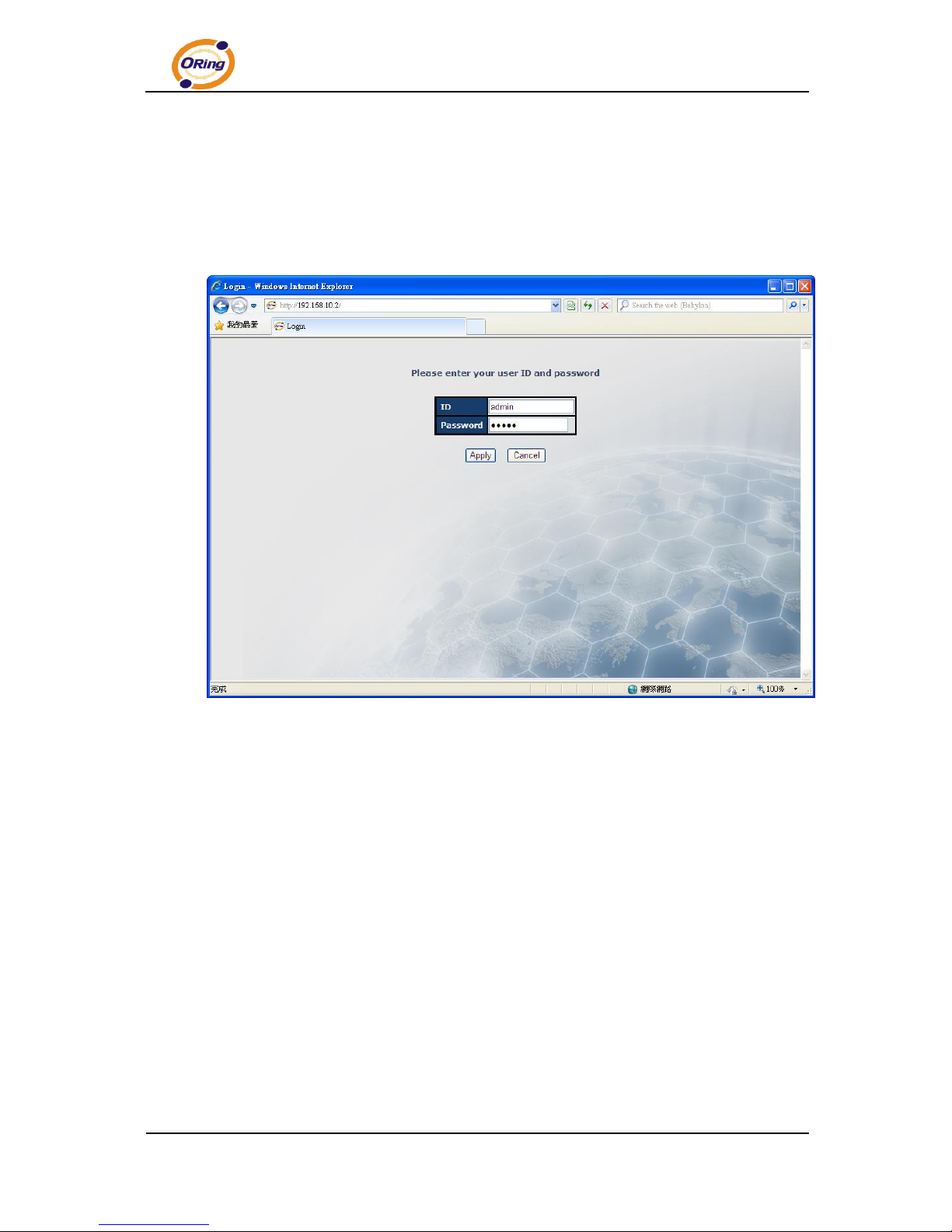

5.3 Configuration by Web Browser ................................................................................... 13

5.4 About Web-Based Management................................................................................. 13

5.5 Main Interface .............................................................................................................. 14

5.5.1 Overview ................................................................................................................... 15

System Info ........................................................................................................................ 15

Lan Info .............................................................................................................................. 15

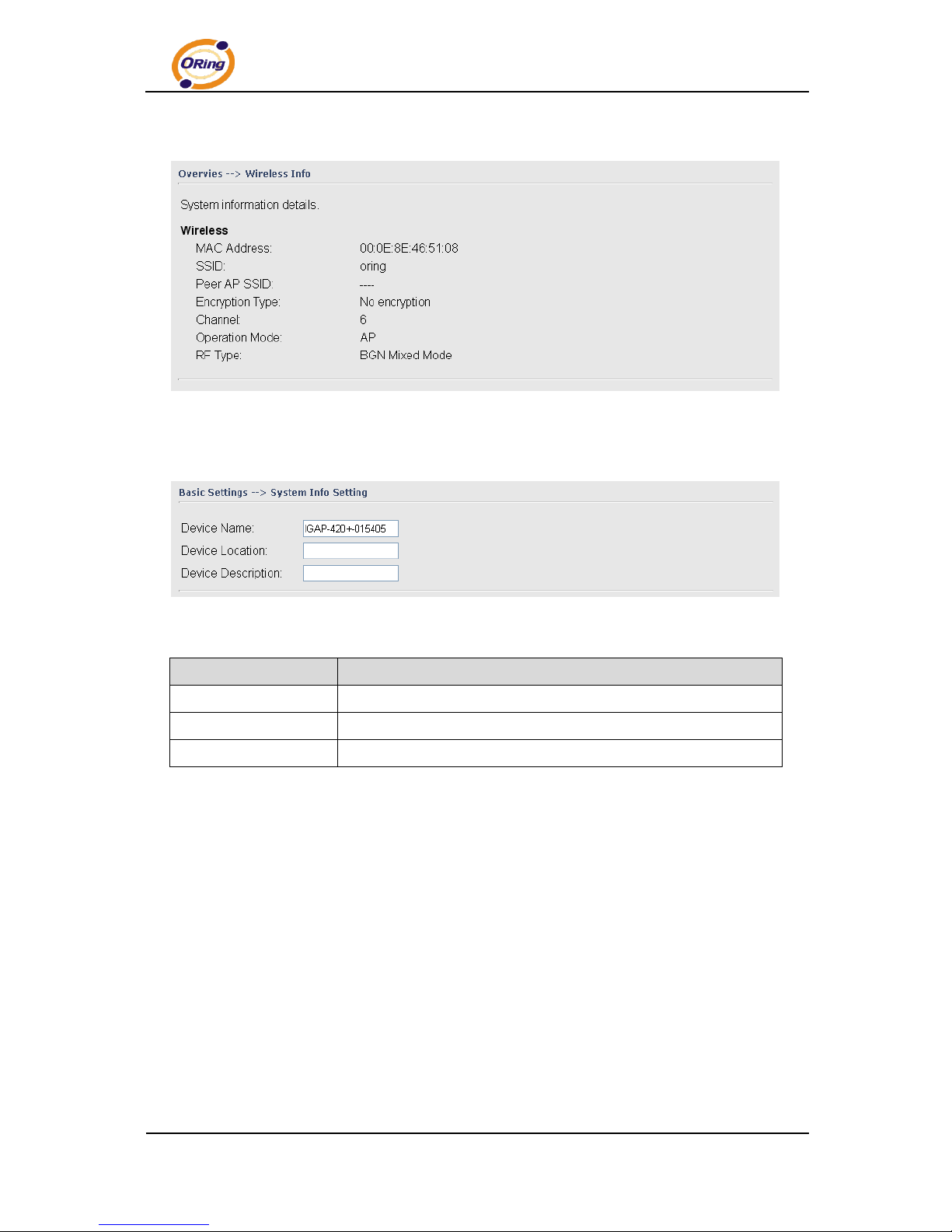

Wireless Info....................................................................................................................... 16

5.5.2 Basic Setting .............................................................................................................. 16

System Info Setting ............................................................................................................. 16

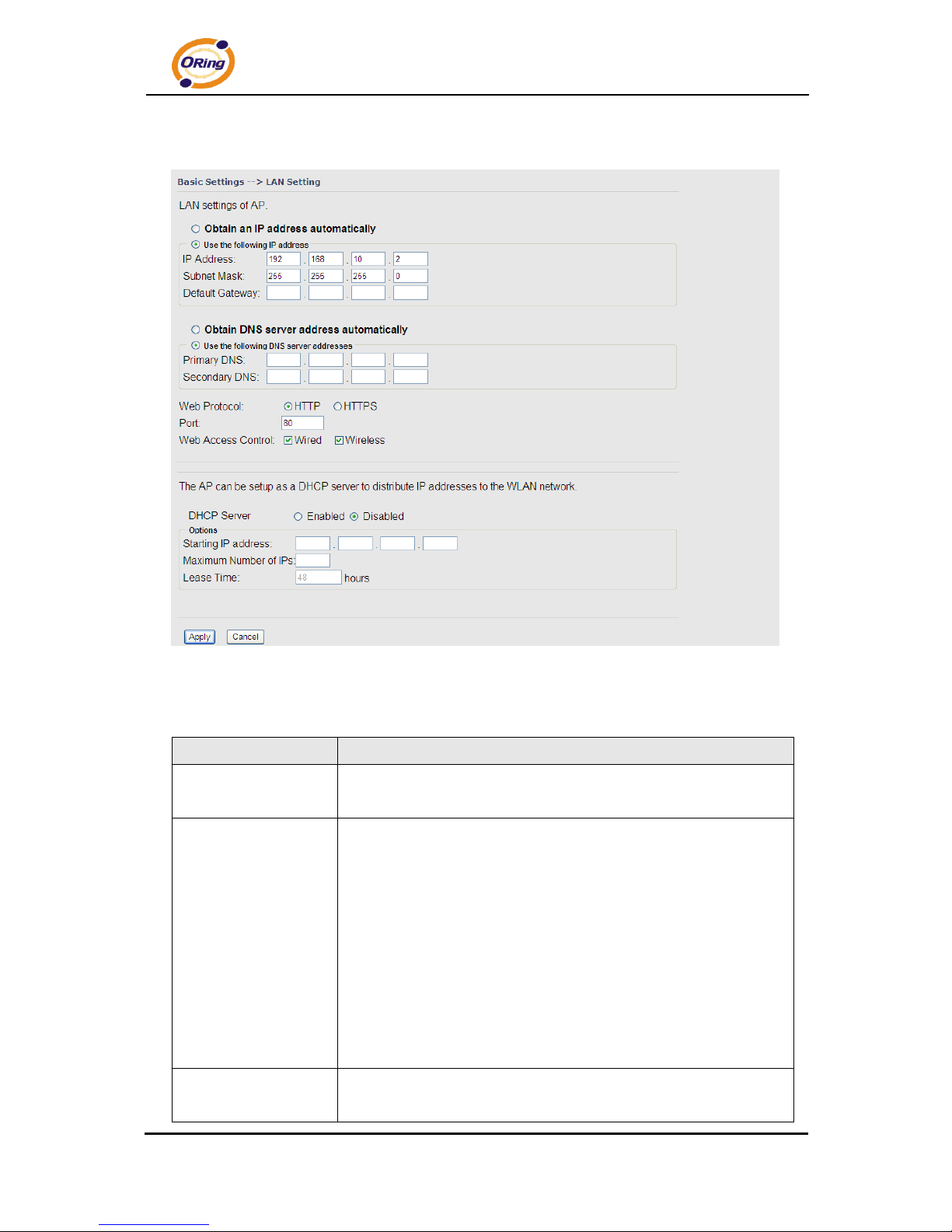

Lan Setting ......................................................................................................................... 17

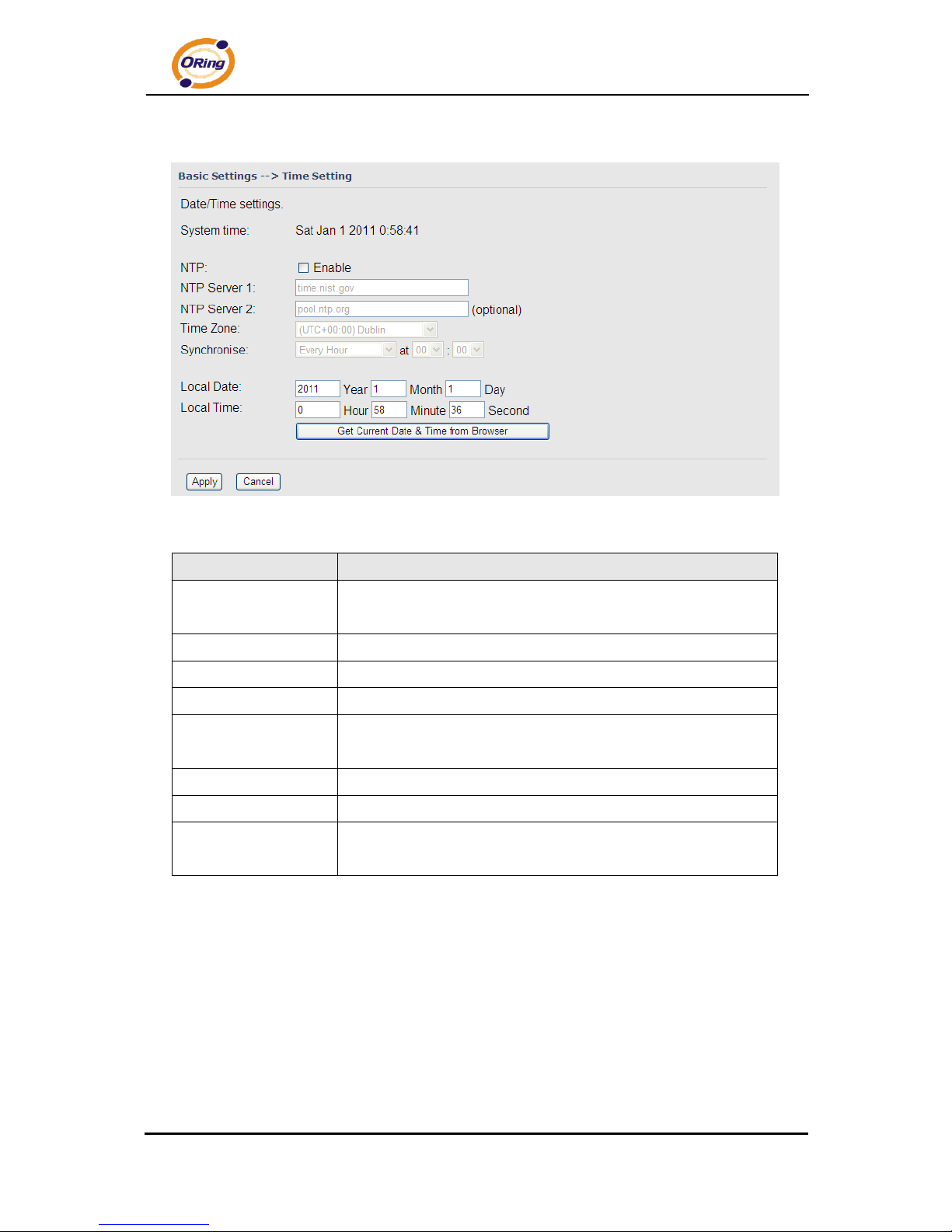

Time Setting ....................................................................................................................... 19

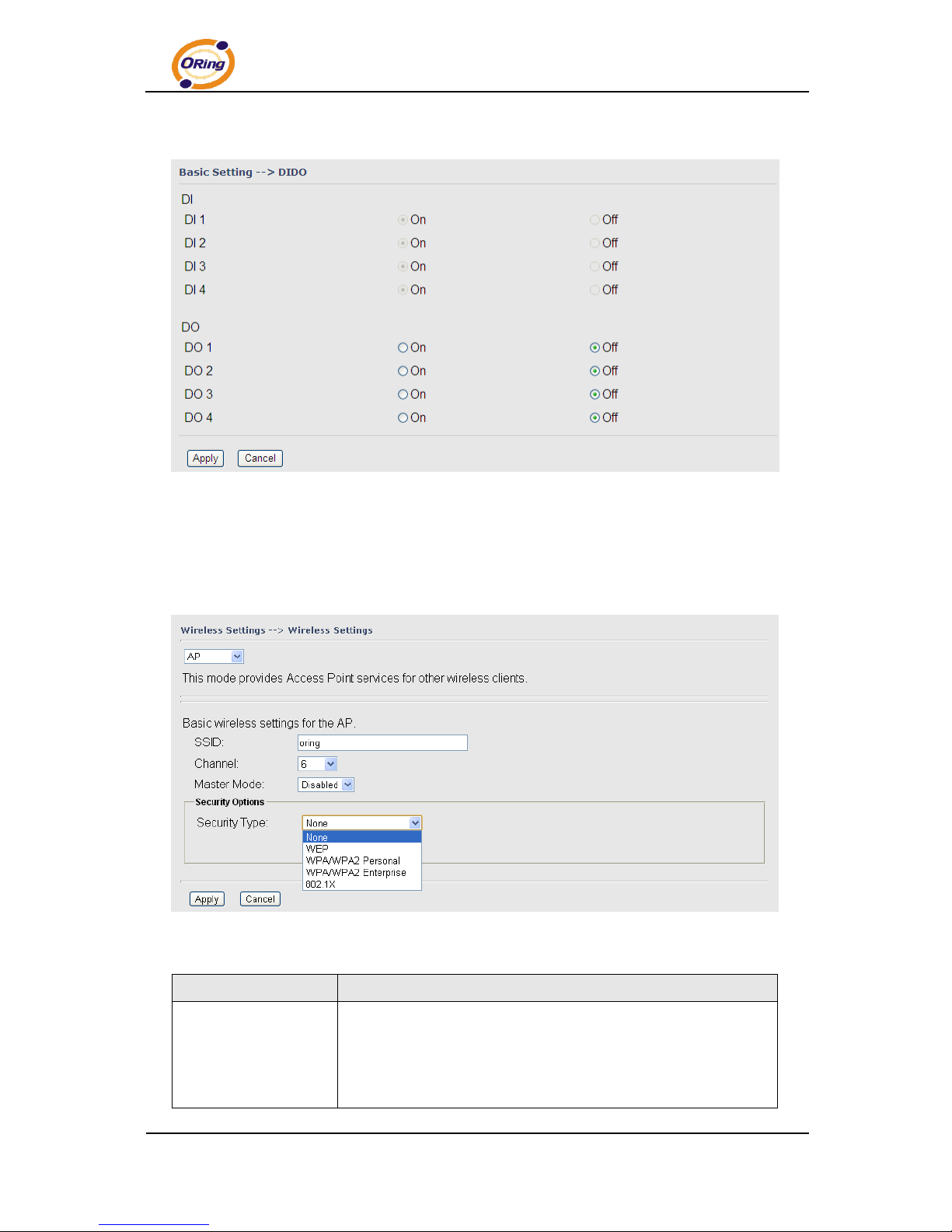

DIDO ................................................................................................................................. 20

5.5.3 Wireless Setting ......................................................................................................... 20

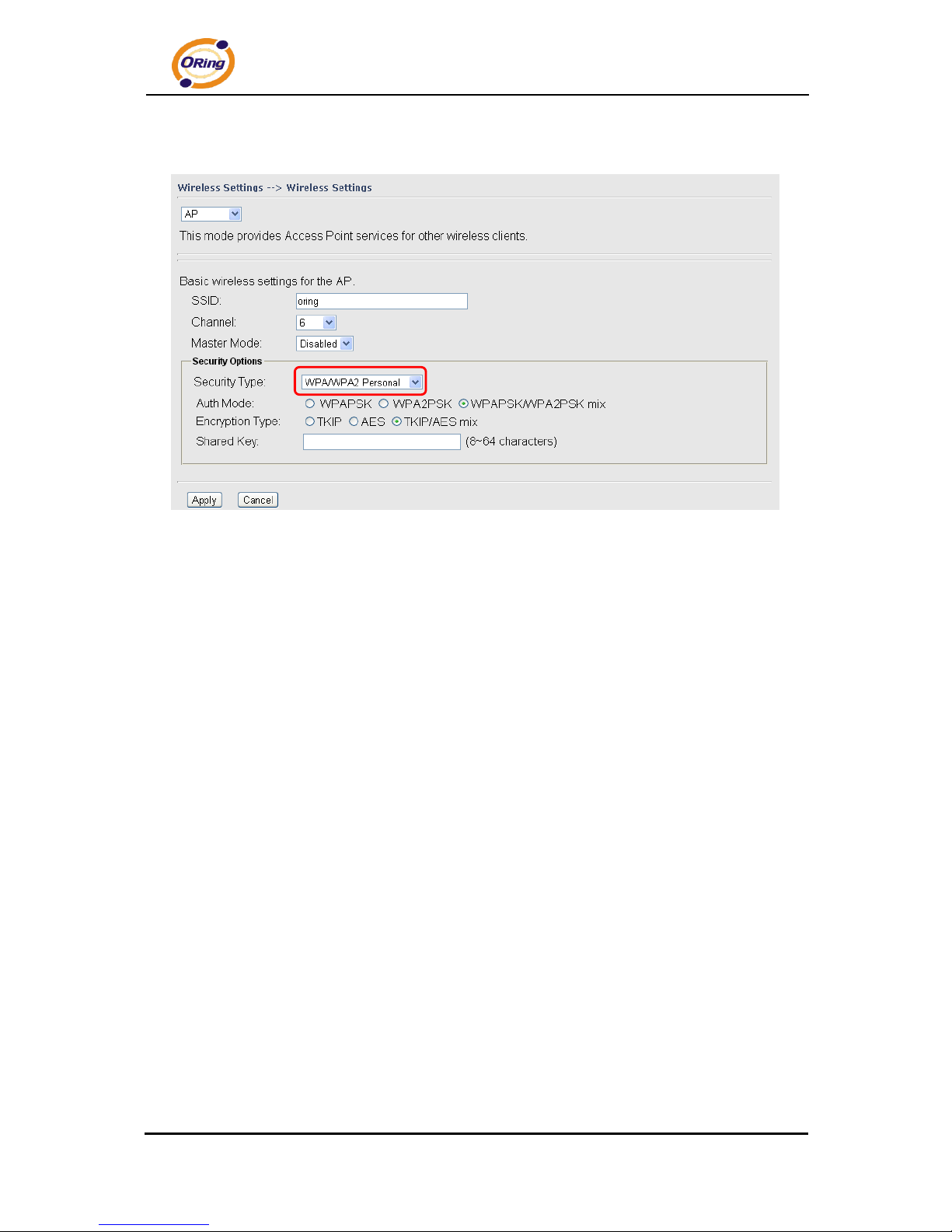

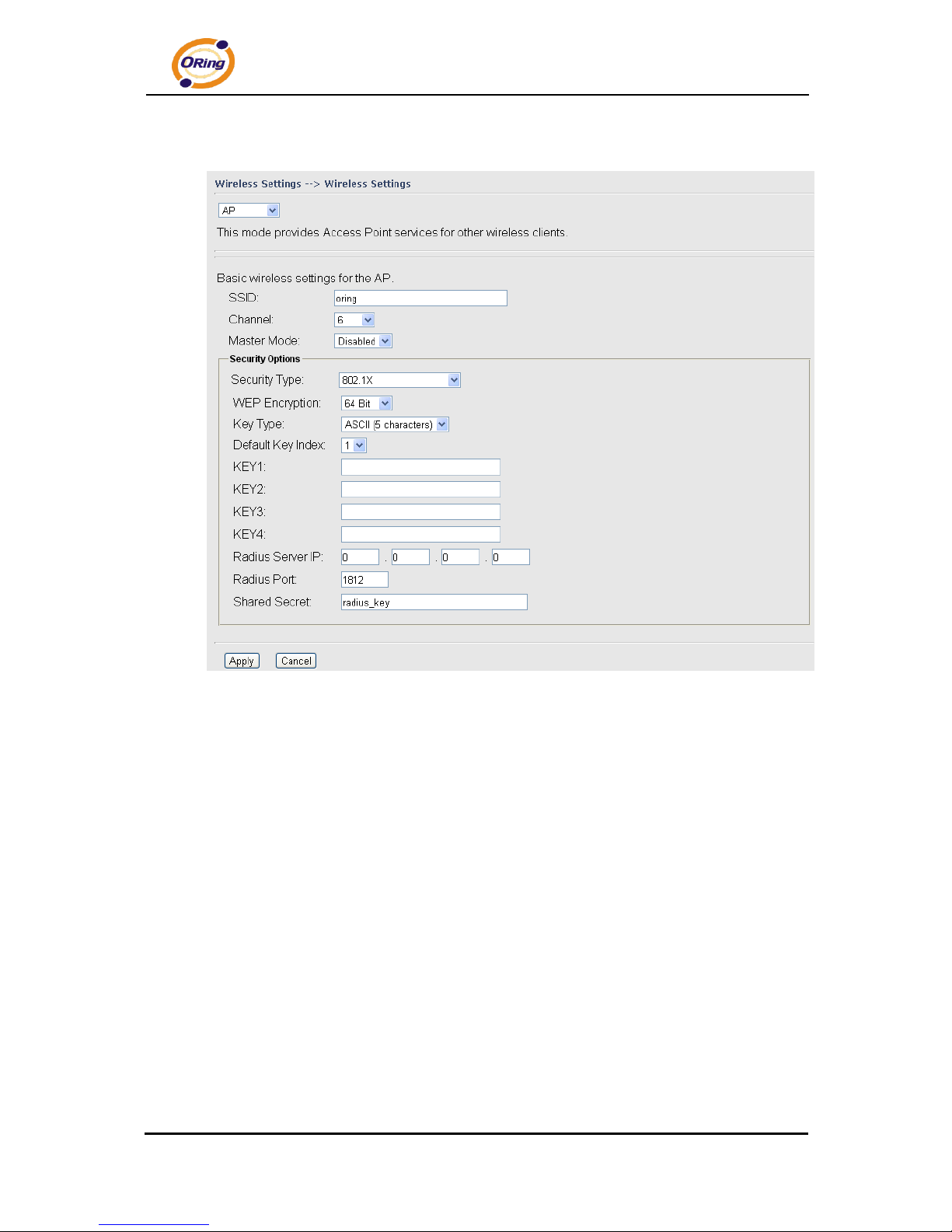

AP Mode ............................................................................................................................ 20

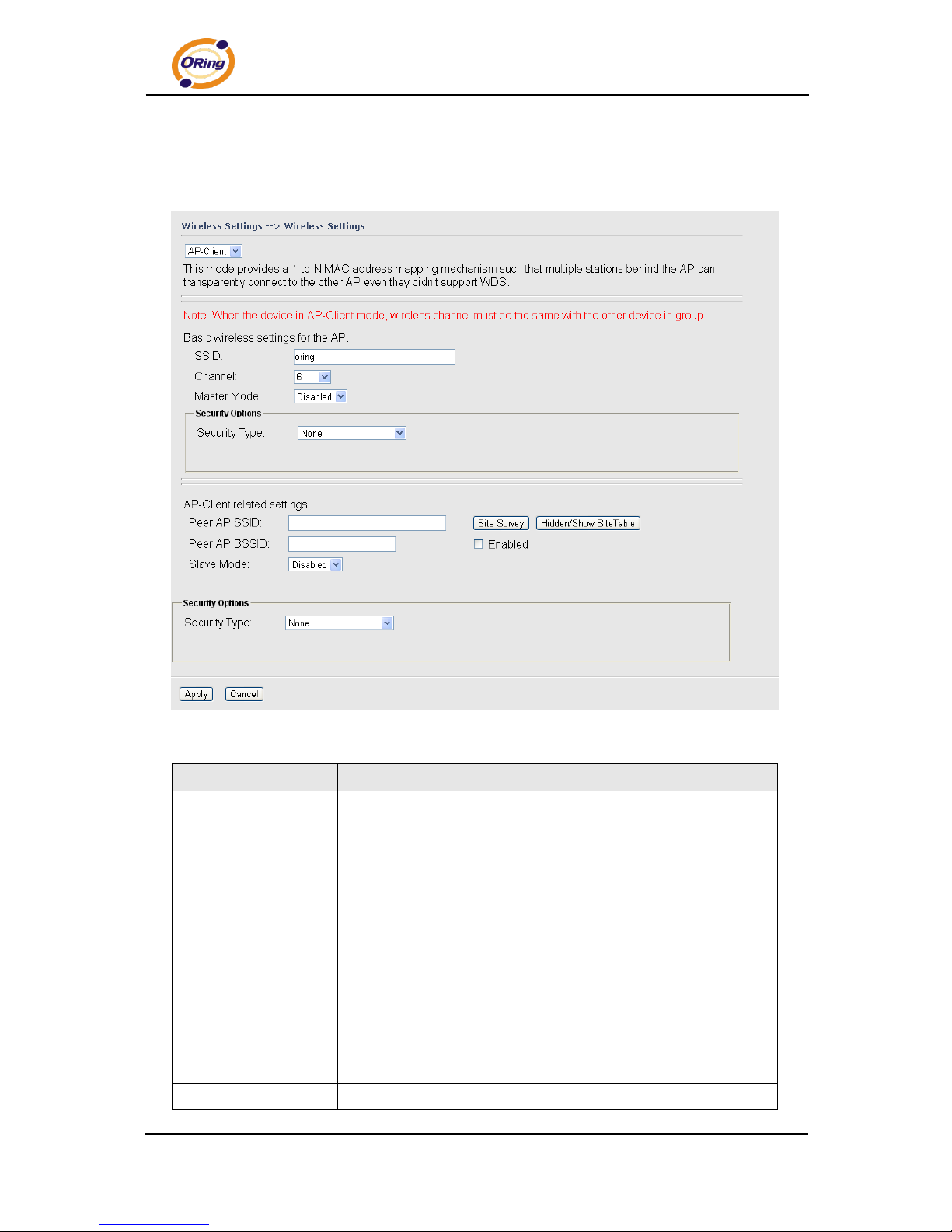

AP-Client Mode .................................................................................................................. 27

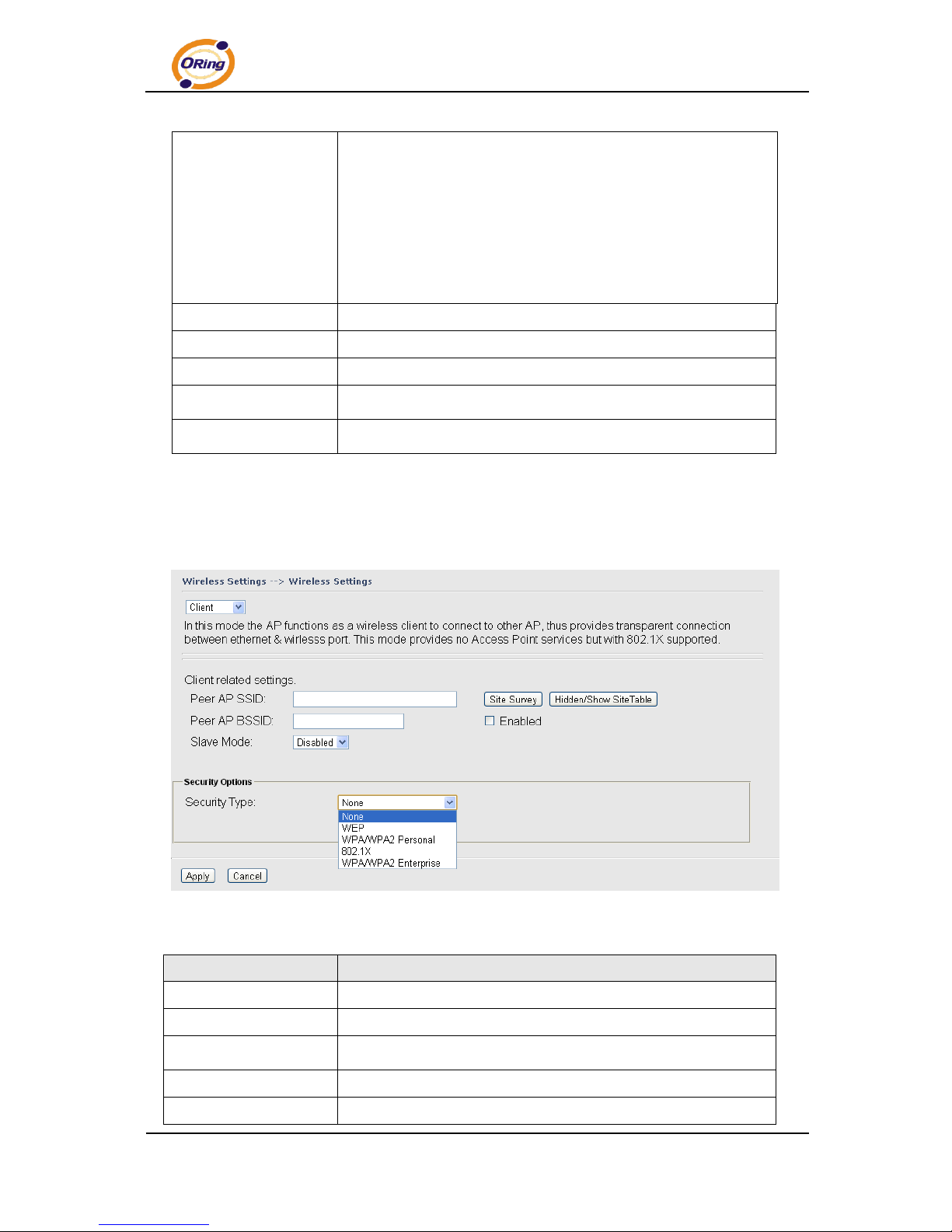

Client Mode ................................................................ ........................................................ 28

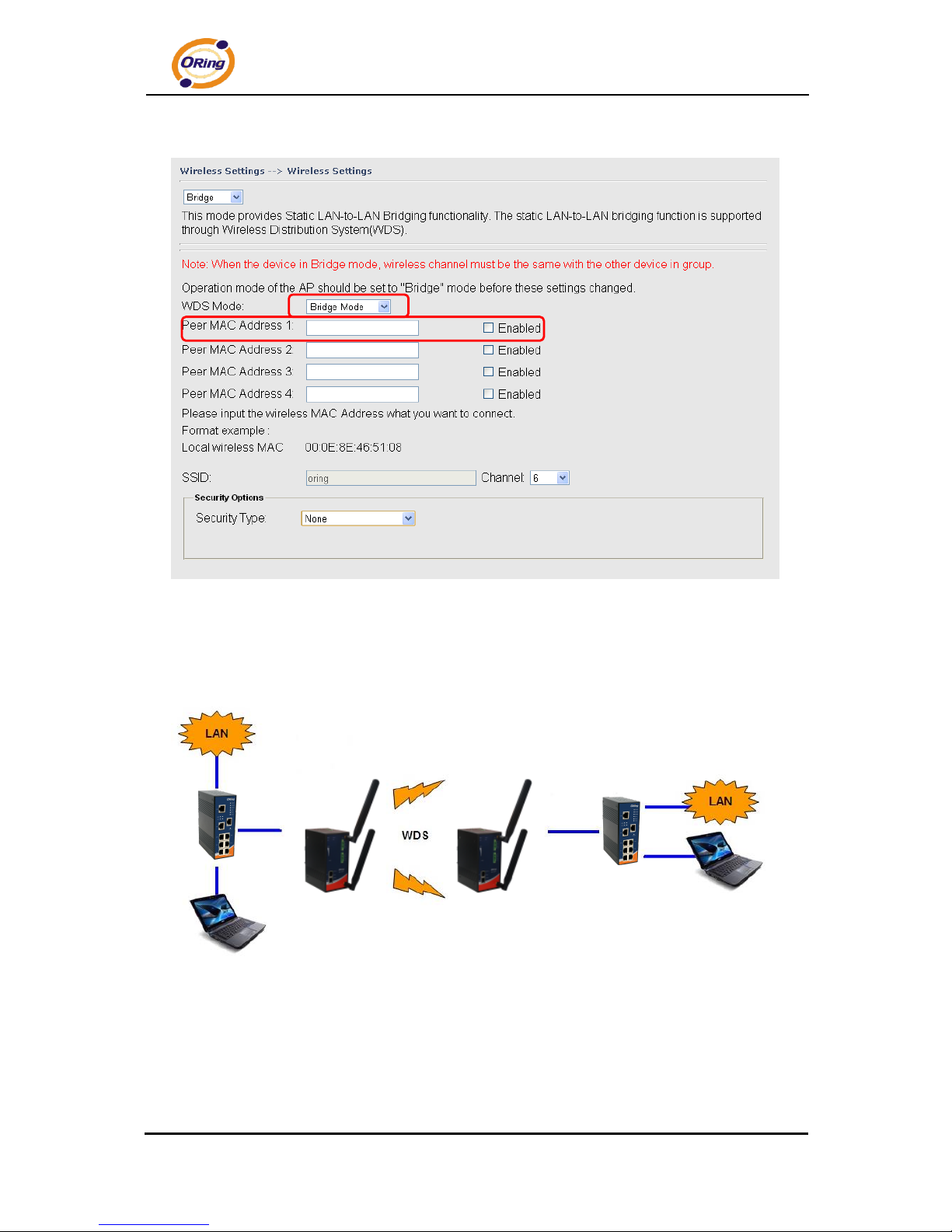

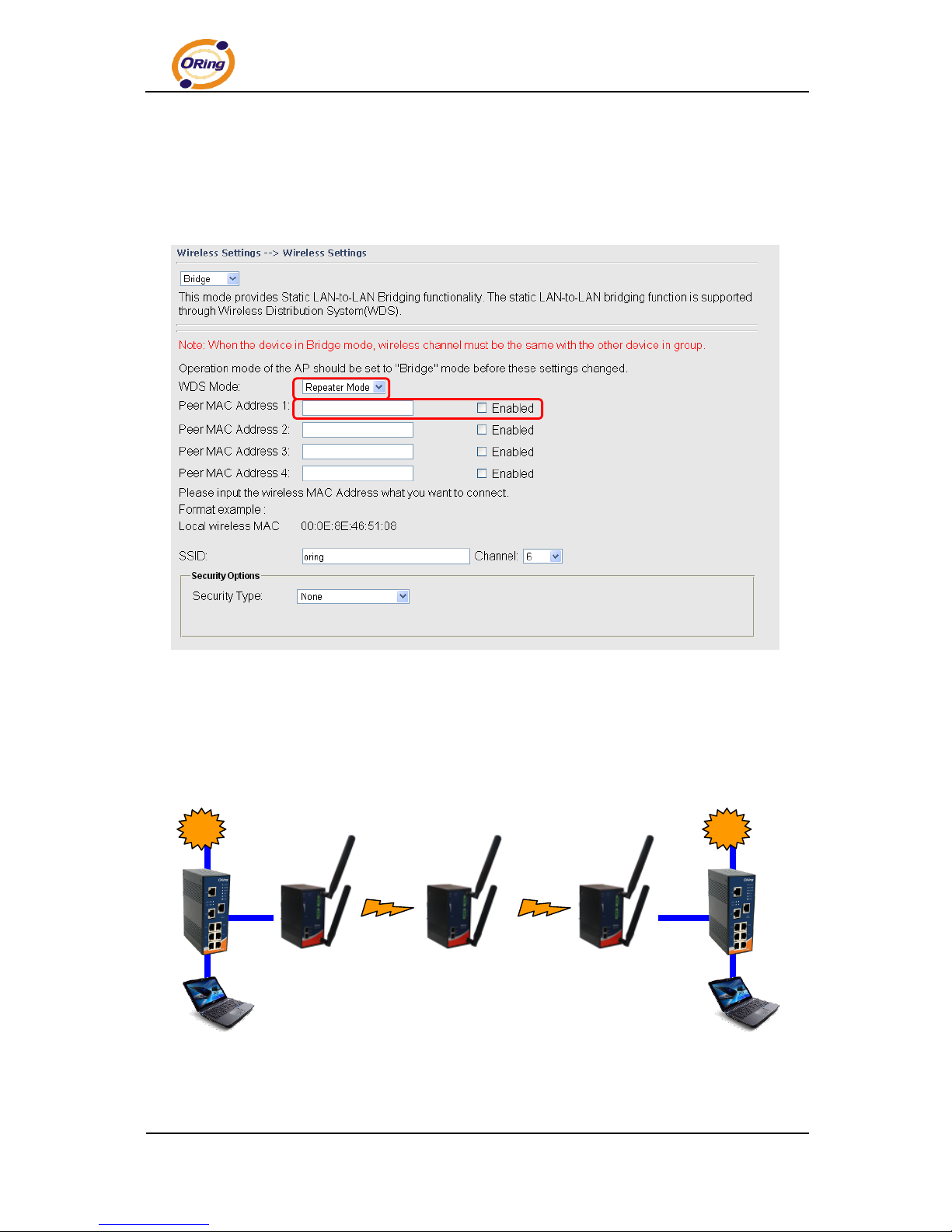

Bridge Mode ....................................................................................................................... 29

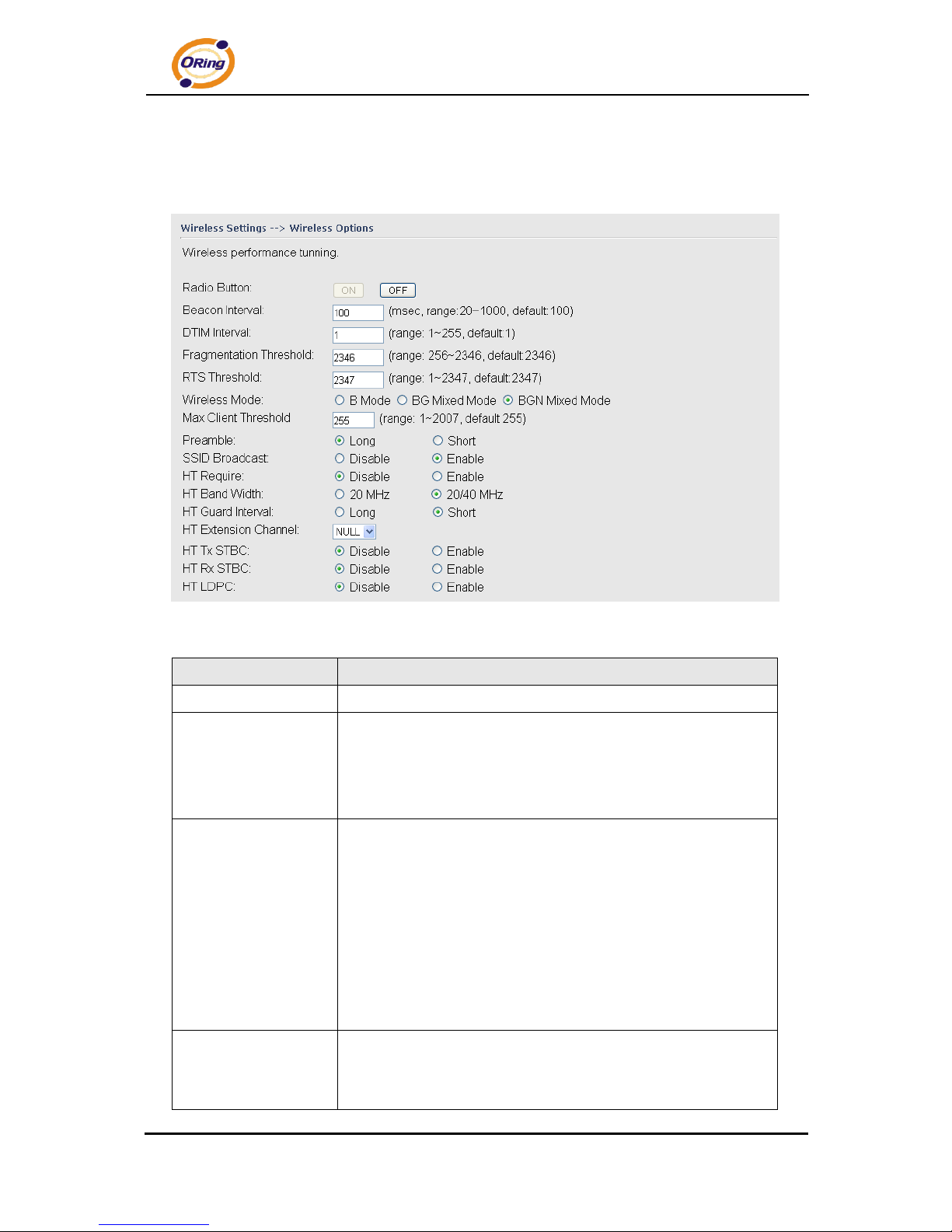

Wireless Options ................................................................................................................. 33

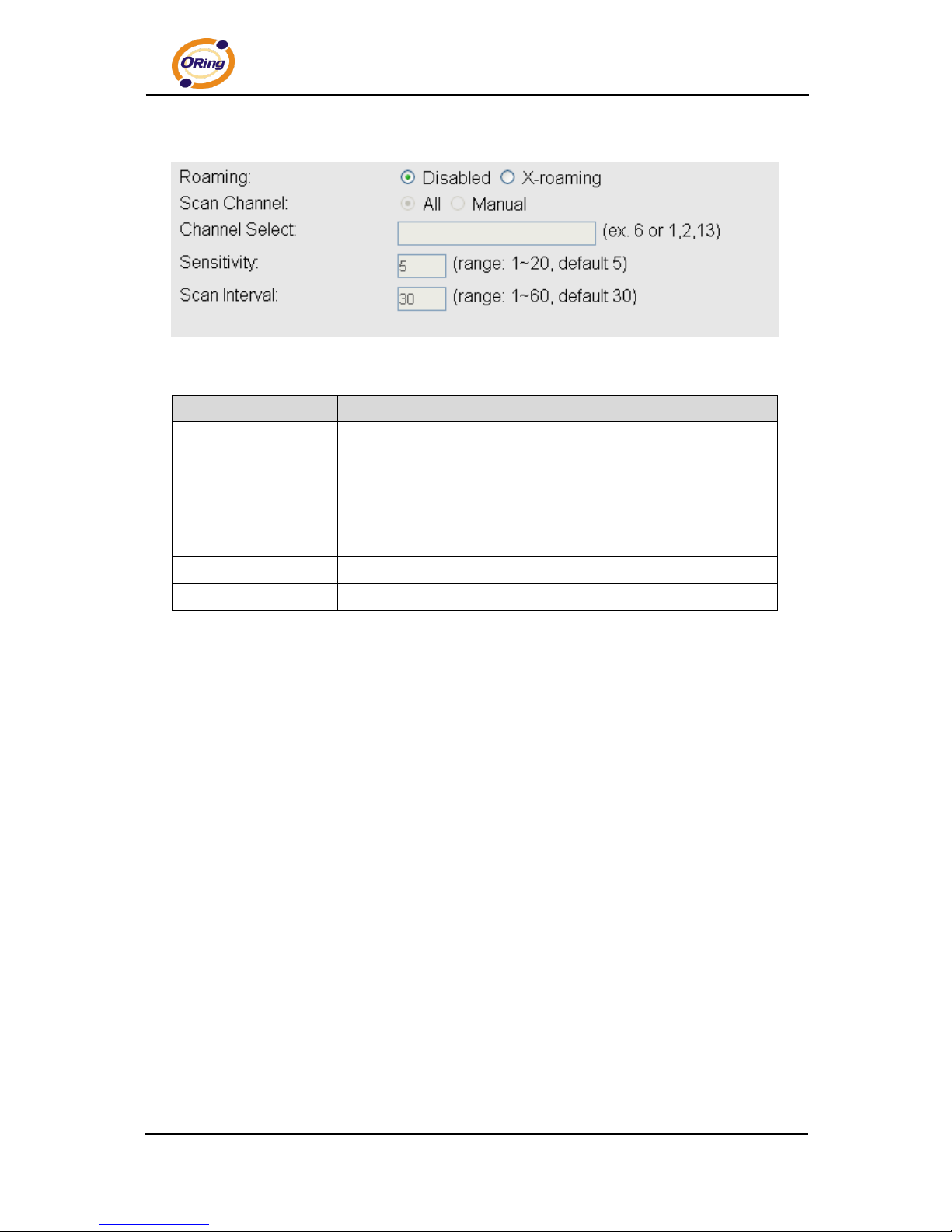

Extra parameters for Client Mode(X-Roaming) ................................................................... 35

5.5.4 Advanced Setting ....................................................................................................... 36

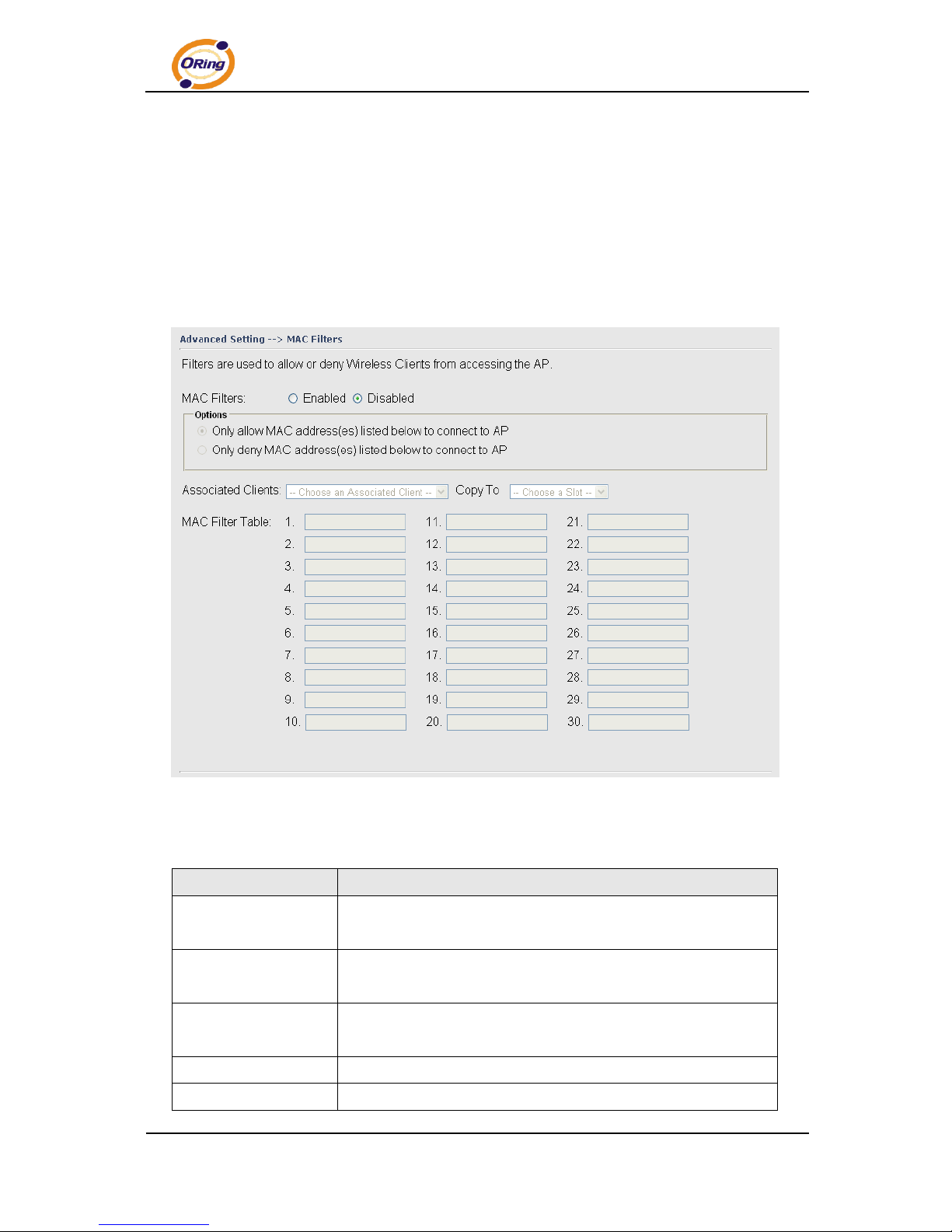

Filters ................................................................................................................................. 36

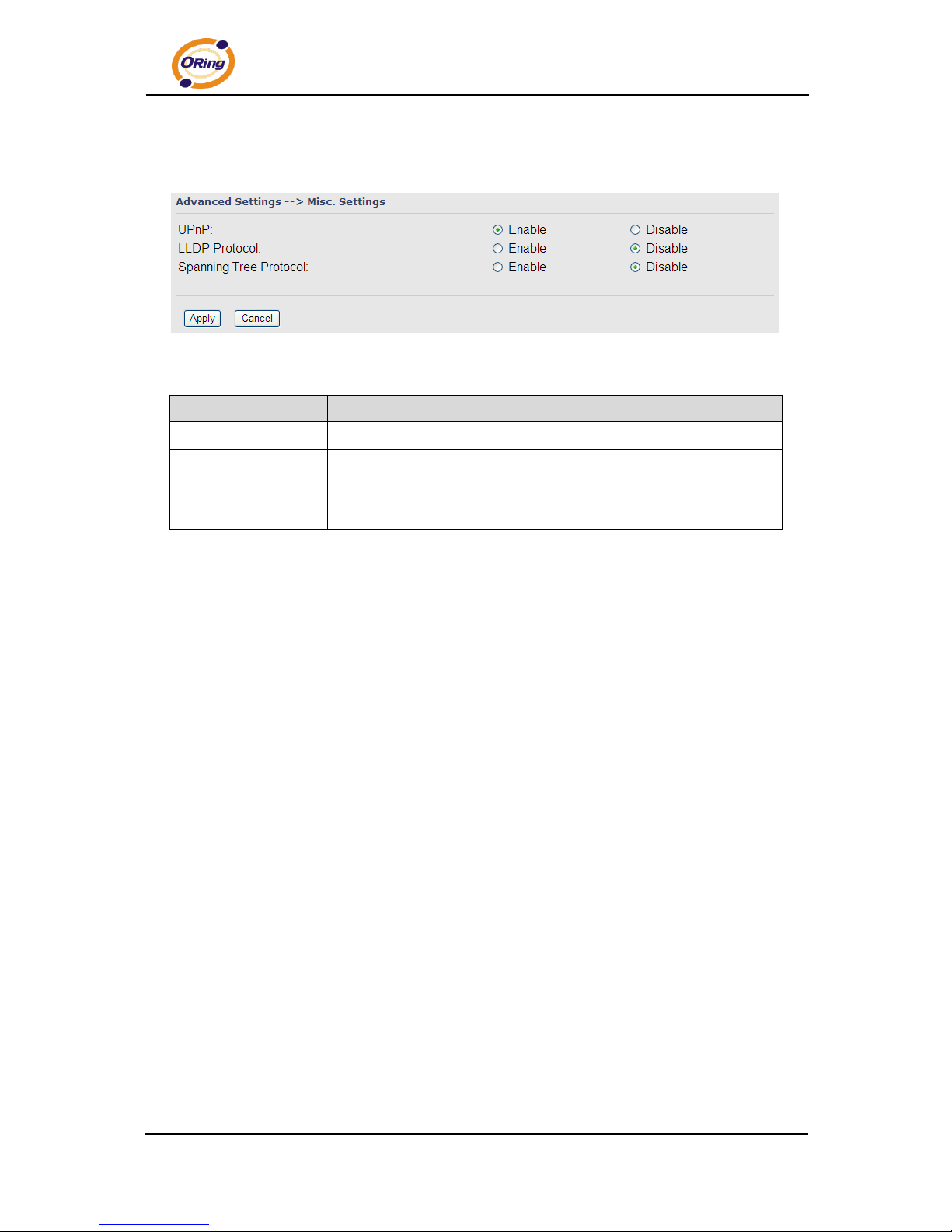

Misc. Settings ................................................................................................ ..................... 37

5.5.5 Even Warning Settings ................................................................ ............................... 38

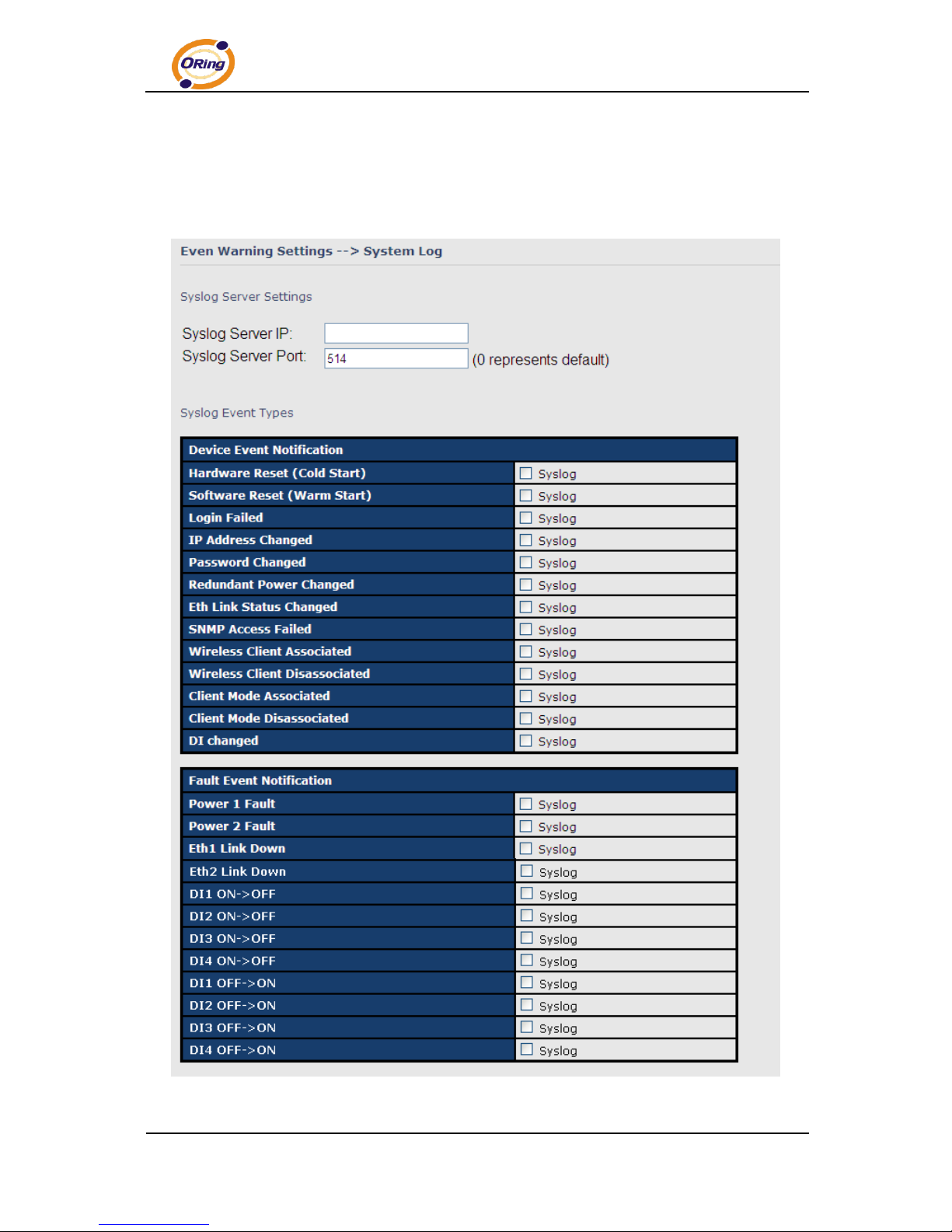

System Log ......................................................................................................................... 38

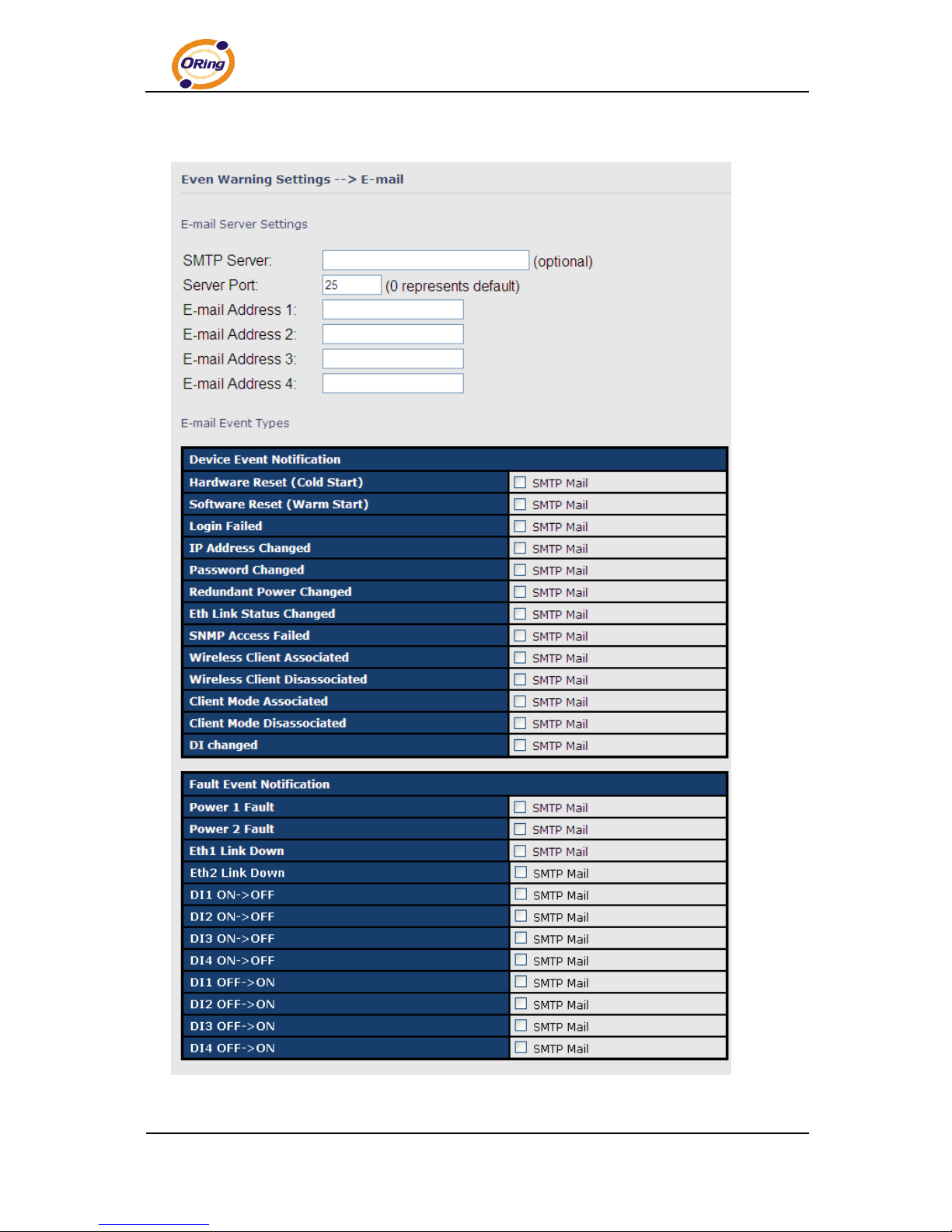

E-Mail ................................ ................................................................................................ 40

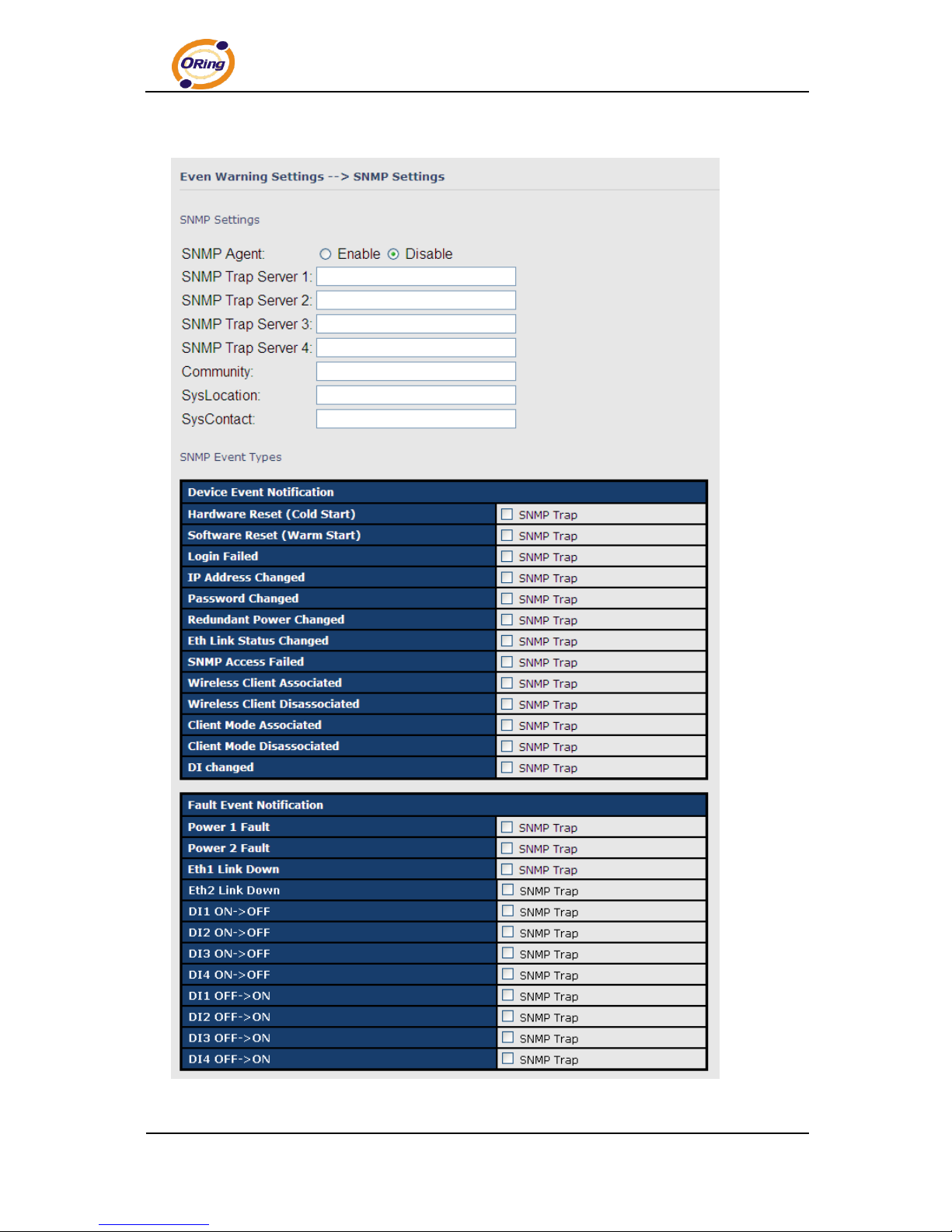

SNMP ................................................................................................................................. 42

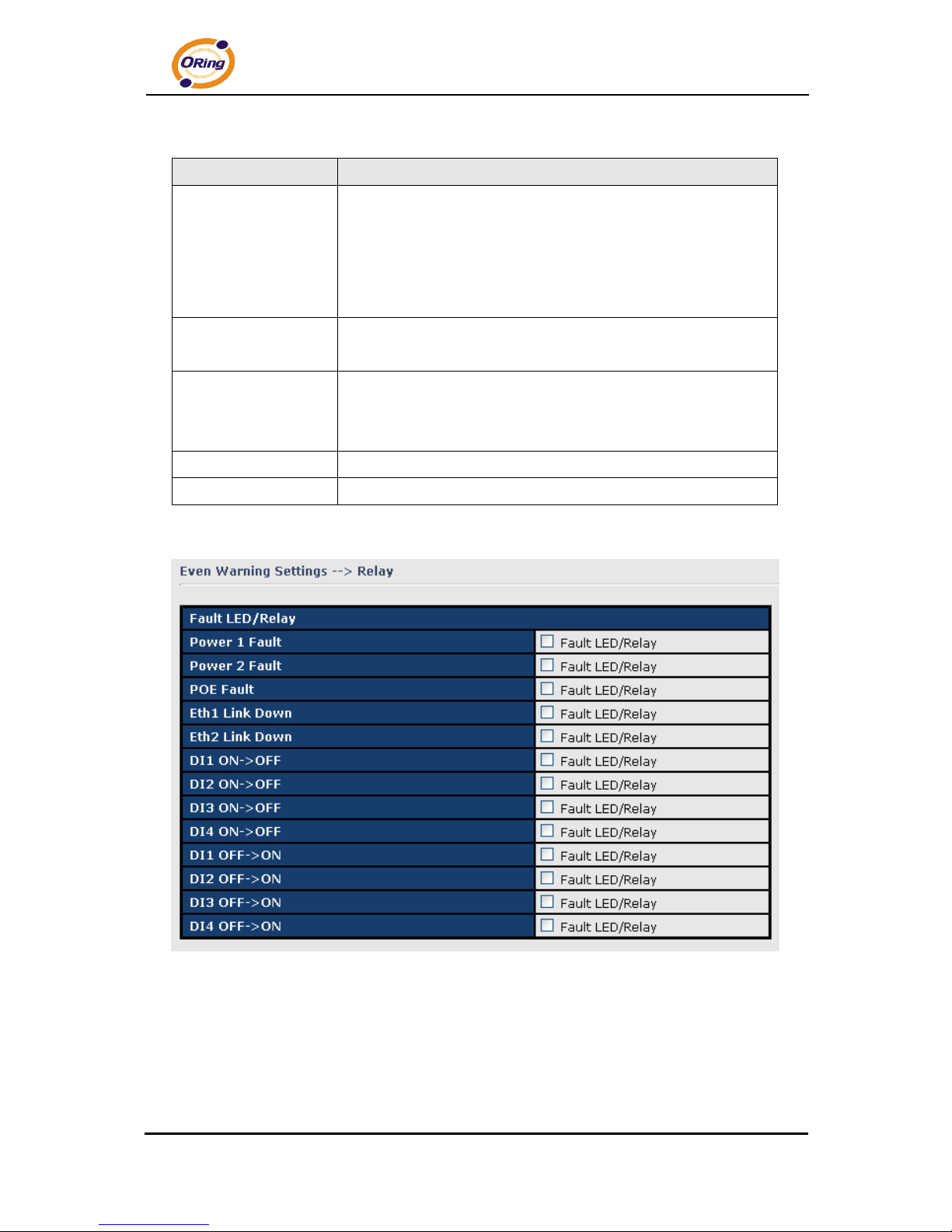

Relay .................................................................................................................................. 43

5.5.6 System status ............................................................................................................. 44

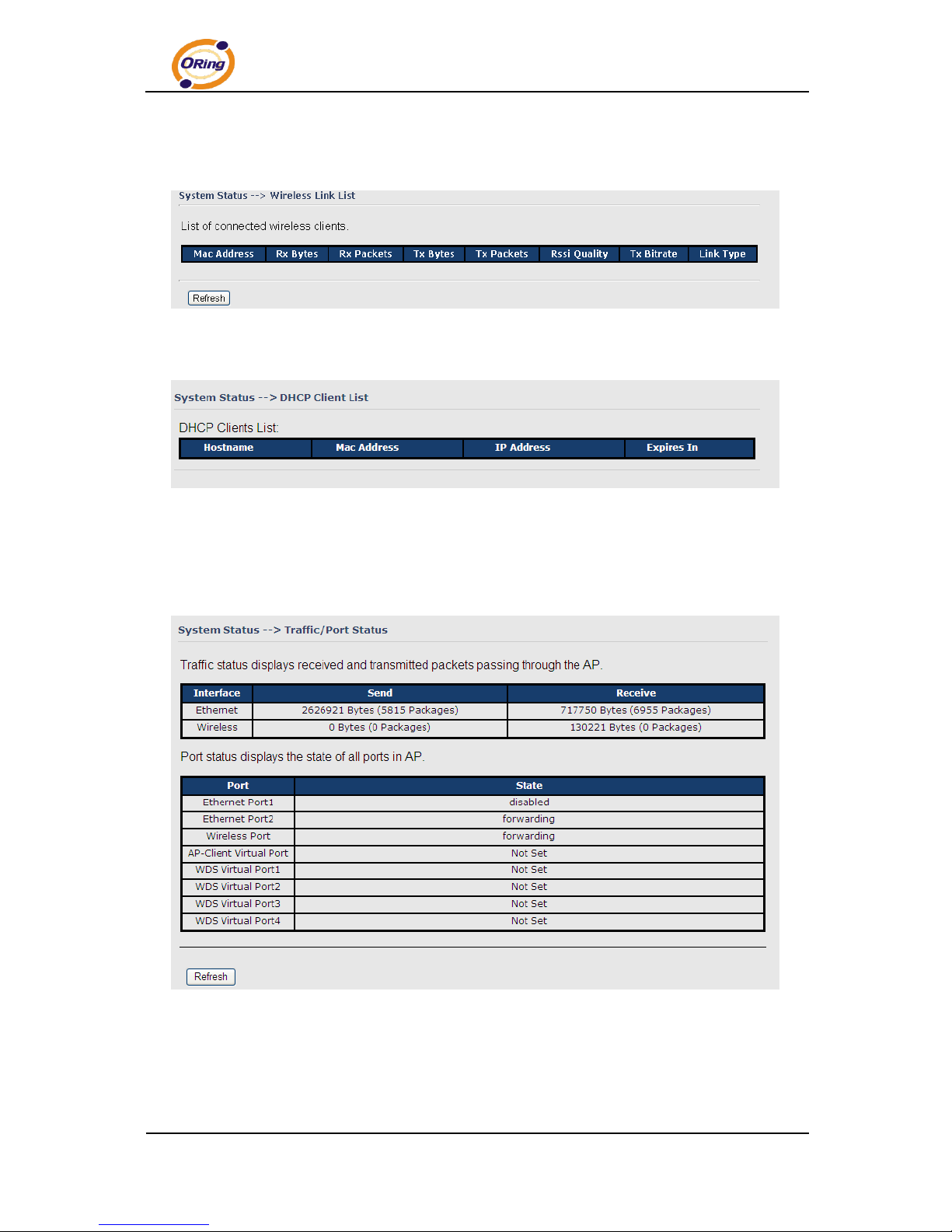

Client status ........................................................................................................................ 44

DHCP Clients List .............................................................................................................. 44

Traffic/Port Status ............................................................................................................... 44

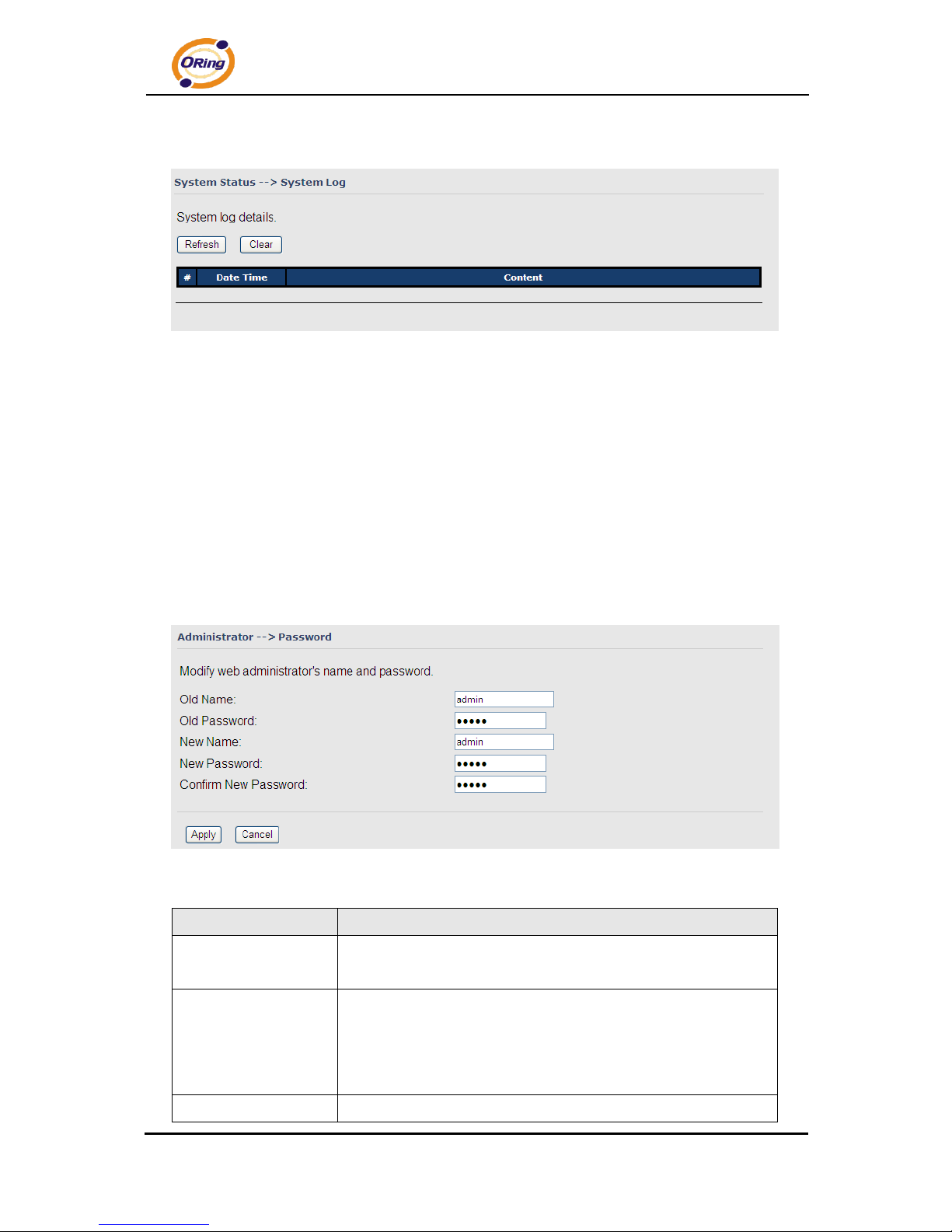

System Log ......................................................................................................................... 45

5.5.7 Administrator............................................................................................................. 45

Password ............................................................................................................................ 45

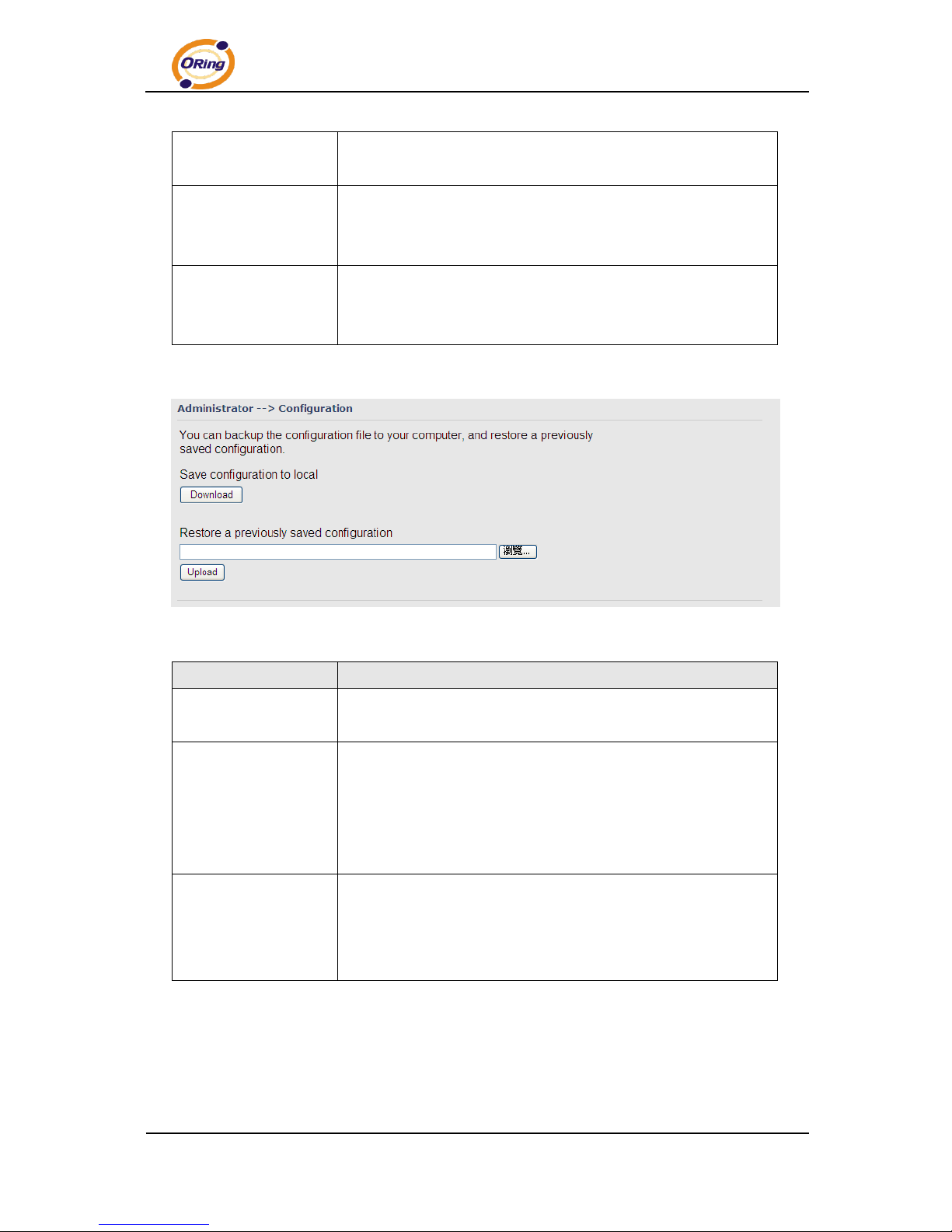

Configuration ...................................................................................................................... 46

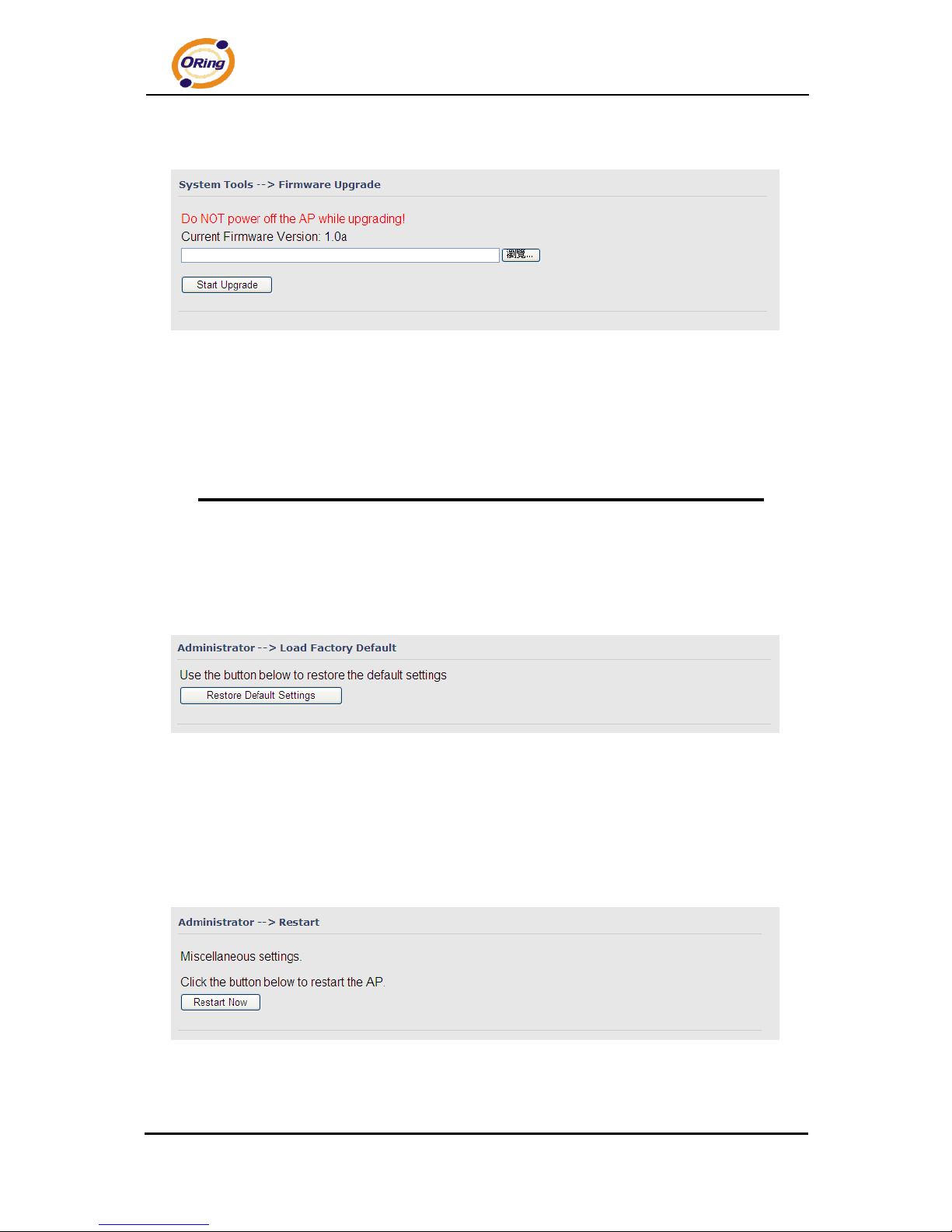

Firmware Upgrade .............................................................................................................. 47

Load Factory Default .......................................................................................................... 47

Restart ................................ ................................................................................................ 47

Technical Specifications ............................................................................ 48

IAP-420/620/6620 Series User’s Manual

1 ORing Industrial Networking Corp.

Getting to Know Your Access Point

1.1 About the ORing Access Point

IGAP-420/620/6620 is reliable IEEE802.11b/g/n;
IEEE802.11 a/b/g/n WLAN with 2 ports LAN Access Point.
It can be configured to operate in AP/Client/Bridge/AP-Client
mode. You can configure IGAP-420/620/6620 by Window
Utility or WEB interfaces via LAN port or WLAN interface.
IGAP-420/620/6620 provides dual Ethernet ports, so you can
use Daisy Chain to reduce the usage of Ethernet switch ports.
Therefore, IGAP-420/620/6620 is one of the best
communication solutions for wireless application.

1.2 Software Features

 High Speed Air Connectivity: WLAN interface support up to 300Mbps link speed

connection

 Highly Security Capability: WEP/WPA/WPA2/Radius/TKIP supported
 Support AP/Client/Bridge/AP-Client Mode
 Switch Mode Supported: Daisy Chain support to reduce usage of switch ports
 Secured Management by HTTPS
 Event Warning by Syslog, Email, SNMP Trap, Relay

1.3 Hardware Features

 Redundant Power Inputs: Dual 12~48 VDC
 10/100/1000 Base-T(X) Ethernet port
 Casing: IP-30
 Dimensions(W x D x H) : 74.3(W) x 109.2(D) x 153.6(H) mm
 Operating Temperature: -10 to 60oC
 Storage Temperature: -40 to 85oC
 Operating Humidity: 5% to 95%, non-condensing

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 2

Hardware Installation

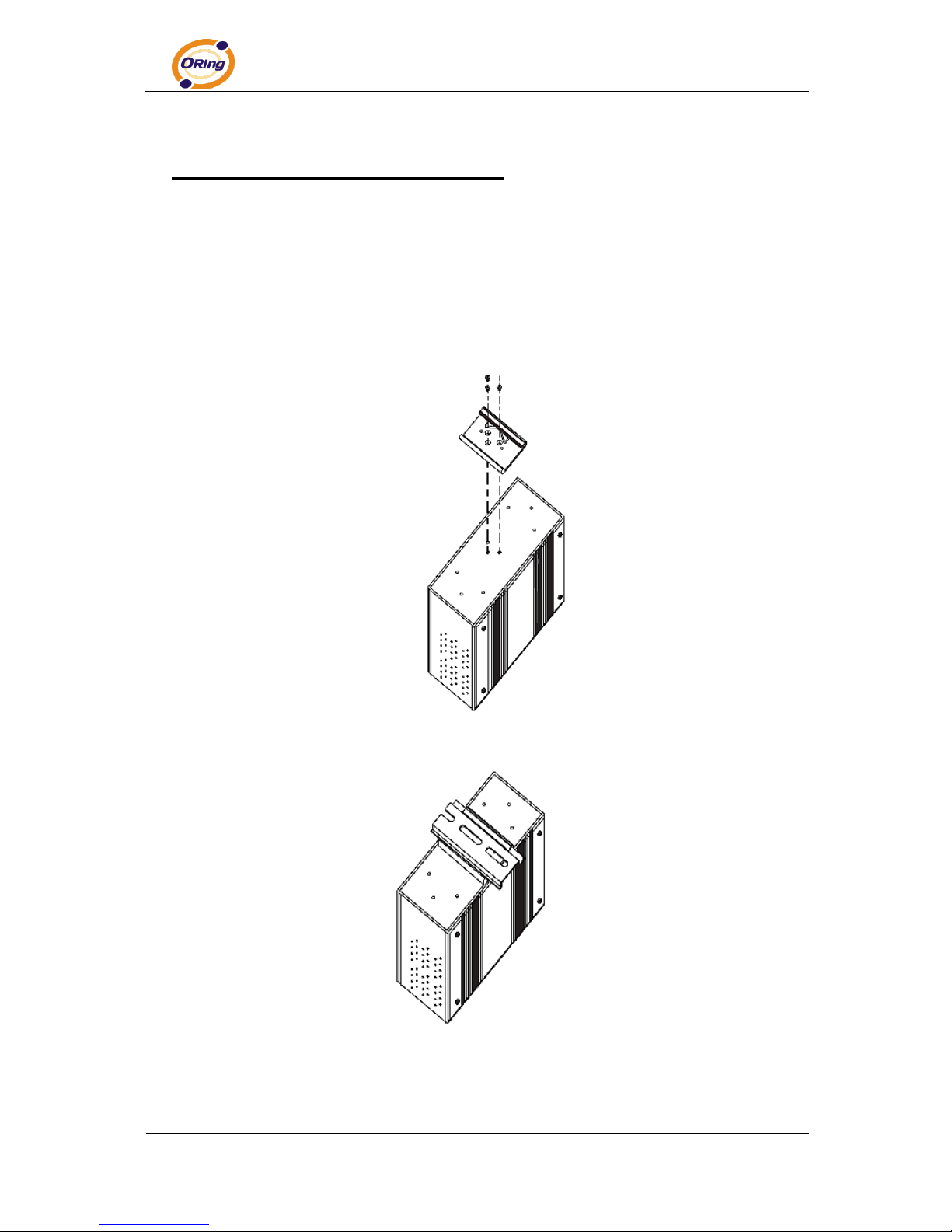

2.1 Installation device on Din-Rail

Each device has a DIN-Rail kit on rear panel. The DIN-Rail kit helps device to fix on the

DIN-Rail.

Step 1: Slant the router and mount the metal spring to DIN-Rail.

Step 2: Push the device toward the DIN-Rail until you heard a “click” sound.

IGAP-420/620/6620 Series User’s Manual

3 ORing Industrial Networking Corp.

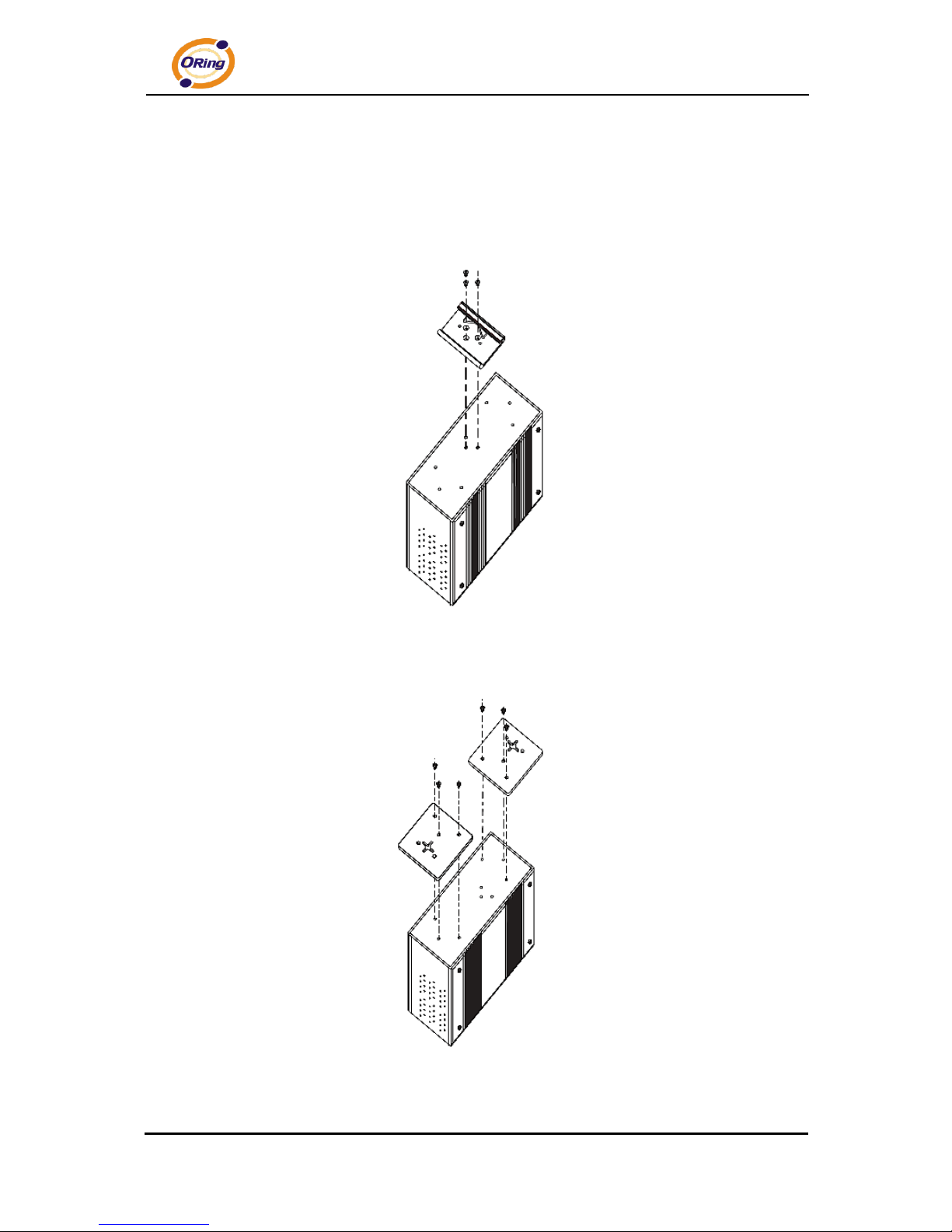

2.2 Wall Mounting Installation

Each device has another installation method to fix it. A wall mount panel can be found

in the package. The following steps show how to mount the device on the wall:

Step 1: Remove DIN-Rail kit.

Step 2: Use 6 screws that can be found in the package to combine the wall mount panel.
Just like the picture shows below:

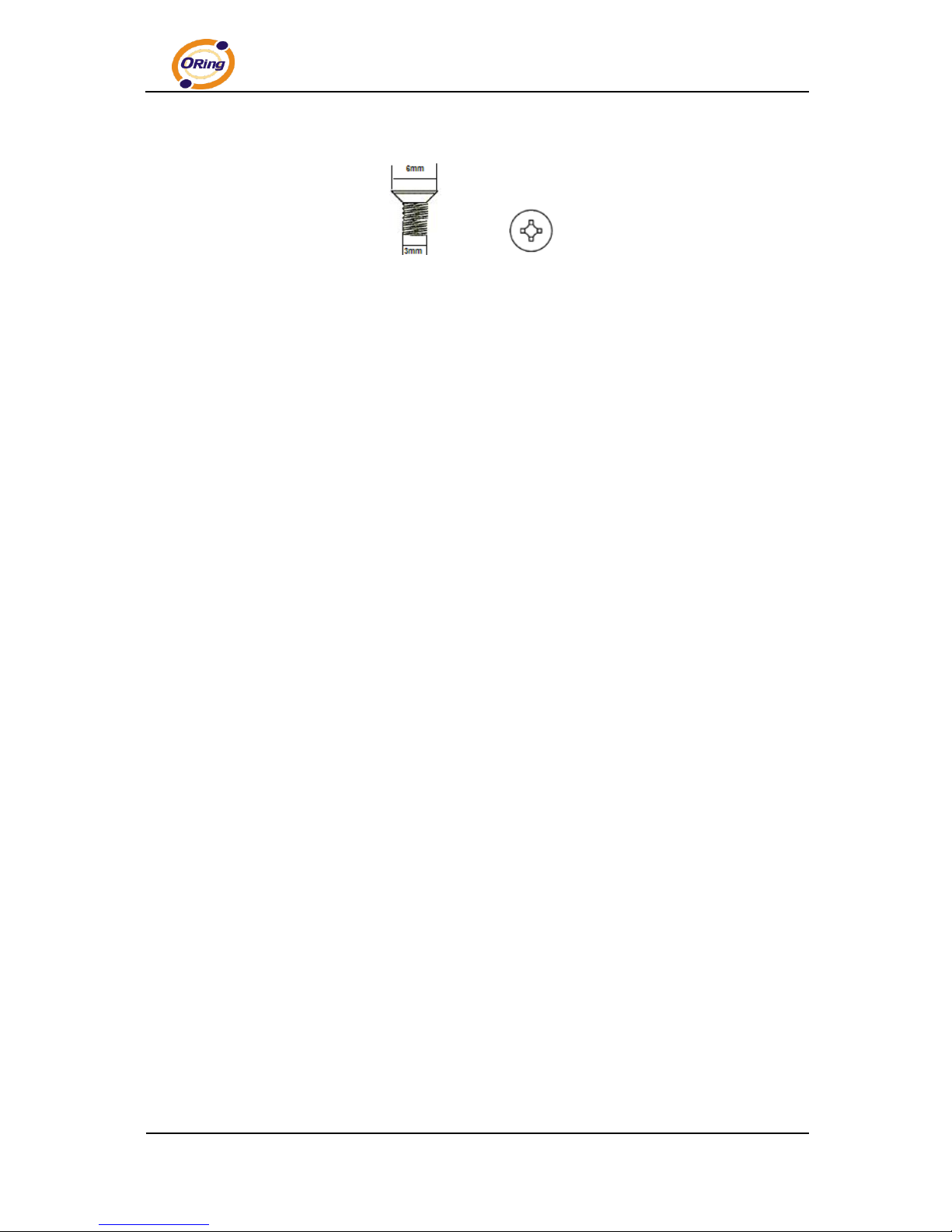

The screws specification shows in the following two pictures. In order to prevent the

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 4

device from any damage, the screws should not larger than the size that used in it.

Pozidrive

Step 3: Mount the combined device on the wall.

IGAP-420/620/6620 Series User’s Manual

5 ORing Industrial Networking Corp.

Hardware Overview

3.1 Front Panel

The following table describes the labels that stick on the IGAP-420/620/6620.

Port

Description

10/100/1000 Base-T(X)
fast Ethernet ports

10/100/1000 Base-T(X) fast Ethernet ports support
auto-negotiation.
Default Setting : auto speed

Relay Output

Relay output to carry capacity of 3A at 24VDC

Redundant power inputs

Dual Power Inputs. 12~48 VDC

DIDO

4 digital input / 4 digital output

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 6

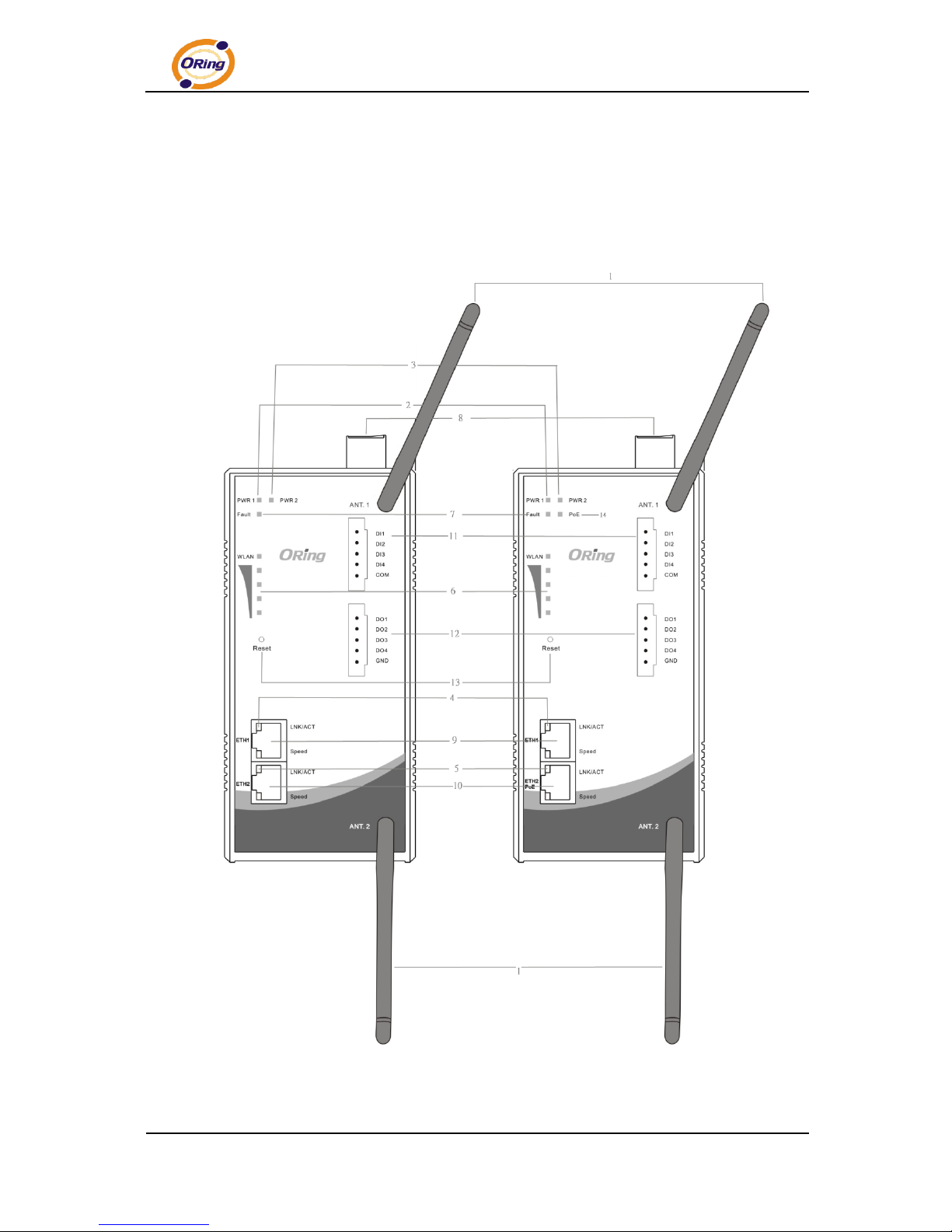

IGAP-420/620 IGAP-420+/620+

IGAP-420/620/6620 Series User’s Manual

7 ORing Industrial Networking Corp.

1. 2.4/5GHz antenna with typical 2 dBi antenna for 5GHz and 2.4GHz.

2. LED for PWR1 and system status. When the PWR1 links, the green LED will be light
on.

3. LED for PWR2 and system status. When the PWR2 links, the green LED will be light
on.

4. LED for Ethernet port1 status.

5. LED for Ethernet port2 status.

6. LED for WLAN link status.

7. LED for Fault Relay. When the fault occurs, the red LED will be light on.

8. Power Input port

9. Ethernet port1 connector

10. Ethernet port2 connector

11. Digital input

12. Digital output

13. Reset button

14. LED for P.O.E Status (IGAP-420+/620+)

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 8

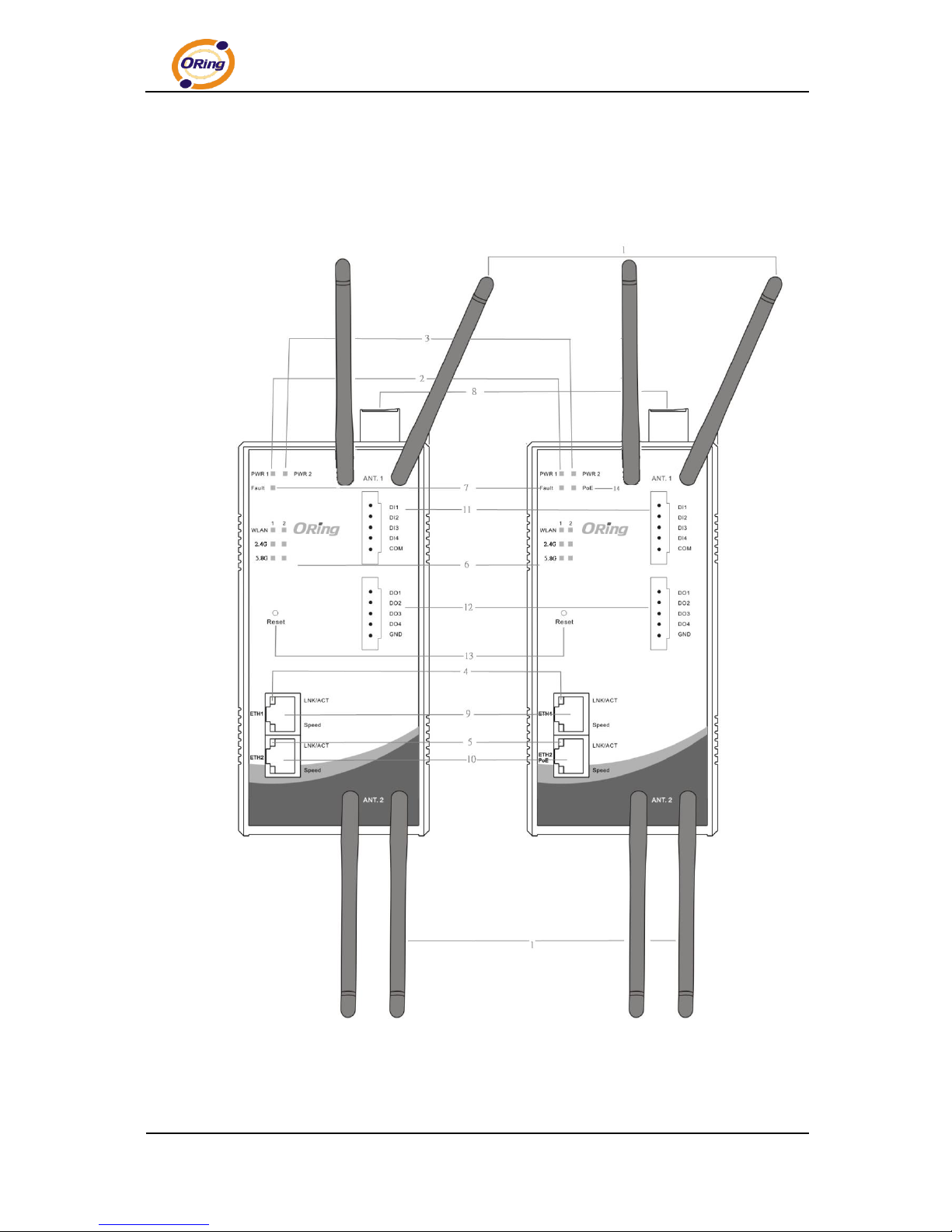

IGAP-6620 IGAP-6620+

IGAP-420/620/6620 Series User’s Manual

9 ORing Industrial Networking Corp.

1. 2.4/5GHz antenna with typical 2 dBi antenna for 5GHz and 2.4GHz.

2. LED for PWR1 and system status. When the PWR1 links, the green LED will be light
on.

3. LED for PWR2 and system status. When the PWR2 links, the green LED will be light
on.

4. LED for Ethernet port1 status.

5. LED for Ethernet port2 status.

6. LED for WLAN frequency using.

7. LED for Fault Relay. When the fault occurs, the red LED will be light on.

8. Power Input port

9. Ethernet port1 connector

10. Ethernet port2 connector

11. Digital input

12. Digital output

13. Reset button

14. LED for P.O.E Status (IGAP-6620+)

3.2 Front Panel LEDs

LED

Color

Status

Description

PWR1

Green

Green On

DC power 1 activated.

PWR2

Green

Green On

DC power 2 activated.

ETH1

Green/Amber

On

Port link up at 10Mbps /1000Mbps.

Green
On

Port link up at 100Mbps.

Blinking

Data transmitted.

ETH2

Green/Amber

On

Port link up at 10Mbps/1000Mbps.

Green
On

Port link up at 100Mbps.

Blinking

Data transmitted.

WLAN

Green
On

WLAN activated.

Blinking

WLAN Data transmitted.

2.4GHz

Green

On

In using

5GHz

Green

On

In using

Fault

Red

On

Fault relay. Power failure or Port
down/fail.

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 10

Cables and Antenna

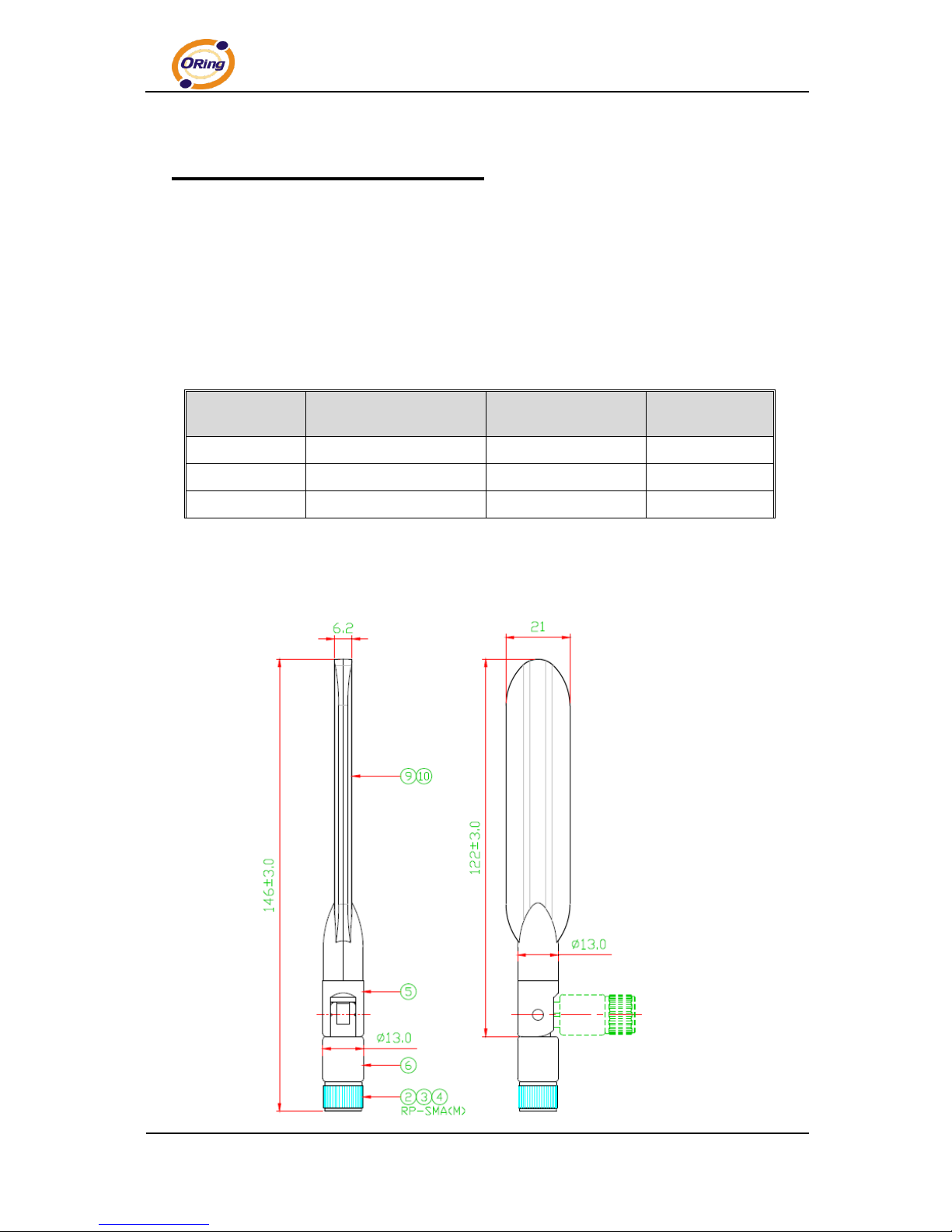

4.1 Ethernet Cables

The IGAP-420/620/6620 WLAN AP has two 10/100/1000 Base-T(X) Ethernet ports.
According to the link type, the AP use CAT 3, 4, 5,5e,6 UTP cables to connect to any other
network device (PCs, servers, switches, routers, or hubs). Please refer to the following
table for cable specifications.

Cable Types and Specifications

Cable

Type

Max. Length

Connector

10Base-T

Cat. 3, 4, 5 100-ohm

UTP 100 m (328 ft)

RJ45

100Base-T(X)

Cat. 5 100-ohm UTP

UTP 100 m (328 ft)

RJ45

1000Base-T(X)

Cat 5e,6

UTP 100 m (328 ft)

RJ45

4.2 Wireless Antenna

2.4GHz/5GHz antenna is used for IGAP-420/620/6620 and connected with a reversed SMA
connector. External RF cable and antenna also can be applied with this connector.

IGAP-420/620/6620 Series User’s Manual

11 ORing Industrial Networking Corp.

Management Interface

5.1 Explore IGAP-420/620/6620

5.1.1 Open-Vision_Commander

IGAP-420/620/6620 can also be configure through Oring’s window utility Open-Vision

Step 1: Open the commander and click “Discover”, the AP devices will show on the list.

Step 2: Choose your access point, and it will show the AP function tree. Simultaneity,
you can login and then set the AP.

User interface of commander

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 12

5.2 UPnP Equipment

Step 1: To check whether the UPnP UI of the computer is connected to the
IGAP-420/620/6620, go to Control Panel > Add or Remove Programs > Windows
Components Wizard > Networking Servers > UPnP User Interface and pitch on the
UPnP User Interface.

UPnP configuration page

Step 2: At the right-below corner of the computer, you will find a sign of the UPnP

equipment.

IGAP-420/620/6620 Series User’s Manual

13 ORing Industrial Networking Corp.

Step 3: Click the sign of the UPnP equipment, then you will find the UPnP equipment in the
network neighborhood.

Step 4: Right click the UPnP equipment to choose “Properties”, it will show as the following
pictures:

Step 5: Right click the UPnP equipment or double click the UPnP equipment to transfer; it
will go to the web page.

5.3 Configuration by Web Browser

This section introduces the configuration by Web browser.

5.4 About Web-Based Management

An embedded HTML web site resides in flash memory in the system. It contains
advanced management features and allows you to manage the AP from anywhere on the
network through a standard web browser such as Microsoft Internet Explorer.

The Web-Based Management function supports Internet Explorer 5.0 or later. It is based
on Java Applets with an aim to reduce network bandwidth consumption, enhance access
speed and present an easy viewing screen.

Note: By default, IE5.0 or later version does not allow Java Applets to open sockets. You need to explicitly modify

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 14

the browser setting in order to enable Java Applets to use network ports.

Through the front section’s information, you will see as follows, enter your user name

(admin) and your password (admin), and then click OK to continue.

Login screen

For security reasons, we strongly suggest you change the password. Click on

Administrator  Password and modify the password.

5.5 Main Interface

The Home screen will appear. Please click “Run Wizard” to go to the Home > Setup

Wizard page to quick install the AP.

IGAP-420/620/6620 Series User’s Manual

15 ORing Industrial Networking Corp.

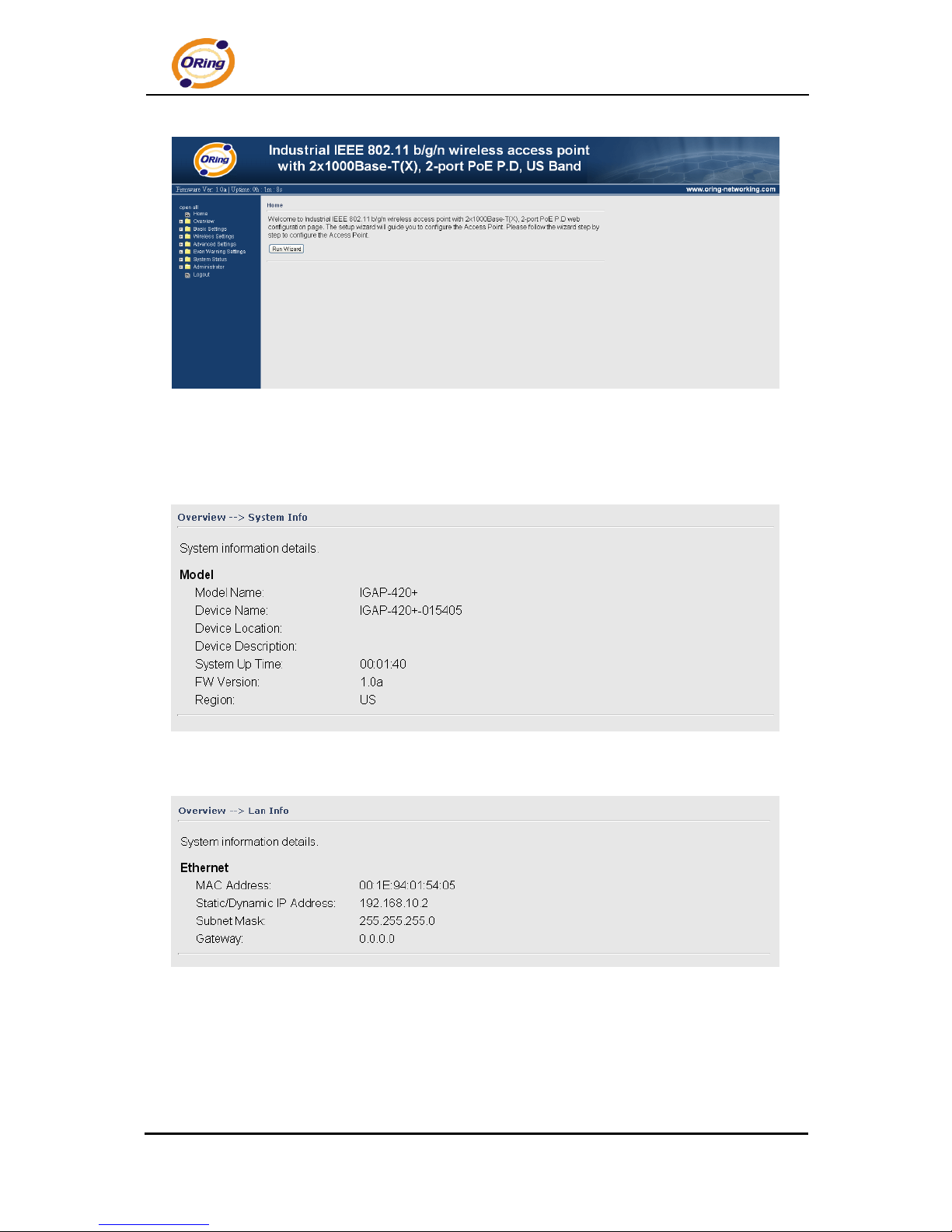

Main interface

5.5.1 Overview

System Info

System Info

Lan Info

Lan Info

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 16

Wireless Info

Wireless Info

5.5.2 Basic Setting
System Info Setting

System Info Setting interface

The following table describes the labels in this screen.

Label

Description

Device Name

Define Device Name

Device Location

Define Device Location

Device Description

Define Device Description

IGAP-420/620/6620 Series User’s Manual

17 ORing Industrial Networking Corp.

Lan Setting

Lan Setting interface

The following table describes the labels in this screen.

Label

Description

Obtain an IP address
automatically

Select this option if you would like to obtain an IP address
automatically assigned by DHCP server in your network

Use the following IP
address

Select this option if you are manually assigning an IP address.

IP Address: There is a default IP address in the AP, and you can
input a new IP address.

Subnet Mask: 255.255.255.0 is the default Subnet Mask. All
devices on the network must have the same subnet mask to
communicate on the network.

Default Gateway: Enter the IP address of the router in your
network.

Obtain DNS server
address

This option is selected by DHCP server.

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 18

automatically

Use the following
DNS server
addresses

This option is selected by manually set

Preferred DNS: There is a default DNS server, and you can input
another new DNS server.

Alternate DNS: There is a default DNS server, and you can input
another new DNS server.

Web Protocol

Choose on the protocol for web. The default value is HTTP, if you
want the web pages’ security is better, choose the HTTPS protocol.

Port

Corresponding to the Web protocol, there is a default port (HTTP:
80, HTTPS: 443). And you can enter another number which should
be in range of 1-65535.

Web Access Control

Choose the checkbox of the Wired and Wireless; you can visit the
web page through the mode you choose.

DHCP Server

Enable or Disable the DHCP Server function. Enable – the AP will
be the DHCP server on your local network

Start IP Address

The dynamic IP assign range. Low IP address is the beginning of
the dynamic IP assigns range. For example: dynamic IP assign
range is from 192.168.1.100 to 192.168.1.200. 192.168.1.100 will
be the Start IP address.

Maximum Number of
IPs

The dynamic IP assign range. High IP address is the end of the
dynamic IP assigns range. For example: dynamic IP assign range
is from 192.168.1.100 to 192.168.1.200. 100 will be entering into
textbox.

Lease Time (Hour)

It is the time period that system will reset the dynamic IP assignment
to ensure the dynamic IP will not been occupied for a long time or
the server doesn’t know that the dynamic IP is idle.

IGAP-420/620/6620 Series User’s Manual

19 ORing Industrial Networking Corp.

Time Setting

Time setting interface

The following table describes the labels in this screen.

Label

Description

NTP

Enable or disable NTP function to get the time from the NTP
server.

NTP Server 1

The initial choice about NTP Server.

NTP Server 2

The second choice about NTP Server.

Time Zone

Select the time zone manually

Synchronize

Set the time, and the AP’s time synchronize with the NTP Server

at the time

Local Date

Set local date manually.

Local Time

Set local time manually.

Get Current Date &
Time from Browser

Click this button, you can set the time from browser.

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 20

DIDO

DIDO setting interface

5.5.3 Wireless Setting
AP Mode

This mode provides Access Point services for other wireless clients.

AP mode setting interface

The following table describes the labels in this screen.

Label

Description

SSID

Service Set Identifier Default is the default setting. The SSID is
a unique name that identifies a network. All devices on the
network must share the same SSID name in order to
communicate on the network. If you change the SSID from the

IGAP-420/620/6620 Series User’s Manual

21 ORing Industrial Networking Corp.

default setting, input your new SSID name in this field.

Channel

Channel 6 is the default channel, input a new number if you want
to change the default setting. All devices on the network must
be set to the same channel to communicate on the network.

Master Mode

Enable / disable Master mode

Security options

Select the type of security for your wireless network at Security
Type:

None: Select for no security.

WEP: Select for security WEP.

WPA/WPA2-Personal (per share key): Select for security

WPA-PSK or WPA2-PSK without a RADIUS server.

WPA/WPA2-Enterprice: Select for WPA or WPA2 (Wi-Fi
Protected Access) authentication in conjunction with a RADIUS
server.

802.1x: Authentication through RADIUS server

Security Type – None

No security protection on your wireless LAN access.

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 22

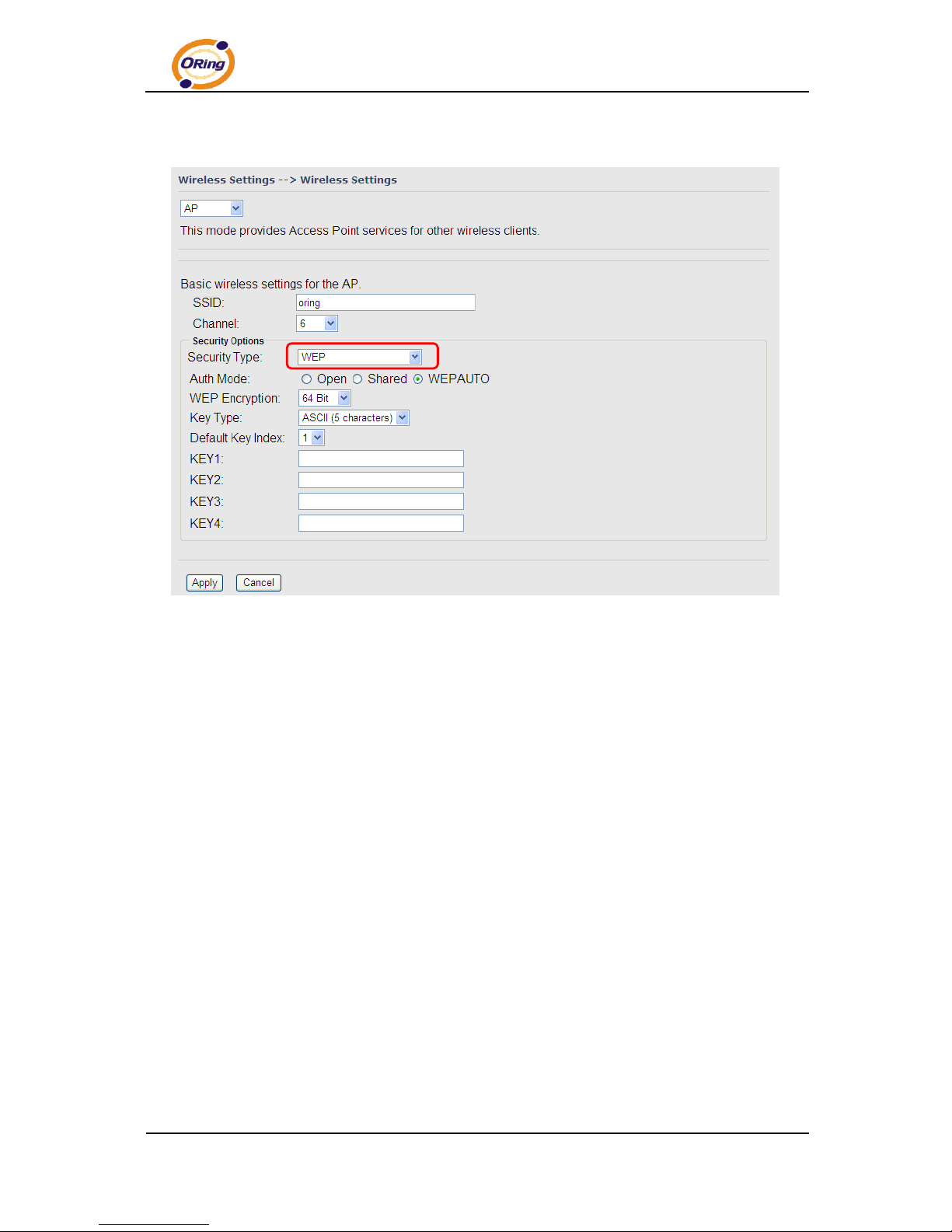

Security Type – WEP

WEP setting interface

1. Security Type: Select WEP

2. WEP Encryption: Select 64 Bit or 128 Bit WEP encryption.

3. Key Type: Select ASCII or Hex key type.

4. Default Key Index: Select one of the keys to be the active key.

5. Key 1-4: Input up to four encryption keys.

ASCII (American Standard Code for Information Interchange) is a code for representing
English letters as numbers from 0-127. Hex digits consist of the numbers 0-9 and the
letters A-F.

IGAP-420/620/6620 Series User’s Manual

23 ORing Industrial Networking Corp.

Security Type –WPA/WPA2-Personal (per share key)

WPA/WPA2-Personal setting interface

1. Security Type: Select WPA/WPA2-Personal.

2. Encryption Type: Select TKIP or AES encryption.

3. Share Key: Enter your password. The password can be between 8 and 64

characters.

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 24

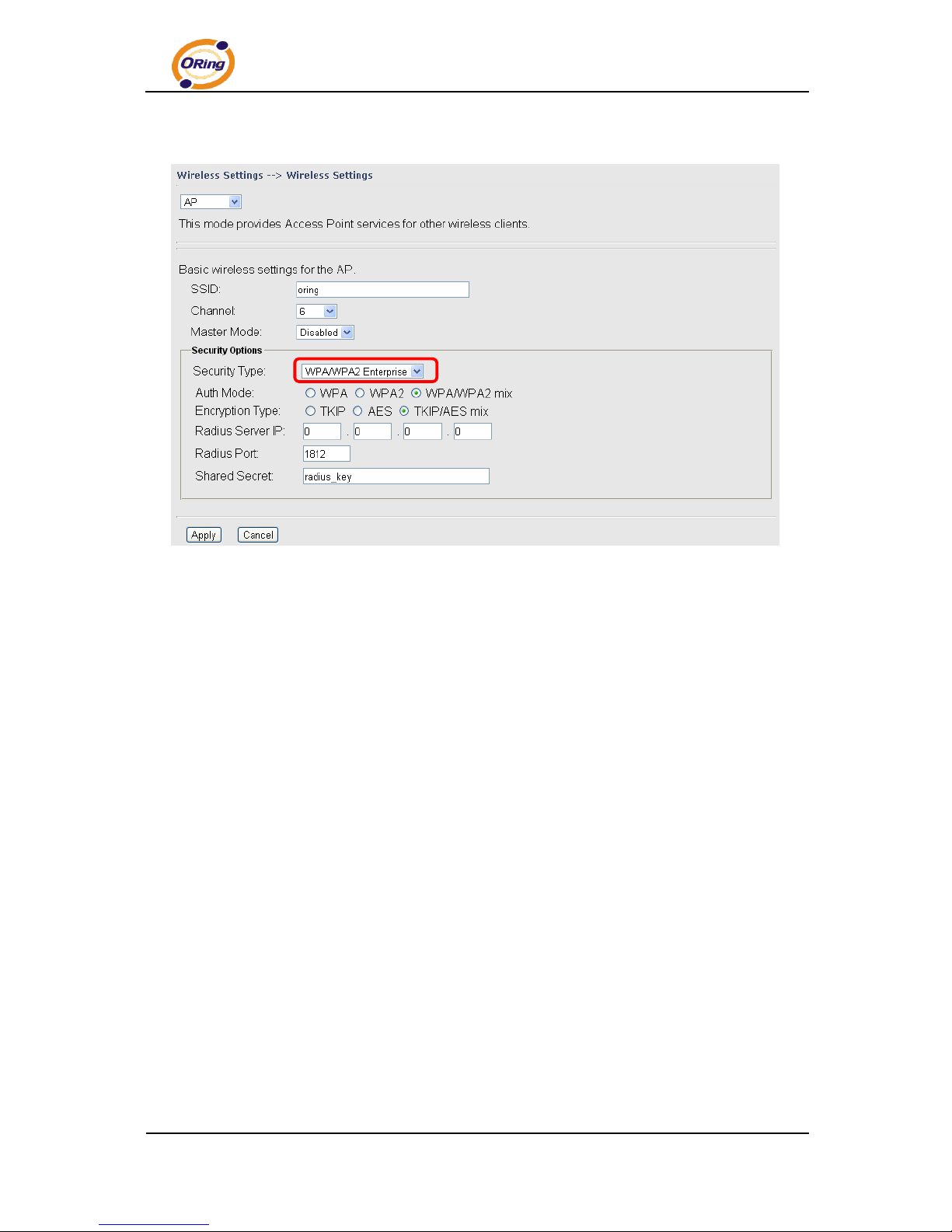

Security Type –WPA/WPA2-Enterprice

WPA/WPA2-Enterprice setting interface

1. Security Type: Select WPA/WPA2-Enterprice

2. Radius Server IP: Enter the IP address of the RADIUS Server.

3. Port: Enter the RADIUS port (1812 is default).

4. Shared Secret: Enter the RADIUS password or key.

IGAP-420/620/6620 Series User’s Manual

25 ORing Industrial Networking Corp.

Security Type – 802.1x

802.1x setting interface

1. Security Type: Select 802.1x

2. Radius Server IP: Enter the IP address of the RADIUS Server.

3. Port: Enter the RADIUS port (1812 is default).

4. Shared Secret: Enter the RADIUS password or key.

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 26

RADIUS (Remote Authentication Dial-in User Service) is the industrial standard
agreement, and it is used to provide an identify verification. The Radius customer (is
usually a dial-in server, VPN server or wireless point) send your proof and the
conjunction parameter to the Radius server by Radius news. The Radius server
validates the request of the Radius customer, and return Radius news to back.

Radius server validates your proof, also carry on the authorization. So the Radius
server received by ISA server responded (point out the customer carries proof to be not
granted) and it means that the Radius server did not authorize you to carry. Even if the
proof has already passed an identify verification, the ISA server may also refuse you to
carry a claim according to the authorization strategy of the Radius server.

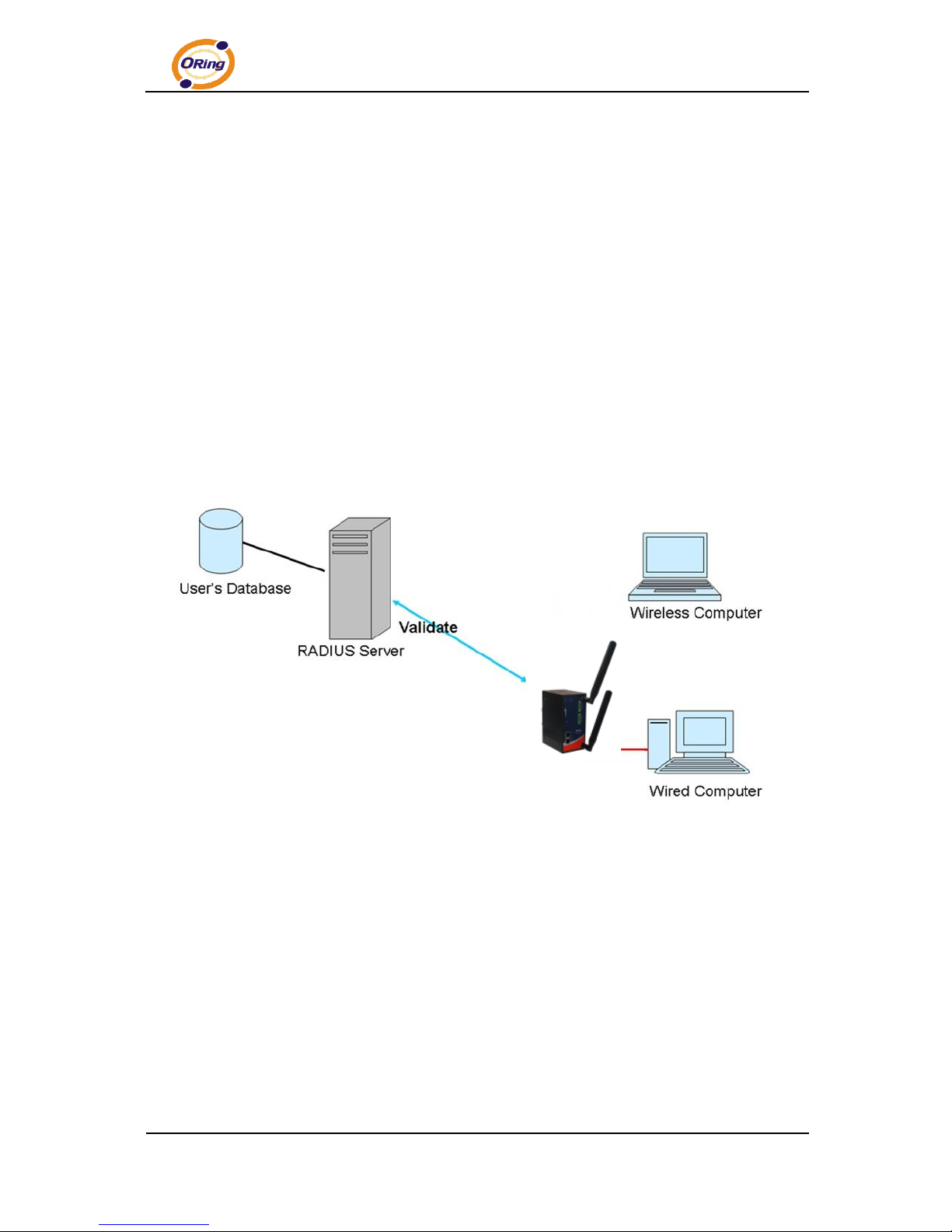

The principle of the Radius server shows in the following pictures:

IGAP-420/620/6620 Series User’s Manual

27 ORing Industrial Networking Corp.

AP-Client Mode

This mode provides a 1-to-N MAC address mapping mechanism such that multiple stations
behind the AP can transparently connect to the other AP even they didn't support WDS.

AP-Client setting interface

The following table describes the labels in this screen.

Label

Description

SSID

Service Set Identifier Default is the default setting. The SSID is
a unique name that identifies a network. All devices on the
network must share the same SSID name in order to
communicate on the network. If you change the SSID from the
default setting, input your new SSID name in this field.

Channel

Channel 6 is the default channel, input a new number if you want
to change the default setting. All devices on the network must
be set to the same channel to communicate on the
network.( wireless channel must be the same with the other

device in group)

Master Mode

Enable / disable master mode

Security options

Select the type of security for your wireless network at Security

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 28

Type:
None: Select for no security.

WEP: Select for security WEP.

WPA/WPA2-Personal (per share key): Select for security

WPA-PSK or WPA2-PSK without a RADIUS server.
Peer AP SSID

Enter the other AP which used for AP mode.

Peer AP BSSID

Fill the Peer AP BSSID (Wireless MAC address) limit client target

Slave Mode

Enable / disable Slave mode

Site Scan

You can scan the APs which used for AP mode in the certainty
area

Security Type

Set the same security with the AP which you want to connect,
AP-client mode only supports WEP and WPA/WPA2 Personal.

Client Mode

In this mode the AP functions as a wireless client to connect to other AP, thus provides
transparent connection between Ethernet & Wireless port. This mode provides no Access
Point services but with 802.1X supported.

Client mode setting interface

The following table describes the labels in this screen.

Label

Description

Peer AP SSID

Enter the other AP which used for AP mode.

Peer AP BSSID

Fill the Peer AP BSSID (Wireless MAC address) limit client target

Site Scan

You can scan the APs which used for AP mode in the certainty
area

Slave Mode

Enable / disable Slave mode

Security Type

Set the same security with the AP which you want to connect.

IGAP-420/620/6620 Series User’s Manual

29 ORing Industrial Networking Corp.

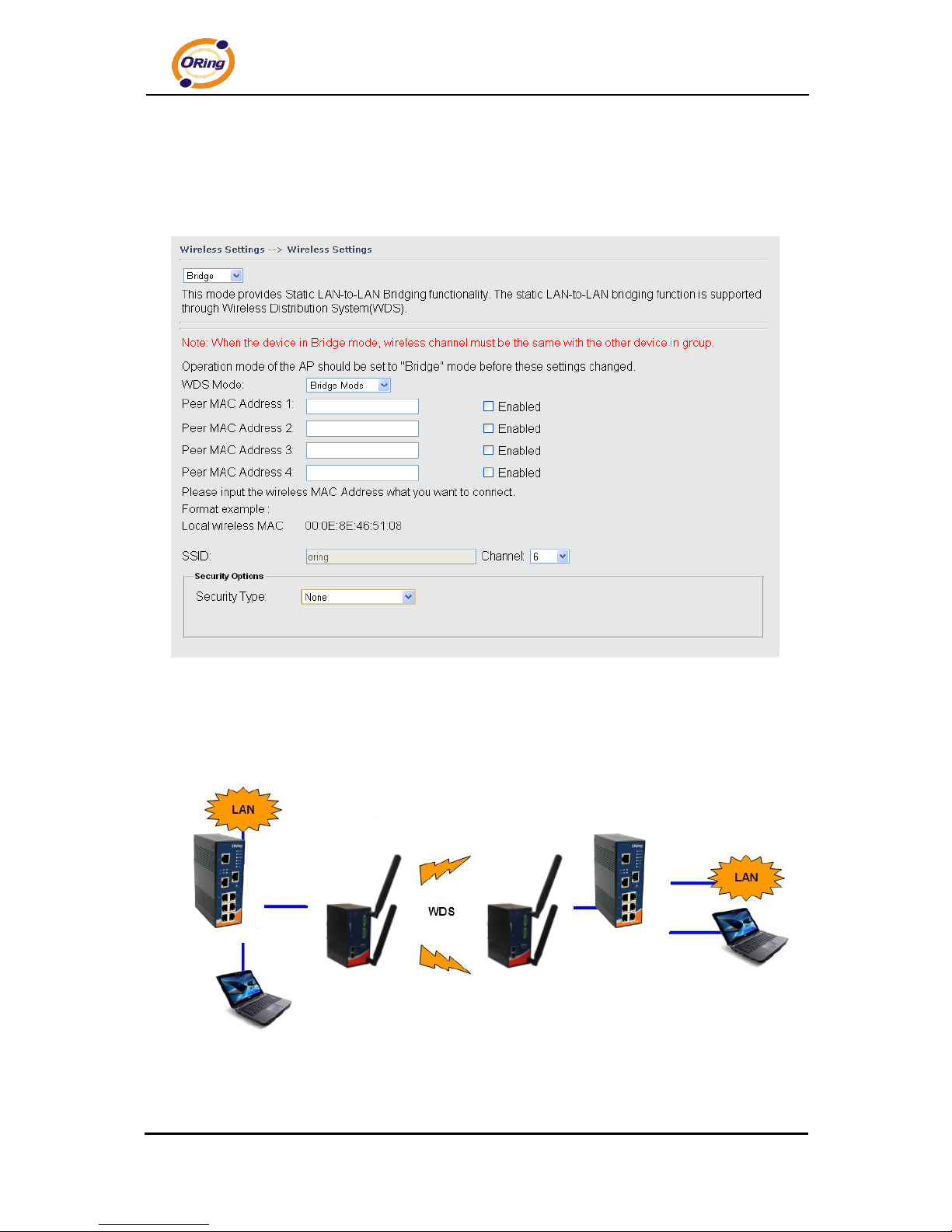

Bridge Mode

This mode provides Static LAN-to-LAN Bridging functionality. The static LAN-to-LAN bridging
function is supported through Wireless Distribution System (WDS), this mode only support

802.11b/g.

Bridge mode setting interface

This type of wireless link is established between two IEEE 802.11 access points.
Wireless packets transmitted along the WDS link comply with the IEEE 802.11 WDS
(Wireless Distribution System) format at the link layer.

Point-to-Point WDS Link

The following table describes the labels in this screen.

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 30

Label

Description

WDS Mode

This mode provides Static LAN-to-LAN Bridging functionality. The
static LAN-to-LAN bridging function is supported through Wireless
Distribution System (WDS).

Peer MAC Address

Set the Mac address of other access point(s). Simultaneity, choose
on “Enable”.

SSID(only Repeater
mode support)

Service Set Identifier Default is the default setting. The SSID is a
unique name that identifies a network. All devices on the network
must share the same SSID name in order to communicate on the
network. If you change the SSID from the default setting, input your
new SSID name in this field.

Channel

Channel 6 is the default channel, input a new number if you want to
change the default setting. All devices on the network must be set
to the same channel to communicate on the network. ( wireless

channel must be the same with the other device in group)

Security options

Select the type of security for your wireless network at Security
Type:

None: Select for no security.

WEP: Select for security WEP.

WPA/WPA2-Personal (per share key): Select for security

WPA-PSK or WPA2-PSK without a RADIUS server.

First of all, if APs link with WDS mode, it should obey the following rules:

1. LAN IP Address should set different IP in the same network.

2. All AP’s DHCP Server should set shutdown.

3. WDS should set Enable.

4. Each AP should have the same setting except ‘Peer Mac Address’ set to the other’s
Mac address

5. At wireless web setting Security and Channel should be the same,

6. AP’s distance should be limited within a certainty area.

IGAP-420/620/6620 Series User’s Manual

31 ORing Industrial Networking Corp.

WDS –Bridge Mode

WDS-Bridge mode setting interface

The peer WDS APs are according to the MAC address listed in "Peer Mac Address"
fields.
The working principle of Bridge Mode as follows:

In the figure, the AP behaves as a standard bridge that forwards traffic between WDS links

(links that connect to other AP/wireless bridges) and an Ethernet port. As a standard bridge,
the AP learns MAC addresses of up to 64 wireless or 128 total wired and wireless network
devices, which are connected to their respective Ethernet ports to limit the amount of data to
be forwarded. Only data destined for stations which are known to reside on the peer Ethernet

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 32

link, multicast data or data with unknown destinations need to be forwarded to the peer AP via
the WDS link.

WDS –Repeater Mode

WDS-Repeater mode setting interface

The peer WDS APs are according to the MAC address listed in "Peer Mac Address"
fields.

The working principle of Repeater Mode as follows:

In the figure, Repeater is used to extend the range of the wireless infrastructure by

LAN

WDS
LAN

WDS

IGAP-420/620/6620 Series User’s Manual

33 ORing Industrial Networking Corp.

forwarding traffic between associated wireless stations and another repeater or AP
connected to the wired LAN.

Wireless Options

Wireless options interface

The following table describes the labels in this screen.

Label

Description

Radio Button

Enable or Disable Wireless function

Beacon Interval

The default value is 100. The Beacon Interval value indicates
the frequency interval of the beacon. A beacon is a packet
broadcast by the AP to synchronize the wireless network. 50 is
recommended in poor reception.

DTIM Interval

The default value is 1. This value, between 1 and 255
milliseconds, indicates the interval of the Delivery Traffic
Indication Message (DTIM). A DTIM field is a countdown field
informing clients of the next window for listening to broadcast and
multicast messages. When the AP has buffered broadcast or
multicast messages for associated clients, it sends the next DTIM
with a DTIM Interval value. Its clients hear the beacons and
awaken to receive the broadcast and multicast messages.

Fragmentation
Threshold

This value should remain at its default setting of 2346. The
range is 256-2346 bytes. It specifies the maximum size for a
packet before data is fragmented into multiple packets. If you

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 34

experience a high packet error rate, you may slightly increase the
Fragmentation Threshold. Setting the Fragmentation Threshold
too low may result in poor network performance. Only minor
modifications of this value are recommended.

RTS Threshold

This value should remain at its default setting of 2347. The
range is 0-2347 bytes. Should you encounter inconsistent data
flow, only minor modifications are recommended. If a network
packet is smaller than the preset RTS threshold size, the
RTS/CTS mechanism will not be enabled. The AP sends
Request to Send (RTS) frames to a particular receiving station
and negotiates the sending of a data frame. After receiving an
RTS, the wireless station responds with a Clear to Send (CTS)
frame to acknowledge the right to begin transmission.

Wireless Network
Mode

You can select 802.11 b/g/n wireless mode mix or single

Preamble

Values are Long and Short, default value is Long. If your
wireless device supports the short preamble and you are having
trouble getting it to communicate with other 802.11b devices,
make sure that it is set to use the long preamble

IGAP-420/620/6620 Series User’s Manual

35 ORing Industrial Networking Corp.

Extra parameters for Client Mode(X-Roaming)

X-Roaming setting interface

The following table describes the labels in this screen

Label

Description

Roaming

Disable: Disable X-Roaming protocol.
X-roaming: Enable X-Roaming protocol

Scan channel

All: scan all support channel
Manual: only scan “channel select” value

Channel Select

Assign the roaming channel value

Sensitivity

Set the signal sensitivity

Scan interval

Set the scan interval

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 36

5.5.4 Advanced Setting
Filters

Use Advanced Setting > MAC Filters to allow or deny wireless clients, by their MAC
addresses, from accessing the IGAP-420/620. You can manually add a MAC address
or select the MAC address from Connected Clients that are currently connected to the
AP.

Filters setting interface

The following table describes the labels in this screen.

Label

Description

MAC Filter

Enable or disable the function of MAC filter. MAC address
allowed or denied option is selected by you.

MAC Filter List

This list will display the MAC addresses that are in the selected
filter.

Connected Clients

This list will display the wireless MAC addresses that linked with
AP.

MAC Address

MAC addresses need to be added to or clear from MAC filter list.

Apply

Click Apply to set the configurations.

IGAP-420/620/6620 Series User’s Manual

37 ORing Industrial Networking Corp.

Misc. Settings

Misc. setting interface

The following table describes the labels in this screen.

Label

Description

UPnP

Enable or disable UPnP function

LLDP Protocol

Enable or disable LLDP function

Spanning Tree
Protocol

Enable or disable STP function

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 38

5.5.5 Even Warning Settings

When the AP event triggered, the notification procedure will be performed according to the
type of the event.

System Log

System Log setting interface

IGAP-420/620/6620 Series User’s Manual

39 ORing Industrial Networking Corp.

The following table describes the labels in this screen.

Label

Description

Syslog Server IP

Not only the syslog keeps the logs locally, it can also log to remote
server. Specify the IP of remote server. Leave it blank to
disable logging remotely.

Syslog Server Port

Specify the port of remote logging. Default port is 514.

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 40

E-Mail

E-Mail setting interface

IGAP-420/620/6620 Series User’s Manual

41 ORing Industrial Networking Corp.

The following table describes the labels in this screen.

Label

Description

SMTP Server

Simple Message Transfer Protocol, enter the backup host to use
if primary host is unavailable while sending mail by SMTP server.

Server Port

Specify the port where MTA can be contacted via SMTP server.

E-mail Address 1-4

Inputs specify the destination mail address.

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 42

SNMP

SNMP setting interface

IGAP-420/620/6620 Series User’s Manual

43 ORing Industrial Networking Corp.

The following table describes the labels in this screen.

Label

Description

SNMP Agent

SNMP (Simple Network Management Protocol) Agent is a service
program that runs on the access point. The agent provides
management information to the NMS by keeping track of various
operational aspects of the AP system. Turn on to open this
service and off to shutdown it.

SNMP Trap Server
1-4

Specify the IP of trap server, which is the address to which it will
send traps AP generates.

Community

Community is essentially password to establish trust between
managers and agents. Normally "public" is used for read-write
community.

SysLocation

Specify sysLocation string.

SysContact

Specify sysContact string.

Relay

Relay setting interface

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 44

5.5.6 System status
Client status

This page of the list displays the Mac Address of the wireless clients connected.

DHCP Clients List

List the devices on your network that are receiving dynamic IP addresses from the
IGAP-420/620.

Traffic/Port Status

This page displays the network traffic statistics for both received and transmitted
packets through the Ethernet port and wireless connections associated with the AP.
Simultaneity, the traffic counter will reset by the device rebooting.

IGAP-420/620/6620 Series User’s Manual

45 ORing Industrial Networking Corp.

System Log

The system log tracks the important events and setting changes of the AP. If the AP is

rebooted, the logs are automatically cleared.

Click the button 'Refresh' to refresh the page; Click the button 'Clear' to clear log entries.

5.5.7 Administrator
Password

In this page, you can change the username and password. The new password must

be typed twice to confirm (the default Name and Password is “admin” and “”).

Password setting interface

The following table describes the labels in this screen.

Label

Description

Old Name

This field displays the old login name. It's read only. The default
value of login name is "admin".

Old Password

Before making a new setting, you should provide the old
password for a verify check. Acceptable inputs of this field
contains '0-9', 'a-z', 'A-Z' and must be between 0 to 15 characters
in length. The factory default value of login password is null.

New Name

Enter a new login name. Acceptable inputs of this field contains

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 46

'0-9', 'a-z', 'A-Z' and must be between 1 to 15 characters in length.
This field cannot accept null input.

New Password

Enter a new login password. Acceptable inputs of this field
contains '0-9', 'a-z', 'A-Z' and must be between 0 to 15 characters
in length.

Confirm New
Password

Retype the password to confirm it. Acceptable inputs of this field
contains '0-9', 'a-z', 'A-Z' and must be between 0 to 15 characters
in length.

Configuration

The following table describes the labels in this screen.

Label

Description

Download
configuration

The current system settings can be saved as a file onto the local
hard drive.

Upload configuration

The saved file or any other saved setting file can be uploaded
back on the AP. To reload a system settings file, click on
Browse to browse the local hard drive and locate the system file
to be used. Click Upload when you have selected the file to be
loaded back onto the AP.

Restore Default
Settings

You may also reset the IGAP-420 / 420+ ; IGAP-620/620+ back to
factory settings by clicking on Restore Default Settings. Make

sure to save the unit’s settings before clicking on this button.

You will lose your current settings when you click this button.

IGAP-420/620/6620 Series User’s Manual

47 ORing Industrial Networking Corp.

Firmware Upgrade

New firmware may provide better performance, bug fixes or more functions. To
upgrade, you need a firmware file correspond to this AP model. It will take several
minutes to upload and upgrade the firmware. After the upgrade is done successfully,
the access point will reboot and get revalidated.

Notice: DO NOT POWER OFF THE AP OR PRESS THE RESET BUTTON WHILE THE

FIRMWARE IS BEING UPGRADED.

Load Factory Default

You may also reset the IGAP-420/620 back to factory settings by clicking on Restore
Default Settings. Make sure to save the unit’s settings before clicking on this button. You

will lose your current settings when you click this button.

Restart

If you want restart the access point through the Warm Reset, click Restart Now to
restart the AP.

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 48

Technical Specifications

LAN Interface

Ethernet Ports

2 x 10/100/1000Base-T(X), Auto MDI/MDI-X

Protocols

IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB
II, HTTPS, SNMPV1/V2, Trap, Private MIB

WLAN Interface

Operating Mode

AP/ Client /Bridge/ AP-Client

Antenna and Connector

2 antennas with 2dBi for 5GHz and 2.4GHz in reverse SMA
connector

Radio Frequency Type

DSSS, OFDM

Modulation

IEEE802.11b: CCK/DQPSK/DBPSK
IEEE802.11a/g: OFDM
IEEE802.11n: BPSK, QPSK, 16-QAM, 64-QAM

Frequency Band

America / FCC : 2.412~2.462 GHz (11 channels)

5.180~5.240 GHz & 5.745~5.825 GHz ( 9 channels )
Europe CE / ETSI : 2.412~2.472 Ghz (13 channels)

5.180~5.240 GHz (4 channels)

Transmission Rate

802.11b: 1/2/5.5/11 Mbps

802.11a/g: 6/9/12/18/24/36/48/54 Mbps

802.11n(40MHz): UP to 300 Mbps

Transmit Power

802.11a: 12dBm ± 1.5dBm@54Mbps(IGAP-620/6620)

802.11b: 17dBm ± 1.5dBm@11Mbps

802.11g: 16dBm ± 1.5dBm@54Mbps

802.11gn HT20: 15dBm ± 1.5dBm @MCS7

802.11gn HT40: 14dBm ± 1.5dBm @MCS7

802.11an HT20: 12dBm ± 1.5dBm @MCS7(IGAP-620/6620)

802.11an HT40: 11dBm ± 1.5dBm @MCS7(IGAP-620/6620)

Receiver Sensitivity

802.11a : -76dBm ± 2dBm@54Mbps(IGAP-620)

802.11b : -85dBm ± 2dBm@11Mbps

802.11g : -76dBm ± 2dBm@54Mbps

802.11gn HT20:-75dBm ± 2dBm@MCS7

802.11gn HT40:-72dBm ± 2dBm@MCS7

802.11an HT20:-74dBm ± 2dBm@MCS7(IGAP-620)

802.11an HT40:-71dBm ± 2dBm@MCS7(IGAP-620)

Encryption Security

WEP: (64-bit, 128-bit key supported)
WPA/WPA2:802.11i (WEP and AES encryption)

IGAP-420/620/6620 Series User’s Manual

49 ORing Industrial Networking Corp.

WPA-PSK (256-bit key pre-shared key supported)
TKIP encryption

Wireless Security

SSID broadcast disable

LED Indicators

3 x LEDs, PWR1(2)(PoE) / Ready:

1) Red On: Power is on and booting up.

2) Green On: Power is on and functioning normally.

2 x LEDs, ETH1(2)

Speed: Green for port Link at 1000Mbps
Amber for port Link at 100Mbps.
Off for port Link at 10Mbps

WLAN Link/ACT:

Green for WLAN

Fault indicator:

Red On: Ethernet link down or power down

Power Requirements

Power Input Voltage

Dual DC inputs. 12~48VDC on 6-pin terminal block

Reverse Polarity Protection

Present

Power Consumption

8.3 Watts

Environmental

Operating Temperature

-10 to 60oC

Storage Temperature

-40 to 85oC

Operating Humidity

5% to 95%, non-condensing

Mechanical

Dimensions(W x D x H)

74.3(W) x 109.2(D) x 153.6(H) mm
(2.93 x 4.3 x 6.05 inch.)

Casing

IP-30 protection

Regulatory Approvals

EMI

FCC Part 15, CISPR (EN55022) class A

EMS

EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4
(EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS),
EN61000-4-8, EN61000-4-11

Shock

IEC60068-2-27

Free Fall

IEC60068-2-32

Vibration

IEC60068-2-6

Rail Traffic

EN60950-1

IGAP-420/620/6620 Series User’s Manual

ORing Industrial Networking Corp. 50

Compliance

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation.

RF exposure warning: The equipment complies with RF exposure limits set forth for an
uncontrolled environment. The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.

You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment. This device
should be operated with minimum distance 20cm between the device and all persons.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.

Industry Canada Statement

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.

Industry Canada - Class B This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the interference-causing equipment
standard entitled “Digital Apparatus,” ICES-003 of Industry Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux
appareils numériques de Classe B prescrites dans la norme sur le matérial brouilleur:
“Appareils Numériques,” NMB-003 édictée par l’Industrie.

IGAP-420/620/6620 Series User’s Manual

51 ORing Industrial Networking Corp.

Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.

L'opération est soumise aux deux conditions suivantes: (1) cet appareil ne peut causer
d'interférences,et (2) cet appareil doit accepter toute interférence, y compris celles
susceptibles de provoquer fonctionnement du dispositif.

To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
permitted for successful communication.

Afin de réduire les interférences radio potentielles pour les autres utilisateurs, le type
d'antenne et son gain doivent être choisie que la puissance isotrope rayonnée équivalente
(PIRE) est pas plus que celle premise pour une communication réussie

RF exposure warning: The equipment complies with RF exposure limits set forth for an
uncontrolled environment. The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.

Avertissement d'exposition RF: L'équipement est conforme aux limites d'exposition aux RF
établies pour un incontrôlés environnement. L'antenne (s) utilisée pour ce transmetteur ne
doit pas être co-localisés ou fonctionner en conjonction avec toute autre antenne ou
transmetteur.
