ORiNG IES-3162GC, IES-3160 User Manual

Download

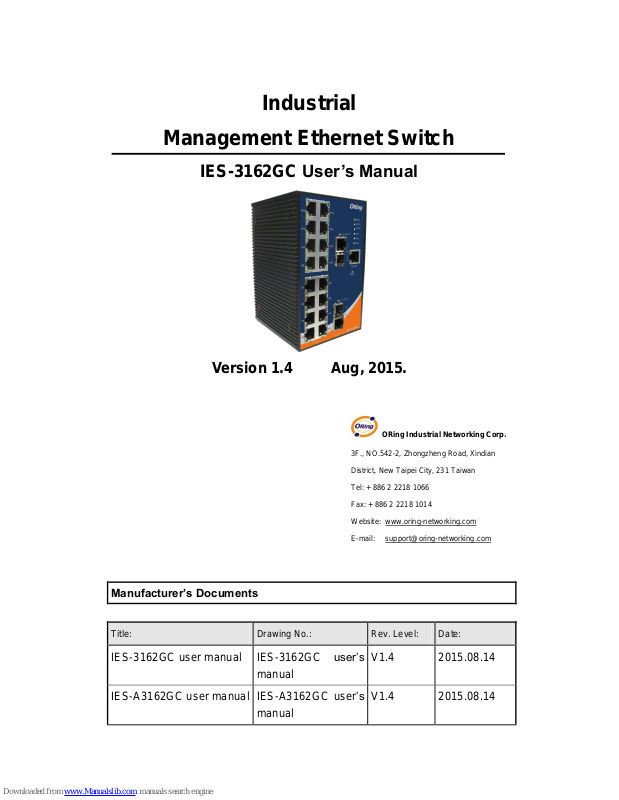

Page 1
Industrial
Management Ethernet Switch
IES-3162GC User’s Manual
Version 1.4 Aug, 2015.
ORing Industrial Networking Corp.
3F., NO.542-2, Zhongzheng Road, Xindian District, New Taipei City, 231 Taiwan Tel: + 886 2 2218 1066 Fax: + 886 2 2218 1014 Website: www.oring-networking.com
E-mail: [email protected]
Manufacturer’s Documents
Title:
Drawing No.:
Rev. Level:
Date:
IES-3162GC user manual
IES-3162GC user’s manual
V1.4
2015.08.14
IES-A3162GC user manual
IES-A3162GC user’s manual
V1.4
2015.08.14
Page 2
IES-3162GC User’s Manual
ORing Industrial Networking Corp
1
Table of Content
Getting to Know Your Switch ........................................................................ 4
1.1 About the IES-3162GC Managed Industrial Switch ....................................................... 4
1.2 Software Features .............................................................................................................. 4
1.3 Hardware Features ............................................................................................................. 5
Hardware Installation ..................................................................................... 6
2.1 Installing Switch on DIN-Rail ............................................................................................. 6
2.1.1 Mount IES-3162GC on DIN-Rail ..................................................................................... 6
2.2 Wall Mounting Installation .................................................................................................. 7
2.2.1 Mount IES-3162GC on the wall ....................................................................................... 7
Hardware Overview ........................................................................................ 9
3.1 Front Panel .......................................................................................................................... 9
3.2 Front Panel LEDs ............................................................................................................. 11
3.3 Top view Panel .................................................................................................................. 12
3.4 Rear Panel ......................................................................................................................... 12
Cables ........................................................................................................... 13
4.1 Ethernet Cables ................................................................................................................ 13
4.1.1 10/100/100BASE-TX/10BASE-T Pin Assignments ....................................................... 13

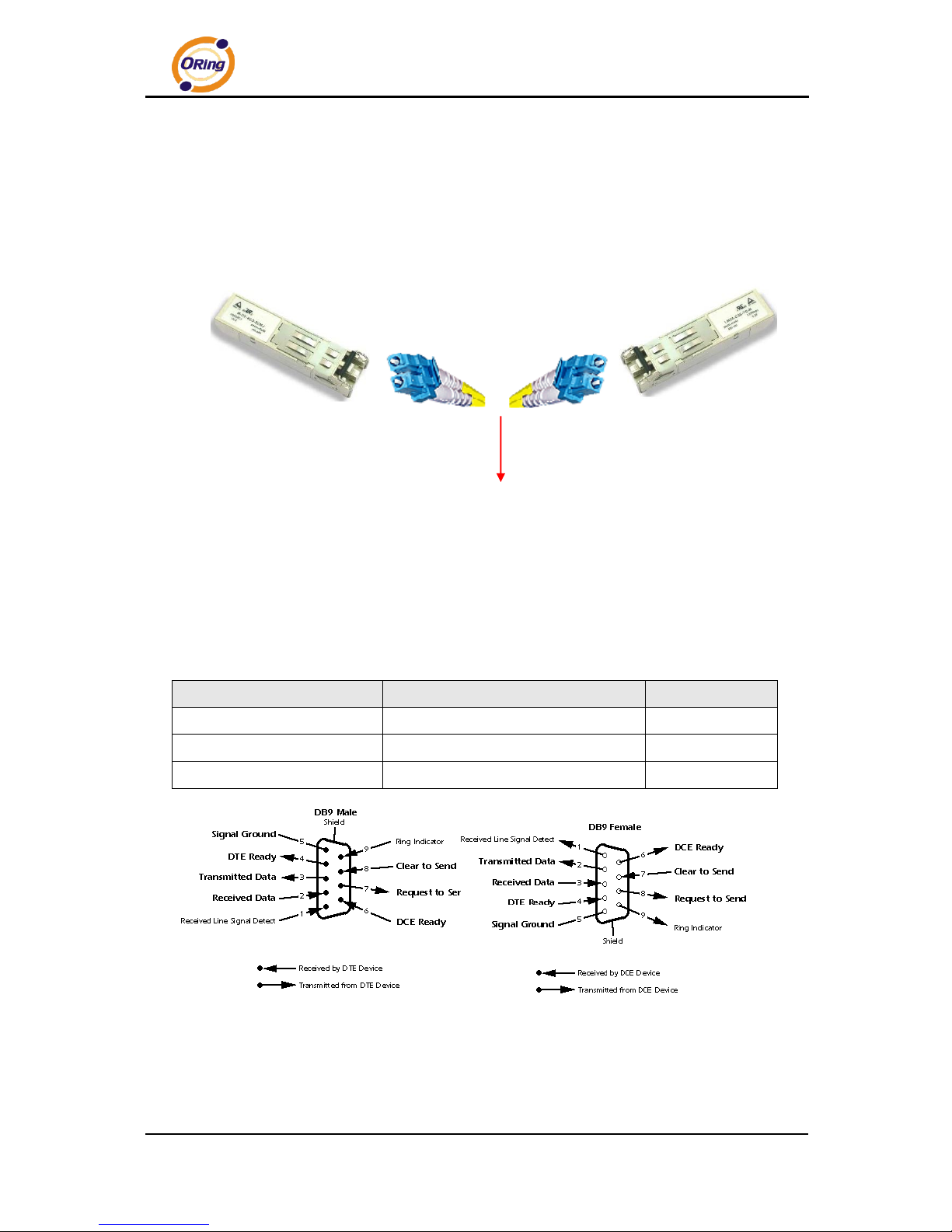

4.2 SFP ..................................................................................................................................... 14

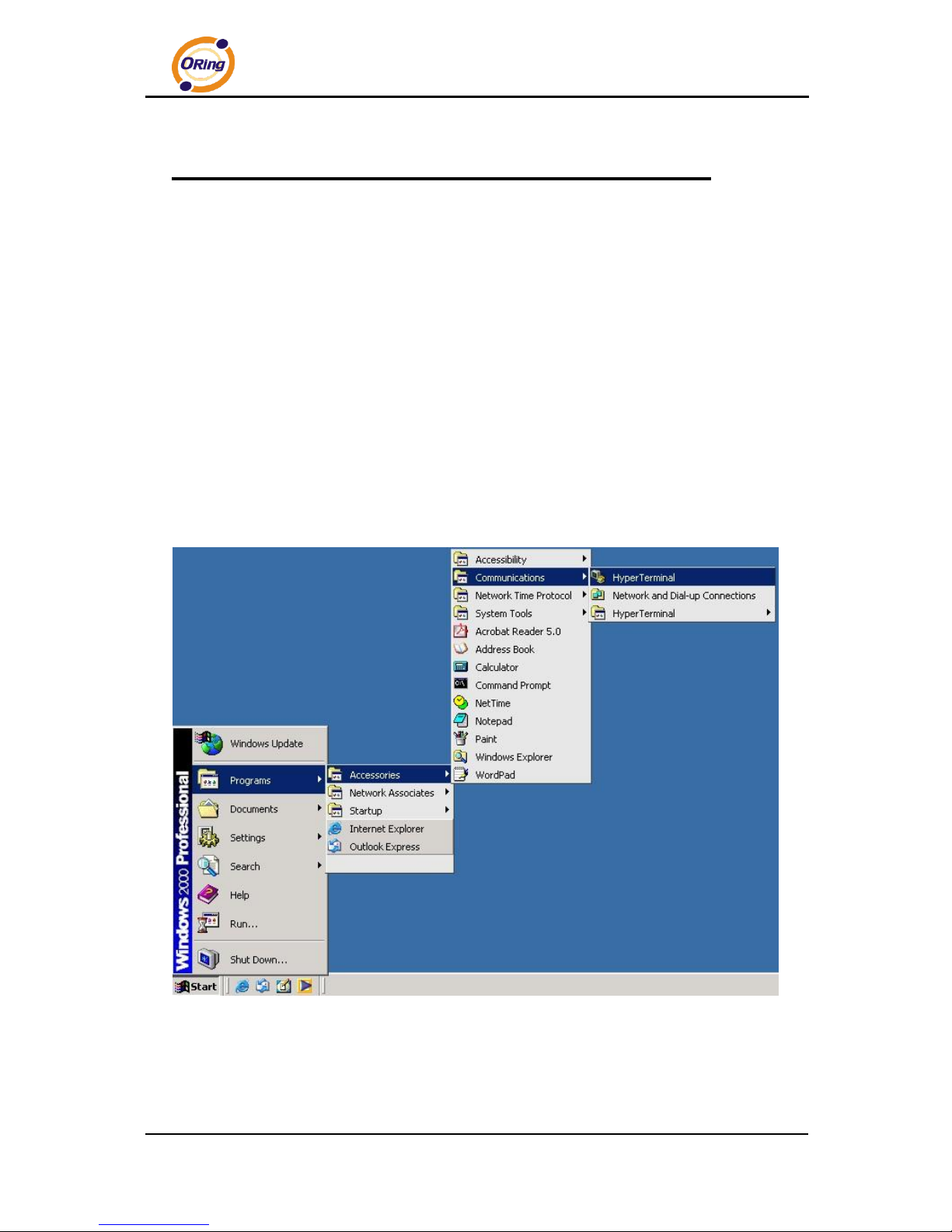

4.3 Console Cable ................................................................................................................... 15
WEB Management ........................................................................................ 16

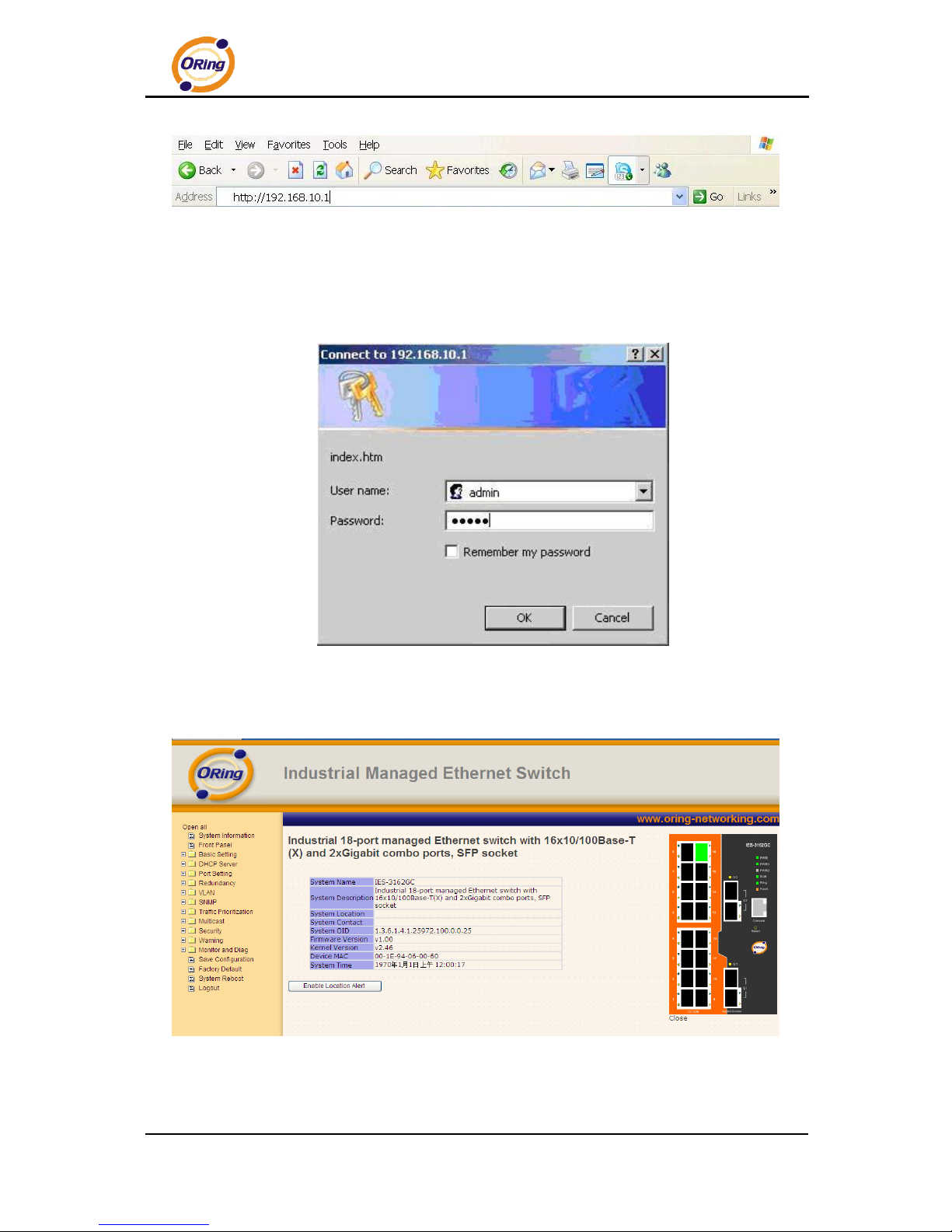

5.1 Configuration by Web Browser ....................................................................................... 16
5.1.1 About Web-based Management ...................................................................................... 16
5.1.2 System Information ........................................................................................................ 18

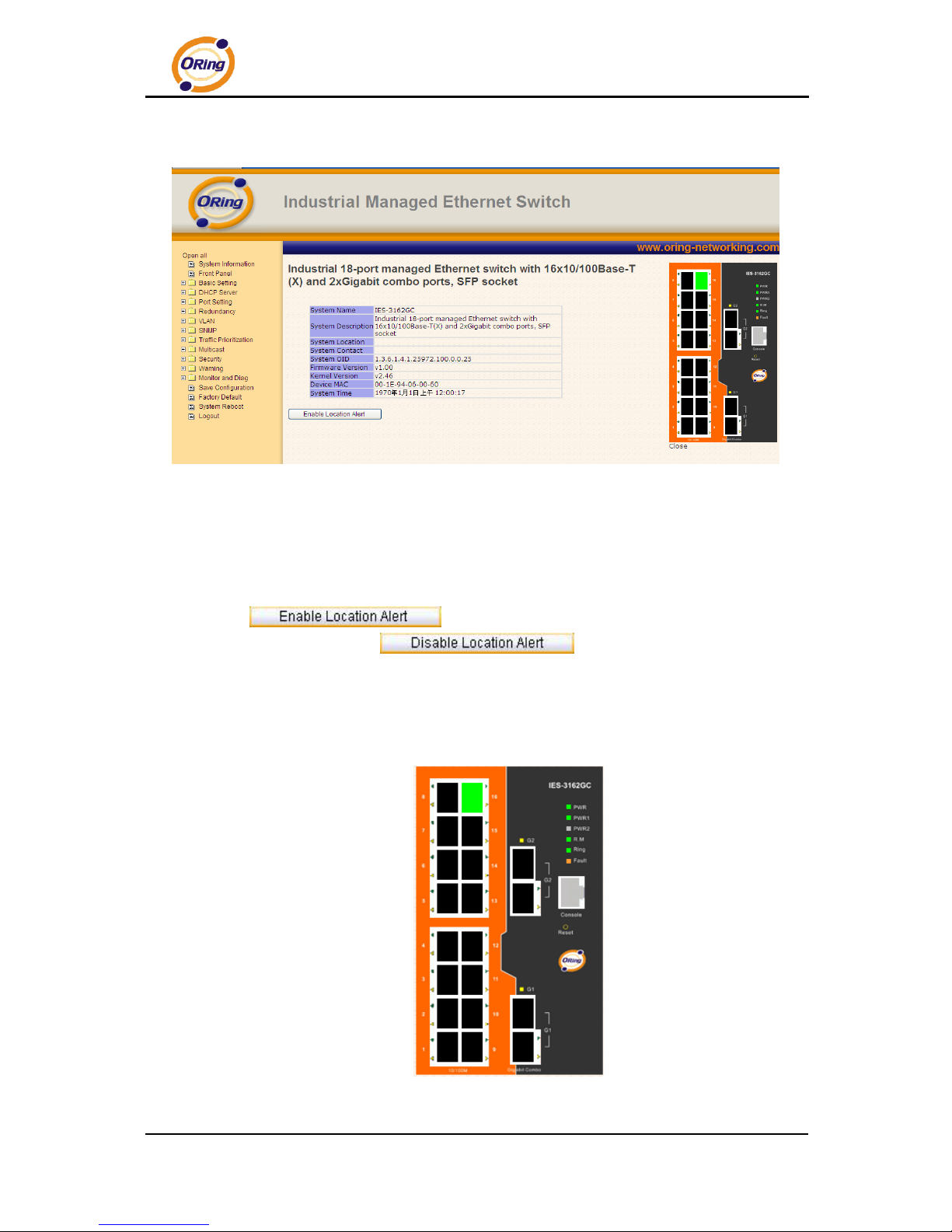

5.1.3 Front Panel ...................................................................................................................... 18
5.1.4 Basic setting .................................................................................................................... 19

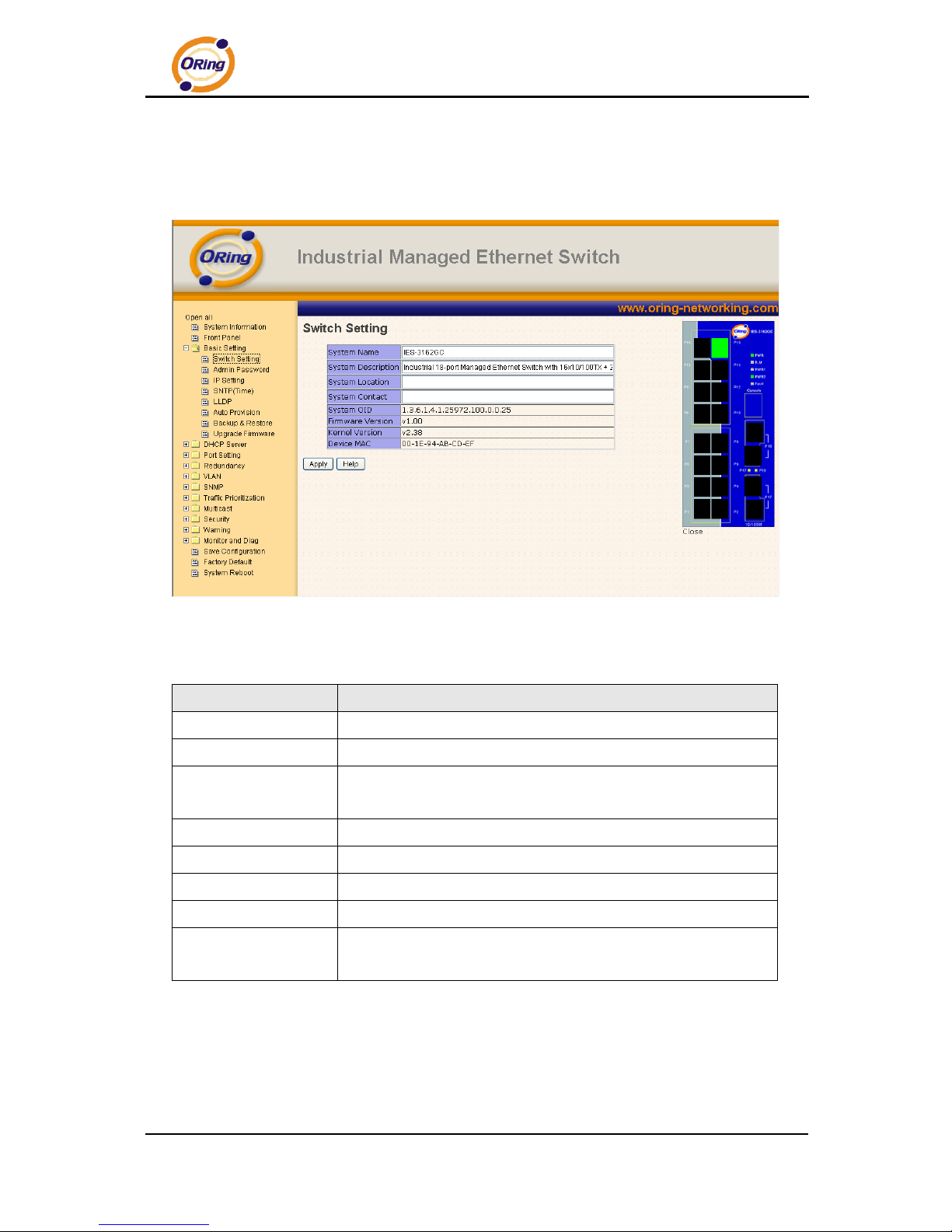

5.1.4.1 Switch Setting ....................................................................................................... 19
5.1.4.2 Admin Password ................................................................................................... 20
5.1.4.3 IP Setting ................................................................................................ ............... 20
Page 3
IES-3162GC User’s Manual
ORing Industrial Networking Corp
2

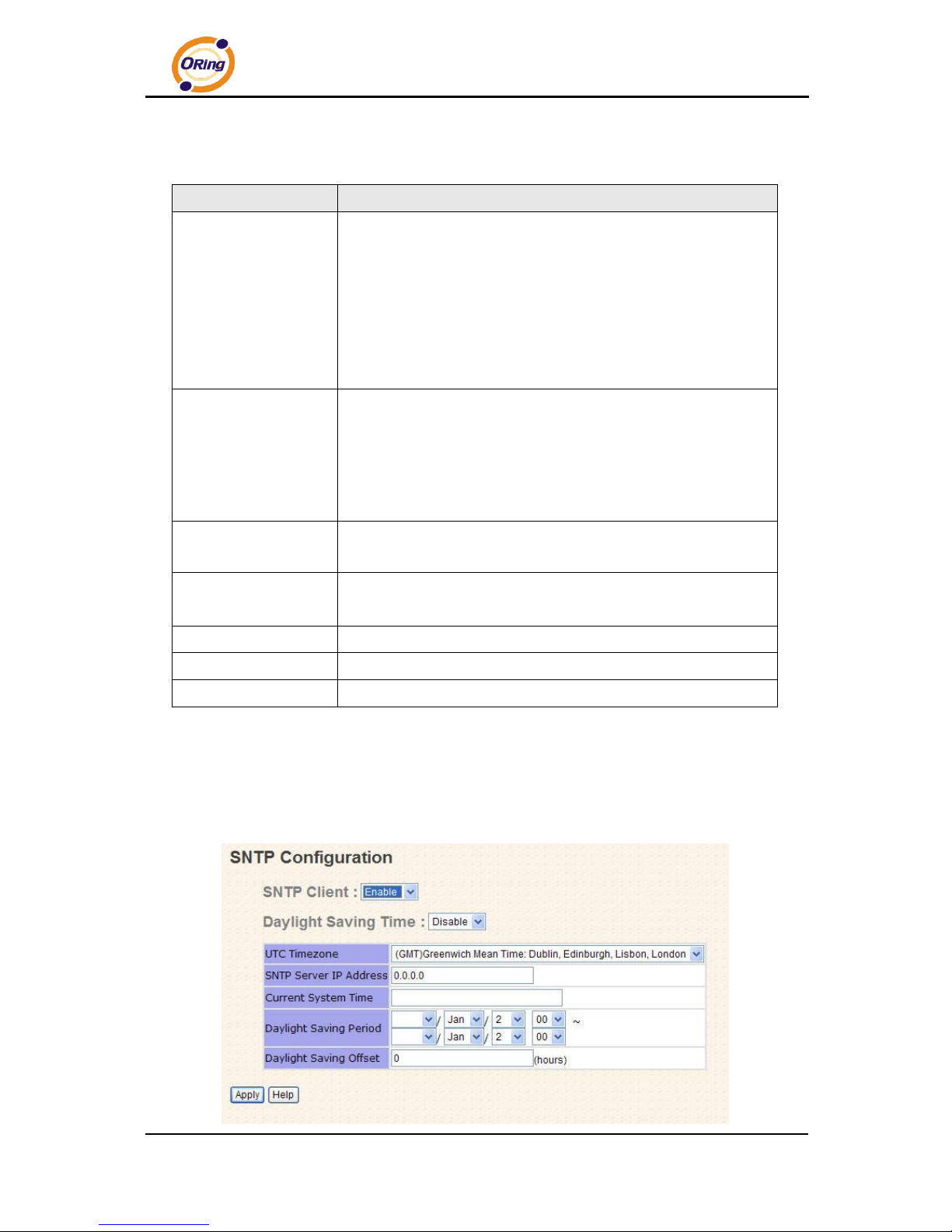

5.1.4.4 SNTP (Time) ......................................................................................................... 21

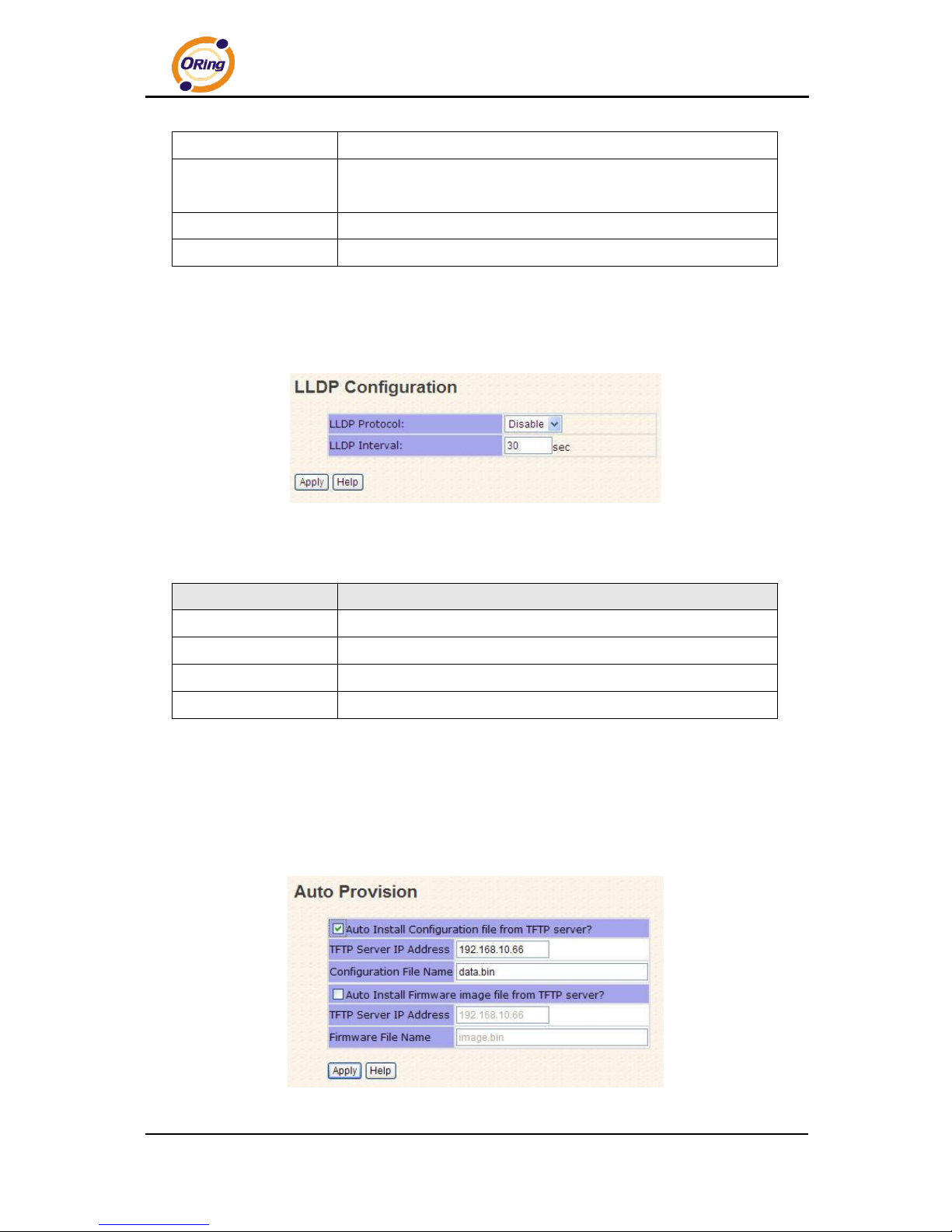

5.1.4.5 LLDP ..................................................................................................................... 24
5.1.4.6 Auto Provision ...................................................................................................... 24

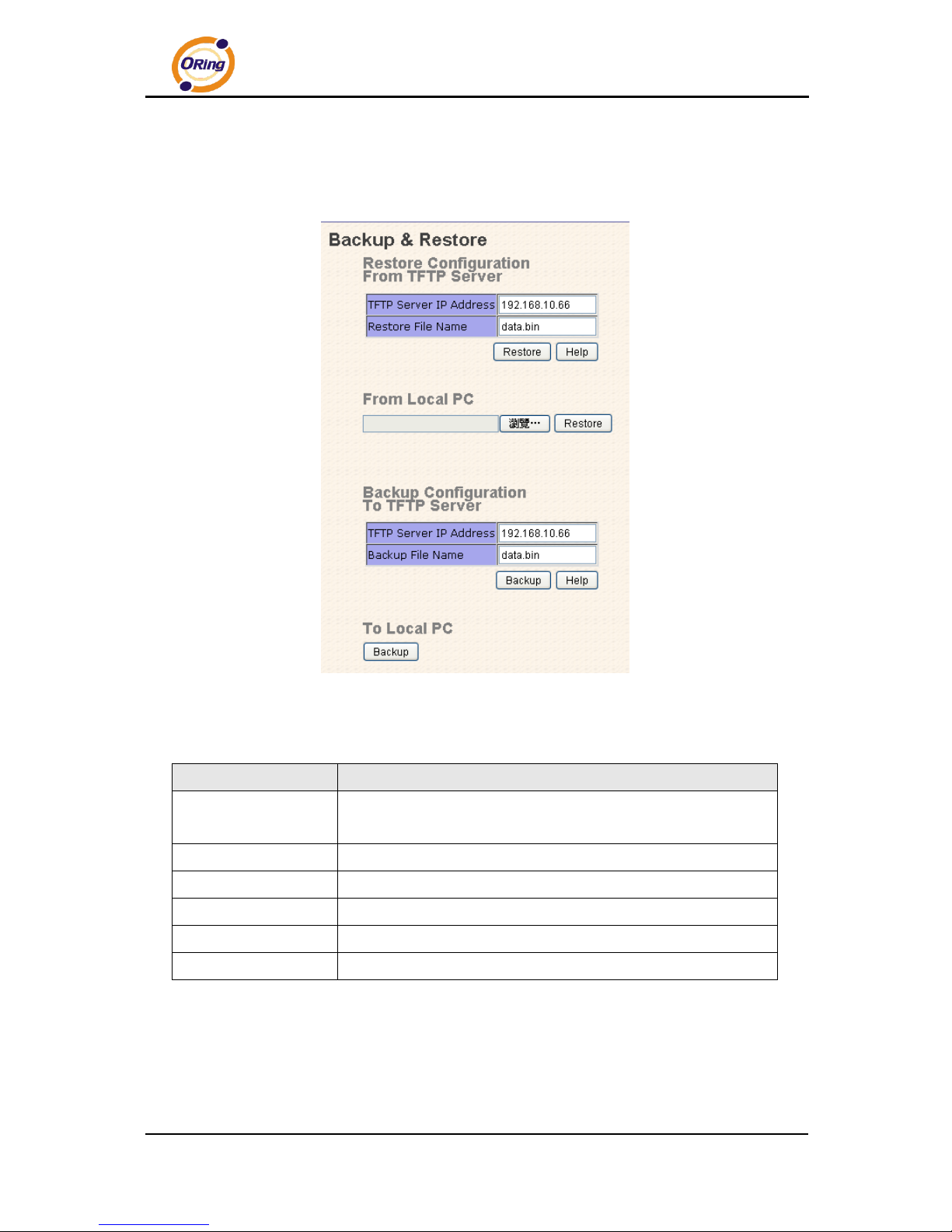

5.1.4.7 Backup & Restore ................................................................................................. 25

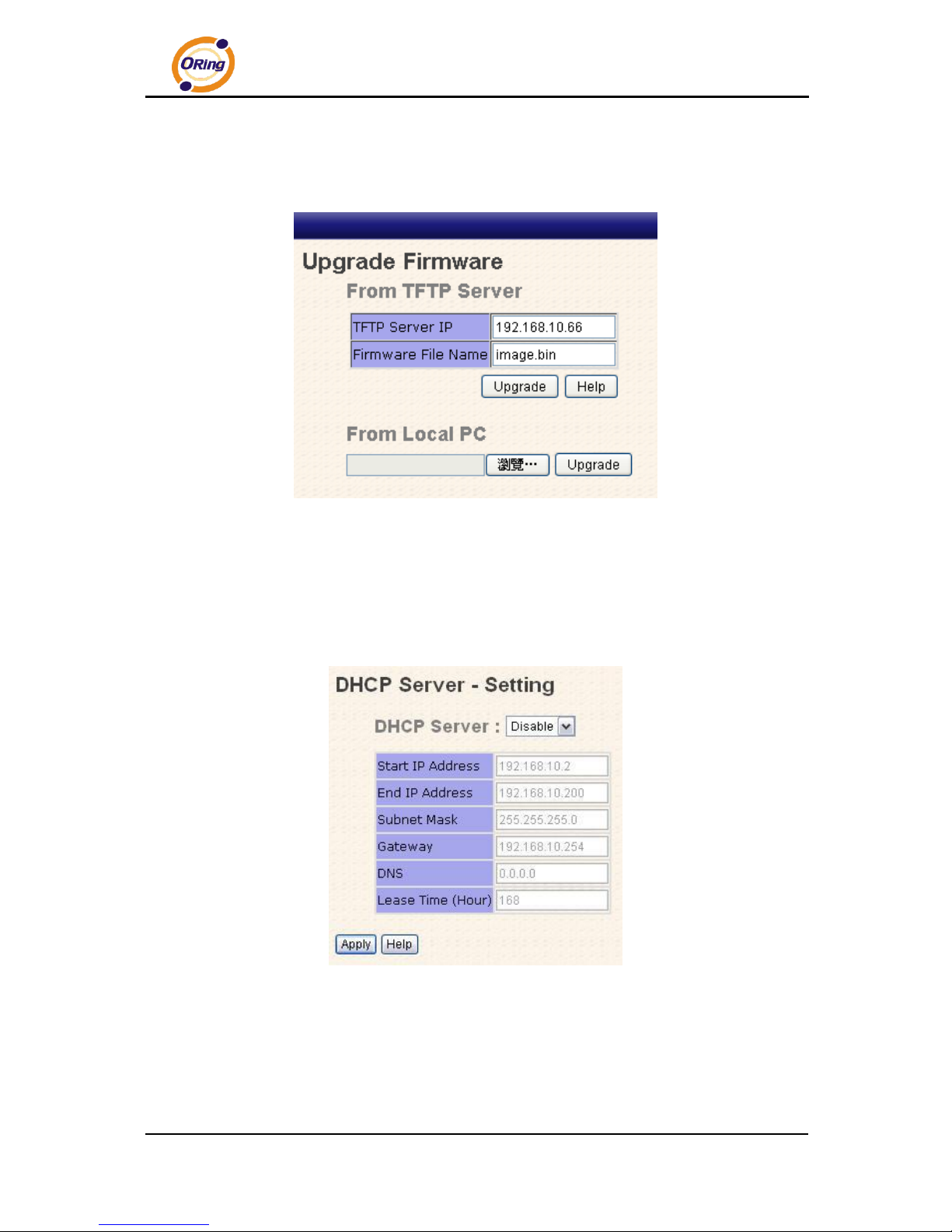

5.1.4.8 Upgrade Firmware ................................................................................................ 26
5.1.5 DHCP Server .................................................................................................................. 26
5.1.5.1 DHCP Server – Setting.......................................................................................... 26

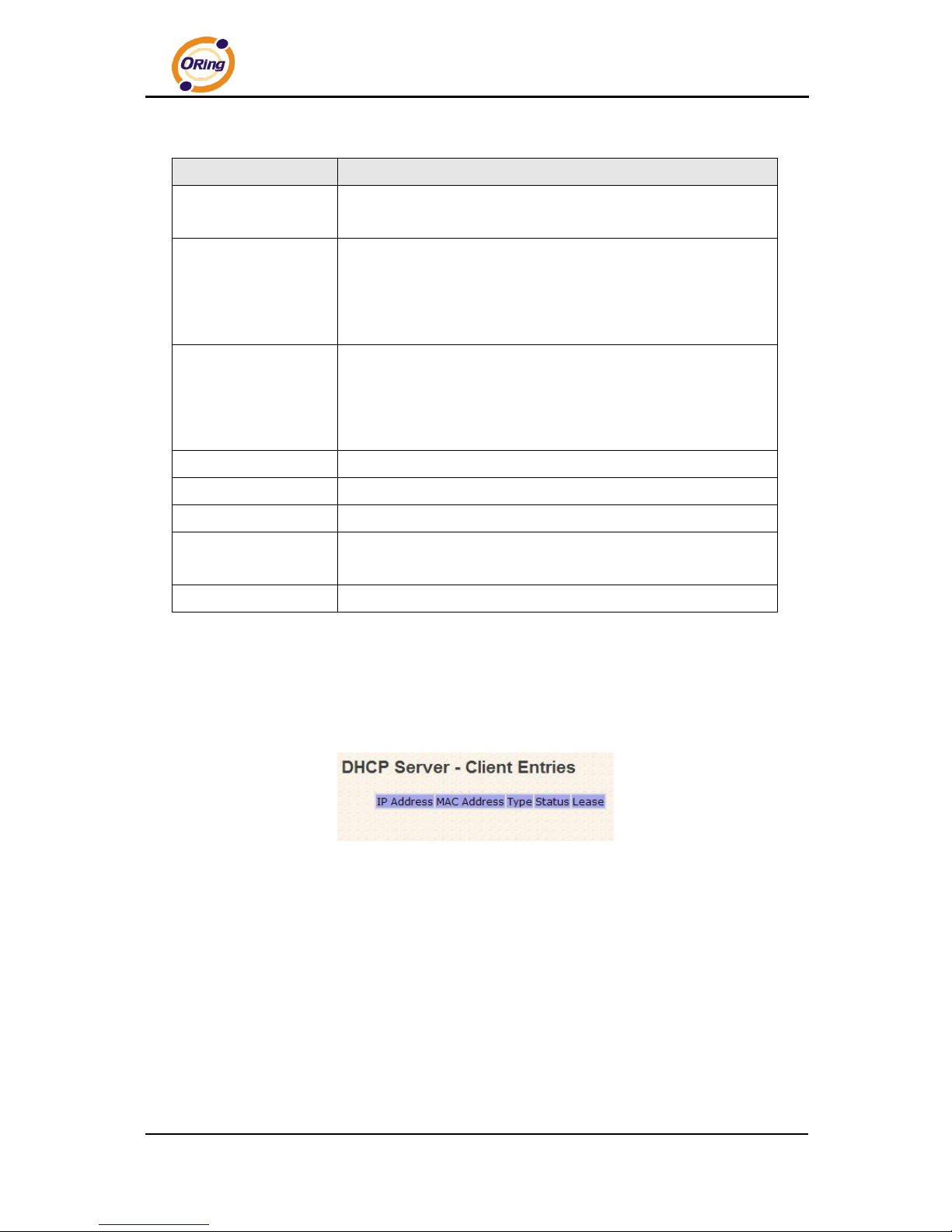

5.1.5.2 DHCP Server – Client List .................................................................................... 27

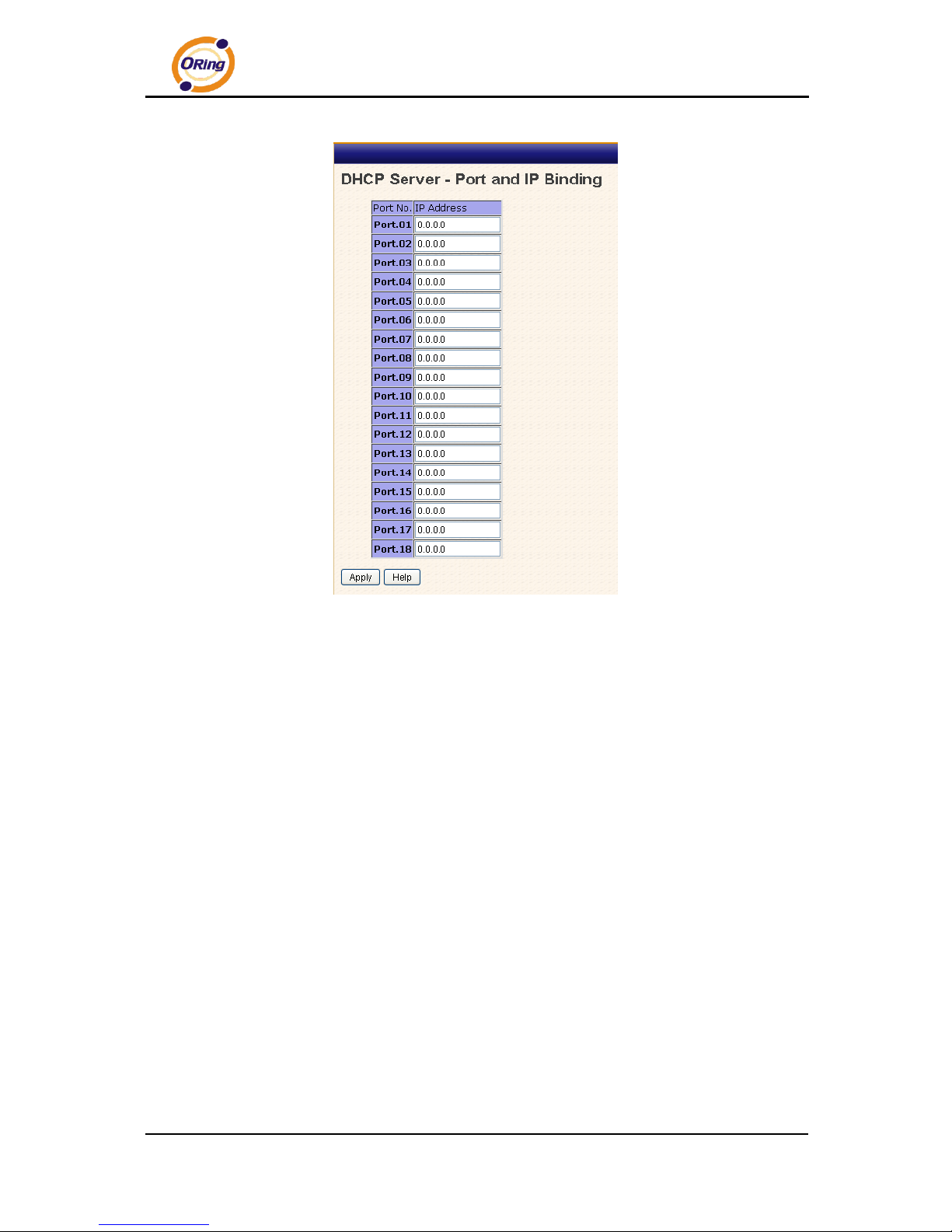

5.1.5.3 DHCP Server – Port and IP bindings .................................................................... 27
5.1.6 Port Setting ..................................................................................................................... 29

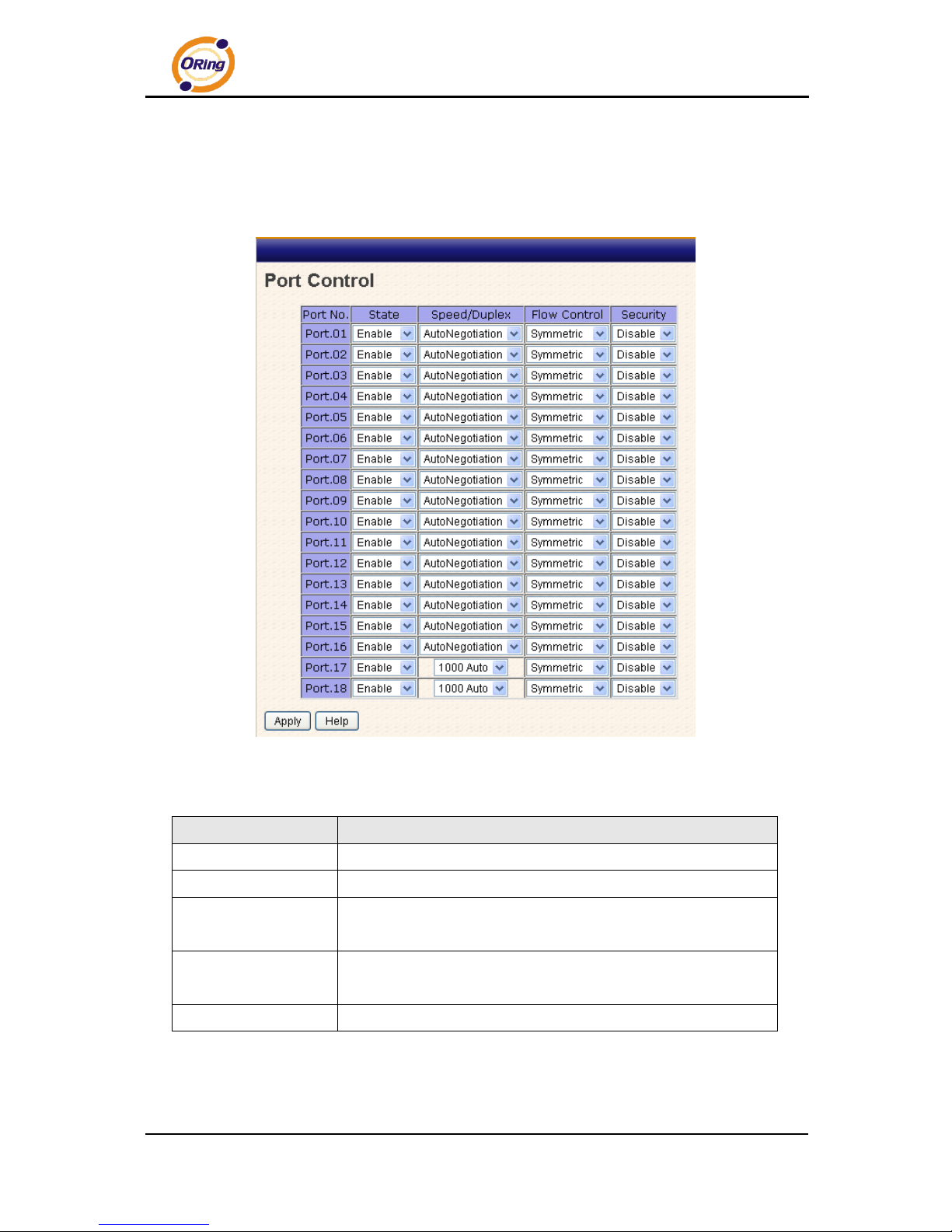

5.1.6.1 Port Control ........................................................................................................... 29
5.1.6.2 Port Status ............................................................................................................. 30
5.1.6.3 Port Alias ............................................................................................................... 30

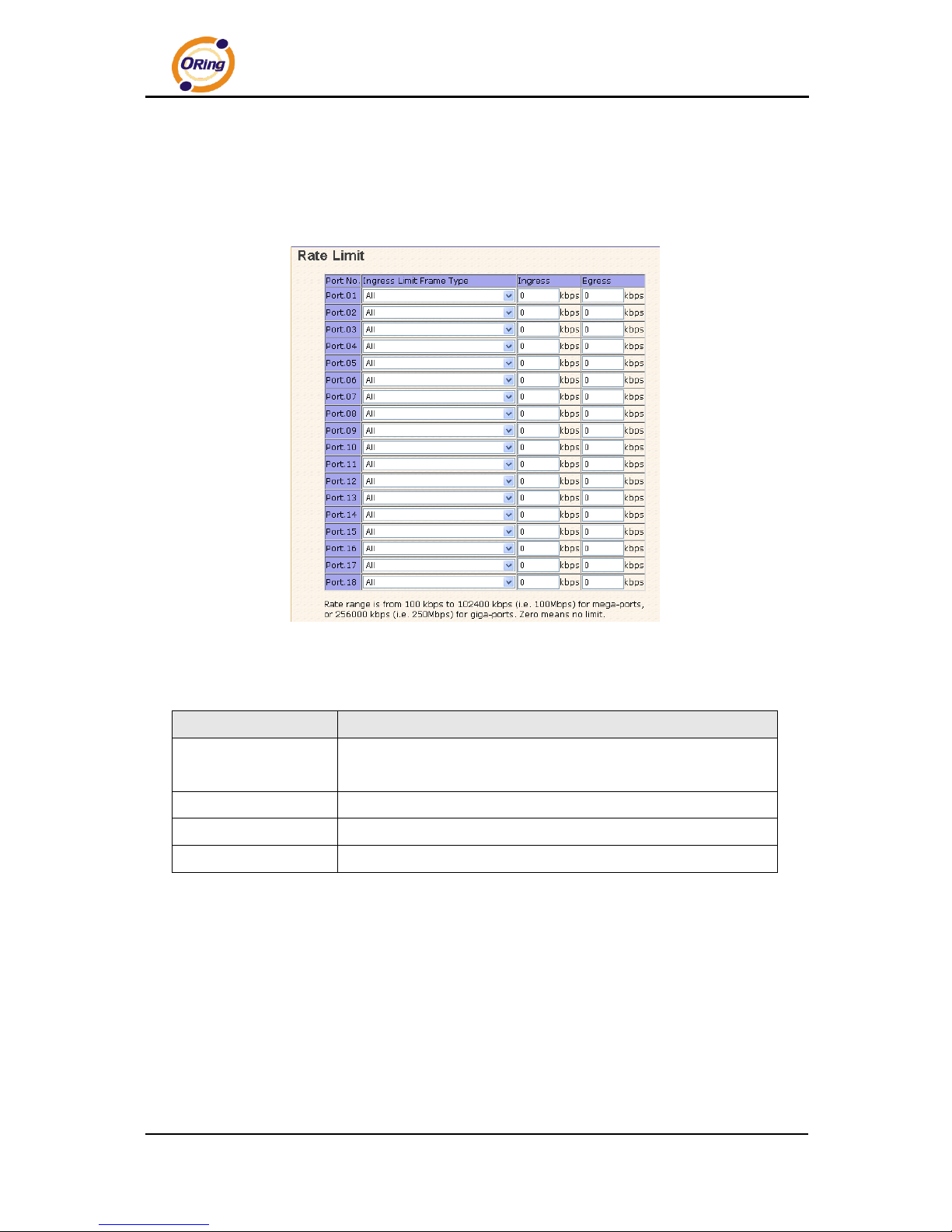

5.1.6.4 Rate Limit ............................................................................................................. 31

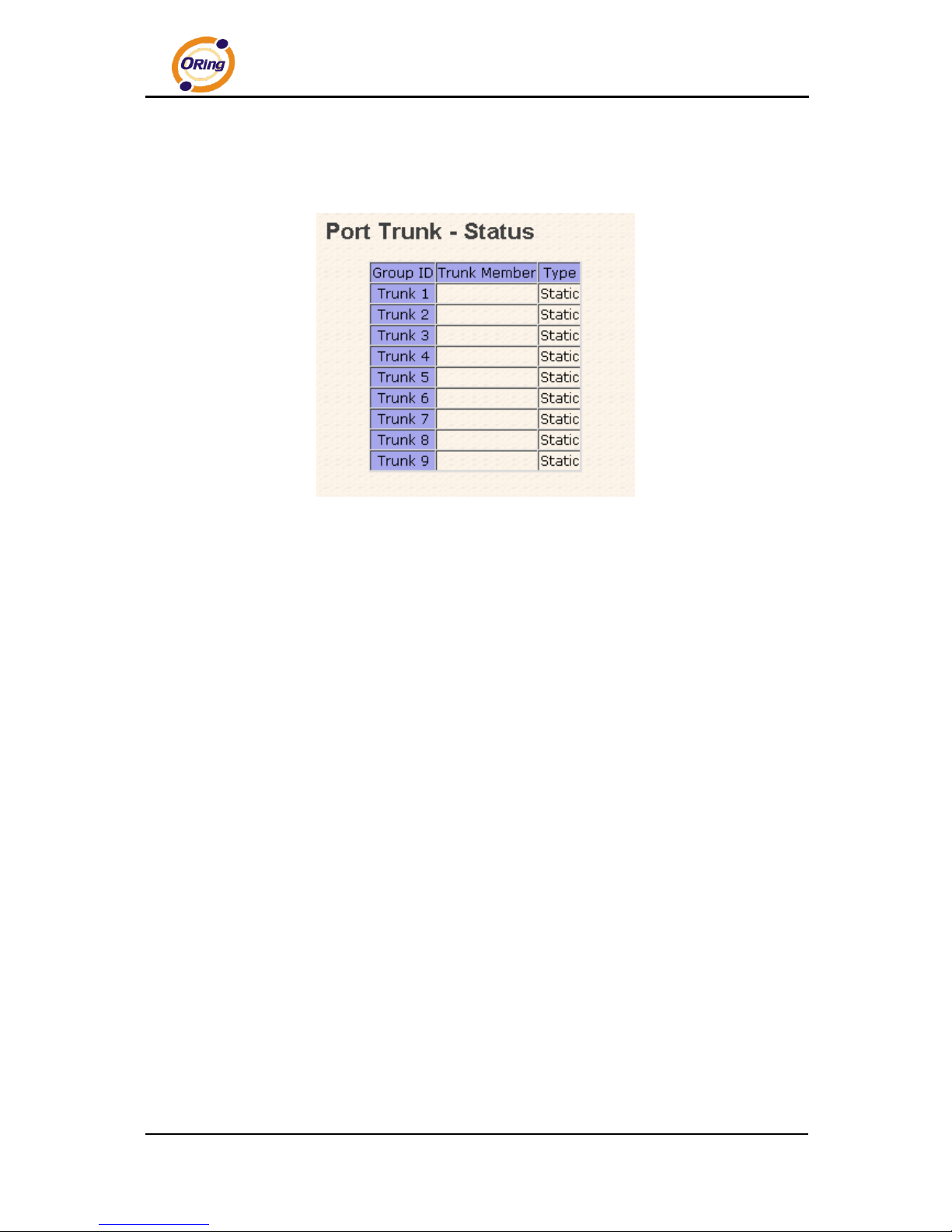

5.1.6.5 Port Trunk ............................................................................................................. 32
5.1.7 Redundancy .................................................................................................................... 34

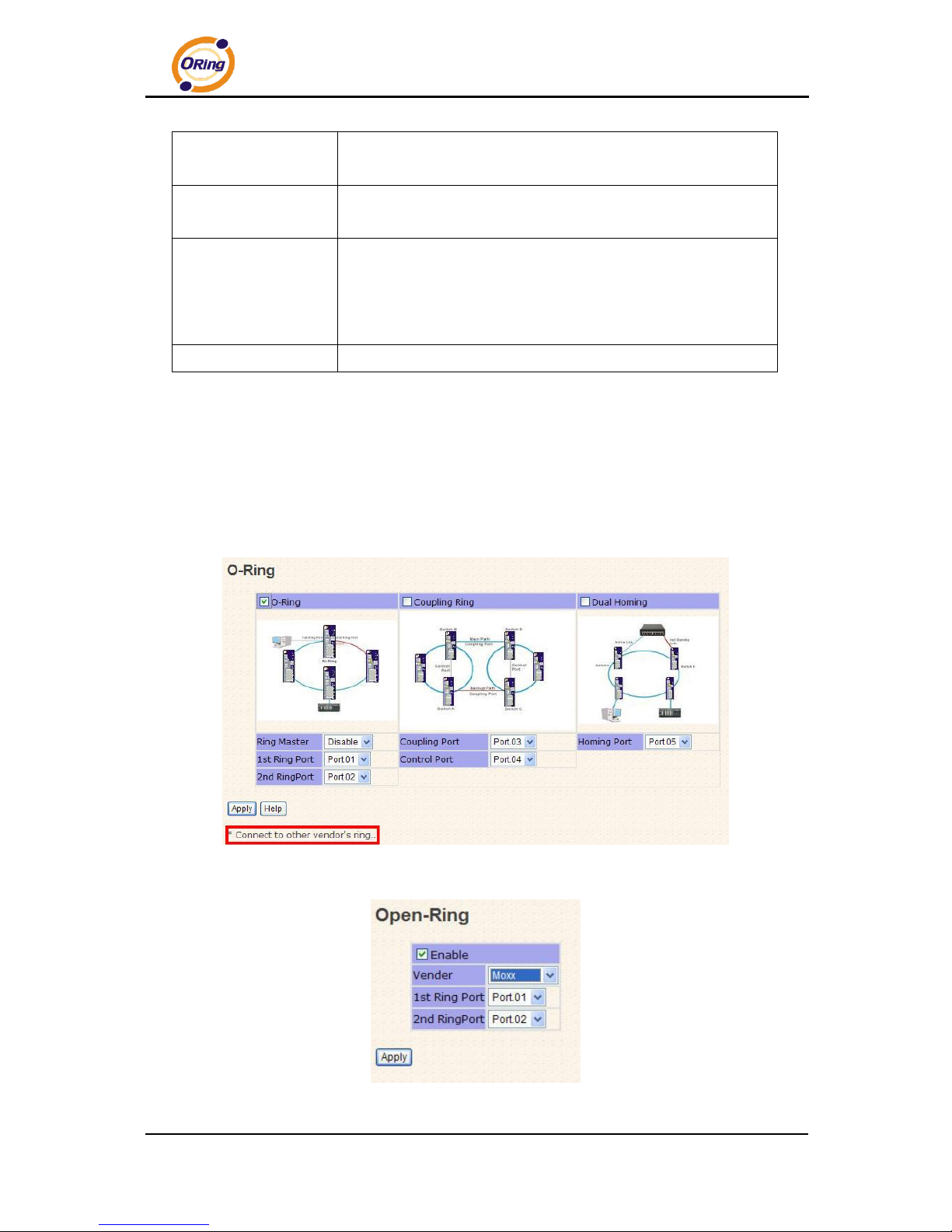

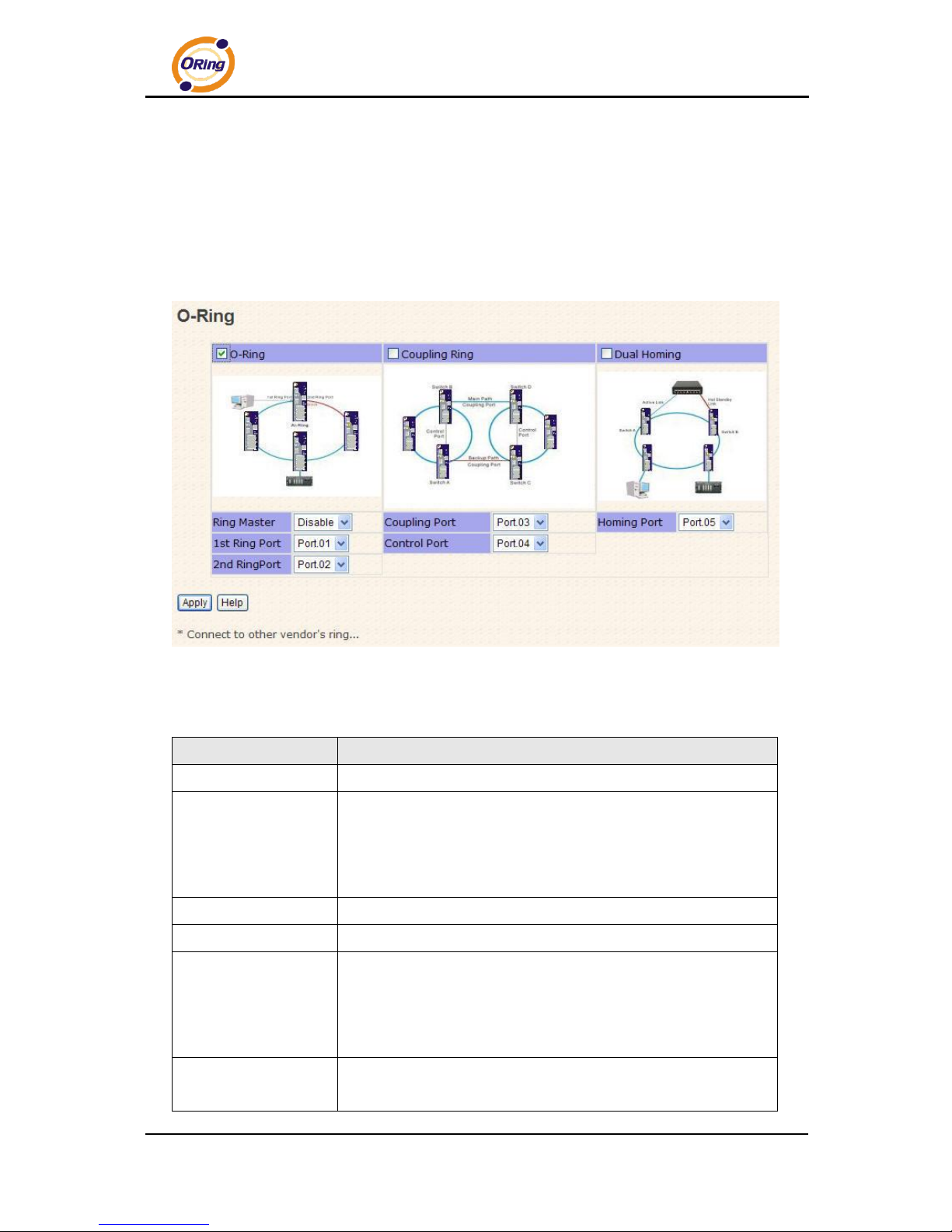

5.1.7.1 O-Ring ................................................................................................................... 34
5.1.7.2 Open-Ring ............................................................................................................. 35

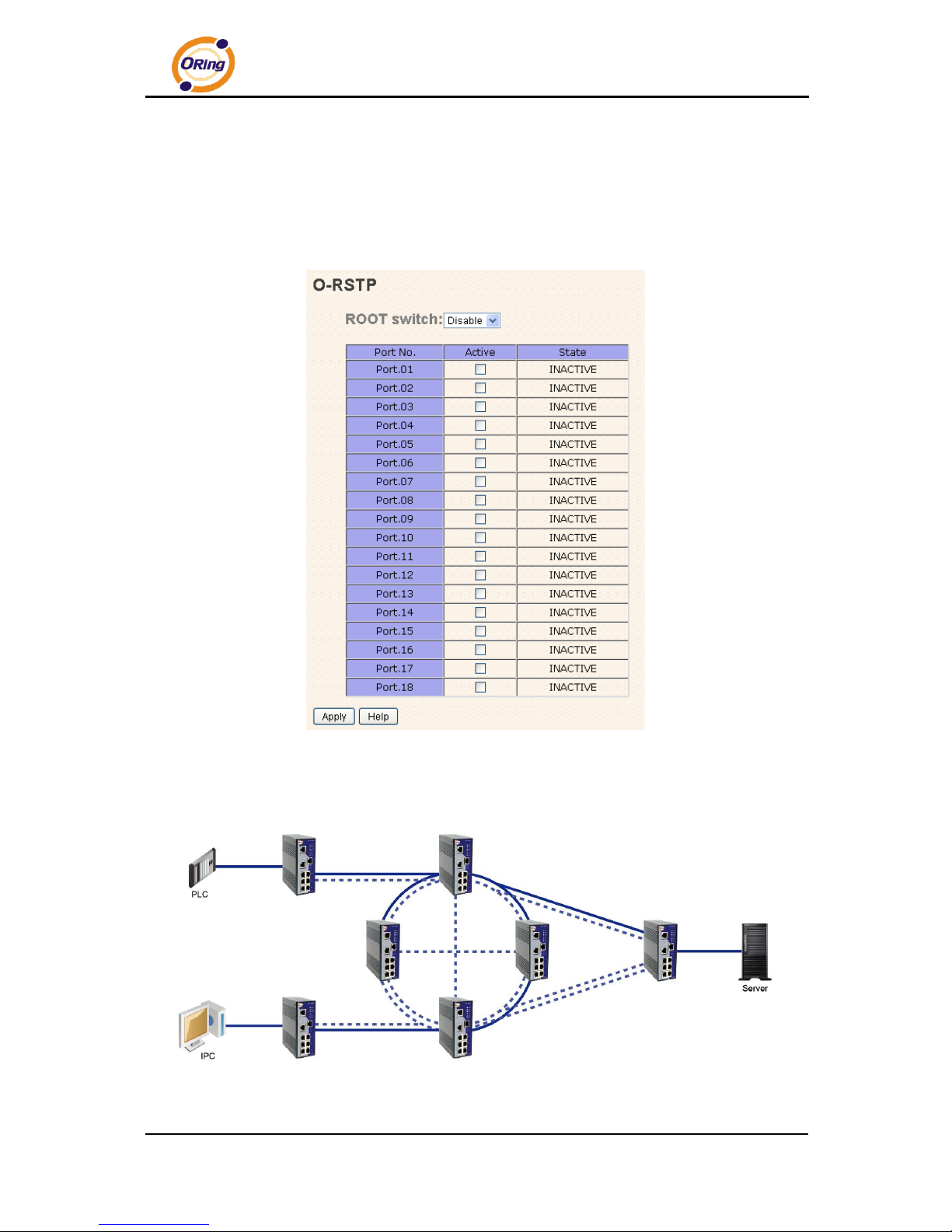

5.1.7.3 O-RSTP ................................................................................................................. 37

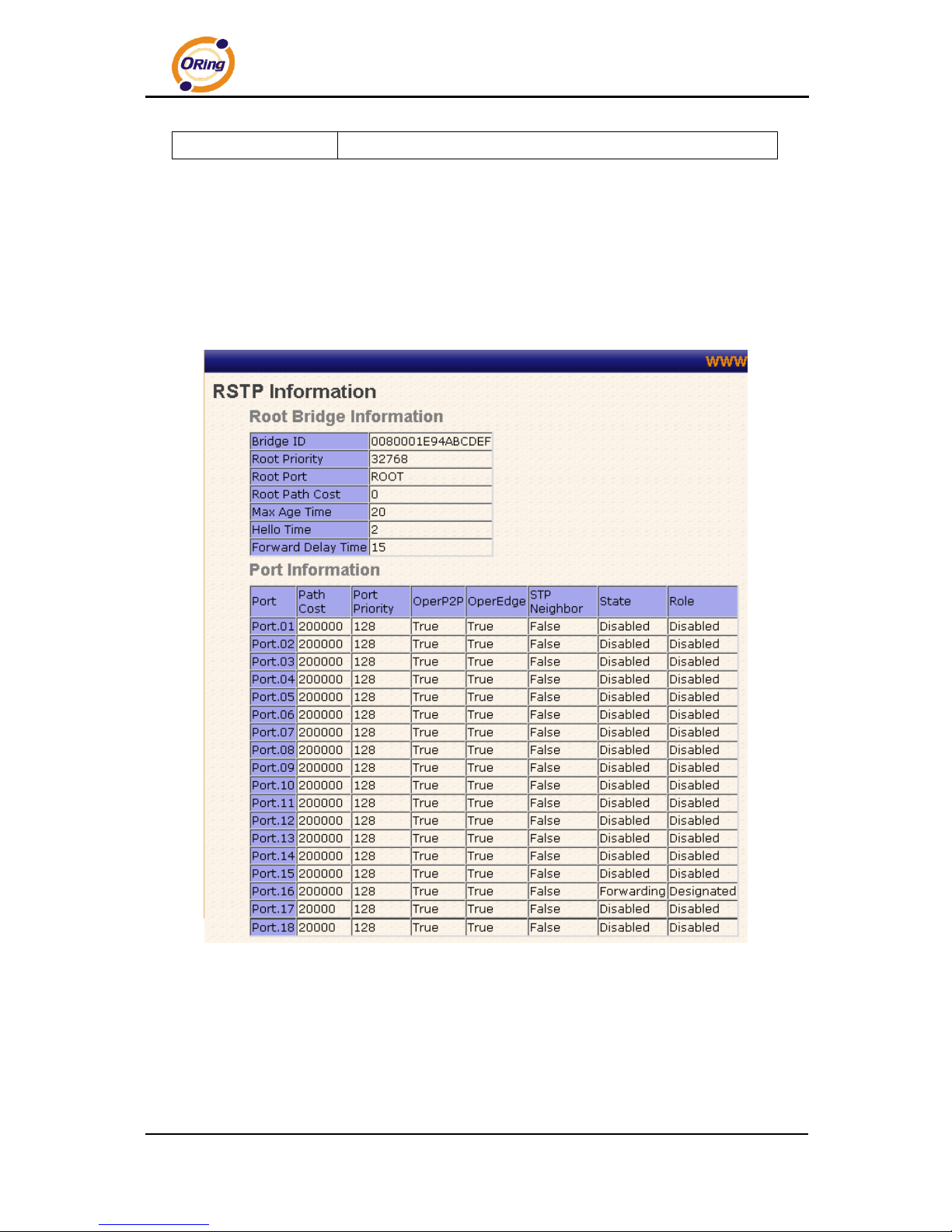

5.1.7.4 RSTP ..................................................................................................................... 38

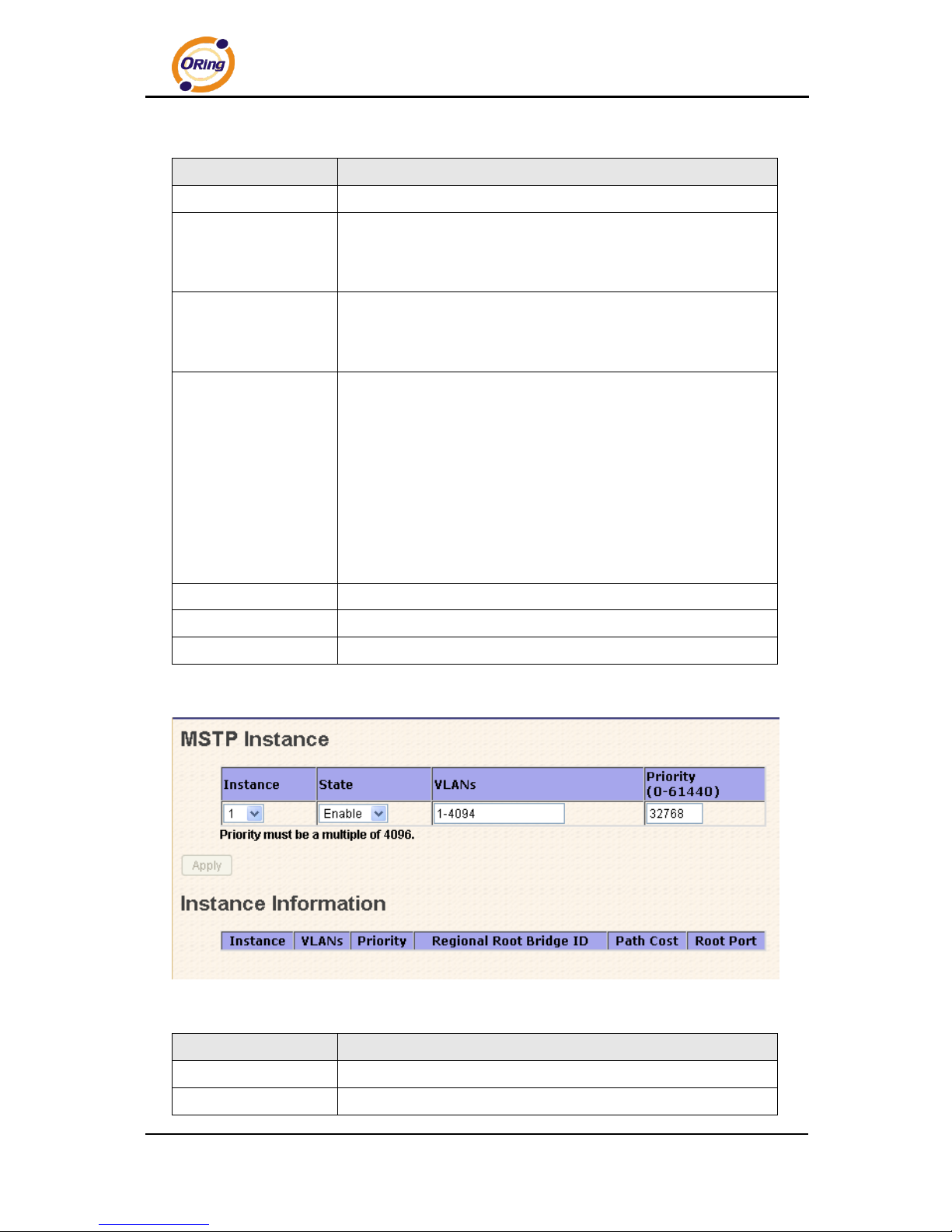

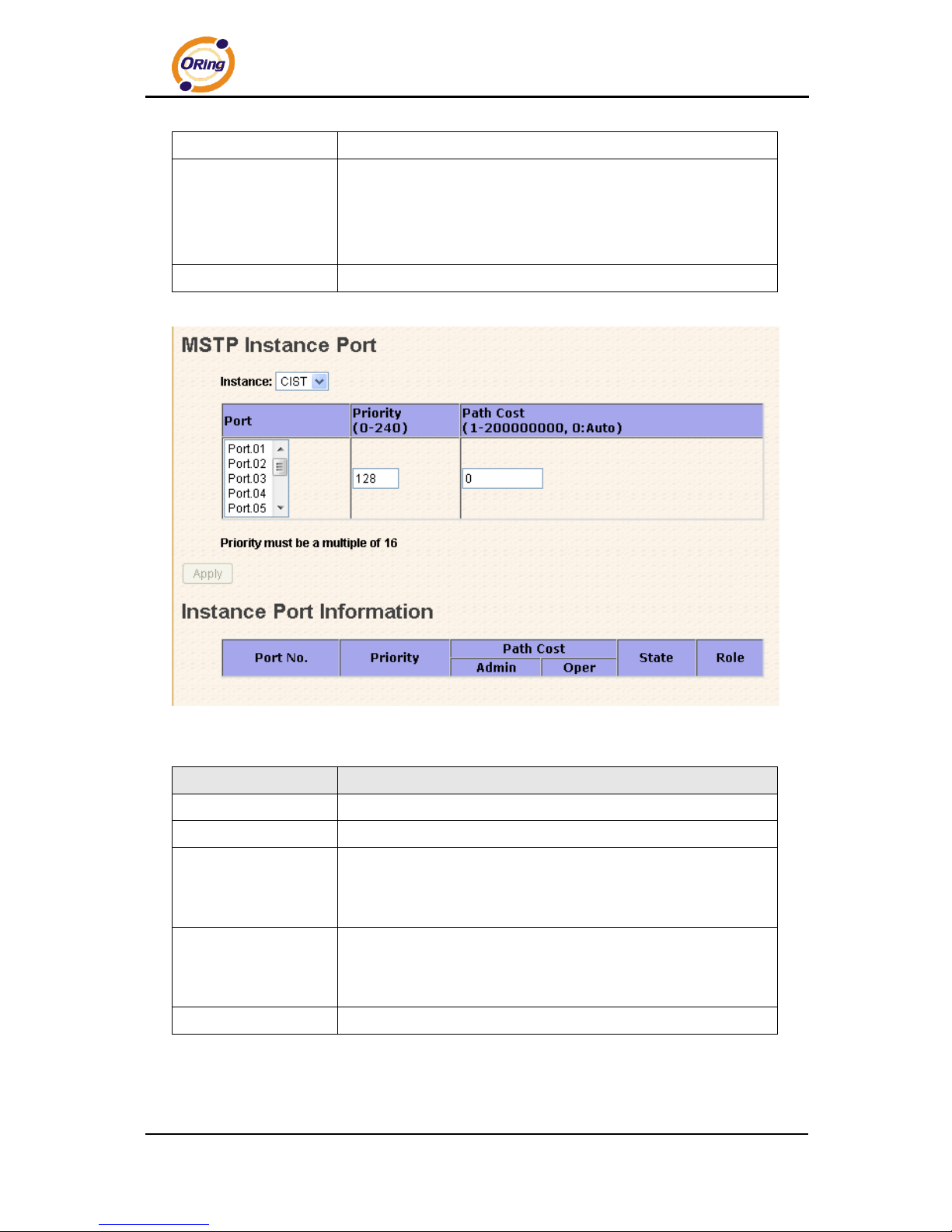

5.1.7.5 MSTP .................................................................................................................... 41
5.1.8 VLAN ............................................................................................................................. 45

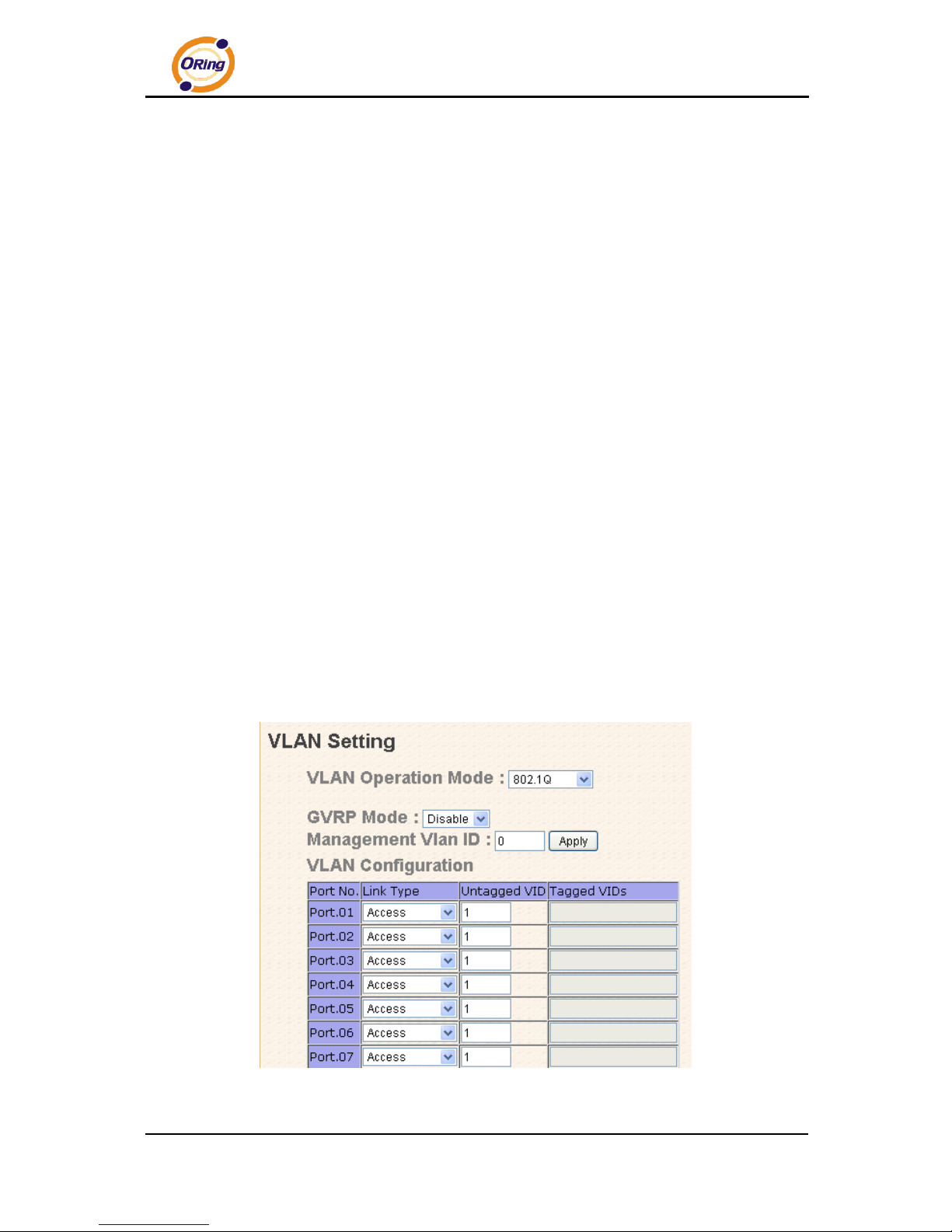

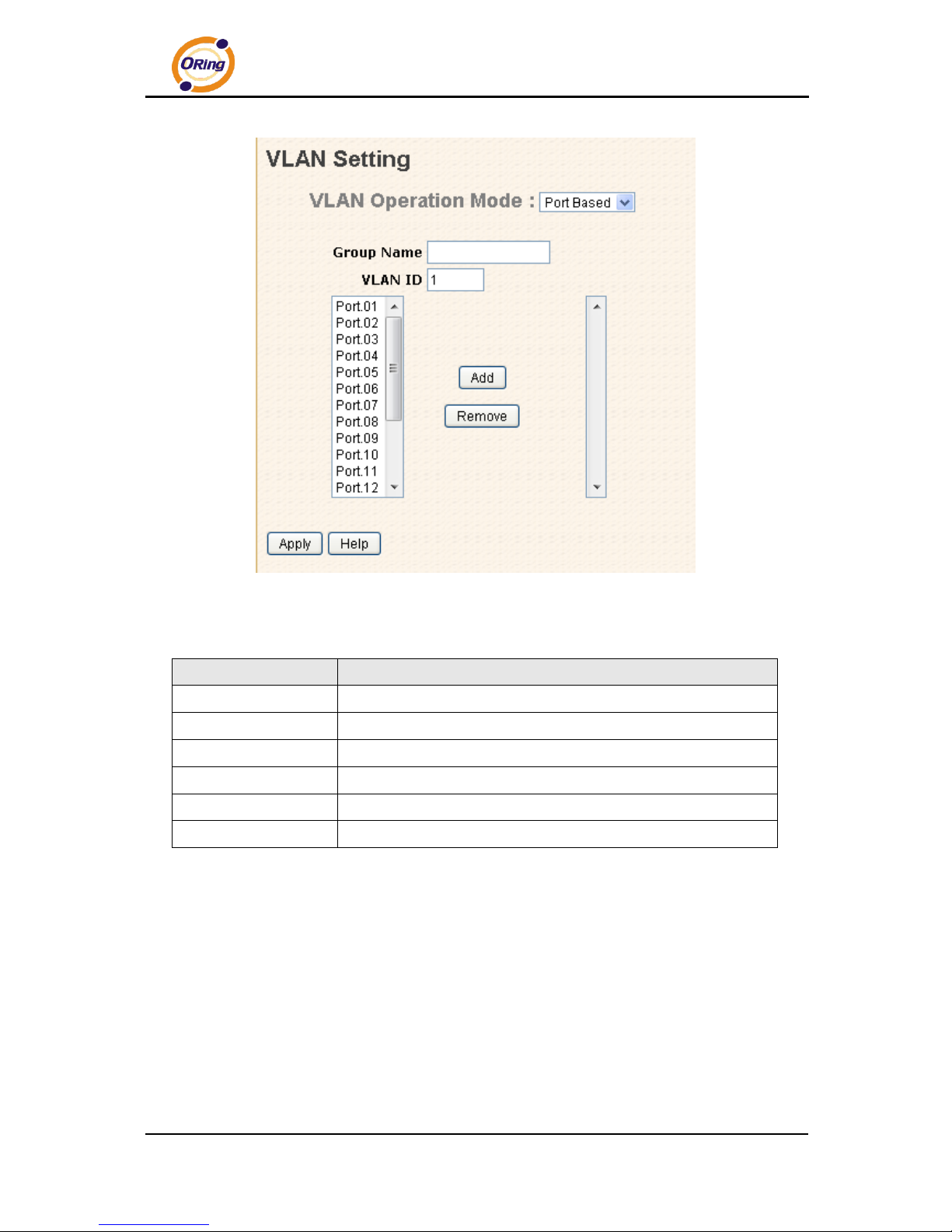

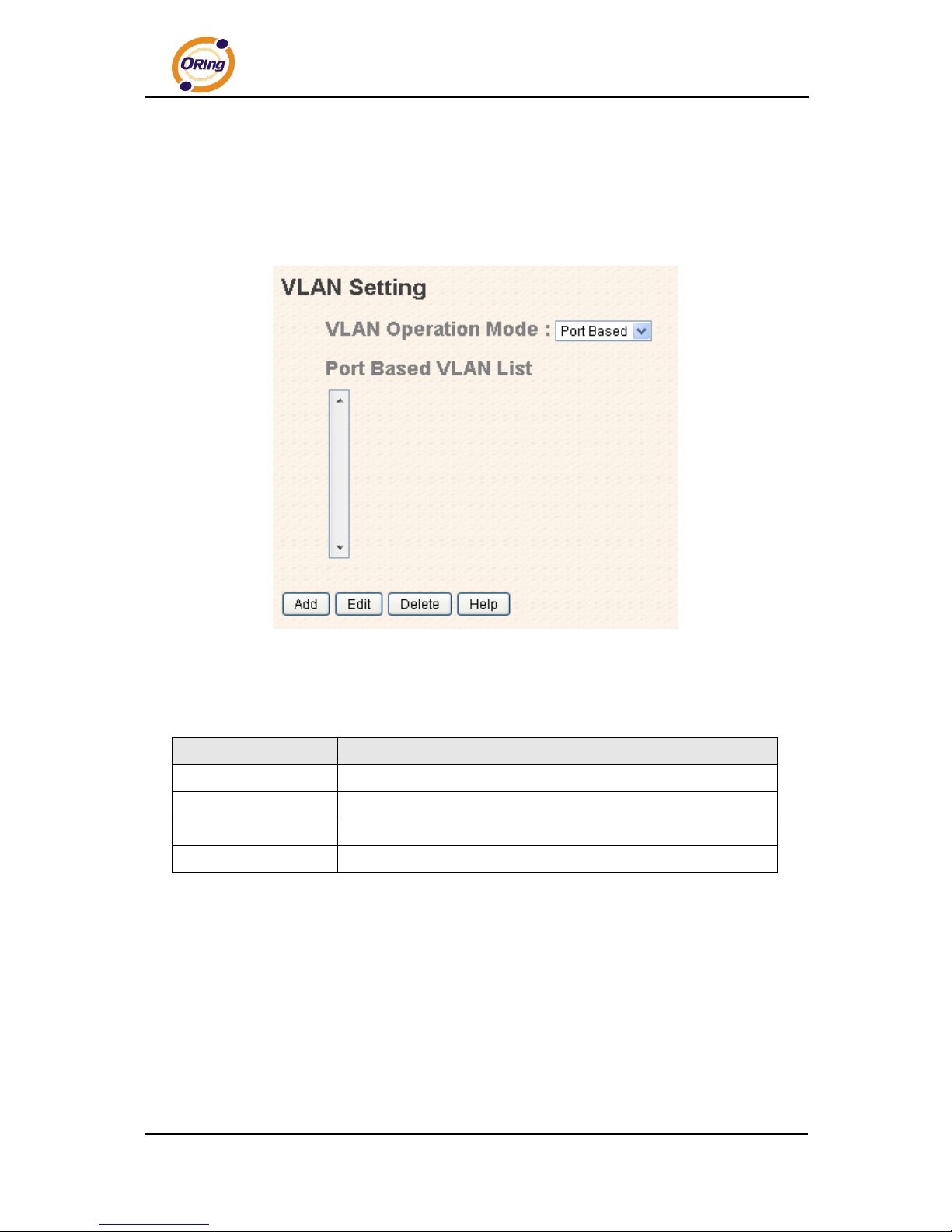

5.1.8.1 VLAN Setting ....................................................................................................... 45
5.1.8.2 VLAN Setting – Port Based .................................................................................. 47
5.1.9 SNMP ............................................................................................................................. 49

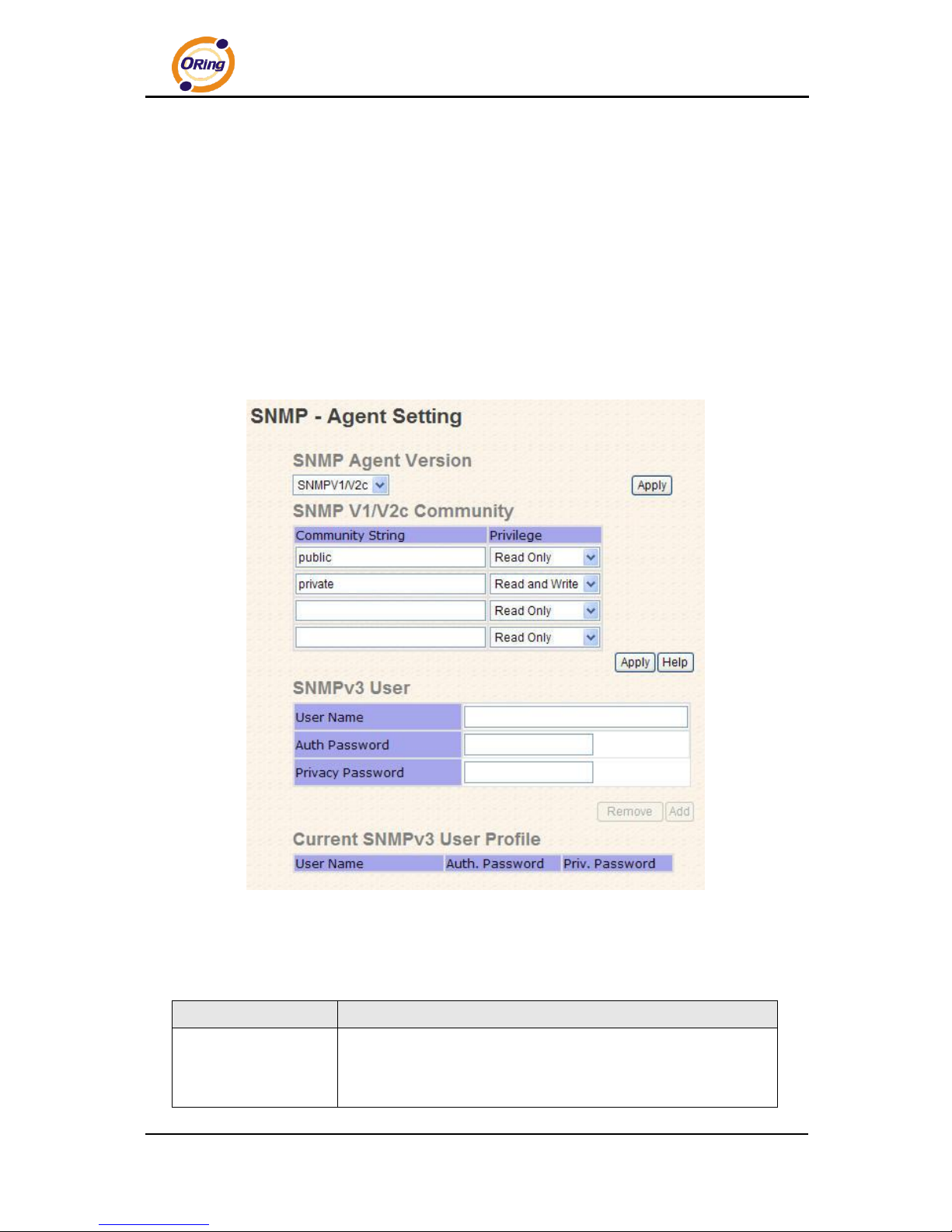

5.1.9.1 SNMP – Agent Setting .......................................................................................... 49

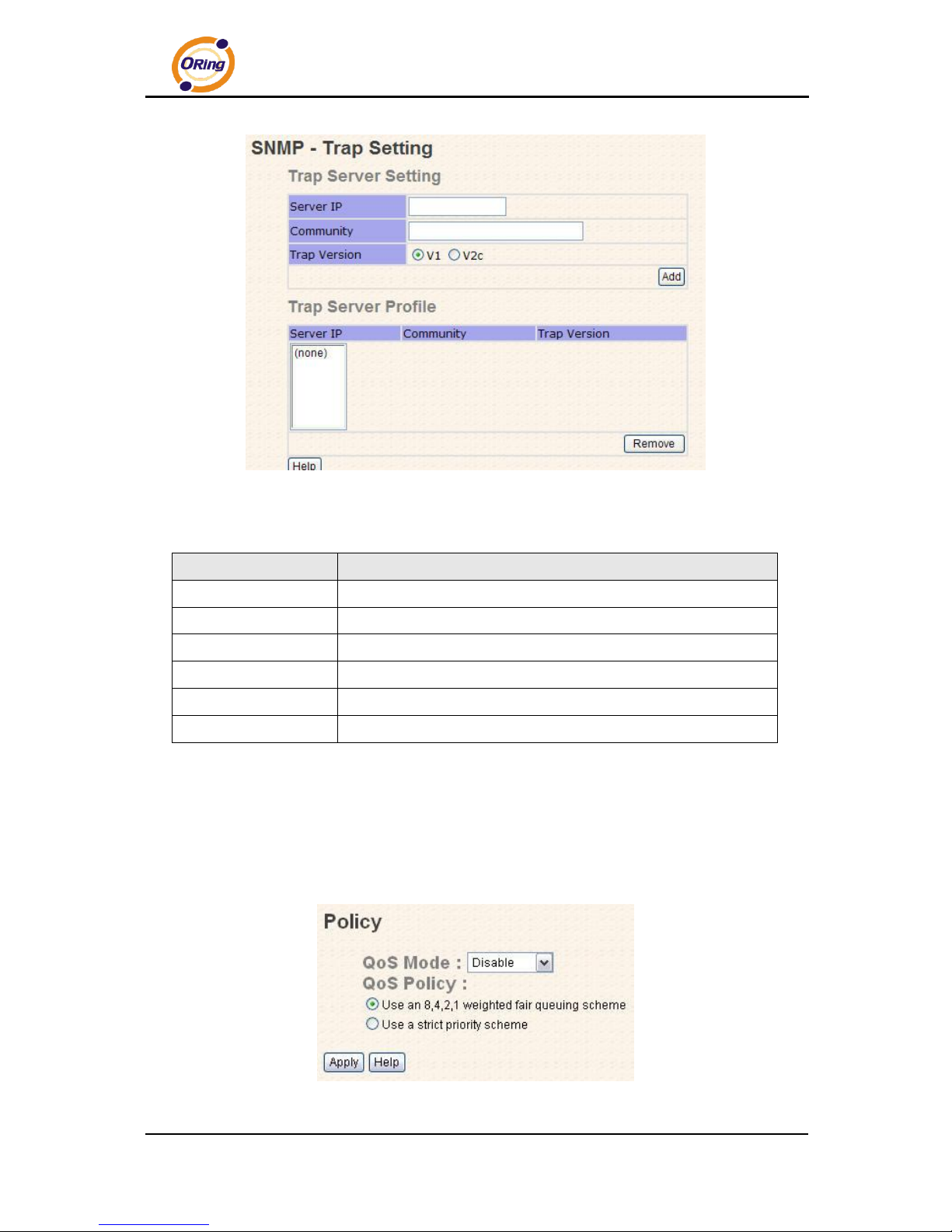

5.1.9.2 SNMP – Trap Setting ............................................................................................ 50

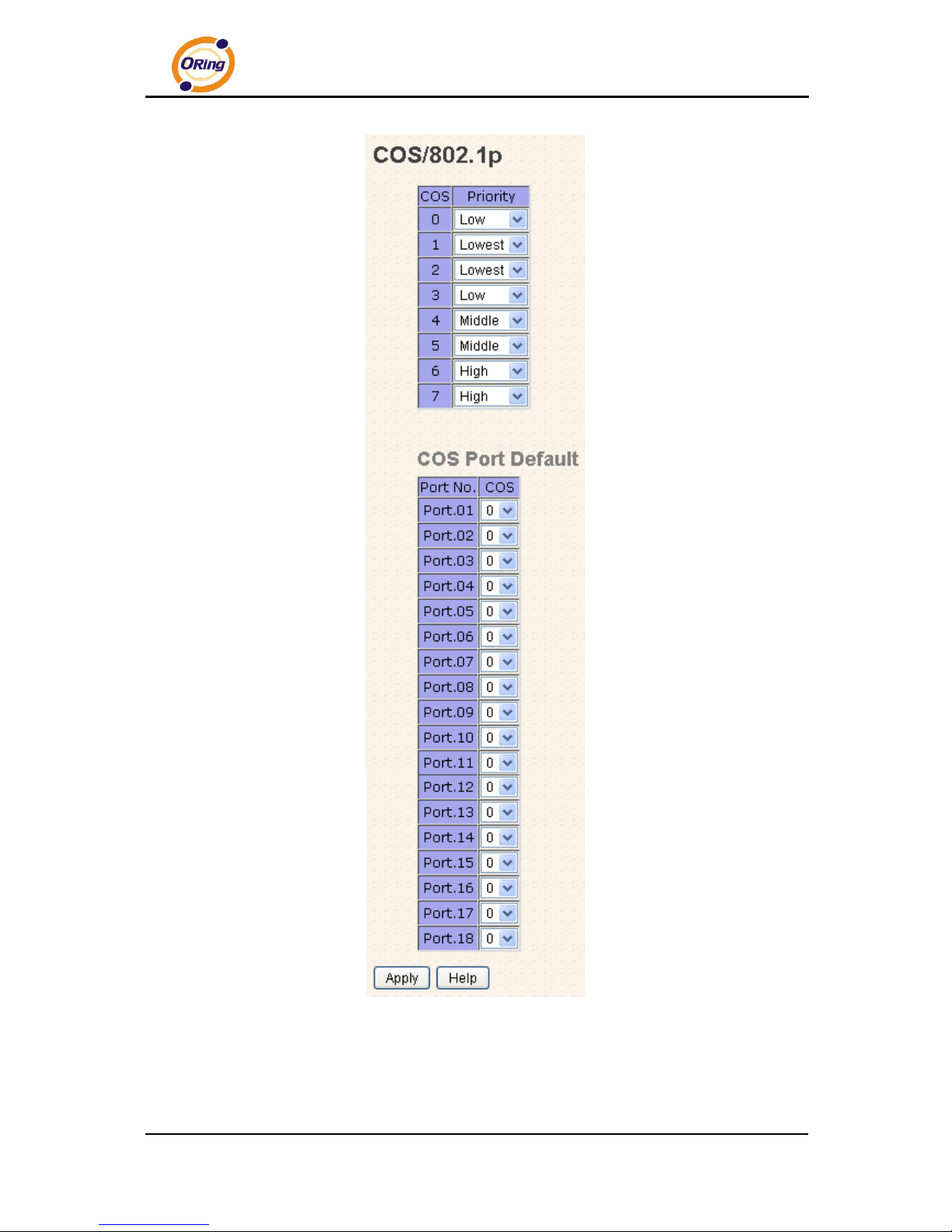

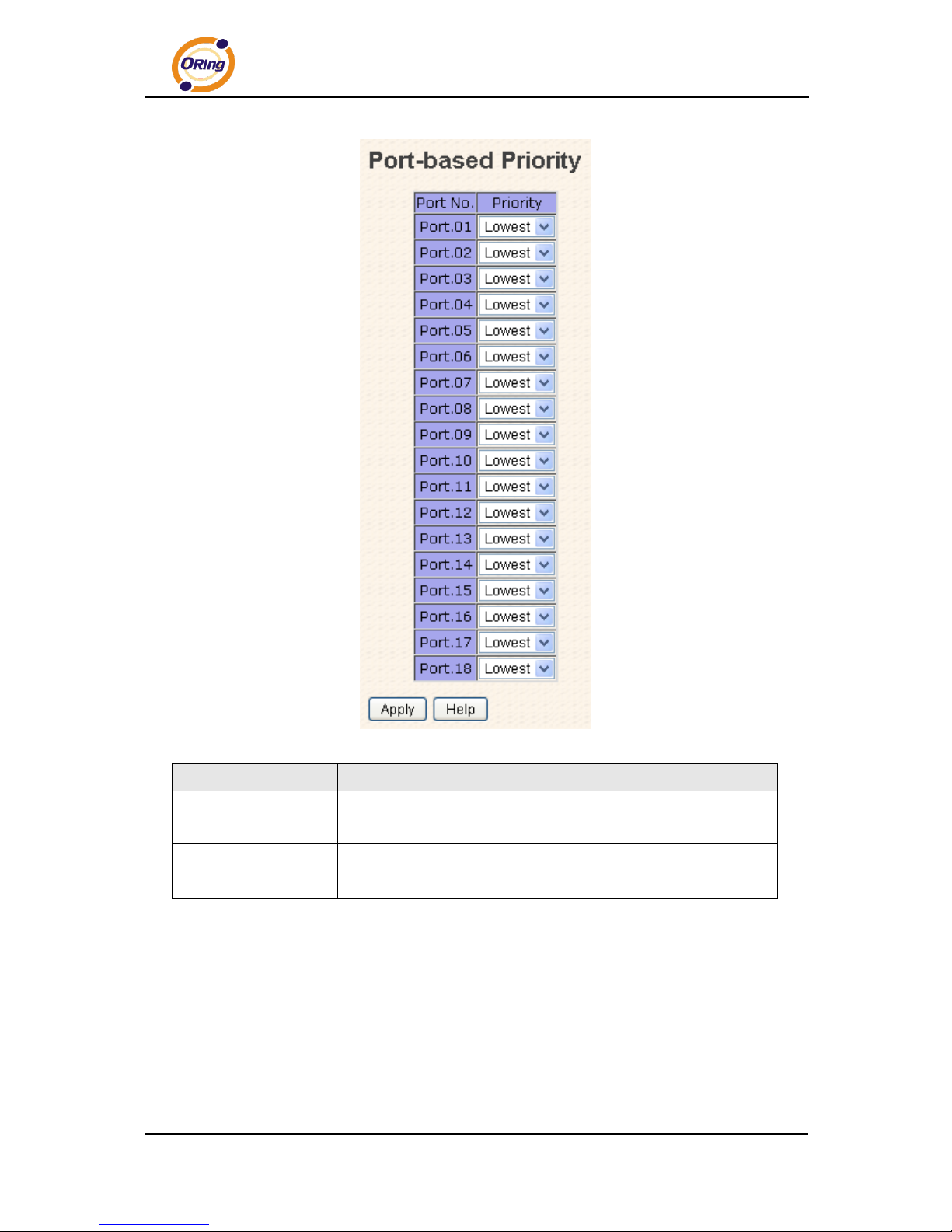

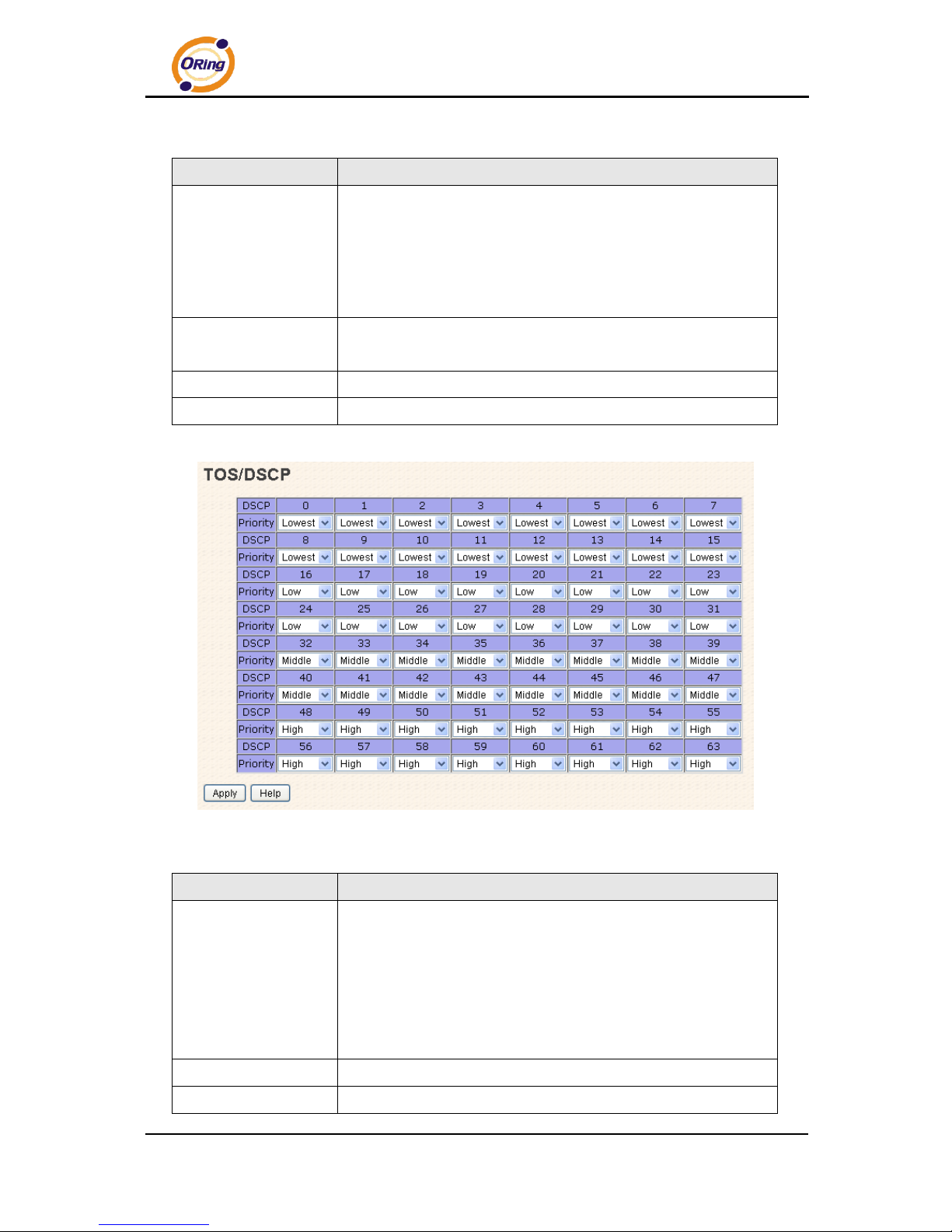

5.1.10 Traffic Prioritization ................................................................................................... 51
5.1.11 Multicast .................................................................................................................... 56

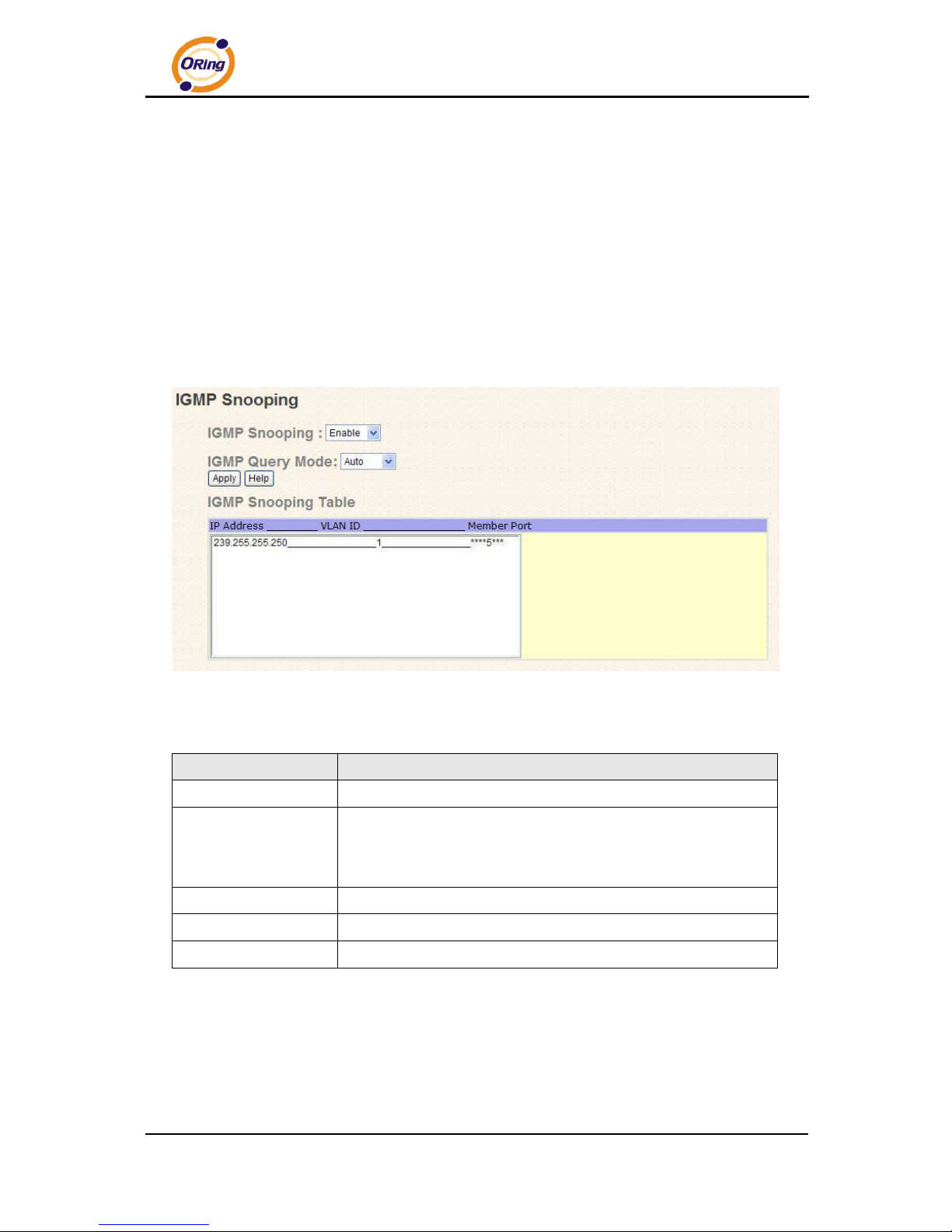

5.1.11.1 IGMP Snooping..................................................................................................... 56

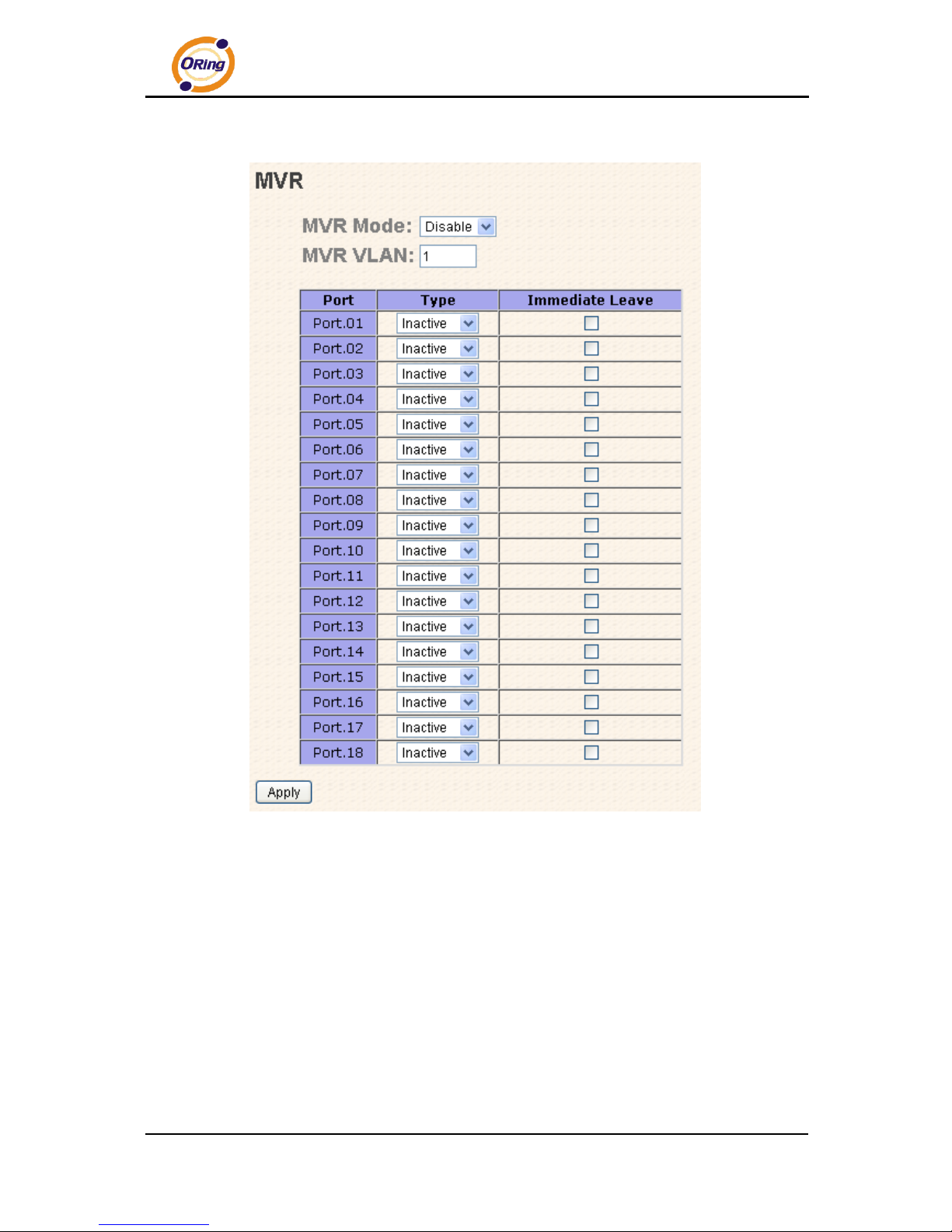

5.1.11.2 MVR ..................................................................................................................... 57

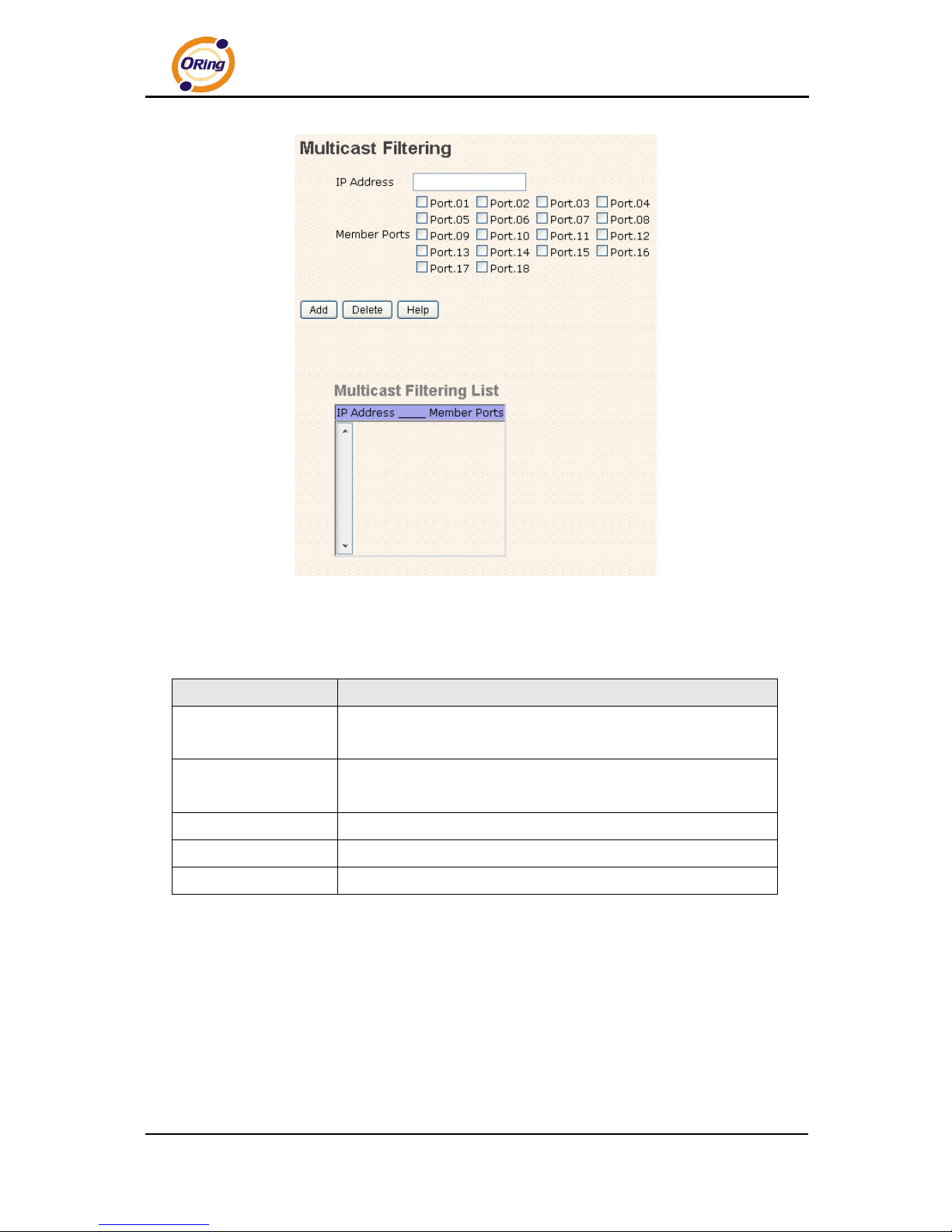

5.1.11.3 Multicast Filter ...................................................................................................... 57
5.1.12 Security ...................................................................................................................... 58

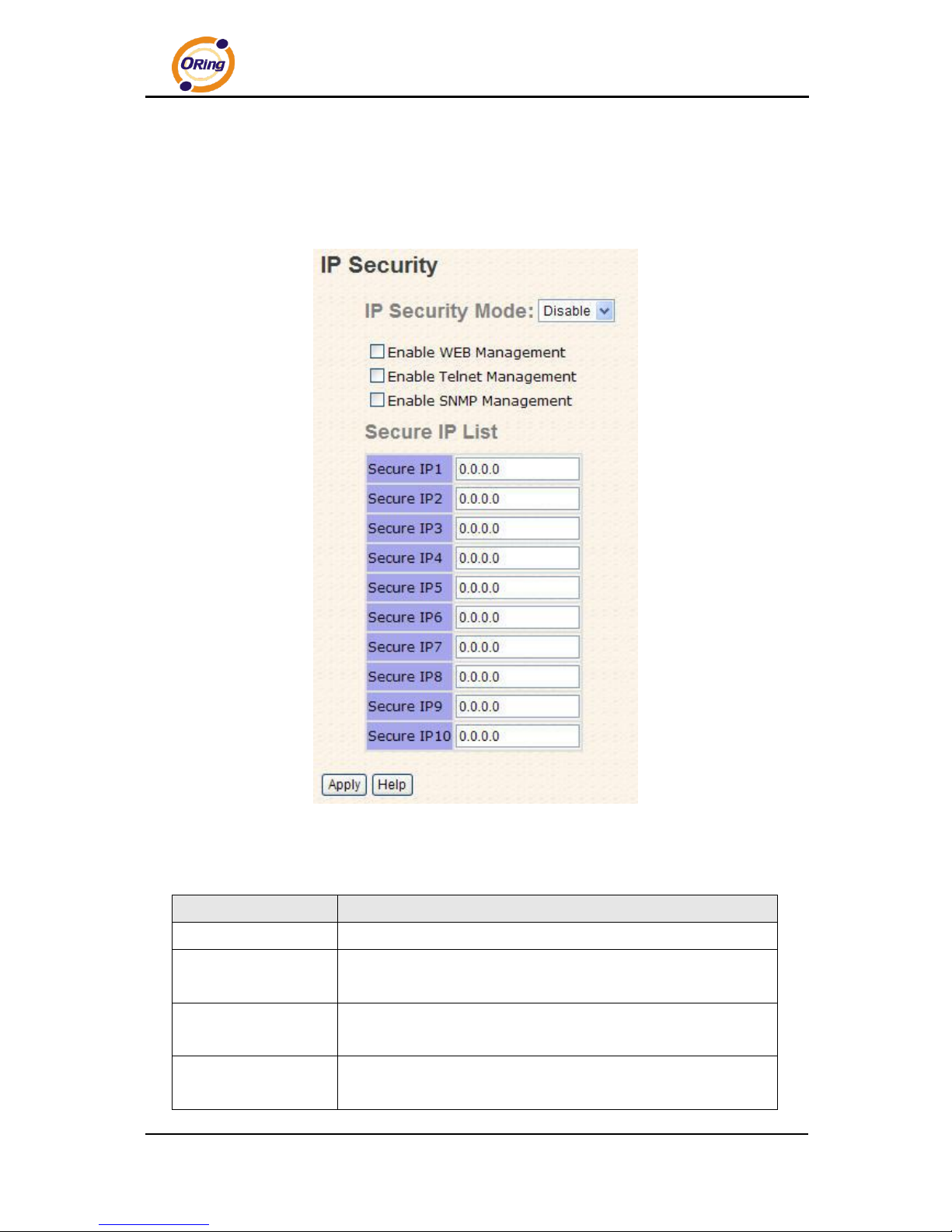

5.1.12.1 IP Security ............................................................................................................. 59

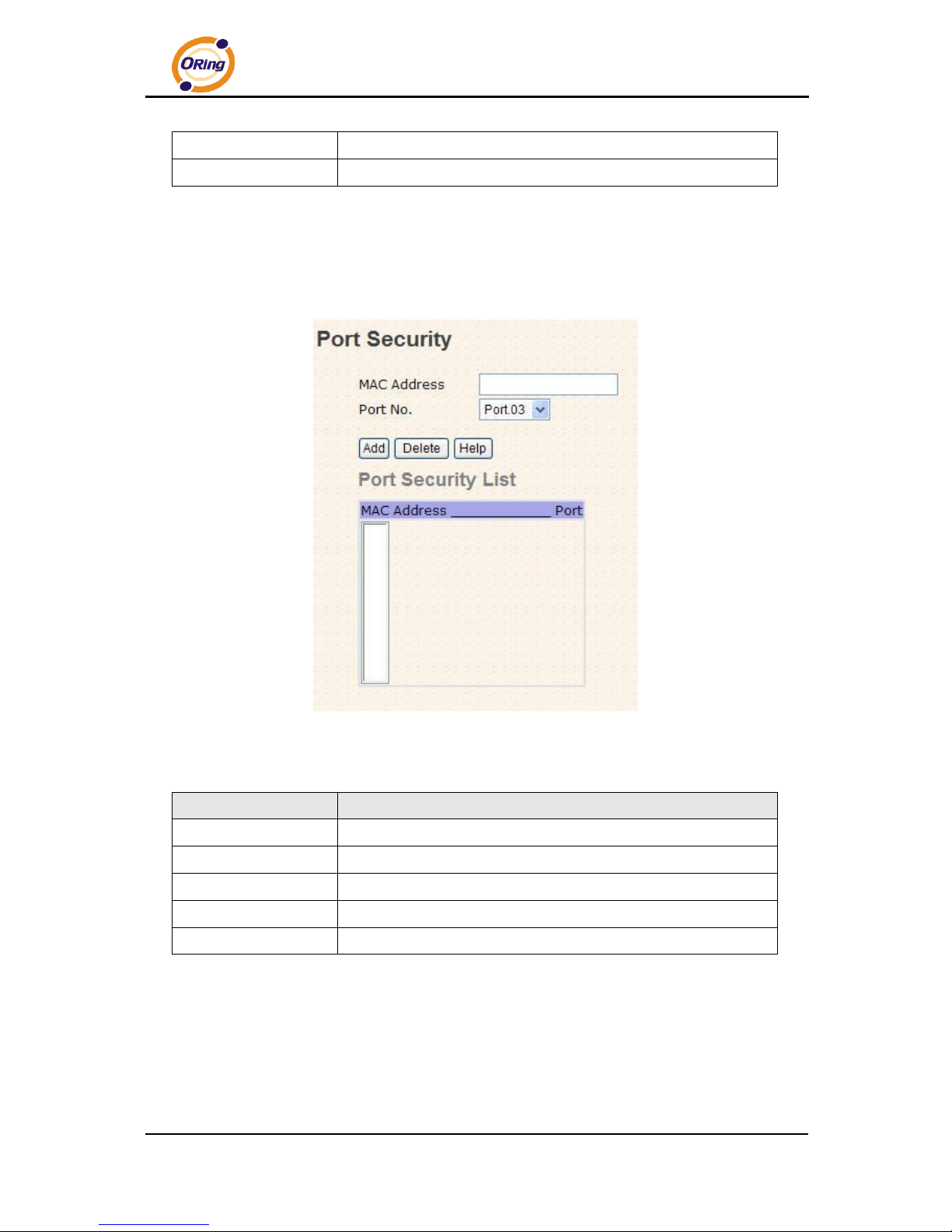

5.1.12.2 Port Security .......................................................................................................... 60
5.1.12.3 MAC Blacklist ...................................................................................................... 60

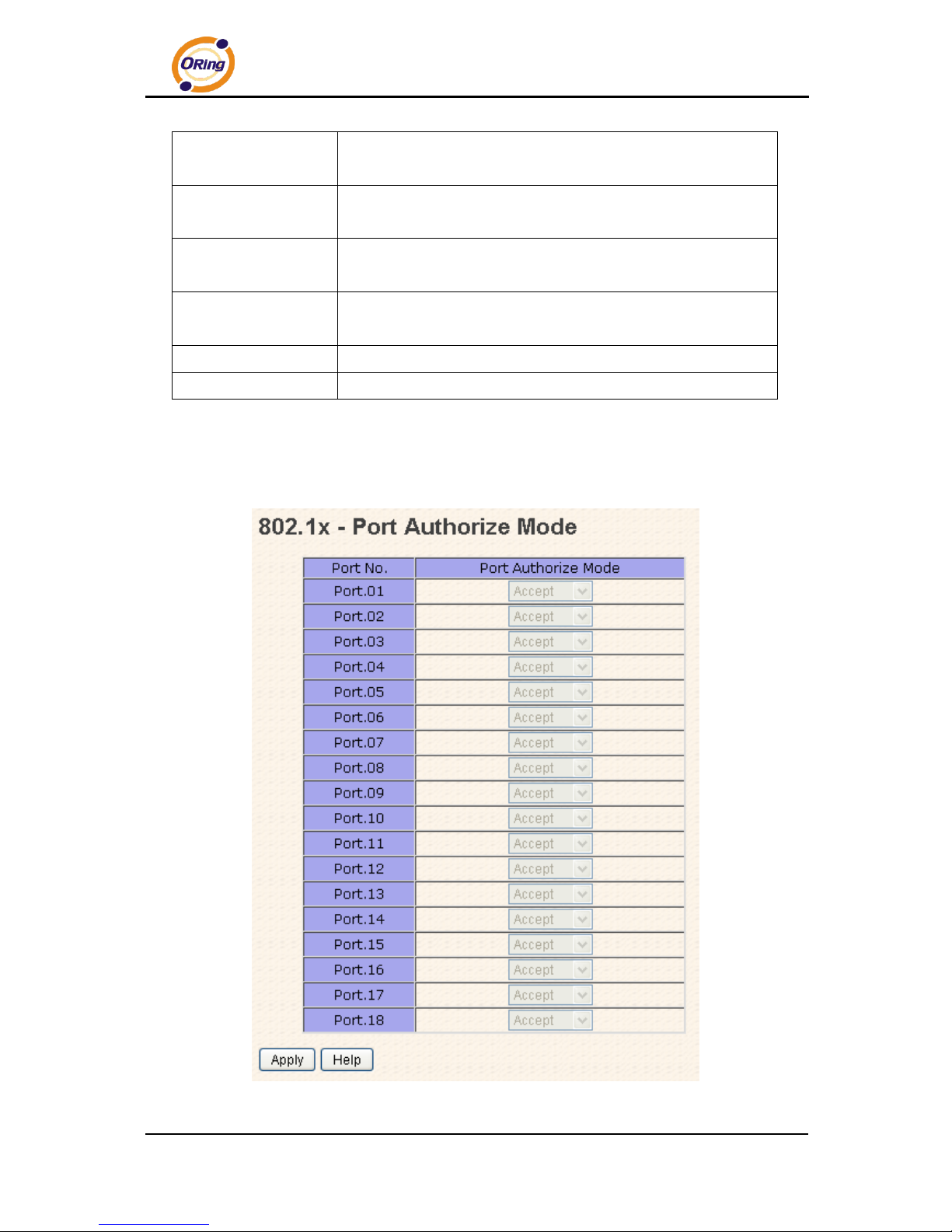

5.1.12.4 802.1x .................................................................................................................... 61
Page 4
IES-3162GC User’s Manual
ORing Industrial Networking Corp
3

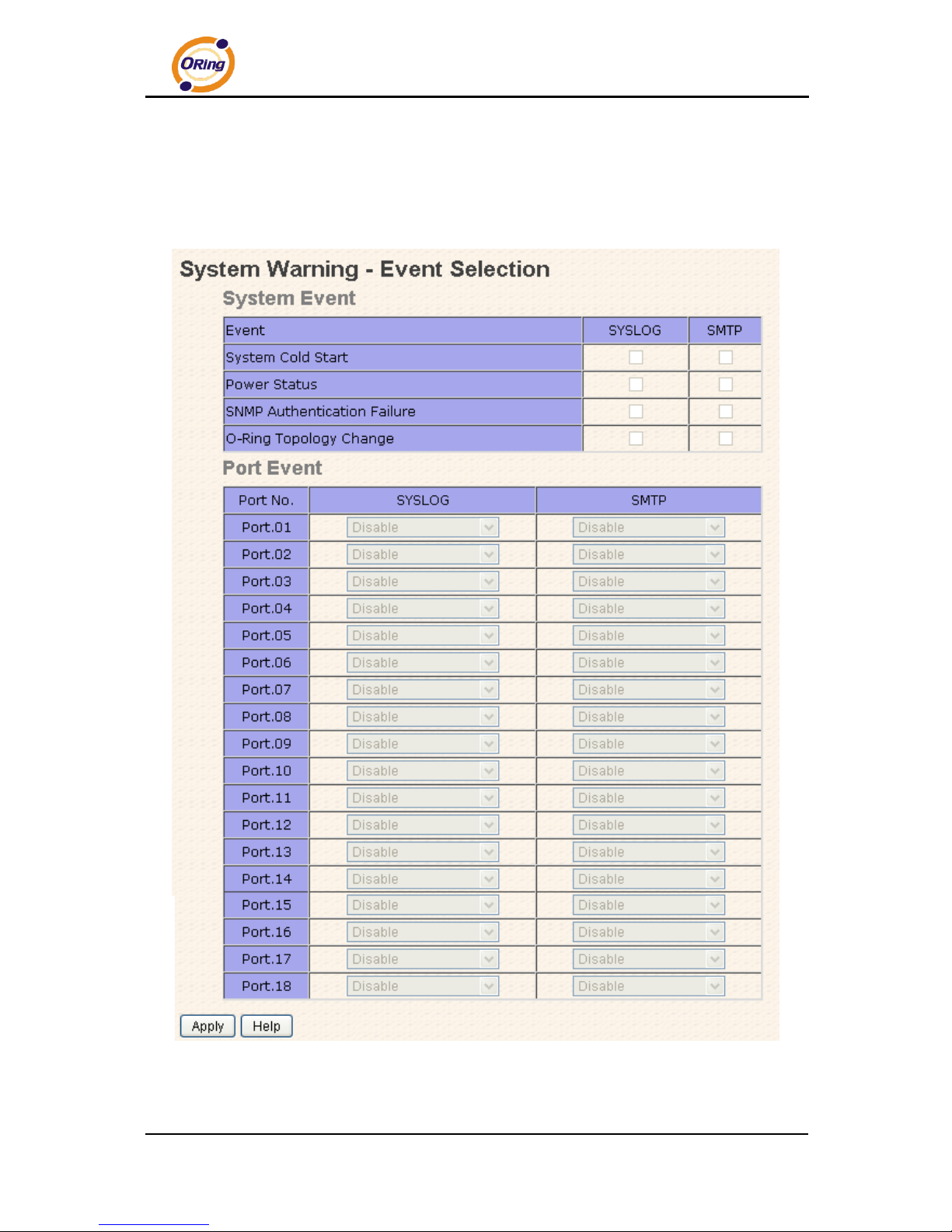

5.1.13 Warning ...................................................................................................................... 64

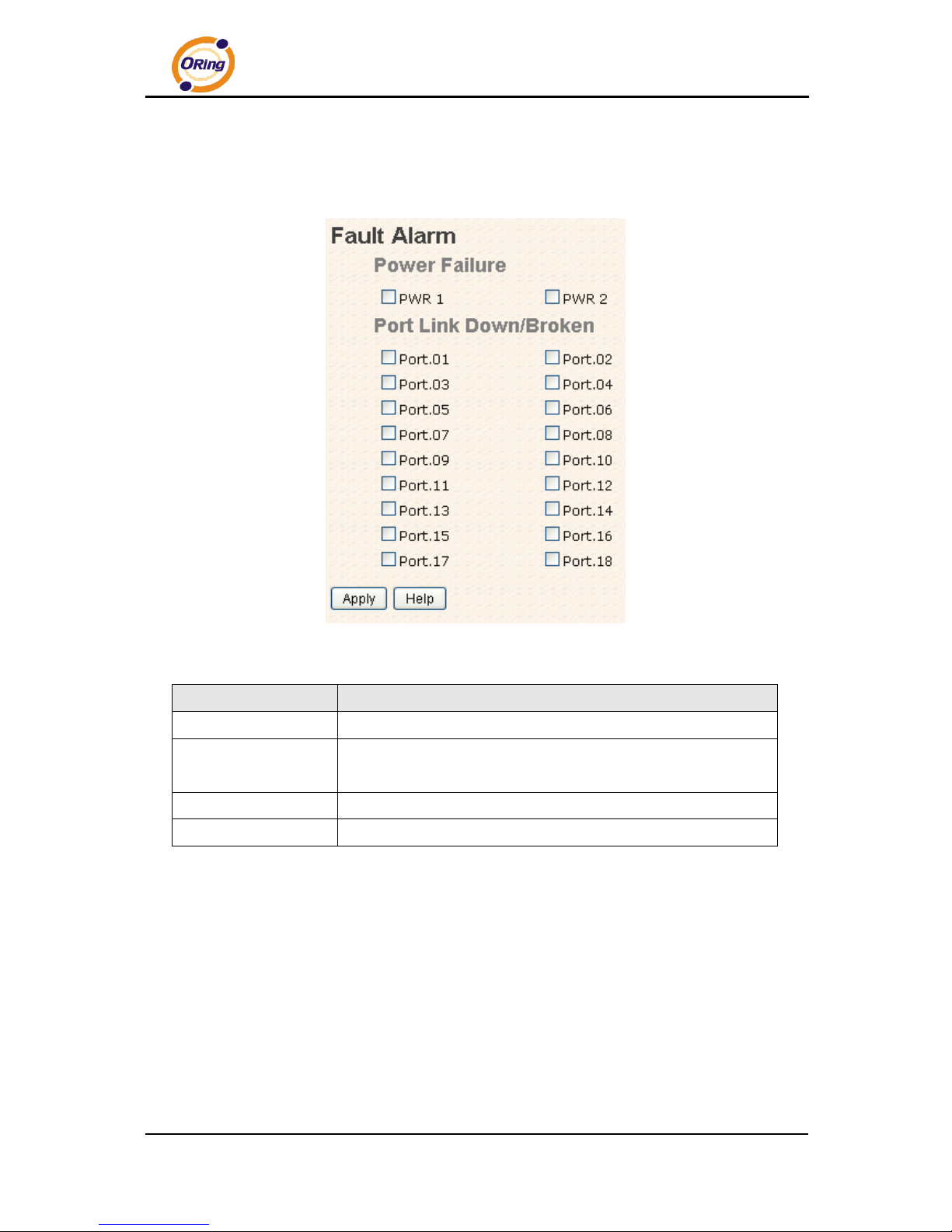

5.1.13.1 Fault Alarm ........................................................................................................... 65

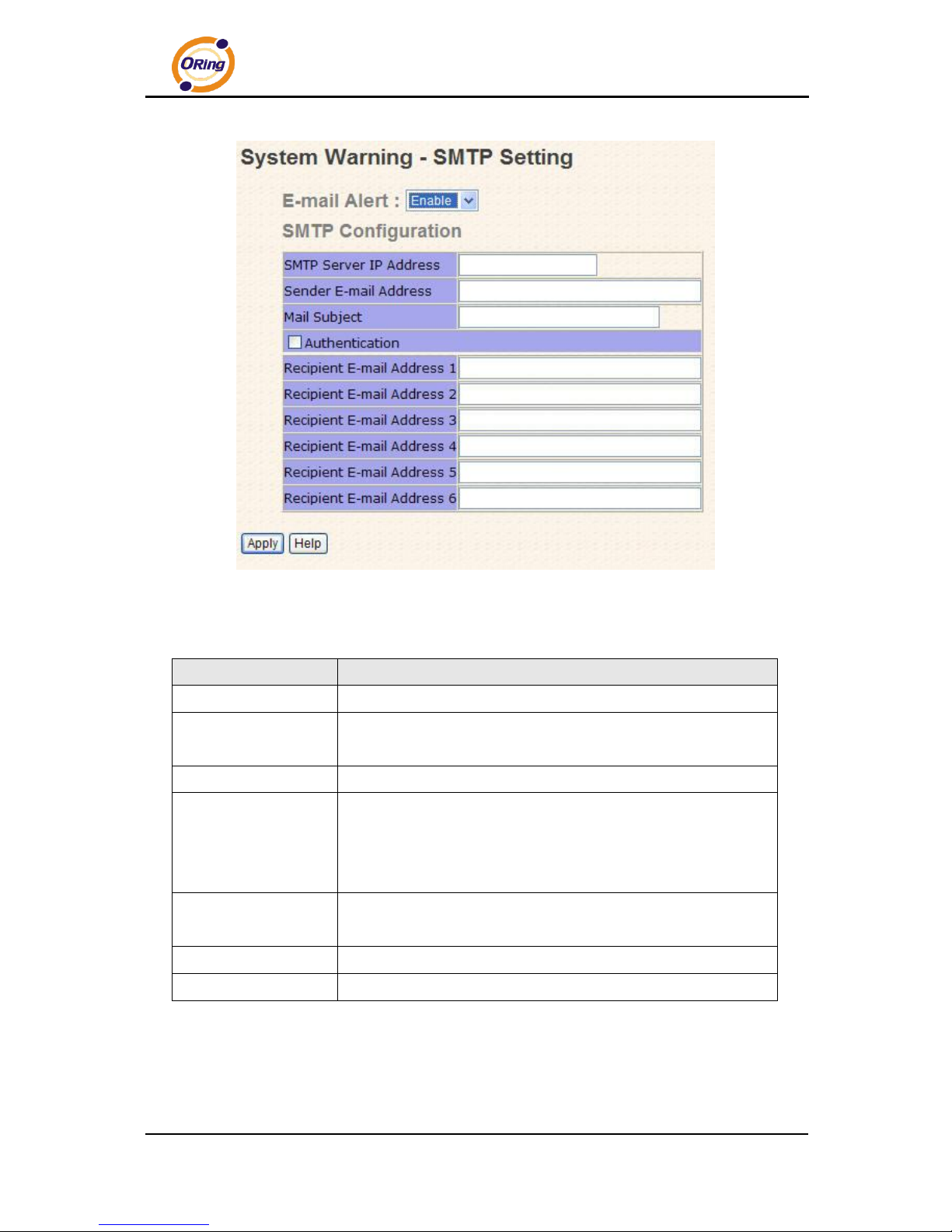

5.1.13.2 System Alarm ........................................................................................................ 65
5.1.14 Monitor and Diag ....................................................................................................... 69

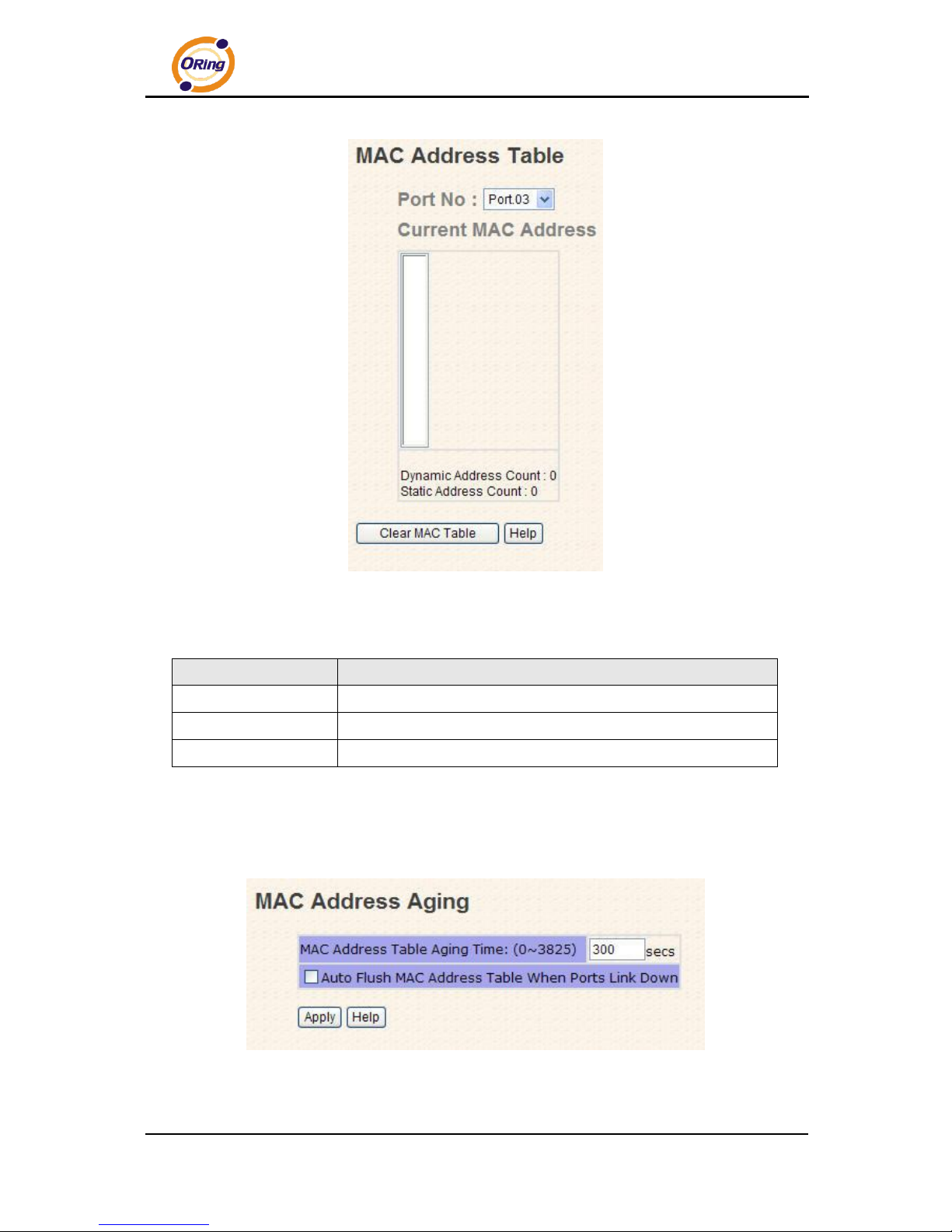

5.1.14.1 MAC Address Table .............................................................................................. 69
5.1.14.2 MAC Address Aging ............................................................................................. 70

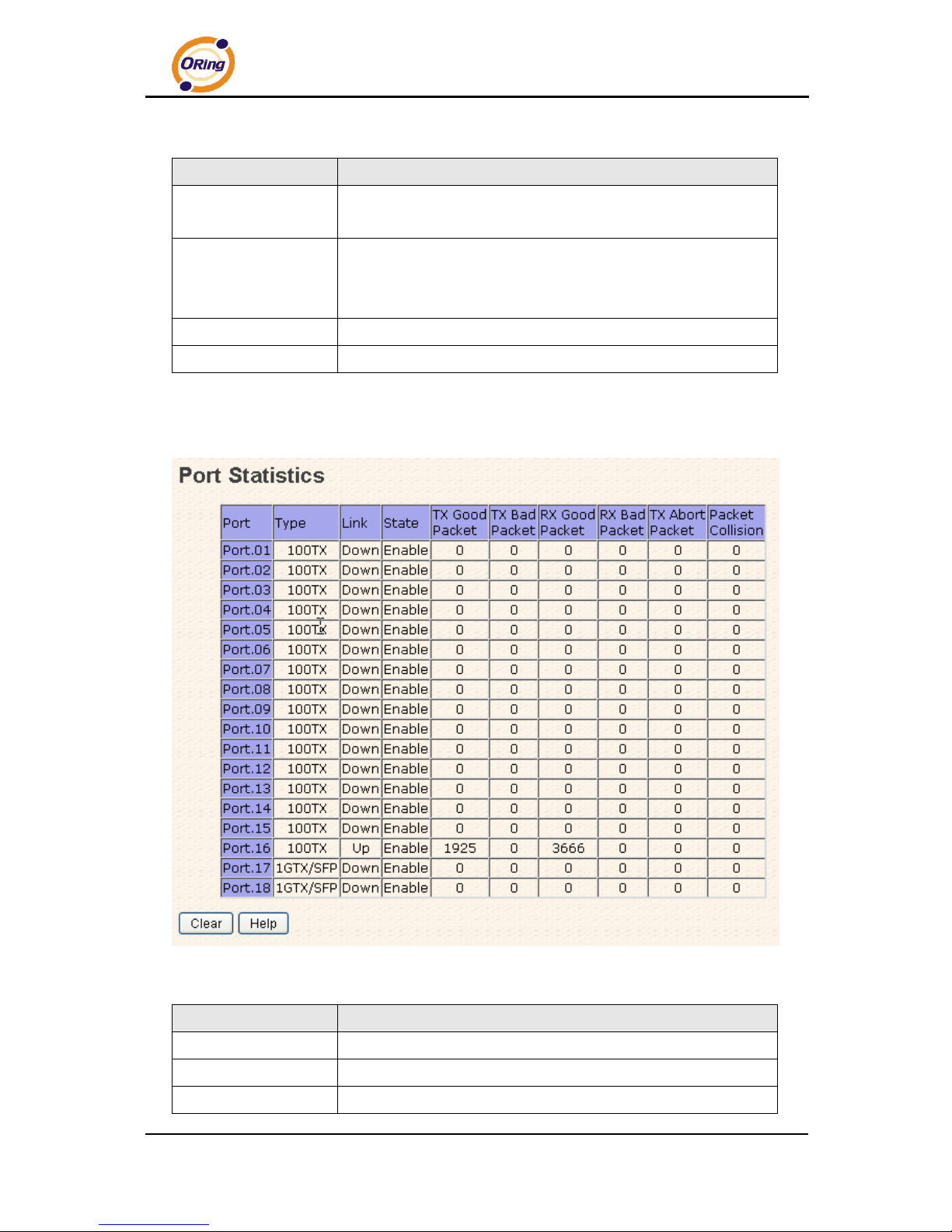

5.1.14.3 Port Statistics ......................................................................................................... 71

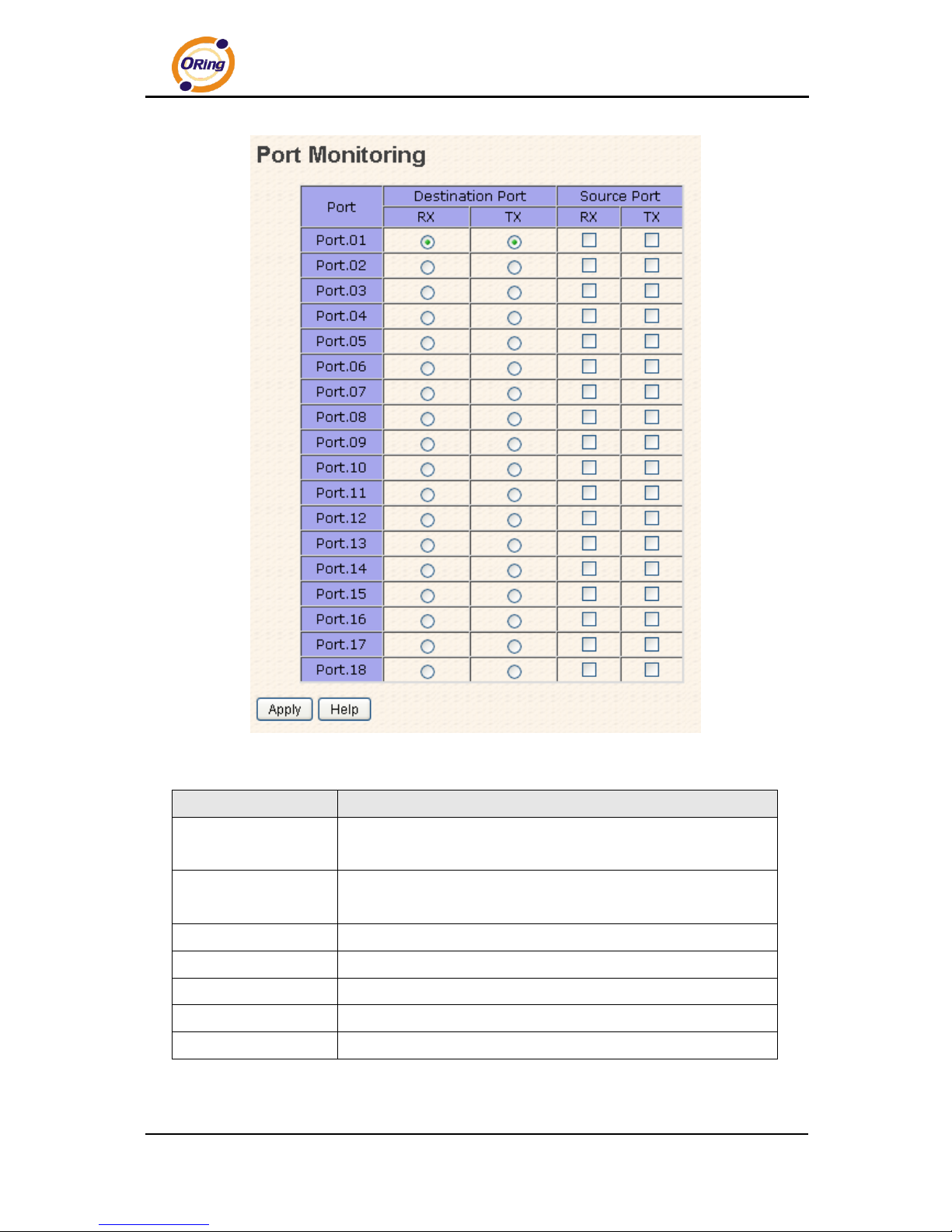

5.1.14.4 Port Monitoring ..................................................................................................... 72

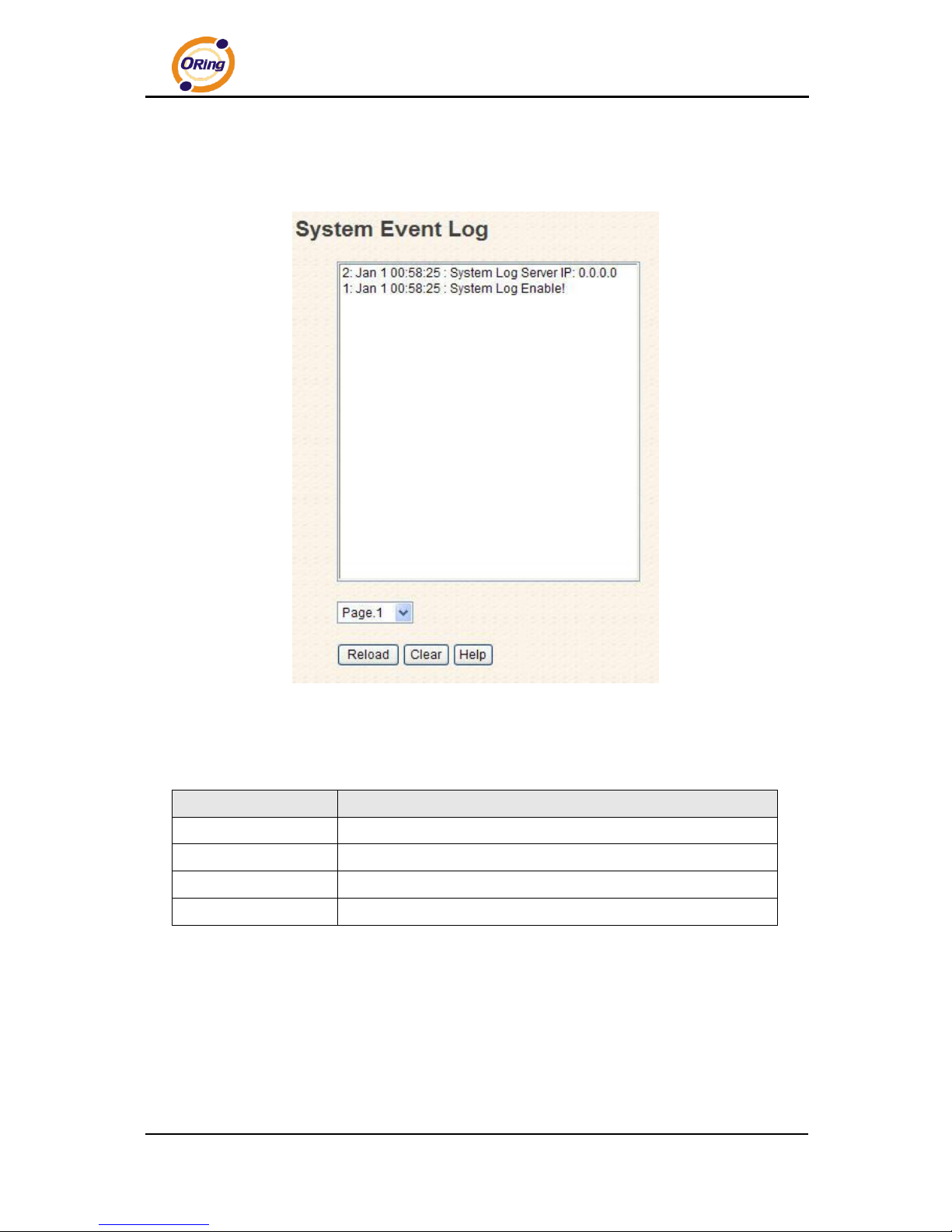

5.1.14.5 System Event Log ................................................................................................ . 74

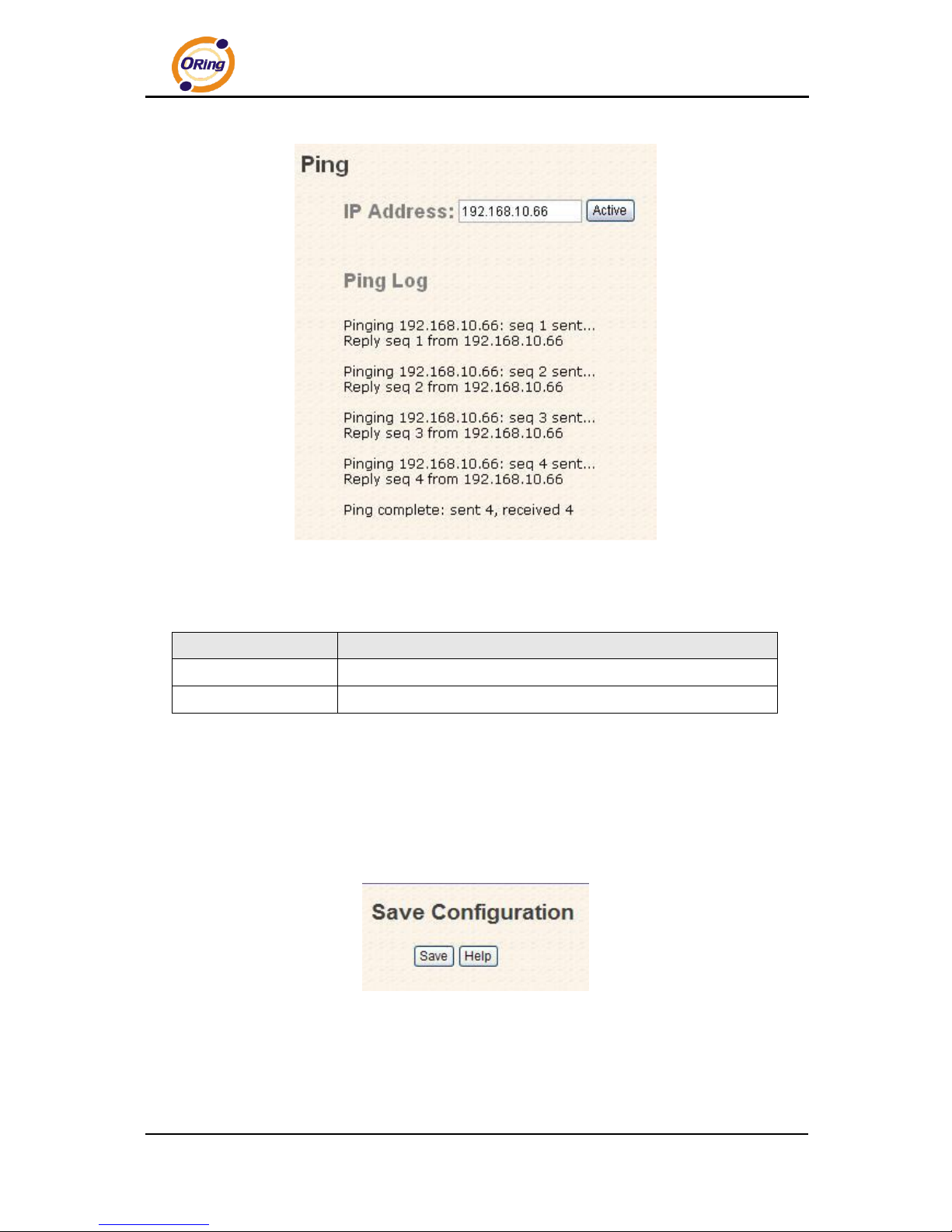

5.1.14.6 Ping ....................................................................................................................... 74
5.1.15 Save Configuration .................................................................................................... 75

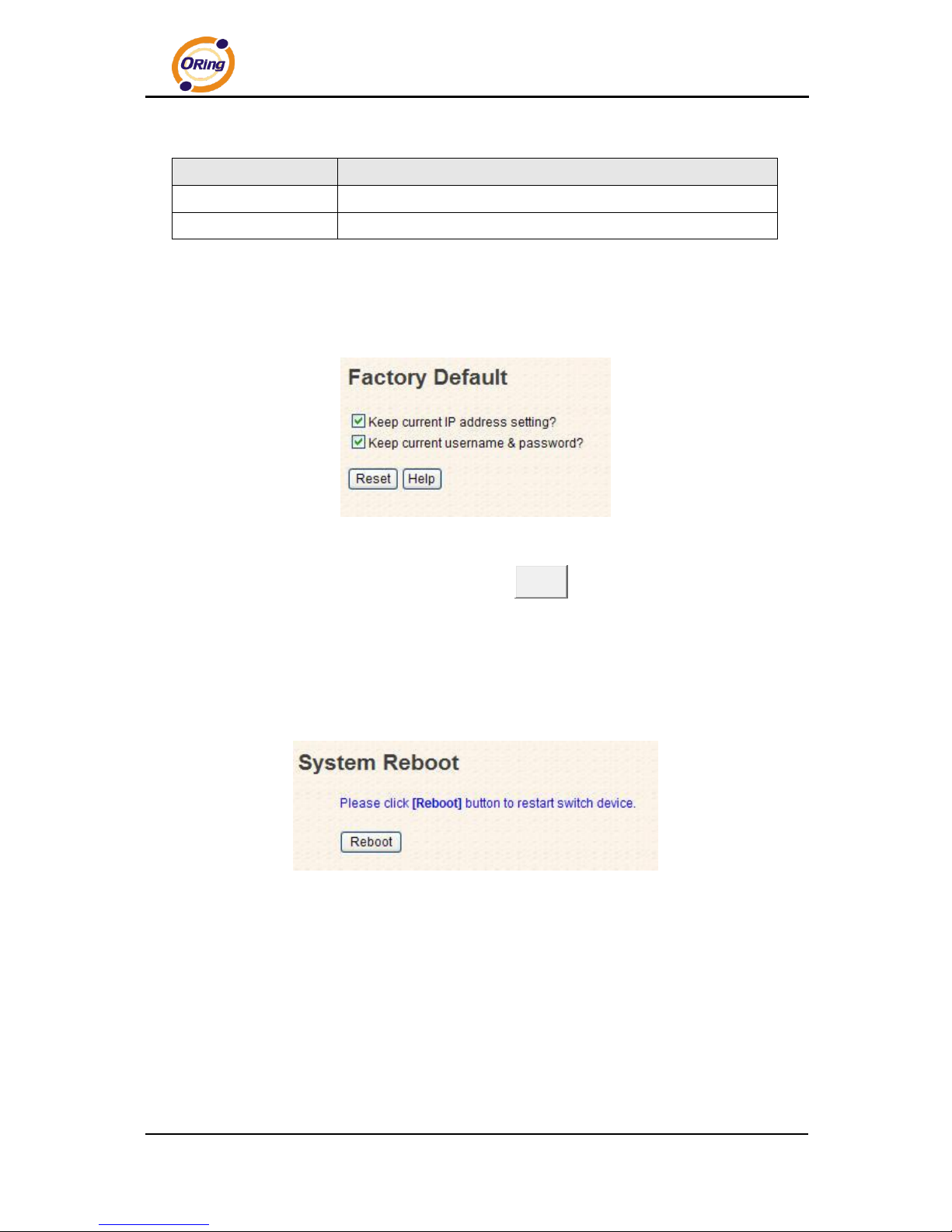

5.1.16 Factory Default .......................................................................................................... 76
5.1.17 System Reboot ........................................................................................................... 76
Command Line Interface Management ...................................................... 77

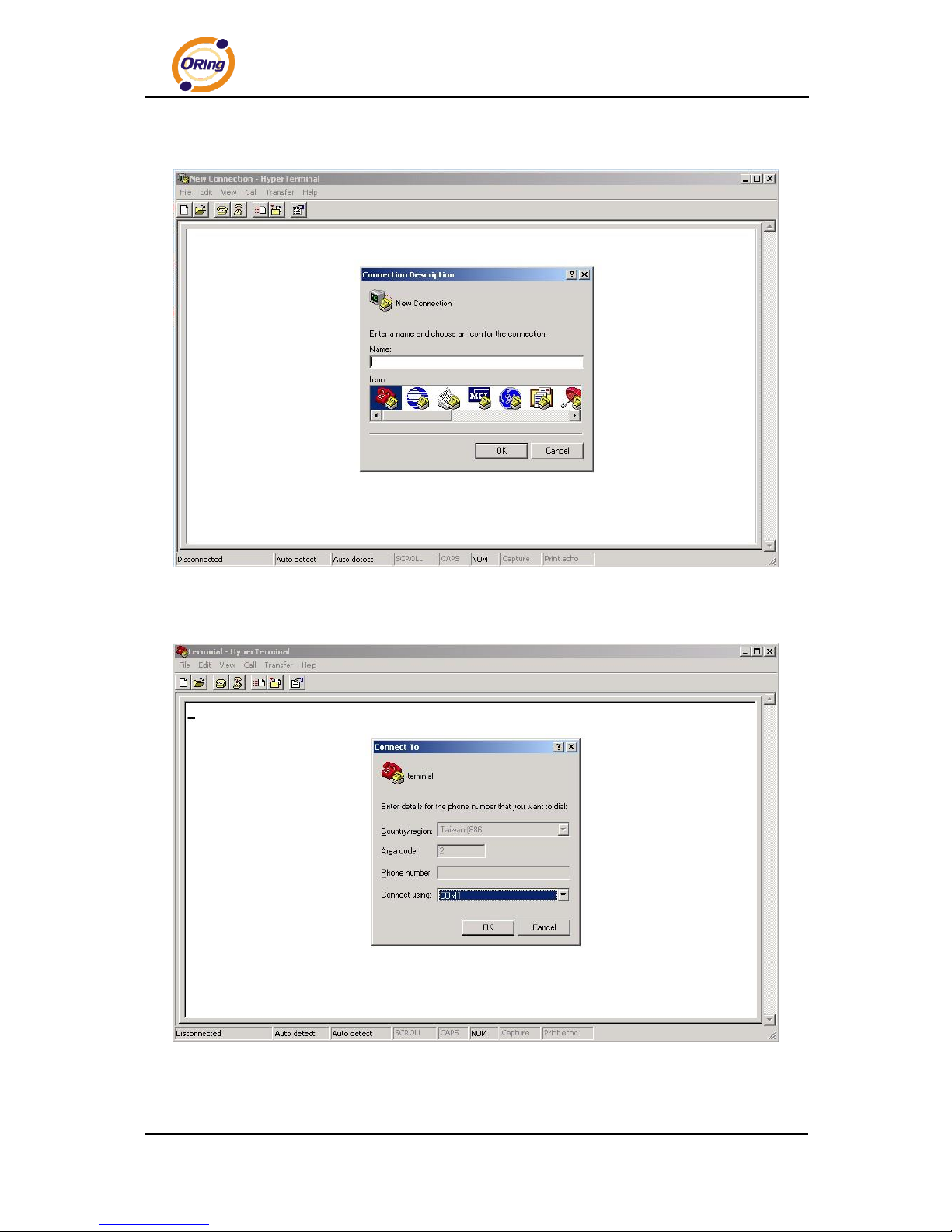

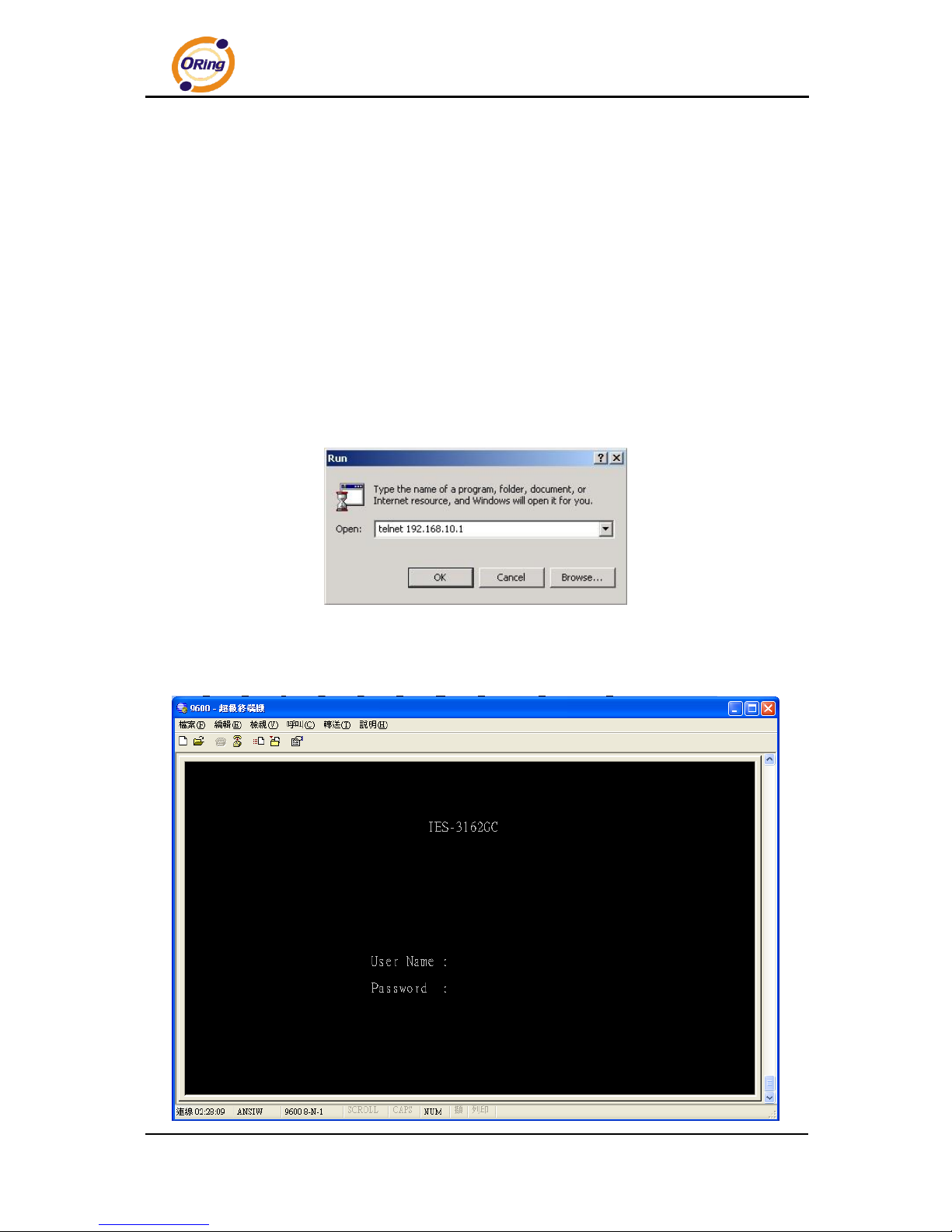

6.1 About CLI Management ................................................................................................. 77
6.2 Commands Set List—System Commands Set ................................................................ 82
6.3 Commands Set List—Port Commands Set ..................................................................... 84
6.4 Commands Set List—Trunk command set ..................................................................... 87
6.5 Commands Set List—VLAN command set .................................................................... 88
6.6 Commands Set List—Spanning Tree command set ........................................................ 89
6.7 Commands Set List—QoS command set ........................................................................ 91
6.8 Commands Set List—IGMP command set ................................................................ ..... 92
6.9 Commands Set List—MAC/Filter Table command set .................................................. 93
6.10 Commands Set List—SNMP command set .................................................................... 93
6.11 Commands Set List—Port Mirroring command set ....................................................... 94
6.12 Commands Set List—802.1x command set .................................................................... 95
6.13 Commands Set List—TFTP command set ...................................................................... 97
6.14 Commands Set List—SYSLOG, SMTP, EVENT command set ..................................... 98
6.15 Commands Set List—SNTP command set ................................................................... 100
6.16 Commands Set List—O-Ring command set ................................................................. 101
Technical Specifications ........................................................................... 102
Page 5
IES-3162GC User’s Manual
ORing Industrial Networking Corp
4
Getting to Know Your Switch
1.1 About the IES-3162GC Managed Industrial Switch
The IES-3162GC Ethernet switch is powerful managed industrial switch with many features. The switch can work under wide temperature, dusty environment and humid condition. They can be managed by WEB, TELNET, Consol or other third-party SNMP software as well. Besides, these switches can be managed by a useful utility that we called Open-Vision. Open-Vision is powerful network management software. With its friendly and powerful
interface, you can easily configure multiple switches at the same time, and monitor switches’
status.
1.2 Software Features
World’s fastest Redundant Ethernet Ring : O-Ring (Recovery time < 10ms over 250 units
connection)
Supports Ring Coupling, Dual Homing over O-Ring and standard STP/RSTP  Supports SNMPv1/v2c/v3 & RMON & Port base/802.1Q VLAN Network Management  Event notification by Email, SNMP trap and Relay Output  Web-based ,Telnet, Console, CLI configuration  Enable/disable ports, MAC based port security  Port based network access control (802.1x)  VLAN (802.1Q ) to segregate and secure network traffic  Radius centralized password management  SNMPv3 encrypted authentication and access security  RSTP (802.1w)  Quality of Service (802.1p) for real-time traffic  VLAN (802.1Q) with double tagging and GVRP supported  IGMP Snooping for multicast filtering  Port configuration, status, statistics, mirroring, security  Remote Monitoring (RMON)
Page 6
IES-3162GC User’s Manual
ORing Industrial Networking Corp
5
1.3 Hardware Features
Redundant two DC power inputs  Wide Operating Temperature: -40 to 60oC  Storage Temperature: -40 to 85oC  Operating Humidity: 5% to 95%, non-condensing  Casing: IP-30  10/100/1000Base-T(X) Gigabit Ethernet port (combo port)  10/100Base-T(X) Ethernet port  100/1000Base-X on SFP port (combo port)  Console Port  Dimensions(W x D x H) : 96.4 mm(W)x 108.5 mm( D )x 154 mm(H)
Page 7
IES-3162GC User’s Manual
ORing Industrial Networking Corp
6
Hardware Installation
2.1 Installing Switch on DIN-Rail
Each switch has a DIN-Rail kit on rear panel. The DIN-Rail kit helps switch to fix on the DIN-Rail. It is easy to install the switch on the DIN-Rail:

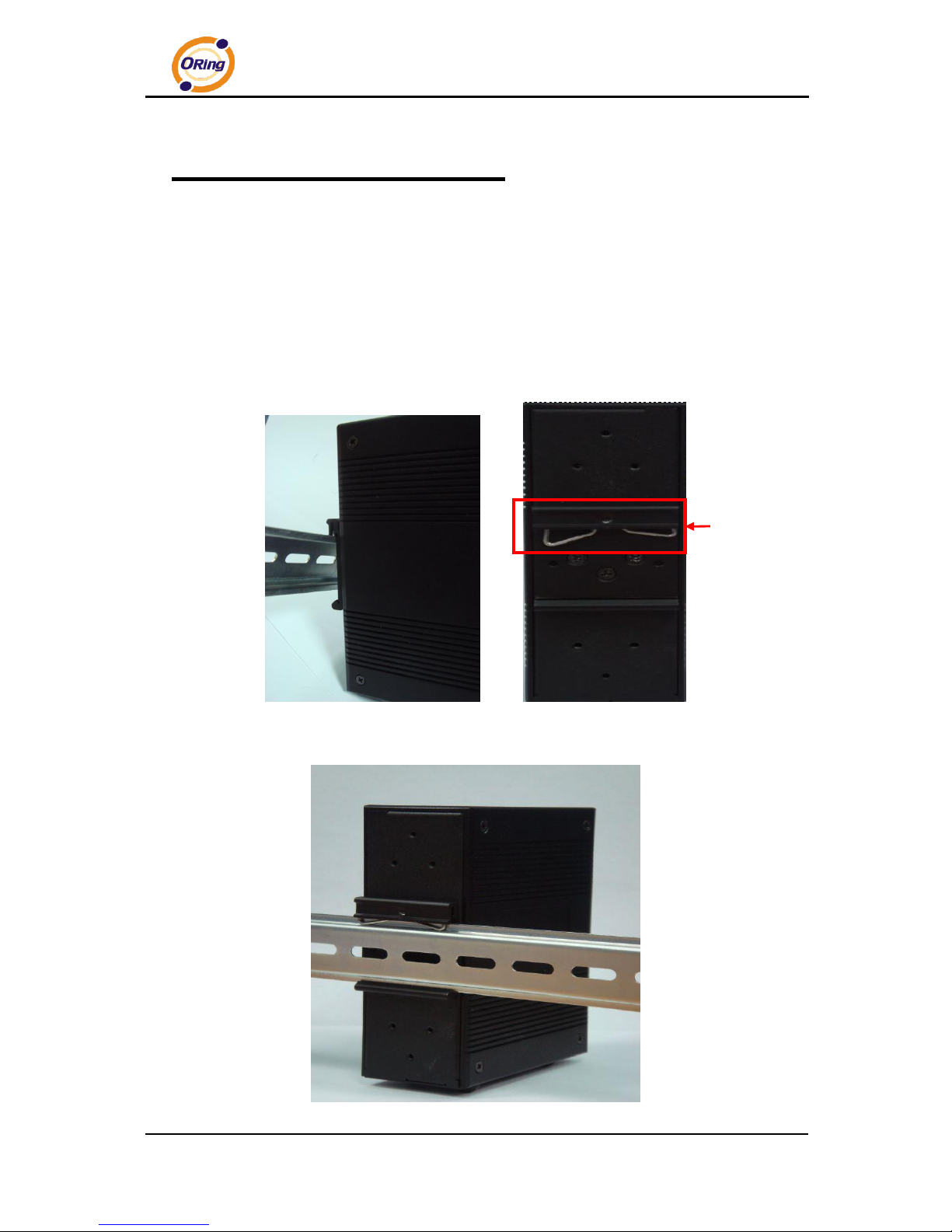

2.1.1 Mount IES-3162GC on DIN-Rail
Step 1: Slant the switch and mount the metal spring to DIN-Rail.
Step 2: Push the switch toward the DIN-Rail until you heard a “click” sound.
Metal Spring
Page 8
IES-3162GC User’s Manual
ORing Industrial Networking Corp
7

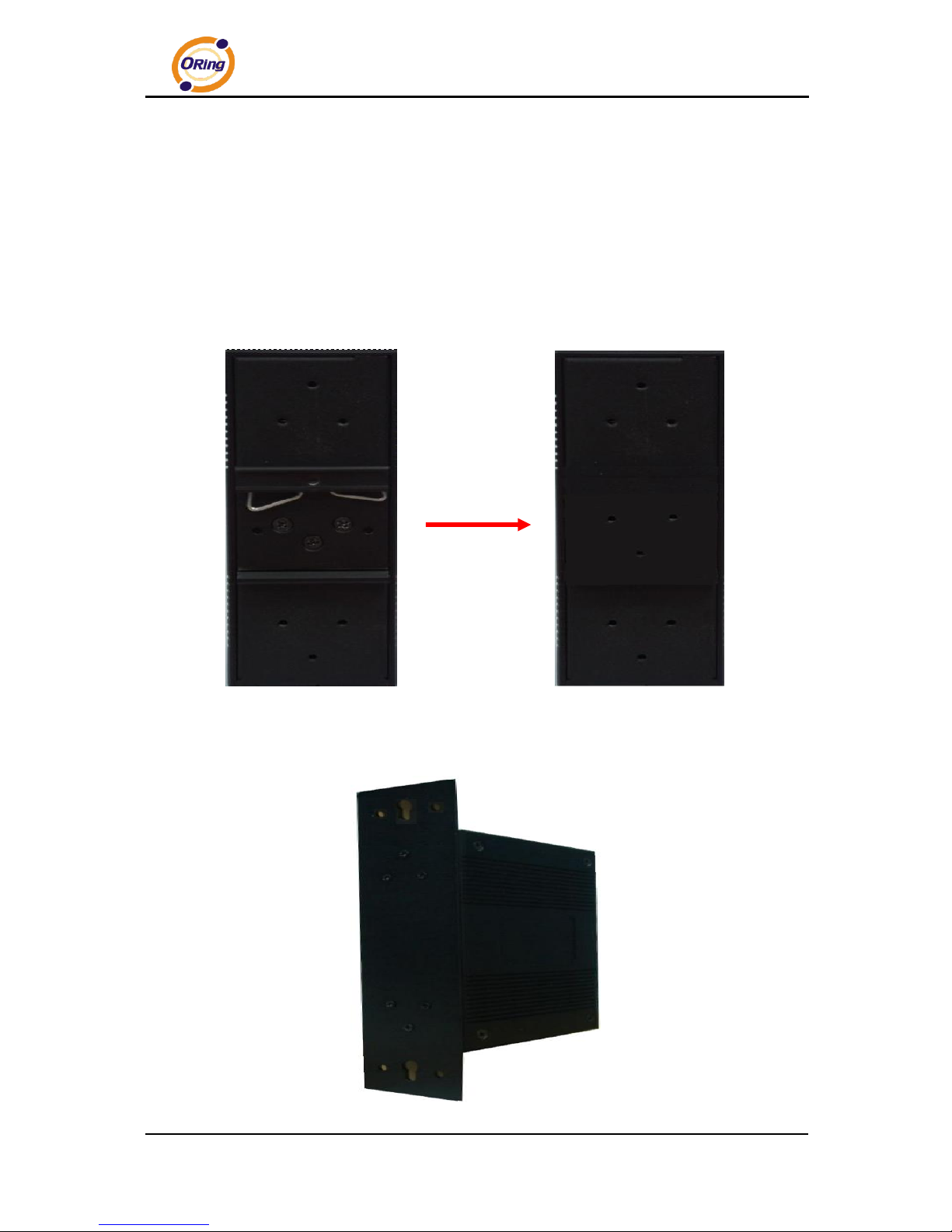

2.2 Wall Mounting Installation
Each switch has another installation method for users to fix the switch. A wall mount panel can be found in the package. The following steps show how to mount the switch on the wall.
2.2.1 Mount IES-3162GC on the wall
Step 1: Remove DIN-Rail kit.
Step 2: Use 6 screws that can be found in the package to combine the wall mount panel. Just like the picture shows below:
Page 9
IES-3162GC User’s Manual
ORing Industrial Networking Corp
8

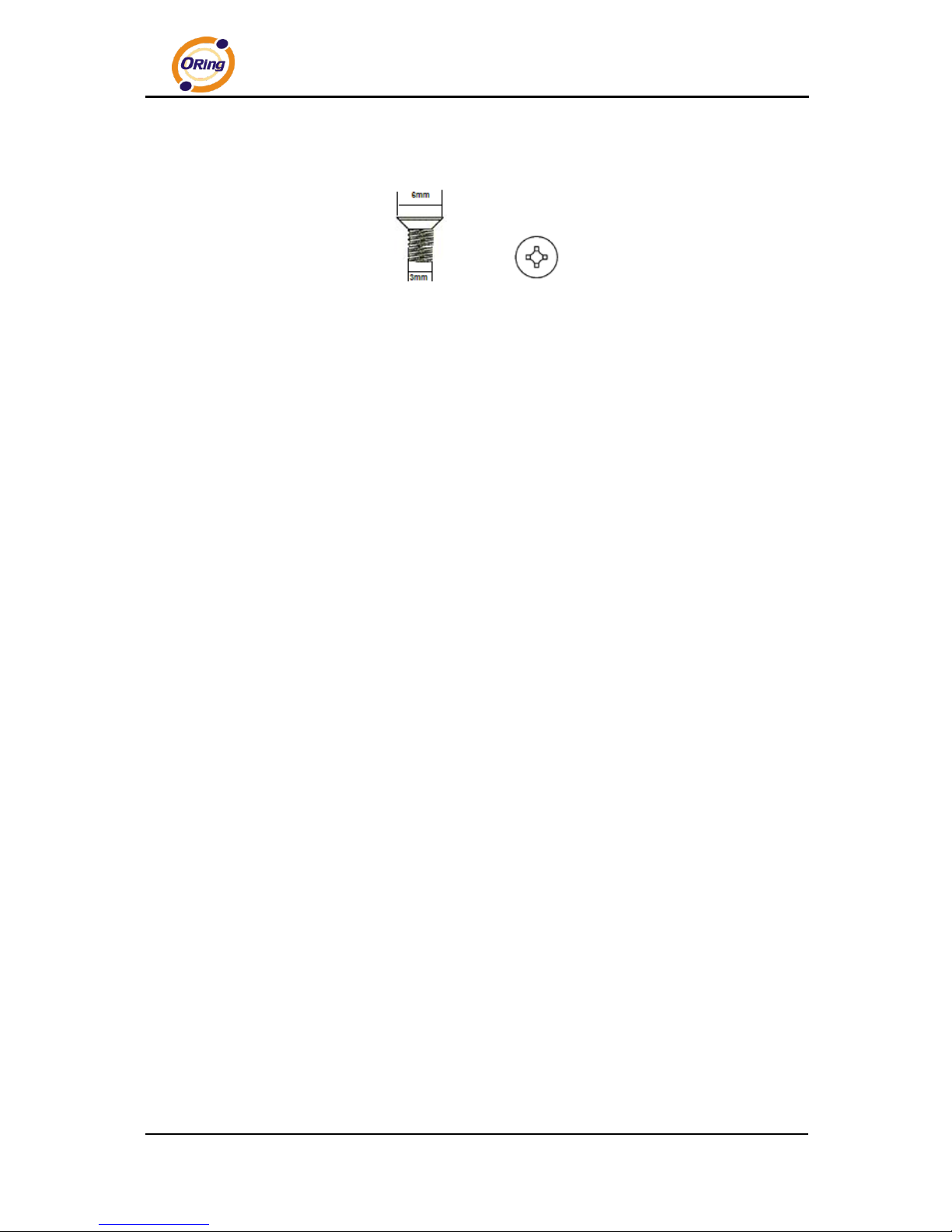

The screws specification shows in the following two pictures. In order to prevent switch
from any damage, the screws should not larger than the size that used in IES-3162GC switch.
Pozidrive
Page 10
IES-3162GC User’s Manual
ORing Industrial Networking Corp
9
Hardware Overview
3.1 Front Panel
The following table describes the labels that stick on the IES-3162GC.
Port
Description
10/100 RJ-45 fast Ethernet ports
8 10/100Base-T(X) RJ-45 fast Ethernet ports support auto-negotiation.
Default Setting : Speed: auto Duplex: auto Flow control : disable
Gigabit RJ-45 port
2 10/100/1000Base-TX Giga ports (combo)
Fiber port
2 100/1000Base-X on SFP port (combo)
Console
Use RS-232 to RJ-45 connecter to manage switch.
Reset
Push reset button 2 to 3 seconds to reset the switch. Push reset button 5 seconds to reset the switch into Factory Default.
Page 11
IES-3162GC User’s Manual
ORing Industrial Networking Corp
10

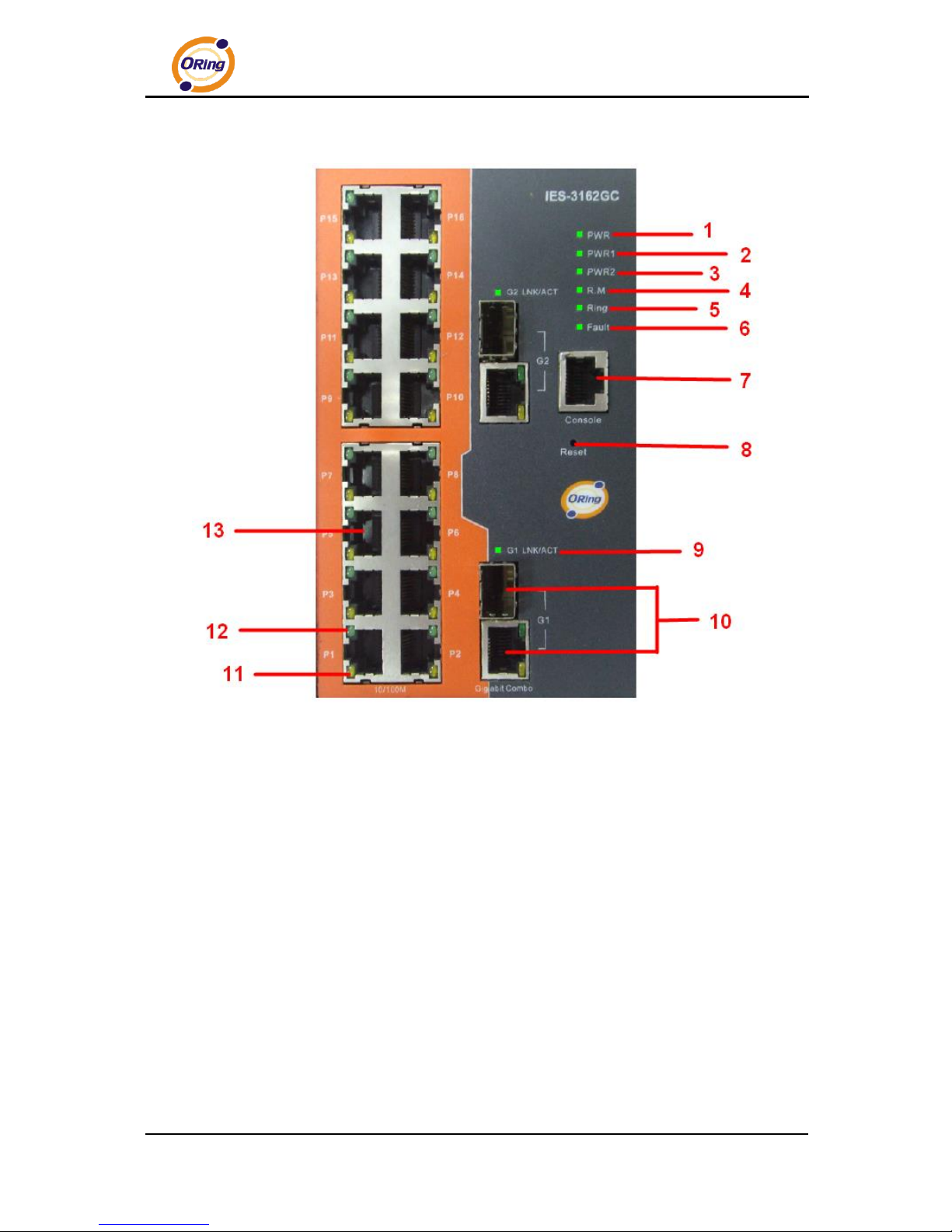

IES-3162GC
1. LED for PWR. When the PWR UP, the green led will be light on
2. LED for PWR1. When the PWR2 links, the green led will be light on.
3. LED for PWR2. When the PWR2 links, the green led will be light on.
4. LED for R.M (Ring master). When the LED light on, it means that the switch is the ring
master of Ring.
5. LED for Ring. When the led light on, it means the Ring is activated.
6. LED for Fault. When the light on, it means Power failure or Port down/fail.
7. Console port (RJ-45)
8. Reset button. Push the button 3 seconds for reset; 5 seconds for factory default.
9. 1000Base-X COMBO SFP Port Link/Act LED
10. 1000Base-T gigabits Ethernet port COMBO 1000Base-X Fiber port on SFP
11. 10/100/1000 Base-T(X) Ethernet ports Link LED
12. 10/100/1000 Base-T(X) Ethernet ports Act LED
13. 10/100/1000 Base-T(X) Ethernet ports
Page 12
IES-3162GC User’s Manual
ORing Industrial Networking Corp
11
3.2 Front Panel LEDs
LED
Color
Status
Description
PWR
Green
On
DC power ready
PW1
Green
On
DC power module 1 activated.
PW2
Green
On
DC power module 2 activated.
R.M
Green
On
O-Ring Master.
Ring
Green
On
Ring enabled.
Slowly blinking
Ring has only One link. (lack of one link to build the ring.)
Fast blinking
Ring work normally.
Fault
Amber
On
Fault relay. Power failure or Port down/fail.
10/100Base-T(X) Fast Ethernet ports
LNK / ACT
Green On
Port link up.
Blinking
Data transmitted.
Full Duplex
Amber
On
Port works under full duplex.
Gigabit Ethernet ports
LNK/ACT
Green On
Port link up.
Blinking
Data transmitted.
Indicator
Amber
On
Port link on 100Mbps
SFP ports
LNK / ACT
Green On
Port link up.
Blinking
Data transmitted.
Page 13
IES-3162GC User’s Manual
ORing Industrial Networking Corp
12

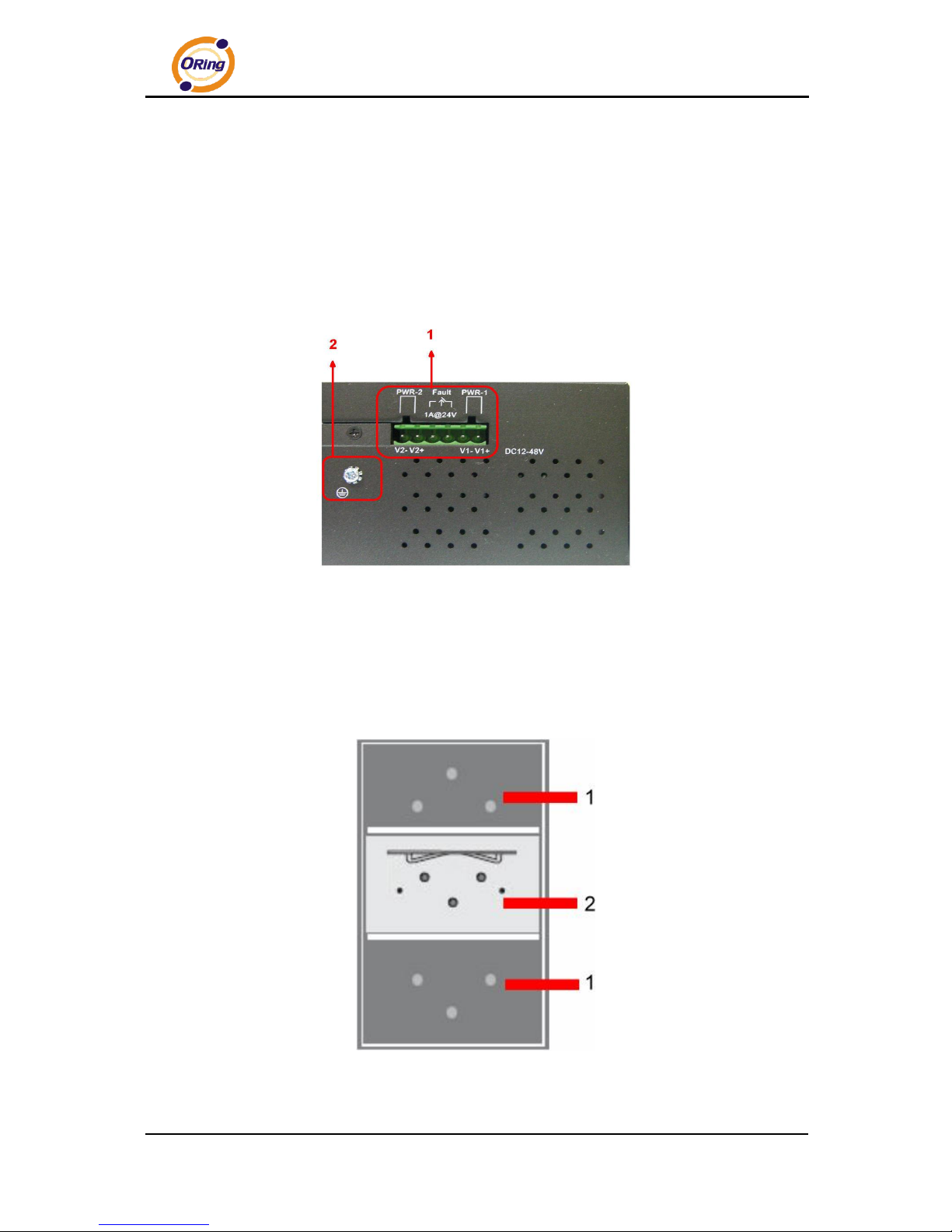

3.3 Top view Panel
The bottom panel components of IES-3162GC are shown as below:
1. Terminal block includes: PWR1, PWR2 (48V DC)
Suitable for 12-28 AWG (3.3mm2 – 0.08mm2) wire size, torque value 4.5 lb-in (0.508 N-m)
2. Ground wire
The minimum cross-sectional area of Earthing conductor shall equal to input wiring cable.
.
3.4 Rear Panel
The components in the rare of IES-3162GC are shown as below:
1. Screw holes for wall mount kit.
2. DIN-Rail kit
Page 14
IES-3162GC User’s Manual
ORing Industrial Networking Corp
13
Cables
4.1 Ethernet Cables
The IES-3162GC switch have standard Ethernet ports. According to the link type, the switches use CAT 3, 4, 5,5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs). Please refer to the following table for cable specifications.
Cable Types and Specifications
Cable
Type
Max. Length
Connector
10BASE-T
Cat.3, 4, 5 100-ohm
UTP 100 m (328 ft)
RJ-45
100BASE-TX
Cat.5 100-ohm UTP
UTP 100 m (328 ft)
RJ-45
1000BASE-TX
Cat.5/Cat.5e 100-ohm UTP
UTP 100 m (328ft)
RJ-45
4.1.1 10/100/100BASE-TX/10BASE-T Pin Assignments
With 100BASE-TX/10BASE-T cable, pins 1 and 2 are used for transmitting data, and
pins 3 and 6 are used for receiving data.
1000 Base-T RJ-45 Pin Assignments
Pin Number
Assignment
1
BI_DA+
2
BI_DA-
3
BI_DB+
4
BI_DC+
5
BI_DC-
6
BI_DB-
7
BI_DD+
8
BI_DD-
The IES-3162GC switch supports auto MDI/MDI-X operation. You can use a straight-through cable to connect PC to switch. The following table below shows the 10BASE-T/ 100BASE-TX MDI and MDI-X port pin outs.
10/100 Base-TX MDI/MDI-X pins assignment
Page 15
IES-3162GC User’s Manual
ORing Industrial Networking Corp
14
Pin Number
MDI port
MDI-X port
1
TD+(transmit)
RD+(receive)
2
TD-(transmit)
RD-(receive)
3
RD+(receive)
TD+(transmit)
4
Not used
Not used
5
Not used
Not used
6
RD-(receive)
TD-(transmit)
7
Not used
Not used
8
Not used
Not used
1000 Base-T MDI/MDI-X pins assignment
Pin Number
MDI port
MDI-X port
1
BI_DA+
BI_DB+ 2 BI_DA-
BI_DB- 3 BI_DB+
BI_DA+
4
BI_DC+
BI_DD+ 5 BI_DC-
BI_DD- 6 BI_DB-
BI_DA- 7 BI_DD+
BI_DC+ 8 BI_DD-
BI_DC-
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.
4.2 SFP
The IES-3162GC has fiber optical ports with SFP connectors. The fiber optical ports are in
Page 16
IES-3162GC User’s Manual
ORing Industrial Networking Corp
15
multi-mode and single-mode with LC connector. Please remember that the TX port of Switch A should be connected to the RX port of Switch B.
Note. Optical Transceiver shall compliant with 21CFR(J) Laser Class 1.
Switch A Switch B
4.3 Console Cable
IES-3162GC switch can be management by console port. The DB-9 to RJ-45 cable can be found in the package. You can connect them to PC via a RS-232 cable with DB-9 female connector and the other end (RJ-45 connector) connects to console port of switch.
PC pin out (male) assignment
RS-232 with DB9 female connector
DB9 to RJ 45
Pin #2 RD
Pin #2 TD
Pin #2
Pin #3 TD
Pin #3 RD
Pin #3
Pin #5 GD
Pin #5 GD
Pin #5
Fiber cord
Page 17
IES-3162GC User’s Manual
ORing Industrial Networking Corp
16
WEB Management
5.1 Configuration by Web Browser
This section introduces the configuration by Web browser.
5.1.1 About Web-based Management
An embedded HTML web site resides in flash memory on the CPU board. It contains advanced management features and allows you to manage the switch from anywhere on the network through a standard web browser such as Microsoft Internet Explorer.
The Web-Based Management function supports Internet Explorer 5.0 or later. It is based on Java Applets with an aim to reduce network bandwidth consumption, enhance access speed and present an easy viewing screen.
Note: By default, IE5.0 or later version does not allow Java Applets to open sockets. You need to explicitly modify the browser setting in order to enable Java Applets to use network ports.
Preparing for Web Management
The default value is as below: IP Address: 192.168.10.1 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.10.254 User Name: admin Password: admin
System Login
1. Launch the Internet Explorer.
2. Type http:// and the IP address of the switch. Press “Enter”.
Page 18
IES-3162GC User’s Manual
ORing Industrial Networking Corp
17
3. The login screen appears.
4. Key in the username and password. The default username and password is “admin”.
5. Click “Enter” or ”OK” button, then the main interface of the Web-based management appears.
Login screen
Main Interface
Main interface
Page 19
IES-3162GC User’s Manual
ORing Industrial Networking Corp
18
5.1.2 System Information
System Information interface
System Information
The system information will display the configuration of Basic Setting / Switch Setting page.
Enable Location Alert
When click , PWR1, PWR2 and PWR3 LEDs of the switch will start to flash together, and click , the LEDs will stop flashing.
5.1.3 Front Panel
Show the panel of IES-3162GC. Click “Close” to close panel on web.
Page 20
IES-3162GC User’s Manual
ORing Industrial Networking Corp
19
5.1.4 Basic setting
5.1.4.1 Switch Setting
Switch setting interface
The following table describes the labels in this screen.
Label
Description
System Name
Assign the name of switch. The maximum length is 64 bytes
System Description
Display the description of switch.
System Location
Assign the switch physical location. The maximum length is 64 bytes
System Contact
Enter the name of contact person or organization
System OID
Display the switch’s OID information
Firmware Version
Display the switch’s firmware version
Kernel Version
Display the kernel software version
MAC Address
Display the unique hardware address assigned by manufacturer (default)
Page 21
IES-3162GC User’s Manual
ORing Industrial Networking Corp
20
5.1.4.2 Admin Password
Change web management login username and password for the management security
issue

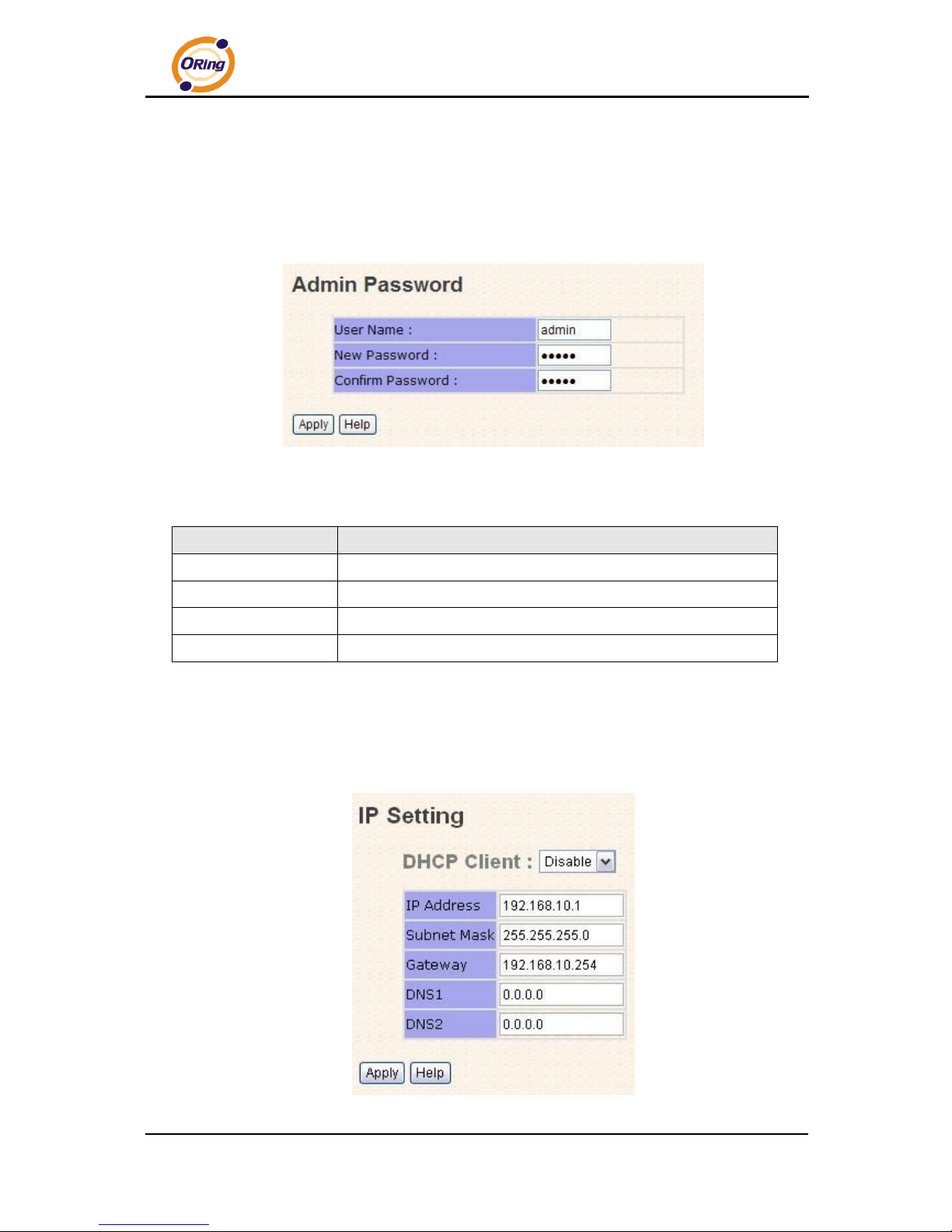

Admin Password interface
The following table describes the labels in this screen.
Label
Description
User name
Key in the new username (The default is “admin”)
New Password
Key in the new password (The default is “admin”)
Confirm password
Re-type the new password.
Apply
Click “Apply” to activate the configurations.
5.1.4.3 IP Setting
You can configure the IP Settings and DHCP client function through IP configuration.
IP Configuration interface
Page 22
IES-3162GC User’s Manual
ORing Industrial Networking Corp
21
The following table describes the labels in this screen.
Label
Description
DHCP Client
To enable or disable the DHCP client function. When DHCP client function is enabling, the switch will be assigned the IP address from the network DHCP server. The default IP address will be replaced by the IP address which the DHCP server has assigned. After clicking “Apply” button, a popup dialog shows up to inform when the DHCP client is enabling. The current IP will lose and you should find a new IP on the DHCP server.
IP Address
Assign the IP address that the network is using. If DHCP client function is enabling, you do not need to assign the IP address. The network DHCP server will assign the IP address for the switch and it will be display in this column. The default IP is
192.168.10.1
Subnet Mask
Assign the subnet mask of the IP address. If DHCP client function is enabling, you do not need to assign the subnet mask
Gateway
Assign the network gateway for the switch. The default gateway is 192.168.10.254
DNS1
Assign the primary DNS IP address
DNS2
Assign the secondary DNS IP address
Apply
Click “Apply” to activate the configurations.
5.1.4.4 SNTP (Time)
The SNTP (Simple Network Time Protocol) settings allow you to synchronize switch clocks
in the Internet.
Page 23
IES-3162GC User’s Manual
ORing Industrial Networking Corp
22
SNTP Configuration interface
The following table describes the labels in this screen.
Label
Description
SNTP Client
Enable or disable SNTP function to get the time from the SNTP server.
Daylight Saving Time
Enable or disable daylight saving time function. When daylight saving time is enabling, you need to configure the daylight saving time period.
UTC Time zone
Set the switch location time zone. The following table lists the different location time zone for your reference.
Local Time Zone
Conversion from UTC
Time at 12:00 UTC
November Time Zone
- 1 hour
11 am
Oscar Time Zone
-2 hours
10 am
ADT - Atlantic Daylight
-3 hours
9 am
AST - Atlantic Standard EDT - Eastern Daylight
-4 hours
8 am
EST - Eastern Standard CDT - Central Daylight
-5 hours
7 am
CST - Central Standard MDT - Mountain Daylight
-6 hours
6 am
MST - Mountain Standard PDT - Pacific Daylight
-7 hours
5 am
PST - Pacific Standard ADT - Alaskan Daylight
-8 hours
4 am
ALA - Alaskan Standard
-9 hours
3 am
HAW - Hawaiian Standard
-10 hours
2 am
Nome, Alaska
-11 hours
1 am
Page 24
IES-3162GC User’s Manual
ORing Industrial Networking Corp
23
CET - Central European FWT - French Winter MET - Middle European MEWT - Middle European Winter SWT - Swedish Winter
+1 hour
1 pm
EET - Eastern European, USSR Zone 1
+2 hours
2 pm
BT - Baghdad, USSR Zone 2
+3 hours
3 pm
ZP4 - USSR Zone 3
+4 hours
4 pm
ZP5 - USSR Zone 4
+5 hours
5 pm
ZP6 - USSR Zone 5
+6 hours
6 pm
WAST - West Australian Standard
+7 hours
7 pm
CCT - China Coast, USSR Zone 7
+8 hours
8 pm
JST - Japan Standard, USSR Zone 8
+9 hours
9 pm
EAST - East Australian Standard GST Guam Standard, USSR Zone 9
+10 hours
10 pm
IDLE - International Date Line NZST - New Zealand Standard NZT - New Zealand
+12 hours
Midnight
Label
Description
SNTP Sever IP Address
Set the SNTP server IP address.
Daylight Saving
Set up the Daylight Saving beginning time and Daylight Saving
Page 25
IES-3162GC User’s Manual
ORing Industrial Networking Corp
24
Period
ending time. Both will be different each year.
Daylight Saving Offset
Set up the offset time.
Switch Timer
Display the switch current time.
Apply
Click “Apply” to activate the configurations.
5.1.4.5 LLDP
LLDP (Link Layer Discovery Protocol) function allows the switch to advertise its information
to other nodes on the network and store the information it discovers.
LLDP configuration interface
The following table describes the labels in this screen.
Label
Description
LLDP Protocol
“Enable” or “Disable” LLDP function.
LLDP Interval
The interval of resend LLDP (by default at 30 seconds)
Apply
Click “Apply” to activate the configurations.
Help
Show help file.
5.1.4.6 Auto Provision
Auto Provision allows you to update the switch firmware automatically. You can put firmware or configuration file on TFTP server. When you reboot the switch, it will upgrade automatically. Before updating, make sure you have your TFTP server ready and the firmware image and configuration file is on the TFTP server.
Auto Provision interface
Page 26
IES-3162GC User’s Manual
ORing Industrial Networking Corp
25
5.1.4.7 Backup & Restore
You can save current configuration from the switch to TFTP server, or restore the configuration from TFTP server in this page.
Backup & Restore interface
The following table describes the labels in this screen.
Label
Description
TFTP Server IP Address
Fill in the TFTP server IP Restore File Name
Fill the file name.
Restore
Click “restore” to restore the configurations.
Restore File Name
Fill the file name.
Restore
Click “restore” to restore the configurations.
Backup
Click “backup” to backup the configurations.
Page 27
IES-3162GC User’s Manual
ORing Industrial Networking Corp
26
5.1.4.8 Upgrade Firmware
Upgrade Firmware allows you to update the firmware of switch. Before updating, make sure you have your TFTP server ready and the firmware image is on the TFTP server.
Update Firmware interface
5.1.5 DHCP Server
5.1.5.1 DHCP Server – Setting
The system provides with DHCP server function. Enable the DHCP server function, the switch system will be a DHCP server.
DHCP Server Configuration interface
Page 28
IES-3162GC User’s Manual
ORing Industrial Networking Corp
27
The following table describes the labels in this screen.
Label
Description
DHCP Server
Enable or Disable the DHCP Server function. Enable – the switch will be the DHCP server on your local network
Start IP Address
The dynamic IP assign range. Low IP address is the beginning of the dynamic IP assigns range. For example: dynamic IP assign range is from 192.168.1.100 to 192.168.1.200.
192.168.1.100 will be the Start IP address.
End IP Address
The dynamic IP assign range. High IP address is the end of the dynamic IP assigns range. For example: dynamic IP assign range is from 192.168.1.100 to 192.168.1.200. 192.168.1.200 will be the End IP address
Subnet Mask
The dynamic IP assign range subnet mask
Gateway
The gateway in your network.
DNS
Domain Name Server IP Address in your network.
Lease Time (Hour)
It is the period that system will reset the assigned dynamic IP to ensure the IP address is in used.
Apply
Click “Apply” to activate the configurations.
5.1.5.2 DHCP Server – Client List
When the DHCP server function is activated, the system will collect the DHCP client information and display in here.
DHCP Server Client Entries interface
5.1.5.3 DHCP Server – Port and IP bindings
You can assign the specific IP address which is in the assigned dynamic IP range to the specific port. When the device is connecting to the port and asks for dynamic IP assigning, the system will assign the IP address that has been assigned before in the connected device.
Page 29
IES-3162GC User’s Manual
ORing Industrial Networking Corp
28
DHCP Server Port and IP Binding interface
Page 30
IES-3162GC User’s Manual
ORing Industrial Networking Corp
29
5.1.6 Port Setting
5.1.6.1 Port Control
By this function, you can set the state, speed/duplex, flow control, and security of the port.
Port Control interface
The following table describes the labels in this screen.
Label
Description
Port NO.
Port number for setting.
Speed/Duplex
You can set Auto-negotiation, 100 full, 100 half, 10 full or 10 half
Flow Control
Support symmetric and asymmetric mode to avoid packet loss when congestion occurred.
Security
Support port security function. When enable the function, the port will STOP learning MAC address dynamically.
Apply
Click “Apply” to activate the configurations.
Page 31
IES-3162GC User’s Manual
ORing Industrial Networking Corp
30
5.1.6.2 Port Status
The following information provides the current port status information
Port Status interface
5.1.6.3 Port Alias
The user can define the name of every Port. Can let user, convenient management every Port.
Page 32
IES-3162GC User’s Manual
ORing Industrial Networking Corp
31
5.1.6.4 Rate Limit
By this function, you can limit traffic of all ports, including broadcast, multicast and flooded Unicast. You can also set “Ingress” or “Egress” to limit traffic received or transmitted bandwidth.
Rate Limit interface
The following table describes the labels in this screen.
Label
Description
Ingress Limit Frame Type
You can set “all”, “Broadcast only”, ”Broadcast/Multicast” or ”Broadcast/Multicast/Flooded Unicast” mode.
Ingress
The switch port received traffic.
Egress
The switch port transmitted traffic.
Apply
Click “Apply” to activate the configurations.
Page 33
IES-3162GC User’s Manual
ORing Industrial Networking Corp
32
5.1.6.5 Port Trunk
Port Trunk – Setting
You can select static trunk or 802.3ad LACP to combine several physical links with a logical link to increase the bandwidth.

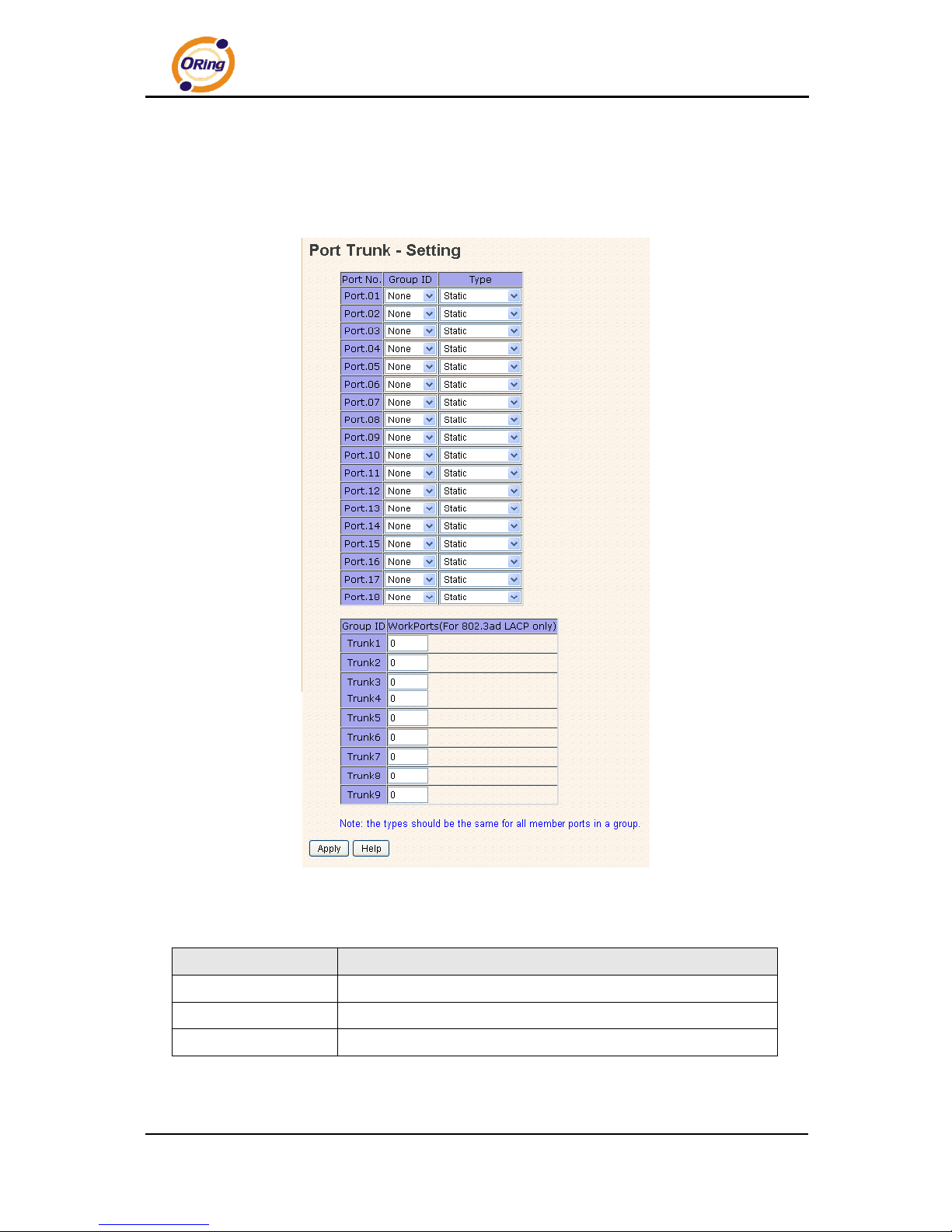

Port Trunk - Setting interface
The following table describes the labels in this screen.
Label
Description
Group ID
Select port to join a trunk group.
Type
Support static trunk and 802.3ad LACP
Apply
Click “Apply” to activate the configurations.
Page 34
IES-3162GC User’s Manual
ORing Industrial Networking Corp
33
Port Trunk – Status
You can check the configuration of port trunk.
Port Trunk - Status interface
Page 35
IES-3162GC User’s Manual
ORing Industrial Networking Corp
34
5.1.7 Redundancy
5.1.7.1 O-Ring
O-Ring is one of the most powerful Redundant Ring technologies in the world. The recovery time of O-Ring is less than 10 ms over 250 units of connections. It can reduce unexpected malfunction caused by network topology change. O-Ring technology supports three Ring topologies for network redundancy: O-Ring, Coupling Ring and Dual Homing.
O-Ring interface
The following table describes the labels in this screen.
Label
Description
O-Ring
To enable O-Ring.
Ring Master
There should be one and only one Ring Master in a ring. However if there are two or more switches which set Ring Master to enable, the switch with the lowest MAC address will be the actual Ring Master and others will be Backup Masters.
1st Ring Port
The primary port, when this switch is configured in O-Ring.
2nd Ring Port
The backup port, when this switch is configured in O-Ring.
Coupling Ring
To enable Coupling Ring. Coupling Ring can be used to divide a big ring into two smaller Rings to avoid effecting all switches when network topology change. It is a good application for connecting two Rings.
Coupling Port
Set a port as coupling port to link to the Coupling Port of the switch in another ring. Coupling Ring need four switch to
Page 36
IES-3162GC User’s Manual
ORing Industrial Networking Corp
35
construct an active and a backup link. The coupled four ports of four switches will be operated at active/backup mode.
Control Port
Set a port as Control Port to link to the Control Port of the switch in the same ring. Control Port used to transmit control signals.
Dual Homing
To enable Dual Homing. By selecting Dual Homing mode, Ring will be connected to normal switches through two RSTP links (i.e., backbone Switch). The two links act as active/backup mode, and connect each Ring to the normal switches in RSTP mode.
Apply
Click “Apply” to activate the configurations.
Note: It is not recommended to set one switch as a Ring Master and a Coupling Ring at the same time due to
heavy load of system.
5.1.7.2 Open-Ring
Open-Ring technology can be applied for other vendor’s proprietary ring. Thus, you can add switches of ORing into the network constructed by other ring technology and enable Open-Ring to co-operate with other vendor ’s managed switch.
Click ”Connect to other vendor’s ring…..” to join the ring constructed by other vendor.
Open-Ring interface
Page 37
IES-3162GC User’s Manual
ORing Industrial Networking Corp
36
Label
Description
Enable
Enabling the Open-Ring function
Vender
Choosing the venders that you want to join to their ring
1st Ring Port
Choosing the port which connect to the ring
2nd Ring Port
Choosing the port which connect to the ring
The application of Open-Ring is shown as below.
Open-Ring connection
Page 38
IES-3162GC User’s Manual
ORing Industrial Networking Corp
37
5.1.7.3 O-RSTP
O-RSTP is proprietary redundant ring technology invented by ORing. Different from standard STP/RSTP, the recovery time of O-RSTP is less than 10mS and support more nodes of connection in a ring topology.
O-RSTP interface
The application of O-RSTP is shown as below.
O-RSTP connection
Page 39
IES-3162GC User’s Manual
ORing Industrial Networking Corp
38
5.1.7.4 RSTP
The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol (STP). It provides faster convergence of spanning tree after a topology change. The system also supports STP and the system will detect the connected device that is running STP or RSTP protocol automatically.

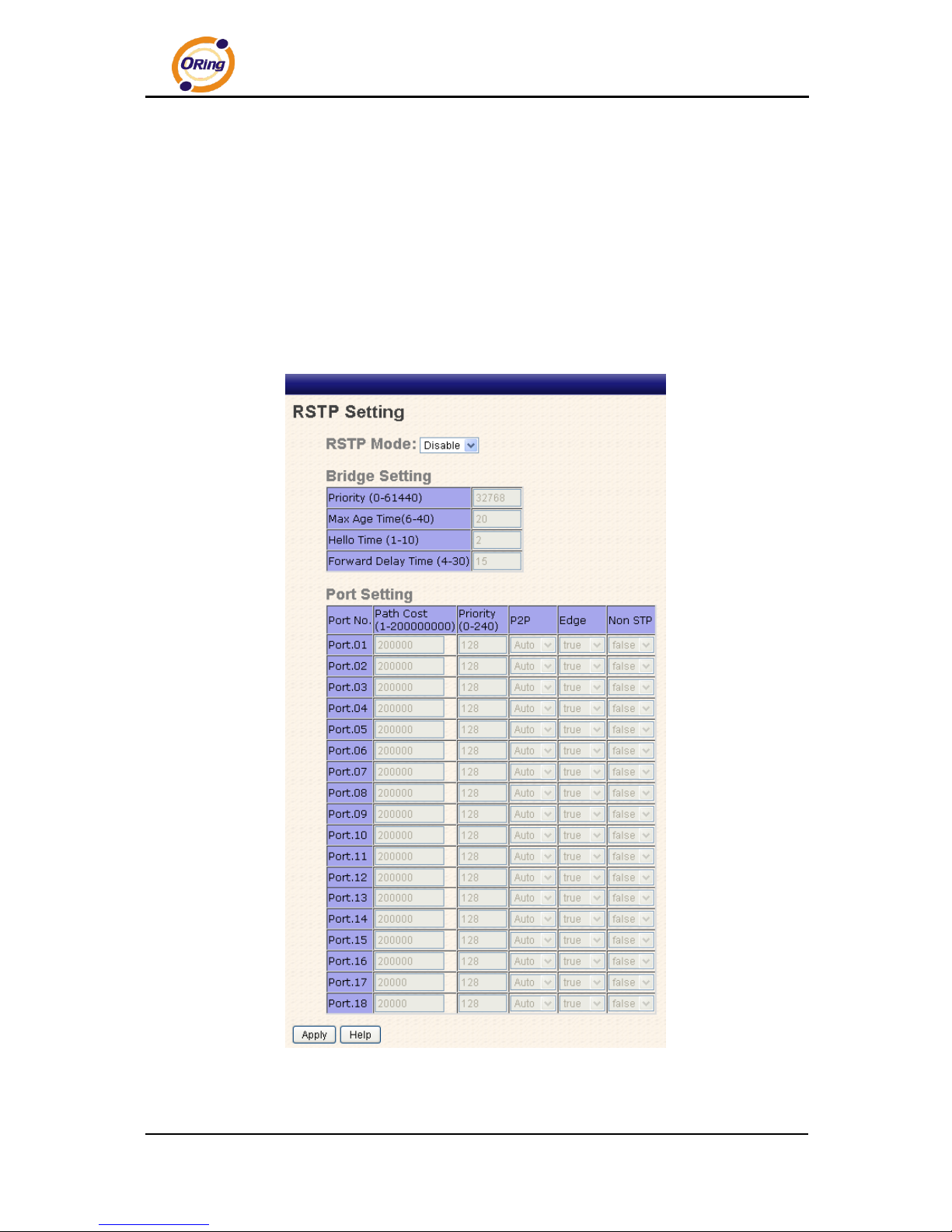

RSTP setting
You can enable/disable RSTP function, and set parameters for each port.
RSTP Setting interface
Page 40
IES-3162GC User’s Manual
ORing Industrial Networking Corp
39
The following table describes the labels in this screen.
Label
Description
RSTP mode
You must enable or disable RSTP function before configuring the related parameters.
Priority (0-61440)
A value used to identify the root bridge. The bridge with the lowest value with the highest priority and is selected as the root. If the value changes, you must restart the switch. The value must be multiple of 4096 according to the rule of the protocol.
Max Age (6-40)
The number of seconds for a bridge to wait without receiving Spanning-tree Protocol configuration messages before reconfiguration. Enter a value between 6 through 40.
Hello Time (1-10)
The time that controls switch sends out the BPDU (Bridge Protocol Data Unit) packet to check RSTP current status. Enter a value between 1 through 10.
Forwarding Delay Time (4-30)
The number of seconds a port to wait before changing from its learning/listening state to forwarding state. Enter a value between 4 through 30.
Path Cost (1-200000000)
The cost of the path to the other bridge from this transmitting bridge at the specified port. Enter a number 1 through
200000000.
Priority (0-240)
Decide which port should be blocked by setting the priority in LAN. Enter a number 0 through 240. The value of priority must be the multiple of 16
Admin P2P
Some of the rapid state transactions that are possible within RSTP are dependent upon whether the port concerned can only be connected to exactly one other bridge (i.e., It is served by a point-to-point LAN segment), or it can be connected to two or more bridges (i.e., It is served by a shared medium LAN segment). This function allows the P2P status of the link to be manipulated administratively. True means P2P enabled. False means P2P disabled.
Admin Edge
The port directly connected to end stations, and it cannot create bridging loop in the network. To configure the port as an edge
port, set the port to “True”.
Admin Non STP
The port includes the STP mathematic calculation. STP
algorithm is included for “True“ setting, STP algorithm is not included for “False“ setting.
Page 41
IES-3162GC User’s Manual
ORing Industrial Networking Corp
40
Apply
Click “Apply” to activate the configurations.
NOTE: Follow the rule to configure the MAX Age, Hello Time, and Forward Delay Time:
2 x (Forward Delay Time value –1) ≥ Max Age value ≥ 2 x (Hello Time value +1)
RSTP Information
Show RSTP algorithm result at this table.
RSTP Information interface
Page 42
IES-3162GC User’s Manual
ORing Industrial Networking Corp
41

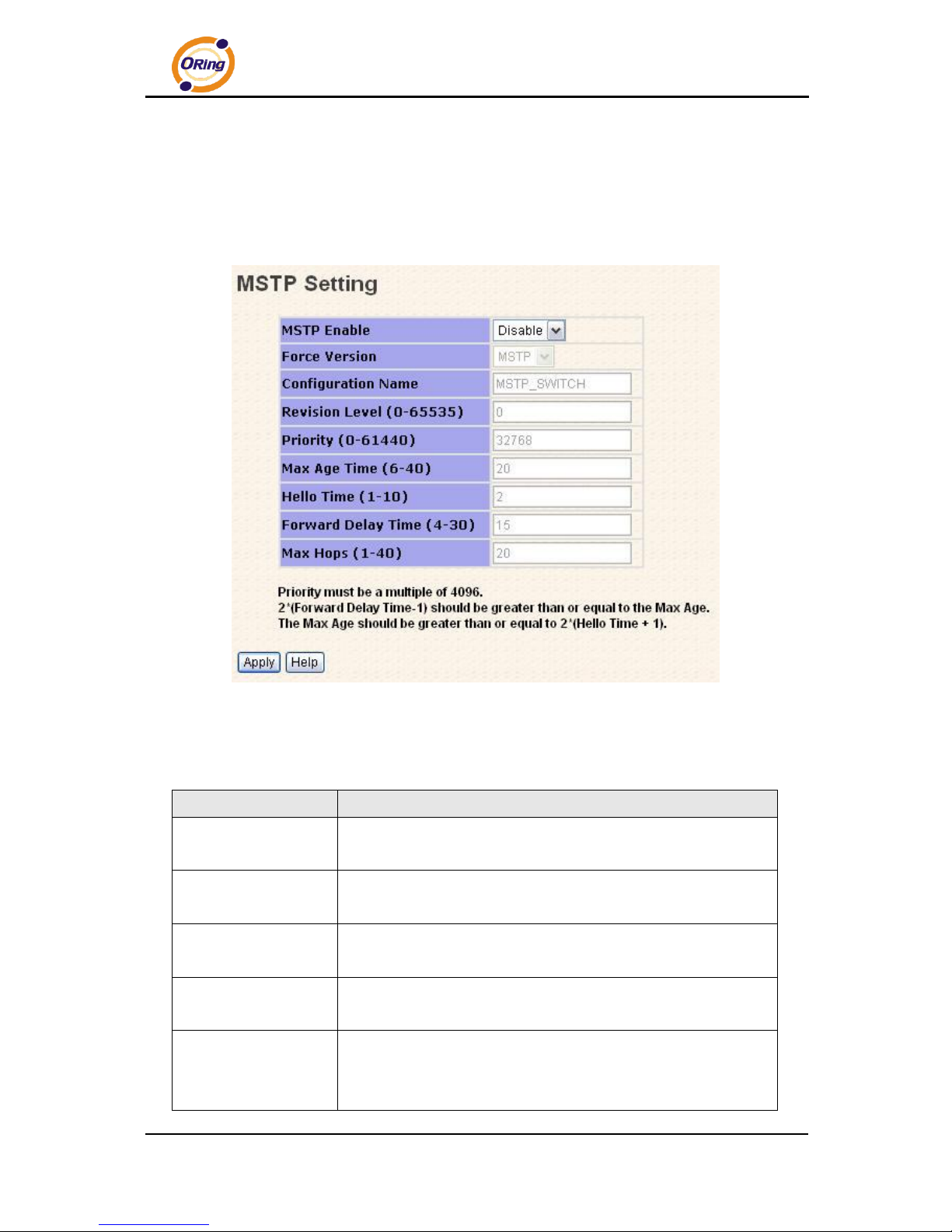

5.1.7.5 MSTP
Multiple Spanning Tree Protocol (MSTP) is a standard protocol base on IEEE 802.1s. The function is that several VLANs can be mapping to a reduced number of spanning tree instances because most networks do not need more than a few logical topologies. It supports load balancing scheme and the CPU is sparer than PVST (Cisco proprietary technology).
MSTP Setting interface
The following table describes the labels in this screen.
Label
Description
MSTP Enable
You must enable or disable MSTP function before configuring the related parameters.
Force Version
The Force Version parameter can be used to force a VLAN Bridge that supports RSTP to operate in an STP-compatible manner.
Configuration Name
The same MST Region must have the same MST configuration name.
Revision Level (0-65535)
The same MST Region must have the same revision level.
Priority (0-61440)
A value used to identify the root bridge. The bridge with the lowest value has the highest priority and is selected as the root. If the value changes, You must reboot the switch. The value
Page 43
IES-3162GC User’s Manual
ORing Industrial Networking Corp
42
must be multiple of 4096 according to the protocol standard rule.
Max Age Time(6-40)
The number of seconds a bridge waits without receiving Spanning-tree Protocol configuration messages before attempting a reconfiguration. Enter a value between 6 through 40.
Hello Time (1-10)
The setting follow the rule below to configure the MAX Age, Hello Time, and Forward Delay Time at controlled switch sends out the BPDU packet to check RSTP current status. Enter a value between 1 through 10.
2 x (Forward Delay Time value –1) ≥ Max Age value ≥ 2 x (Hello Time value +1)
Forwarding Delay Time (4-30)
The number of seconds a port waits before changing from its Rapid Spanning-Tree Protocol learning and listening states to the forwarding state. Enter a value between 4 through 30.
Max Hops (1-40)
This parameter is additional to those specified for RSTP. A single value applies to all Spanning Trees within an MST Region (the CIST and all MSTIs) for which the Bridge is the Regional Root.
Apply
Click “Apply” to activate the configurations.
MSTP Port interface
Page 44
IES-3162GC User’s Manual
ORing Industrial Networking Corp
43
Label
Description
Port No.
Selecting the port that you want to configure.
Priority (0-240)
Decide which port should be blocked by priority in LAN. Enter a number 0 through 240. The value of priority must be the multiple of 16
Path Cost (1-200000000)
The cost of the path to the other bridge from this transmitting bridge at the specified port. Enter a number 1 through
200000000.
Admin P2P
Some of the rapid state transactions that are possible within RSTP are dependent upon whether the port concerned can only be connected to exactly one other bridge (i.e. It is served by a point-to-point LAN segment), or it can be connected to two or more bridges (i.e. It is served by a shared medium LAN segment). This function allows the P2P status of the link to be manipulated administratively. True means P2P enabling. False means P2P disabling.
Admin Edge
Label
Admin Non STP
Label
Apply
Click “Apply” to activate the configurations.
MSTP Instance interface
Label
Description
Instance
Set the instance from 1 to 15
State
Enable or disable the instance
Page 45
IES-3162GC User’s Manual
ORing Industrial Networking Corp
44
VLANs
Set which VLAN will belong which instance
Proprietary (0-61440)
A value used to identify the root bridge. The bridge with the lowest value has the highest priority and is selected as the root. If the value changes, You must reboot the switch. The value must be multiple of 4096 according to the protocol standard rule.
Apply
Click “Apply” to activate the configurations.
MSTP Instance Port interface
Label
Description
Instance
Set the instance’s information except CIST
Port
Selecting the port that you want to configure.
Priority (0-240)
Decide which port should be blocked by priority in LAN. Enter a number 0 through 240. The value of priority must be the multiple of 16
Path Cost (1-200000000)
The cost of the path to the other bridge from this transmitting bridge at the specified port. Enter a number 1 through
200000000.
Apply
Click “Apply” to set the configurations.
Page 46
IES-3162GC User’s Manual
ORing Industrial Networking Corp
45
5.1.8 VLAN
A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which allows you to isolate network traffic. Only the members of the same VLAN will receive the traffic from the other members. Basically, to create a VLAN from a switch is logically equivalent of separating a group of network devices. However, all the network devices are still plugged into the same switch physically.
This managed switch supports port-based and 802.1Q (tagged-based) VLAN. The default
configuration of VLAN operation mode is at “802.1Q”.
5.1.8.1 VLAN Setting
Tagged-based VLAN is an IEEE 802.1Q specification standard, and t is possible to create a VLAN across devices from different switch venders. IEEE 802.1Q VLAN uses a technique to
insert a “tag” into the Ethernet frames. Tag contains a VLAN Identifier (VID) that indicates the
VLAN numbers.
You can create Tag-based VLAN, and enable or disable GVRP protocol. There are 256 VLAN groups available. Enable 802.1Q VLAN, all ports on the switch belong to default VLAN, VID is 1. The default VLAN cannot be deleted.
GVRP allows automatic VLAN configuration between the switch and nodes. If the switch is connected to a device with GVRP enabled, you can send a GVRP request by using the VID of a VLAN defined on the switch; the switch will automatically add that device to the existing VLAN.
VLAN Configuration – 802.1Q interface
Page 47
IES-3162GC User’s Manual
ORing Industrial Networking Corp
46
The following table describes the labels in this screen.
Label
Description
VLAN Operation Mode
Configure VLAN Operation Mode: disable, Port Base,802.1Q
GVRP Mode
Enable/Disable GVRP function.
Management VLAN ID
Management VLAN provide network administrator a secured VLAN to management Switch. Only the devices in the management VLAN can access the switch.
Link type
There are 3 types of link type: Access Link: single switch only, allows you to group ports by setting the same VID.
Trunk Link: extended application of Access Link, allows you to group ports by setting the same VID with 2 or more switches.
Hybrid Link: Both Access Link and Trunk Link are available. Hybrid(QinQ) Link: enable QinQ mode，allow you to insert one
more VLAN tag in a original VLAN frame.
Untagged VID
Set the port default VLAN ID for untagged devices that connect to the port. The range is 1 to 4094.
Tagged VIDs
Set the tagged VIDs to carry different VLAN frames to other switch.
Apply
Click “Apply” to activate the configurations.
Page 48
IES-3162GC User’s Manual
ORing Industrial Networking Corp
47
5.1.8.2 VLAN Setting – Port Based
Packets can go among only members of the same VLAN group. Note all unselected ports are treated as belonging to another single VLAN. If the port-based VLAN enabled, the VLAN-tagging is ignored.
VLAN Configuration – Port Base interface-1
The following table describes the labels in this screen.
Label
Description
Add
Click “add” to enter VLAN add interface.
Edit
Edit exist VLAN
Delete
Delete exist VLAN
Help
Show help file.
Page 49
IES-3162GC User’s Manual
ORing Industrial Networking Corp
48
VLAN Configuration – Port Base interface-2
The following table describes the labels in this screen.
Label
Description
Group Name
VLAN name.
VLAN ID
Specify the VLAN ID
Add
Select port to join the VLAN group.
Remove
Remove port of the VLAN group
Apply
Click “Apply” to activate the configurations.
Help
Show help file.
Page 50
IES-3162GC User’s Manual
ORing Industrial Networking Corp
49
5.1.9 SNMP
Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth. Network management systems learn of problems by receiving traps or change notices from network devices implementing SNMP.
5.1.9.1 SNMP – Agent Setting
You can set SNMP agent related information by Agent Setting Function.
SNMP Agent Setting interface
The following table describes the labels in this screen.
Label
Description
SNMP agent Version
Three SNMP versions are supported such as SNMP V1/SNMP V2c, and SNMP V3. SNMP V1/SNMP V2c agent use a community string match for authentication, that means SNMP
Page 51
IES-3162GC User’s Manual
ORing Industrial Networking Corp
50
servers access objects with read-only or read/write permissions with the community default string public/private. SNMP V3 requires an authentication level of MD5 or DES to encrypt data to enhance data security.
SNMP V1/V2c Community
SNMP Community should be set for SNMP V1/V2c. Four sets of "Community String/Privilege" are supported. Each Community String is maximum 32 characters. Keep empty to remove this Community string.
SNMPv3User
If SNMP V3 agent is selected, the SNMPv3 you profiled should be set for authentication. The Username is necessary. The Auth Password is encrypted by MD5 and the Privacy Password which is encrypted by DES. There are maximum 8 sets of SNMPv3 User and maximum 16 characters in username, and password.
When SNMP V3 agent is selected, you can:
1. Input SNMPv3 username only.
2. Input SNMPv3 username and Auth Password.
3. Input SNMPv3 username, Auth Password and Privacy Password, which can be different with Auth Password.
To remove a current user profile:
1. Input SNMPv3 user name you want to remove.
2. Click "Remove" button
Current SNMPv3 User Profile
Show all SNMPv3 user profiles.
Apply
Click “Apply” to activate the configurations.
Help
Show help file.
5.1.9.2 SNMP – Trap Setting
A trap manager is a management station that receives traps, the system alerts generated by the switch. If no trap manager is defined, no traps will issue. Create a trap manager by entering the IP address of the station and a community string. To define management stations as trap manager and enter SNMP community strings and selects the SNMP version.
Page 52
IES-3162GC User’s Manual
ORing Industrial Networking Corp
51
SNMP Trap Setting interface
The following table describes the labels in this screen.
Label
Description
Server IP
The server IP address to receive Trap
Community
Community for authentication
Trap Version
Trap Version supports V1 and V2c.
Add
Add trap server profile.
Remove
Remove trap server profile.
Help
Show help file.
5.1.10 Traffic Prioritization
Traffic Prioritization includes 3 modes: port base, 802.1p/COS, and TOS/DSCP. By traffic prioritization function, you can classify the traffic into four classes for differential network application. IES-3162GC support 4 priority queues.
Polocy Setting interface
Page 53
IES-3162GC User’s Manual
ORing Industrial Networking Corp
52
Label
Description
QoS Mode
Port-base: the output priority is determined by ingress port.  COS only: the output priority is determined by COS only.  TOS only: the output priority is determined by TOS only.  COS first: the output priority is determined by COS and
TOS, but COS first.
TOS first: the output priority is determined by COS and
TOS, but TOS first.
QoS policy
Using the 8,4,2,1 weight fair queue scheme: the output
queues will follow 8:4:2:1 ratio to transmit packets from the highest to lowest queue. For example: 8 high queue packets, 4 middle queue packets, 2 low queue packets, and the one lowest queue packets are transmitted in one turn.
Use the strict priority scheme: always the packets in
higher queue will be transmitted first until higher queue is empty.
Help
Show help file.
Apply
Click “Apply” to activate the configurations.
Page 54
IES-3162GC User’s Manual
ORing Industrial Networking Corp
53
Port-based Priority interface
Label
Description
Port base Priority
Assign Port with a priority queue. 4 priority queues can be assigned: High, Middle, Low, and Lowest.
Help
Show help file.
Apply
Click “Apply” to activate the configurations.
Page 55
IES-3162GC User’s Manual
ORing Industrial Networking Corp
54
COS/802.1p interface
Page 56
IES-3162GC User’s Manual
ORing Industrial Networking Corp
55
Label
Description
COS/802.1p
COS (Class Of Service) is well known as 802.1p. It describes that the output priority of a packet is determined by user priority field in 802.1Q VLAN tag. The priority value is supported 0to7.COS value map to 4 priority queues: High, Middle, Low, and Lowest.
COS Port Default
When an ingress packet has not VLAN tag, a default priority value is considered and determined by ingress port.
Help
Show help file.
Apply
Click “Apply” to activate the configurations.
TOS/DSCP interface
Label
Description
TOS/DSCP
TOS (Type of Service) is a field in IP header of a packet. This TOS field is also used by Differentiated Services and is called the Differentiated Services Code Point (DSCP). The output priority of a packet can be determined by this field and the priority value is supported 0 to 63. DSCP value map to 4 priority queues: High, Middle, Low, and Lowest.
Apply
Click “Apply” to activate the configurations.
Help
Show help file.
Page 57
IES-3162GC User’s Manual
ORing Industrial Networking Corp
56
5.1.11 Multicast
5.1.11.1 IGMP Snooping
Internet Group Management Protocol (IGMP) is used by IP hosts to register their dynamic multicast group membership. IGMP has 3 versions, IGMP v1, v2 and v3. Please refer to RFC 1112, 2236 and 3376. IGMP Snooping improves the performance of networks that carry multicast traffic. It provides the ability to prune multicast traffic so that it travels only to those end destinations that require that traffic and reduces the amount of traffic on the Ethernet LAN.
IGMP Snooping interface
The following table describes the labels in this screen.
Label
Description
IGMP Snooping
Enable/Disable IGMP snooping.
IGMP Query Mode
Switch will be IGMP querier or not. There should exist one and the only one IGMP querier in an IGMP application. The "Auto" mode means that the querier is the one with lower IP address.
IGMP Snooping Table
Show current IP multicast list
Apply
Click “Apply” to activate the configurations.
Help
Show help file.
Page 58
IES-3162GC User’s Manual
ORing Industrial Networking Corp
57
5.1.11.2 MVR
MVR interface
5.1.11.3 Multicast Filter
Multicast filtering is the system by which end stations only receive multicast traffic if they register to join specific multicast groups. With multicast filtering, network devices only forward multicast traffic to the ports that are connected to registered end stations.
Page 59
IES-3162GC User’s Manual
ORing Industrial Networking Corp
58
Multicast Filtering interface
The following table describes the labels in this screen.
Label
Description
IP Address
Assign a multicast group IP address in the range of 224.0.0.0 ~
239.255.255.255
Member Ports
Tick the check box beside the port number to include them as the member ports in the specific multicast group IP address.
Add
Show current IP multicast list
Delete
Delete an entry from table
Help
Show help file.
5.1.12 Security
Five useful functions can enhance security of switch: IP Security, Port Security, MAC Blacklist, and MAC address Aging and 802.1x protocol.
Page 60
IES-3162GC User’s Manual
ORing Industrial Networking Corp
59
5.1.12.1 IP Security
IP security can enable/disable remote management from WEB or Telnet or SNMP. Additionally, IP security can restrict remote management to some specific IP addresses. Only these secure IP addresses can manage this switch remotely.
IP Security interface
The following table describes the labels in this screen.
Label
Description
IP security MODE
Enable/Disable the IP security function.
Enable WEB Management
Mark the blank to enable WEB Management.
Enable Telnet Management
Mark the blank to enable Telnet Management.
Enable SNMP Management
Mark the blank to enable MPSN Management.
Page 61
IES-3162GC User’s Manual
ORing Industrial Networking Corp
60
Apply
Click “Apply” to activate the configurations.
Help
Show help file.
5.1.12.2 Port Security
Port security is to add static MAC addresses to hardware forwarding database. If port security is enabled at Port Control page, only the frames with MAC addresses in this list will be forwarded, otherwise will be discarded.
Port Security interface
The following table describes the labels in this screen.
Label
Description
MAC Address
Input MAC Address to a specific port.
Port NO.
Select port of switch.
Add
Add an entry of MAC and port information.
Delete
Delete the entry.
Help
Show help file.
5.1.12.3 MAC Blacklist
MAC Blacklist can eliminate the traffic forwarding to specific MAC addresses in list. Any frames forwarding to MAC addresses in this list will be discarded. Thus the target device will never receive any frame.
Page 62
IES-3162GC User’s Manual
ORing Industrial Networking Corp
61

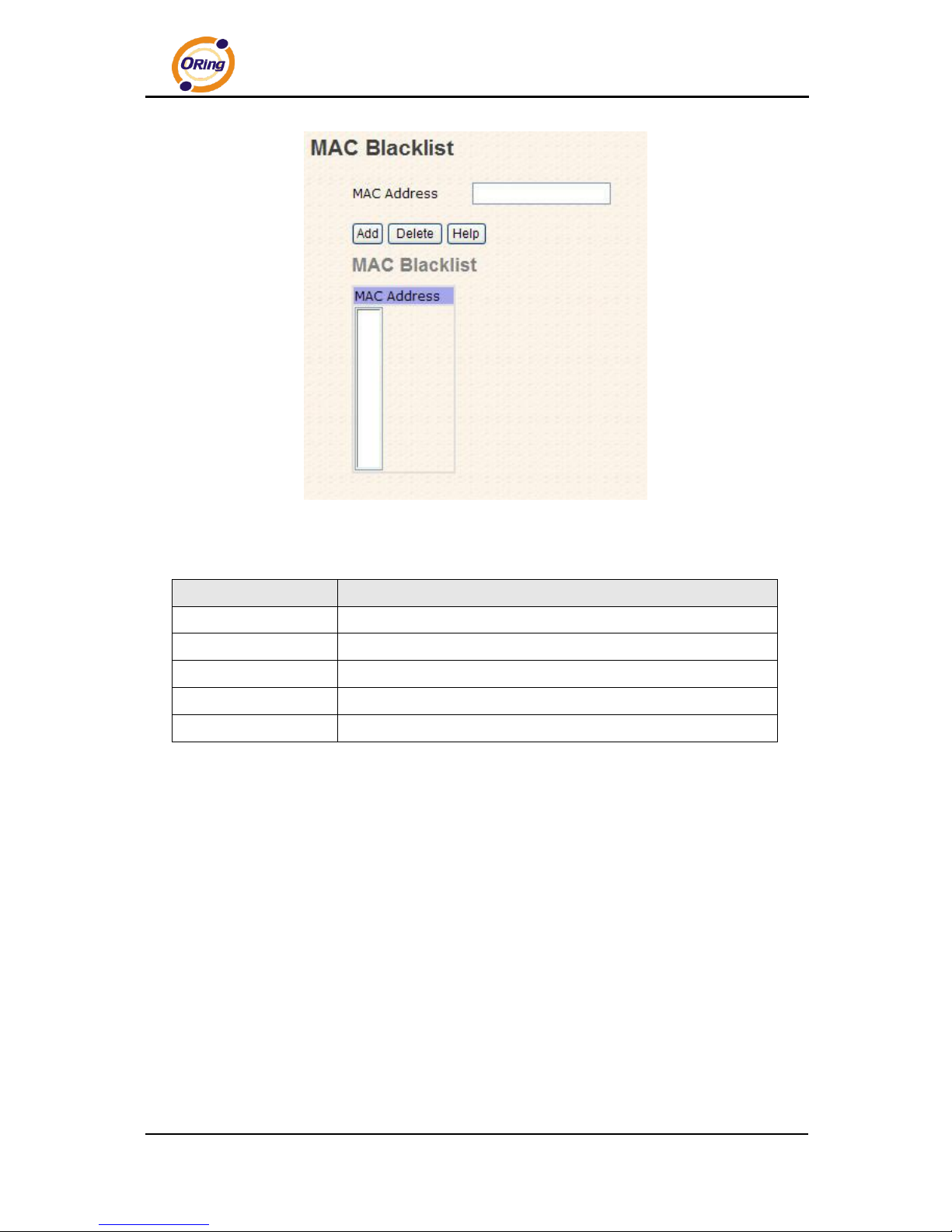

MAC Blacklist interface
The following table describes the labels in this screen.
Label
Description
MAC Address
Input MAC Address to add to MAC Blacklist.
Port NO.
Select port of switch.
Add
Add an entry to Blacklist table.
Delete
Delete the entry.
Help
Show help file.
5.1.12.4 802.1x
802.1x - Radius Server
802.1x makes the use of the physical access characteristics of IEEE802 LAN infrastructures in order to provide a authenticated and authorized devices attached to a LAN port. Please refer to IEEE 802.1X - Port Based Network Access Control.
Page 63
IES-3162GC User’s Manual
ORing Industrial Networking Corp
62

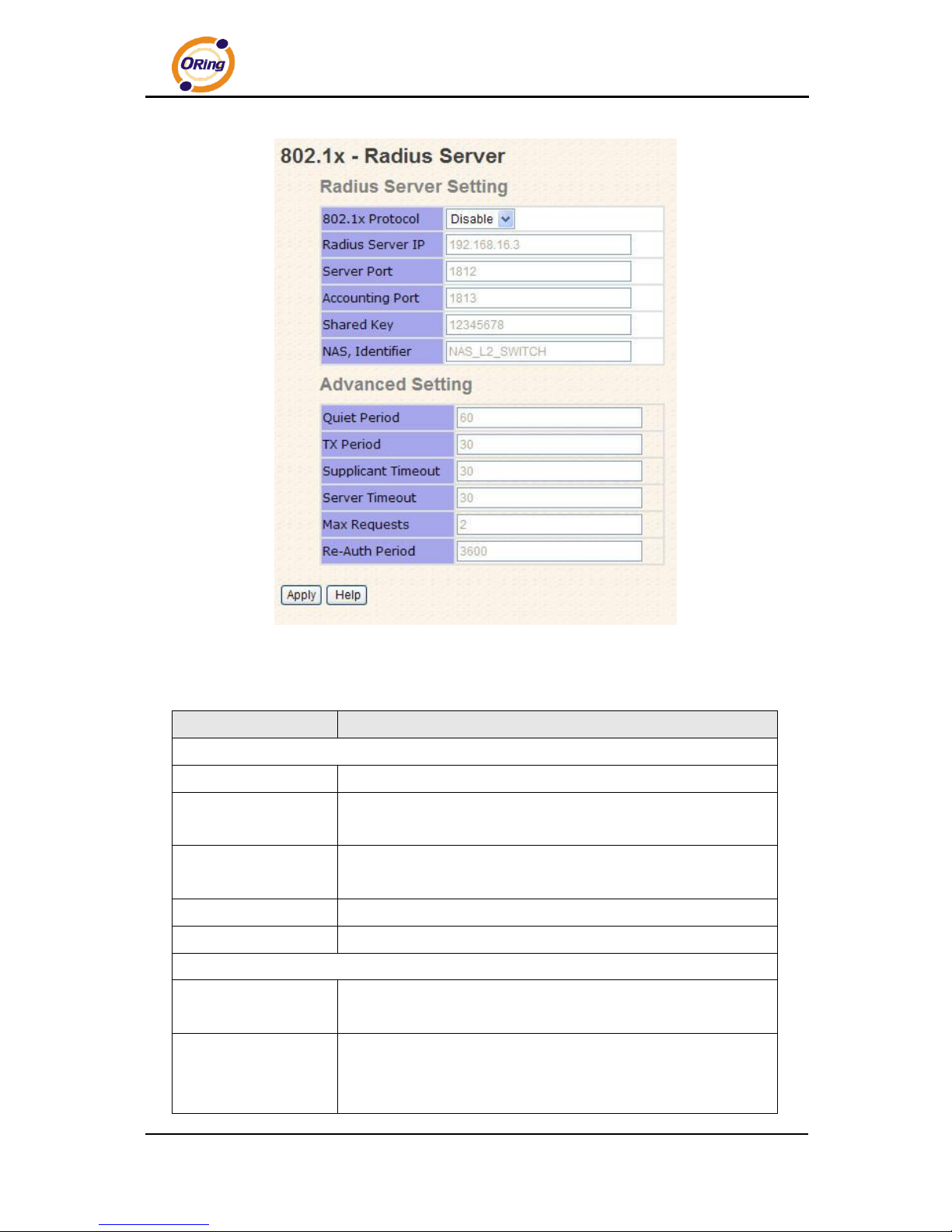

802.1x Radius Server interface
The following table describes the labels in this screen.
Label
Description
Radius Server Setting
Radius Server IP
The IP address of the authentication server.
Server port
Set the UDP port number used by the authentication server to authenticate.
Account port
Set the UDP destination port for accounting requests to the specified Radius Server.
Shared Key
A key shared between this switch and authentication server.
NAS, Identifier
A string used to identify this switch.
Advanced Setting
Quiet Period
Set the time interval between authentication failure and the start of a new authentication attempt.
Tx Period
Set the time that the switch can wait for response to an EAP request/identity frame from the client before resending the request.
Page 64
IES-3162GC User’s Manual
ORing Industrial Networking Corp
63
Supplicant Timeout
Set the period of time the switch waits for a supplicant response to an EAP request.
Server Timeout
Set the period of time the switch waits for a Radius server response to an authentication request.
Max Requests
Set the maximum number of times to retry sending packets to the supplicant.
Re-Auth Period
Set the period of time after which clients connected must be re-authenticated.
Apply
Click “Apply” to activate the configurations.
Help
Show help file.
802.1x-Port Authorized Mode
Set the 802.1x authorized mode of each port.
802.1x Port Authorize interface
Page 65
IES-3162GC User’s Manual
ORing Industrial Networking Corp
64
The following table describes the labels in this screen.
Label
Description
Port Authorized Mode
Reject: force this port to be unauthorized.  Accept: force this port to be authorized.  Authorize: the state of this port was determined by the
outcome of the 802.1x authentication.
Disable: this port will not participate in 802.1x.
Apply
Click “Apply” to activate the configurations.
Help
Show help file.

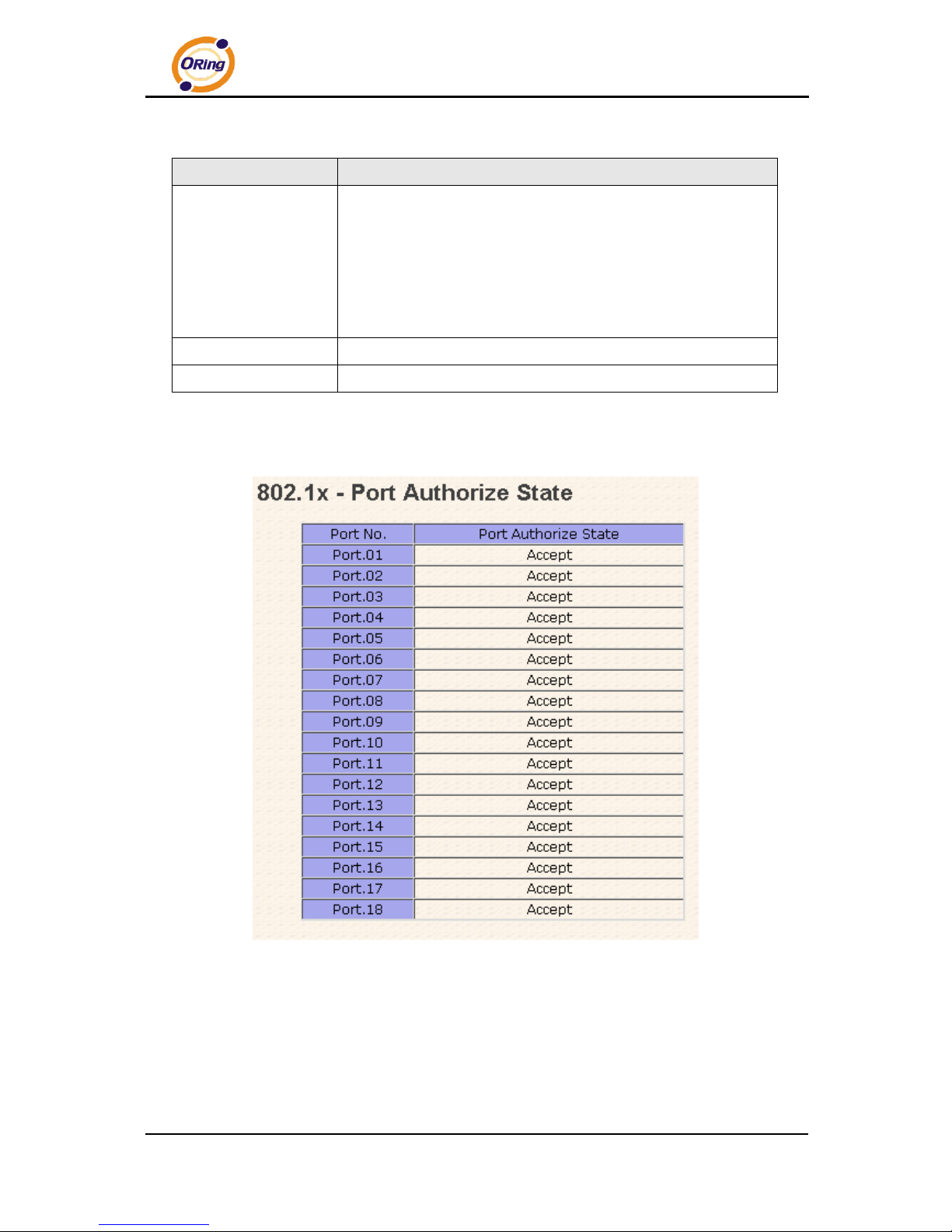

802.1x-Port Authorized State
Show 802.1x port authorized state.
802.1x Port Authorize State interface
5.1.13 Warning
Warning function is very important for managing switch. You can manage switch by SYSLOG, E-MAIL, and Fault Relay. It helps you to monitor the switch status on remote site. When events occurred, the warning message will send to your appointed server, E-MAIL, or relay fault to switch panel.
Page 66
IES-3162GC User’s Manual
ORing Industrial Networking Corp
65
5.1.13.1 Fault Alarm
When any selected fault event is happened, the Fault LED in switch panel will light up and the electric relay will signal at the same time.
Fault Alarm interface
The following table describes the labels in this screen.
Label
Description
Power Failure
Mark the blank of PWR 1 or PWR 2 to monitor.
Port Link Down/Broken
Mark the blank of port 1 to port 8 to monitor.
Apply
Click “Apply” to activate the configurations.
Help
Show help file.
5.1.13.2 System Alarm
System alarm support two warning mode: 1. SYSLOG. 2. E-MAIL. You can monitor switch through selected system events.
System Warning – SYSLOG Setting
The SYSLOG is a protocol to transmit event notification messages across networks. Please refer to RFC 3164 - The BSD SYSLOG Protocol
Page 67
IES-3162GC User’s Manual
ORing Industrial Networking Corp
66

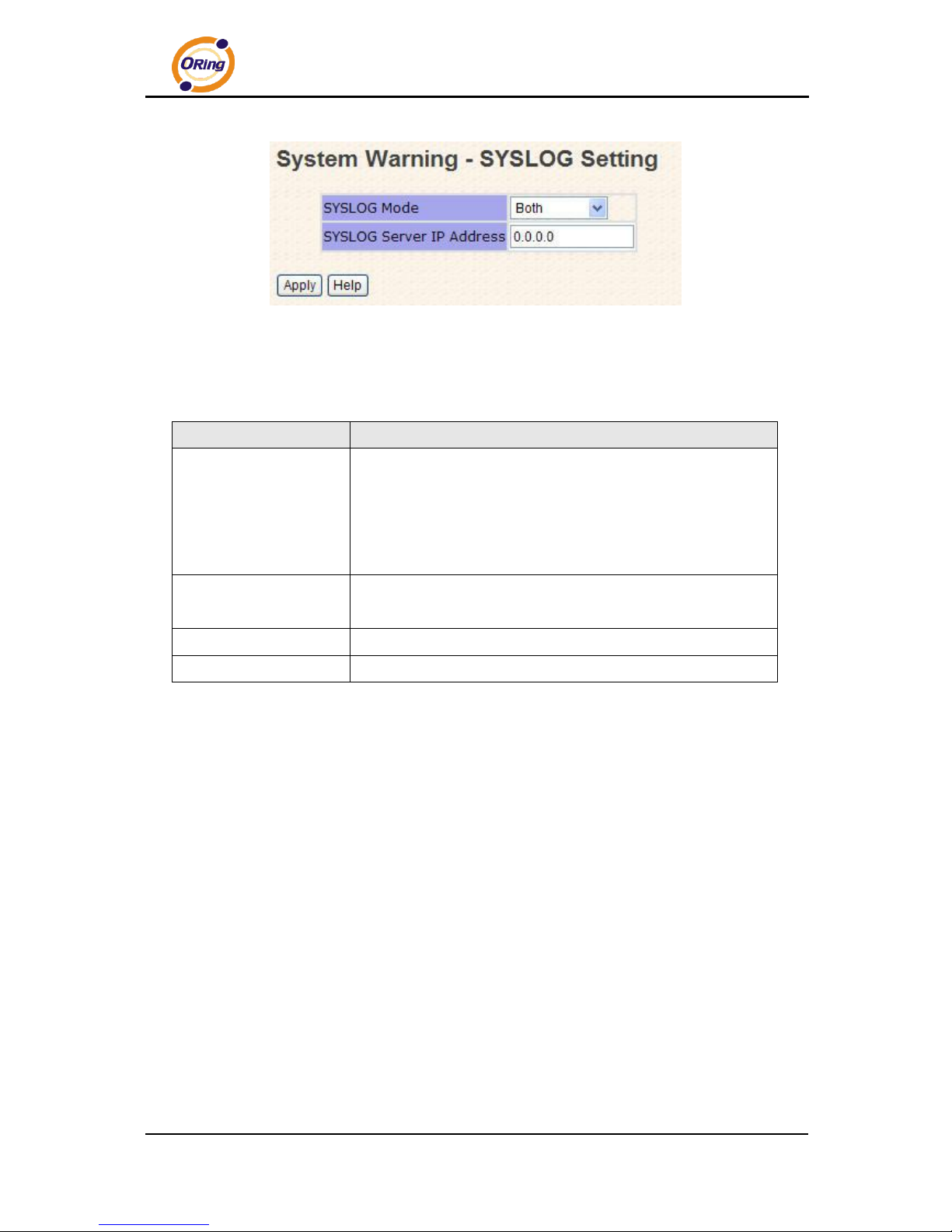

System Warning – SYSLOG Setting interface
The following table describes the labels in this screen.
Label
Description
SYSLOG Mode
Disable: disable SYSLOG.  Client Only: log to local system.  Server Only: log to a remote SYSLOG server.  Both: log to both of local and remote server.
SYSLOG Server IP Address
The remote SYSLOG Server IP address.
Apply
Click “Apply” to activate the configurations.
Help
Show help file.
System Warning – SMTP Setting
The SMTP is Short for Simple Mail Transfer Protocol. It is a protocol for e-mail transmission across the Internet. Please refer to RFC 821 - Simple Mail Transfer Protocol.
Page 68
IES-3162GC User’s Manual
ORing Industrial Networking Corp
67
System Warning – SMTP Setting interface
The following table describes the labels in this screen.
Label
Description
E-mail Alarm
Enable/Disable transmission system warning events by e-mail.
Sender E-mail Address
The SMTP server IP address
Mail Subject
The Subject of the mail
Authentication
Username: the authentication username.  Password: the authentication password.  Confirm Password: re-enter password.
Recipient E-mail Address
The recipient's E-mail address. It supports 6 recipients for a mail.
Apply
Click “Apply” to activate the configurations.
Help
Show help file.
Page 69
IES-3162GC User’s Manual
ORing Industrial Networking Corp
68
System Warning – Event Selection
SYSLOG and SMTP are the two warning methods that supported by the system. Check the corresponding box to enable system event warning method you wish to choose. Please note that the checkbox can not be checked when SYSLOG or SMTP is disabled.
System Warning – Event Selection interface
Page 70
IES-3162GC User’s Manual
ORing Industrial Networking Corp
69
The following table describes the labels in this screen.
Label
Description
System Event
System Cold Start
Alert when system restart
Power Status
Alert when a power up or down
SNMP Authentication Failure
Alert when SNMP authentication failure.
O-Ring Topology Change
Alert when O-Ring topology changes.
Port Event SYSLOG / SMTP event
Disable Link Up Link Down Link Up & Link Down
Apply
Click “Apply” to activate the configurations.
Help
Show help file.
5.1.14 Monitor and Diag
5.1.14.1 MAC Address Table
Refer to IEEE 802.1 D Sections 7.9. The MAC Address Table, that is Filtering Database, supports queries by the Forwarding Process, as to whether a frame received by a given port with a given destination MAC address is to be forwarded through a given potential transmission port.
Page 71
IES-3162GC User’s Manual
ORing Industrial Networking Corp
70
MAC Address Table interface
The following table describes the labels in this screen.
Label
Description
Port NO. :
Show all MAC addresses mapping to a selected port in table.
Clear MAC Table
Clear all MAC addresses in table
Help
Show help file.
5.1.14.2 MAC Address Aging
You can set MAC Address aging timer, as time expired, the unused MAC will be cleared from MAC table. IES-3162GC also support Auto Flush MAC Address Table When ports Link Down.
MAC Address Aging interface
Page 72
IES-3162GC User’s Manual
ORing Industrial Networking Corp
71
The following table describes the labels in this screen.
Label
Description
MAC Address Table Aging Time
Set the aging time for MAC table. The value is between 0 and
3825. Default setting is 300 seconds.
Auto Flush MAC Address Table When ports Link Down
Enable this function,
Apply
Click “Apply” to activate the configurations.
Help
Show help file.
5.1.14.3 Port Statistics
Port statistics show several statistics counters for all ports
Port Statistics interface
The following table describes the labels in this screen.
Label
Description
Type
Show port speed and media type.
Link
Show port link status.
State
Show ports enable or disable.
Page 73
IES-3162GC User’s Manual
ORing Industrial Networking Corp
72
TX GOOD Packet
The number of good packets sent by this port.
TX Bad Packet
The number of bad packets sent by this port.
RX GOOD Packet
The number of good packets received by this port.
RX Bad Packet
The number of bad packets received by this port.
TX Abort Packet
The number of packets aborted by this port.
Packet Collision
The number of times a collision detected by this port.
Clear
Clear all counters.
Help
Show help file.
5.1.14.4 Port Monitoring
Port monitoring function supports TX (egress) only, RX (ingress) only, and both TX/RX monitoring. TX monitoring sends any data that egress out checked TX source ports to a selected TX destination port as well. RX monitoring sends any data that ingress in checked RX source ports out to a selected RX destination port as well as sending the frame where it normally would have gone. Note that keep all source ports unchecked in order to disable port monitoring.
Page 74
IES-3162GC User’s Manual
ORing Industrial Networking Corp
73
Port monitoring interface
The following table describes the labels in this screen.
Label
Description
Destination Port
The port will receive a copied frame from source port for monitoring purpose.
Source Port
The port will be monitored. Mark the blank of TX or RX to be monitored.
TX
The frames come into switch port.
RX
The frames receive by switch port.
Apply
Click “Apply” to activate the configurations.
Clear
Clear all marked blank.(disable the function)
Help
Show help file.
Page 75
IES-3162GC User’s Manual
ORing Industrial Networking Corp
74
5.1.14.5 System Event Log
If system log client is enabled, the system event logs will be shown in this table.
System event log interface
The following table describes the labels in this screen.
Label
Description
Page
Select LOG page.
Reload
To get the newest event logs and refresh this page.
Clear
Clear log.
Help
Show help file.
5.1.14.6 Ping
Ping function allows the switch to send ICMP packets to detect the remote notes.
Page 76
IES-3162GC User’s Manual
ORing Industrial Networking Corp
75
Ping interface
The following table describes the labels in this screen.
Label
Description
IP Address
Enter the IP address that you want to detect.
Active
Click “Active” to send ICMP packets
5.1.15 Save Configuration
If any configuration changed, “Save Configuration” should be clicked to save current
configuration data to the permanent flash memory. Otherwise, the current configuration will be lost when power off or system reset.
System Configuration interface
Page 77
IES-3162GC User’s Manual
ORing Industrial Networking Corp
76
The following table describes the labels in this screen.
Label
Description
Save
Save all configurations.
Help
Show help file.
5.1.16 Factory Default
Factory Default interface
Reset switch to default configuration. Click
Reset
to reset all configurations to the
default value. You can select “
Keep current IP address setting
” and “
Keep current
username & password
” to keep current IP and username and password.
5.1.17 System Reboot
System Reboot interface
Page 78
IES-3162GC User’s Manual
ORing Industrial Networking Corp
77
Command Line Interface Management
6.1 About CLI Management
Besides WEB-base management, IES-3162GC also supports CLI management. You can use console or telnet to management switch by CLI.
CLI Management by RS-232 Serial Console (9600, 8, none, 1, none)
Before Configuring by RS-232 serial console, use an RJ45 to DB9-F cable to connect the Switches’ RS-232 Console port to your PC’s COM port.
Follow the steps below to access the console via RS-232 serial cable.
Step 1. From the Windows desktop, click on Start -> Programs -> Accessories ->
Communications -> Hyper Terminal
Page 79
IES-3162GC User’s Manual
ORing Industrial Networking Corp
78
Step 2. Input a name for new connection
Step 3. Select to use COM port number
Page 80
IES-3162GC User’s Manual
ORing Industrial Networking Corp
79

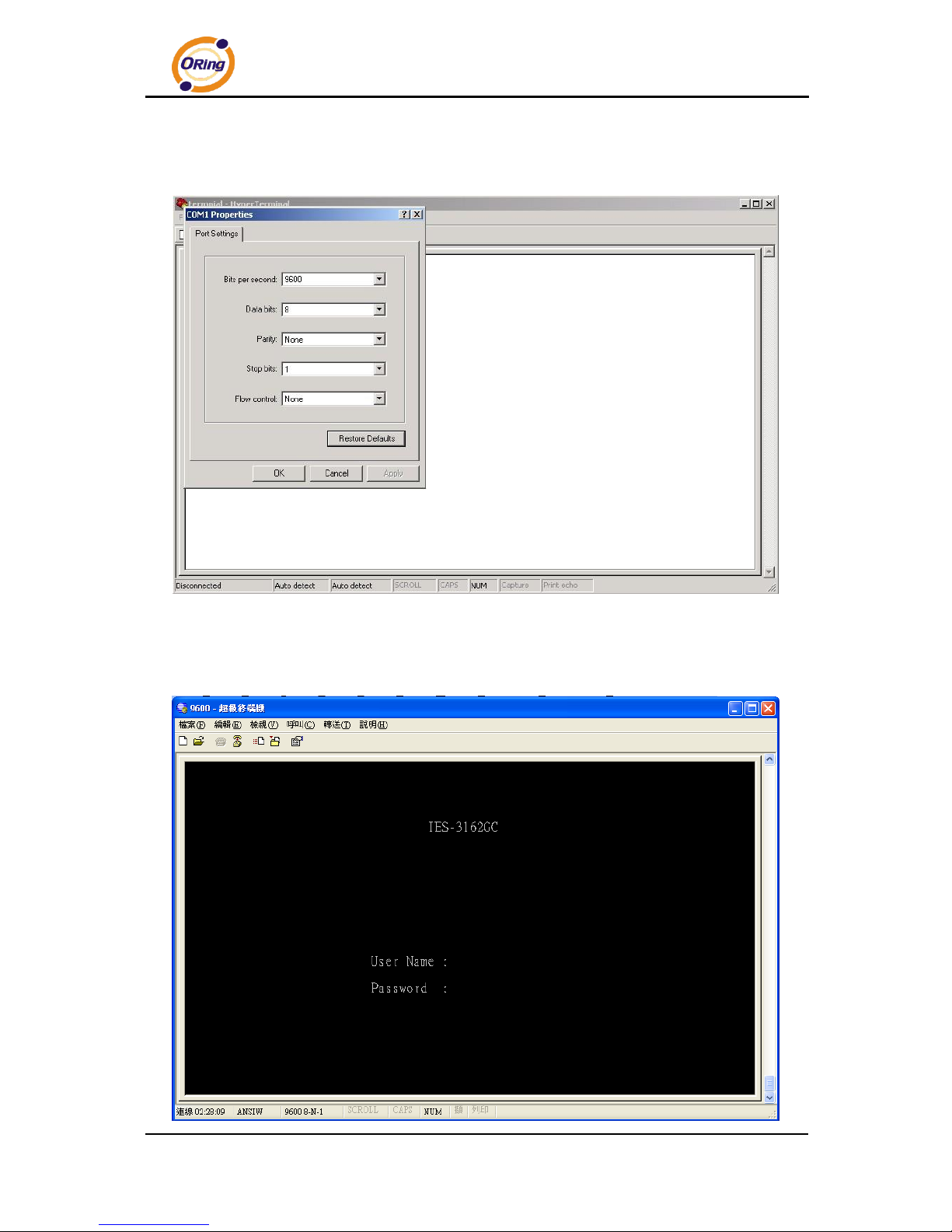

Step 4. The COM port properties setting, 9600 for Bits per second, 8 for Data bits, None for Parity, 1 for Stop bits and none for Flow control.
Step 5. The Console login screen will appear. Use the keyboard to enter the Username and
Password (The same with the password for Web Browser), then press “Enter”.
Page 81
IES-3162GC User’s Manual
ORing Industrial Networking Corp
80
CLI Management by Telnet
Users can use “TELNET” to configure the switch.
The default value is as below: IP Address: 192.168.10.1 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.10.254 User Name: admin Password: admin
Follow the steps below to access the console via Telnet.
Step 1. Telnet to the IP address of the switch from the Windows “Run“ command (or from the
MS-DOS prompt) as below.
Step 2. The Login screen will appear. Use the keyboard to enter the Username and Password (The same with the password for Web Browser ), and then press “Enter”
Page 82
IES-3162GC User’s Manual
ORing Industrial Networking Corp
81
Commands Level
Modes
Access Method
Prompt
Exit Method
About This Model
User EXEC
Begin a session with your switch.
switch>
Enter logout or quit.
The user command available at the level of user is the subset of those available at the privileged level. Use this mode to
• Enter menu mode.
• Display system
information.
Privileged EXEC
Enter the enable command while in user EXEC mode.
switch#
Enter disable to exit.
The privileged command is advance mode Privileged this mode to
• Display advance function status
• save configures
Global configuration
Enter the configure command while in privileged EXEC mode.
switch(co nfig)#
To exit to privileged EXEC mode, enter exit or end
Use this mode to configure parameters that apply to your Switch as a whole.
VLAN database
Enter the vlan
database
command while in privileged EXEC mode.
switch(vla n)#
To exit to user EXEC mode, enter exit.
Use this mode to configure VLAN-specific parameters.
Interface configuration
Enter the interface command (with a specific interface)while in global configuration mode
switch(co nfig-if)#
To exit to global configuration mode, enter exit. To exist privileged EXEC mode or end.
Use this mode to configure parameters for the switch and Ethernet ports.
Page 83
IES-3162GC User’s Manual
ORing Industrial Networking Corp
82
Symbol of Command Level.
Mode
Symbol of Command Level
User EXEC
E
Privileged EXEC
P
Global configuration
G
VLAN database
V
Interface configuration
I
6.2 Commands Set List—System Commands Set
IES-3162GC Commands
Level
Description
Example
show config
E
Show switch configuration
switch>show config
show terminal
P
Show console information
switch#show terminal
write memory
P
Save your configuration into permanent memory (flash rom)
switch#write memory
system name
[System Name]
G
Configure system name
switch(config)#system name xxx
system location
[System Location]
G
Set switch system location string
switch(config)#system location xxx
system description
[System Description]
G
Set switch system description string
switch(config)#system description xxx
system contact
[System Contact]
G
Set switch system contact window string
switch(config)#system contact xxx
show system-info
E
Show system information
switch>show system-info
ip address
[Ip-address] [Subnet-mask] [Gateway]
G
Configure the IP address of switch
switch(config)#ip address
192.168.1.1 255.255.255.0
192.168.1.254
ip dhcp
G
Enable DHCP client function of switch
switch(config)#ip dhcp
Page 84
IES-3162GC User’s Manual
ORing Industrial Networking Corp
83
show ip
P
Show IP information of switch
switch#show ip
no ip dhcp
G
Disable DHCP client function of switch
switch(config)#no ip dhcp
reload
G
Halt and perform a cold restart
switch(config)#reload
default
G
Restore to default
Switch(config)#default
admin username
[Username]
G
Changes a login username. (maximum 10 words)
switch(config)#admin username xxxxxx
admin password
[Password]
G
Specifies a password (maximum 10 words)
switch(config)#admin password xxxxxx
show admin
P
Show administrator information
switch#show admin
dhcpserver enable
G
Enable DHCP Server
switch(config)#dhcpserver enable
dhcpserver lowip
[Low IP]
G
Configure low IP address for IP pool
switch(config)# dhcpserver lowip
192.168.1.1
dhcpserver highip
[High IP]
G
Configure high IP address for IP pool
switch(config)# dhcpserver highip
192.168.1.50
dhcpserver subnetmask
[Subnet mask]
G
Configure subnet mask for DHCP clients
switch(config)#dhcpserver subnetmask 255.255.255.0
dhcpserver gateway [Gateway]
G
Configure gateway for DHCP clients
switch(config)#dhcpserver gateway
192.168.1.254
dhcpserver dnsip
[DNS IP]
G
Configure DNS IP for DHCP clients
switch(config)# dhcpserver dnsip
192.168.1.1
dhcpserver leasetime
[Hours]
G
Configure lease time (in hour)
switch(config)#dhcpserver leasetime 1
dhcpserver ipbinding
[IP address]
I
Set static IP for DHCP clients by port
switch(config)#interface fastEthernet 2 switch(config-if)#dhcpserver ipbinding 192.168.1.1
show dhcpserver configuration
P
Show configuration of DHCP server
switch#show dhcpserver configuration
show dhcpserver clients
P
Show client entries of DHCP server
switch#show dhcpserver clinets
show dhcpserver ip-binding
P
Show IP-Binding information of DHCP
switch#show dhcpserver ip-binding
Page 85
IES-3162GC User’s Manual
ORing Industrial Networking Corp
84
server
no dhcpserver
G
Disable DHCP server function
switch(config)#no dhcpserver
security enable
G
Enable IP security function
switch(config)#security enable
security http
G
Enable IP security of HTTP server
switch(config)#security http
security telnet
G
Enable IP security of telnet server
switch(config)#security telnet
security ip [Index(1..10)] [IP Address]
G
Set the IP security list
switch(config)#security ip 1
192.168.1.55
show security
P
Show the information of IP security
switch#show security
no security
G
Disable IP security function
switch(config)#no security
no security http
G
Disable IP security of HTTP server
switch(config)#no security http
no security telnet
G
Disable IP security of telnet server
switch(config)#no security telnet
6.3 Commands Set List—Port Commands Set
IES-3162GC Commands
Level
Description
Example
interface fastEthernet
[Portid]
G
Choose the port for modification.
switch(config)#interface fastEthernet 2
duplex
[full | half]
I
Use the duplex configuration command to specify the duplex mode of operation for Fast Ethernet.
switch(config)#interface fastEthernet 2 switch(config-if)#duplex full
speed
[10|100|1000|auto]
I
Use the speed configuration command to specify the speed mode of operation for Fast
switch(config)#interface fastEthernet 2 switch(config-if)#speed 100
Page 86
IES-3162GC User’s Manual
ORing Industrial Networking Corp
85
Ethernet., the speed
can’t be set to 1000 if
the port isn’t a giga
port..
flowcontrol mode
[Symmetric|Asymmetric]
I
Use the flowcontrol configuration command on Ethernet ports to control traffic rates during congestion.
switch(config)#interface fastEthernet 2 switch(config-if)#flowcontrol mode Asymmetric
no flowcontrol
I
Disable flow control of interface
switch(config-if)#no flowcontrol
security enable
I
Enable security of interface
switch(config)#interface fastEthernet 2 switch(config-if)#security enable
no security
I
Disable security of interface
switch(config)#interface fastEthernet 2 switch(config-if)#no security
bandwidth type all
I
Set interface ingress limit frame type to “accept all frame”
switch(config)#interface fastEthernet 2 switch(config-if)#bandwidth type all
bandwidth type broadcast-multicast-floo ded-unicast
I
Set interface ingress limit frame type to
“accept broadcast,
multicast, and flooded unicast frame”
switch(config)#interface fastEthernet 2 switch(config-if)#bandwidth type broadcast-multicast-flooded-unicast
bandwidth type broadcast-multicast
I
Set interface ingress limit frame type to
“accept broadcast and
multicast frame”
switch(config)#interface fastEthernet 2 switch(config-if)#bandwidth type broadcast-multicast
bandwidth type broadcast-only
I
Set interface ingress limit frame type to
“only accept
broadcast frame”
switch(config)#interface fastEthernet 2 switch(config-if)#bandwidth type broadcast-only
bandwidth in
[Value]
I
Set interface input bandwidth. Rate Range is from 100
switch(config)#interface fastEthernet 2 switch(config-if)#bandwidth in 100
Page 87
IES-3162GC User’s Manual
ORing Industrial Networking Corp
86
kbps to 102400 kbps or to 256000 kbps for giga ports, and zero means no limit.
bandwidth out
[Value]
I
Set interface output bandwidth. Rate Range is from 100 kbps to 102400 kbps or to 256000 kbps for giga ports, and zero means no limit.
switch(config)#interface fastEthernet 2 switch(config-if)#bandwidth out 100
show bandwidth
I
Show interfaces bandwidth control
switch(config)#interface fastEthernet 2 switch(config-if)#show bandwidth
state
[Enable | Disable]
I
Use the state interface configuration command to specify the state mode of operation for Ethernet ports. Use the disable form of this command to disable the port.
switch(config)#interface fastEthernet 2 switch(config-if)#state Disable
show interface configuration
I
show interface configuration status
switch(config)#interface fastEthernet 2 switch(config-if)#show interface configuration
show interface status
I
show interface actual status
switch(config)#interface fastEthernet 2 switch(config-if)#show interface
status
show interface accounting
I
show interface statistic counter
switch(config)#interface fastEthernet 2 switch(config-if)#show interface
Page 88
IES-3162GC User’s Manual
ORing Industrial Networking Corp
87
accounting
no accounting
I
Clear interface accounting information
switch(config)#interface fastEthernet 2 switch(config-if)#no accounting
6.4 Commands Set List—Trunk command set
IES-3162GC Commands
Level
Description
Example
aggregator priority
[1to65535]
G
Set port group system priority
switch(config)#aggregator priority 22
aggregator activityport
[Port Numbers]
G
Set activity port
switch(config)#aggregator activityport 2
aggregator group
[GroupID] [Port-list]
lacp workp
[Workport]
G
Assign a trunk group with LACP active. [GroupID] :1to3 [Port-list]:Member port list, This parameter could be a port range(ex.1-4) or a port list separate by a comma(ex.2, 3, 6) [Workport]: The amount of work ports, this value could not be less than zero or be large than the amount of member ports.
switch(config)#aggregator group 1 1-4 lacp workp 2 or switch(config)#aggregator group 2 1,4,3 lacp workp 3
aggregator group
[GroupID] [Port-list]
nolacp
G
Assign a static trunk group. [GroupID] :1to3 [Port-list]:Member port list, This parameter could be a port range(ex.1-4) or a port list separate by a comma(ex.2, 3, 6)
switch(config)#aggregator group 1 2-4 nolacp or switch(config)#aggreator group 1 3,1,2 nolacp
Page 89
IES-3162GC User’s Manual
ORing Industrial Networking Corp
88
show aggregator
P
Show the information of trunk group
switch#show aggregator
no aggregator lacp
[GroupID]
G
Disable the LACP function of trunk group
switch(config)#no aggreator lacp 1
no aggregator group
[GroupID]
G
Remove a trunk group
switch(config)#no aggreator group 2
6.5 Commands Set List—VLAN command set
IES-3162GC Commands
Level
Description
Example
vlan database
P
Enter VLAN configure mode
switch#vlan database
vlan [8021q | gvrp]
V
To set switch VLAN mode.
switch(vlan)# vlanmode 802.1q or switch(vlan)# vlanmode gvrp
no vlan
[VID]
V
Disable vlan group(by VID)
switch(vlan)#no vlan 2
no gvrp
V
Disable GVRP
switch(vlan)#no gvrp
IEEE 802.1Q VLAN
vlan 8021q port
[PortNumber]
access-link untag
[UntaggedVID]
V
Assign a access link for VLAN by port, if the port belong to a trunk group, this command can’t be applied.
switch(vlan)#vlan 802.1q port 3 access-link untag 33
vlan 8021q port
[PortNumber]
trunk-link tag
[TaggedVID List]
V
Assign a trunk link for VLAN by port, if the port belong to a trunk group, this command
can’t be applied.
switch(vlan)#vlan 8021q port 3 trunk-link tag 2,3,6,99 or switch(vlan)#vlan 8021q port 3 trunk-link tag 3-20
vlan 8021q port
[PortNumber]
hybrid-link untag
[UntaggedVID]
tag
[TaggedVID List]
V
Assign a hybrid link for VLAN by port, if the port belong to a trunk group, this command can’t be applied.
switch(vlan)# vlan 8021q port 3 hybrid-link untag 4 tag 3,6,8 or switch(vlan)# vlan 8021q port 3 hybrid-link untag 5 tag 6-8
vlan 8021q aggreator
[TrunkID]
V
Assign a access link for VLAN by trunk
switch(vlan)#vlan 8021q aggreator 3 access-link untag 33
Page 90
IES-3162GC User’s Manual
ORing Industrial Networking Corp
89
access-link untag
[UntaggedVID]
group
vlan 8021q aggreator
[TrunkID]
trunk-link tag
[TaggedVID List]
V
Assign a trunk link for VLAN by trunk group
switch(vlan)#vlan 8021q aggreator 3 trunk-link tag 2,3,6,99 or switch(vlan)#vlan 8021q aggreator 3 trunk-link tag 3-20
vlan 8021q aggreator
[PortNumber]
hybrid-link untag
[UntaggedVID]
tag
[TaggedVID List]
V
Assign a hybrid link for VLAN by trunk group
switch(vlan)# vlan 8021q aggreator 3 hybrid-link untag 4 tag 3,6,8 or switch(vlan)# vlan 8021q aggreator 3 hybrid-link untag 5 tag 6-8
show vlan [VID]
or
show vlan
V
Show VLAN information
switch(vlan)#show vlan 23
6.6 Commands Set List—Spanning Tree command set
IES-3162GC Commands
Level
Description
Example
spanning-tree enable
G
Enable spanning tree
switch(config)#spanning-tree enable
spanning-tree priority
[0to61440]
G
Configure spanning tree priority parameter
switch(config)#spanning-tree priority 32767
spanning-tree max-age
[seconds]
G
Use the spanning-tree max-age global configuration command to change the interval between messages the spanning tree receives from the root switch. If a switch does not receive a bridge protocol data unit (BPDU) message
switch(config)# spanning-tree max-age 15
Page 91
IES-3162GC User’s Manual
ORing Industrial Networking Corp
90
from the root switch within this interval, it recomputed the Spanning Tree Protocol (STP) topology.
spanning-tree hello-time [seconds]
G
Use the spanning-tree hello-time global configuration command to specify the interval between hello bridge protocol data units (BPDUs).
switch(config)#spanning-tree hello-time 3
spanning-tree forward-time [seconds]
G
Use the spanning-tree forward-time global configuration command to set the forwarding-time for the specified spanning-tree instances. The forwarding time determines how long each of the listening and learning states last before the port begins forwarding.
switch(config)# spanning-tree forward-time 20
stp-path-cost
[1to200000000]
I
Use the spanning-tree cost interface configuration command to set the path cost for Spanning Tree Protocol (STP) calculations. In the event of a loop,
switch(config)#interface fastEthernet 2 switch(config-if)#stp-path-cost 20
Page 92
IES-3162GC User’s Manual
ORing Industrial Networking Corp
91
spanning tree considers the path cost when selecting an interface to place into the forwarding state.
stp-path-priority [Port Priority]
I
Use the spanning-tree port-priority interface configuration command to configure a port priority that is used when two switches tie for position as the root switch.
switch(config)#interface fastEthernet 2 switch(config-if)# stp-path-priority 127
stp-admin-p2p
[Auto|True|False]
I
Admin P2P of STP priority on this interface.
switch(config)#interface fastEthernet 2 switch(config-if)# stp-admin-p2p Auto
stp-admin-edge
[True|False]
I
Admin Edge of STP priority on this interface.
switch(config)#interface fastEthernet 2 switch(config-if)# stp-admin-edge True
stp-admin-non-stp
[True|False]
I
Admin NonSTP of STP priority on this interface.
switch(config)#interface fastEthernet 2 switch(config-if)# stp-admin-non-stp False
Show spanning-tree
E
Display a summary of the spanning-tree states.
switch>show spanning-tree
no spanning-tree
G
Disable spanning-tree.
switch(config)#no spanning-tree
6.7 Commands Set List—QoS command set
IES-3162GC Commands
Level
Description
Example
qos policy
G
Select QOS policy
switch(config)#qos policy
Page 93
IES-3162GC User’s Manual
ORing Industrial Networking Corp
92
[weighted-fair|strict]
scheduling
weighted-fair
qos prioritytype
[port-based|cos-only|tos
-only|cos-first|tos-first]
G
Setting of QOS priority type
switch(config)#qos prioritytype
qos priority portbased
[Port] [lowest|low|middle|high]
G
Configure Port-based Priority
switch(config)#qos priority portbased 1 low
qos priority cos
[Priority][lowest|low|mid dle|high]
G
Configure COS Priority
switch(config)#qos priority cos 22 middle
qos priority tos [Priority][lowest|low|mid dle|high]
G
Configure TOS Priority
switch(config)#qos priority tos 3 high
show qos
P
Display the information of QoS configuration
switch>show qos
no qos
G
Disable QoS function
switch(config)#no qos
6.8 Commands Set List—IGMP command set
IES-3162GC Commands
Level
Description
Example
igmp enable
G
Enable IGMP snooping function
switch(config)#igmp enable
Igmp-query auto
G
Set IGMP query to auto mode
switch(config)#Igmp-query auto
Igmp-query force
G
Set IGMP query to force mode
switch(config)#Igmp-query force
show igmp configuration
P
Displays the details of an IGMP configuration.
switch#show igmp configuration
show igmp multi
P
Displays the details of an IGMP snooping entries.
switch#show igmp multi
no igmp
G
Disable IGMP snooping function
switch(config)#no igmp
no igmp-query
G
Disable IGMP query
switch#no igmp-query
Page 94
IES-3162GC User’s Manual
ORing Industrial Networking Corp
93
6.9 Commands Set List—MAC/Filter Table command set
IES-3162GC Commands
Level
Description
Example
mac-address-table static hwaddr
[MAC]
I
Configure MAC address table of interface (static).
switch(config)#interface fastEthernet 2 switch(config-if)#mac-address-table static hwaddr 000012345678
mac-address-table filter hwaddr
[MAC]
G
Configure MAC address table(filter)
switch(config)#mac-address-table filter hwaddr 000012348678
show mac-address-table
P
Show all MAC address table
switch#show mac-address-table
show mac-address-table static
P
Show static MAC address table
switch#show mac-address-table static
show mac-address-table filter
P
Show filter MAC address table.
switch#show mac-address-table filter
no mac-address-table static hwaddr
[MAC]
I
Remove an entry of MAC address table of interface (static)
switch(config)#interface fastEthernet 2 switch(config-if)#no mac-address-table static hwaddr 000012345678
no mac-address-table filter hwaddr
[MAC]
G
Remove an entry of MAC address table (filter)
switch(config)#no mac-address-table filter hwaddr 000012348678
no mac-address-table
G
Remove dynamic entry of MAC address table
switch(config)#no mac-address-table
6.10 Commands Set List—SNMP command set
IES-3162GC Commands
Level
Description
Example
snmp agent-mode
[v1v2c | v3]
G
Select the agent mode of SNMP
switch(config)#snmp agent-mode v1v2c
snmp-server host
[IP address]
G
Configure SNMP server host
switch(config)#snmp-server host
192.168.10.50 community public
Page 95
IES-3162GC User’s Manual
ORing Industrial Networking Corp
94
community
[Community-string]
trap-version
[v1|v2c]
information and community string
trap-version v1 (remove) Switch(config)# no snmp-server host
192.168.10.50
snmp community-strings
[Community-string]
right
[RO|RW]
G
Configure the community string right
switch(config)#snmp community-strings public right RO or switch(config)#snmp community-strings public right RW
snmp snmpv3-user
[User Name]
password
[Authentication Password] [Privacy Password]
G
Configure the userprofile for SNMPV3 agent. Privacy password could be empty.
switch(config)#snmp snmpv3-user test01 password AuthPW PrivPW
show snmp
P
Show SNMP configuration
switch#show snmp
show snmp-server
P
Show specified trap server information
switch#show snmp-server
no snmp community-strings
[Community]
G
Remove the specified community.
switch(config)#no snmp community-strings public
no snmp snmpv3-user
[User Name]
password
[Authentication Password] [Privacy Password]
G
Remove specified user of SNMPv3 agent. Privacy password could be empty.
switch(config)# no snmp snmpv3-user test01 password AuthPW PrivPW
no snmp-server host
[Host-address]
G
Remove the SNMP server host.
switch(config)#no snmp-server
192.168.10.50
6.11 Commands Set List—Port Mirroring command set
IES-3162GC Commands
Level
Description
Example
monitor rx
G
Set RX destination port of monitor
switch(config)#monitor rx
Page 96
IES-3162GC User’s Manual
ORing Industrial Networking Corp
95
function
monitor tx
G
Set TX destination port of monitor function
switch(config)#monitor tx
show monitor
P
Show port monitor information
switch#show monitor
monitor
[RX|TX|Both]
I
Configure source port of monitor function
switch(config)#interface fastEthernet 2 switch(config-if)#monitor RX
show monitor
I
Show port monitor information
switch(config)#interface fastEthernet 2 switch(config-if)#show monitor
no monitor
I
Disable source port of monitor function
switch(config)#interface fastEthernet 2 switch(config-if)#no monitor
6.12 Commands Set List—802.1x command set
IES-3162GC Commands
Level
Description
Example
8021x enable
G
Use the 802.1x global configuration command to enable
802.1x protocols.
switch(config)# 8021x enable
8021x system radiousip
[IP address]
G
Use the 802.1x system radious IP global configuration command to change the radious server IP.
switch(config)# 8021x system radiousip 192.168.1.1
8021x system serverport
[port ID]
G
Use the 802.1x system server port global configuration command to change the radious server port
switch(config)# 8021x system serverport 1815
8021x system accountport
[port ID]
G
Use the 802.1x system account port global configuration command to change
switch(config)# 8021x system accountport 1816
Page 97
IES-3162GC User’s Manual
ORing Industrial Networking Corp
96
the accounting port
8021x system sharekey
[ID]
G
Use the 802.1x system share key global configuration command to change the shared key value.
switch(config)# 8021x system sharekey 123456
8021x system nasid
[words]
G
Use the 802.1x system nasid global configuration command to change the NAS ID
switch(config)# 8021x system nasid test1
8021x misc quietperiod
[sec.]
G
Use the 802.1x misc quiet period global configuration command to specify the quiet period value of the switch.
switch(config)# 8021x misc quietperiod 10
8021x misc txperiod
[sec.]
G
Use the 802.1x misc TX period global configuration command to set the TX period.
switch(config)# 8021x misc txperiod 5
8021x misc supportimeout [sec.]
G
Use the 802.1x misc supp timeout global configuration command to set the supplicant timeout.
switch(config)# 8021x misc supportimeout 20
8021x misc servertimeout [sec.]
G
Use the 802.1x misc server timeout global configuration command to set the server timeout.
switch(config)#8021x misc servertimeout 20
8021x misc maxrequest
[number]
G
Use the 802.1x misc max request global configuration command to set the
switch(config)# 8021x misc maxrequest 3
Page 98
IES-3162GC User’s Manual
ORing Industrial Networking Corp
97
MAX requests.
8021x misc reauthperiod [sec.]
G
Use the 802.1x misc reauth period global configuration command to set the reauth period.
switch(config)# 8021x misc reauthperiod 3000
8021x portstate
[disable | reject | accept | authorize]
I
Use the 802.1x port state interface configuration command to set the state of the selected port.
switch(config)#interface fastethernet 3 switch(config-if)#8021x portstate accept
show 8021x
E
Display a summary of the 802.1x properties and also the port sates.
switch>show 8021x
no 8021x
G
Disable 802.1x function
switch(config)#no 8021x
6.13 Commands Set List—TFTP command set
IES-3162GC Commands
Level
Description
Defaults
Example
backup flash:backup_cfg
G
Save configuration to TFTP and need to specify the IP of TFTP server and the file name of image.
switch(config)#backup flash:backup_cfg
restore flash:restore_cfg
G
Get configuration from TFTP server and need to specify the IP of TFTP server and the file name of image.
switch(config)#restore flash:restore_cfg
Page 99
IES-3162GC User’s Manual
ORing Industrial Networking Corp
98
upgrade flash:upgrade_fw
G
Upgrade firmware by TFTP and need to specify the IP of TFTP server and the file name of image.
switch(config)#upgrade lash:upgrade_fw
6.14 Commands Set List—SYSLOG, SMTP, EVENT command set
IES-3162GC Commands
Level
Description
Example
systemlog ip
[IP address]
G
Set System log server IP address.
switch(config)# systemlog ip
192.168.1.100
systemlog mode
[client|server|both]
G
Specified the log mode
switch(config)# systemlog mode both
show systemlog
E
Display system log.
Switch>show systemlog
show systemlog
P
Show system log client & server information
switch#show systemlog
no systemlog
G
Disable systemlog functon
switch(config)#no systemlog
smtp enable
G
Enable SMTP function
switch(config)#smtp enable
smtp serverip
[IP address]
G
Configure SMTP server IP
switch(config)#smtp serverip
192.168.1.5
smtp authentication
G
Enable SMTP authentication
switch(config)#smtp authentication
smtp account
[account]
G
Configure authentication account
switch(config)#smtp account User
smtp password
[password]
G
Configure authentication password
switch(config)#smtp password
smtp rcptemail
[Index] [Email address]
G
Configure Rcpt e-mail Address
switch(config)#smtp rcptemail 1
[email protected]
show smtp
P
Show the information of SMTP
switch#show smtp
no smtp
G
Disable SMTP
switch(config)#no smtp
Page 100
IES-3162GC User’s Manual
ORing Industrial Networking Corp
99
function
event device-cold-start
[Systemlog|SMTP|Both]
G
Set cold start event type
switch(config)#event device-cold-start both
event authentication-failure
[Systemlog|SMTP|Both]
G
Set Authentication failure event type
switch(config)#event authentication-failure both
event O-Ring-topology-change
[Systemlog|SMTP|Both]
G
Set s ring topology changed event type
switch(config)#event ring-topology-change both
event systemlog
[Link-UP|Link-Down|Bot h]
I
Set port event for system log
switch(config)#interface fastethernet 3 switch(config-if)#event systemlog both
event smtp
[Link-UP|Link-Down|Bot h]
I
Set port event for SMTP
switch(config)#interface fastethernet 3 switch(config-if)#event smtp both
show event
P
Show event selection
switch#show event
no event device-cold-start
G
Disable cold start event type
switch(config)#no event device-cold-start
no event authentication-failure
G
Disable Authentication failure event typ
switch(config)#no event authentication-failure
no event O-Ring-topology-change
G
Disable O-Ring topology changed event type
switch(config)#no event ring-topology-change
no event systemlog
I
Disable port event for system log
switch(config)#interface fastethernet 3 switch(config-if)#no event systemlog
no event smpt
I
Disable port event for SMTP
switch(config)#interface fastethernet 3 switch(config-if)#no event smtp
show systemlog
P
Show system log client & server information
switch#show systemlog
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
