Getting Started
1.1 About IDS-342GT(+)
The IDS-342GT(+) series of industrial device servers have four RS-232/422/485 ports and two
Gigabit LAN ports designed for converting signals between serial and Ethernet networks. The
series consists of PoE model (IDS-342GT+) and non-PoE model (IDS-342GT). The series
provide standard features of device servers such as TCP/IP interfaces and versatile operation
modes including Virtual Com, Serial Tunnel, TCP Server, TCP Client, and UDP. It also
supports Windows utility DS-Tool which allows you to configure multiple devices and set up
the mappings of Virtual Com. The device can transfer data to five host PCs simultaneously for
redundancy in case of Ethernet connection breakdown or host PC failure. With HTTPS, SSH,
and SSL encryption, the series can ensure data transmission security.
1.2 Software Features
Supports five host devices including Virtual COM, TCP Server, TCP Client modes and
four IP ranges
Supports operating modes such as Virtual Com, Serial Tunnel, TCP Server, TCP Client,
UDP
Ensure high levels of security with SSL data encryption, HTTPS/SSH, IP access control
and IP white list
Event warning by Syslog, Email, SNMP trap, and beeper
Configurable by Web Interface and Windows utility
Various Windows O.S. supported: Windows NT/2000/ XP/ 2003/VISTA(32/64bit)/
Windows 7(32/64bit)
1.3 Hardware Specifications
4 x RS-232/422/485 serial ports
2 x 10/100/1000Base-T(X) Ethernet ports (ETH2 of IDS-342GT+ is PoE enabled with
1KV isolation)
DIN-rail and wall-mount enabled
Redundant DC power inputs
Operating Temperature: -40 to 70oC
Storage Temperature: -40 to 85oC
Operating Humidity: 5% to 95%, non-condensing
Casing: IP-30
Dimensions: 54.2(W) x 106.1(D) x 145.4 (H) mm (2.13x4.18x5.72 inch.)
Page 6
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
5
Hardware Overview
2.1 Front Panel
2.1.1 Ports and Connectors

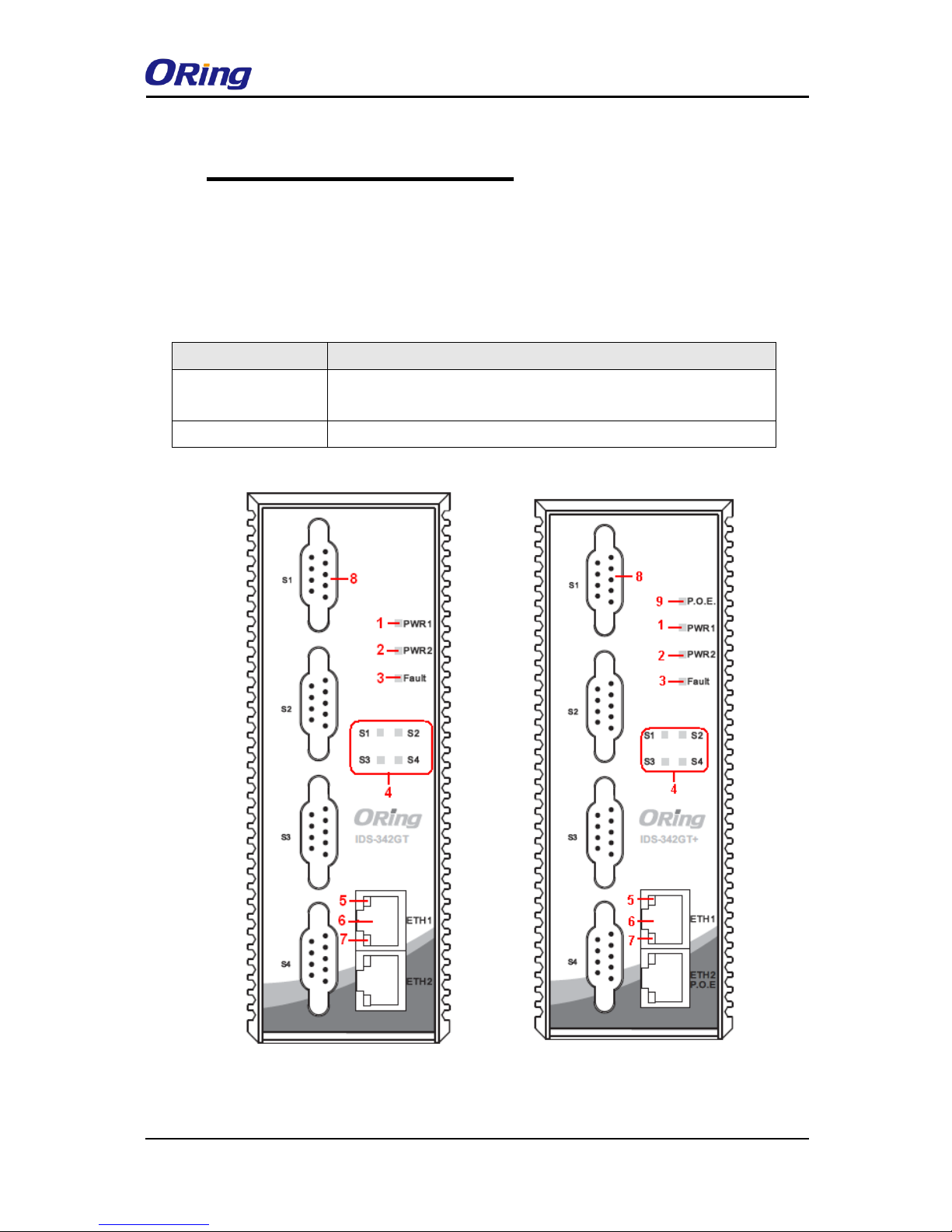

The series provides the following ports on the front panel. The Ethernet ports on the device
use RJ-45 connectors
Port
Description
Copper port
2 x 10/100/1000Base-T(X) ports (ETH2 of IDS-342GT+ is
PoE-enabled)
Serial port
4 x DB9 serial ports
IDS-342GT IDS-342GT+
Page 7
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
6
2.1.2 LED
LED
Color
Status
Description
PW1/2
Green
On
Power is on and function normally
PoE
Green
On
PoE power enabled
10/100/1000Base-T(X) Fast Ethernet ports
Speed
Green
On
Port running at 1000Mbps
Amber
On
Port running at 100Mbps.
Green/
Amber
Off
Port running at 10Mbps.
LNK/ACT
Green
On
Port is connected
Green
Blinking
Transmitting data
Fault
Amber
On
Faulty relay (power failure or port disconnected)
Serial ports
S1 – S4
Red
On
Receiving data
Green
On
Transmitting data
2.2 Top Panel
Below are the top panel components of the device:
1. Terminal blocks: PWR1, PWR2, Relay
2. Ground wire. For more information on how to ground the switch, please refer to 3.3.1
Grounding.
1. Power module 1 status
indicator
2. Power module 2 status
indicator
3. Faulty relay indicator
4. Indicator for serial data
communications
5. Indicator for LAN port speed
6. LAN port (ETH2 of IDS-342GT+
is PoE-enabled)
7. Indicator for LAN port
connection status
8. Serial port
9. PoE power indicator
Page 8
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
7
2.3 Rear Panel

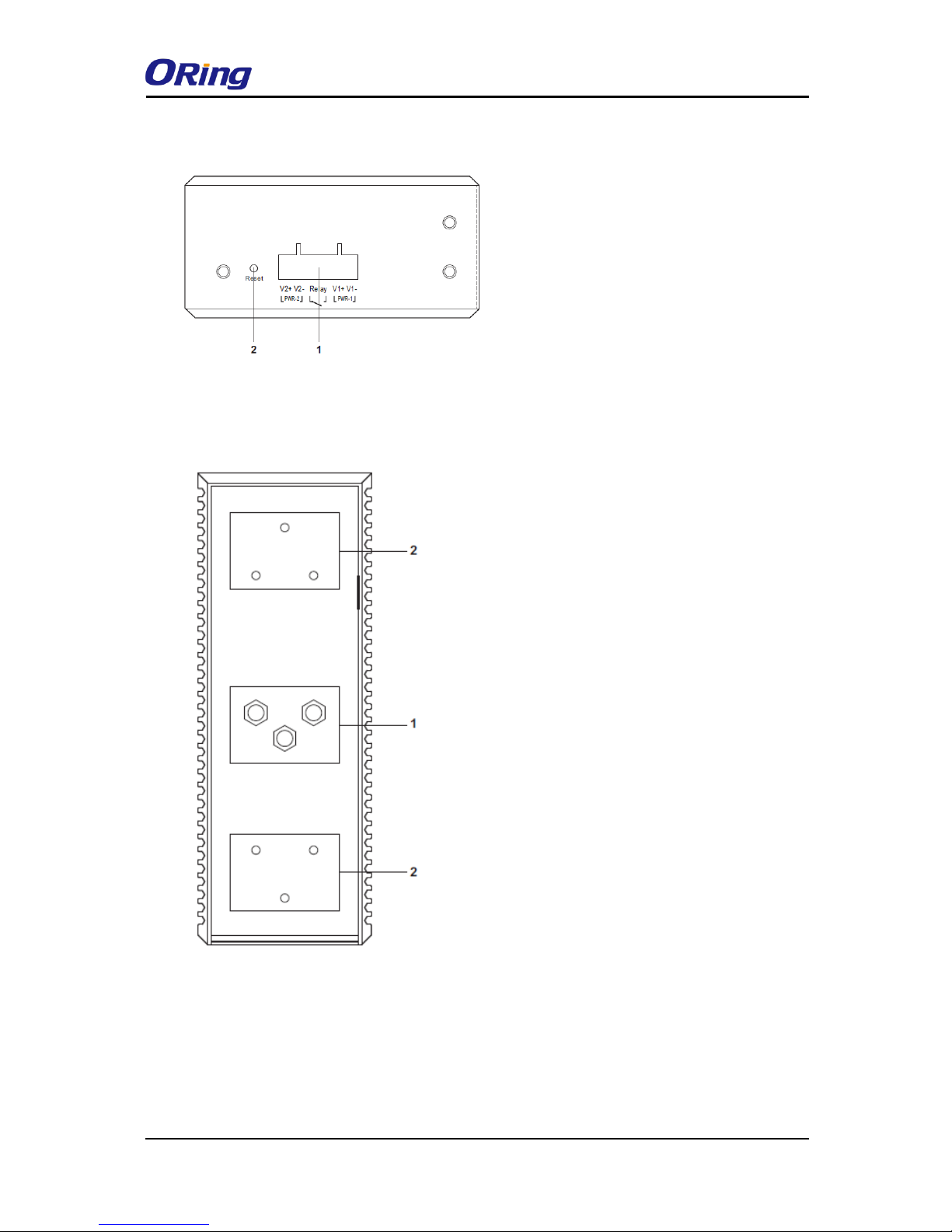

1. Terminal block with power connectors
2. Reset button
1. DIN-rail screw holes
2. Wall-mount screw holes
Page 9
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
8
Hardware Installation
3.1 DIN-rail Installation
The device comes with a DIN-rail kit to allow you to fasten the device to a DIN-rail in any
environments.

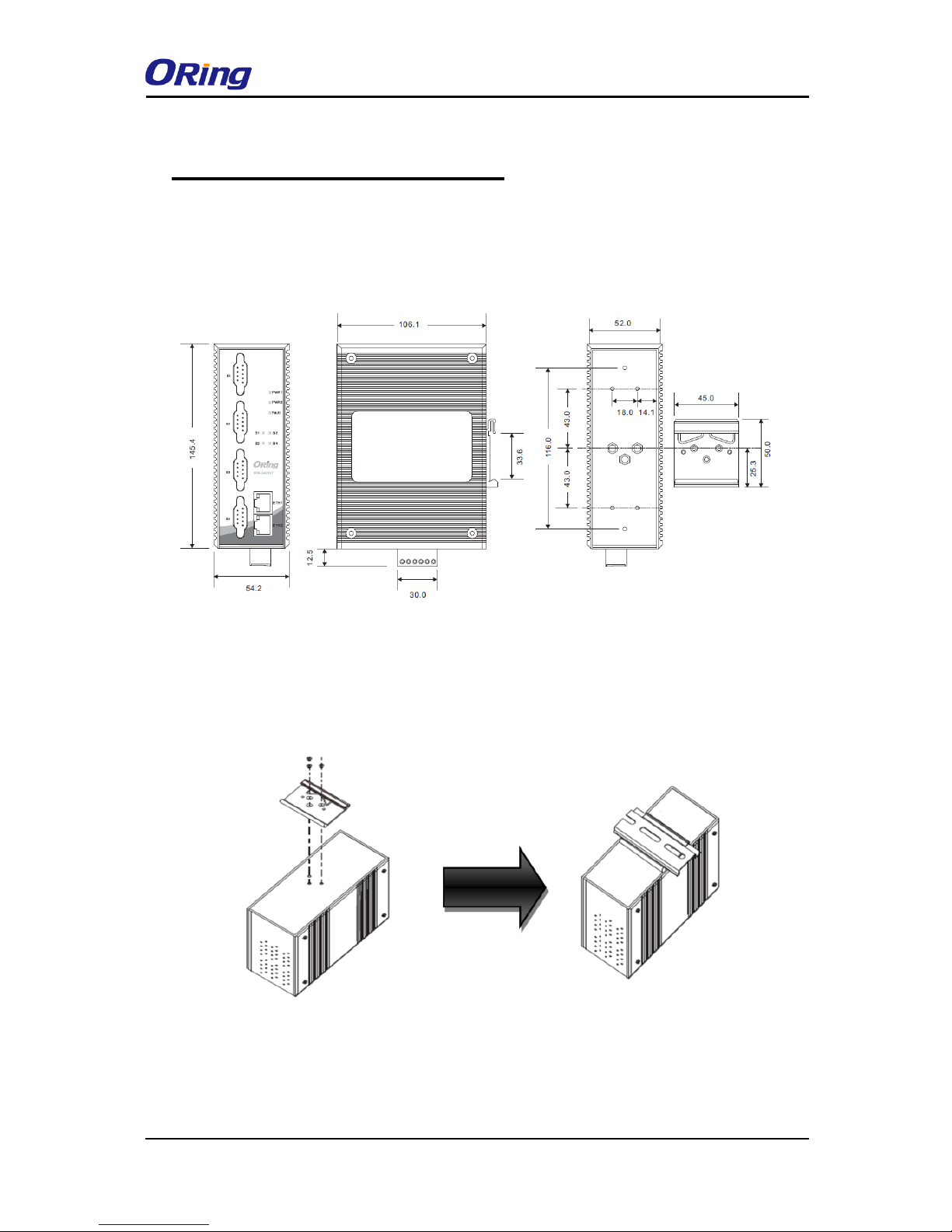

DIN-rail Kit Measurement (unit = mm)
Installing the device on the DIN-rail is easy. First, screw the Din-rail kit onto the back of the
device, right in the middle of the back panel. Then slide the device onto a DIN-rail from the
Din-rail kit and make sure the device clicks into the rail firmly.
3.2 Wall-mount Installation
Besides Din-rail, the device can be fixed to the wall via wall mount kits, which can be found in
the package
Page 10
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
9

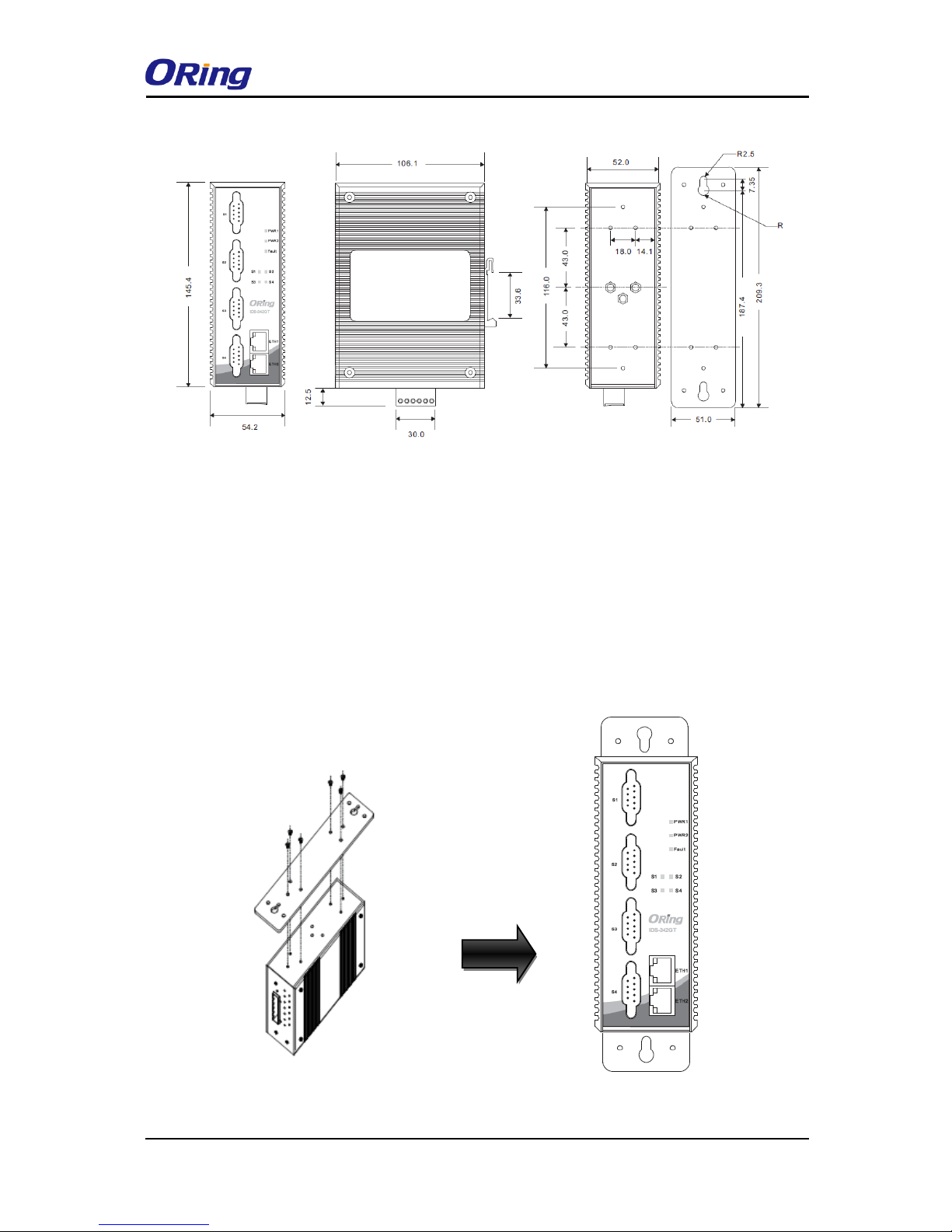

Wall-mount Kit Measurement (unit = mm)
To mount the device onto the wall, follow the steps:
Step 1: Screw the wall-mount kit onto the back of the device. A total of six screws are required,
as shown below.
Step 2: Use the device, with wall mount plates attached, as a guide to mark the correct
locations of the four screws.
Step 3: Insert a screw head through the large parts of the keyhole-shaped apertures, and then
slide the device downwards. Tighten the screw for added stability.
Page 11
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
10
3.3 Wiring
3.3.1 Grounding
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the ground pin on the power module to the grounding
surface prior to connecting devices.
3.3.2 Redundant Power Inputs
The device has two sets of DC power inputs on a 6-pin terminal block located on top of the
device. Follow the steps below to wire the power input on the terminal block.
Step 1: insert the negative/positive wires into the V-/V+ terminals, respectively.
Step 2: to keep the wires from pulling loose, use a small flat-blade screwdriver to tighten the
wire-clamp screws on the front of the terminal block connector.
3.4 Connection
3.4.1 Cables
10/100BASE-T(X) Pin Assignments
The device has a standard Ethernet port. According to the link type, the device uses CAT 3,
ATTENTION
1. Be sure to disconnect the power cord before installing and/or wiring your
devices.
2. Calculate the maximum possible current in each power wire and common
wire. Observe all electrical codes dictating the maximum current
allowable for each wire size.
3. If the current goes above the maximum ratings, the wiring could overheat,
causing serious damage to your equipment.
4. Use separate paths to route wiring for power and devices. If power wiring
and device wiring paths must cross, make sure the wires are
perpendicular at the intersection point.
5. Do not run signal or communications wiring and power wiring through the
same wire conduit. To avoid interference, wires with different signal
characteristics should be routed separately.
6. You can use the type of signal transmitted through a wire to determine
which wires should be kept separate. The rule of thumb is that wiring
sharing similar electrical characteristics can be bundled together
7. You should separate input wiring from output wiring
8. It is advised to label the wiring to all devices in the system
WARNING
Do not disconnect modules or wires unless power has been switched off or
the area is known to be non-hazardous. The devices may only be
connected to the supply voltage shown on the type plate.
Page 12
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
11
4, 5,5e UTP cables to connect to any other network devices (PCs, servers, switches, routers,
or hubs). Please refer to the following table for cable specifications.
Cable Types and Specifications:
Cable
Type
Max. Length
Connector
10BASE-T
Cat. 3, 4, 5 100-ohm
UTP 100 m (328 ft)
RJ-45
100BASE-TX
Cat. 5 100-ohm UTP
UTP 100 m (328 ft)
RJ-45
1000
BASE-T
Cat. 5/Cat. 5e
100-ohm UTP
UTP 100 m (328ft)
M12
With 10/100Base-T(X) cables, pins 1 and 2 are used for transmitting data, and pins 3 and 6
are used for receiving data.
10/100 Base-T(X) RJ-45 Pin Assignments :
Pin Number
Assignment
1
TD+ 2 TD-
3
RD+
4
Not used
5
Not used
6
RD-
7
Not used
8
Not used
1000 Base-T RJ-45 Pin Assignments :
Pin Number
Assignment
1
BI_DA+
2
BI_DA-
3
BI_DB+
4
BI_DC+
5
BI_DC-
6
BI_DB-
7
BI_DD+
8
BI_DD-
The device also supports auto MDI/MDI-X operation. You can use a straight-through cable to
Page 13
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
12
connect PC and the device.
10/100 Base-T(X) MDI/MDI-X Pin Assignments.
Pin Number
MDI port
MDI-X port
1
TD+(transmit)
RD+(receive)
2
TD-(transmit)
RD-(receive)
3
RD+(receive)
TD+(transmit)
4
Not used
Not used
5
Not used
Not used
6
RD-(receive)
TD-(transmit)
7
Not used
Not used
8
Not used
Not used
1000Base-T(X) MDI/MDI-X Pin Assignments:
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.

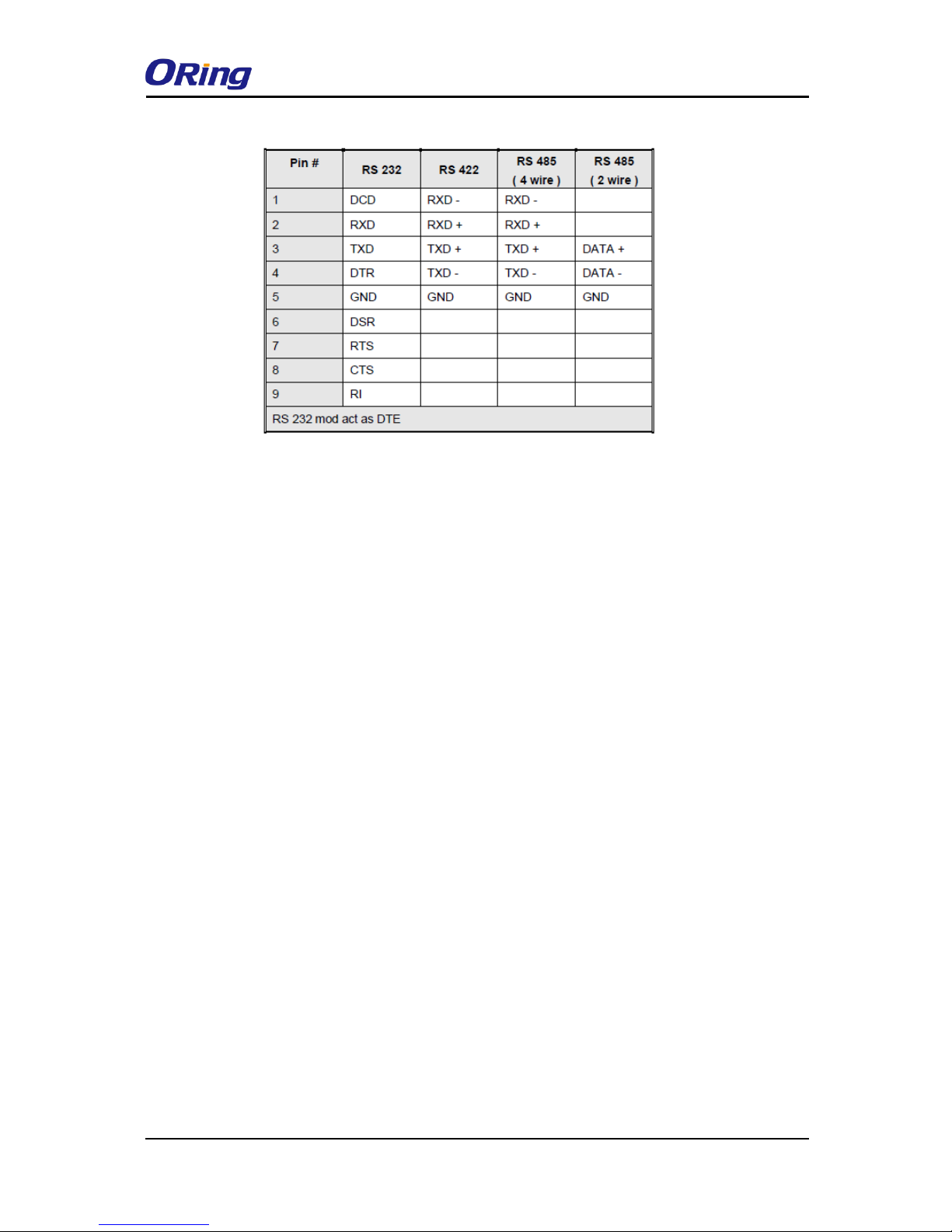

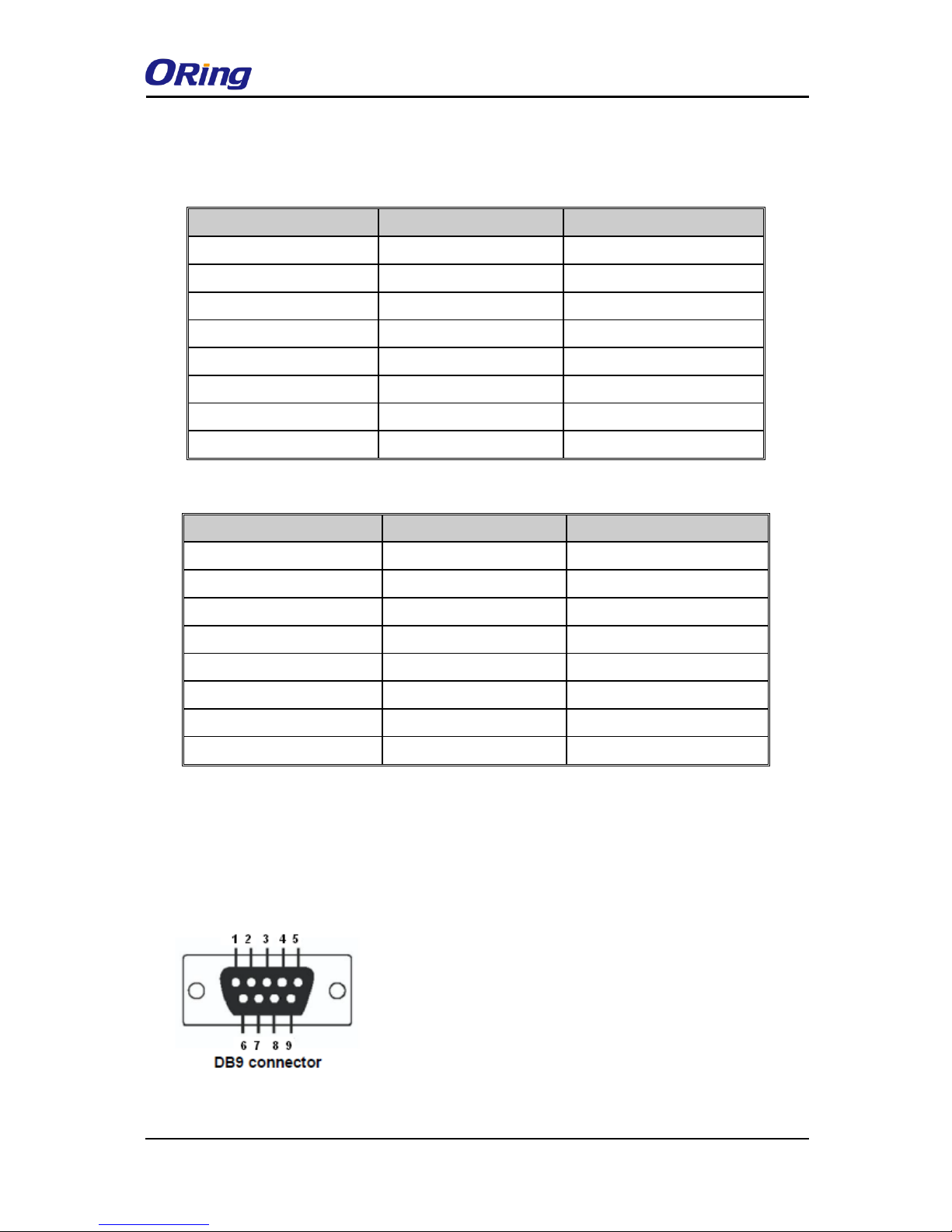

DB9 serial port wiring
The serial ports can be connected using a DB9 cable. The DB9 connector supports RS232 /
RS422 / RS485 operation modes. Please refer to the following table for the pin assignments of
the DB9 connector.
Pin Number
MDI port
MDI-X port
1
BI_DA+
BI_DB+
2
BI_DA-
BI_DB-
3
BI_DB+
BI_DA+
4
BI_DC+
BI_DD+
5
BI_DC-
BI_DD-
6
BI_DB-
BI_DA-
7
BI_DD+
BI_DC+
8
BI_DD-
BI_DC-
Page 14
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
13

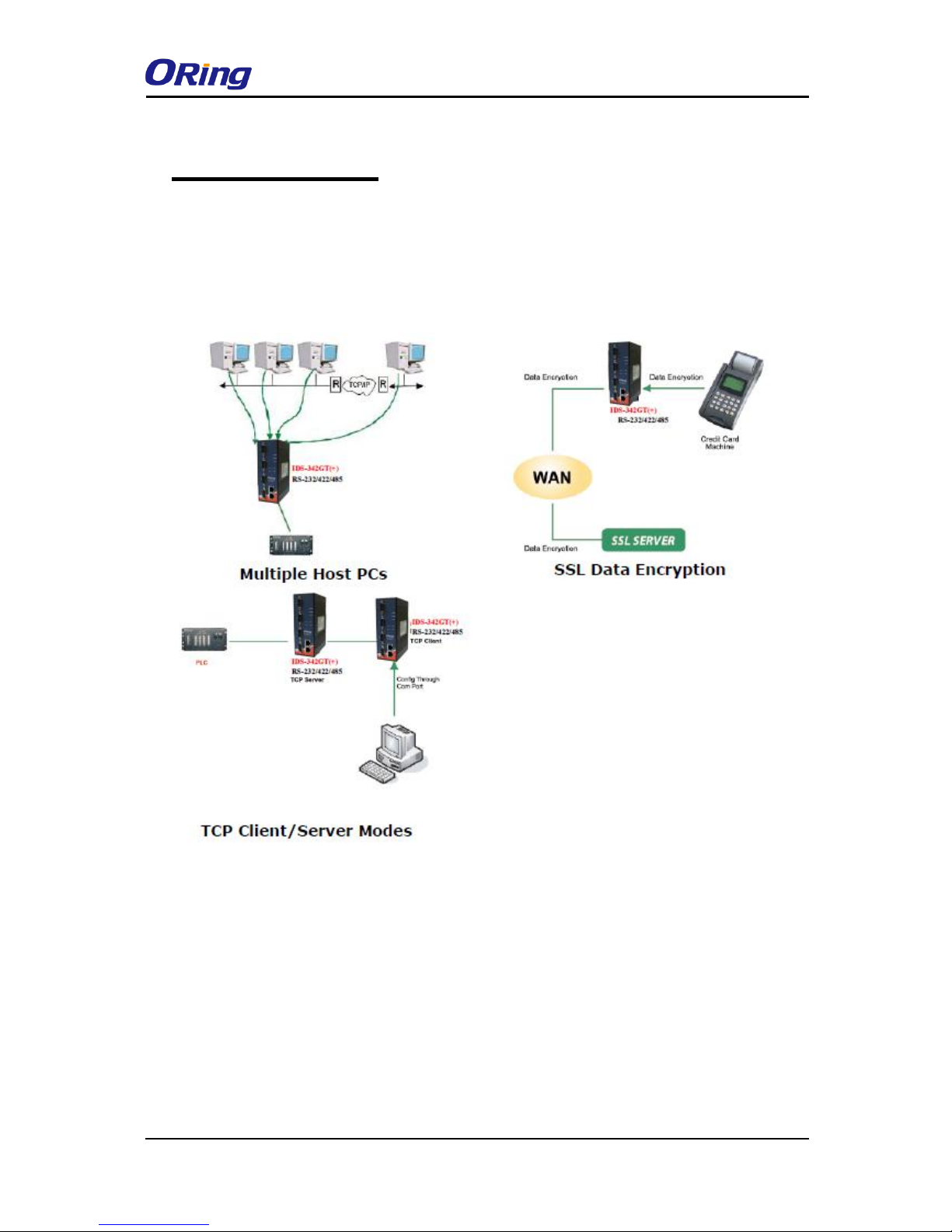

Page 15
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
14
Management
4.1 DS-Tool
The Windows utility DS-Tool is a powerful Windows utility for DS series. It supports device
discovery, device configuration, group setup, group firmware update, and monitoring functions.
The tool enables you to easily install and configure devices on the network.
4.1.1 Install DS-Tool

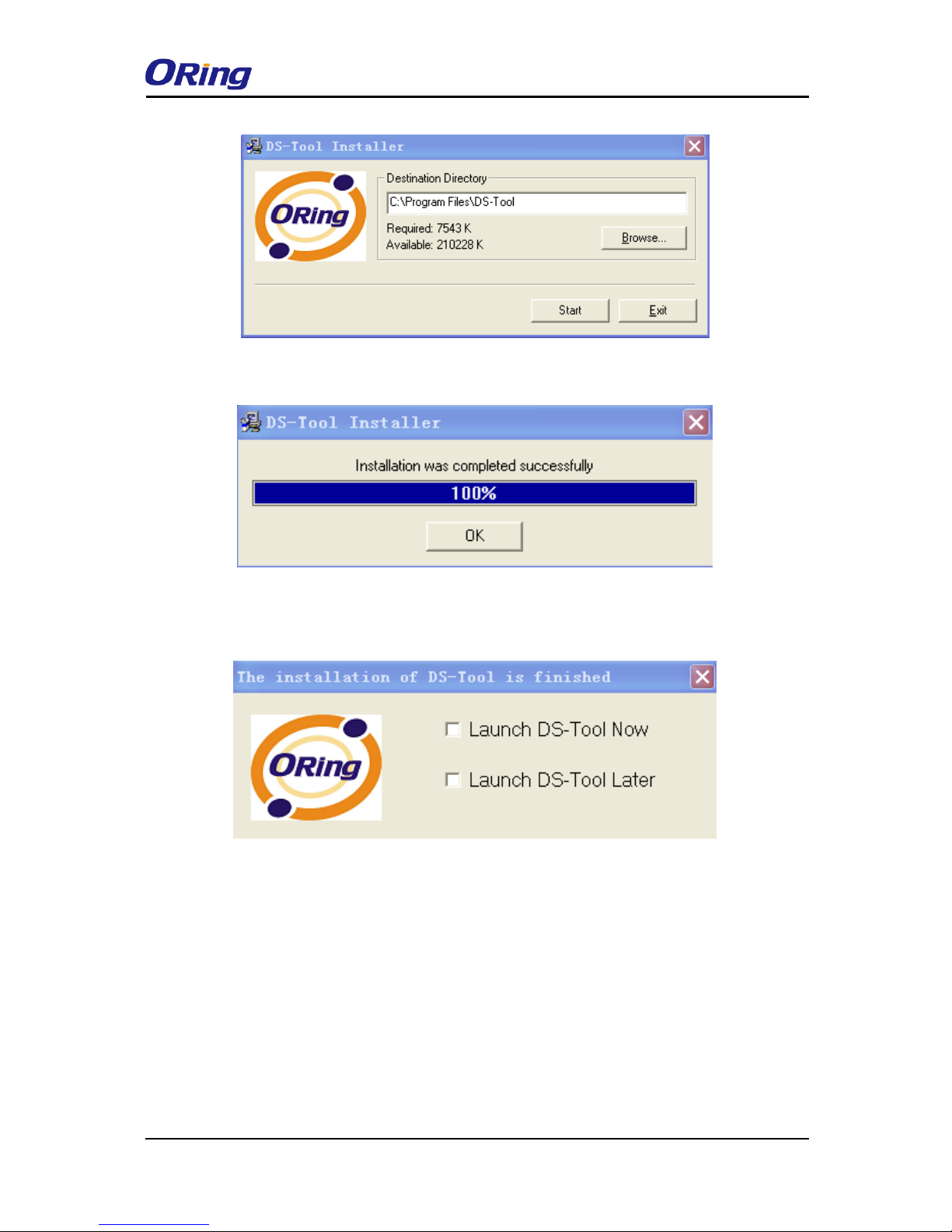

Follow the steps below to install the tool.
Step 1: Run the Setup program by clicking Start after selecting the folder for DS-Tool.
Page 16
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
15
Step 2: When installation completes successfully, click OK.
Step 3: You can launch the tool right immediately by checking Launch DS-Tool Now or launch
it later by checking Launch DS-Tool Later.
4.1.2 Using DS-Tool
Explore device servers

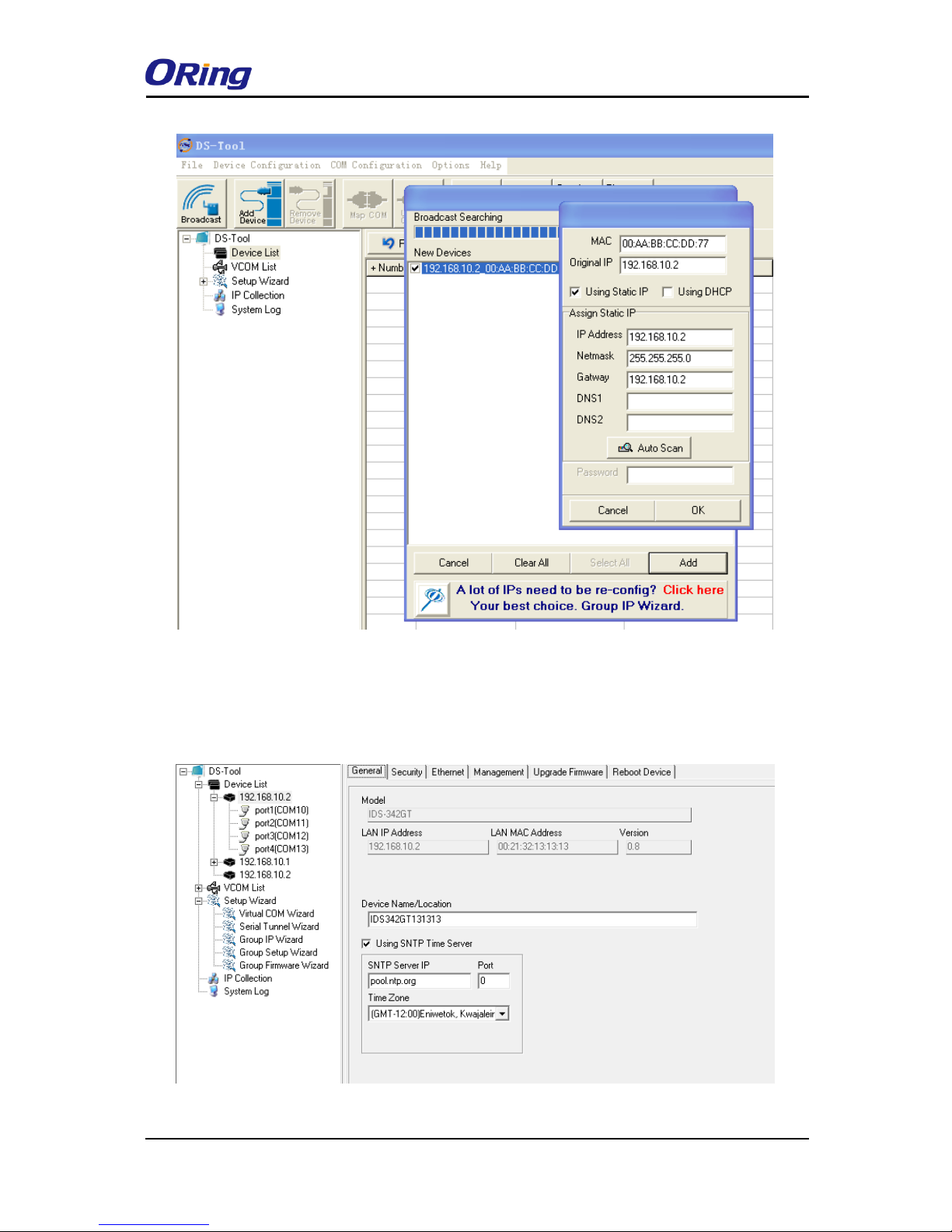

DS-Tool will broadcast to the network and search all available DS devices in the network
automatically. The default IP address of the device is “192.168.10.2”. Select the device you
wish to use and press Add button.
You can set a static IP address or use the DHCP client mode to acquire an IP address
automatically. Click OK and the device will be added.
Page 17
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
16
4.1.3 Configure Device Servers
General
This page enables you to perform general configuration for the device, includes the device
name, SNTP server, and auto IP report.
Page 18
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
17
Label
Description
Device Name/Location
You can input the device name or related information in this
field. By clicking Locate On, you can locate the serial server’s
position.
Using SNTP Time Server
If you want to set the time via a SNTP time server, check the
box and input related information such as the SNTP server
domain name or IP address and the port number, and select a
time zone.

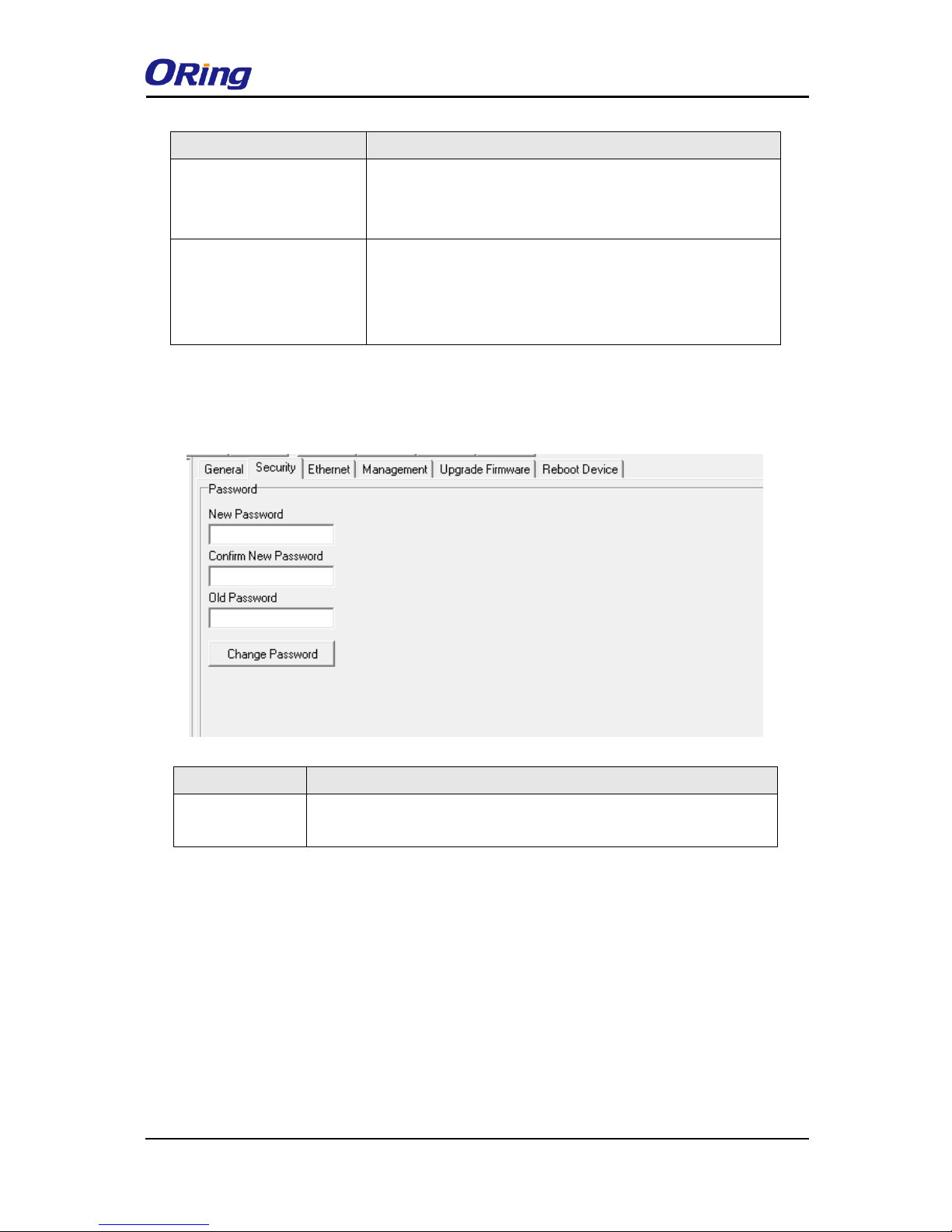

Security
This page allows you to set up access IP tables for your device to allow authorized and deny
unauthorized access, thereby ensuring data security and facilitating device management.
Label
Description
Password
You can set the password to prevent unauthorized access from your
server. Factory default is no password.
Networking

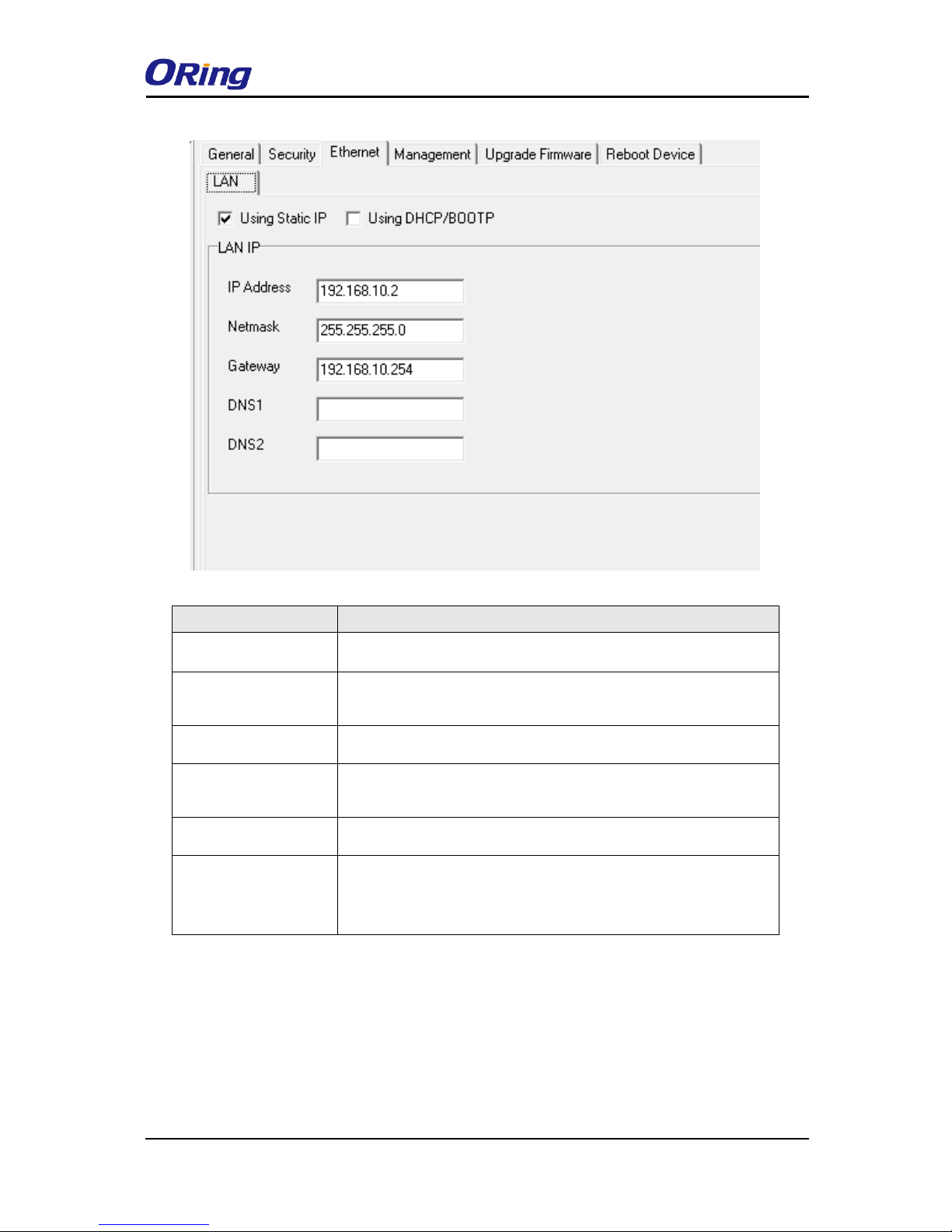

You must assign a valid IP address for the device before attaching it in your network
environment. Your network administrator should provide you the IP address and related
settings. The IP address must be unique within the network (otherwise, DS will not have a valid
connection to the network). You can choose from three possible “IP configuration” modes:
Static, DHCP/BOOTP. The factory default IP address is “192.168.10.2”
Page 19
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
18
Label
Description
Using Static IP
Manually assign an IP address to the device.
Using DHCP/BOOTP
Check this box to have the IP address automatically assigned by
a DHCP server in your network.
IP Address
Enter the IP address of the device
Netmask
All devices on the network must have the same subnet mask to
communicate on the network.
Gateway
Enter the IP address of the router in you network.
DNS1/2
Enter the IP addresses of the primary and secondary DNS
servers. The DNS server translates domain names into IP
address.

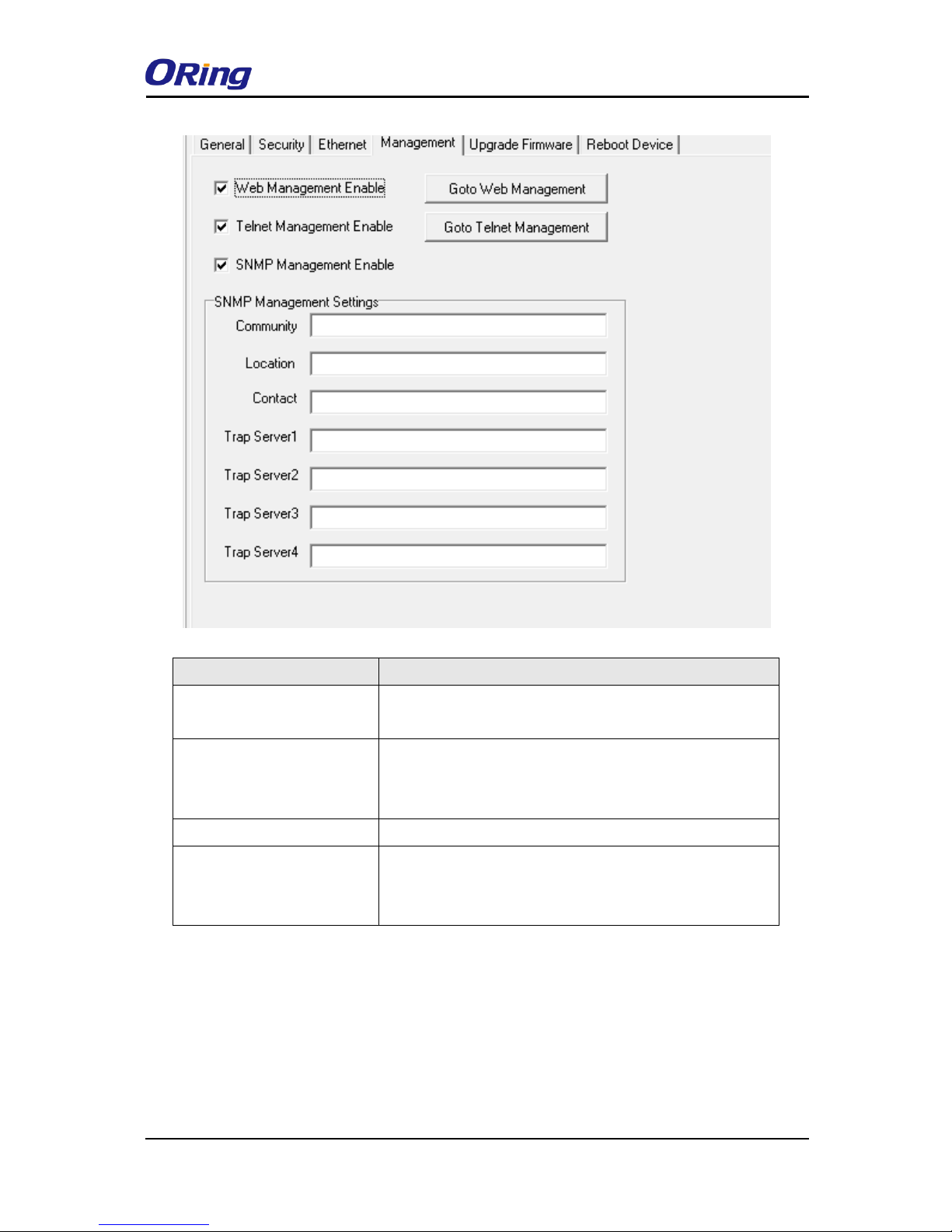

Management
This section enables you to perform management functions using different interfaces including
the Web, Telnet, and SNMP.
Page 20
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
19
Label
Description
Web Management Enable
Check the box to enable management from Web. Click
Goto Web Management button to access the Web.
Telnet Management Enable
Check the box to enable management by Telnet. Click
Goto Telnet Management button to execute Telnet
command.
SNMP Management Enable
Check the box to enable management by SNMP.
SNMP Management
Settings
If SNMP Management Enable is checked, you need to fill
in the SNMP settings in these fields by assigning the
Community, Location, Contact, and Trap Server.

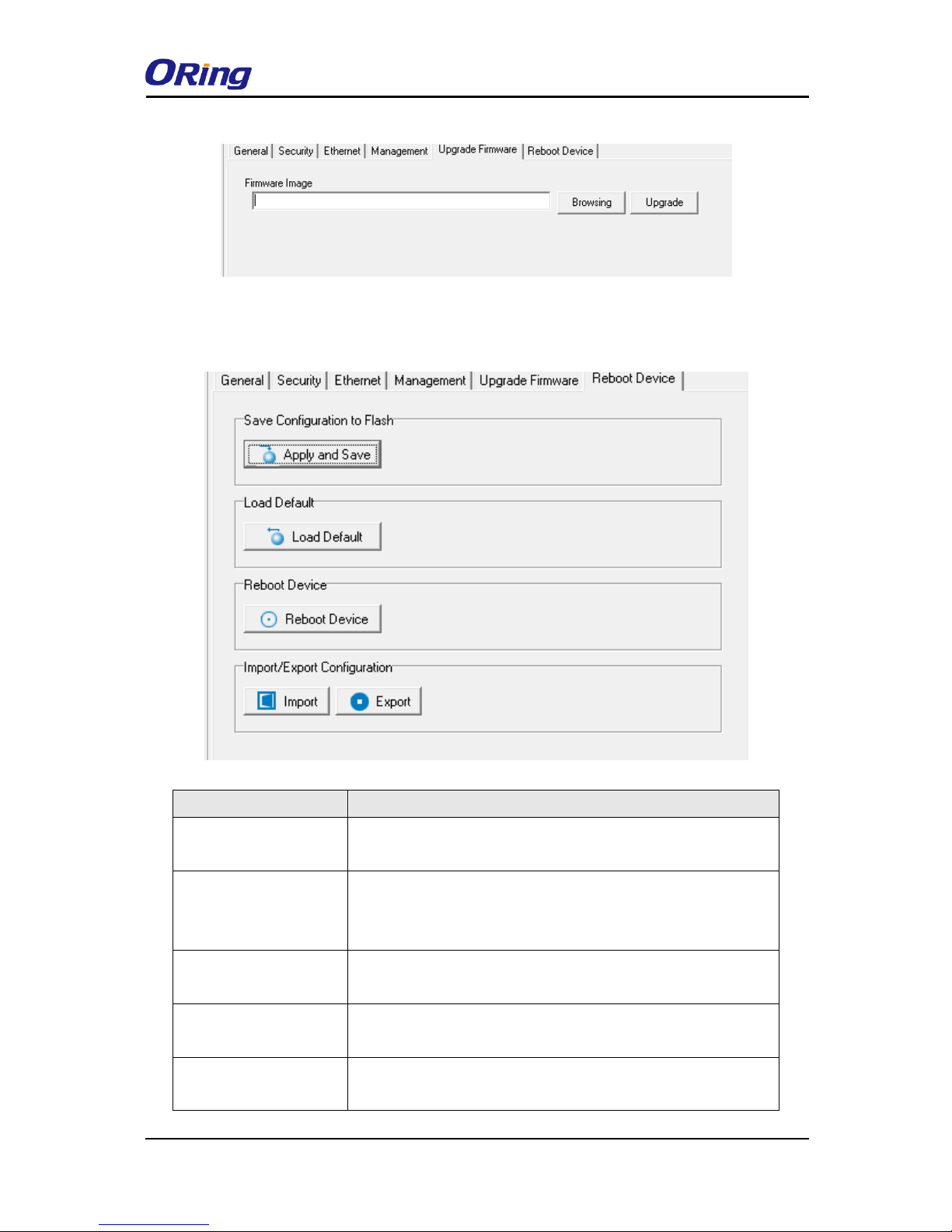

Upgrade Firmware
You can find up-to-date firmware from ORing’s website. To update firmware for the device,
save the firmware file in your host PC, and then specify the file location by clicking on the
Browsing button and continue operation by pressing Update.
Page 21
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
20
Save/Load
This page allows you to save the current configuration file to any local drive or any network
drive to which your management computer can connect.
Label
Description
Apply and Save
Click this button will save all applied settings into the flash of the
appliance.
Load Default
All parameters changes to factory’s default except network
settings. If you want to load all factory default, you need to press
Reset button on the device (Hardware restore).
Reboot Device
Click this button will reboot device and need to broadcast again
in order to search the device (warm start).
Import Configuration
Click this button will retrieve saved configuration file and apply it
to in current device.
Export Configuration
Saving the current parameters to a file and export it to a current
host.
Page 22
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
21

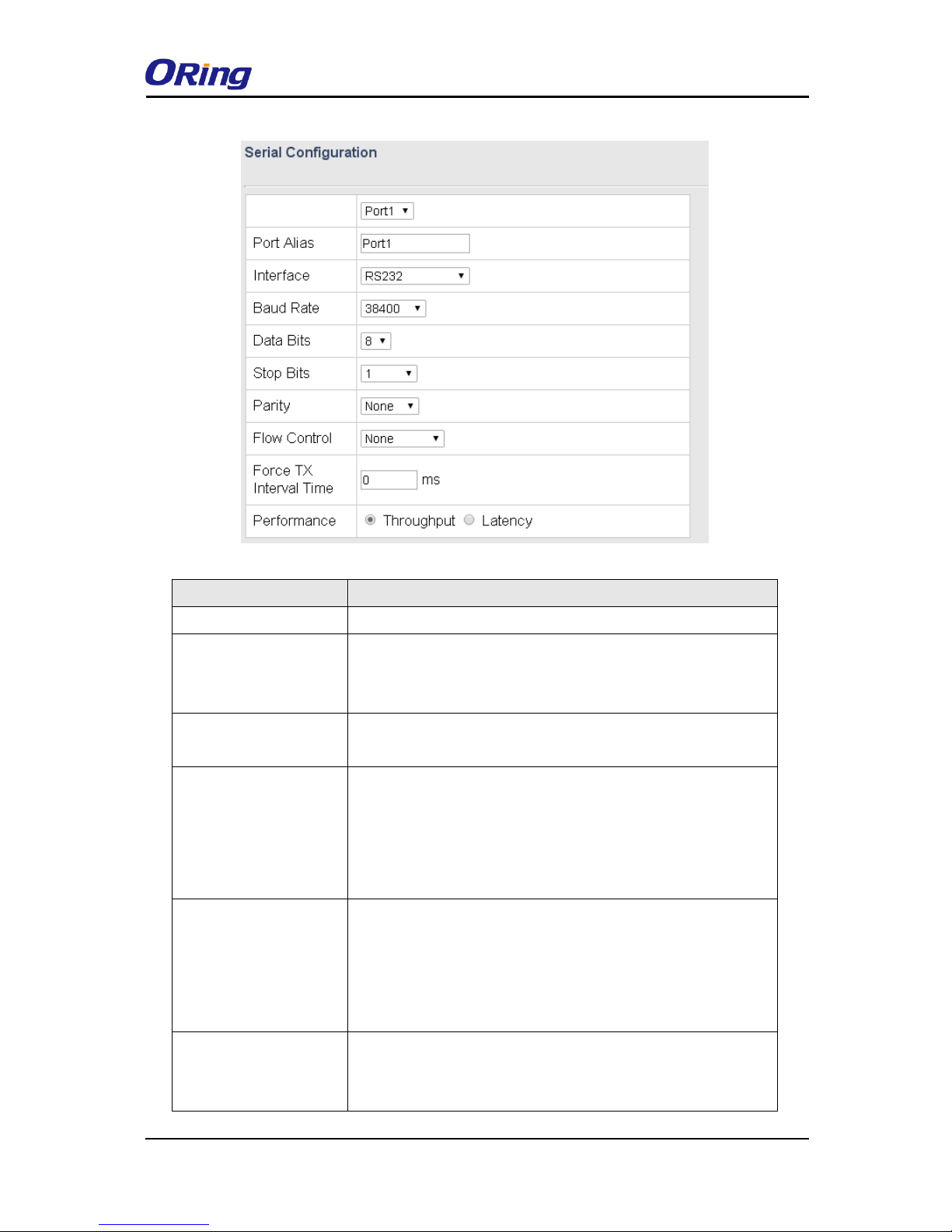

4.1.4 Configure Serial Port

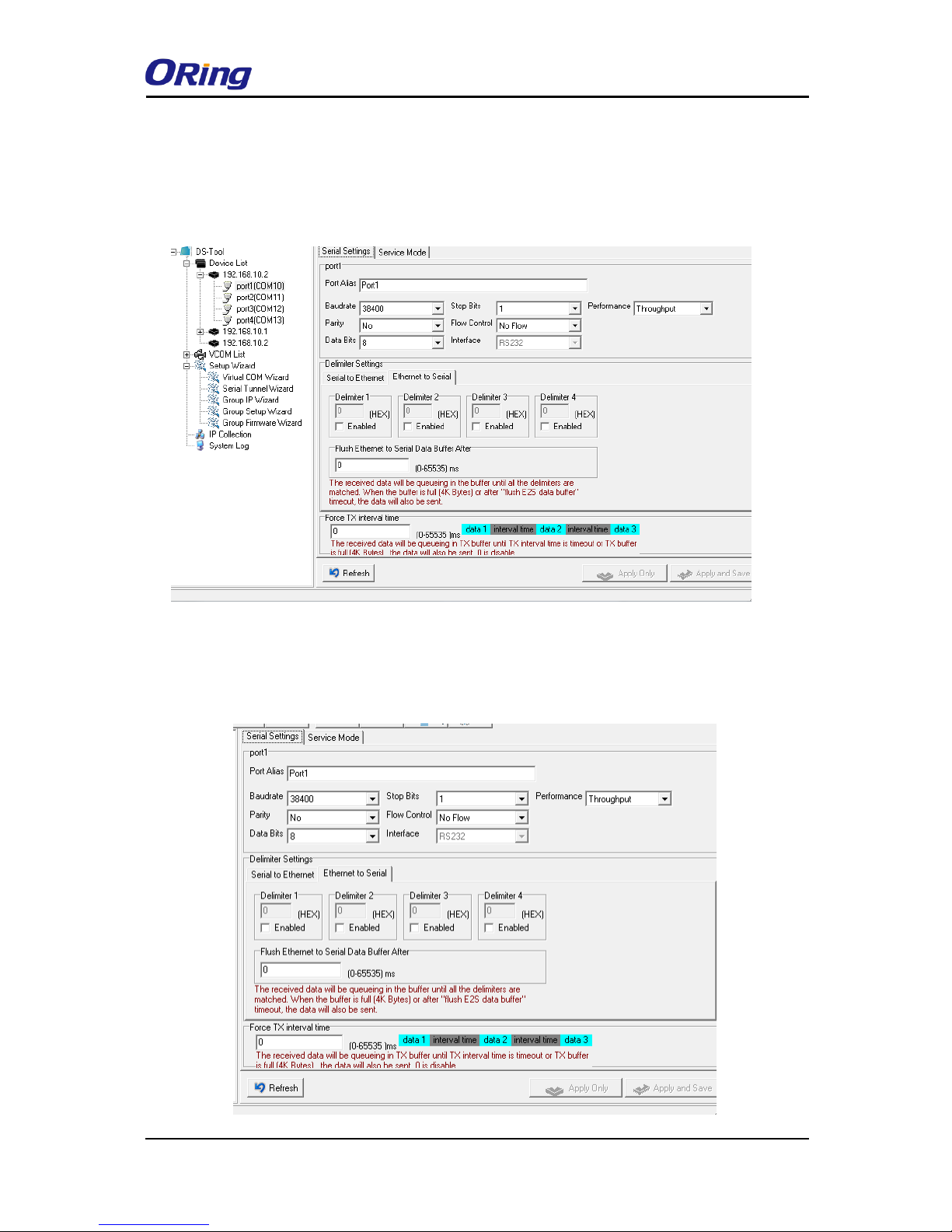

You can configure the settings for each serial port by clicking on the port number in the left
panel of the window. Once you click on a port, the following screen will show up in the right
panel.
Serial Settings
The page allows you to configure serial parameters, serial communication modes, data
packing options, and event notifications.
Page 23
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
22
Label
Description
Port Alias
Port alias enables the device server to easily identify the serial
devices connected to it. Enter an identifying name to be
identified by the connected device.
Baud rate
Baud rate is the rate at which data is transferred over a serial
link. When setting the baud rate to 9600bps, the serial port will
transfer a maximum of 9600 bits per second. You can select a
baud rate from the drop-down list which ranges from 110bps to
460800bps
Parity
Parity is a simple form of error detection which guards data on
the cable between the connected devices and the serial port.
Available options include:
None: parity checking is not performed and the parity bit is not
transmitted.
Odd: the number of mark bits in the data is counted, and the
parity bit is asserted or unasserted to obtain an odd number of
mark bits.
Even: the number of mark bits in the data is counted, and the
parity bit is asserted or unasserted to obtain an even number of
mark bits.
Mark: the parity bit is always set to the mark signal condition
(logical 1)
Space: the last transmitted data bit will always be a logical 0
Data Bits
Choose the number of data bits to transmit. You can
configure data bits to be 5, 6, 7, or 8. Data is transmitted as a
series of five, six, seven, or eight bits (five and six bit data
formats are used rarely for specialized communications
equipment).
Stop Bits
Choose the number of bits used to indicate the end of a byte.
You can configure stop bits to be 1 or 2(1.5). If Stop Bits is 1.5,
the stop bit is transferred for 150% of the normal time used to
transfer one bit. Both the computer and the peripheral device
must be configured to transmit the same number of stop bits.
Flow Control
Serial communication consists of hardware flow control and
software flow control, so called as the control is handled by
software or hardware. XOFF and OXN is software flow control
while RTS/CTS or DTR/DSR is hardware flow control.
Page 24
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
23
Choose XOFF to tell the computer to stop sending data; then
the receiving side will send an XOFF character over its Tx line
to tell the transmitting side to stop transmitting. Choose XON to
tell the computer to begin sending data again; then the
receiving side will send an XON character over its Tx line to tell
the transmitting side to resume transmitting. In hardware flow
control mode, when the device is ready to receive data, it sends
a CTS (Clear To Send) signal to the device on the other end.
When a device has something it wants to send, it will send a
RTS (Ready To Send) signal and waits for a CTS signal to
come back its way. These signals are sent apart from the data
itself on separate wires.
Interface
Choose an interface for your serial device. Available interfaces
include RS-232, RS-422, RS-485(2-wires), and
RS-485(4-wires),
Performance
Throughput: guarantees highest transmission speed.
Latency: guarantees shortest response time.

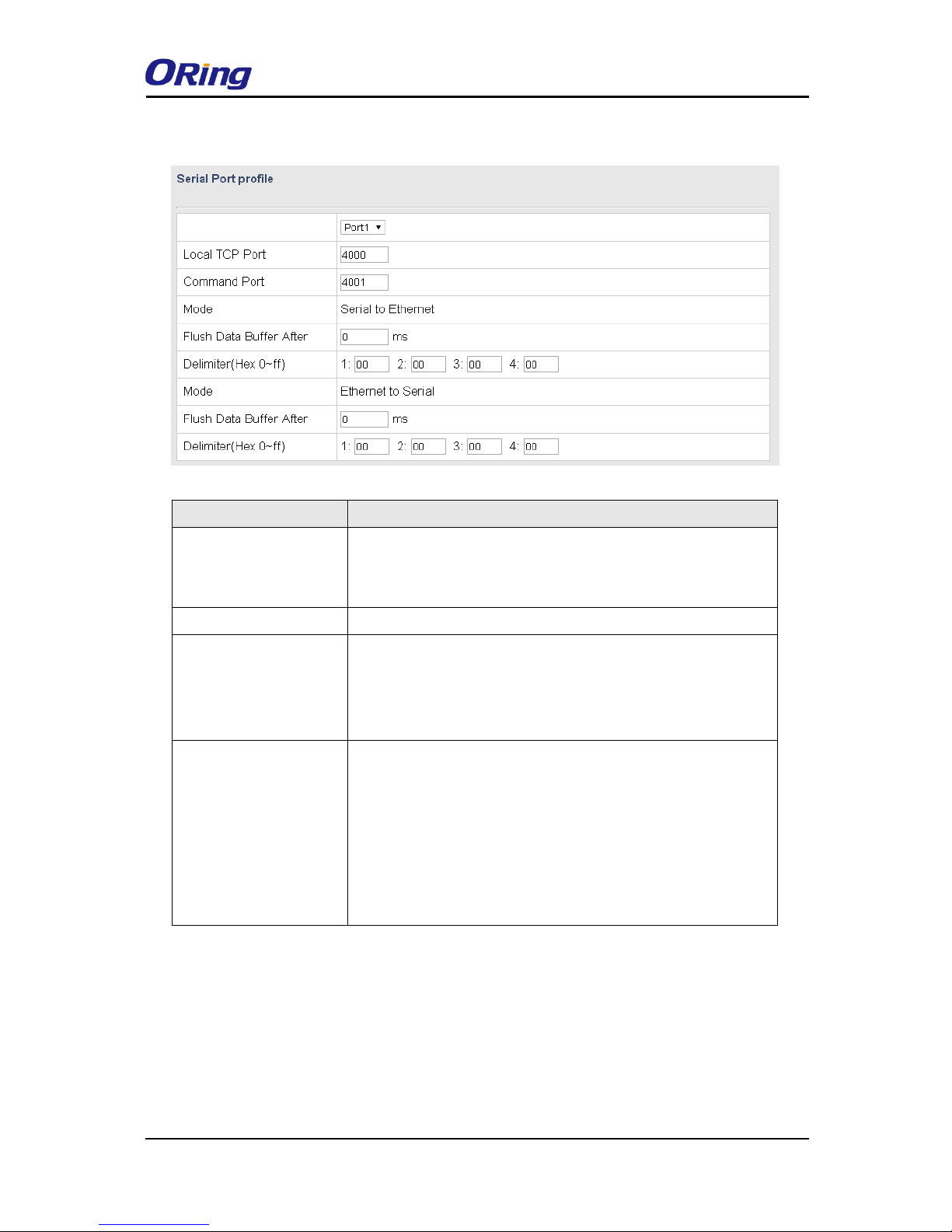

Delimiter Settings
Serial to Ethernet / Ethernet to Serial
For advanced data packing options, you can specify delimiters
for Serial to Ethernet and / or Ethernet to Serial
communications. You can define max. 4 delimiters (00~FF,
Hex) for each way. The data will be hold until the delimiters are
received or the option.
Flush Serial to Ethernet data buffer times out. 0 means
disable. Factory default is 0.
Flush Data Buffer After:
The received data will be queuing in the buffer until all the
delimiters are matched. When the buffer is full (4K Bytes) or
after "flush S2E data buffer" timeout the data will also be sent.
You can set the time from 0 to 65535 seconds.
Force TX Interval Time
Force TX interval time is to specify the timeout when no data
has been transmitted. When the timeout is reached or TX buffer
is full (4K Bytes), the queued data will be sent. 0 means
disable. Factory default value is 0.
Service Mode
Virtual COM Mode
Page 25
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
24

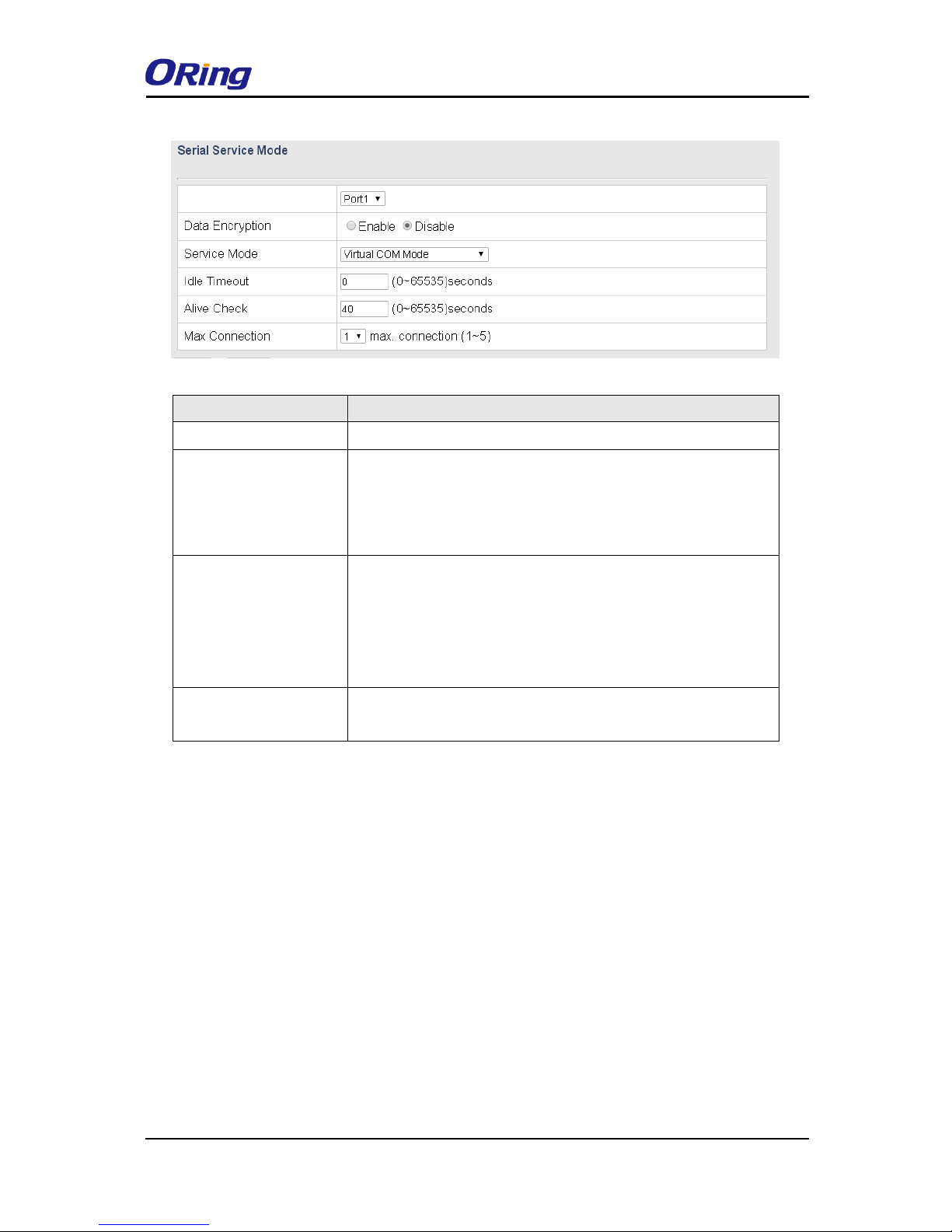

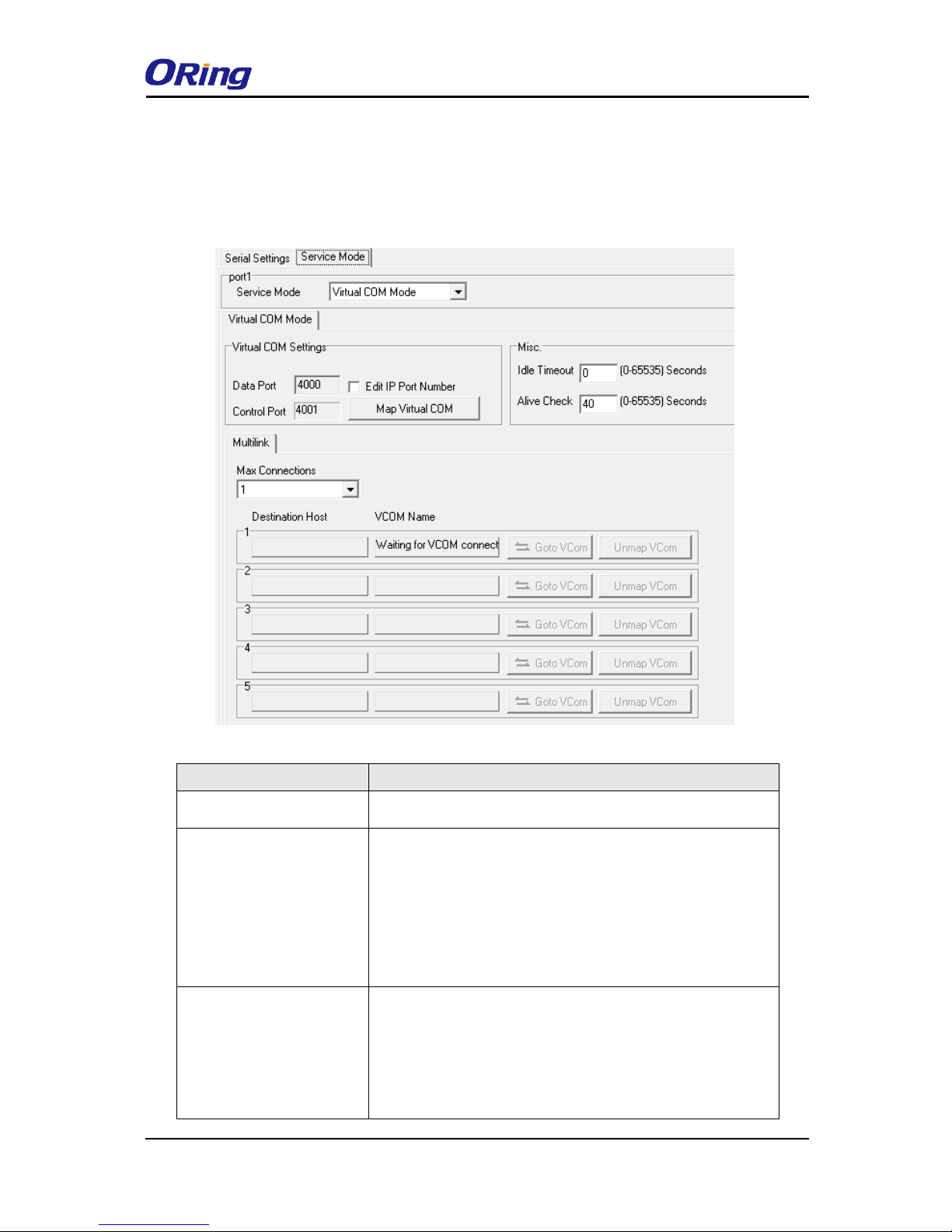

In Virtual COM Mode, the driver establishes a transparent connection between host and serial
device by mapping the port of the serial server serial port to a local COM port on the host
computer. Virtual COM Mode also supports up to 5 simultaneous connections, so that multiple
hosts can send or receive data by the same serial device at the same time.
Label
Description
Data Port
Set the port number for data transmission.
Idle Timeout
When a serial port stops data transmission for a defined
period of time (Idle Timeout), the connection will be closed
and the port will be freed and try to connect with other hosts.
0 means the function is disabled which is also the factory
default value. If multilink is configured, only the first host
connection is effective for this setting.
Alive Check
The serial device will send a TCP alive-check package in
each defined time interval (Alive Check) to remote host to
check the the status of TCP connections. If the TCP
connection is not alive, the connection will be closed and the
port will be freed. 0 means the function is disabled which is
Page 26
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
25
also the factory default value.
Max Connection
The number of max connections can be supported
simultaneously is 5; default value is 1.
Map Virtual COM
Select a Virtual COM name to map on.

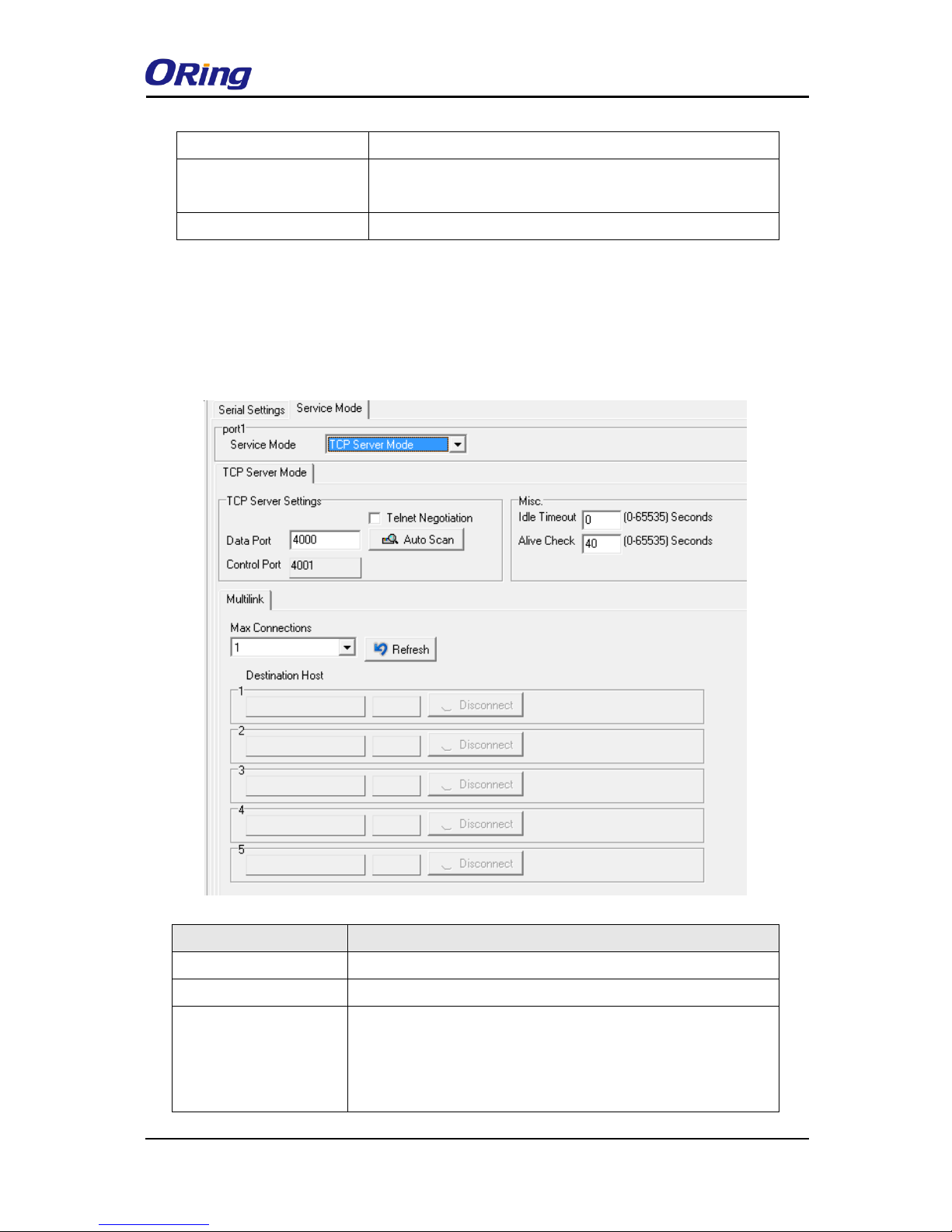

TCP Server Mode

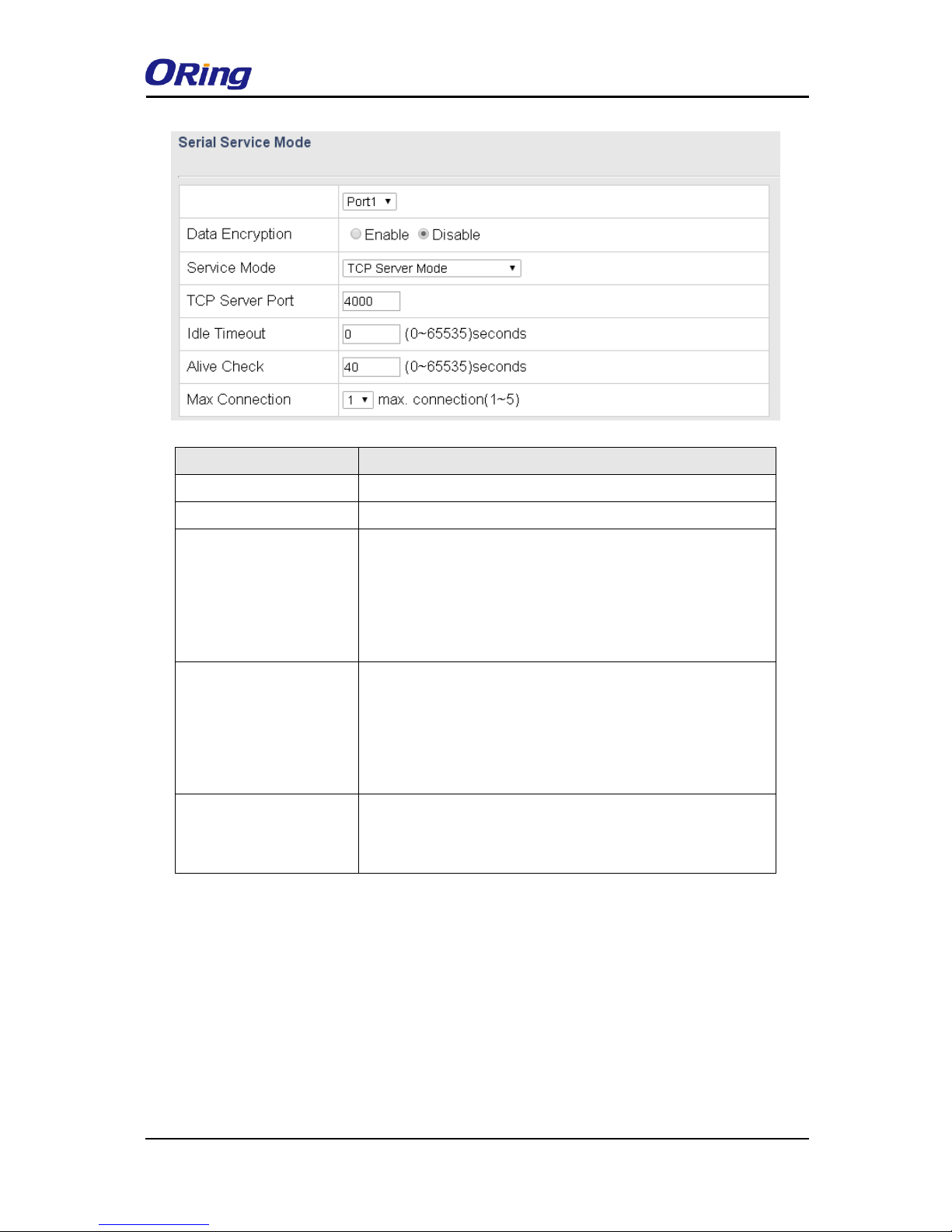

In TCP Server mode, the serial port on the device server is assigned a unique port number.
The host computer initiates contact with the device server, establishes the connection, and
receives data from the serial device. Five simultaneous connections are supported in this
mode, enabling multiple hosts to collect data from the same serial device at the same time.
Label
Description
Data Port
Set the port number for data transmission.
Auto Scan
Scan the data port automatically.
Idle Timeout
When a serial port stops data transmission for a defined period
of time (Idle Timeout), the connection will be closed and the port
will be freed and try to connect with other hosts. 0 means the
function is disabled which is the factory default value. If multilink
Page 27
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
26
is configured, only the first host connection is effective for this
setting.
Alive Check
The serial device will send a TCP alive-check package in each
defined time interval (Alive Check) to remote host to check the
TCP connection. If the TCP connection is not alive, the
connection will be closed and the port will be freed. 0 means the
function is disabled which is the factory default value.
Max Connection
The number of maximum connections can be support
simultaneously is 5; default value is 1.
Destination Host
Input the IP address of the host.

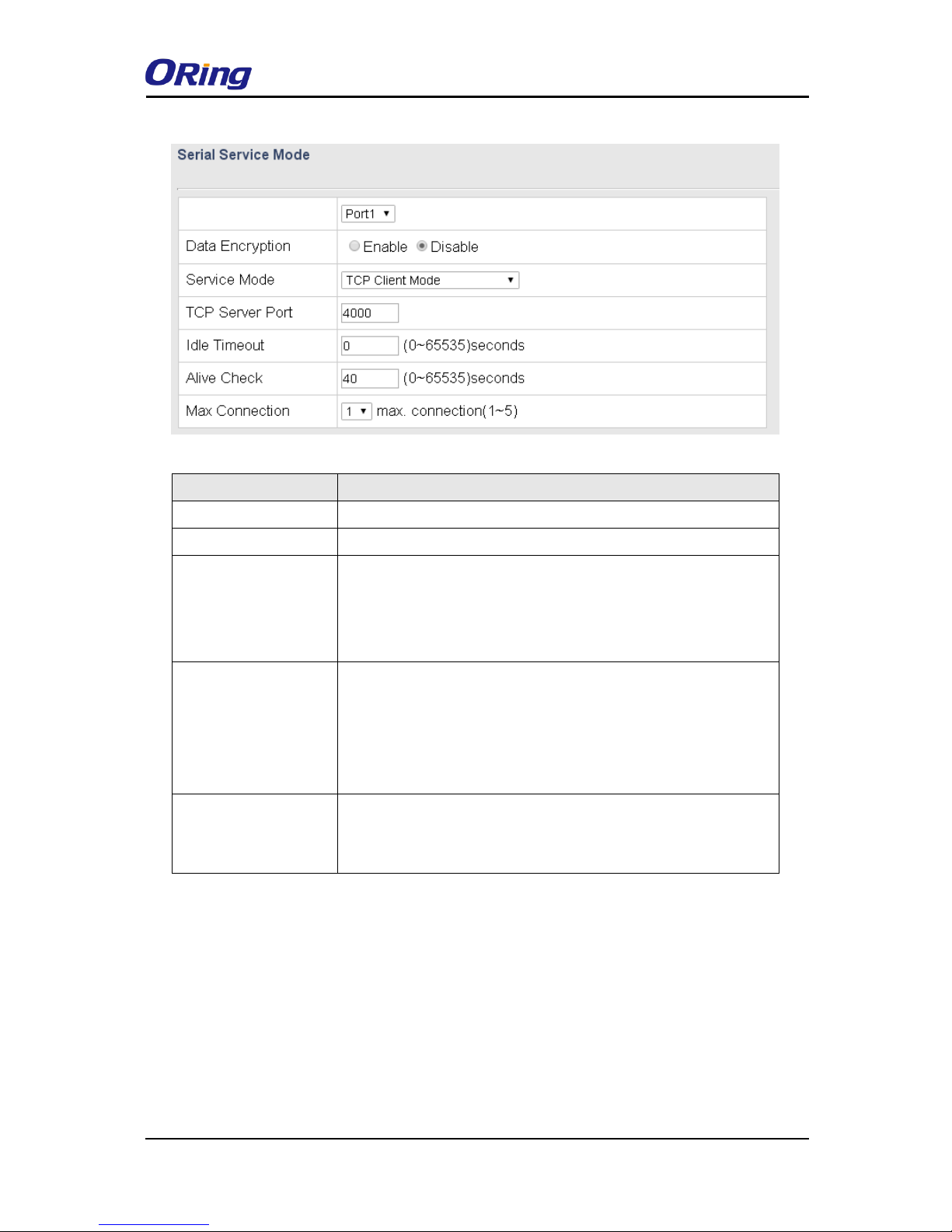

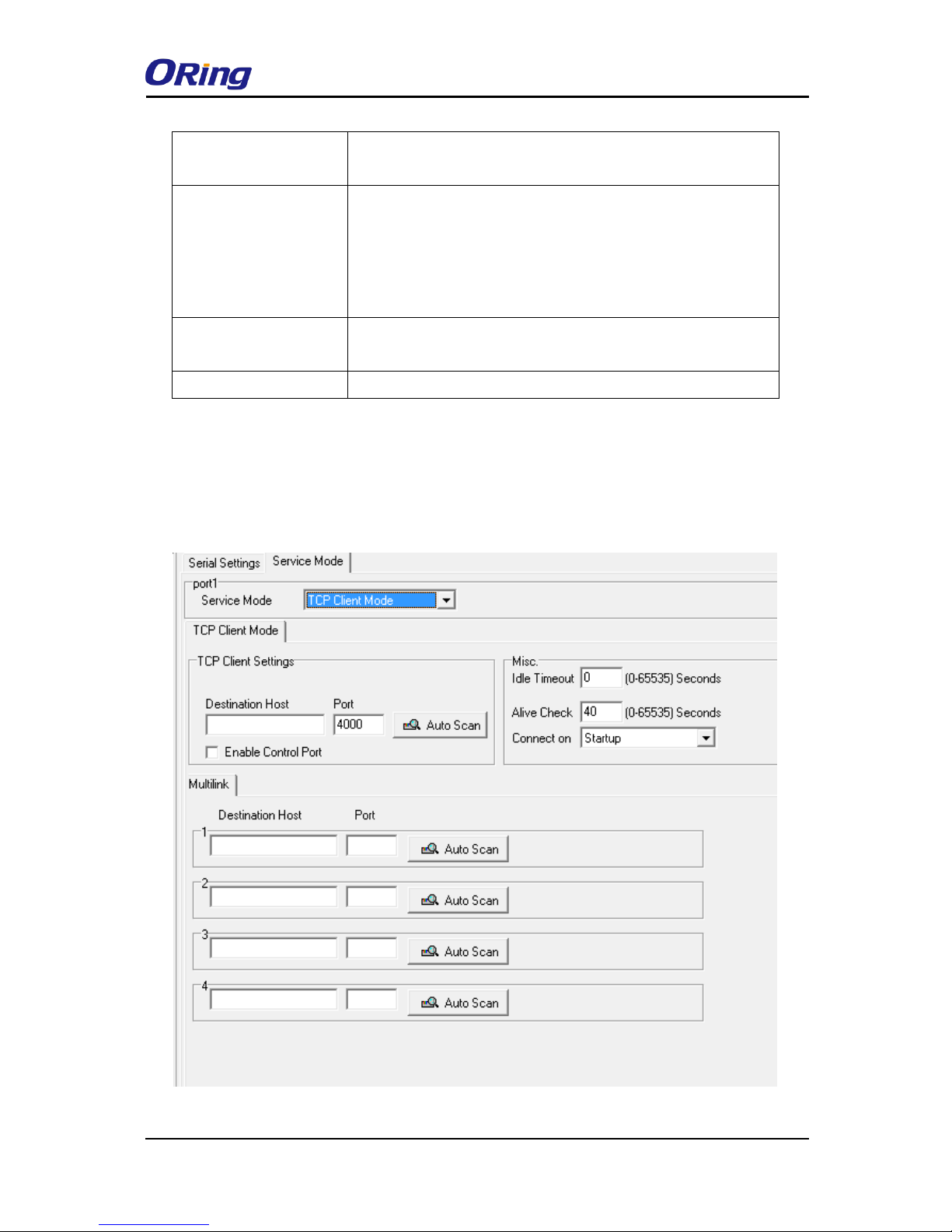

TCP Client Mode
In TCP Client mode, the device can establish a TCP connection with the server by the method
you have settled (Startup or any character). After the data has been transferred, the device can
disconnect automatically from the server by using the TCP alive check time or idle time
settings.
Page 28
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
27
Label
Description
Destination Host
Input the IP address of the host.
Port
Set the port number of data port.
Idle Timeout
When a serial port stops data transmission for a defined period of
time (Idle Timeout), the connection will be closed and the port will
be freed and try to connect with other hosts. 0 means the function
is disabled which is the factory default value. If multilink is
configured, only the first host connection is effective for this setting.
Alive Check
The serial device will send a TCP alive-check package in each
defined time interval (Alive Check) to remote host to check the TCP
connection. If the TCP connection is not alive, the connection will
be closed and the port will be freed. 0 means the function is
disabled which is the factory default value.
Connect on Startup
The TCP Client will build a TCP connection once the connected
serial device is started.
Connect on Any
Character
The TCP Client will build a TCP connection once the connected
serial device starts to send data.
UDP Mode
Compared to TCP communication, UDP is faster and more efficient as you can unicast or
multicast data from the serial device server to host computers, and the serial device can also
receive data from one or multiple host.
Page 29
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
28
Label
Description
Listening Port
IP port for listening incoming messages
Destination Host
Begin / End
If there are more than one destination hosts, specify the IP
address range by inputting a value in destination host IP begin /
end fields. You can also auto scan the sending port number of
the device
Sending Port
IP port for sending outgoing messages
Page 30
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
29

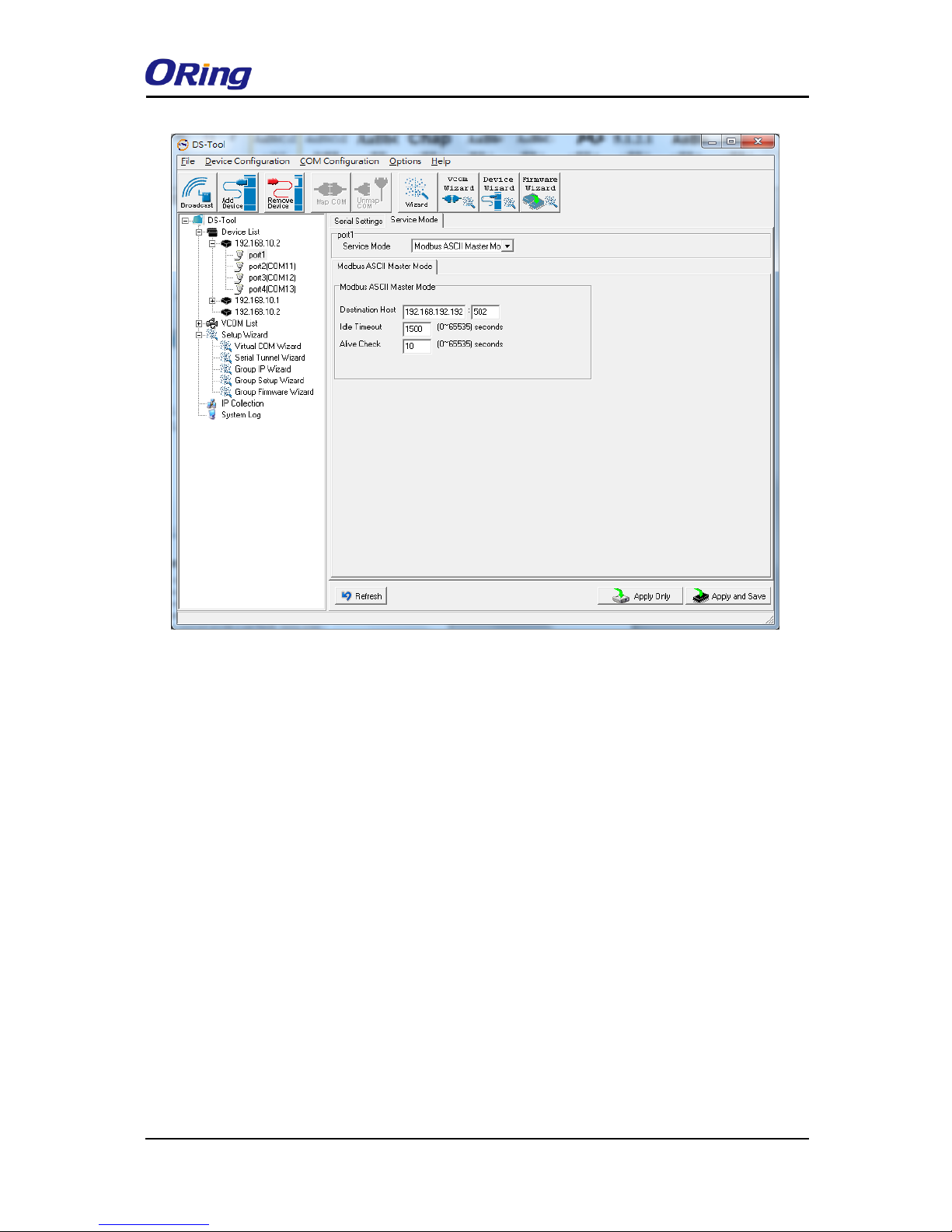

Page 31
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
30
4.2 Web Management
The device can be managed via a built-in web server which supports Internet Explorer
(Internet Explorer 5.0 or above versions) and other Web browsers such as Chrome. Therefore,
you can manage and configure the device easily and remotely. You can also upgrade firmware
via a Web browser. The Web management function not only reduces network bandwidth
consumption, but also enhances access speed and provides a user-friendly viewing screen.
Note: By default, IE5.0 or later version do not allow Java applets to open sockets. You need to modify the
browser setting separately in order to enable Java applets for network ports.
Management via Web Browser
Follow the steps below to manage your device via a Web browser
System Login
1. Launch an Internet Explorer.

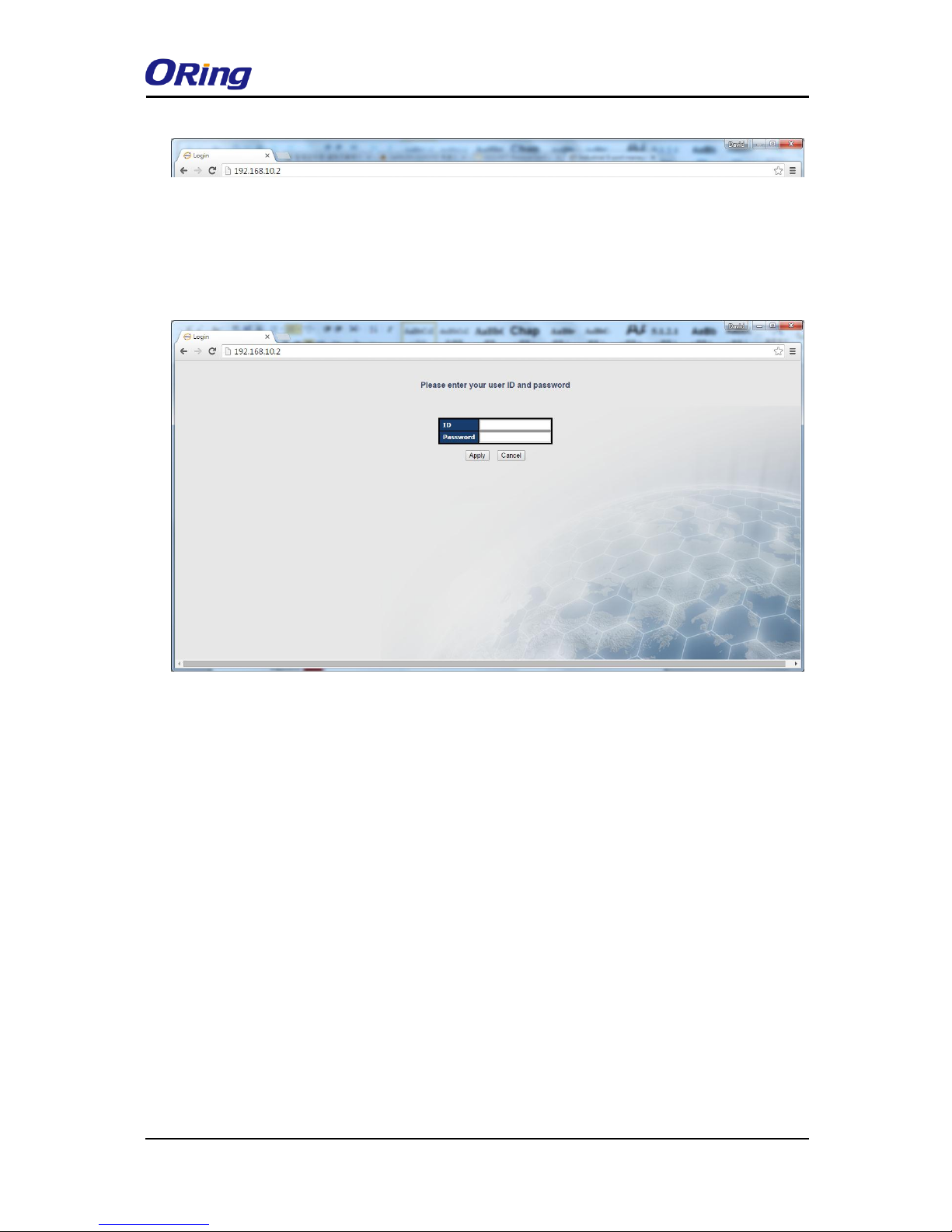

2. Type http:// and the IP address of the device. Press Enter.
Page 32
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
31
3. A login screen appears.
4. Log in with the default user name “admin”. By default, no password is required;
however, you can set up a password later in the management page.
5. Press Enter or click OK, the management page appears.
Note: you can use the following default values:
IP Address: 192.168.10.2
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.10.254
User Name: admin

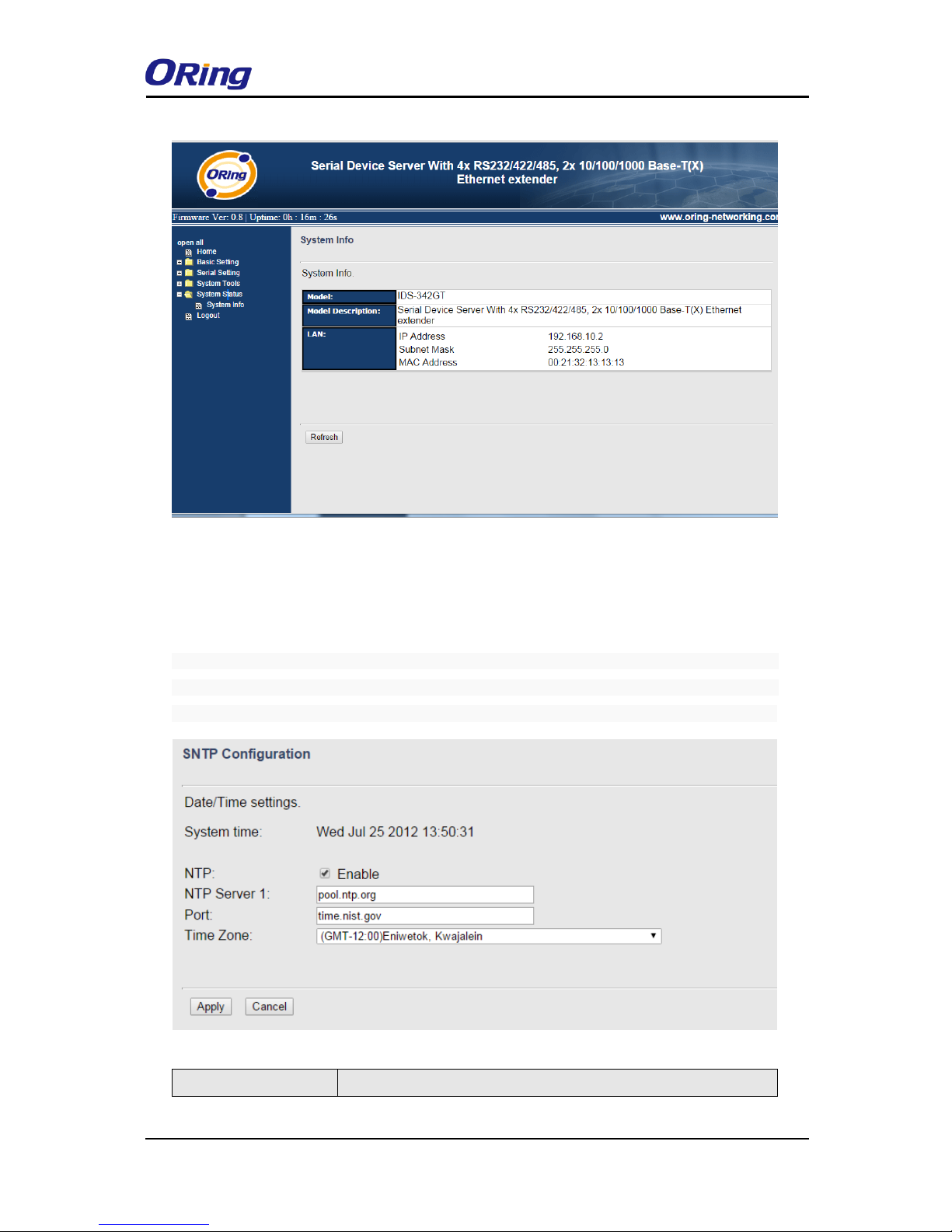

After logging in, you will see the information of the device as below.
Page 33
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
32
On the left hand side of the management interface shows links to various settings. Clicking on
the links will bring you to individual configuration pages.
4.2.1 System
4.2.1.1 Time (SNTP)
SNTP (Simple Network Time Protocol) is a protocol able to synchronize the time on your
system to the clock on the Internet. It will synchronize your computer system time with a server
that has already been synchronized by a source such as a radio, satellite receiver or modem.
Label
Description
Page 34
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
33
Name
Enter the model name of the device
SNTP
Enable or disable SNTP function
Time Zone
Choose the time zone according to the location of the device
Local Time
Set up the local time
Time Server
Enter the address of the time server
Telnet Console
Click to enable or disable Telnet console function.
The following table lists different location time zones for your reference.
Local Time Zone
Conversion from UTC
Time at 12:00 UTC
November Time Zone
- 1 hour
11 am
Oscar Time Zone
-2 hours
10 am
ADT - Atlantic Daylight
-3 hours
9 am
AST - Atlantic Standard EDT - Eastern
Daylight
-4 hours
8 am
EST - Eastern Standard CDT - Central
Daylight
-5 hours
7 am
CST - Central Standard MDT - Mountain
Daylight
-6 hours
6 am
MST - Mountain Standard PDT - Pacific
Daylight
-7 hours
5 am
PST - Pacific Standard ADT - Alaskan
Daylight
-8 hours
4 am
ALA - Alaskan Standard
-9 hours
3 am
HAW - Hawaiian Standard
-10 hours
2 am
Nome, Alaska
-11 hours
1 am
CET - Central European FWT - French
Winter MET - Middle European MEWT Middle European Winter SWT - Swedish
Winter
+1 hour
1 pm
EET - Eastern European, USSR Zone 1
+2 hours
2 pm
BT - Baghdad, USSR Zone 2
+3 hours
3 pm
ZP4 - USSR Zone 3
+4 hours
4 pm
ZP5 - USSR Zone 4
+5 hours
5 pm
ZP6 - USSR Zone 5
+6 hours
6 pm
WAST - West Australian Standard
+7 hours
7 pm
CCT - China Coast, USSR Zone 7
+8 hours
8 pm
Page 35
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
34
JST - Japan Standard, USSR Zone 8
+9 hours
9 pm
EAST - East Australian
+10 hours
10 pm
Standard GST Guam Standard, USSR
Zone 9
IDLE - International Date Line NZST New Zealand Standard NZT - New
Zealand
+12 hours
Midnight
4.2.1.2 IP Configuration

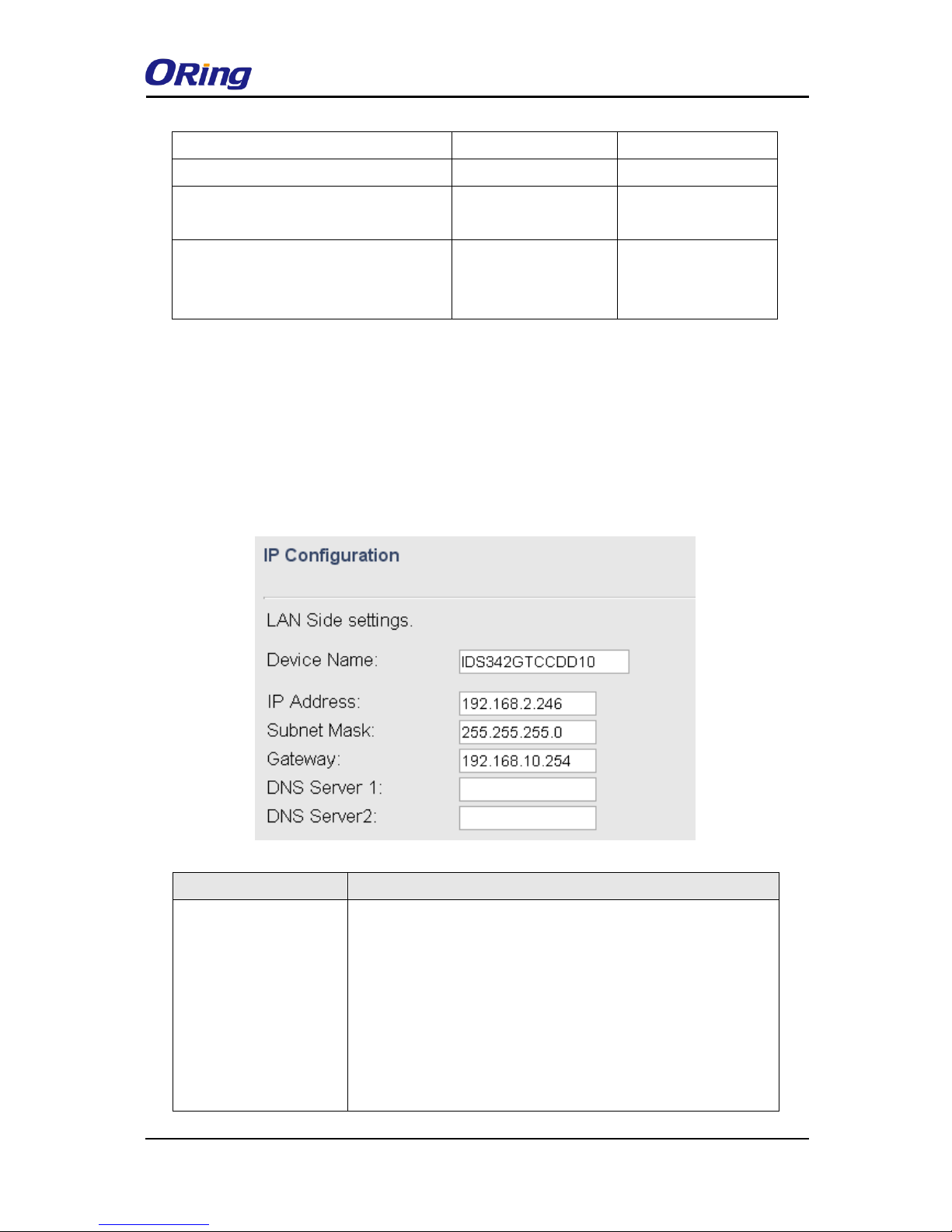

This page allows you to configure IP settings for the device. You can assign an IP address
manually or leave it to DHCP/BOOTP servers which will reply with an automatically
generated IP address and subnet mask for the device when they receive the request. The IP
address must be unique and within the network, otherwise the device will not have a valid
connection to the network. Select Static IP if you are using a fixed IP address. Click Apply
after you complete configuration.
Label
Description
IP Configuration
Choose to use a static or DHCP-assigned IP. If you choose
DHCP, the following fields will gray out.
Static: Input an IP address for the device.
DHCP/BOOTP: allows the IP address of the device to be
automatically assigned by a configuration server.
PPPoE: select this option if your ISP requires you to use a
PPPoE connection which is typically used by DSL
providers. Enter the PPPoE login user name and password
Page 36
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
35
which should have been provided to you by your ISP.
IP Address
Enter the IP address that identifies the server on the TCP/IP
network
Netmask
Enter a subnet mask for the device.
Gateway
Enter the IP address of the router that provides network access
outside the server’s LAN
DNS Server 1/2
Enter the IP address of the primary and secondary domain
name server
Auto Report to IP
Specify an IP address for reports generated by the Auto report function
to be automatically sent to.
Auto Report to TCP Port
Specify a TCP Port for reports generated by the Auto report function to
be automatically sent to.
Auto Report Interval
Specify a time interval for which reports will be delivered.

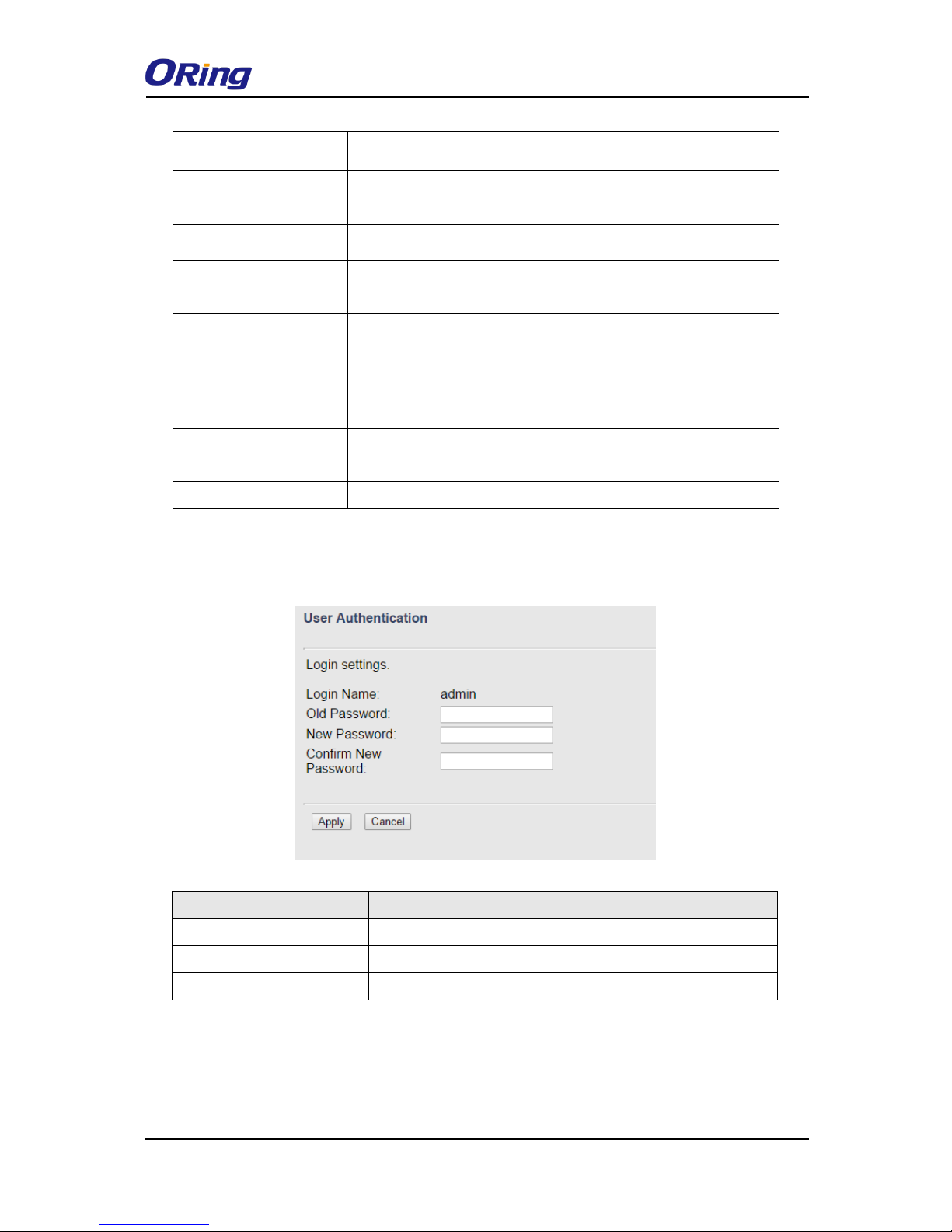

4.2.1.3 User Authentication
This page allows you to set up login account and password. You can also change your
password in this page.
Label
Description
Old Password
Enter the existing password that is used to log in
New Password
Enter a new password that will be used to log in
Confirm New Password
Retype the new password to confirm
4.2.2 Serial Setting
4.2.2.1 Serial Configuration
This page allows you to configure serial port parameters.
Page 37
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
36
Label
Description
Port Alias
Enter the COM port number that modem is connected to
Interface
Choose an interface for your serial device. Available interfaces
include RS-232, RS-422, RS-485(2-wires), and
RS-485(4-wires),
Baud Rate
Choose a baud rate in the range between 110 bps and 460800
bps.
Data Bits
Choose the number of data bits to transmit. You can
configure data bits to be 5, 6, 7, or 8. Data is transmitted as a
series of five, six, seven, or eight bits (five and six bit data
formats are used rarely for specialized communications
equipment).
Stop Bits
Choose the number of bits used to indicate the end of a byte.
You can configure stop bits to be 1 or 2(1.5). If Stop Bits is 1.5,
the stop bit is transferred for 150% of the normal time used to
transfer one bit. Both the computer and the peripheral device
must be configured to transmit the same number of stop bits.
Parity
Chose the method of detecting errors in transmission. Parity
control bit modes include None, Odd, Even, Mark, and Space.
None: parity checking is not performed and the parity bit is not
Page 38
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
37
transmitted.
Odd: the number of mark bits in the data is counted, and the
parity bit is asserted or unasserted to obtain an odd number of
mark bits.
Even: the number of mark bits in the data is counted, and the
parity bit is asserted or unasserted to obtain an even number of
mark bits.
Mark: the parity bit is always set to the mark signal condition
(logical 1)
Space: the last transmitted data bit will always be a logical 0
Flow Control
Serial communication consists of hardware flow control and
software flow control, so called as the control is handled by
software or hardware. XOFF and OXN is software flow control
while RTS/CTS or DTR/DSR is hardware flow control.
Choose XOFF to tell the computer to stop sending data; then
the receiving side will send an XOFF character over its Tx line to
tell the transmitting side to stop transmitting. Choose XON to tell
the computer to begin sending data again; then the receiving
side will send an XON character over its Tx line to tell the
transmitting side to resume transmitting. In hardware flow
control mode, when the device is ready to receive data, it sends
a CTS (Clear To Send) signal to the device on the other end.
When a device has something it wants to send, it will send a
RTS (Ready To Send) signal and waits for a CTS signal to come
back its way. These signals are sent apart from the data itself on
separate wires.
FaceTX Interval Time
Force TX interval time is to specify the timeout when no data
has been transmitted. When the timeout is reached or TX buffer
is full (4K Bytes), the queued data will be sent. 0 means disable.
Factory default value is 0.
Performance
Throughput: This mode optimized for highest transmission
speed.
Latency: This mode optimized for shortest response time.
Page 39
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
38
4.2.2.2 Port Profile
Label
Description
Local TCP Port
The TCP port the device uses to listen to connections, and that
other devices must use to contact the device. To avoid conflicts
with well known TCP ports, the default is set to 4000.
Command Port
Assign a serial port as command port
Flush Data Buffer After
The received data will be queuing in the buffer until all the
delimiters are matched. When the buffer is full (4K Bytes)
or after “flush S2E data buffer” timeout the data will also
be sent. You can set the time from 0 to 65535 seconds.
Delimiter
For advanced data packing options, you can specify
delimiters for Serial to Ethernet and / or Ethernet to
Serial communications. You can define max. 4 delimiters
(00~FF, Hex) for each way. The data will be hold until the
delimiters are received or the option Flush Serial to
Ethernet data buffer times out. 0 means disable. Factory
default is 0.
4.2.2.3 Service Mode
Virtual COM Mode
In Virtual COM Mode, the driver establishes a transparent connection between the host and
the serial device by mapping the port of the serial server to a local COM port on the host
computer. Virtual COM Mode also supports up to 5 simultaneous connections, so that multiple
hosts can send or receive data by the same serial device at the same time.
Page 40
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
39
Label
Description
Data Encryption
Click on the radio button to enable or disable data encryption
Idle Timeout
When serial port stops data transmission for a defined period of
time, the connection will be closed and the port will be freed and
try to connect with other hosts. Specify a time in seconds by
which the device will close a connection because of inactivity.
Alive Check
The serial device will send TCP alive-check packages in each
defined time interval to remote host to check the TCP
connection. If the TCP connection is not alive, the connection
will be closed and the port will be freed. Assign a time in
seconds by which the device will perform alive check.
Max Connection
The number of Max connection can support simultaneous
connections are 5, default values is 1.
*Not allowed to mapping Virtual COM from web
TCP Server Mode
In TCP Server Mode, DS is configured with a unique port combination on a TCP/IP network.
In this case, DS waits passively to be contacted by the device. After the device establishes a
connection with the serial device, it can then proceed with data transmission. TCP Server
mode also supports up to 5 simultaneous connections, so that multiple device can receive data
from the same serial device at the same time.
Page 41
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
40
Label
Description
Data Encryption
Click on the radio button to enable or disable data encryption
TCP Server Port
Set the port number for data transmission.
Idle Timeout
When serial port stops data transmission for a defined period
of time, the connection will be closed and the port will be freed
and try to connect with other hosts. Specify a time in seconds
by which the device will close a connection because of
inactivity.
Alive Check
The serial device will send TCP alive-check packages in each
defined time interval to remote host to check the TCP
connection. If the TCP connection is not alive, the connection
will be closed and the port will be freed. Assign a time in
seconds by which the device will perform alive check.
Max Connection
Assigns the number of maximum connections that can be
supported simultaneously. The highest number is 5 and the
default value is 1.
TCP Client Mode
In TCP Client mode, the device can establish a TCP connection with the server by the method
you set (Startup or any character). After the data has been transferred, the device can
disconnect automatically from the server by using the TCP alive check time or idle timeout
settings.
Page 42
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
41
Label
Description
Data Encryption
Click on the radio button to enable or disable data encryption
TCP Server Port
Set the port number for data transmission.
Idle Timeout
When serial port stops data transmission for a defined period of
time, the connection will be closed and the port will be freed and
try to connect with other hosts. Specify a time in seconds by which
the device will close a connection because of inactivity.
Alive Check
The serial device will send TCP alive-check packages in each
defined time interval to remote host to check the TCP connection.
If the TCP connection is not alive, the connection will be closed
and the port will be freed. Assign a time in seconds by which the
device will perform alive check.
Max Connection
Assigns the number of maximum connections that can be
supported simultaneously. The highest number is 5 and the
default value is 1.

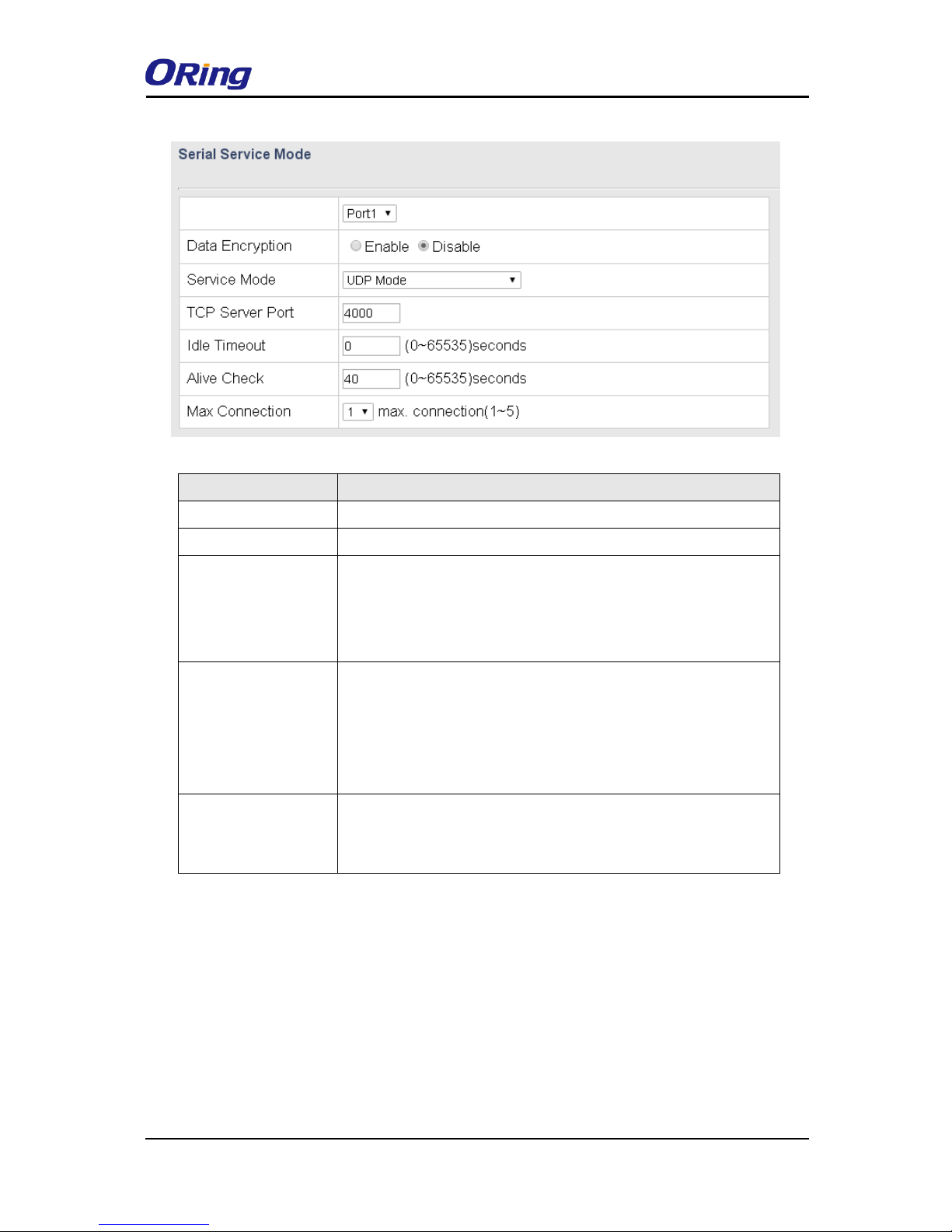

UDP Mode
Compared to TCP communications, UDP is faster and more efficient. In UDP mode, you can
uni-cast or multi-cast data from the serial device server to host computers, and the serial
device can also receive data from one or multiple host.
Page 43
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
42
Label
Description
Data Encryption
Click on the radio button to enable or disable data encryption
TCP Server Port
Set the port number for data transmission.
Idle Timeout
When serial port stops data transmission for a defined period of
time, the connection will be closed and the port will be freed and
try to connect with other hosts. Specify a time in seconds by which
the device will close a connection because of inactivity.
Alive Check
The serial device will send TCP alive-check packages in each
defined time interval to remote host to check the TCP connection.
If the TCP connection is not alive, the connection will be closed
and the port will be freed. Assign a time in seconds by which the
device will perform alive check.
Max Connection
Assigns the number of maximum connections that can be
supported simultaneously. The highest number is 5 and the
default value is 1.

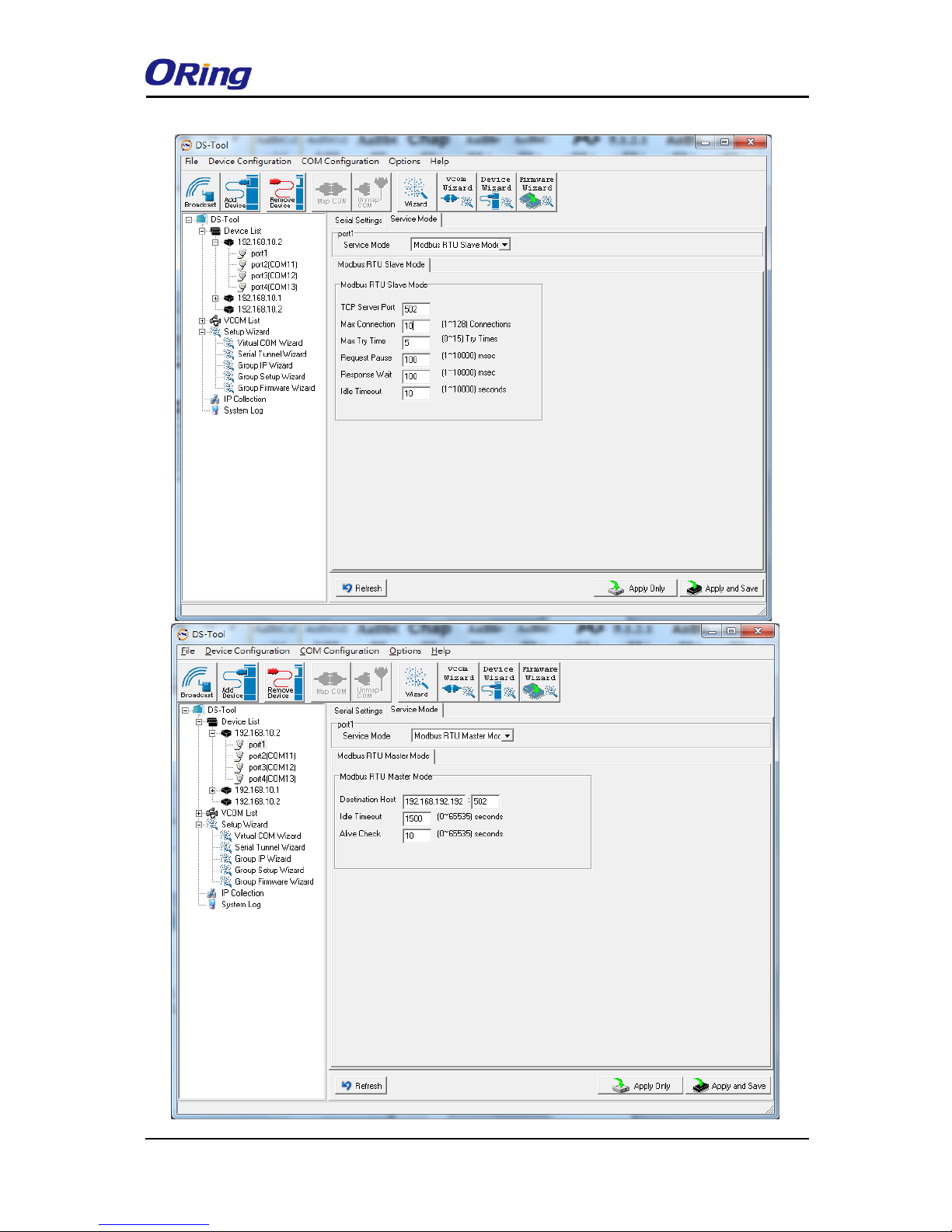

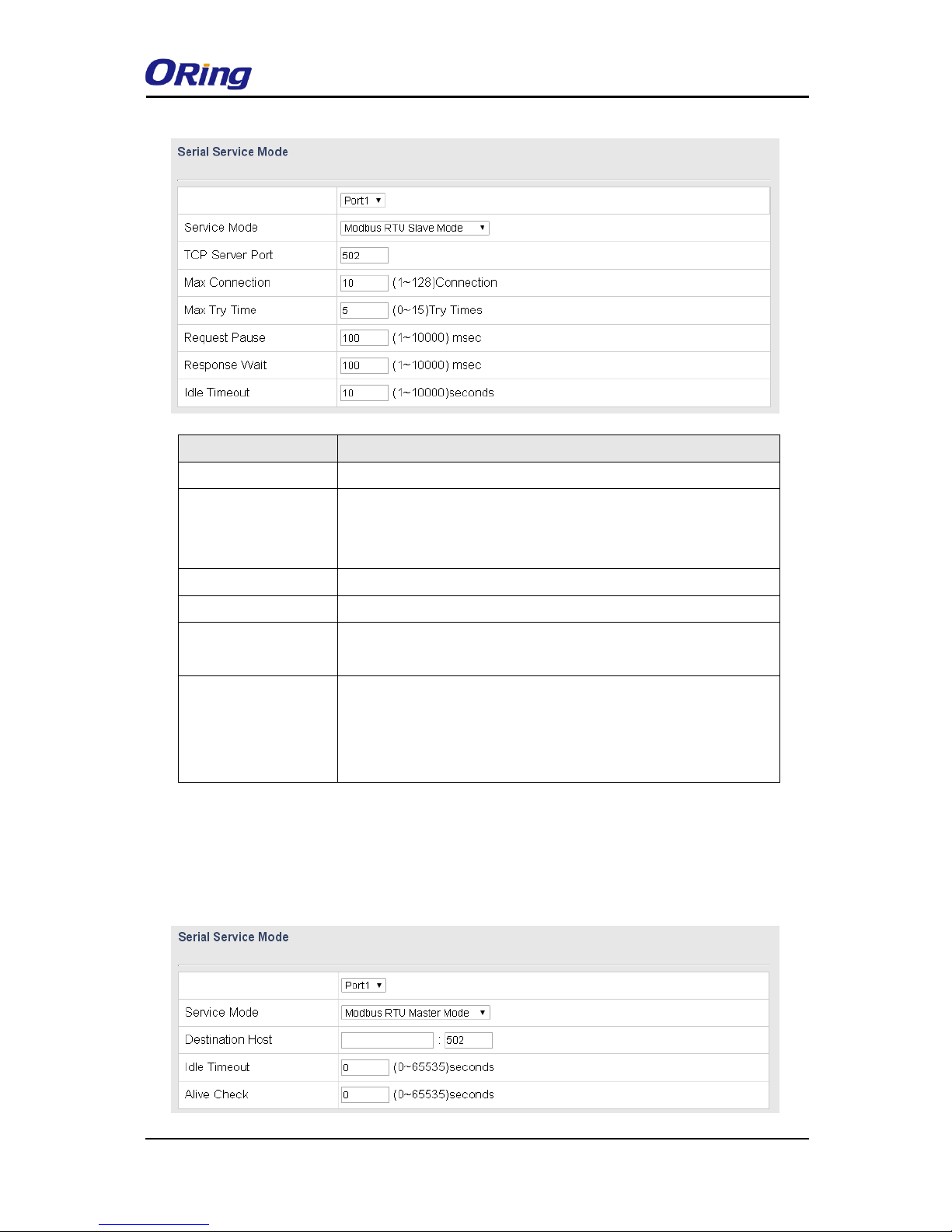

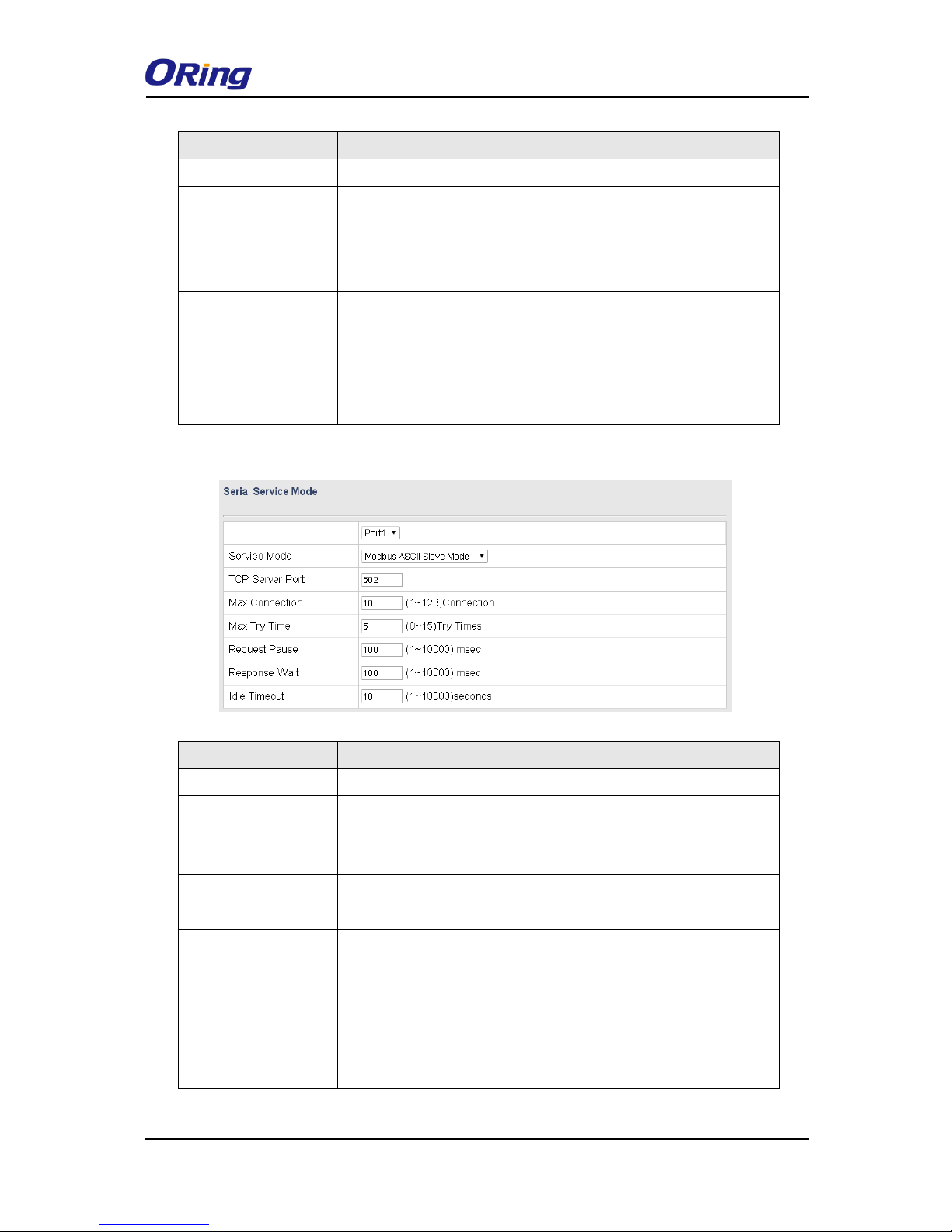

Modbus RTU Slave Mode
In this mode, the client will appear as Modbus RTU Slave devices on the Modbus RTU
network. The server must send a response message to the master after receiving its
messages, whether they are actual PLC’s or devices acting as Modbus RTU Masters or other
software applications capable of sending Modbus RTU Master requests.
Page 44
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
43
Label
Description
TCP Server Port
Set the port number for data transmission.
Max Connection
Assigns the number of maximum connections that can be
supported simultaneously. The highest number is 128 and the
default value is 1.
Max Try Time
Specify the maximum number of request retries performed serially
Request Pause
Specify the delay between serial requests in milliseconds
Response Wait
Specify the serial response timeout in milliseconds. A serial retry
will be sent if a response is not received within this timeout.
Idle Timeout
When serial port stops data transmission for a defined period of
time, the connection will be closed and the port will be freed and
try to connect with other hosts. Specify a time in seconds by which
the device will close a connection because of inactivity.
Modbus RTU Master Mode
In this mode, the client will act as a Modbus RTU master device which will send query
messages such as data, requests for data or status, or commands to one or more slave
devices (the servers) on a serial network.
Page 45
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
44
Label
Description
Destination Host
Enter the destination host's IP address or destination network
Idle Timeout
When serial port stops data transmission for a defined period of
time, the connection will be closed and the port will be freed and
try to connect with other hosts. Specify a time in seconds by which
the device will close a connection because of inactivity.
Alive Check
The serial device will send TCP alive-check packages in each
defined time interval to remote host to check the TCP connection.
If the TCP connection is not alive, the connection will be closed
and the port will be freed. Assign a time in seconds by which the
device will perform alive check.
Modbus ASCII Slave Mode
Label
Description
TCP Server Port
Set the port number for data transmission.
Max Connection
Assigns the number of maximum connections that can be
supported simultaneously. The highest number is 128 and the
default value is 1.
Max Try Time
Specify the maximum number of request retries performed serially
Request Pause
Specify the delay between serial requests in milliseconds
Response Wait
Specify the serial response timeout in milliseconds. A serial retry
will be sent if a response is not received within this timeout.
Idle Timeout
When serial port stops data transmission for a defined period of
time, the connection will be closed and the port will be freed and
try to connect with other hosts. Specify a time in seconds by which
the device will close a connection because of inactivity.
Page 46
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
45

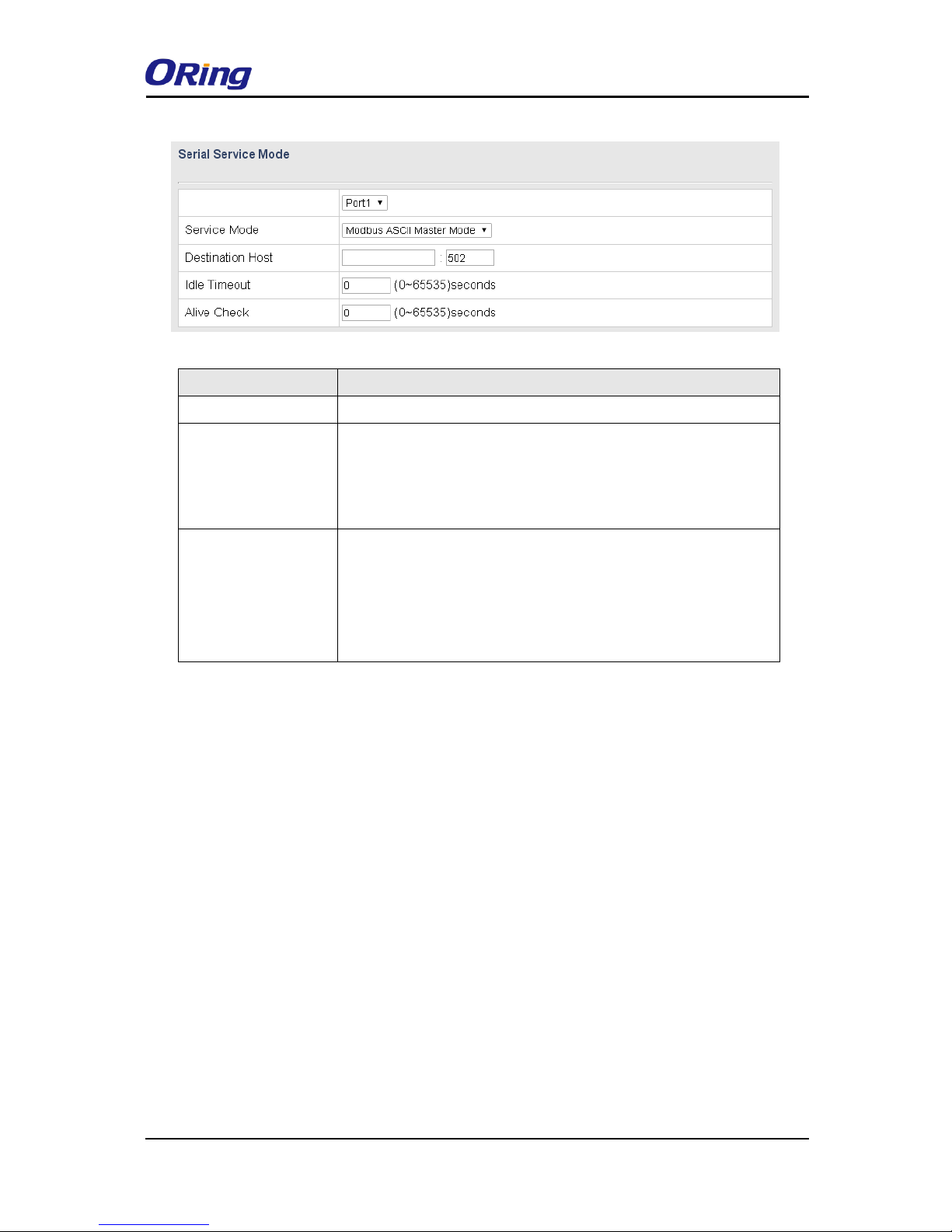

Label
Description
Destination Host
Enter the destination host's IP address or destination network
Idle Timeout
When serial port stops data transmission for a defined period of
time, the connection will be closed and the port will be freed and
try to connect with other hosts. Specify a time in seconds by which
the device will close a connection because of inactivity.
Alive Check
The serial device will send TCP alive-check packages in each
defined time interval to remote host to check the TCP connection.
If the TCP connection is not alive, the connection will be closed
and the port will be freed. Assign a time in seconds by which the
device will perform alive check.
4.2.3 Management
When an error occurs, the device will notify you through system log, e-mail, SNMP, and relay.
You can set up the targets or destinations which will receive error notifications in this page.
4.2.3.1 System Log
The device will constantly log events and activities in System Log and provide the file for you to
review. You can click Refresh to renew the page or Clear to clear all or certain log entries.

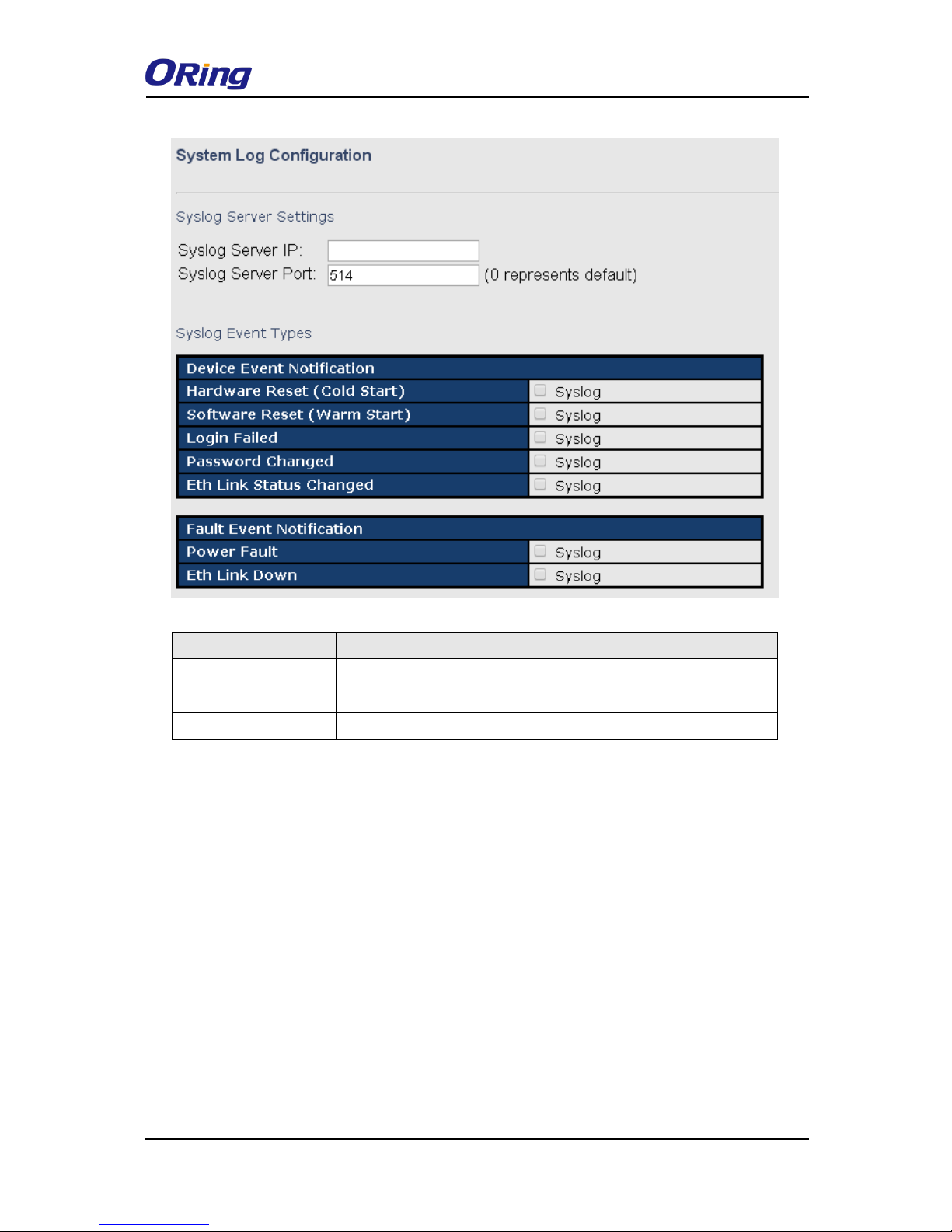

Page 47
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
46
Label
Description
Syslog Server IP
Enter the IP address of a remote server if you want the logs to be
stored remotely. Leave it blank will disable remote syslog.
Syslog Server Port
Specifies the port to be logged remotely. Default port is 514.
Page 48
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
47

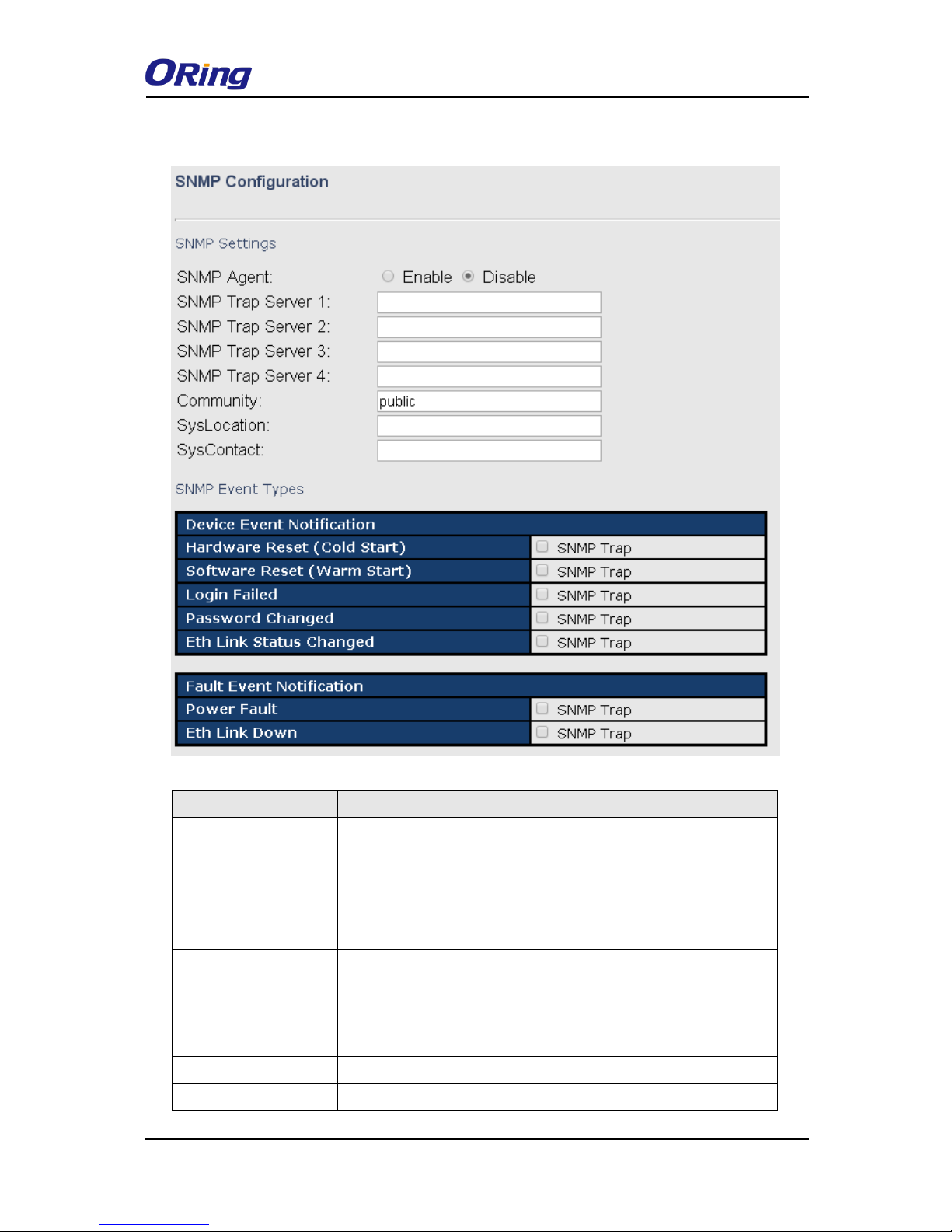

4.2.3.2 SNMP
Label
Description
SNMP Agent
SNMP (Simple Network Management Protocol) Agent is a service
program that runs on the access point. The agent provides
management information to the NMS by keeping track of various
operational aspects of the AP system. You can enable or disable
the function.
SNMP Trap Server
1-4
Enter the IP address of the SNMP server which will send out traps
generated by the AP.
Community
Community is a password to establish trust between managers
and agents. Normally, public is used for read-write community.
SysLocation
Specifies sysLocation string
SysContact
Specifies sysContact string
Page 49
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
48

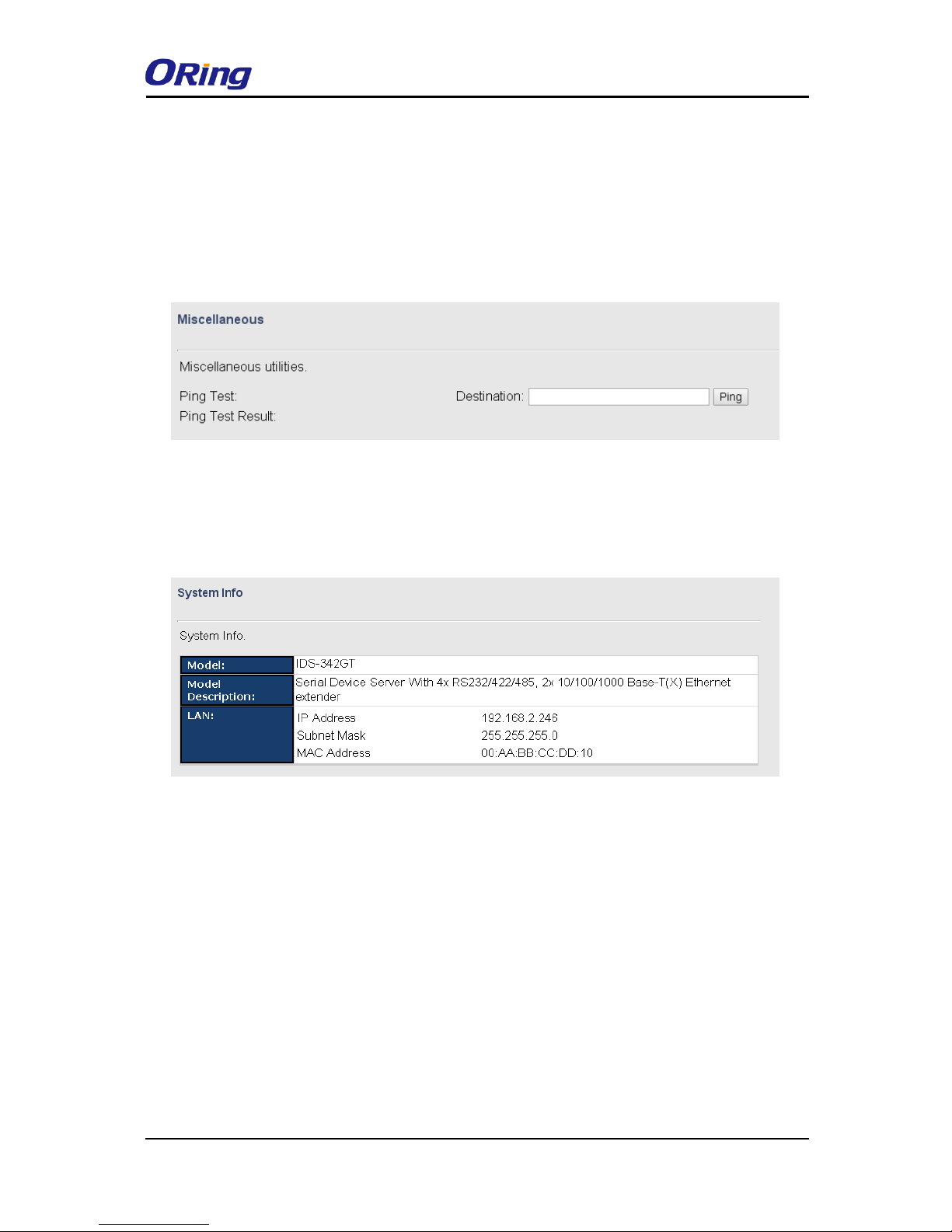

4.2.4 System Tools
4.2.4.1 Miscellaneous
Ping enables you to test connectivity on an IP network. It’s a useful tool to diagnose network
problems on a device. It will analyze data transfer to determine whether multiple devices
can communicate over the network successfully. A ping diagnostic can provide network
latency information.
4.2.5 System Status
4.2.5.1 System Info
This page displays the detailed information of the device including model name, description,
firmware version, WAN, LAN and wireless settings.

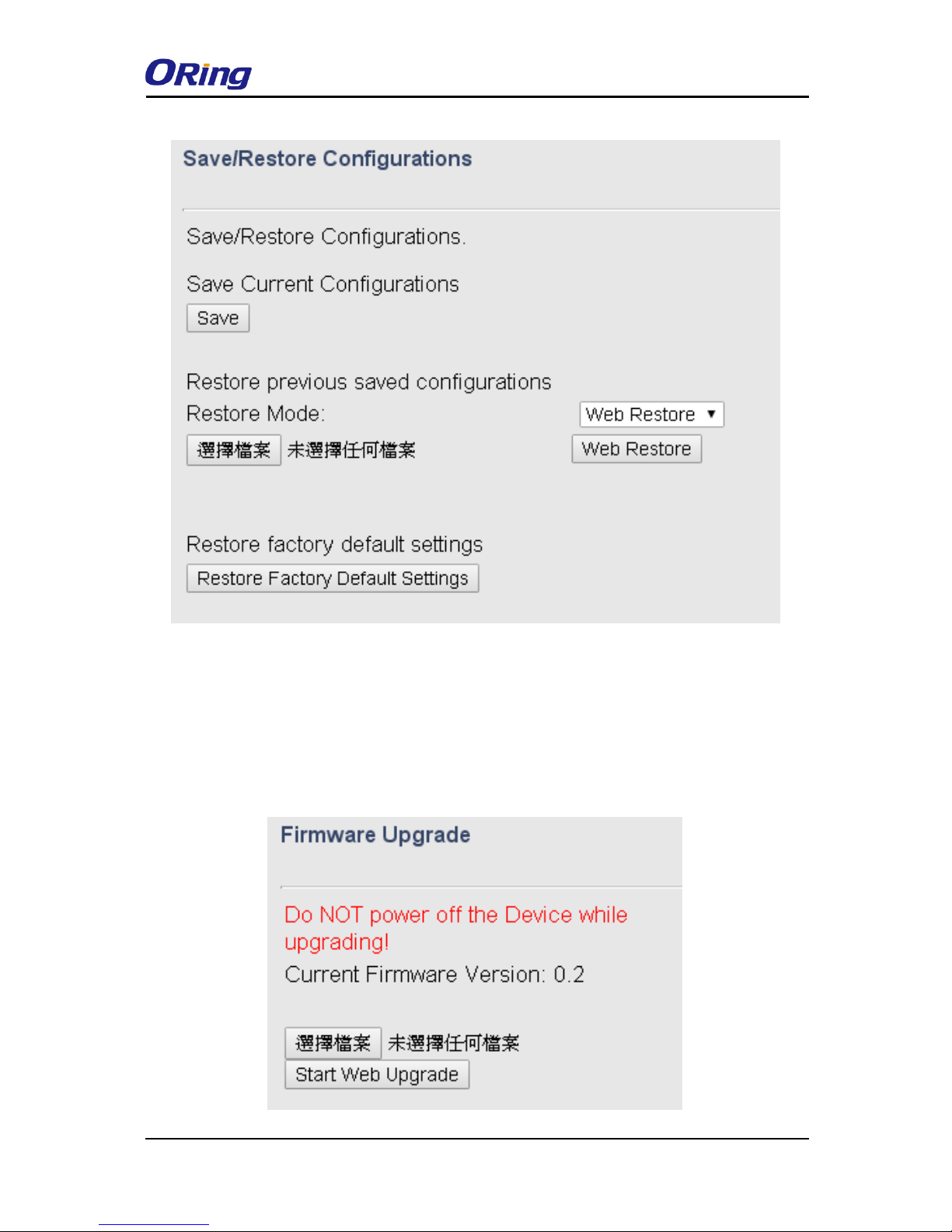

4.2.6 Save/Restore Config
This page allows you to save configurations or return settings to previous status. You can
download the configuration file from the Web. Note: users using old versions of Internet
Explorer may have to click on the warning on top of the browser and choose Download File.
Page 50
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
49
4.2.7 Firmware Update
ORing launches new firmware constantly to enhance device performance and functions. To
upgrade firmware, download new firmware from ORing’s website to your PC and install it via
Web upgrade. Make sure the firmware file matches the model of your device. It will take
several minutes to upload and update the firmware. After upgrade completes successfully,
reboot the device.
Page 51
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
50

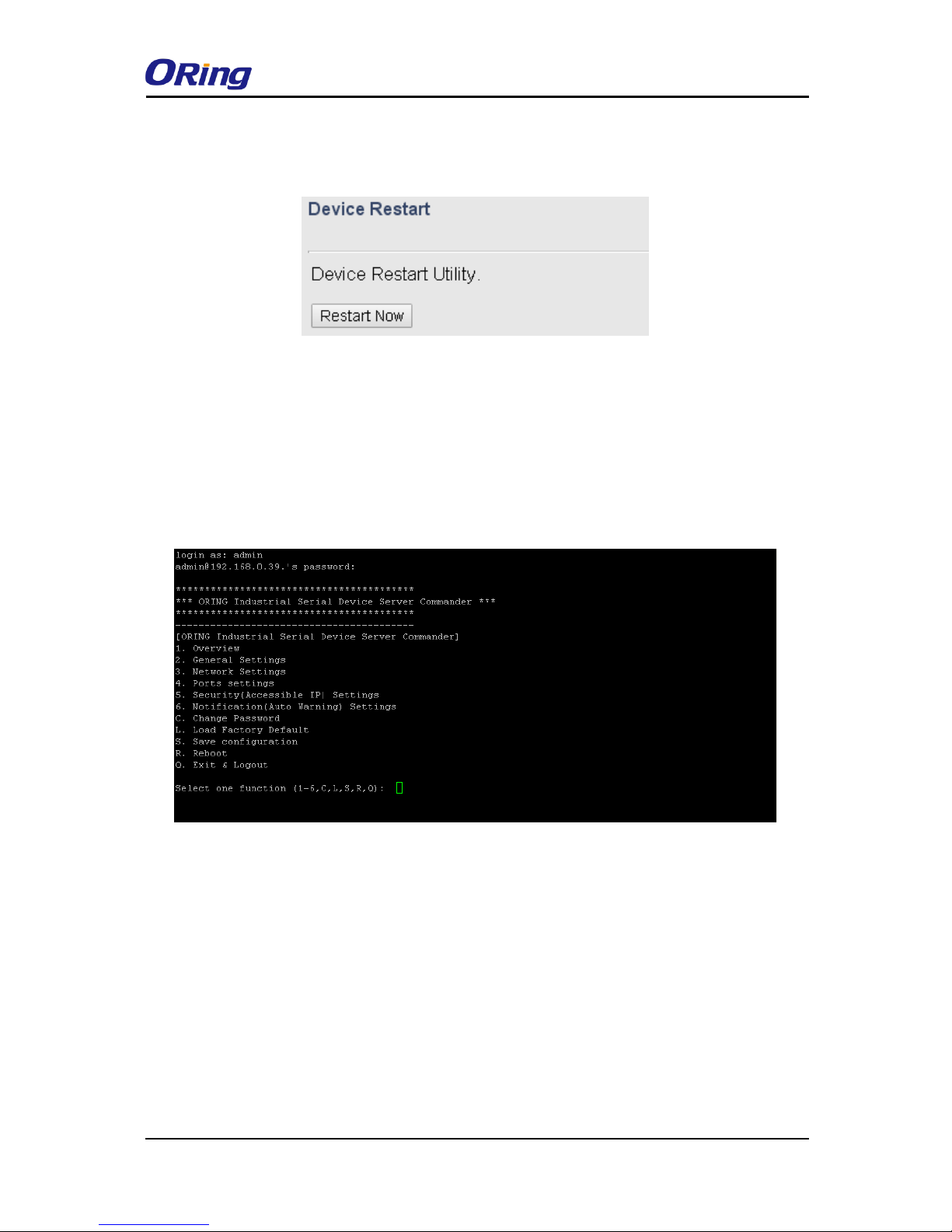

4.2.8 Device Restart
This page allows you to configure restart settings for the device.
4.3 Configuration by SSH Console
4.3.1 Connect to DS
You can use SSH Tool (e.g., PUTTY) to access the SSH console of the device. The SSH
console interface is shown below.
Page 52
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
51
Technical Specifications
ORing Device Server Model
IDS-342GT
IDS-342GT+
Physical Ports
10/100/1000 Base-T(X) Ports in RJ45
Auto MDI/MDIX
2
PoE P.D. port
Present at ETH2
Fully compliant with IEEE 802.3af Power Device
specification
Over load & short circuit protection
Isolation Voltage: 1000 VDC min.
Isolation Resistance : 108 ohms min
Serial Ports
Connector
DB9 x 4
Operation Mode
RS-232/422/485
Serial Baud Rate
110 bps to 921.6 Kbps
Data Bits
7, 8
Parity
odd, even, none, mark, space
Stop Bits
1, 1.5, 2
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Flow Control
XON/XOFF, RTS/CTS, DTR/DSR
Network Protocol
Protocol
ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS
Jumbo frame
Up to 9.6K Bytes
LED indicators
Power indicator
PWR 1(2) / Ready:
Green On: Power is on and functioning Normally.
10/100/1000 RJ45 port indicator
Top Green for port Link at 1000Mbps, Amber for port Link at 100Mbps, off for port Link at 10Mbps
Bottom Green for port Link/Act
Serial TX / RX LEDs:
Red: Serial port is receiving data
Green: Serial port is transmitting data
Power
Redundant Input power
Dual DC inputs. 12-48VDC on 6-pin terminal block
Power consumption (Typ.)
6.96W
Overload current protection
Present
Reverse polarity protection
Present on terminal block
Physical Characteristic
Enclosure
IP-30
Dimension (W x D x H)
54.2(W)x106.1(D)x145.4(H) mm (2.13x4.18x5.72 inch.)
Weight (g)
740g
745g
Environmental
Storage Temperature
-40 to 85oC (-40 to 185oF)
Operating Temperature
-40 to 70oC (-40 to 158oF)
Operating Humidity
5% to 95% Non-condensing
Regulatory approvals
EMI
FCC Part 15, CISPR (EN55022) class A
EMS
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS),
EN61000-4-8, EN61000-4-11
Shock
IEC60068-2-27
Page 53
IDS-342GT(+) Series User Manual
ORing Industrial Networking Corp
52
Free Fall
IEC60068-2-32
Vibration
IEC60068-2-6
Safety
EN60950-1
Warranty
5 years
Loading...
