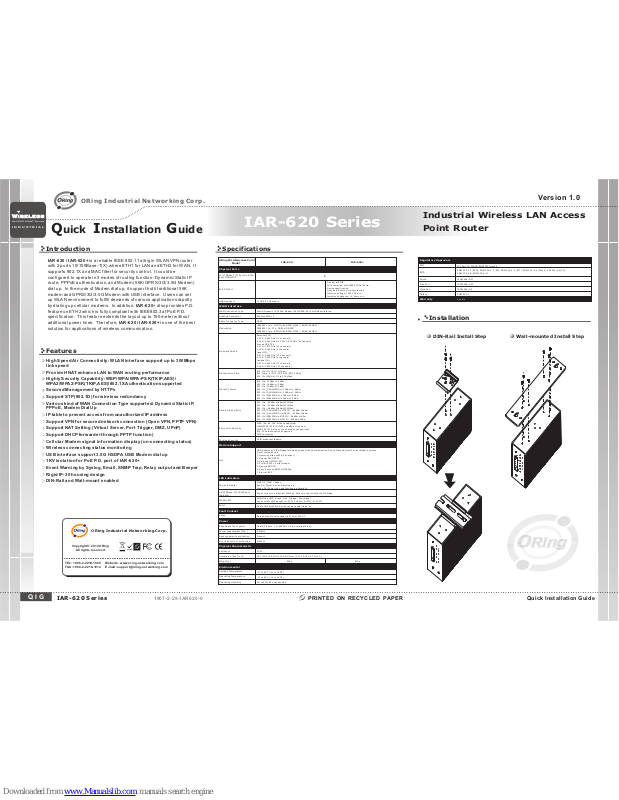

ORiNG IAR-620 Installation Manual

Download

Page 1

Features

High SpeedAir Connectivity: WLANinterface support upto 300Mbps link speed

Provide HNAT enhanceLAN to WAN routingperformance

Highly SecurityCapability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1XAuthentication supported

Secured Managementby HTTPs

Support STP(802.1D)for wireless redundancy

Various kind ofWAN Connection Typesupported: Dynamic/Static IP, PPPoE, Modem DialUp

IP tableto prevent accessfrom unauthorized IPaddress

Support VPNfor secured networkconnection (Open VPN, PPTP VPN)

Support NAT Setting(Virtual Server, Port Trigger, DMZ, UPnP)

Support DHCPforwarder through PPTP function)

Cellular Modem signal information display(un-connecting status)

Wireless connectingstatus monitoring

USB interface support3.5G HSDPA USB Modem dial up

1KV isolationfor PoE P.D. port of IAR-620+

Event Warningby Syslog, Email,SNMP Trap,Relay output andBeeper

Rigid IP-30housing design

DIN-Rail andWall-mount enabled

IAR-620 /IAR-620+

IAR-620

IAR-620 /IAR-620+

is areliable IEEE 802.11 a/b/g/nWLAN VPN router with 2ports 10/100Base-T(X) whereETH1 for LANand ETH2 forWAN. It supports 802.1Xand MAC filterfor security control. It could be configured tooperate in 3modes of routingfunction: Dynamic/Static IP route, PPPoEauthentication, and Modem(56K/GPRS/3G/3.5G Modem) dial up. In the mode ofModem dial up,it support bothtraditional 56K modem andGPRS/3G/3.5G Modem withUSB interface. Userscan set up WLANenvironment to fulfilldemands of variousapplications rapidly by dialingup cellular modems. In addition, + alsoprovides P.D. feature onETH2 which isfully compliant withIEEE802.3af PoE P.D. specification. Thisfeature extends thelayout up to100 meter without additional powerlines. Therefore, is oneof the best solution forapplications of wirelesscommunication.

Introduction

QIG

Version 1.0

Quick Installation Guide

ORing Industrial Networking Corp.

Quick InstallationGuide

IAR-620 Series

Wireless

IAR-620 Series

Industrial Wireless LAN Access

Point Router

ACCESS POINT Router

INDUSTRIAL

1907-2-29-IAR620-0

Specifications

ORingWLAN Access Point

Model

IAR-620

PhysicalPorts

WLANInterface

PowerIndicator

Fault

Redfor Ethernet linkdown or powerdown indicator

10/100Base-T(X)RJ45 port indicator

Greenfor port Link/Actat 100Mbps. Amber for portLink/Act at 10Mbps.

Power

RedundantInput power

Powerconsumption(Typ.)

DualDC inputs. 12~48VDC on 6-pin terminalblock

6Watts

Overloadcurrent protection

Reversepolarityprotection

Present

PhysicalCharacteristic

Enclosure

IP-30

Dimension(WxDxH)

54.1(W)x106.1(D)x145.4(H)mm(2.13x4.18x5.72inch.)

Weight (g)

803g

Environmental

-40to85C(-40to185F)

StorageTemperature

10/100Base-T(X)Ports inRJ45 AutoMDI/MDIX

LEDIndicators

Static/DynamicIP, PPPoE,Modem (56K/GPRS/3G/3.5G Modem)dial up

WANConnection Type

IEEE802.11a/n:OFDM with BPSK,QPSK, 16QAM, 64QAM IEEE802.11b:CCK, DQPSK, DBPSK IEEE802.11g/n:OFDM with BPSK,QPSK, 16QAM, 64QAM

Modulation

802.11b:1/2/5.5/11 Mbps;

802.11a/g:6/9/12/18/24/36/48/54 Mbps

802.11n(40MHz):UP to 300Mbps

TransmissionRate

802.11a:13dBm 1.5dBm

802.11b:16dBm 1.5dBm

802.11g:14dBm 1.5dBm

802.11n(2.4G@20MHz):13dBm 1.5dBm

802.11n(2.4G@40MHz):12dBm 1.5dBm

802.11n(5G@20MHz):12dBm 1.5dBm

802.11n(5G@40MHz):12dBm 1.5dBm

TransmitPower

802.11a:-68dBm 2dBm@54Mbps

802.11b:-82dBm 2dBm@11Mbps

802.11g:-68dBm 2dBm@54Mbps

802.11n(2.4G@20MHz,MCS15): -64dBm 2dBm

802.11n(2.4G@40MHz,MCS15): -60dBm 2dBm

802.11n(5G@20MHz,MCS15): -64dBm 2dBm

802.11n(5G@40MHz,MCs15): -60dBm 2dBm

ReceiverSensitivity

ReverseSMAx2

AntennaConnector

America/FCC:

2.412~2.462GHz (11 channels)

5.180~5.240GHz & 5.745~5.825GHz (9 channels) EuropeCE/ETSI:

2.412~2.472GHz (13 channels)

5.180~5.240GHz (4 channels) Japan(JP):

2.412~2.484GHz (13 Channels)

5.180~5.240GHz (4 channels) Canada(CA):

2.412~2.462GHz (11 channels)

5.180~5.825GHz ( 21channels )

FrequencyBand

SSIDbroadcast disable

WEP:(64-bit ,128-bit keysupported) WPA/WPA2:802.11i(WEP and AESencryption) WPA-PSK(256-bit key pre-sharedkey supported)

802.1XAuthentication supported TKIPencryption

EncryptionSecurity

WirelessSecurity

IAR-620+

PoEP.D Port

Presentat ETH2 Fullycompliant with IEEE802.3af Power Devicespecification Overload & shortcircuit protection IsolationVoltage: 1000 VDCmin. IsolationResistance: 10 ohmsmin

USBmodems and ISDNadapters which supportthe Communication DeviceClass Abstract ControlModel interface Listof tested device:

1.Hummingbird huc56s (Conexant)

2.Huawei E220/E230

3.Simense HSDPA-180C

4.Prolific 2303 +serial modem

5.Quanta MUQ101

6.Sony Ericsson MD400/MD400g

7.Sierra C885

List

ModemSupport

WLANLED

WLANLink /ACT:Green: Link, Orange: Poor signal Greenfor WLAN Strength:1<25%, 2<50%, 3<75%,4<100%

807g

-10to60C(-14to140F)

OperatingTemperature

5%to 95% Non-condensing

OperatingHumidity

RegulatoryApprovals

FCCPart 15, CISPR(EN55022) class A

EMI

EN61000-4-2(ESD), EN61000-4-3 (RS),EN61000-4-4 (EFT), EN61000-4-5(Surge), EN1000-4-6(CS), EN61000-4-8,EN61000-4-11

EMS

IEC60068-2-27

Shock

IEC60068-2-32

IEC60068-2-6

Vibration

EN60950-1

Safety

FreeFall

Warranty

3years

FaultContact

Relay

Relayoutputtocarrycapacityof1Aat24VDC

PWR1(2)(PoE) / Ready: RedOn: Power ison and bootingup. GreenOn:PowerisonandfunctioningNormally.

Installation

DIN-Rail Install Step Wall-mounted Install Step

ORing IndustrialNetworking Corp.

Allrights reserved.

TEL:+886-2-2218-1066 FAX:+886-2-2218-1014

Website:www.oring-networking.com E-mail:[email protected]

PRINTED ON RECYCLED PAPER

1xUSB 2.0 Hostport

USBHost port

DSSS

RadioFrequency Type

Page 2

IAR-620+IAR-620

Front Panel

Packing list

Accessory

Ethernet Port 1

Ethernet Port 2

WirelessLAN LED

Wall-mounted kit

DIN-Rail kit

6-Pin Terminal block

Screw (M3X5)

Dust Cover

QIG

IndustrialIEEE 802.11 a b g nCellular VPN router with x Base T X US band

///

2 10/100 - ( ),

IAR-620_US

Model name Description Accessory

100M LNK/ACTLED (Green)

10M LNK/ACTLED (Amber)

Quick Installation Guide

ORing Industrial Networking Corp.

Front Panel

IAR-620_EU

IAR-620_JP

IAR-620_CA

X1,2X1,3X6,

X2,6X1,7X1,

X1,

Quick InstallationGuide

IAR-620/620+

WLAN

Fault

PWR2

PWR1

ANT.1

ETH1

ETH2

WLAN

Fault

PWR2

PWR1

ANT.1

ETH1

ETH2

P.O.E.

WLAN Antenna

PRINTED ON RECYCLED PAPER

QIG

WLANAntenna

Power 1 LED

Power 2 LED

Fault LED

ANT.2

WLAN StrengthLED

ANT.2

Wireless

INDUSTRIAL

Power Connection Guide

Reset

PWR-2 PWR-1

V2+ V2- Relay V1+ V1-

Reset Button

TerminalBlock Power-2 Input

Relay OutputPin

TerminalBlock Power-1 Input

Applications

In IAR-620/IAR-620+, there are 3 modes ofrouting functions supported: Dynamic/ Static IP route, PPPoE dial up, and Modem dial up. IAR-620/IAR620+ also support NAT, VPNand Back upfunctions. You canbuild up the wireless networkand connect tothe Internet easily.

X1,2X1,3X6,

X2,6X1,7X1,

X1,

X1,2X1,3X6,

X2,6X1,7X1,

X1,

X1,2X1,3X6,

X2,6X1,7X1,

X1,

X1,2X1,3X6,

X2,6X1,7X1,

X1,

X1,2X1,3X6,

X2,6X1,7X1,

X1,

X1,2X1,3X6,

X2,6X1,7X1,

X1,

X1,2X1,3X6,

X2,6X1,7X1,

X1,

IndustrialIEEE 802.11 a b g nCellular VPN router with2x10/100Base-T(X), EU band

///

IndustrialIEEE 802.11 a b g nCellular VPN router with2x10/100Base-T(X), JP band

///

IndustrialIEEE 802.11 a b g nCellular VPN router with2x10/100Base-T(X), CA band

///

IAR-620+_US

IAR-620+_EU

IAR-620+_JP

IAR-620+_CA

IindustrialIEEE 802.11 a b g nCellular VPN router with x Base T X port PoE P D USband

///

2 10/100 - ( ), 1- . .,

IindustrialIEEE 802.11 a b g nCellular VPN router with x Base T X port PoE P D band

///

2 10/100 - ( ), 1- . ., EU

IindustrialIEEE 802.11 a b g nCellular VPN router with x Base T X port PoE P D JPband

///

2 10/100 - ( ), 1- . .,

IindustrialIEEE 802.11 a b g nCellular VPN router with x Base T X port PoE P D band

///

2 10/100 - ( ), 1- . ., CA

IAR-620 Series

Industrial Wireless LAN Access

Point Router

ACCESS POINT Router

IAR-620/IAR-620+ canalso be configurethrough ORing’s Windowsutility

Open-Vision

Step 1:Open the commander and click ”Discover”, the AP devices will show on the list. Step 2:Choose your accesspoint, and itwill show theAP function tree. Simultaneity,you can login and then set the AP.

Open-Vision

USB

Modem

USB

Modem

USB

PoE LED

USB Port

USB LED

Ethernet Port2 / PoE P.D.Port
