Page 1
Features
High SpeedAir Connectivity: WLANinterface support upto 300Mbps
link speed
Highly SecurityCapability: WEP/WPA/WPA-PSK(TKIP,AES)/
WPA2/WPA2-PSK(TKIP,AES)/802.1X Authenticationsupported
Support X-Roaming< 100 ms
Support wireless load balance
Support AP/Client/Bridge/AP-ClientMode
Switch ModeSupported: Daisy Chainsupport to reduceusage of
switch ports
Dual redundantEthernet port supportredundant mode (Recovery
time <10ms)
Secured Managementby HTTPs
Fully Compliantwith IEEE802.3af (PowerDevice at ETH2,PoE Models)
Wireless connectingstatus monitoring
Event Warningby Syslog, Email,SNMP Trap,Relay output andBeeper
1KV isolationfor PoE P.D. port of IAP-620+
Rigid IP-30housing design
DIN-Rail andWall-mount enabled
are reliable 802.11 a/b/g/n WLAN Access
Point with2 ports LAN. It supports 802.1X and MAC filters for security
control. It can be configured to operate in AP/Bridge/Repeater/APClient mode. You areable to configure by
WEB interface via LAN port or WLAN interface.
provide dual Ethernet ports in switch mode, so that you can
use DaisyChain to reducethe usage ofEthernet switch ports. In
addition, also providesP.D. feature on ETH2 which is fully
compliant with IEEE802.3af PoEP.D. specification. Therefore,
are one of thebest communication solutionsfor
wireless applicationson the industrial network.
IAP-620 /IAP-620+ series
IAP-620 /IAP-620+ series
IAP-620 /IAP-620+
series
IAP-620+
IAP-620
/ IAP-620+series
IAP-620/IAP-620+ canalso be configurethrough ORing’s Windowsutility
Open-Vision
Step 1:Open the commander and click ”Discover”, the AP devices will
show on the list.
Step 2:Choose your accesspoint, and itwill show theAP function tree.
Simultaneity,you can login and then set the AP.
Introduction
Open-Vision
QIG
Version 1.1

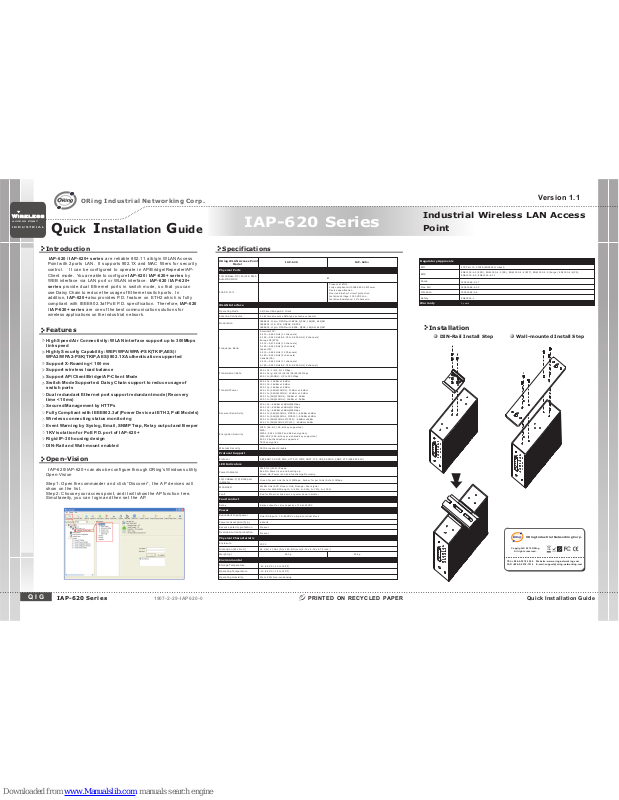

Quick Installation Guide
ORing Industrial Networking Corp.
Quick InstallationGuide
IAP-620 Series
Wireless
IAP-620 Series
Industrial Wireless LAN Access
Point
ACCESS POINT
INDUSTRIAL
1907-2-29-IAP620-0
Specifications
ORing WLANAccess Point
Model
IAP-620
Physical Ports
WLAN Interface
PowerIndicator
Fault
RedforEthernetlinkdownorpowerdownindicator
10/100Base-T(X)RJ45 port
indicator
GreenforportLink/Actat100Mbps. AmberforportLink/Actat10Mbps.
Power
RedundantInput power
Powerconsumption(Typ.)
DualDC inputs. 12~48VDC on6-pin terminal block
6Watts
Overloadcurrent protection
Reversepolarity protection
Present
Present
Physical Characteristic
Enclosure
IP-30
Dimension(WxDxH)
54.1(W)x 106.1(D) x145.4(H) mm (2.13x 4.18 x5.72 inch.)
Weight (g)
800g
Environmental
-40to85C(-40to185F)
oo
StorageTemperature
10/100Base-T(X)Ports in RJ45
AutoMDI/MDIX
2
LED Indicators
AP/Client/Bridge/AP-Client
OperatingMode
IEEE802.11a/n:OFDM with BPSK,QPSK, 16QAM, 64QAM
IEEE802.11b:CCK, DQPSK, DBPSK
IEEE802.11g/n:OFDM with BPSK,QPSK, 16QAM, 64QAM
Modulation
802.11b:1/2/5.5/11 Mbps;
802.11a/g:6/9/12/18/24/36/48/54 Mbps
802.11n(40MHz):UP to 300Mbps
TransmissionRate
802.11a:13dBm 1.5dBm
802.11b:16dBm 1.5dBm
802.11g:14dBm 1.5dBm
802.11n(2.4G@20MHz):13dBm 1.5dBm
802.11n(2.4G@40MHz):12dBm 1.5dBm
802.11n(5G@20MHz):12dBm 1.5dBm
802.11n(5G@40MHz):12dBm 1.5dBm
±
±
±
±
±
±
±
TransmitPower
802.11a:-68dBm 2dBm@54Mbps
802.11b:-82dBm 2dBm@11Mbps
802.11g:-68dBm 2dBm@54Mbps
802.11n(2.4G@20MHz,MCS15): -64dBm 2dBm
802.11n(2.4G@40MHz,MCS15): -60dBm 2dBm
802.11n(5G@20MHz,MCS15): -64dBm 2dBm
802.11n(5G@40MHz,MCs15): -60dBm 2dBm
±
±
±
±
±
±
±
ReceiverSensitivity
2x External reverseSMA type antennaconnector
AntennaConnector
America/FCC:
2.412~2.462GHz (11 channels)
5.180~5.240GHz & 5.745~5.825GHz (9 channels)
EuropeCE/ETSI:
2.412~2.472GHz (13 channels)
5.180~5.240GHz (4 channels)
Japan(JP):
2.412~2.484GHz (13 Channels)
5.180~5.240GHz (4 channels)
Canada(CA):
2.412~2.462GHz (11 channels)
5.180~5.240GHz & 5.745~5.825GHz (9 channel)
FrequencyBand
SSIDbroadcast disable
WEP:(64-bit ,128-bit keysupported)
WPA:
WPA2:802.11i(WEP and AESencryption)
WPA-PSK(256-bit key pre-sharedkey supported)
802.1XAuthentication supported
TKIPencryption
EncryptionSecurity
WirelessSecurity
IAP-620+
PoEP.D Port
Presentat ETH2
Fullycompliant with IEEE802.3af Power
Devicespecification
Overload & shortcircuit protection
IsolationVoltage: 1000 VDCmin.
IsolationResistance: 10 ohms min
8
ARP,BOOTP,DHCP,DNS, HTTP,IP,ICMP,SNTP, TCP,UDP,RADIUS, SNMP,STP (IEEE 802.1D)
Protocol
Protocol Support
WLANLED
WLANLink /ACT:G reen:Link, Orange: Poor signal
Greenfor WLAN Strength:1<25%, 2<50%, 3<75%,4<100%
804g
-10to60C(-14to140F)
oo
OperatingTemperature
5%to 95% Non-condensing
OperatingHumidity
Regulatory Approvals
FCCPart 15, CISPR(EN55022) class A
EMI
EN61000-4-2(ESD), EN61000-4-3 (RS),EN61000-4-4 (EFT), EN61000-4-5(Surge), EN1000-4-6(CS),
EN61000-4-8,EN61000-4-11
EMS
IEC60068-2-27
Shock
IEC60068-2-32
IEC60068-2-6
Vibration
EN60950-1
Safety
FreeFall
Warranty
3years
Fault contact
Relay
Relayoutputtocarrycapacityof1Aat24VDC
PWR1(2)(PoE) / Ready:
RedOn:Powerisonandbootingup.
GreenOn: Power ison and functioningNormally.
Installation
DIN-Rail Install Step Wall-mounted Install Step
ORing IndustrialNetworking Corp.
Copyright© 2012 ORing
Allrights reserved.
TEL:+886-2-2218-1066
FAX:+886-2-2218-1014
Website:www.oring-networking.com
E-mail:[email protected]
PRINTED ON RECYCLED PAPER
Page 2
IAP-620+IAP-620
Front Panel
Packing list
Accessory
Ethernet Port 1
Ethernet Port 2
WirelessLAN LED
Wall-mounted kit
DIN-Rail kit
1
6-Pin Terminal block
2
4
Screw (M3X5)
3
Dust Cover
5
CD
6
QIG
7
IndustrialIEEE 802.11 a b g nwireless access point
with2x10/100Base-T(X), US band
///
IAP-620_US
Model name Description Accessory
100M LNK/ACTLED
(Green)
10M LNK/ACTLED
(Amber)
Quick Installation Guide
ORing Industrial Networking Corp.
Front Panel
A
B
IAP-620_EU
IAP-620_JP
IAP-620_CA
1
X1,2X1,3X6,
5
X2,6X1,7X1,
4
X1,
8
X2
Quick InstallationGuide
IAP-620/620+
WLAN
Fault
PWR2
PWR1
ANT.1
ETH1
ETH2
WLAN
Fault
PWR2
PWR1
ANT.1
ETH1
ETH2
P.O.E.
P.O.E.
BA
WLAN Antenna
8
PRINTED ON RECYCLED PAPER
QIG
WLANAntenna
Power 1 LED
Power 2 LED
Fault LED
ANT.2
WLAN StrengthLED
ANT.2
Version 1.1
IAP-620 Series
Wireless
IAP-620 Series
Industrial Wireless LAN Access
Point
ACCESS POINT
INDUSTRIAL
Power Connection Guide
Reset
PWR-2 PWR-1
V2+ V2- Relay V1+ V1-
Reset Button
TerminalBlock Power-2 Input
Relay OutputPin
TerminalBlock Power-1 Input
Applications
In practicaloperation of wirelessaccess point, Windowsutility (Open-Vision) is
supported. This utility is very helpful for you to search and configure IP of
access point on the industrial network. In addition,the wireless accesspoint
support variouskinds of operationmodes include AP/ Bridge/Repeater/APClient mode. IAP-620 /IAP-620+ series also support PoE P.D. feature to
extend the layout up to 100 meters. You can build up the wireless network
easily.
Variouskinds of operationmodes
1
X1,2X1,3X6,
5
X2,6X1,7X1,
4
X1,
8
X2
1
X1,2X1,3X6,
5
X2,6X1,7X1,
4
X1,
8
X2
1
X1,2X1,3X6,
5
X2,6X1,7X1,
4
X1,
8
X2
1
X1,2X1,3X6,
5
X2,6X1,7X1,
4
X1,
8
X2
1
X1,2X1,3X6,
5
X2,6X1,7X1,
4
X1,
8
X2
1
X1,2X1,3X6,
5
X2,6X1,7X1,
4
X1,
8
X2
1
X1,2X1,3X6,
5
X2,6X1,7X1,
4
X1,
8
X2
IndustrialIEEE 802.11 a b g nwireless access point
with2x10/100Base-T(X), EU band
///
IndustrialIEEE 802.11 a b g nwireless access point
with2x10/100Base-T(X), JP band
///
IndustrialIEEE 802.11 a b g nwireless access point
with2x10/100Base-T(X), CA band
///
A
A
A
IAP-620+_US
IAP-620+_EU
IAP-620+_JP
IAP-620+_CA
B
B
B
IindustrialIEEE 802.11 a b g nwireless access point
with x Base T X port PoE P D US band
///
2 10/100 - ( ),1- . .,
IindustrialIEEE 802.11 a b g nwireless access point
with x Base T X port PoE P D band
///
2 10/100 - ( ),1- . .,EU
IindustrialIEEE 802.11 a b g nwireless access point
with x Base T X port PoE P D JP band
///
2 10/100 - ( ),1- . .,
IindustrialIEEE 802.11 a b g nwireless access point
with x Base T X port PoE P D band
///
2 10/100 - ( ),1- . .,CA
