ORIMAG TECHNOLOGY P6 Users manual

P6 Projector

User Manual

Operation guidance

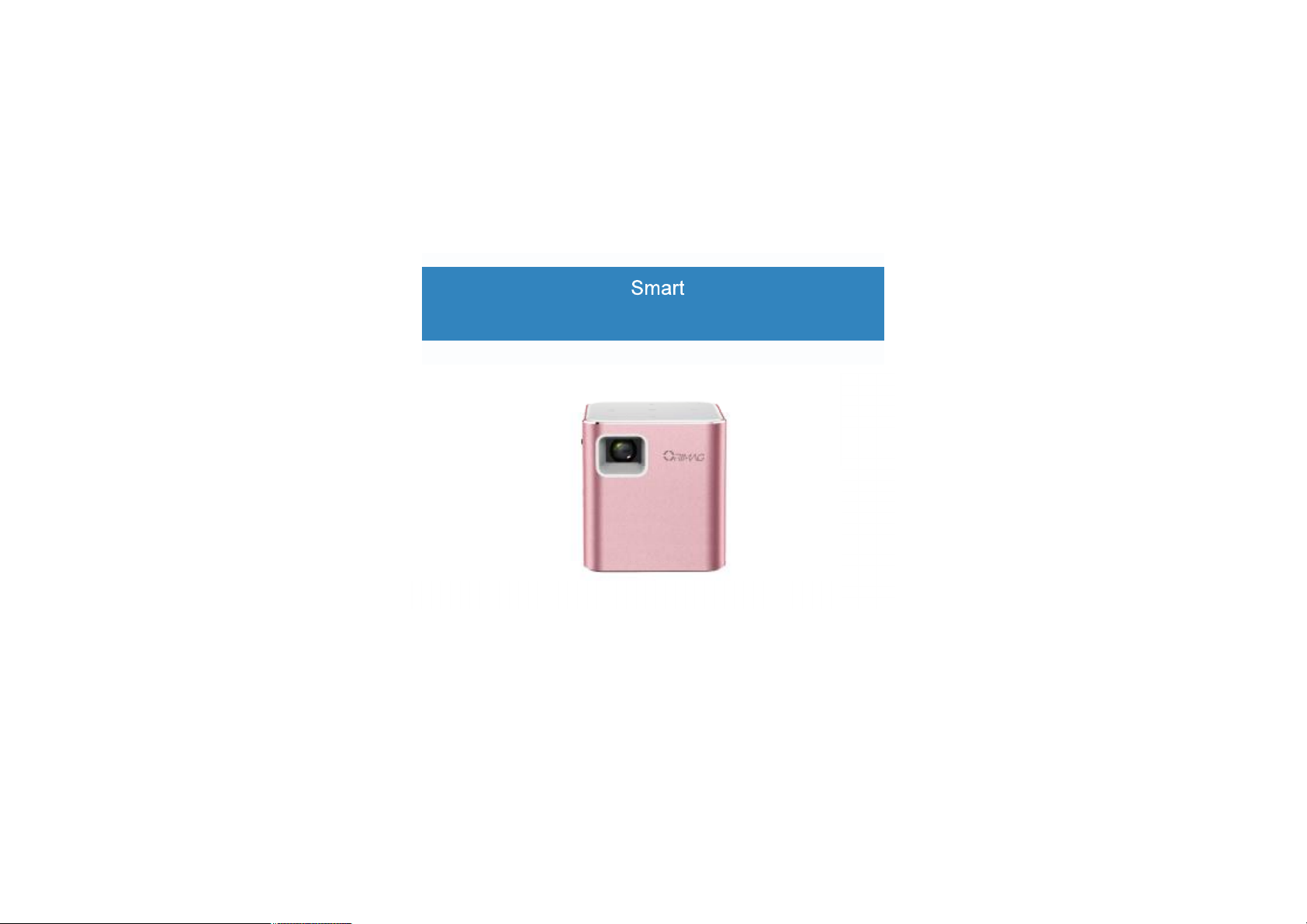

P6

Smart Projector

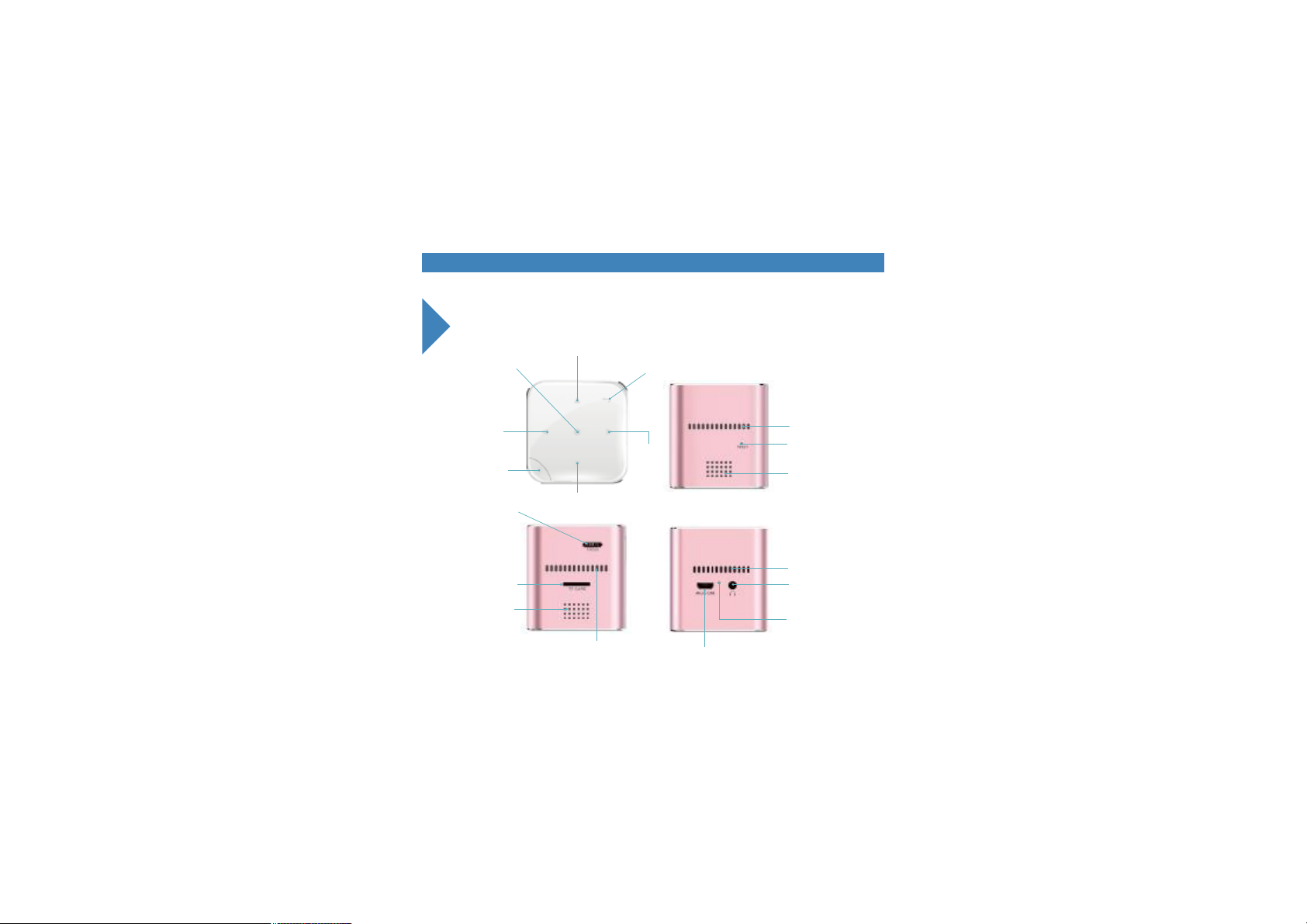

2 Introduction of appearanceIntroduction of appearance

Enter

Up

Back

Left

Power

Focus Adjustment

TF Card Slot

Speaker

Down

Dissipation Vent

Right

Micro USB Recharging Interface

Vent
Reset

Speaker

Vent
Ear Jack

Recharging
Indicator

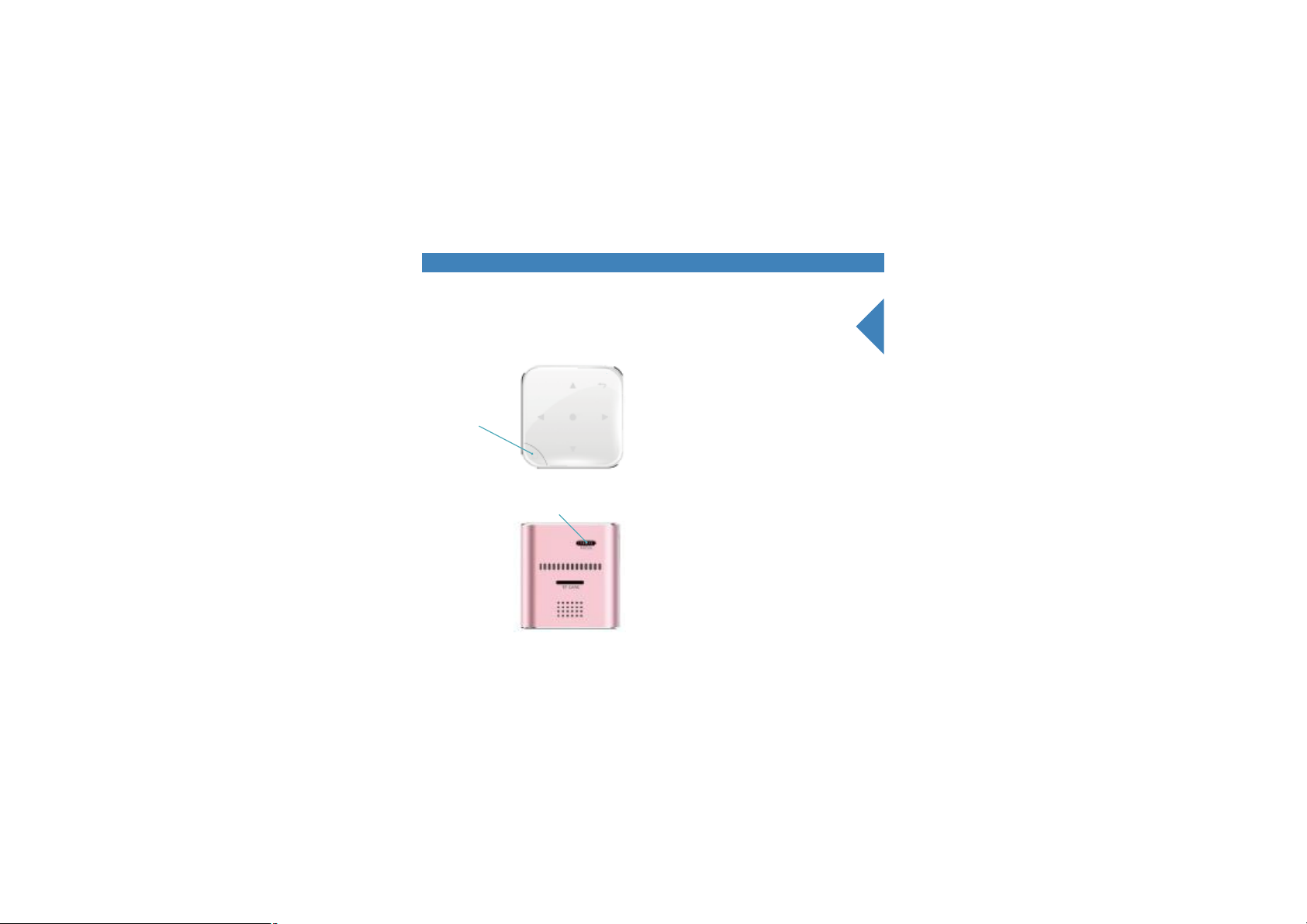

1.Click and hold the power button for 5
seconds to turn on or off the projector

Power

2.Projection Focus/Brightness Adjustment

Focus Adjustment

1.Roll clockwise or anti-clockwise the
focusadjustment until having vivid
projection image.

2.Go to “Setting”page,and then “Brightness
Setting” to adjust projection

31.How to turn on/off

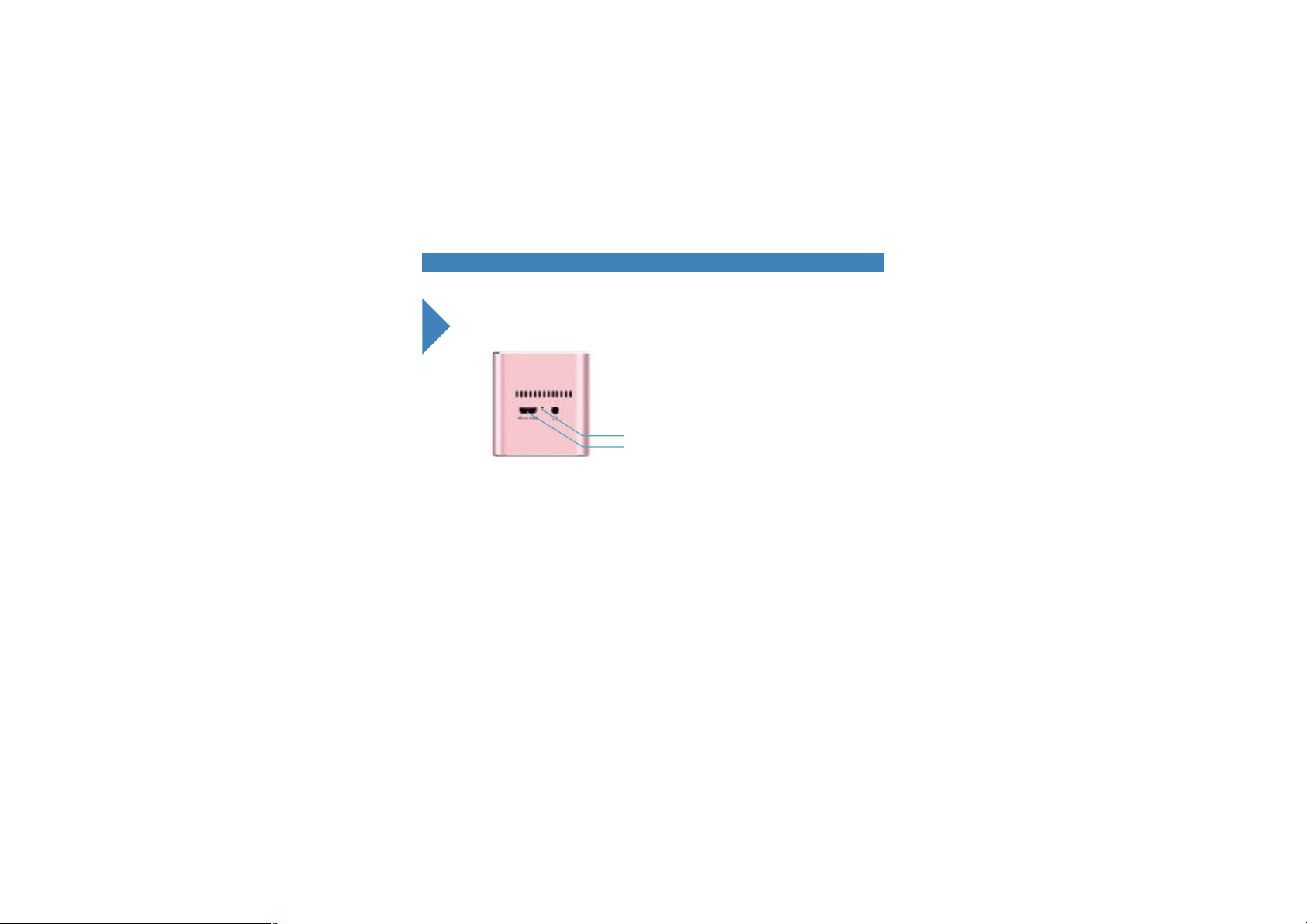

Recharging

4

LED on for being recharged,while LED off for
recharged fully.

Recharging Indicator
Micro USB Recharging Interface

Specifications

Brightness: 80 ANSI Lumens
Screen Size: 5inch~120inch Projection Size:5”-200”
Resolution: VGA 640X480(Throw Ratio:4:3 Contrast Ratio:1000:1)
Lamp life: 30,000hours
Wireless connection: Wifi 2.4
Battery: Max 1.5hours use
8ohm/1w Speaker
Other I/O interfaces:USB OTG,3.5mm Earphone jack
Available Mirroring:Miracast,AirPlay,Windows
External TF Card:Max 128G

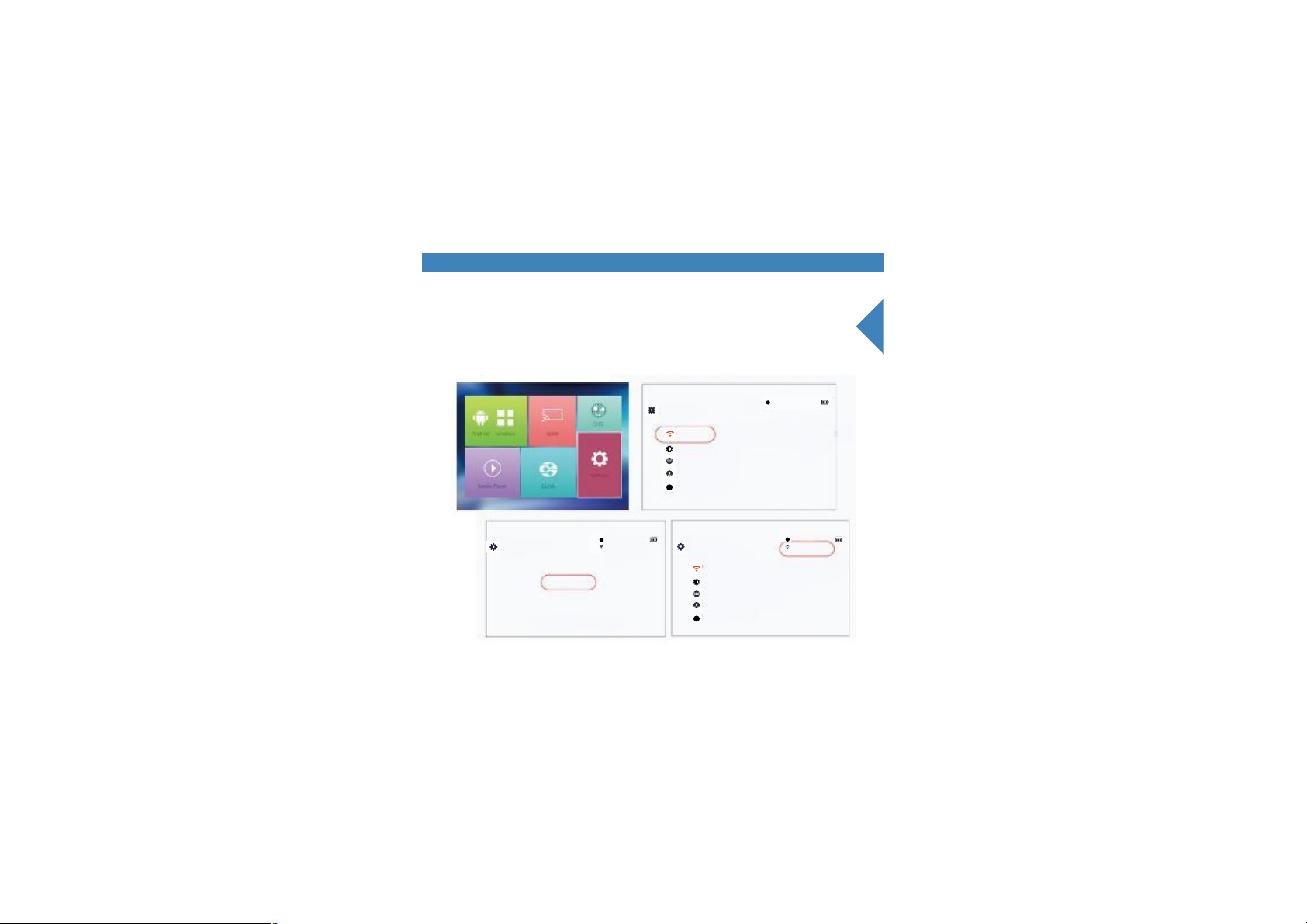

Wifi Setting

Go to Setting page,and then the Wi-Fi Setting.Pick up a network after
all local connectivities are searched.Connection would be showed on
the right-top side,once password entered is right.

i

Setting

Wi-Fi setting

Brightness Setting

Language

Online Update

i

Device info

P6-6F7CSE

5

i

Setting Setting

Searching...........

Searching all available connectivities

P6-6F7CSE P6-6F7CSE

Wi-Fi setting

Brightness Setting

Language

Online Update

Device info

i

i

Ayhttp//:192.168.49.4Ayhttp//:192.168.49.4

Successfully connection
would be showed here.

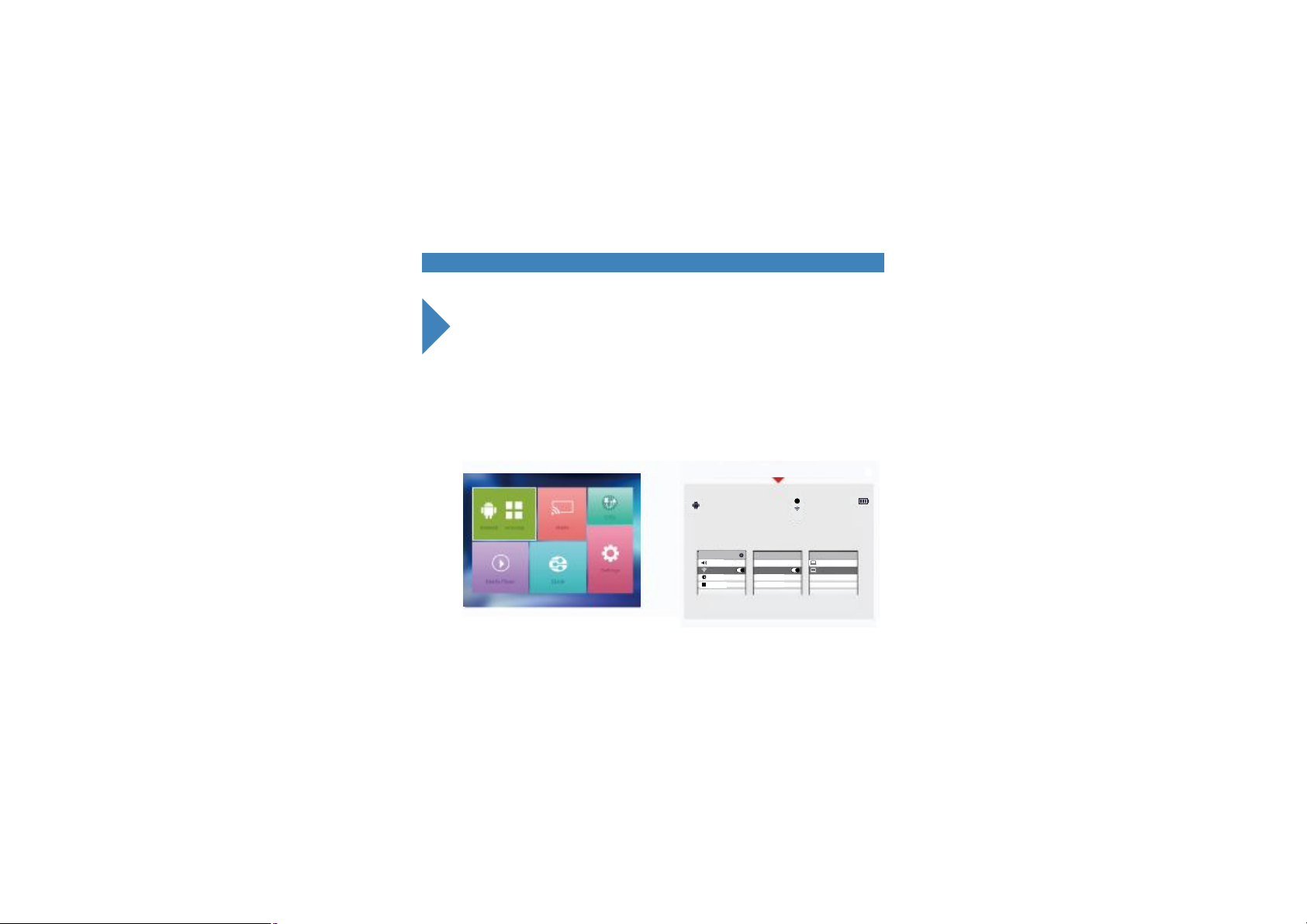

Miracast Mirroring For Android Phones

6

1.Orimag P6 is only allowed to miracast the phones of Android 4.4 or above.
Miracast would be renamed as Smartview or else instead of Miracast itself,
depends on different phones.

Enter “Android/windows”page and keep projector staying in this page,as showed below;

Choose Android and will show the below menu is mirroning connecting

P6-6F7CSE

Airplane mode

Mobile hotspot

enable Miracast

i

Ayhttp//:192.168.49.4

2.4G Aycodis 2.4G WifiSupport for Android OS 4.2 or later

Miracast

With a Miracast enabled Android device,you can mirror your contents to the projector

Settings Wireless display Devices list

Sound VPN p6

WLAN Miracast

Display

Language

A

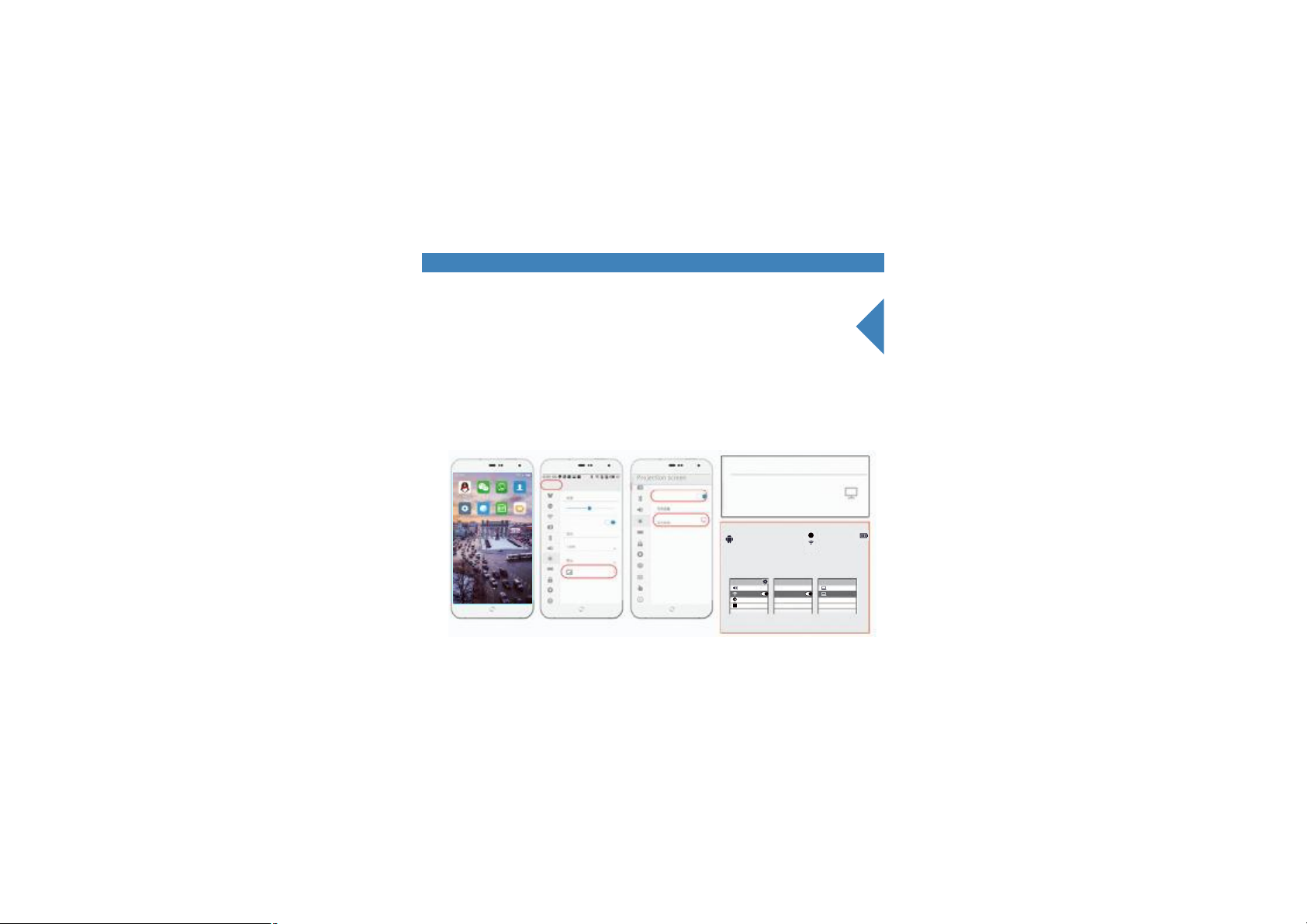

1.Turn on Wi-fi 2.Go to display setting,

P6-XXXXXX

3.Select-P6-XXXXXX

Miracast connections--Android mobile phone

2.Enable screen projection on phone.Search local wifi hotspots to find out
Orimag P6’s connectivity,commonly it is named as “P6-******”,and enter
without password.Here is done the connection between P6 and an Android
Phone.

(Note:The demostration phone is Meizu M463C.)

7

showing

Automatic Adjust

Screen Standby

Text Size

Projection screen

Projection screen

P6-6F7CSE

Available Devices

P6-6F7C SE

Connected

P6-6F7CSE

Wireless display

VPN

Miracast

Airplane mode

Mobile hotspot

enable Miracast

i

Ayhttp//:192.168.49.1

2.4G Aycodis 2.4G Wifi

P6

P6-XXXXXX

3.Select-P6-XXXXXX

Miracast

Support for Android OS 4.2 or later

With a Miracast enabled Android device,you can mirror your contents to the projector

Settings

Sound

WLAN

Display

A

Language

1.Turn on Wi-fi 2.Go to display setting,

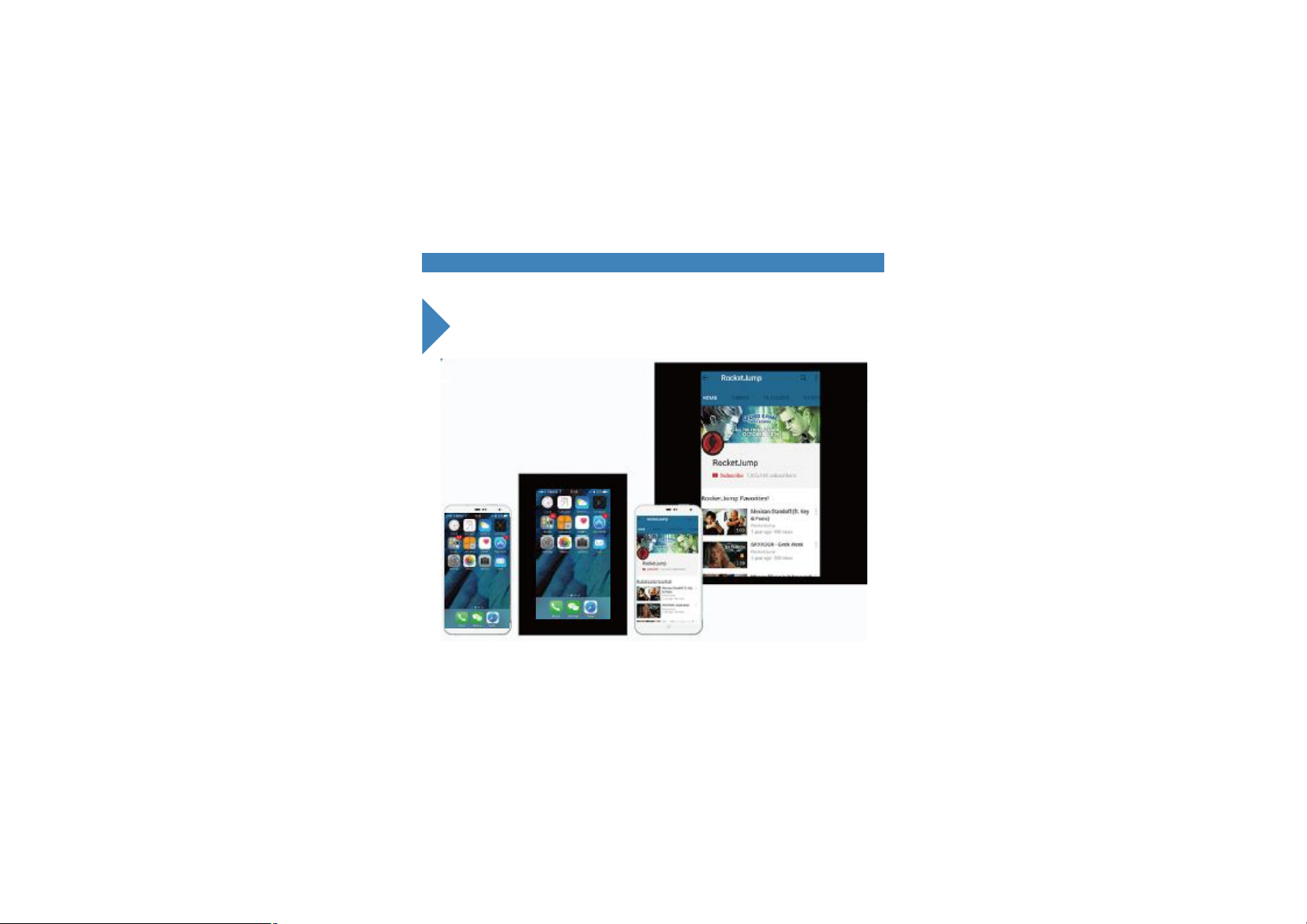

8 Airpaly Mirroring for Iphones

Here is done too the projection of the phone.

Note:projection quality might be subjected to
the connectivity.

Turn off screen projection on the phone,to quit the projection.

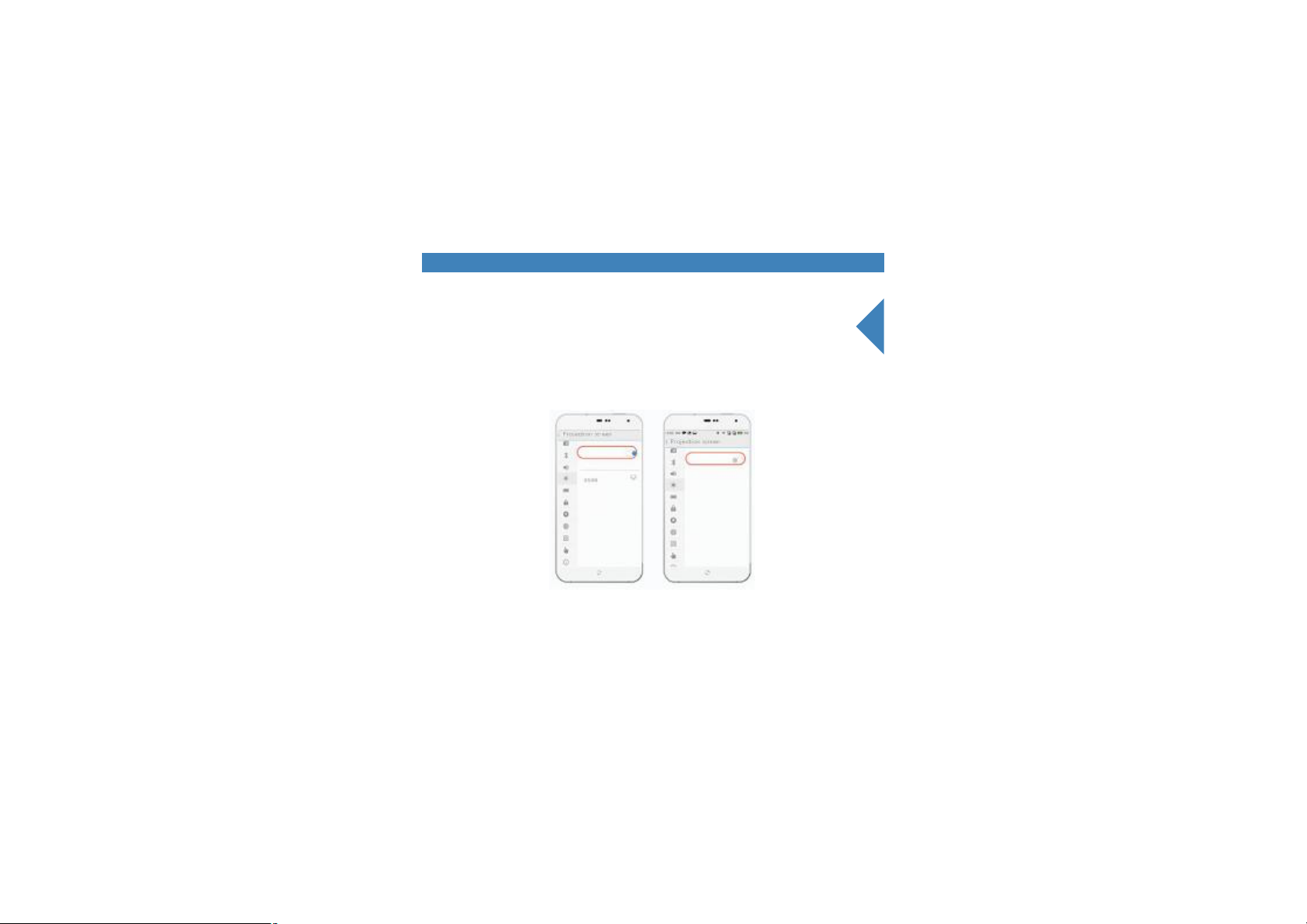

9Miracast Disconnection

Projection screen

P6-6F7C SE

Projection screen

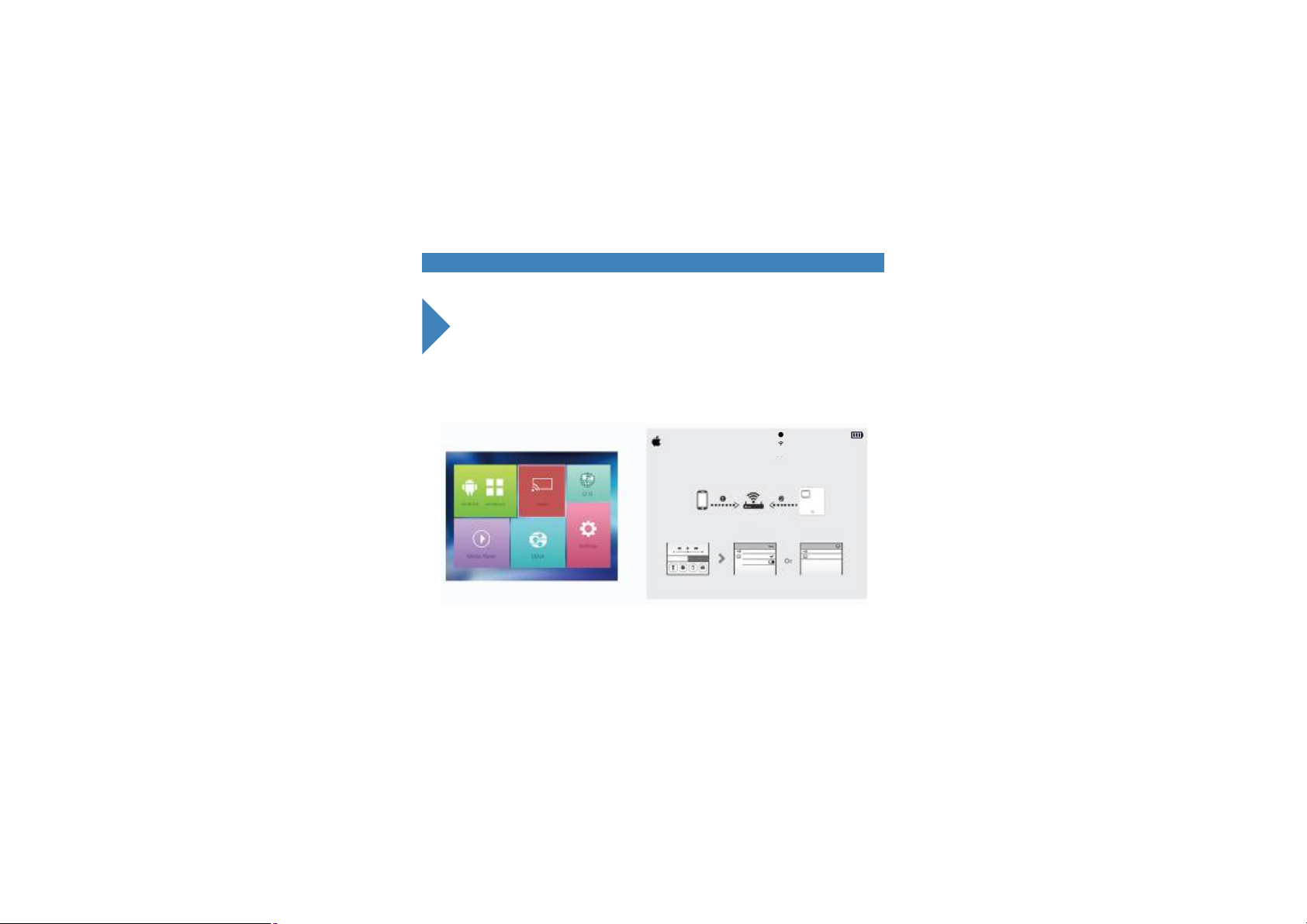

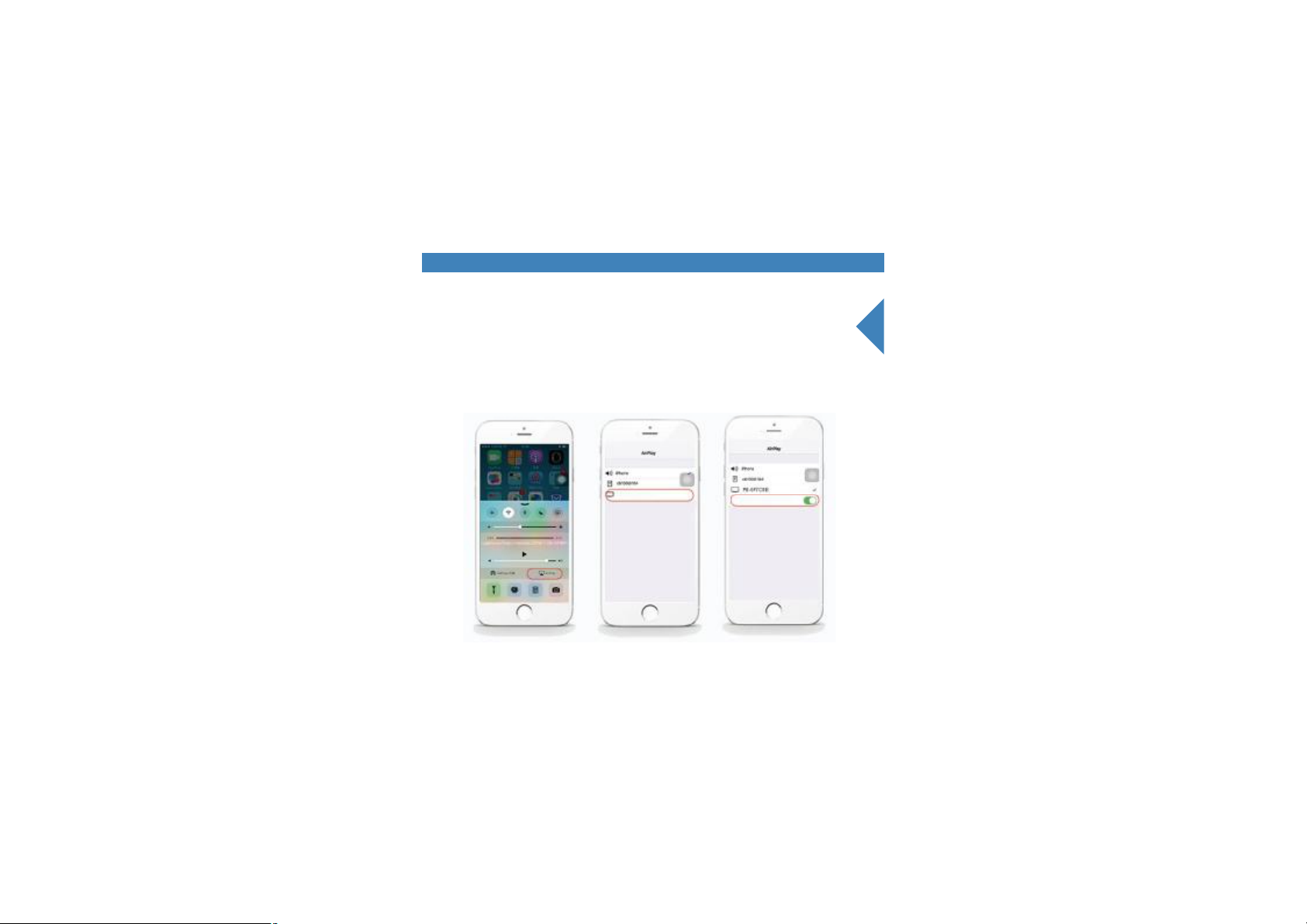

Airpaly Mirroring for Iphones

10

Enter the “Apple”page,and keep staying in this page.

Airplay (iOS II)

Support ios 5.0 or latter

Casts IOS device’s local images,videos or third party video data to the projector

1.Swipe up on control panel
and press Airplay icon

i

P6-6F7CSE

Ayhttp//:192.168.49.1

2.4G Aycodis 2.4G Wifi

Both IOS device and projector are connected to your home WIFI

iphone

p6-xxxxxx

Mirroring

2.Select P6-XXXXXX and enable Mirroring if you prefer
And then third party video app that supports
Airplay press Airplay icon.

iphone

p6-xxxxxx

Airpaly Mirroring for Iphones

Search on phone the local wifi hotspots and find out Orimag P6’s
connectivity,enter without password.

Once the connection done,switch on “Airplay Mirroring”from the control
panel on the phone.Here comes the projection.

11

Airplay Done

iphone

cb100@164

P6-6F7CSE

With AirPlay Mirroring youcan send everythingon your
iPhone’s display to an AppleTV,wirelessly.

Airplay Done

iphone

cb100@164

P6-6F7CSE

Mirroring

With AirPlay Mirroring youcan send everythingon your
iPhone’s display to an AppleTV,wirelessly.

12

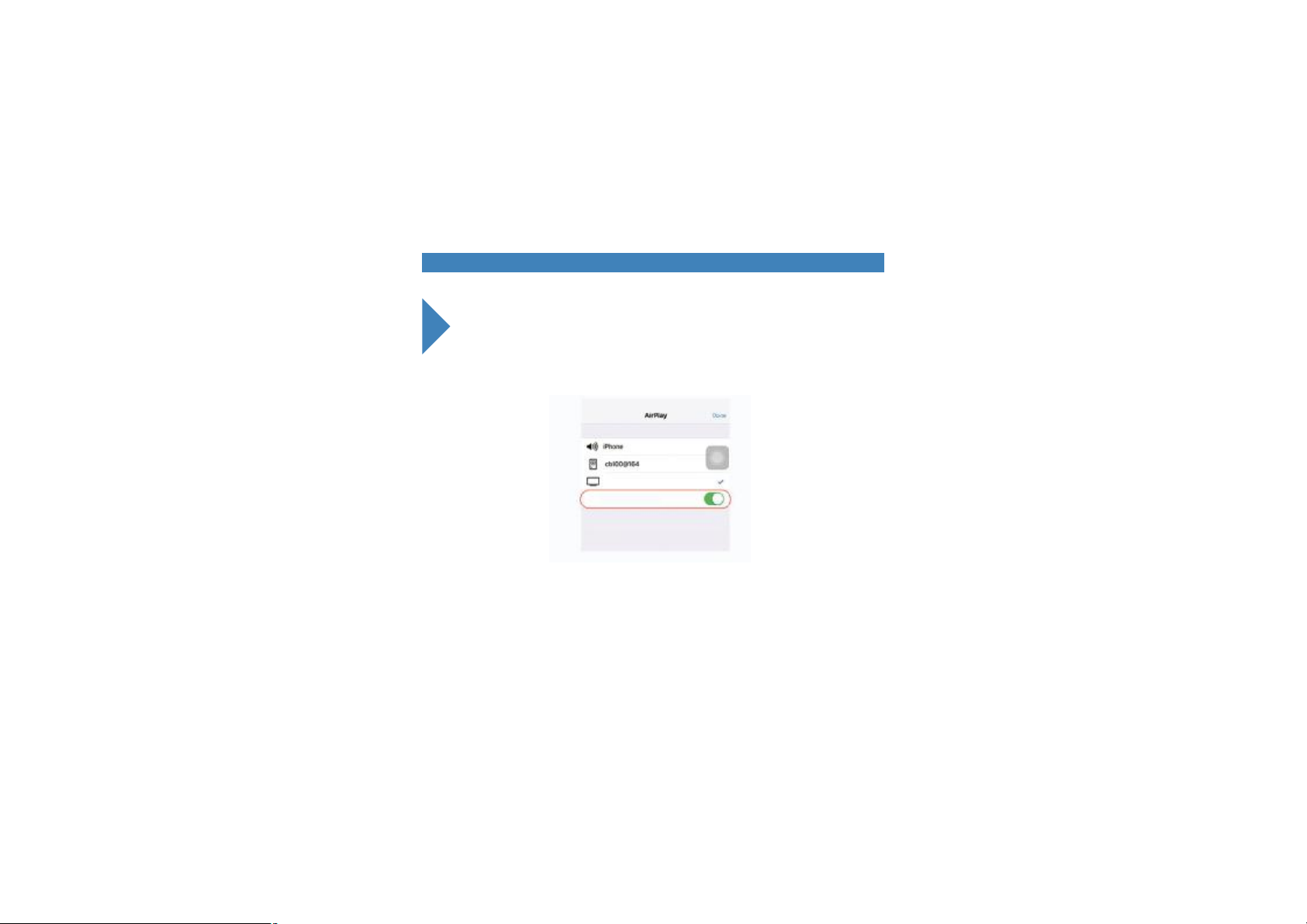

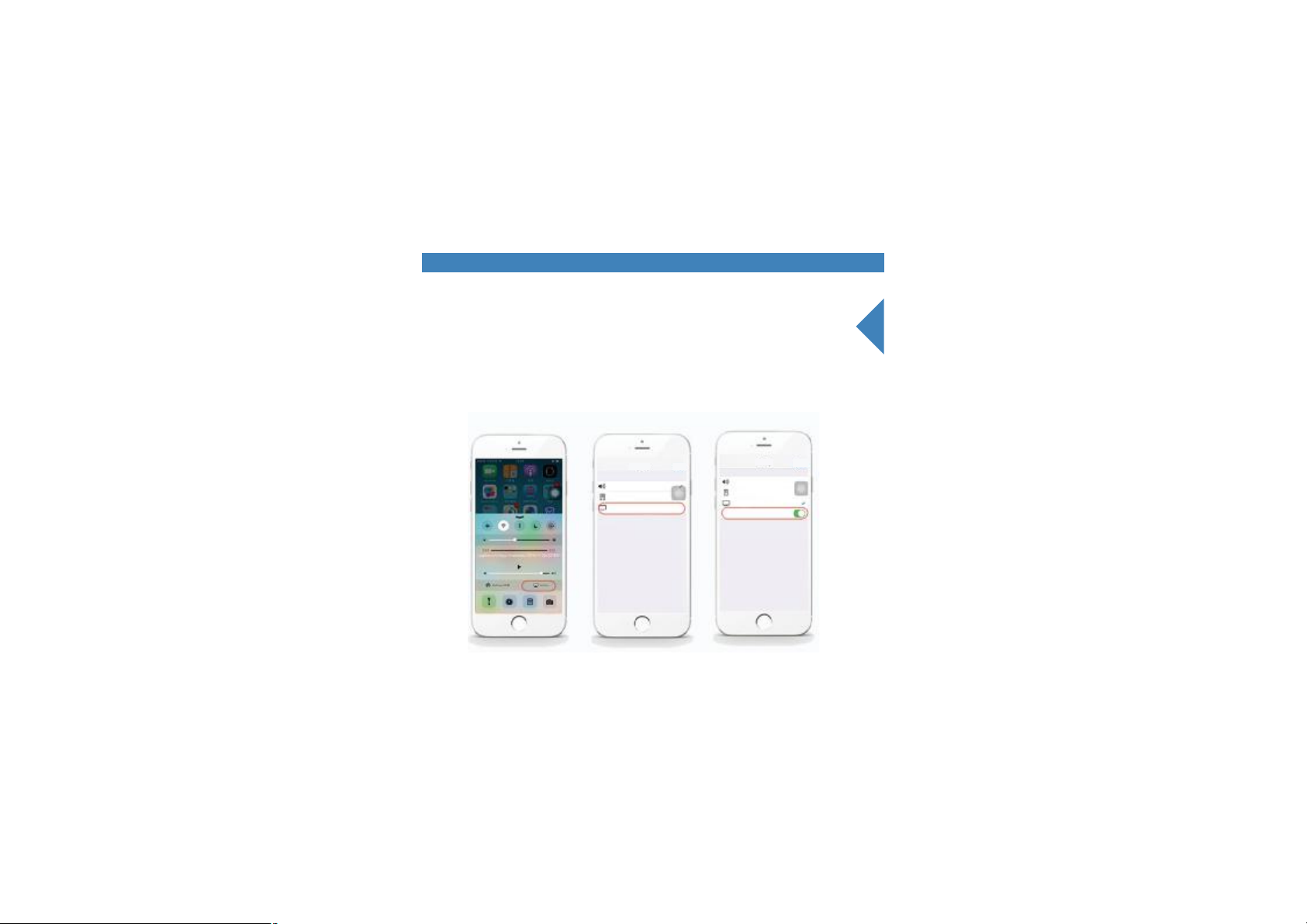

Airplay to quit connection

3.shut down mobile phone mirror output to quit connection

AirPlay

iphone

cb100@164

P6-6F7CSE

Mirroring

With AirPlay Mirroring youcan send everythingon your
iPhone’s display to an AppleTV,wirelessly.

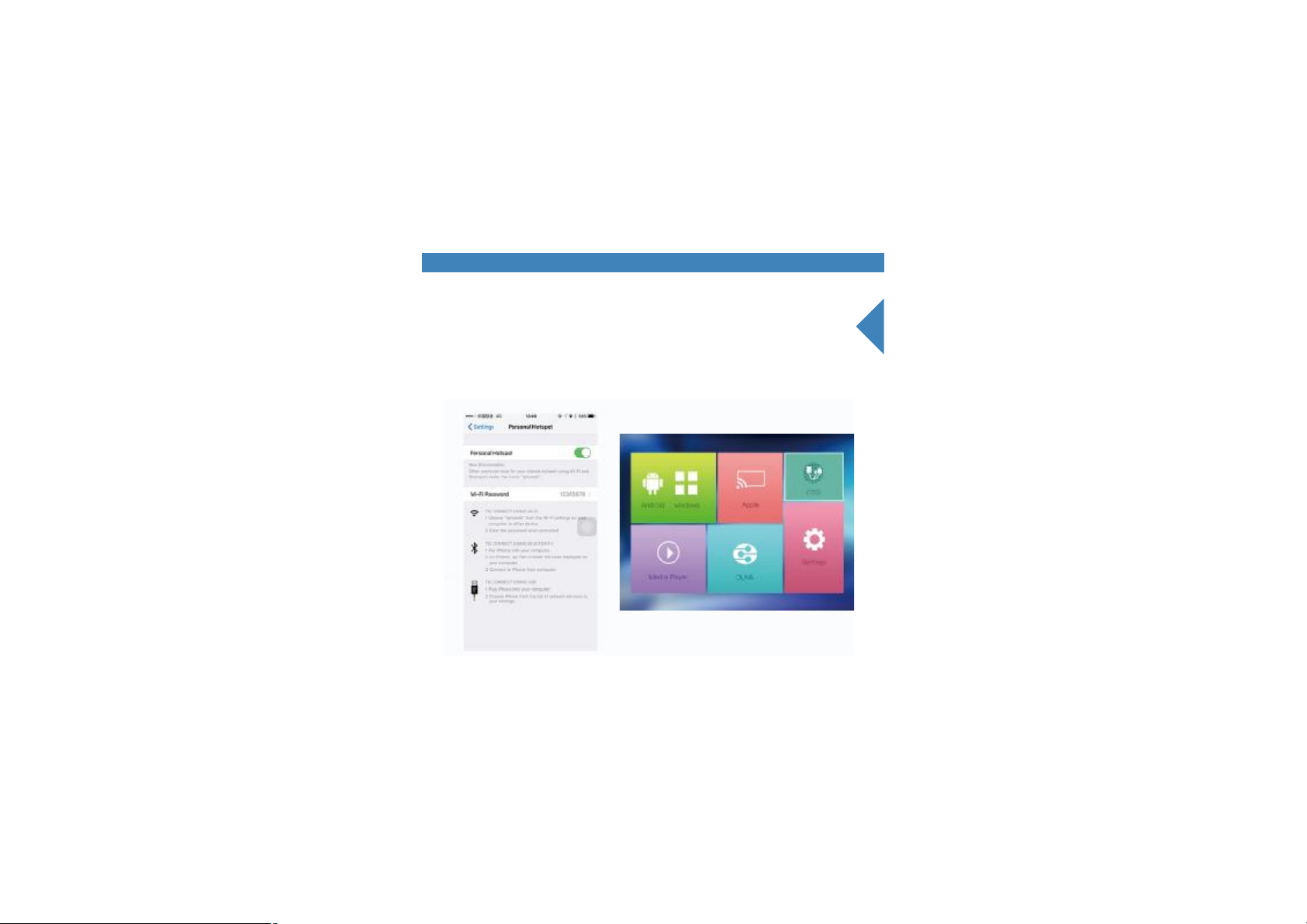

1. Turn on personal hotspot,Slect "setting" on the desktop and then click
"WIFI setting" to connect the personal hotspot. when connected
successfully turn back to the desktop.pls keeping turn on the personal
hotspot.

i

P6-6F7CSE

Setting

Click and connecting

Wifi successfully connecting stafus

Wi-fi setting

Brightness Setting

Language

Online Update

i

Device info

Ayhttp//:192.168.49.1

2.4giPhone6

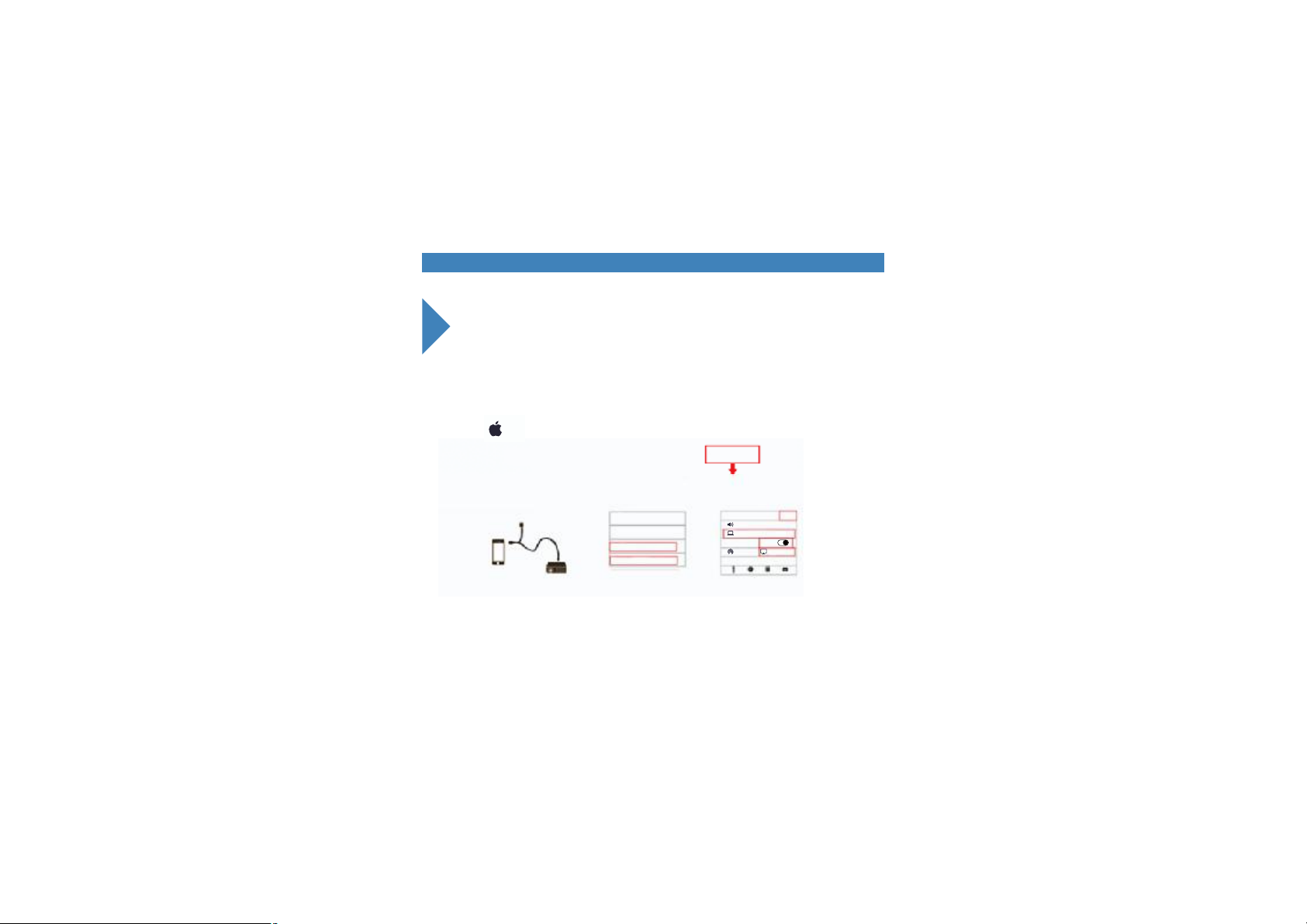

13OTG CONNECTION–APPLE IPHONE

14 OTG CONNECTION–APPLE IPHONE

2. Connect the projector with your phone by OTG cable, then select the
"OTG" and click to turn the below right image.waitting for automatic
connection caption as the below image shows.

ios

Notice:online video play will consume the
Cellular data which cost will be collected by the prodder

power Setting

Mobile phone

1.To connect data cable as image shows(fenale
port to connect to mobile phone)

mini projector

Bluetooth

Celullar data network

Personal hotspot

2.Select"setting"-"celular data network
"open"Hotspot"

P6-6F7CSE

Connected

this info shows the projector
connect to the phone successfully

Airplay

Done

iPhone

P6-xxxxxx

Mirror

airdropairplay

3.Push:open Airplay-select "hotspot"connect ahd done.
click icon in playing video
Minoting :open Airplay-select
"hotspot" to open mirror and done

OTG CONNECTION–APPLE IPHONE

3.Slide up from bottom of the phone and click the "Airplay"
to use the mirroring function.

15

P6-6F7CSE

With AirPlay Mirroring youcan send everythingon your
iPhone’s display to an AppleTV,wirelessly.

Mirroring

With AirPlay Mirroring youcan send everythingon your
iPhone’s display to an AppleTV,wirelessly.

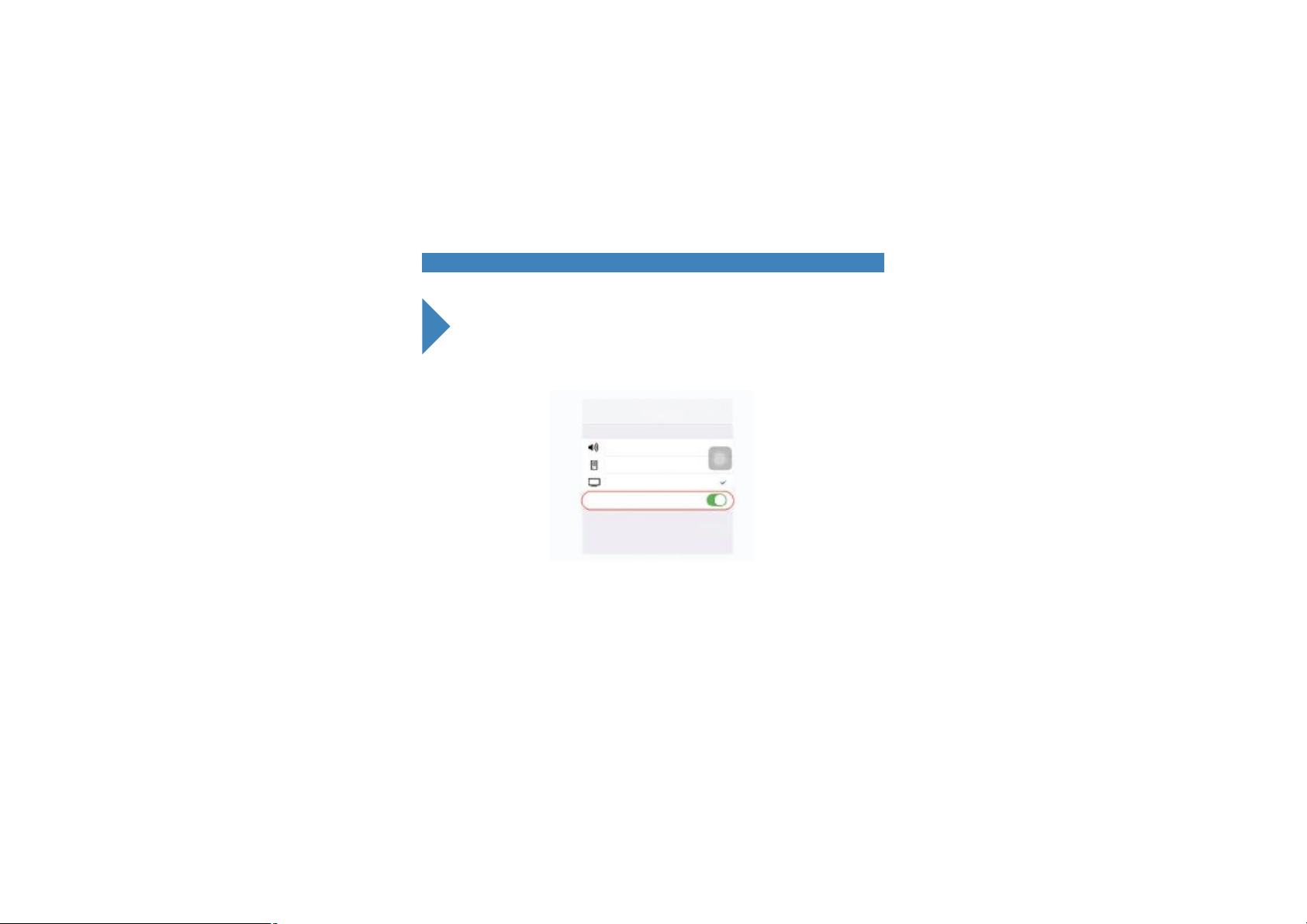

16 OTG to quit connection

4. Shut down mobile phone mirror output to quit connection.

P6-6F7CSE

Mirroring

With AirPlay Mirroring youcan send everythingon
your iPhone’s display to an AppleTV,wirelessly.

Same Wi-Fi “will be shared between the mobile phone and projector.

1.Select “Windows” from desktop to enter the interface as below right
image shows

i

Windows Miracast

With a Miracast enabled Windows device, you can mirror your contents to the projector

P6-6F7CSE

Ayhttp//:192.168.49.1

2.4G Aycodis 2.4G Wifi

17CONNECT TO WINDOWS SYSTEM

To Project,connect a diaplay.

Project

Add a wireless display

Project

Second screen

PC and devlces
Lock screen
Display
Bluetooth

Devices

Typing

Add devices

Add a devices

Searching devices

P6-XXXXXX
Entertainment device

Connecting to p6-xxxxxx

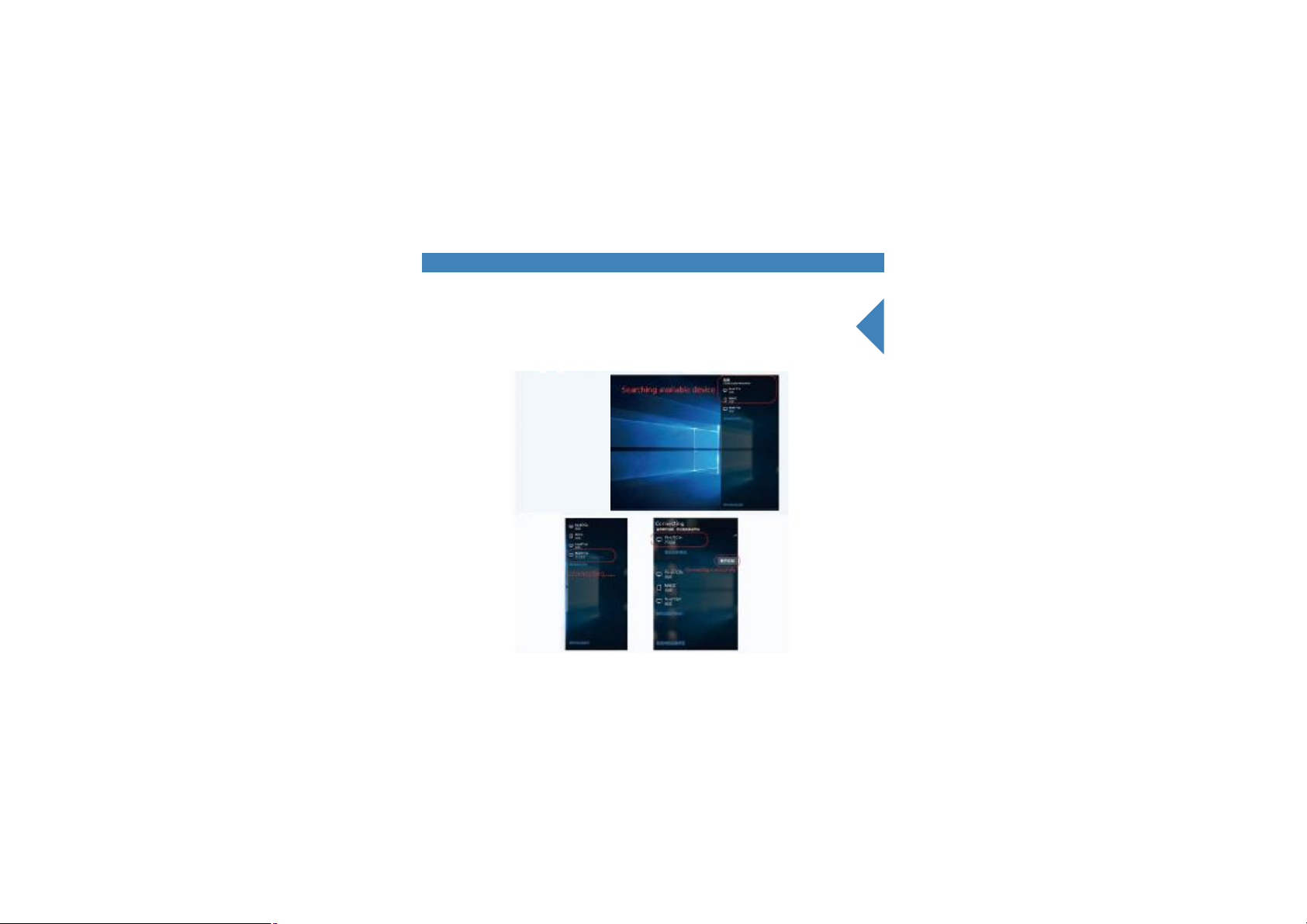

18 Connect to Windows system

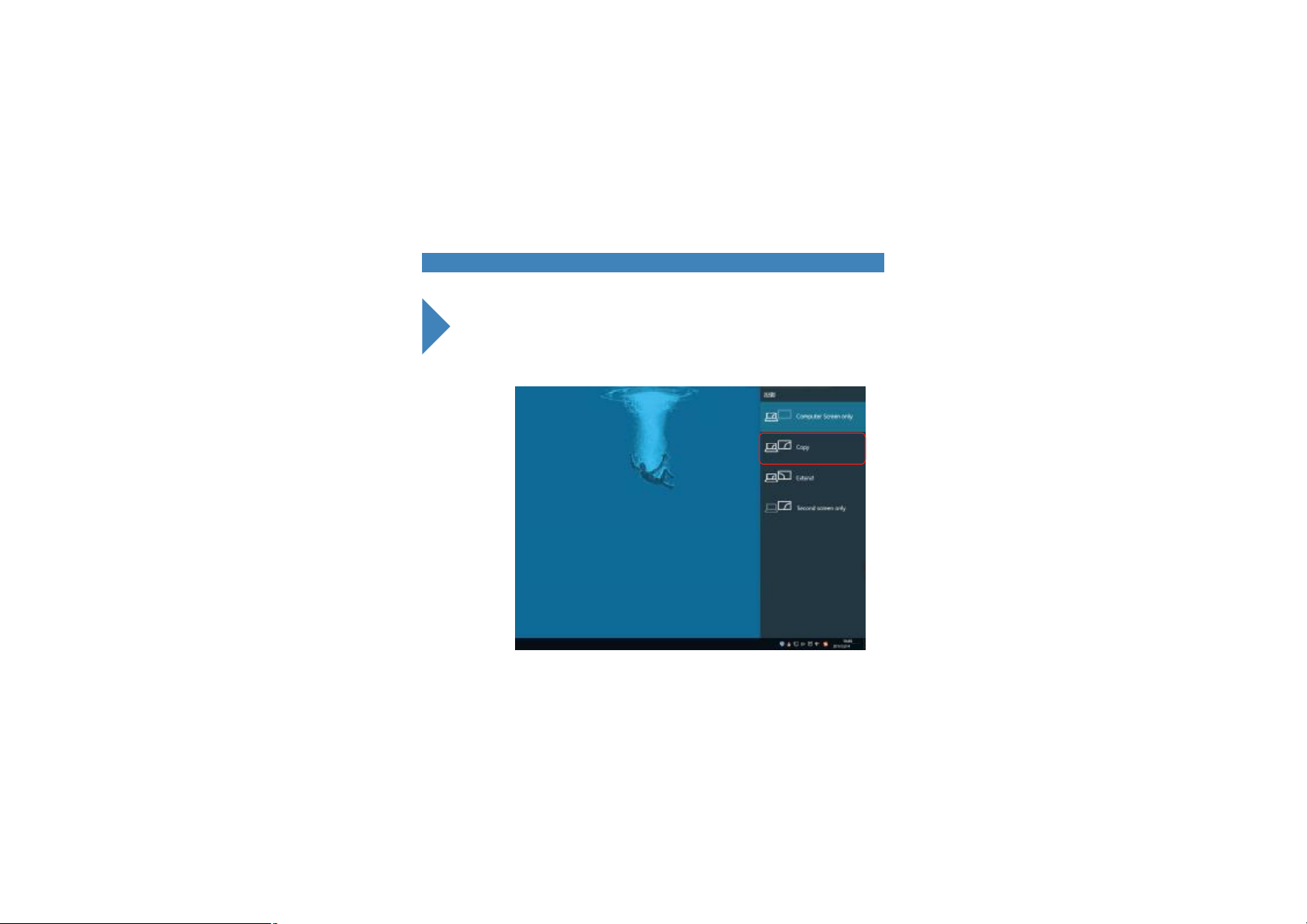

2.To press Fn+F3 to open “Copy” and select other projection modes

Select “Projection--Computer Screen Only”and
search to connect the available projector device

3.3.Searching and connect the projector device until it’s projection
successfully.

19Connect to Windows system

20

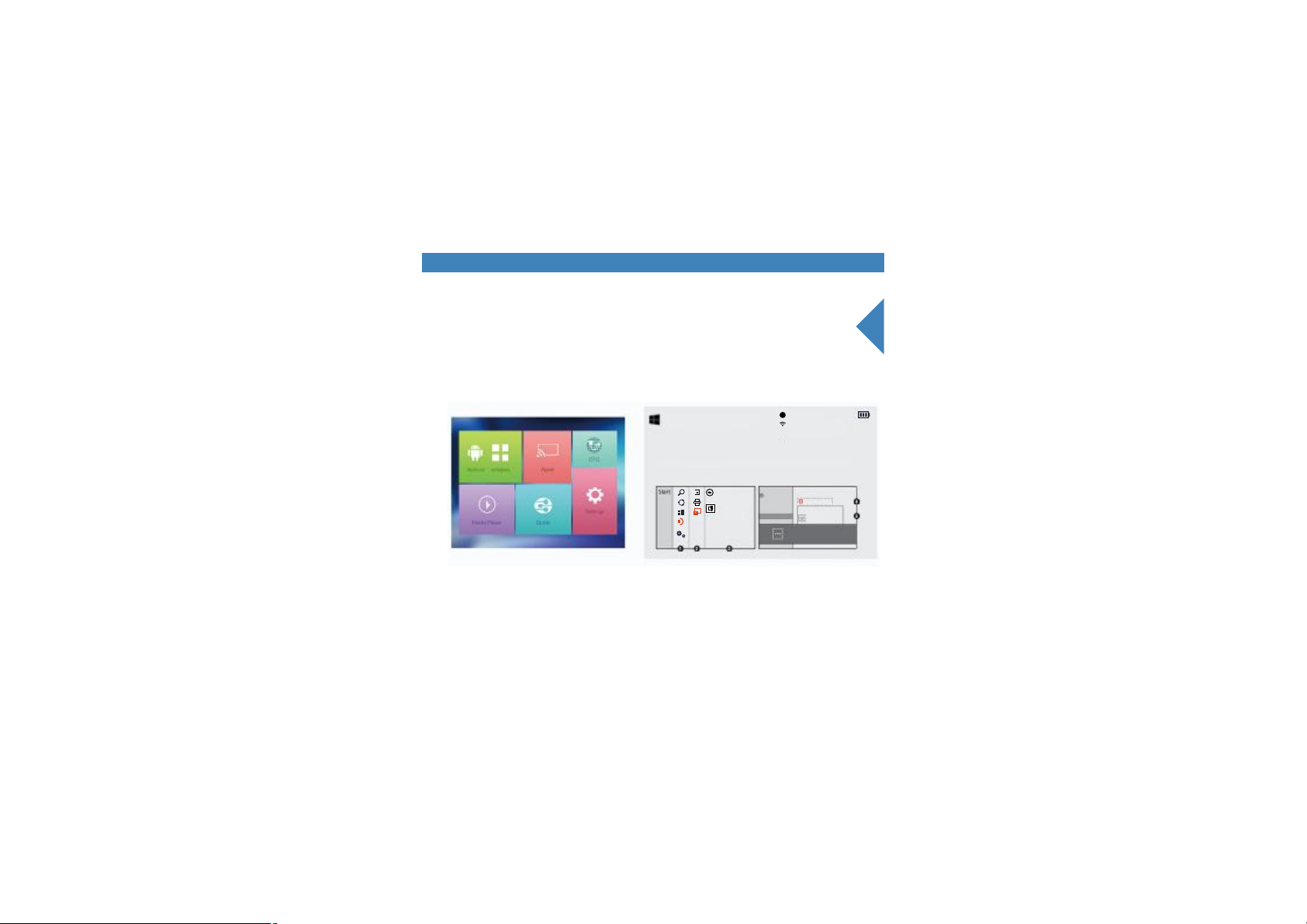

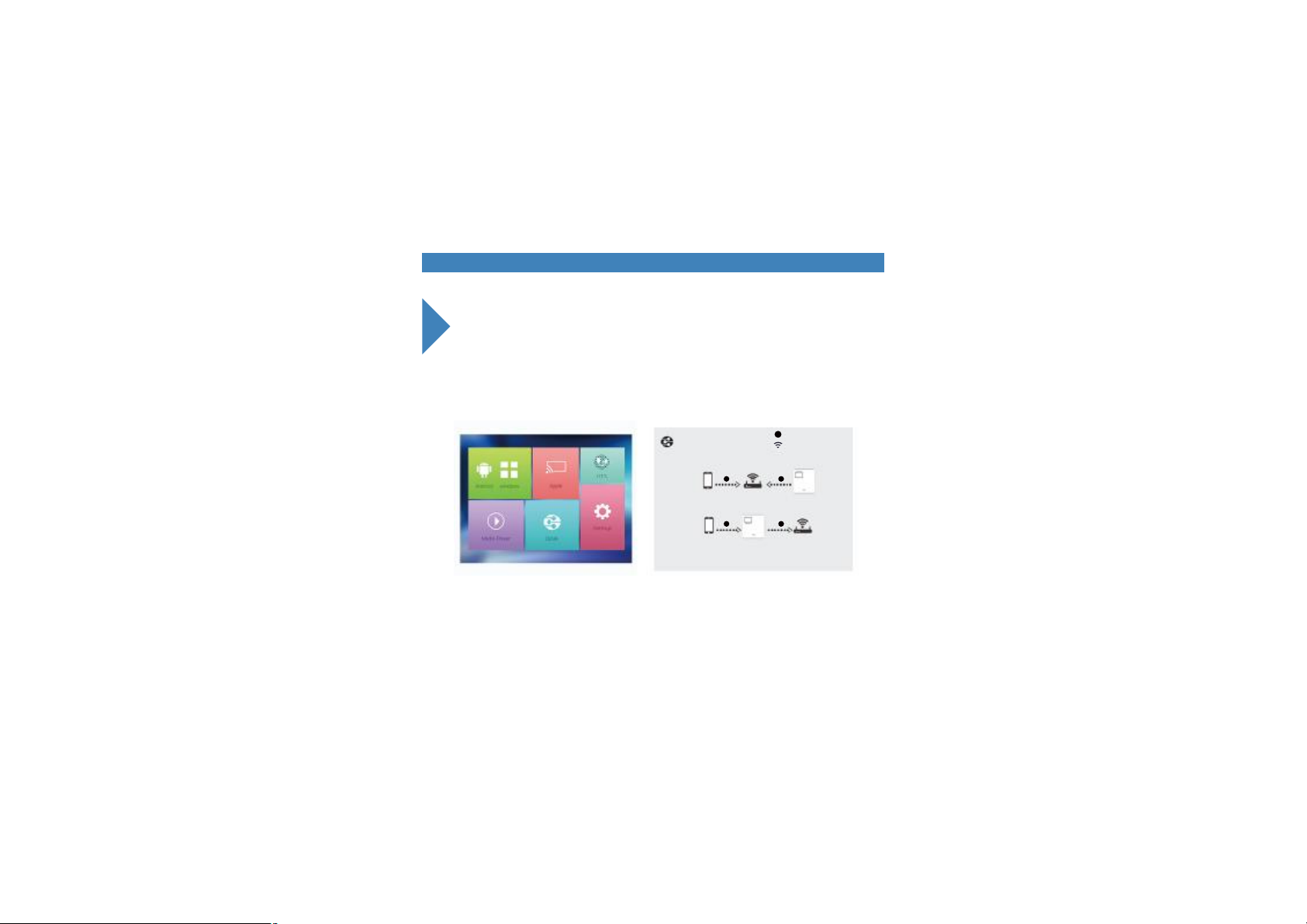

DLNA push

1.DLNA:to transfer local images videos or 3rd party video data
to projector (need in the same Wi-Fi Router for smart device and projector )

2.And otherwise,this device also can connect to Iphone cellular personal
hotspot,and show the same screen when surfing on the phone net.

i

or

P6-6F7CSE

http//:192.168.49.1

DLNA

With DLNA,casts smart device’s local images, videos or third party video data to the projector

1 2

Both smart device and projector are connected to your home WIFI

1 2

Projector has been connected to your home WIFI,and smart device is

connected to projector’s WIFI In the third party app that supports DLNA,

press DLNA and then select p6-xxxxxx

DLNA push

3.As the below picture shows.Click the TV Screen Mirroring on the Vedio
App.Please Note:Most Vedio App support the DLNA function(such as
Tecent video, Thunder KANKAN, PPTV,YOUKU,SOHU video etc.),while
still someAPP does not support.

21

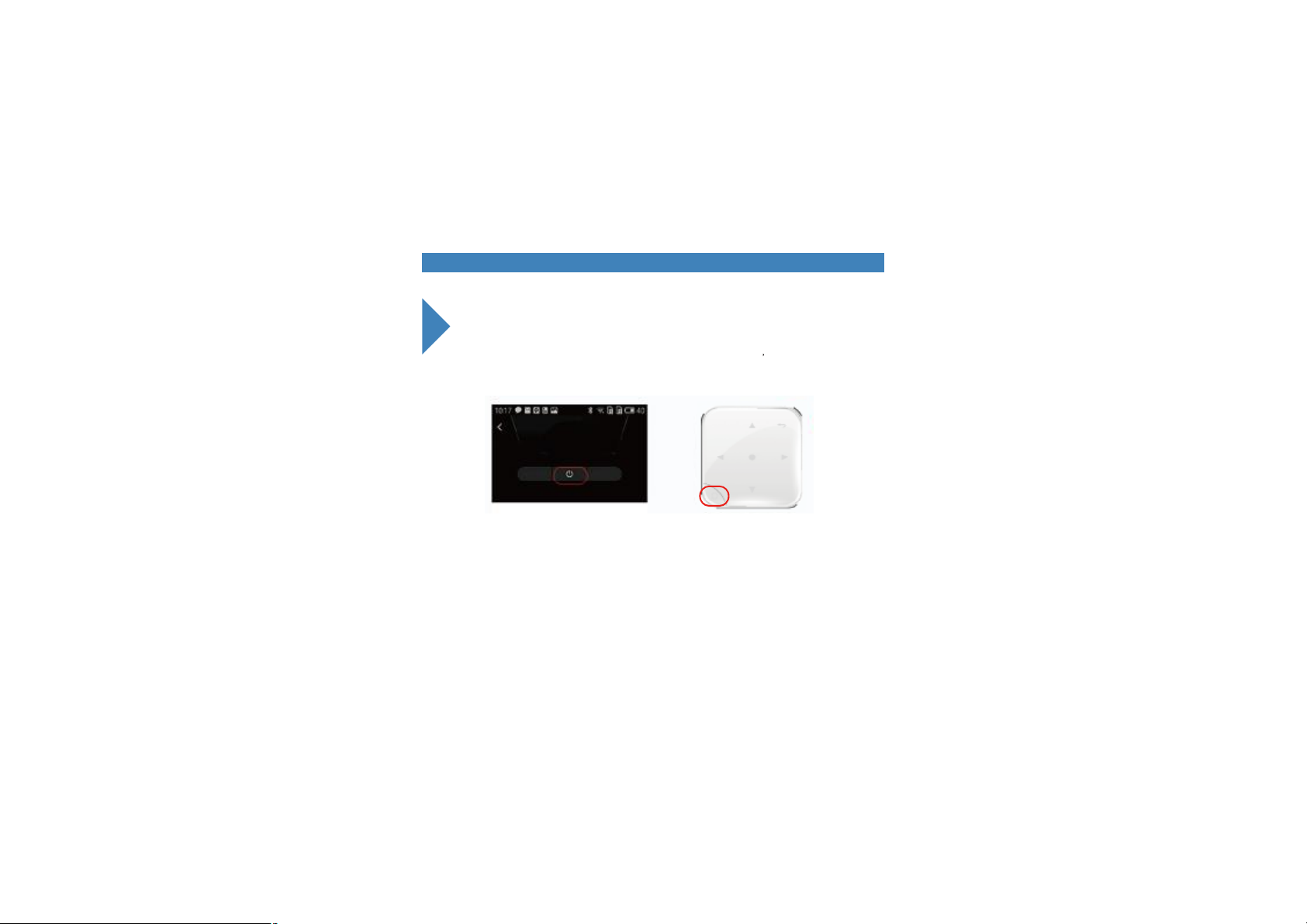

DLNA disconnection

22

3.To click quit projection or disconnect on mobile phone
or click “return” button of projector to quit.

Projecting

P6-6F7CSE

HD

Change device

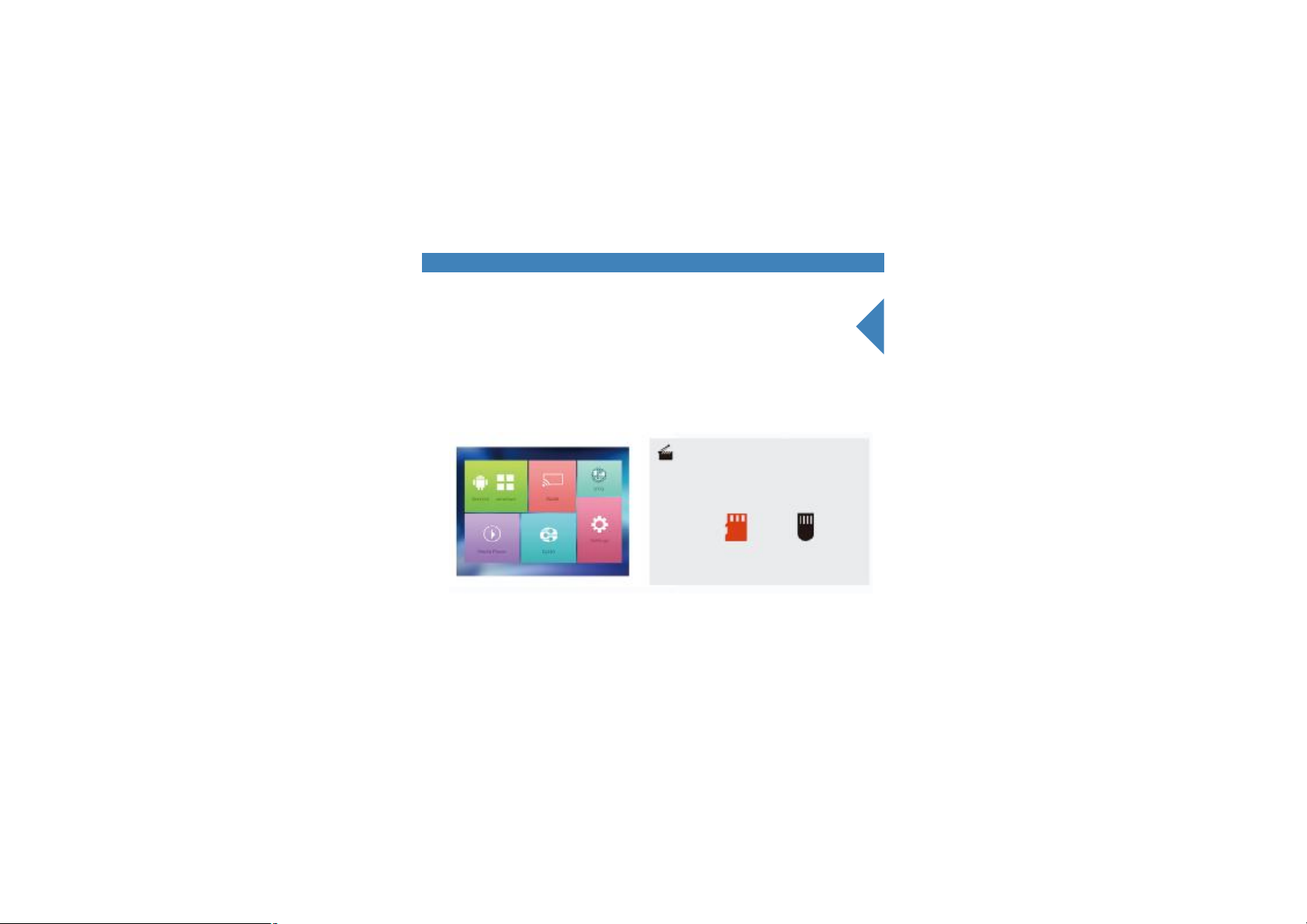

23Player

To play videos and images from TF card or flash disk by selecting “player”
Attention : To change volume size and forward or previous from projector as
well as smart device.

Media Player

SD Card USB Disk

Precautions

To prevent internal overheating,install the projector in a well-ventilated place

Do not place anything near the projector that may block its air

vents if the air vents are blocked,the internal temperature

of the projector will increase.

Be sure to prevent foreign objects such as paper debris from

entering the projector.

Do not install the projector in a hot or humid environment.

Never open any cover on the projector.
