TONEARMS
Opening remarks
ajor progress by Origin
Live has advanced the
M
art of tonearm design
enormously over recent years.
Early reviews of our upgrades to Rega arms were fairly
ecstatic. Next came the launch of the Silver arm which
was hailed as “probably the best arm in the world”
but at a fraction of the cost of high end models. Not
content with this, Origin Live went on to launch the
Encounter, followed by the Resolution and then the
Conqueror. These subsequent arms represented very
significant levels of improvement over previous arms
which were already world class leaders. The level of
improvement over older and established references
is dramatic and makes upgrading a highly
worthwhile investment. Unlike cartridges, a
tonearm upgrade will produce a far more
profound improvement and last a lot longer. It
is also transferable to other decks should you
ever decide to change in the future.
Origin Live arms bring stunning
improvements. In fact even the lower arms in
our range will still outperform arms at many
times their price.
them in a tight fitting housing. People hypothesise
about bearing chatter etc - maybe this is the case
with high resonance arm-tubes and lower quality
bearings. However listening soon shows up that there
is absolutely no bearing chatter in any of our arms
- in fact resonance in our arms is so minimal that it’s
extremely difficult to measure.
Minimising “ripple” effects
Another factor which indicates “floating” the arm tube
to be a good idea is that unipivots and knife edge
Tonearm philosophy
uch of the design philosophy and reasons
M
behind the superiority of Origin Live tonearms
is discussed in our brochure “System Philosophy &
upgrading”. To save repetition, please refer to this first
as it is an important introduction.

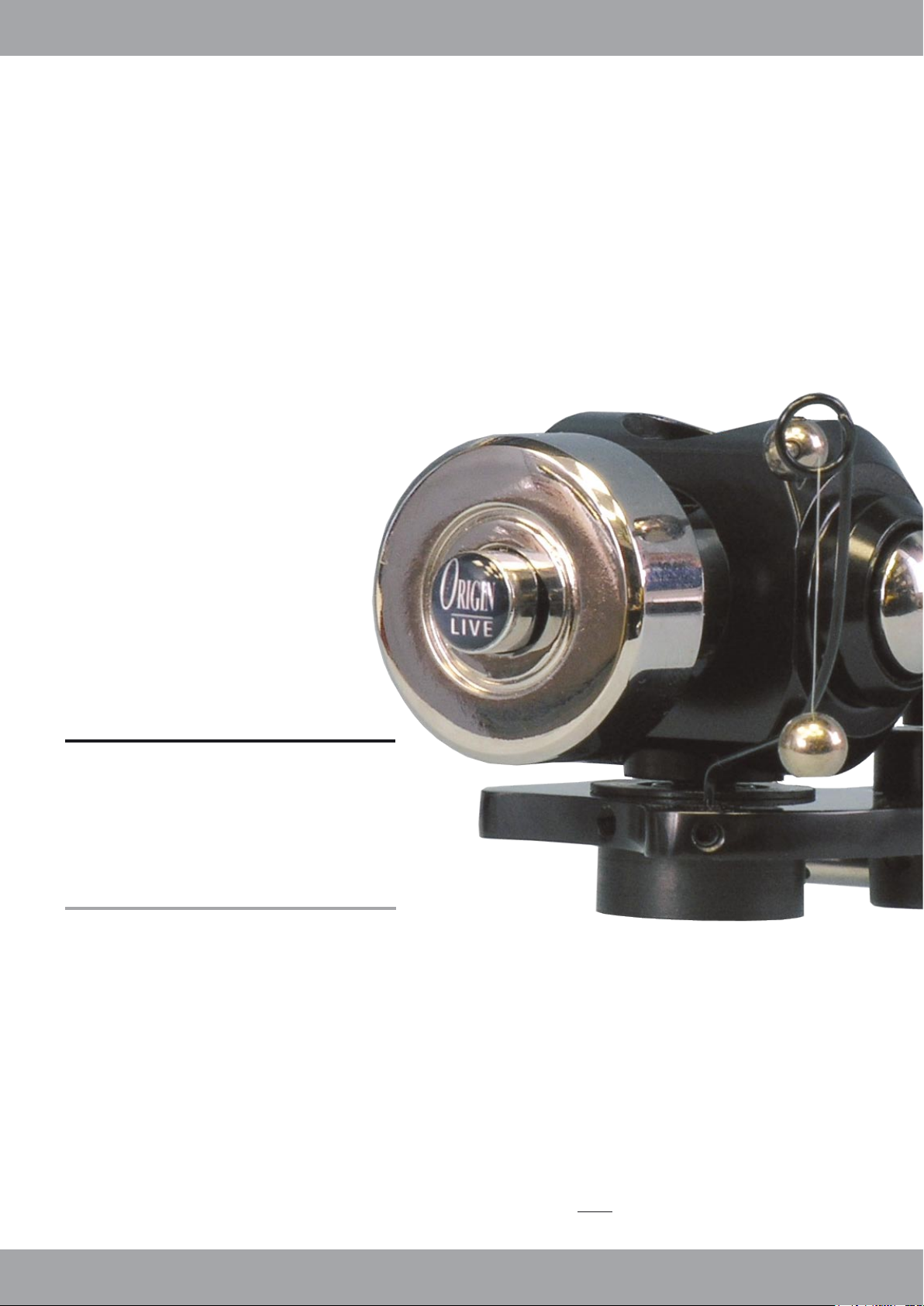

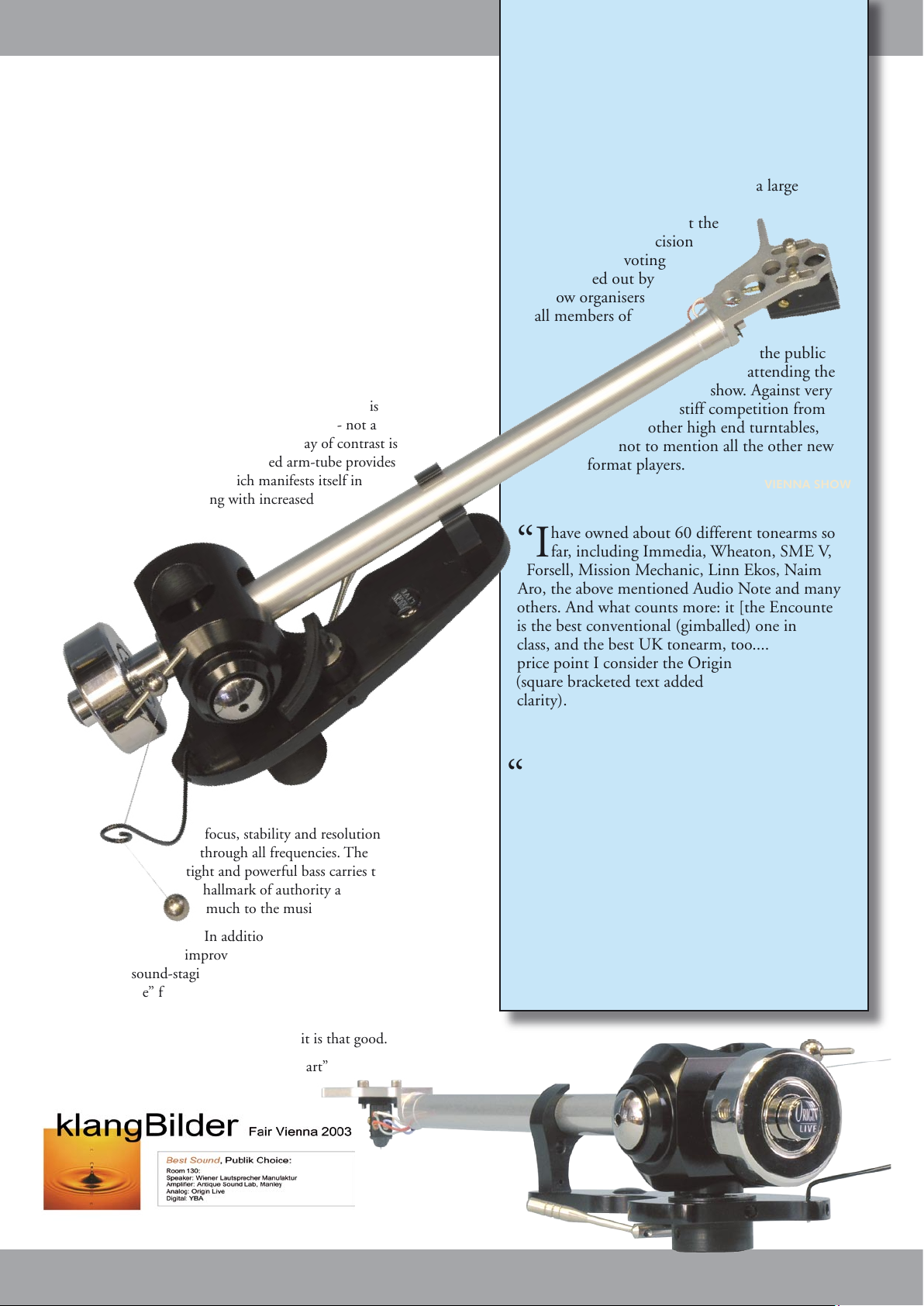

Example of radical design
De-coupling the armtube
To give an example of the way that Origin Live “break
the mould” with design, you only have to observe the
“floated bearing” philosophy that is employed in the
tonearms. Origin Live bearings are highly specified
to suit tonearms - however the bearing houses are
deliberately not machined to a tight tolerance as this
degrades the sound to an intolerable degree. We have
found that tightly held bearings are not beneficial
but this is easily confused with “bearing play”. There
are very strong technical arguments to suggest that
tightly coupling the arm to the deck via tight bearings
is detrimental in the light of listening tests. These
confirm that once you house the bearings outside the
arm tube, it is best to “float” them rather than “grip”
bearings
work on this principle.
Vibration transmits
through the surface
which supports the tonearm
in various ways. Most significant is “rippling” - not
just a simple 1 or 2 dimensional movement as some
imagine. Ripple exerts twist or angular force into the
structure.
The mechanism of ripple is seen dramatically with
very fast frame photography taken inside ships
undergoing underwater explosive shock. When a mine
explodes under a ship, the inside becomes a death trap
of flying fittings that have become detached due to the
underwater shock wave. Anything attached to a side
wall or part of the ship structure detaches at speeds of
up to 600Km/hour. The reason this happens is due to
the shock waves setting up ripple in the ship structure
2
Page 3
and side walls.
In the micro vibration that occurs in analogue replay,
ripple effects are very important. Unipivots are rigidly
grounded in one sense but decoupled completely
from ripple effects - However and it is a big “however”
- they cannot hold the cartridge well against torsion
exerted by bass notes. Widely spaced conventional
bearings reduce ripple effects as do floated bearings.
However they have the added benefit of holding the
cartridge rigidly which results in a more dynamic bass
performance.
Fitting OL arms
ll Origin Live arms have identical base geometry
A
to Rega arms. This makes them very easy to
mount, especially when replacing Rega arms. Most
turntable manufacturers will supply a Rega arm mount
if you do not already have one.
importantly minimizes environmental vibration from
affecting the arm. This effect can be likened to putting
the tonearm on ice. The ice can ripple but due to low
friction and inertia the tonearm is affected much less
in terms of vibration and motion.
Excellent conductivity
he quality of cable required to transmit the
T
extremely low level of signals generated by
cartridges needs to be of the highest calibre. Origin
Live has invested exhaustive research into this critical
area over many years and have developed the best
sounding cable possible.
LP12 owners
If you own an LP12, we supply a pre-drilled
armboard as a drop in replacement. Fitting
Origin Live arms to all versions of LP12 is very
straightforward.
For the Encounter arm and above
we have designed a shorter arm
mount that enables the arm to drop
straight into the Linn along with a
VTA adjuster that enables you to set
VTA in the same way as the Akito, Ittok
and Ekos.
Attention DJ’s
Please see pages on OL1 tonearm for notes on fitting
arms to Technics DJ decks
Low Friction bearings
he Silver tonearm and upwards use
T
special low friction bearings that
improve in specification right up to the
ceramic bearings used in the Conqueror.
Long and intensive research has been
invested in bearing design as it plays a
very significant role in sound quality.
The influence of bearing friction is
surprising and can only be put down
to the fact that it not only allows
improved tonearm tracking but more
Precision Engineering
rm components are manufactured in the UK using
A

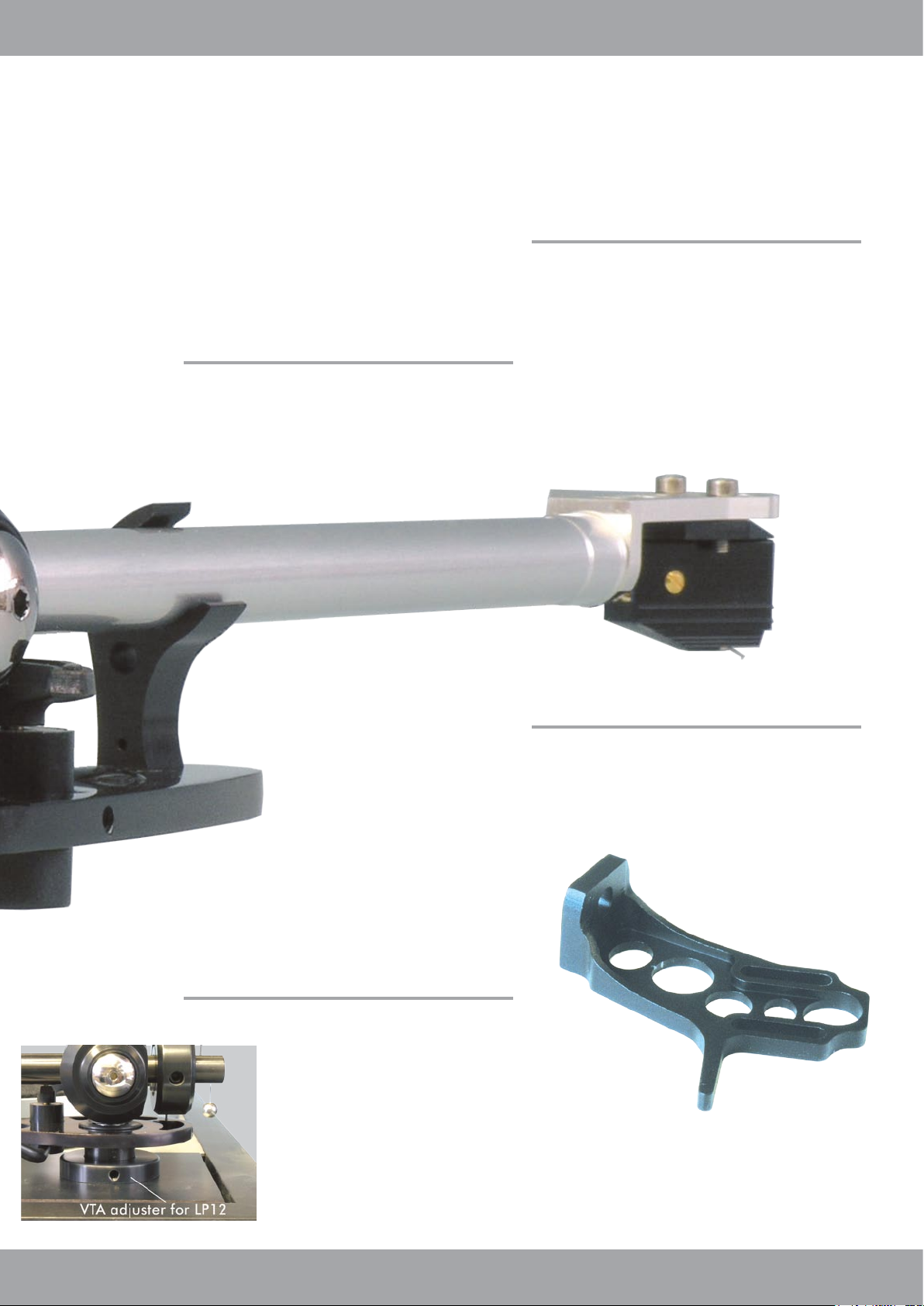

precision engineering - For example the Illustrious
headshell shown below is milled from a solid block of
high strength alloy to include torsion side webs, low
mass and low contact area with cartridge.
3
Page 4
TONEARMS

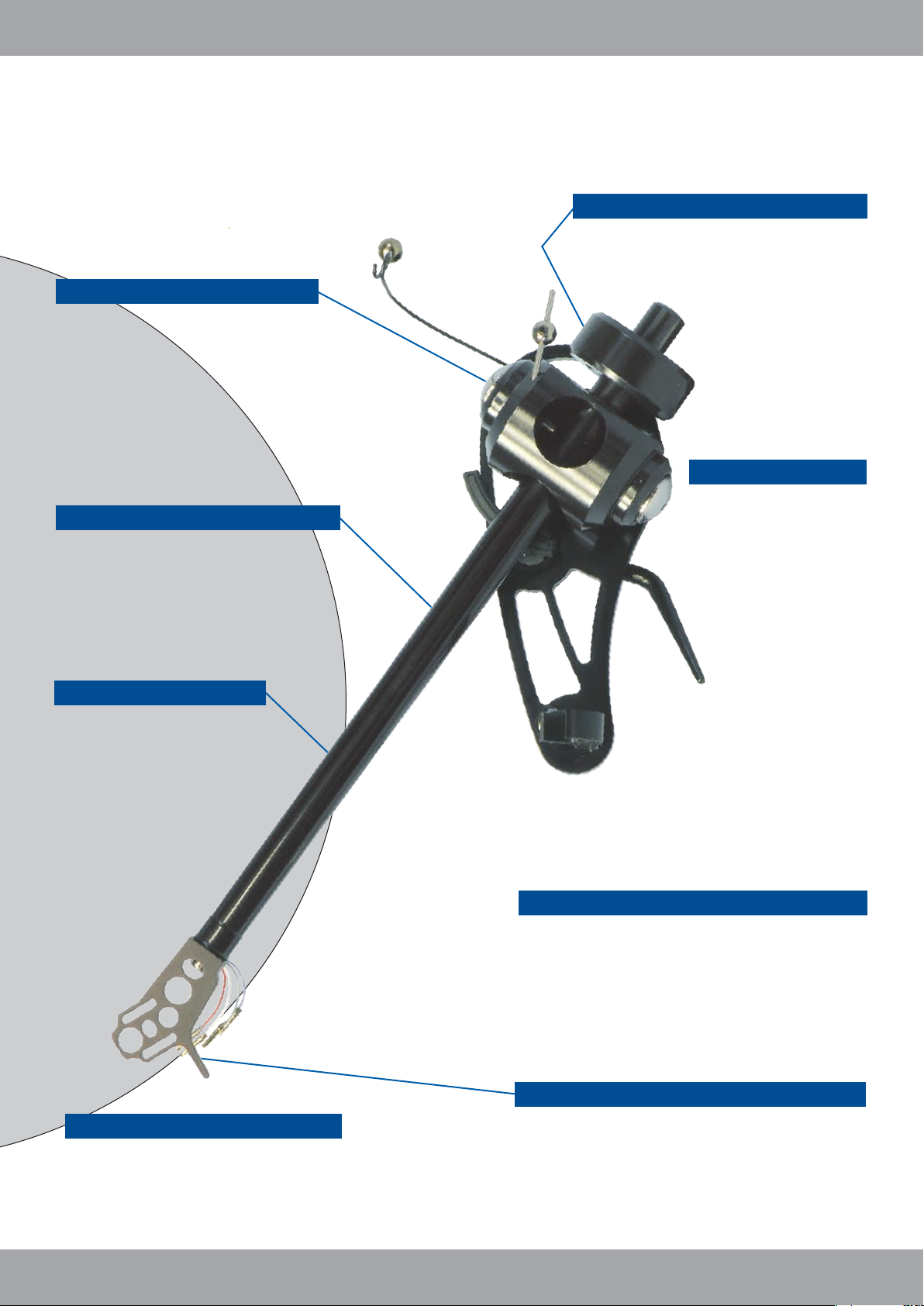

Tonearm features
to provide you with extraordinary performance
eatures of each arm are shown in the
F
chart opposite.
Advanced arm base
Revolutionary bearing house provides
isolation from vibration
Construction materials selected to optimize
performance
Infinitely variable VTA adjuster available
Rega geometry of base fitting enables easy
substitution for standard Rega arms

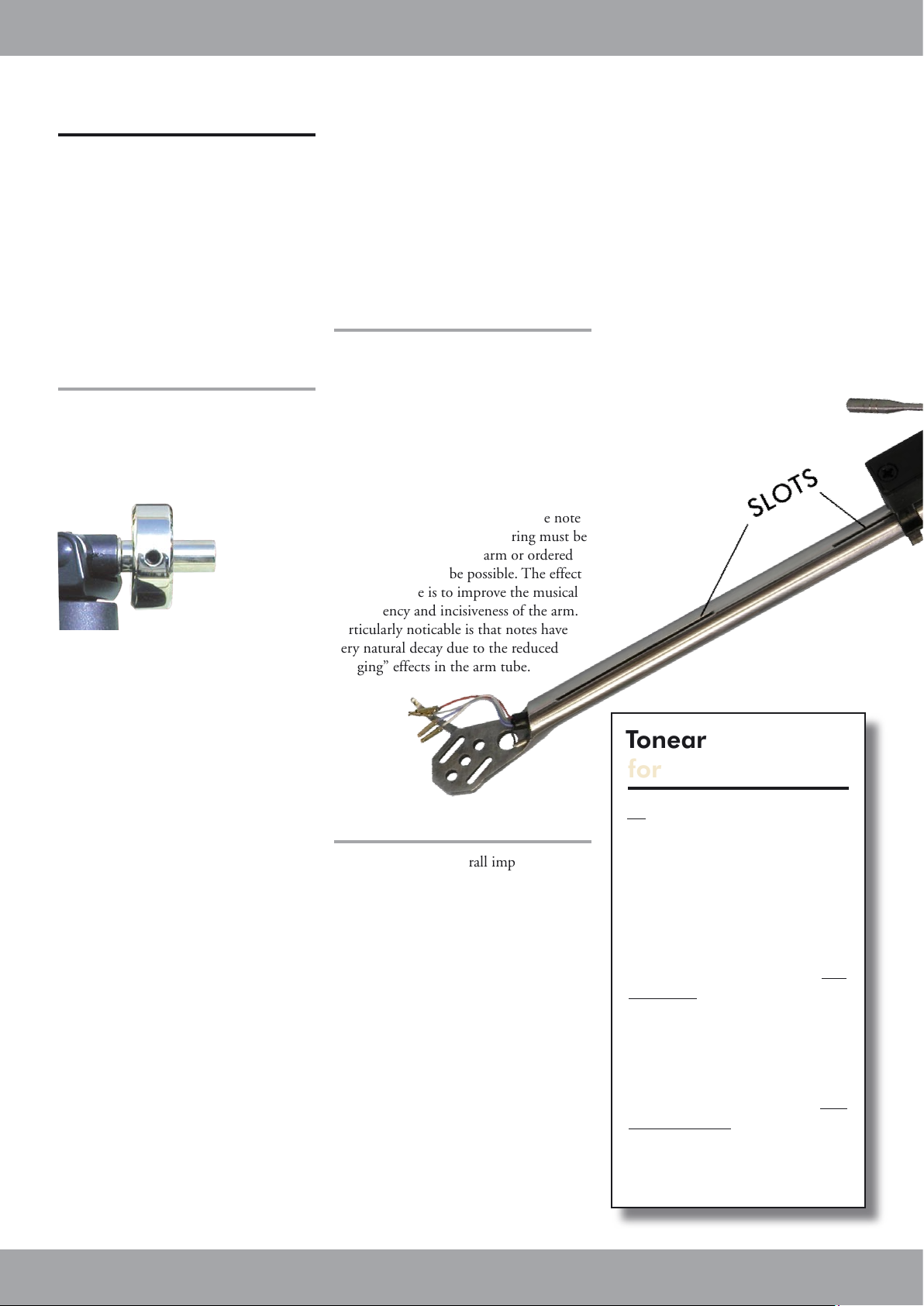

Slotted arm tube
Machined slots cut along the underside of
armtube minimizes “ringing”
Rigid stub & counterweight
Rear Stub and counterweight modelled on the
highly acclaimed Origin live Rega structural
upgrade
Low loss wiring
Cartridge tags - Gold plated
copper beryllium
Headshell wires - silver plated
and Robust PTFE insulated
Internal wiring - high grade
Litz design
High strength tube
Large diameter, high strength armtube provides massive torsional
strength. Results are superbly
controlled deep bass together
with increased focus, stability
and resolution throughout
the frequency range. Higher
specified armtubes include
taper profiled machined
from solid billets of
aerospace alloy.
External wiring selected to optimize low
level signal transmission
High grade phono
plugs with up to 4 times the
conductivity of brass phono
connectors resulting in audible
improvements
Separate earth lead from
headshell for optimum earthing
and screening
Low friction bearings
Highly specified bearings, positioned outside the arm tube
and widely spaced
Advanced bearing house within the yoke reduces
resonance within the tube and increases torsional stability
- both of which result in very marked improvements over
conventional arms
Advanced headshell
Minimum resonant parts
Elimination of springs and magnets for
tracking force & side bias means increased
signal purity
4
High strength, low mass sculpted headshell machined
from solid alloy block to include flanges
Headshell decoupled and yet rigidly attached to the
armtube provides a large performance improvement over
conventional single piece arm tubes
Page 5

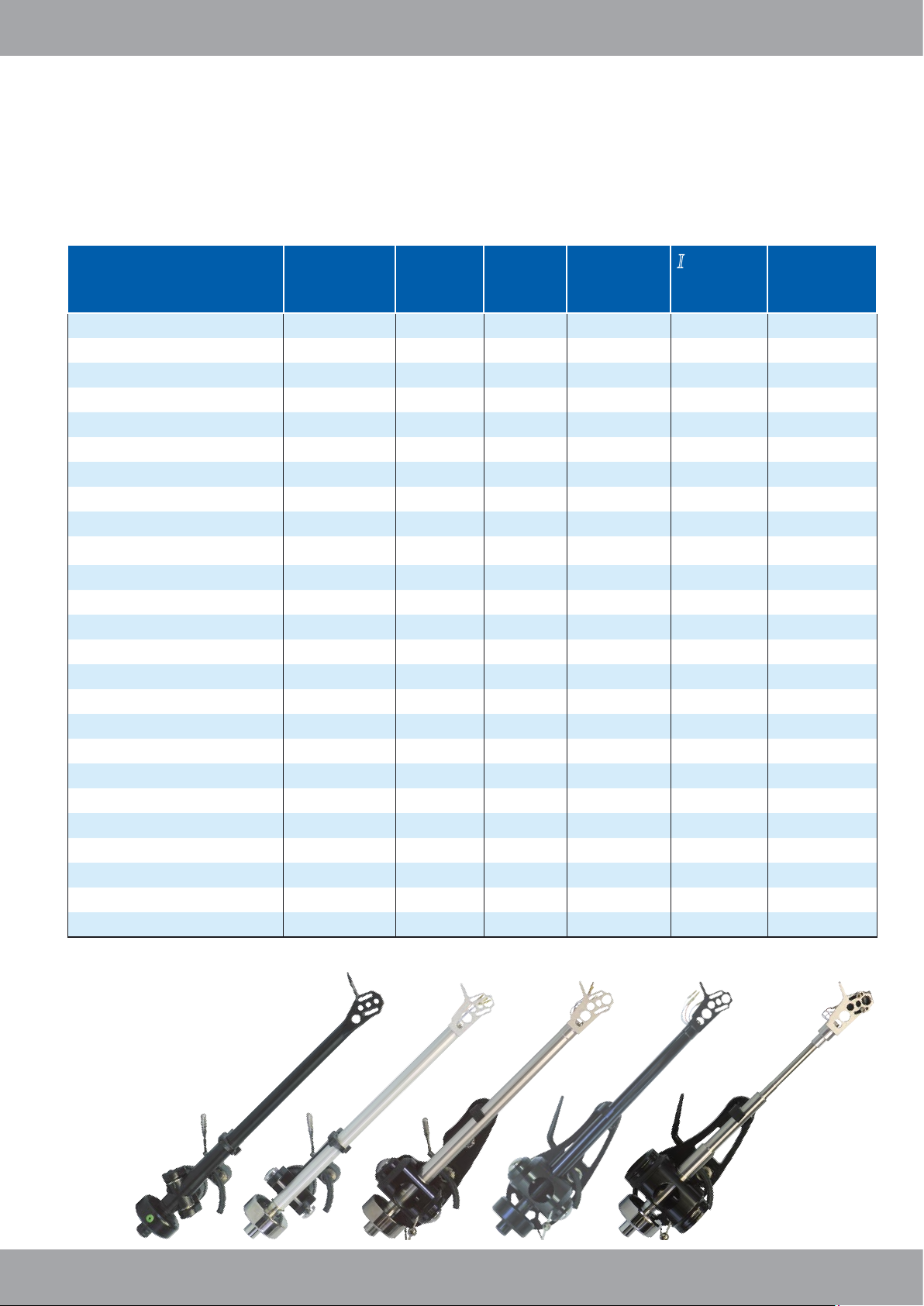

Comparison chart - Which arm is right for you?
