DBA10 In-ceiling Subwoofer Manual
Table of Contents
Introduction 2
Specifications 3
What’s Included 4
Tools & Items 4
Wire Recommendation 4
Subwoofer Placement 5
About Speaker Wire 6
Installing the Wire 6
Wire Routing 7
For New Construction 7
Painting the Grille 8
Cutting the Hole 8
Installing the Bayonet Ring 9
Connecting the Wire 10
Installing the Speaker 10
Subwoofer/Amplifier Setup 11
Installing the Grille 11
Troubleshooting 12
Technical Assistance 13
Warranty 14
Return Process 15
Page 3
2
DBA10 In-ceiling Subwoofer Manual
Thank you for purchasing the DBA10 in-ceiling Subwoofer. At Origin Acoustics, we
take pride in providing you with a high quality product. All of Origin Acoustics’
speakers are designed to have excellent sound quality, longevity, and a simple
installation process.
This instruction booklet covers the necessary information for a smooth installa-
tion, including: the tools you will need, step-by-step instructions for installation,
troubleshooting tips for any errors that may occur, and all warranty information.
If for any reason you experience problems or if you have installation questions
please call us at (844) 674-4461. Hours of operation are 8:00am to 5:00pm (Pacific
Time), Monday through Friday.
Introduction
Page 4
3
DBA10 In-ceiling Subwoofer Manual

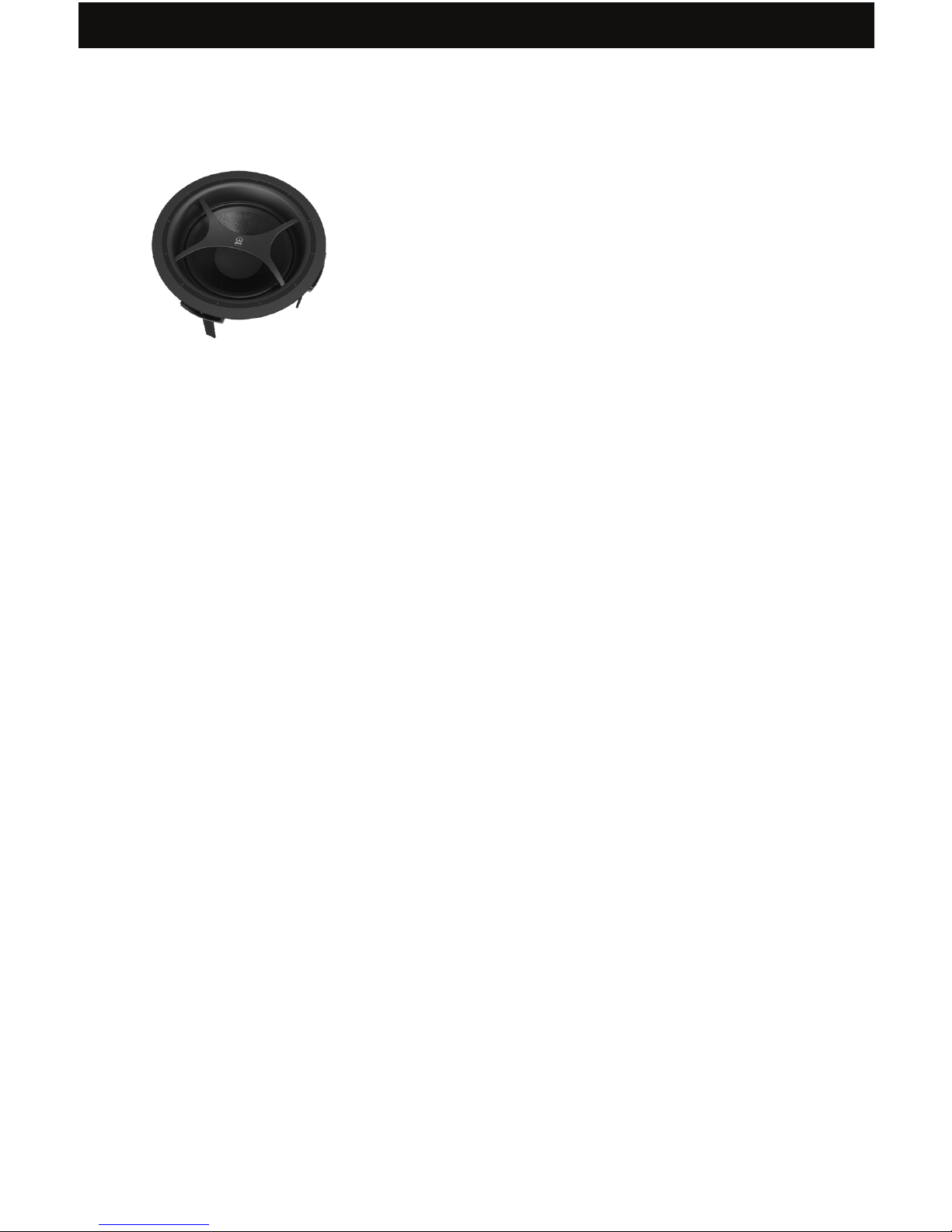

Specifications
• Woofer: 10” Fiberglass • Power Handling: 50-175 Watts
• Diameter: 11 ” (286mm) • Grille Diameter: 11 ” (296mm)
• Grille Diameter: 11 ” (296mm) • Cutout Diameter: 10 ” (264mm)
• Frequency Response: 35Hz – 200Hz • Mounting Depth: 6 ” (158mm)
*All product specifications are subject to change. Please refer to the dealer portal for the latest information.
Page 5
4
DBA10 In-ceiling Subwoofer Manual

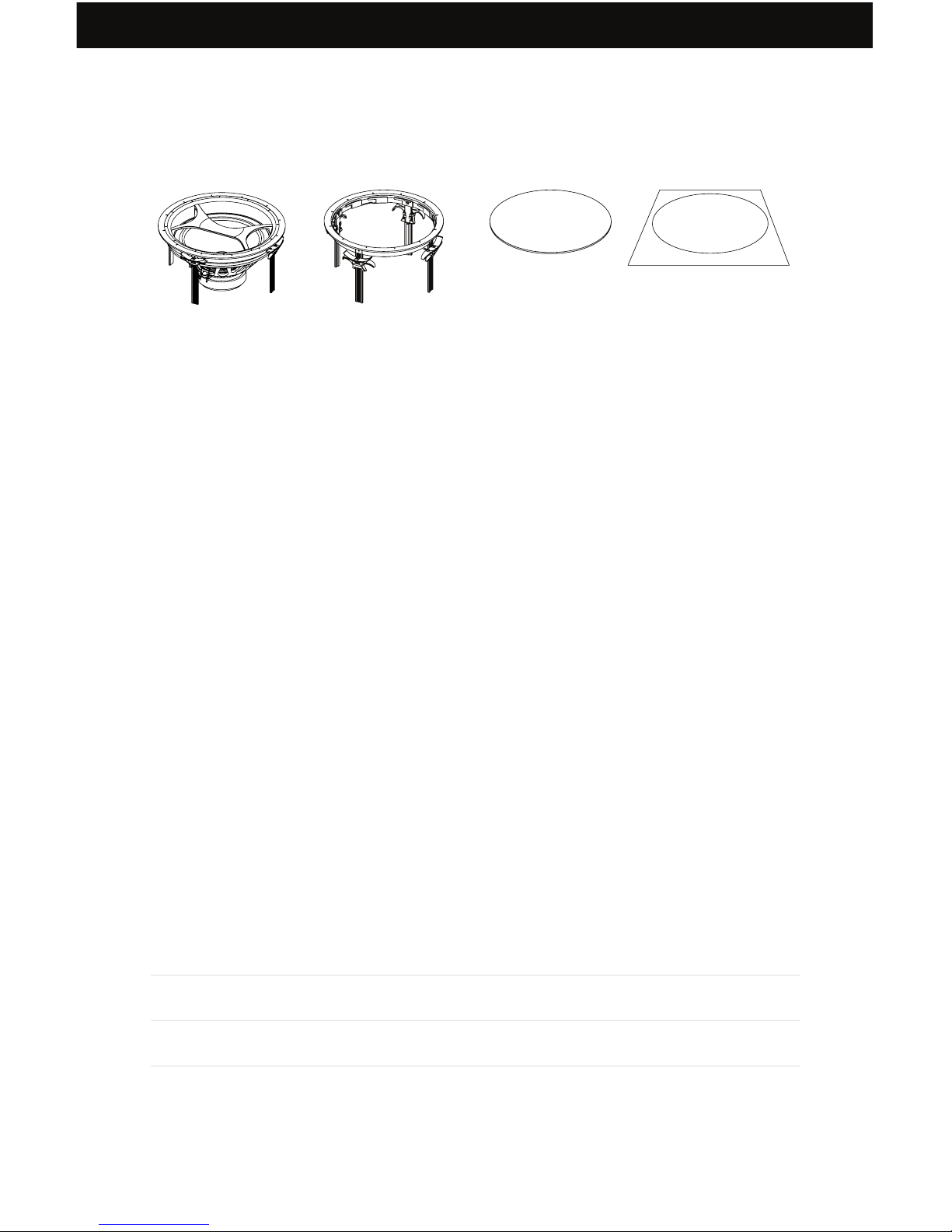

Speaker Bayonet Ring Grille Template
What’s Included
• Drywall Saw
• Speaker Wire
• Pencil
• Wire Stripper
• Measuring Tape
• Drill
• Drill Bit ⅛” (3mm)
• Stiff Wire
• Stud Finder
• Fish Tape
• Spray Paint
• Compressed Air
Tools & Items
The gauge of wire used can have an impact on the performance of your speakers.
Use a multi-stranded wiring designed for amplifier to speaker connections.
Which gauge to select depends on the length of wire to be used on any particular
speaker. The longer your run is, the larger your wire size must be.
Wire Recommendation
Wire Length Wire Gauge
0 -100’ (0 - 30m) 16
50 - 150’ (15 - 45m) 14
Over 100’ (30m) 12
11.75in
298.6mm
Page 6
5
DBA10 In-ceiling Subwoofer Manual
The music we hear as bass is made up of frequencies that have long to very long
wavelengths (6. to 50.). Therefore, when a subwoofer is placed into a room, its
position in the room will aect the amount of bass perceived by the listener. In
other words, placing the speaker in some areas of a room will result in more bass
than in other areas of the same room. The more surfaces (walls, ceilings, floors) a
speaker is placed next too, the more bass you will hear. An in-ceiling subwoofer
mounted in the center of a wall (or ceiling) will gain 3dB of bass if it is moved up
the wall (across the ceiling) to where it is adjacent to the ceiling (wall). You can
then gain 3dB additional bass by moving the speaker to the corner, where the
intersection of three surfaces occurs.

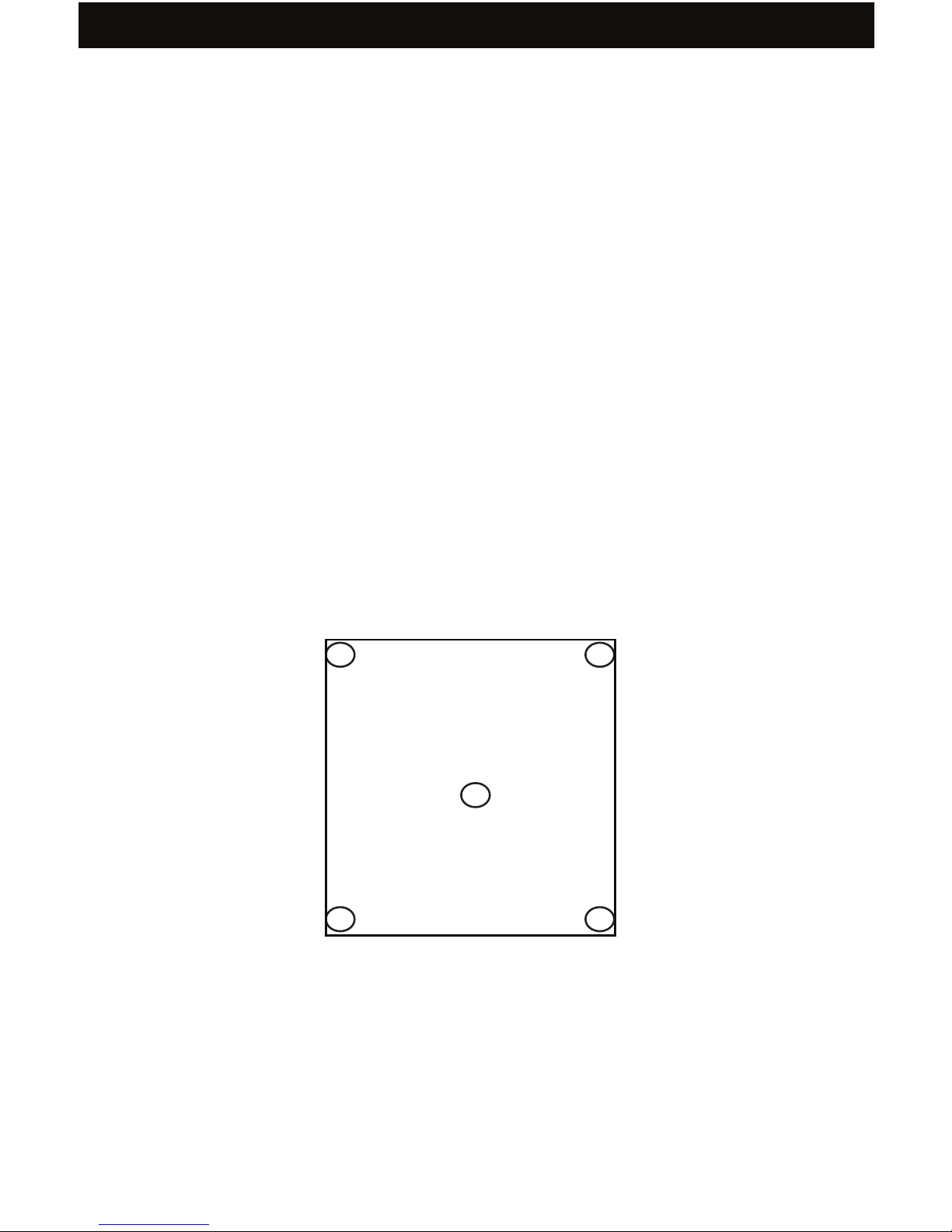

Subwoofer Placement
DBA10
DBA10
DBA10
DBA10
DBA10
Living Room
Center Ceiling
Ceiling corners
Page 7
6
DBA10 In-ceiling Subwoofer Manual

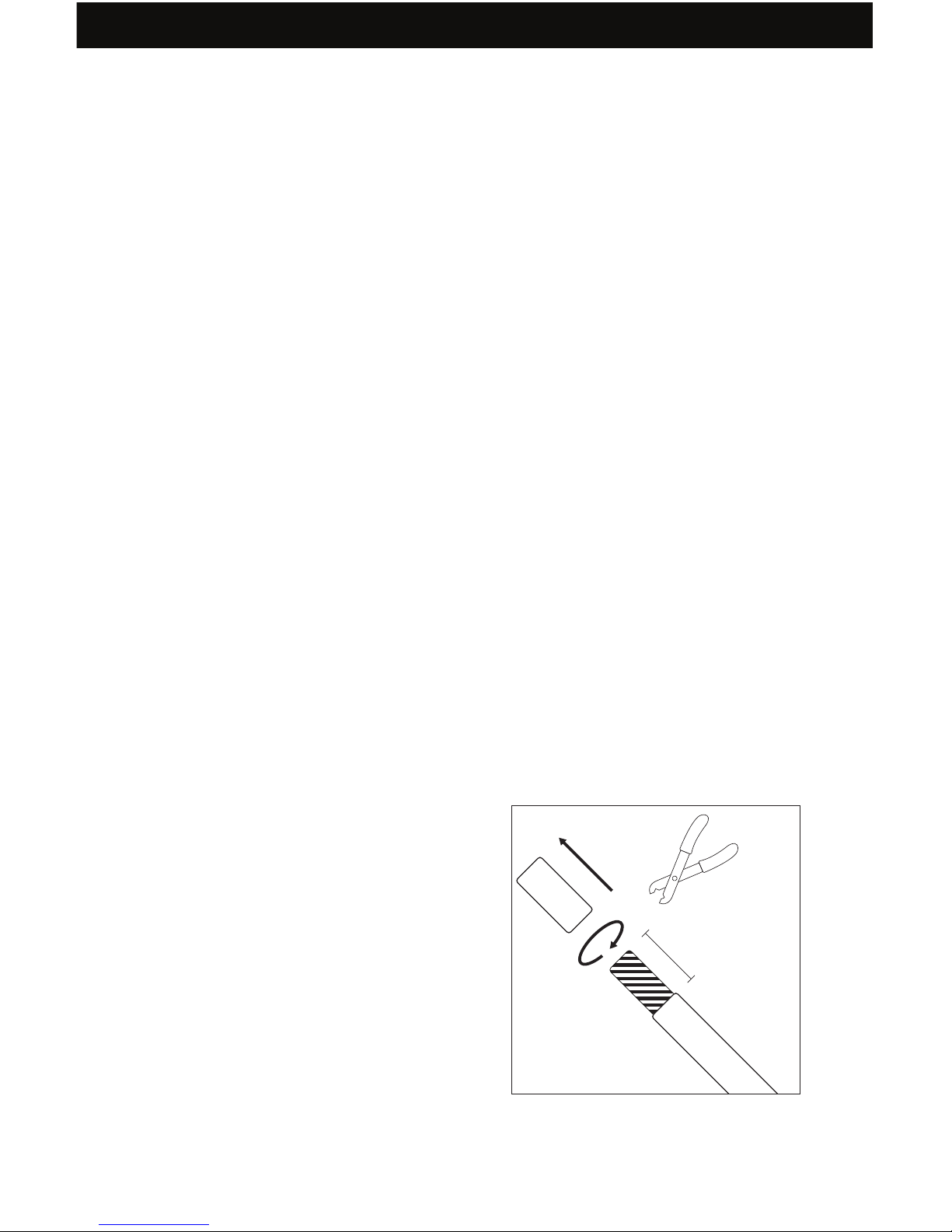

Strip ¼ to ½ inches (6 to 12 mm) of the
insulation o both ends of the wire. To
avoid stray strands, twist them at the
end. Connect the wire to the amplifier,
and make sure the wire connected to
the le speaker output will be routed
to the le speaker, right output to right
speaker, etc.
1. Installing the Wire
You will need a wire that has at least two conductors; one that can be identified
as the positive and the other as the negative. All two conductor wires have some
means of identifying which conductor is which, but at times this identification
may be subtle. It’s crucial that you keep track of which wire you use for positive
(+) and negative (-). Typically if the wires are colored red and black, the red wire
is used for positive and the black wire is used for negative, but sometimes other
colors or patterns are used. You can choose whichever color of wire you want to
be positive and negative as long as you remain consistent throughout the install.
On both your amplifier and your speaker the connectors will be identified as red
for positive and black for negative. It is very important to look carefully at the
speaker wires and be certain that the same wire that is attached to the positive
connector in the amplifier is attached to the positive connector in the speaker.
About Speaker Wire
0.25 - 0.5”
(6 - 12mm)
Speaker
Wire
Page 8
7
DBA10 In-ceiling Subwoofer Manual
Plan how you’ll route the wire to the desired speaker location. There are several
methods for routing the wire, and you may need to combine several of them.
2. Wire Routing
One option is to li up the carpet and
rout “tape wire” under the carpet.
Under the Carpet
The wire can be routed behind the
baseboard by cutting a groove out
of the back of the baseboard, or by
buying special baseboard designed for
concealing wires.
Behind the Baseboard
When available, you can route the wire
through an attic or crawlspace.
Attic or Basement
When running wires through a wall, be
sure to avoid all obstacles such as AC
wiring, pipes, and ducts.
Through Walls
If these speakers are being installed in a new home during construction, the
installation process will be a bit dierent (although much simpler). For these
situations, it’s recommended you purchase a bracket. Instructions on how to
install the speakers are provided with the bracket, or can be found on our web-
site. Visit www.originacoustics.com for more information.
3. For New Construction
Page 9
8
DBA10 In-ceiling Subwoofer Manual
When you’ve decided on the locations for all of the speakers, use the template
to trace a circle lightly in pencil where the hole should be. (If you don’t have a
5. Cutting the Hole

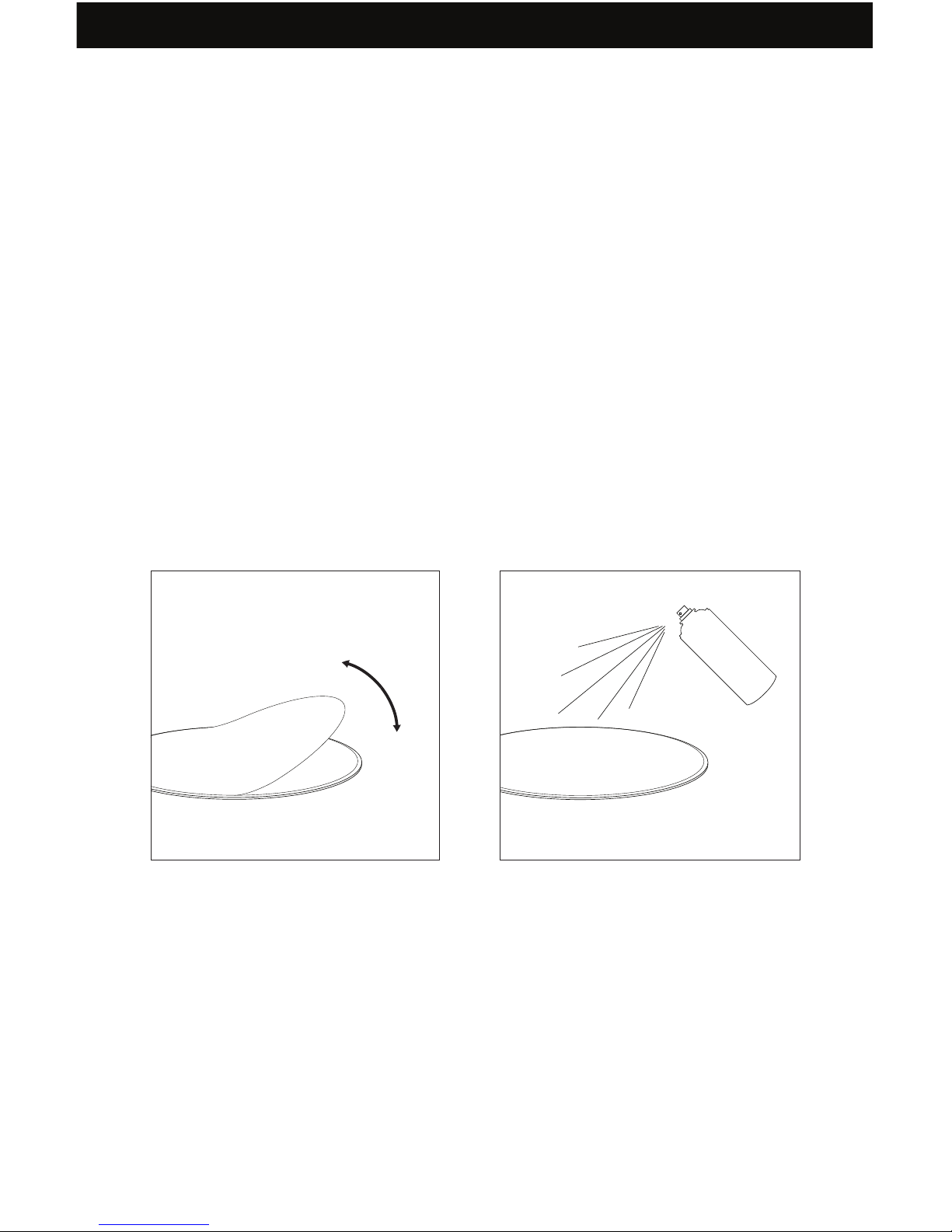

In some situations the speakers may look better if the color matched the walls,
ceiling, or trim in the room. This can be accomplished by painting the grille. The
grille must be painted with spray paint, and most hardware stores will mix a can
of paint to match whatever color you need. Before painting, carefully remove the
thin cloth on the underside of the grille. Lightly spray the front of the grille with the
paint from a distance, being careful not to plug any of the holes. Diluting the paint
with paint thinner will lessen the risk of filling any holes. If a hole gets plugged use
a can of compressed air to open it. Once the paint is dry, put the cloth back on
the grille.
4. Painting the Grille
Grille
Paint
Grille
Cloth
Grille
Page 10
9
DBA10 In-ceiling Subwoofer Manual
(Locked)
Bayonet Ring

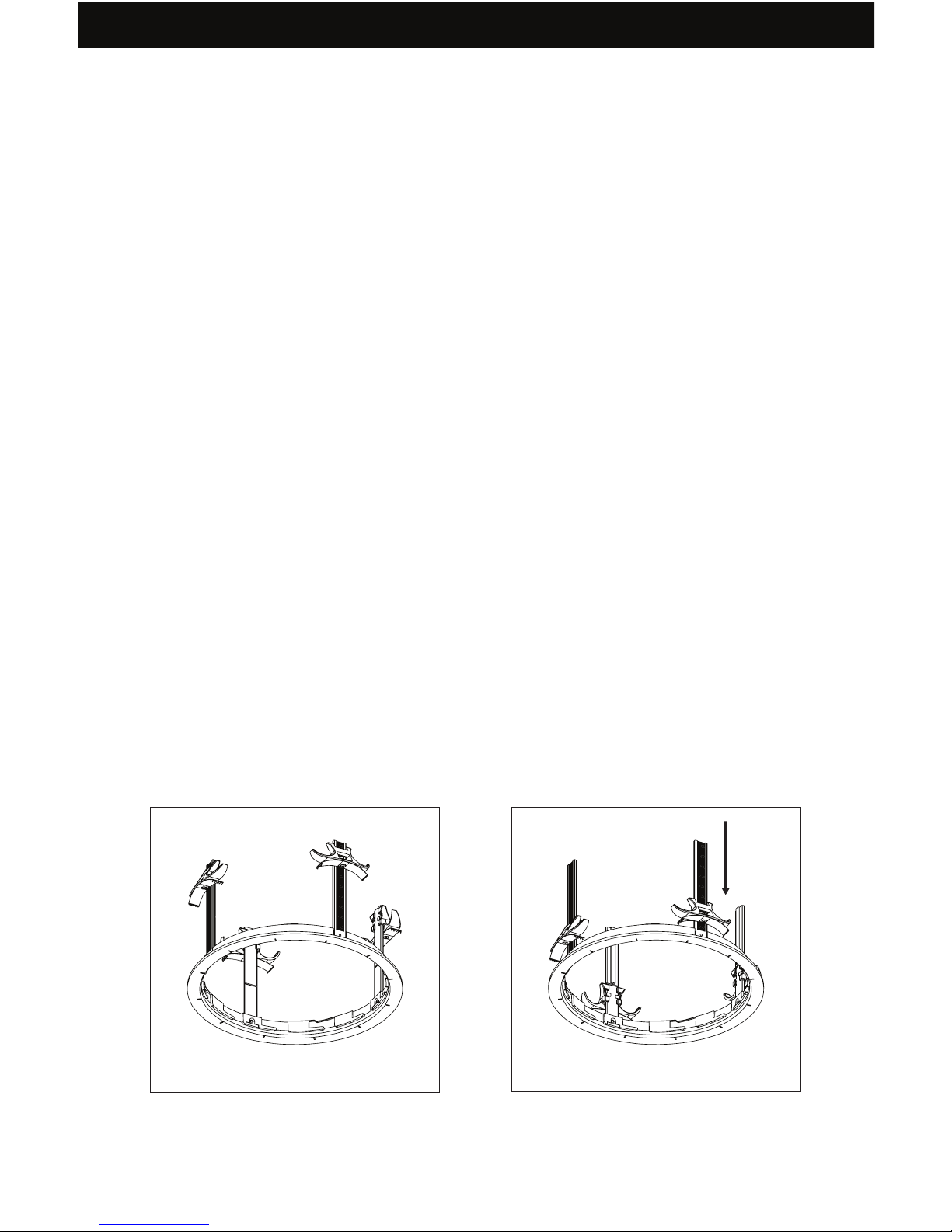

Adjust the clips so that they’re positioned at the top of the rail. If they’re not
already there you can do this by pushing the release tabs (or metal “buttons”)
on the inside of the rail and pulling the clips to the top of the rails. Insert the
bayonet ring into the hole in the ceiling by gently bending the clips inward. Reach
inside the bayonet ring and push the clips down so that the Installation mount is
firmly in place, but not too tight. If for some reason the bayonet ring needs to be
removed, reach inside and push the release tabs to fully remove the clips. Aer the
clips have been removed, the bayonet ring can be taken out.
6. Installing the Bayonet Ring
(Unlocked)
Bayonet Ring
template, check the Specifications section for cutout sizes.) If you’re unsure
on whether there may be obstacles (such as pipes or wires) where you plan on
installing the speaker, drill a ⅛ inch hole in the center of the circle, then put a bent
coat hanger through the hole to feel around. Use a keyhole or drywall saw to cut
the hole.
Page 11
10
DBA10 In-ceiling Subwoofer Manual
Twist Clockwise
to Lock
1. Fit into Ring
2. Twist into Ring

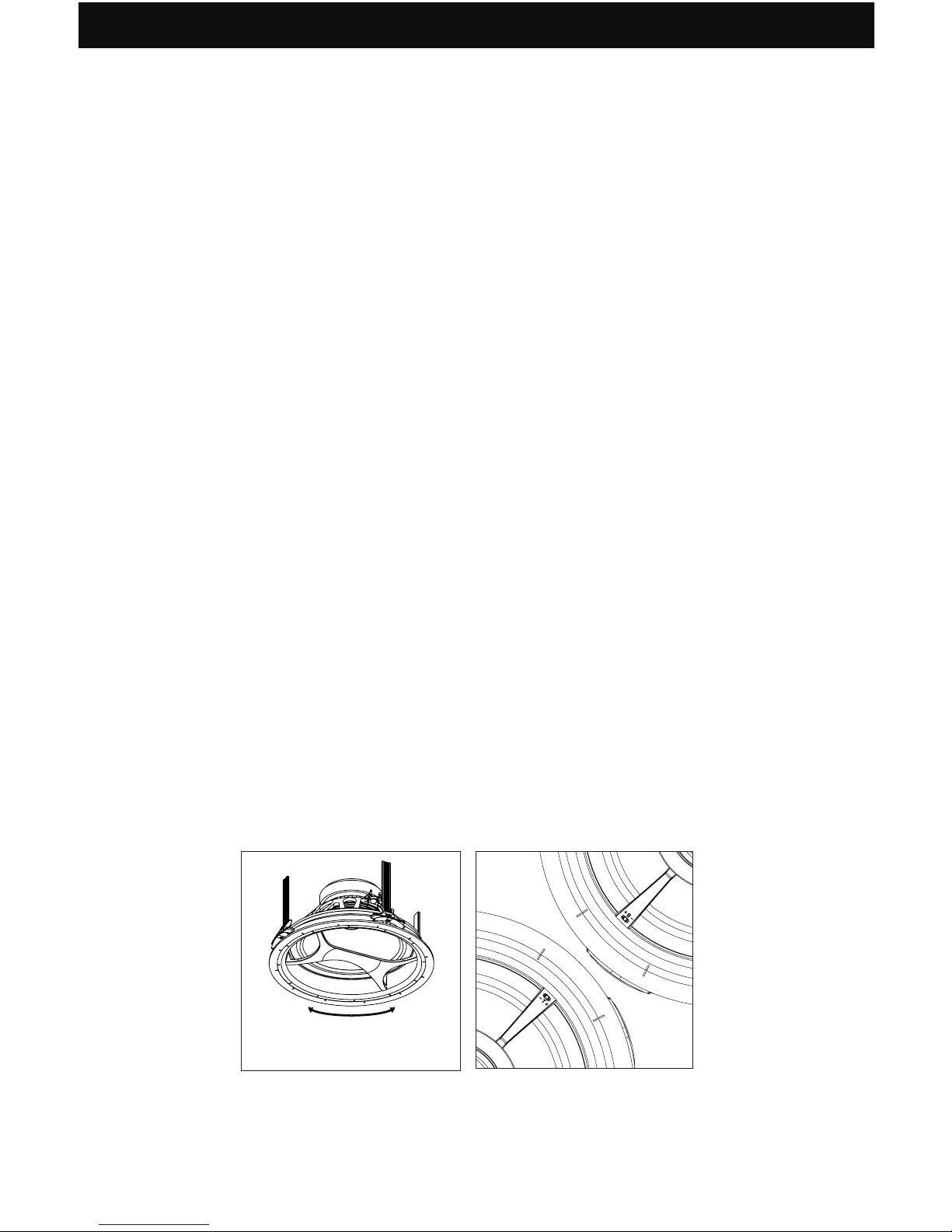

Fit the speaker into the bayonet ring, and twist it clockwise into place. When the
arrow on the speaker lines up with one of the arrows on the bayonet ring, that
means the speaker is tightly in place. Be sure that the arrows line up, otherwise
there’s a risk that the speaker will fall out of the ceiling.
8. Installing the Speaker

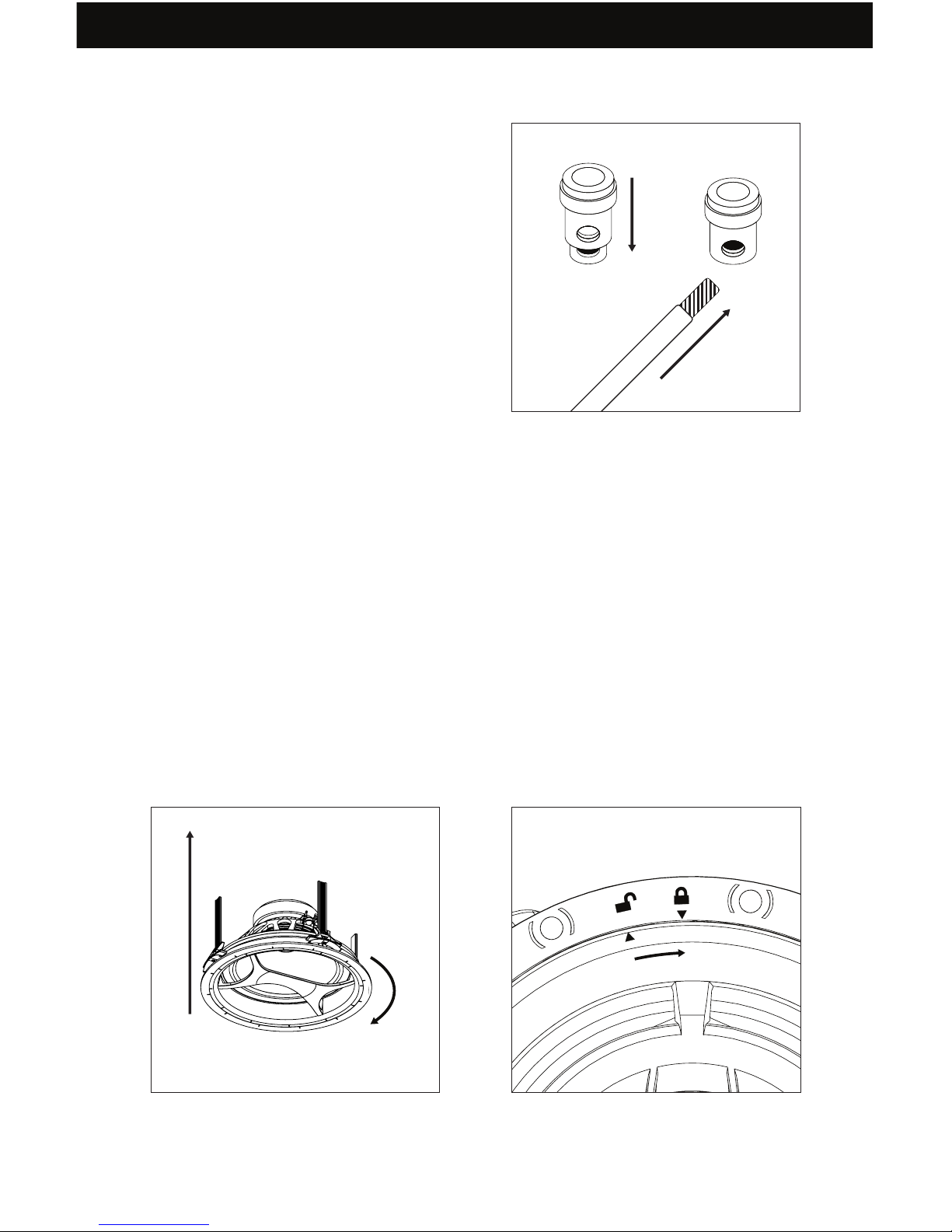

Insert the wires into the connectors,
making sure that the positive wire is
being attached to the red connection
and the negative wire is being
attached to the black connection. If
the negative and positive wires are
switched, speaker performance will
be drastically impacted.
7. Connecting the Wire
Speaker
Wire
Connector
DBA10
SCALE:1:4
Origin Acoustics
Mission Inn Rotunda
3649 Mission Avenue, 1st Floor
Riverside, CA 92501
844-ORIGIN1 (674-4461)
www.originacoustics.com
O R I G I N®
A C O U S T I C S
Page 12
11
DBA10 In-ceiling Subwoofer Manual
9. Subwoofer/Amplifier Setup
Fit the grille over the speaker. The grille uses magnets to be held in place.
8. Installing the Grille
The DBA10 is a passive subwoofer that requires external amplification. While
any amplifier with enough power (100-200 watts) will be suicient to drive the
subwoofer, there are other considerations you will need to address. The DBA10
is designed to reproduce frequencies below 150Hz. Therefore, running full
frequencies to the sub will result in less than optimal performance. If you are using
an Audio Video Receiver (AVR) that has Dolby/DTS processing, there will be a line
level, subwoofer output. This output will typically have adjustments to determine
the low frequency crossover point, eliminating the higher frequencies, and a level
adjustment. This output CANNOT be plugged directly into the DBA10 as it is at
line level and must first be connected to an amplifier that will boost the signal
to speaker level and then connected to the subwoofer. For the highest quality
performance, Origin Acoustics has two amplifiers that are specifically designed
to drive the DBA10 as well as other in-wall and in-ceiling subwoofers in the Origin
line. The SUBA150 is a dedicated, single-channel subwoofer amplifier with both
line level and speaker level inputs. The crossover point, phase and volume level
can be adjusted from the front panel to blend the DBA10 with the satellite speakers
in the room. The DSP3-100 is a three-channel amplifier providing 100 watts of
power to a dedicated subwoofer channel as well as independent channels for
the le and right speakers as well. The versatility of this amplifier is found in the
powerful Digital Signal Processing (DSP) that allows for a myriad of adjustments
to fine tune the signal delivered to the subs and satellites. Follow the wiring and
set-up instructions included with amplifier you choose.
Aimable
262mm
DBA10
SCALE:1:4
Origin Acoustics
Mission Inn Rotunda
3649 Mission Avenue, 1st Floor
Riverside, CA 92501
844-ORIGIN1 (674-4461)
www.originacoustics.com
O R I G I N®
A C O U S T I C S
Page 13
12
DBA10 In-ceiling Subwoofer Manual
If possible, it’s oen good to try to isolate the problem first. For example, if you’re
playing a DVD on a television and there’s no sound, try connecting an MP3 player
to the system to see if that works. If it does work, then the problem is with the tele-
vision, DVD player, or the cables connecting them. If it doesn’t work, the problem
will be with the amplifier, speakers, or those cables.
Troubleshooting
Problem Possible Cause
No Sound The volume may be turned down or muted. Check the volume
settings on both the amplifier and the television/computer/CD
player/etc.
No Sound Make sure the proper source is selected on the amplifier or
receiver.
No Sound Check the cord connecting the amplifier with the source. The
cord may be damaged or plugged into the wrong input or
output.
No Sound Check the wires connecting the amplifier with the speakers.
Make sure they’re connected properly and not damaged in any
way.
Poor Sound
Quality
If you hear something like static, or the sound is cutting in and
out, check the audio cables. If the problem increases when a
cable is being moved, then the cable is most likely faulty or not
connected properly.
Poor Sound
Quality
Today’s audio systems may have several places to adjust the
volume, for example your MP3 player may have a volume
control, and your amplifier may also have one. Check to be
certain that the volume isn’t turned up past 80% on any device.
Poor Sound
Quality
Try changing sources to be certain that the selection you’ve
chosen is a good quality recording.
Page 14
13
DBA10 In-ceiling Subwoofer Manual
If you have any questions or concerns about installing or using this product, you
can reach us through one of the following methods:
Phone: (844) 674-4461
Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri
Email: [email protected]
If you are having technical trouble, please include the model number and
briefly explain what steps you took to resolve the problem in your email, or
be prepared to answer these questions over the phone. If you are considering
returning the product, it’s required that you contact Origin Acoustics prior to any
return attempts. This way we can determine if the issue can be resolved without
returning the product, or if needed we can provide instructions and support for
the return process.
Technical Assistance
Page 15
14
DBA10 In-ceiling Subwoofer Manual
Origin Acoustics warrants to the original retail purchaser only that this Origin
Acoustics product will be free from defects in materials and workmanship,
provided the speaker was purchased from an Origin Acoustics authorized dealer.
If the product is determined to be defective, it will be repaired or replaced at
Origin Acoustics’ discretion. If the product must be replaced yet it is no longer
manufactured, it will be replaced with a model of equal to or greater value that is
the most similar to the original. If this is the case, installing the replacement model
may require mounting modifications; Origin Acoustics will not be responsible for
any such related costs.
Limited Lifetime Warranty
This warranty may not be valid if the product was purchased through an
unauthorized dealer. This warranty only applies to the individual that made the
original purchase, and it cannot be applied to other purchases. The purchaser
must be prepared to provide proof of purchase (receipt). This warranty will not
be valid if the identifying number or serial number has been removed, defaced,
or altered.
Requirements & Warranty Coverage
*All warranties and warranty conditions are subject to change. Please refer to
www.originacoustics.com for the latest information.
Page 16
15
DBA10 In-ceiling Subwoofer Manual
• Accidental damage
• Damage caused by abuse or misuse
• Damage caused by attempted repairs/modifications by anyone other than
Origin Acoustics or an authorized dealer
• Damage caused by improper installation
• Normal wear, maintenance, and environmental issues
• Damage caused by voltage inputs in excess of the rated maximum of the unit
• Damage inflicted during the return shipment
Not Covered by Warranty
Before making any return attempts, it is required that you first contact Origin
Acoustics. Return product to Origin Acoustics or your dealer, either in person or by
mail. It’s preferable if the product is returned in the original packaging. If this isn’t
possible, the customer is responsible for insuring the shipment for the full value
of the product.
This warranty is in lieu of all other expressed or implied warranties. Some states
do not allow limitations on implied warranties, so this may not apply depending
on the customer’s location. (For more information, see Magnuson-Moss Warranty
Act.)
Return Process
Page 17
6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461
©2018 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole
property of Origin Acoustics.
Loading...
