Installation Manual
Seasons Collection
OS54
OS56
OS54DT
OS64
OS66
OS64DT
Models:
Page 2
1
844·674·4461
WWW.ORIGINACOUSTICS.COM
SEASONS INSTALLATION MANUAL
Table of Contents
Introduction 2
Installation Requirements and Recommendations 2
What’s included 2
Required Tools/Items 3
Optional Tools/Items 3
Installation 4
1) Running the Wire 4
2) Tracing the Template and Drilling the Holes 5
3) Mounting the Speaker 5
4) Connecting the Wire 6
5) Adjusting the Bass 7
6) Aiming the Speaker 7
Troubleshooting 8
Technical Assistance 9
Specifications 11
Warranty 12
Limited Lifetime Warranty 12
Requirements and Warranty Coverage 13
Return Process 13
Page 3
2 3
844·674·4461
WWW.ORIGINACOUSTICS.COM
SEASONS INSTALLATION MANUAL
Required Tools/Items
• Speaker wire
• Wire stripper
• Drill with ⅛” drill bit (Hammer drill for masonry)
• Pencil
For this setup, use a multi-stranded wiring designed for amplifier to
speaker connections. The gauge of wire used can have an impact on the
performance of your speakers and we would recommend that you choose
the largest wire size that is practical
for your installation. Which gauge to
select depends on the length of wire
to be used on any particular speaker.
In general the shorter the run the
smaller the wire size you can use,
however you can never go wrong by
using a thicker gauge.
Speaker Wire Recommendations
Wire Length Recommend-
ed Gauge
Feet Meter
0-100 0-30 16
50-150 15-45 14
100+ 30+ 12
Optional Tools/Items
• Stud finder To locate studs
• Fish tape To route wire through walls
• Masonry anchors, or For installaons in masonry
• Hollow-wall anchors For installations in hollow
walls
Introduction
Thank you for purchasing the Seasons outdoor speaker. At Origin
Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ speakers are designed to have excellent sound quality, longevity, and a simple installation process.
This instruction booklet covers the necessary information for a
smooth installation of your outdoor speaker, including: the tools
you will need, step-by-step instructions for installation, troubleshooting tips for any errors that may occur, and all warranty information. If for any reason you experience problems or if you have
installation questions please call us at (844) 674-4461. Hours of
operation are 8:00am to 5:00pm (Pacific Time), Monday through
Friday.
Installation Requirements
and Recommendations

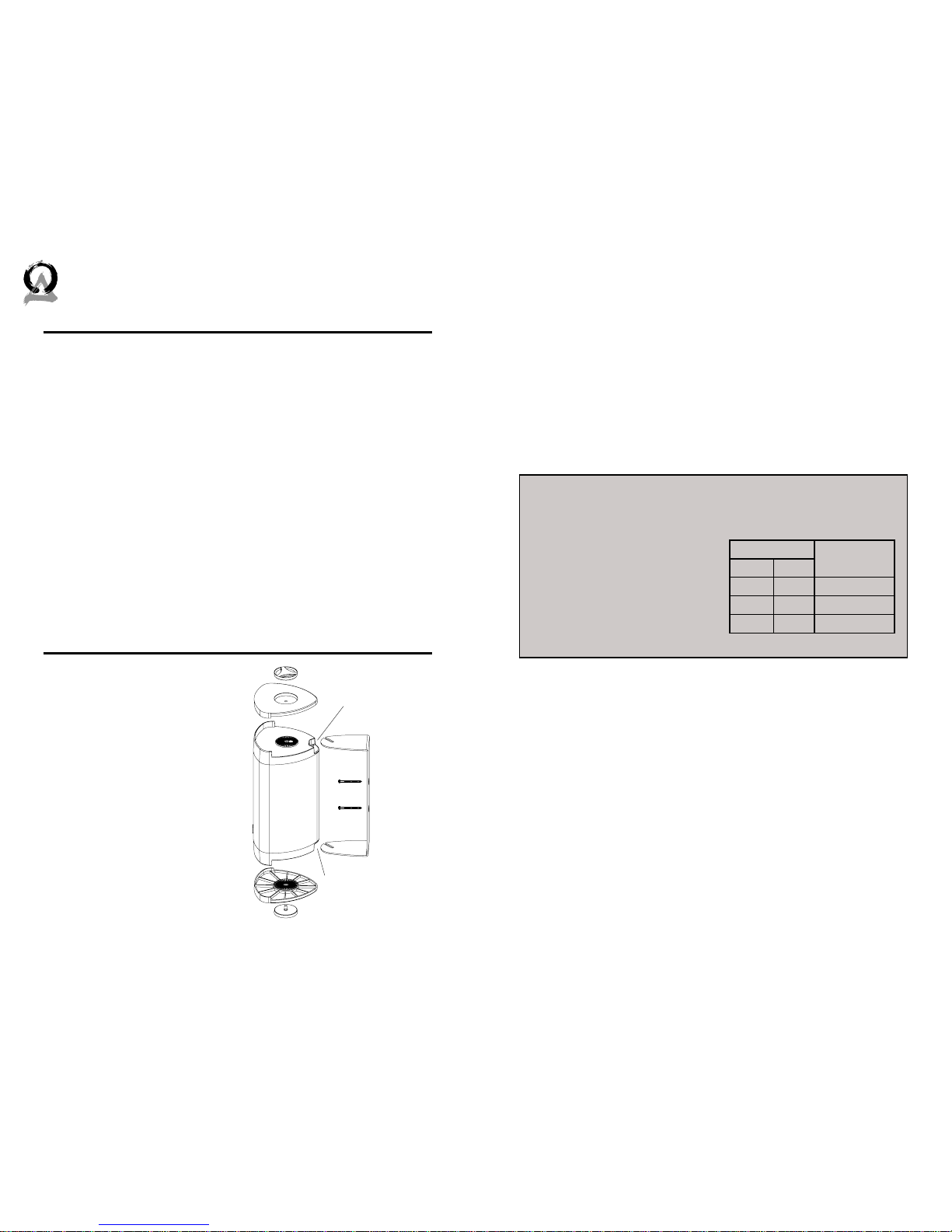

What’s included
• Speaker
• Bracket
• Template
• Screws (x2)
• Input Connector
Speaker
Bracket
Cap
Knob
Bass Switch
Input Terminal
Page 4
4 5
844·674·4461
WWW.ORIGINACOUSTICS.COM
SEASONS INSTALLATION MANUAL
2) Tracing the Template and Drilling the Holes
Using the template, mark the
location for the screws on
the wall. (The speaker can be
mounted vertically or horizontally.)
Depending on the type of surface you’re installing the speaker on, you may need to use
anchors of some kind. If you’re
installing the speaker on a
hollow wall, it’s recommended
you use hollow-wall anchors.
Likewise, if you’re installing the
speaker on brick, stone, or concrete, it’s best to use masonry
anchors.
Drill the holes for the screws. If you’re installing the speaker on
brick, stone, or concrete, use a hammer drill. Install the screws
leaving a 1/10” (2.5mm) space between wall and screwhead for
hanging the bracket.
3) Mounting the Speaker
When you’re finished, hang the speaker on the wall. The speaker
is designed to have the tweeter at the top if it’s mounted vertically, or to the outside if mounted horizontally. If the speaker is
installed horizontally, the logo can be rotated to be right-side-up.
Figure 5.1: Trace Template
You will need a wire that has at least two conductors; one that can be
identified as the positive and the other as the negative. All two conductor
wires have some means of identifying which conductor is which, but at
times this identification may be subtle. It’s crucial that you keep track of
which wire you use for positive (+) and negative (-). Typically if the wires
are colored red and black, the red wire is used for positive and the black
wire is used for negative, but sometimes other colors or patterns are
used. You can choose whichever color of wire you want to be positive and
negative as long as you remain consistent throughout the install.
On both your amplifier and your speaker the connectors will be identified as red for positive and black for negative. It is very important to look
carefully at the speaker wires and be certain that the same wire that is
attached to the positive connector on the amplifier is attached to the
positive connector on the speaker.
About Speaker Wire
Installation
1) Running the Wire
Fully plan out how you’ll route the wire to the desired speakers.
When choosing the point where the wire exits the house, remember that it’s best if less wire is exposed to the outside elements.
Try to find a point in the wall as close to the speaker as possible
when drilling a hole for the wire. Once you run the wire through
that point, be sure to properly seal the hole.
If you’re routing the wire underground, use a direct burial wire.
To prevent future damage, it’s recommended to also use a PVC
conduit.
When the wire can’t be run through the wall, make sure it’s secured in a safe, out-of-the-way route to avoid damage.
Page 5
6 7
844·674·4461
WWW.ORIGINACOUSTICS.COM
SEASONS INSTALLATION MANUAL
If it’s diicult to insert the connector because the mounting bracket is in the way, the bracket can be rotated to the side. Simply turn
the knobs on the top and bottom counter clockwise to loosen the
bracket so it can be moved to the side.
Slide the cover up the wire and reattach it to the speaker.
Connect the wire to the amplifier, and make sure the wire connected to the le speaker output will be routed to the le speaker,
right output to right speaker, etc.
5) Adjusting the Bass
Our season speakers are designed to compensate the bass
for the eects of outdoor bass
(0dB). The OS56 and OS66
models have a switch to adjust
the bass for indoor use (-3dB).
6) Aiming the Speaker
If you haven’t already, turn the
knobs at the top and bottom
counter clockwise to loosen
the mounting bracket. Turn the
speaker so it’s facing the way
you’d like it to face and tighten
the knobs.
The knobs, bracket, and end caps can be fully removed, but for
the most part there’s no benefit in doing so.
Figure7.1: Bass Terminal
4) Connecting the Wire
Strip ¼” (6 mm) of the insulation o both ends of the wire. To
avoid stray strands, twist them at the end.
On the speaker, remove the rubber cover from the input terminal.
Pull the wire through the cover, so it can be reattached to the
speaker aer the wire has been connected.
Insert the wires into the connector, making sure that the positive
wire is being attached to the (+) connection and the negative wire
is being attached to the (-) connection. (If the negative and
positive wires are switched,
speaker performance will be
drastically impacted.) Insert
the connector into the matching receptacle on the speaker.

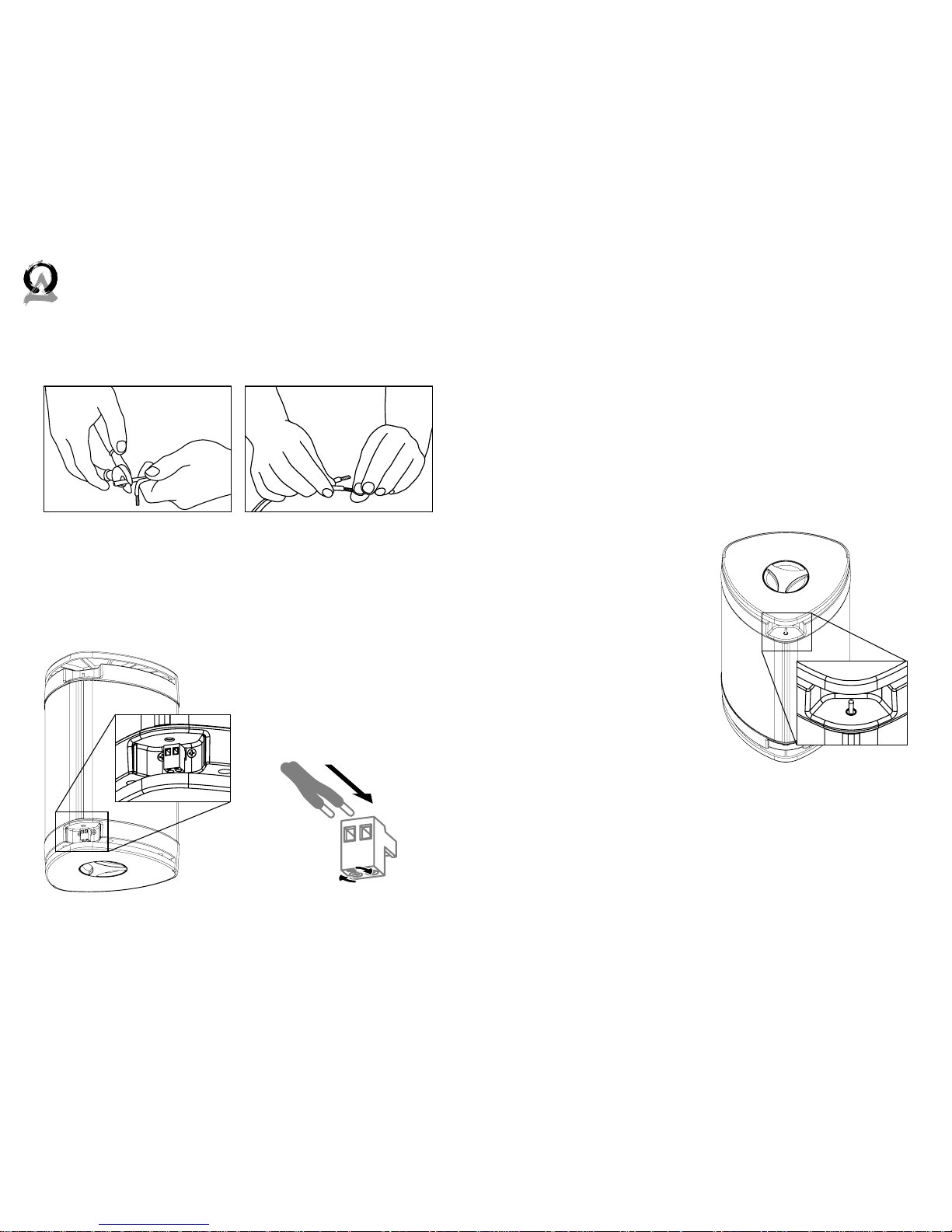

Figure 6.1: Strip Wire Figure 6.2: Twist Ends
