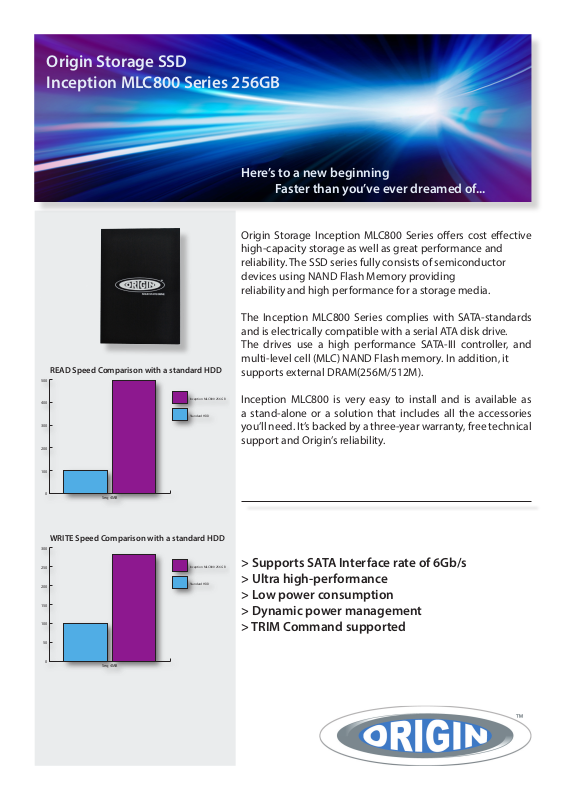

Page 1
Origin Storage SSD
Inception MLC800 Series 256GB
Here’s to a new beginning
Faster than you’ve ever dreamed of...
Origin Storage Inception MLC800 Series oers cost eective
high-capacity storage as well as great performance and
reliability. The SSD series fully consists of semiconductor
devices using NAND Flash Memory providing
reliability and high performance for a storage media.
The Inception MLC800 Series complies with SATA-standards
and is electrically compatible with a serial ATA disk drive.
The drives use a high performance SATA-III controller, and
multi-level cell (MLC) NAND Flash memory. In addition, it
READ Speed Comparison with a standard HDD
500
supports external DRAM(256M/512M).
400
300
200
100
0
WRITE Speed Comparison with a standard HDD
300
250
200
150
100
50
0
Seq 4MB
Seq 4MB
Inception MLC800 256 GB
Standard HDD
Inception MLC800 256 GB
Standard HDD
Inception MLC800 is very easy to install and is available as
a stand-alone or a solution that includes all the accessories
you’ll need. It’s backed by a three-year warranty, free technical
support and Origin’s reliability.
> Supports SATA Interface rate of 6Gb/s
> Ultra high-performance
> Low power consumption
> Dynamic power management
> TRIM Command supported
Page 2
FEATURES/ BENEFITS
Inception MLC800 Series 256GB
Form Factor: 2.5”
Interface: SATA
Capacity: 256GB
>Reliable- solid-state drives are less likely to fail than
standard hard drives, due to no moving parts
>Cost eective- longer life cycle due to MLC NAND,
greater productivity with higher IOPS
>Faster- almost instantaneous data access, quicker boot
process, faster le transfer
Endurance: Total Bytes Written (TBW):
256GB drive: Up to 524TB
Data Retention:
at 25 ° C: >10 years
Warranty
Limited three-year warranty
Operating Temperature: 0 ° C to 70 ° C
Storage Temperature: -45 ° C to 85 ° C
Power consumption:
256GB drive: 0.3 Idle
Dimensions: 69.8mm x 100.2mm x 7mm
Weight: 80g
Support:
For installation and warranty information,
please visit originstorage.com
>Less power consumption- energy eciency can deliver
longer battery life in notebooks, less power strain on the
system
PART NUMBERS
OMLC256SATA/2.5
www.originstorage.com
Basingstoke UK Head Oce l Origin Storage Limited l 2-3 The Rutherford Centre l Rutherford Road l Basingstoke l Hampshire l RG24 8PB
l +44 (0) 844 288 6868 l [email protected] l Stamford Accounts Oce l Castle House l St Peters Hill l Stamford l Lincolnshire l PE9
2PE l +44 (0) 844 288 6868 l [email protected] l NL European Oce l BC Sittard, Unit 26 l Dr. Nolenslaan 157 l 6136 GM Sittard l
The Netherlands l +31 (0) 467 111 201 l [email protected] l Deutsch-sprachiger Vertriebs- und Marketing-Kontakt l Konstantin Fröse l
Niermannsweg 11 l 40699 l Erkrath l Deutschland l +49 (0) 2 11 / 39 05 815 l [email protected]
@Origin Storage Ltd. All rights reserved. Information is subject to change without notice. Origin Storage logo is registered as trademark.
DESCRIPTION
Inception MLC800 Series 256GB
Compliance:
RoHS, FEE, CE
