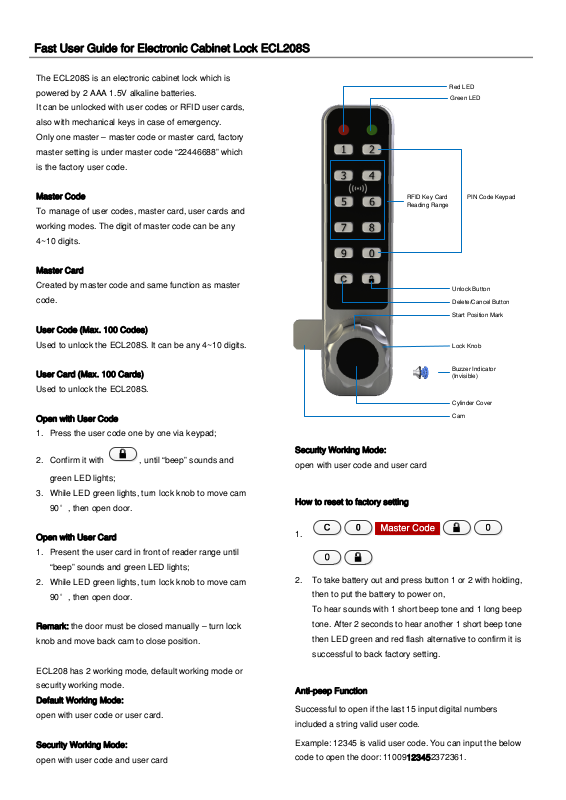

Fast User Guide for Electronic Cabinet Lock ECL208S
The ECL208S is an electronic cabinet lock which is
powered by 2 AAA 1.5V alkaline batteries.
It can be unlocked with user codes or RFID user cards,
also with mechanical keys in case of emergency.
Only one master – master code or master card, factory
master setting is under master code “22446688” which
is the factory user code.
Master Code
To manage of user codes, master card, user cards and
working modes. The digit of master code can be any
4~10 digits.
Master Card
Created by master code and same function as master
code.
User Code (Max. 100 Codes)
Used to unlock the ECL208S. It can be any 4~10 digits.
User Card (Max. 100 Cards)
Used to unlock the ECL208S.
Open with User Code
1. Press the user code one by one via keypad;
RFID Key Card
Reading Range
Red LED
Green LED
PIN Code Keypad
Unlock Button
Delete/Cancel Button
Start Position Mark
Lock Knob
Buzzer Indicator
(Invisible)
Cylinder Cover
Cam
2. Confirm it with
green LED lights;
3. While LED green lights, turn lock knob to move cam
90°, then open door.
, until “beep” sounds and
Security Working Mode:
open with user code and user card
How to reset to factory setting
Open with User Card
1.
1. Present the user card in front of reader range until
“beep” sounds and green LED lights;
2. While LED green lights, turn lock knob to move cam
2. To take battery out and press button 1 or 2 with holding,
90°, then open door.
Remark: the door must be closed manually – turn lock
knob and move back cam to close position.
ECL208 has 2 working mode, default working mode or
security working mode.
Anti-peep Function
Default Working Mode:
open with user code or user card.
Security Working Mode:
open with user code and user card
Successful to open if the last 15 input digital numbers
included a string valid user code.
Example: 12345 is valid user code. You can input the below
code to open the door: 11009123452372361.
then to put the battery to power on,
To hear sounds with 1 short beep tone and 1 long beep
tone. After 2 seconds to hear another 1 short beep tone
then LED green and red flash alternative to confirm it is
successful to back factory setting.
Master Code/Master Card and User Codes/User Cards Management
Function Operation
Factory Master Code
Factory User Code
Change master code
Add master card
Add user code
Add user card
…
…
…
…
Delete an user code
Reset ECL208S
Delete all key cards
Delete all user codes
Delete all user codes
and all key cards
Set Default Mode
Set Security Mode
…
…
