●Parallel Shaft Type
●Right-Angle Type

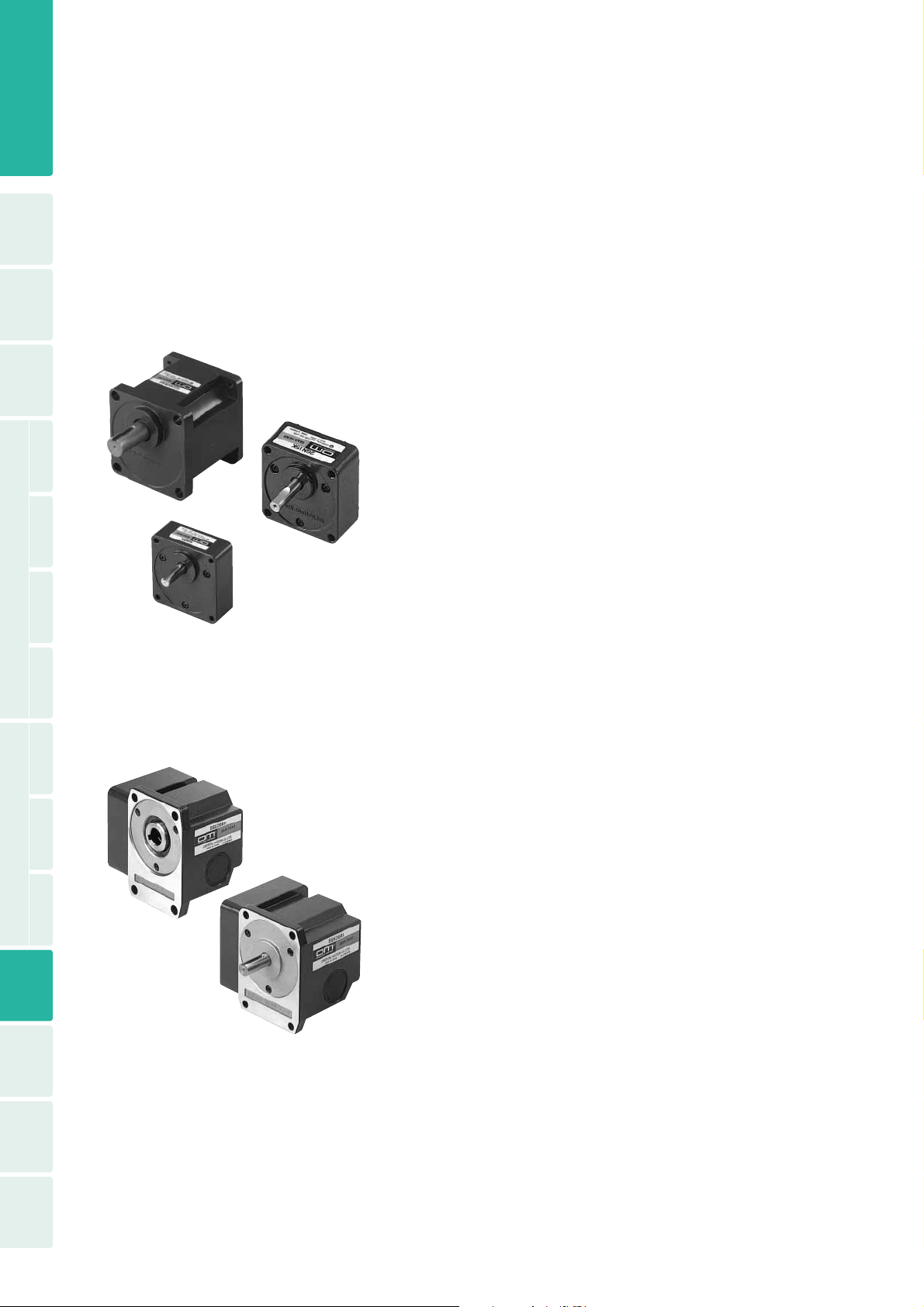

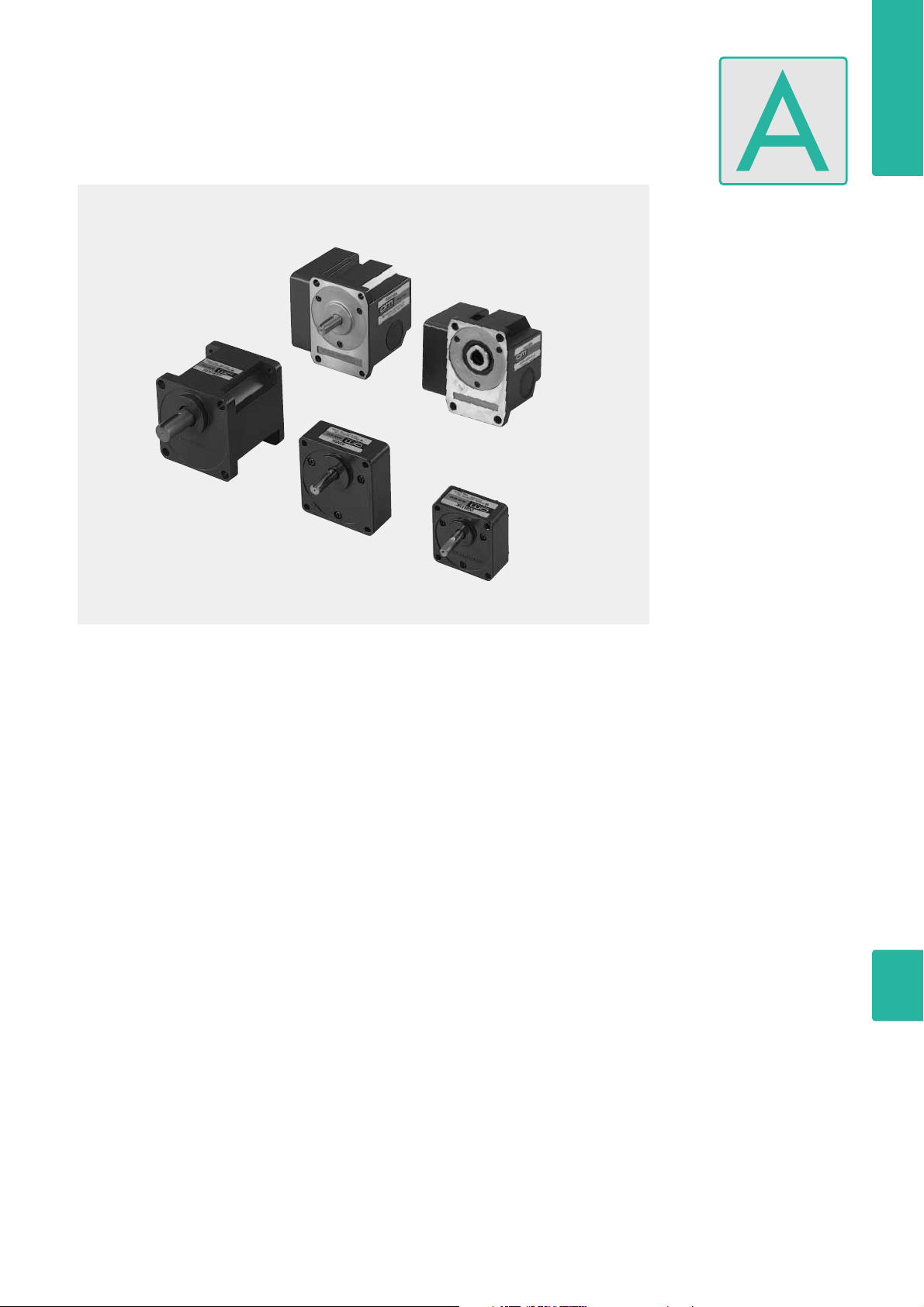

Oriental Motor gearheads are specially designed for easy and
direct attachment to our AC motors that have a pinion shaft. The
gearhead reduces the motor speed which increases the torque.
A large number of gear ratios are available for many applications.
Features and Types of Gearheads
Page 3
A-179
ORIENTAL MOTOR GENERAL CATALOGUE
Standard AC Motors
Induction
Motors
Reversible
Motors
Electromagnetic
Brake Motors
FBL2 AXU AXH
HBL MSS · W ES US
Gearheads
Linear Heads
Water Tight
Motors FPW
Accessories
Brushless Motor and Driver AC Speed Control Motors
Parallel Shaft Type Gearheads
● Enter the gear ratio in the box (□) within the model number.
● Specifications for gearheads with motors can be found on the individual motor’s page.
● Refer to Gearhead Selection on page A-20 for further detail on the gear ratios.
Right Angle Type Gearheads
● Enter the gear ratio in the box (□) within the model name.
● Features and specifications for right-angle gearheads are shown on page A-180.
Gearhead Model
2GN □K
3GN □K
4GN □K
5GN □K
5GU □KB
5GU □KBH
BH6G2-□
FBL575CY-□
FBL5120CY-□
AXH230KC-□
AXH450KC-□
HBL560N-□
HBL5100N-□
Decimal Gearheads
2GN10XK
3GN10XK
4GN10XK
5GN10XK
5GU10XKB
―
―
―
―
―
―
―
―
Application
Normal Load
Heavy Load
High Speed
(FBL2, AXH, HBL Series)
Gear Ratios
3 〜180 20 ratios
3 〜180 20 ratios
50 〜180 8 ratios
3 〜150 11 ratios
5 〜200 8 ratios
Gear ratios
3 〜150 11 ratios
Gear Frame Size
80mmsq. for 25W
90mmsq. for 40W
90mmsq. for 60W and 90W
Gearhead Model
4GN □RH
4GN □RA
5GN □RH
5GN □RA
5GU □RH
5GU □RA
Maximum Permissible Torque
8N·m
10N·m
20N·m
Type of shaft
Hollow shaft
Solid shaft
Hollow shaft
Solid shaft
Hollow shaft
Solid shaft
Page 4
A-180
ORIENTAL MOTOR GENERAL CATALOGUE
Standard AC Motors
Induction
Motors
Reversible
Motors
Electromagnetic
Brake Motors
FBL2
AXU AXH HBL MSS · W ES US
Gearheads Linear Heads
Water Tight
Motors FPW
Accessories
Brushless Motor and Driver AC Speed Control Motors
5 GU 25 R H
Right-Angle Gearheads

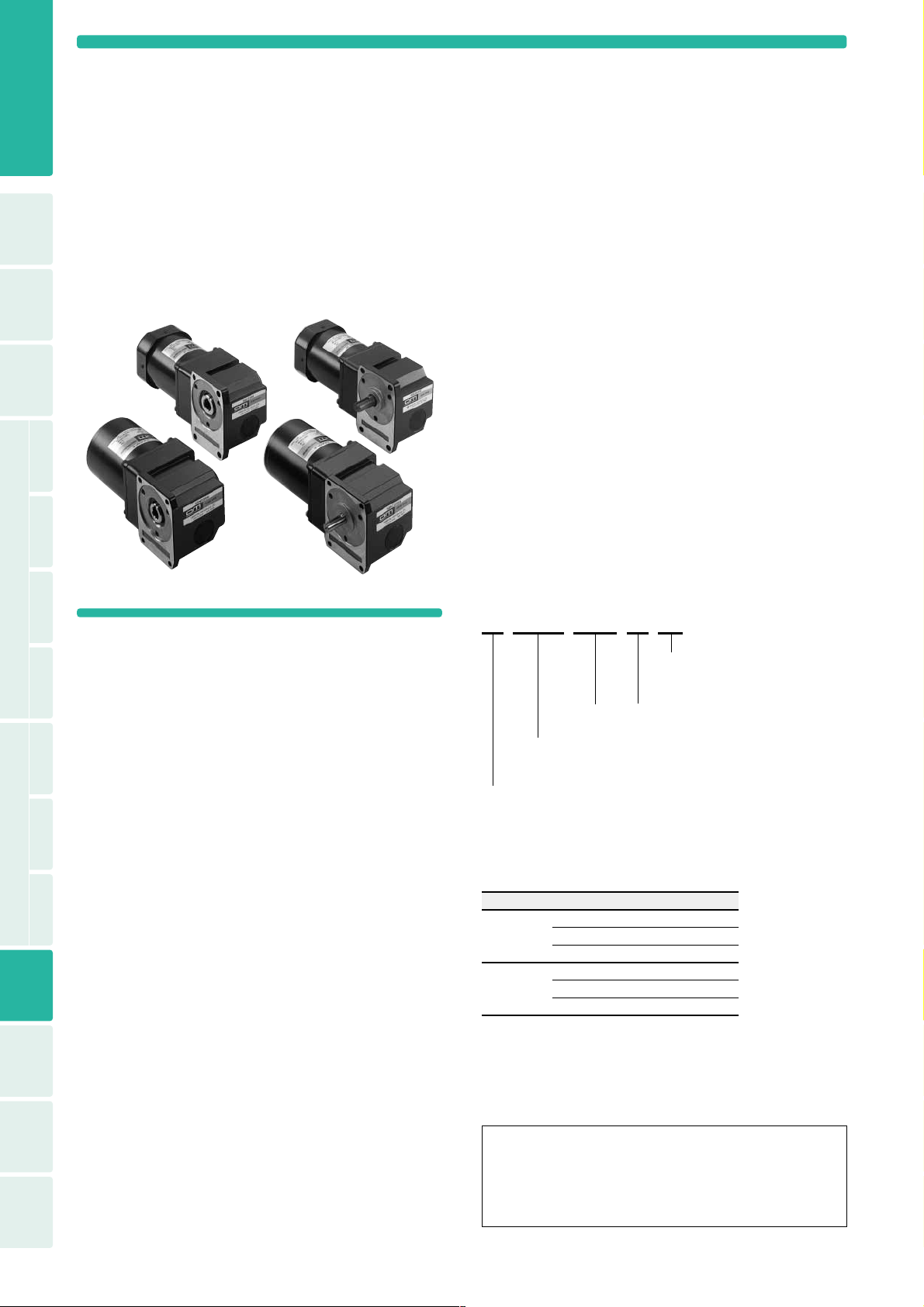

Right-Angle gearheads are flange-mounted
gearheads that use worm gears and special
helical gears. They allow motors to be installed at
right angles to the axis of equipment such as belt
conveyors. They are available in hollow shaft RH
and solid shaft RA models and are ideal for
keeping equipment compact.
Product Number Code
Types
Gear Ratio
GN : GN pinion
GU : GU pinion
Gearhead Frame Size
4 : 80mmsq.
5 : 90mmsq.
Features
●Right angle gearheads with mounting sizes of 80 mm (for
25W) or 90 mm (for 40 W) are available for GN pinion and
mounting sizes of 90 mm (for 60 or 90 W) are available for
GU pinion. They can be connected to all Oriental Motor AC
motors with the exception of BH, FBL2, HBL, FPW series.
●The output shaft is perpendicular to the motor shaft, so the
motor can be installed perpendicular to the axis being driven.
●Eleven available models span gear ratios are available from 3
:1 to 150：1,offering tremendous selection. The optimum
gear ratio can be selected just as with ordinary gearheads.
The maximum permissible torques are also the same as for
ordinary gearheads.
●Hollow shaft gearheads allow additional space savings and
simpler mechanism designs since they do not require
couplings for mounting. Usually, hollow shaft gearheads are
locked with a torque arm when mounted so the gearhead
does not rotate from the reactive force of the load. When
mounted with a torque arm, no centering is needed, so it is
faster to mount the gearhead on the device.
R : Right Angle Gearhead
Type of shaft
H : Hollow type
A : Solid type
Model
4GN3RH 〜4GN150RH
5GN3RH 〜5GN150RH
5GU3RH 〜5GU150RH
4GN3RA 〜4GN150RA
5GN3RA 〜5GN150RA
5GU3RA 〜5GU150RA
Type of shaft
Hollow shaft
Solid shaft
Output Torque of Gearmotor
The output torque when a gearhead is directly connected is
calculated as follows :
● Torque……TG TMi
TG : Output Torque at Gear Shaft [N.m]
T
M : Motor Torque [N
.
m]
i : Gear Ratio of Gearhead
: Gearhead Efficiency
Page 5
A-181
ORIENTAL MOTOR GENERAL CATALOGUE
Standard AC Motors
Induction
Motors
Reversible
Motors
Electromagnetic
Brake Motors
FBL2 AXU AXH
HBL MSS · W ES US
Gearheads
Linear Heads
Water Tight
Motors FPW
Accessories
Brushless Motor and Driver AC Speed Control Motors
Specifications
✽Overhung load values for hollow shaft models are distances from the flange mounting surface.
● Enter the gear ratio in the box (□) within the model name.
Note : Unlike most worm gear mechanisms, the right-angle gear does not have self-locking capabilities.
Gearhead Efficiency
The permissible torques shown on the following page cover most motor combinations. For motor combinations
not covered, use the efficiency value in the table below for your calculations.
When making a selection, remember that the transfer efficiency at startup is lower than at the rated speed.
Gearhead Model
4GN □RH
5GN □RH
5GU □RH
4GN □RA
5GN □RA
5GU □RA
Gear Ratio
3 〜150
3 〜150
3 〜150
3 〜15
25 〜150
3 〜15
25 〜150
3 〜7.5
12.5 〜25
30 〜150
Maximum Permissible Torque
N･m
8
10
20
8
10
20
10mm from shaft end
250✽
350✽
560✽
100
200
250
300
400
450
500
20mm from shaft end
220✽
310✽
500✽
150
300
350
450
500
600
700
Permissible Overhung Load N Permissible Thrust Load
N
100
200
250
100
200
250

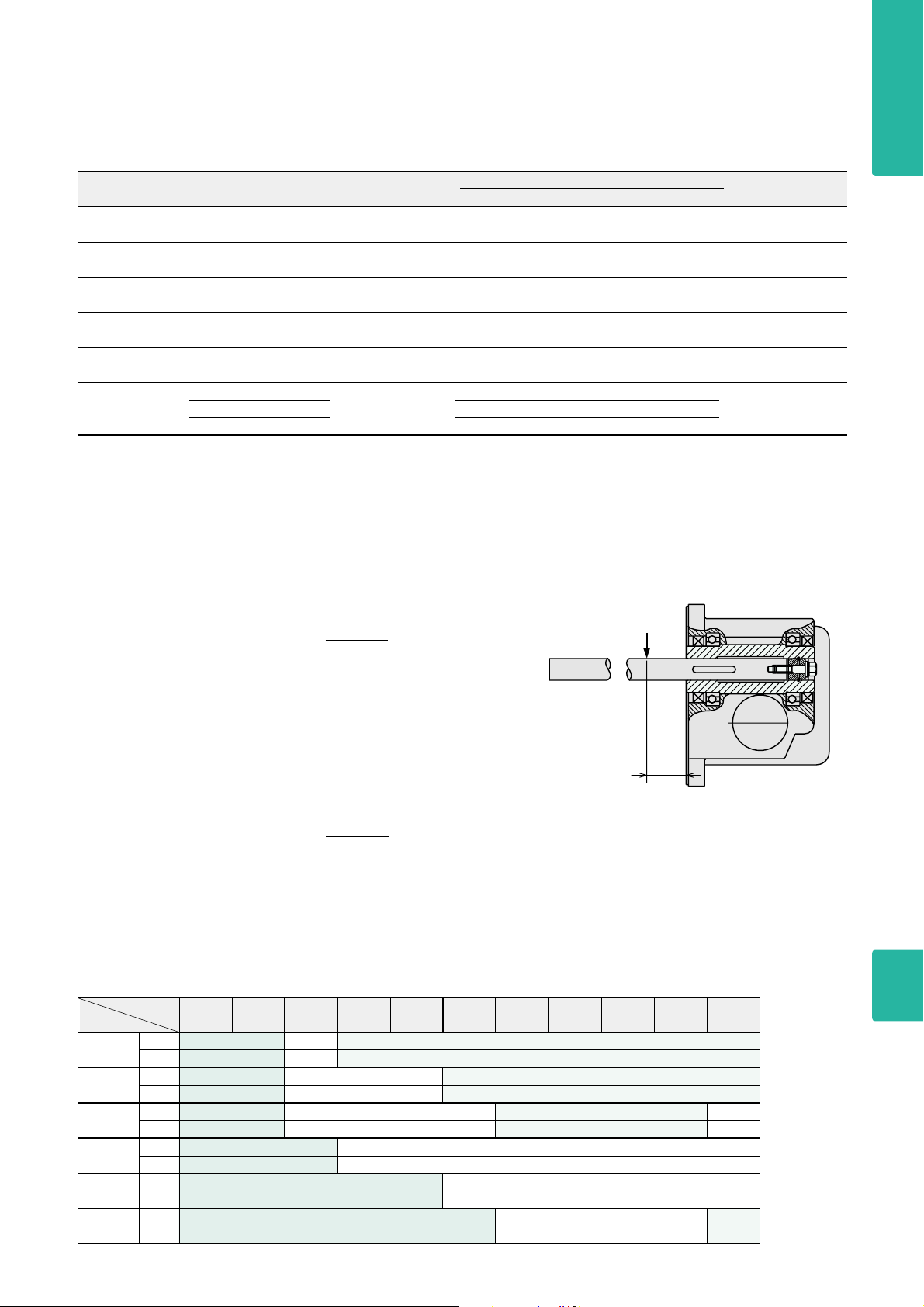

Calculating permissible overhung load for hollow shaft models
Lp〔mm〕：Distance from flange mounting surface
to overhung load point
Lp
Load point
When the end of the shaft being driven is supported as in the figure below, calculate the permissible overhung load using the following equations.
(This mechanism is the most demanding in terms of overhung load.)
5GNRH
70
Permissible overhung load W〔N〕＝
70＋Lp
× 400〔N〕
✽
4GNRH
59.5
Permissible overhung load W〔N〕＝
59.5＋Lp
× 295〔N〕
✽
✽
295〔N〕：Permissible overhung load at
flange mounting surface
5GURH
68.5
Permissible overhung load W〔N〕＝
68.5＋Lp
×645〔N〕
✽
✽
645〔N〕：Permissible overhung load at
flange mounting surface
✽
400〔N〕：Permissible overhung load at
flange mounting surface
60％
50％
45％
60％
54％
60％
54％
60％
54％
45％
50％
54％
60％
54％
60％
68％
60％
50％
50％
68％
60％
Rating
Start up
Rating
Start up
Rating
Start up
Rating
Start up
Rating
Start up
Rating
Start up
4GN □RH
5GN □RH
5GU □RH
4GN □RA
5GN □RA
5GU □RA
3 5 7.5 12.5 15 25 30 50 75 100 150
68％
60％
68％
Gear Ratio
Gearhead Model
40％
40％
50％
50％
50％
50％
50％
50％
60％
54％
